SLEIPNER MOTOR AS Side-Power SH 700/ 412 TC User manual

Keep this
manual onboard !
NInstallasjon og brukermanual
Installation and user's manual
EN
Made in Norway
©Sleipner Motor AS 2019
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
www.side-power.com
SH 700/ 412 TC
SH 1000/513 TC
SH 1400/610 TC
Mechanical thruster installation only
SIDE-POWER
Thruster Systems
Document id: 2734
Revision: 14

SH700/412 & SH1000/513TC & SH1400/610TC 2
INSTALLATION INSTRUCTIONS
Technical specications............................................................. 3
Requirements / Hydraulic hose connections to motor............... 4
Performance table ..................................................................... 5
Planning & important precautions.............................................. 6
Tunnel installation
Positioning of the tunnel / thruster ............................................ 7
Water Deection ....................................................................... 8
Tunnel Length ........................................................................... 9
Tunnel Ends ........................................................................... 10
Tunnel installation in sailboats................................................. 11
Tunnel installation............................................................. 12 - 13
Thruster installation
Gearhouse and motorbracket.......................................... 14 - 16
Propeller installation ........................................................ 17 - 19
Fitting the hydraulic motor and coupling.................................. 20
Fitting oil tank .......................................................................... 21
Maintenance & service .............................................................22
Checklist for control of the installation..................................... 23
USER'S MANUAL
Important user precautions.......................................................24
How to use Side-Power thrusters............................................ 24
Warranty statement .............................................................. 25
Spareparts list & drawing ............................................ 26 - 27
Contents
EN
SAMSVARSERKLÆRING
Sleipner Motor AS
P.O. Box 519, Arne Svendsensgt. 6-8
N-1612 Fredrikstad, Norway
Erklærer at dette produktet med tilhørende
standard kontrollsystemer er i samsvar med
helse, og sikkerhetskravene i henhold til:
DIRECTIVE 2013/53/EU
DIRECTIVE 2014/30/EU
DIRECTIVE 2014/35/EU
DECLARATION OF CONFORMITY
Sleipner Motor AS
P.O. Box 519, Arne Svendsensgt. 6-8
N-1612 Fredrikstad, Norway
Declare that this product with accompanying
standard remote control systems complies with
the essential health and safety requirements
according to:
DIRECTIVE 2013/53/EU
DIRECTIVE 2014/30/EU
DIRECTIVE 2014/35/EU

SH700/412 & SH1000/513TC & SH1400/610TC 3

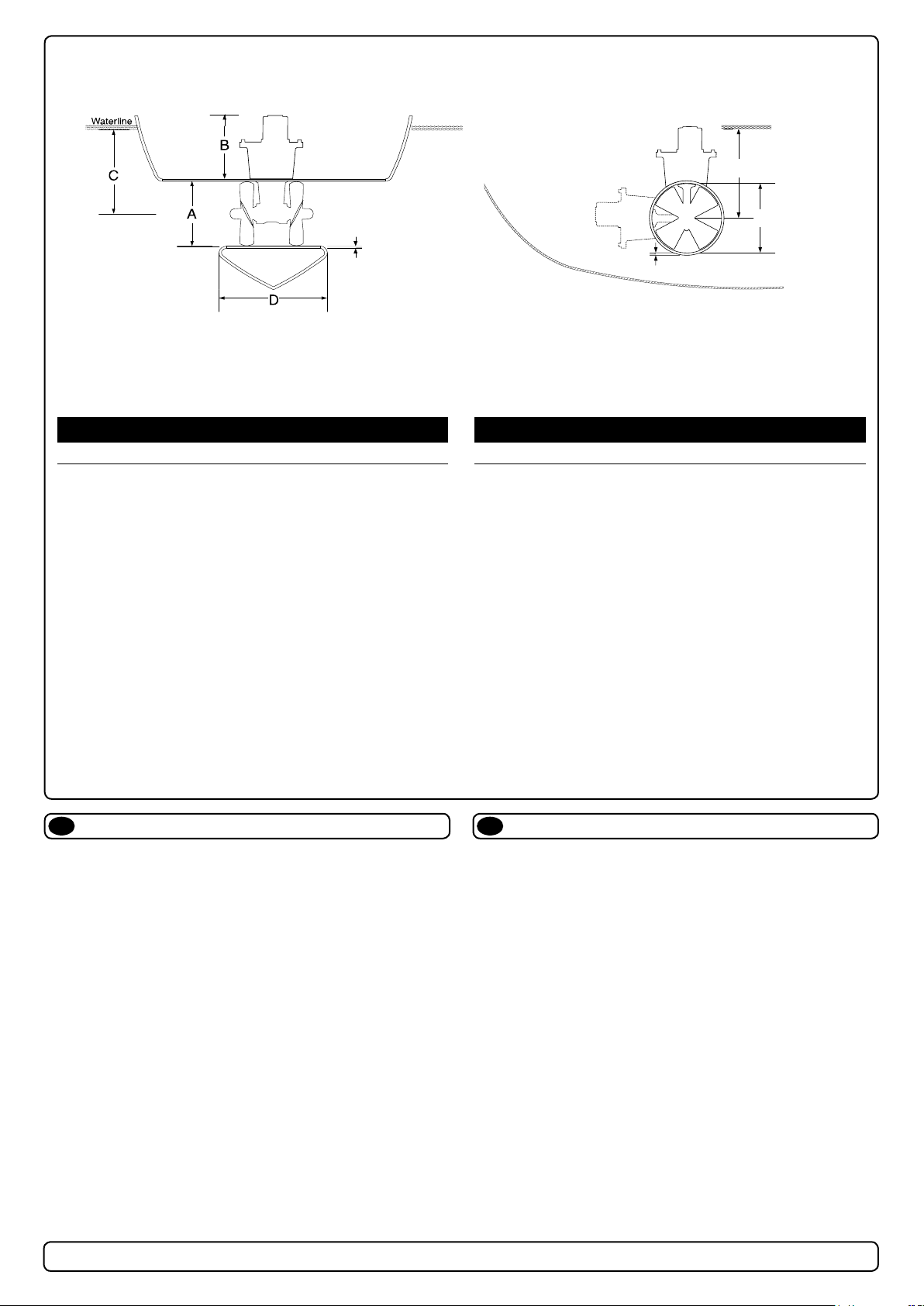

Technical specications
EN
SH 700 SH1000 SH1400
Light duty thrust [kg] - 1200 1600
Heavy duty thrust [kg] 700 1000 1400
A [mm] 412 513 610
B [mm] 450 486 500
C recommended. [mm] 620 750 900
D min. [mm] 550 750 750
D recommended [mm] 800 1000 1000
Erecommended [mm] 16 16 18
E min/max. [mm] 12/16 12/22 14/24
Hydraulic power [kW] 45 62 82
Gear oil capacity [ml] 1000 4500 4500
Note: E recommended.: wall thickness of a standard Side-Power tunnel
E min/max: minimum/maximum wall thickness when using
other GRP, steel or aluminium tunnels
Tekniske data
N
Motor: Hydraulic type (specications next page)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil GL-5)
Bearings: Angular contact ball bearing at propellershaft
and combination of ball bearing and needle
bearing at driveshaft.
Material: Seawater resistant bronze, protected with
anodes
Motor bracket: Seawater resistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical Bronze 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety: Flexible coupling between hydraulic motor and
driveshaft protects gear system against peak
loads.
SH 700 SH1000 SH1400
Light duty thrust [lbs] - 2646 3527
Heavy duty thrust [lbs] 1543.23 2205 3086
A [in] 16.2 20.2 24
B [in] 17.7 19.1 19.7
C recommended. [in] 24.4 29.5 32.7
D min. [in] 21.6 29.5 29.5
D recommended [in] 31.5 39.4 39.4
E recommended [in] .63 0.63 0.71
E min/max. [in] .47/.63 0.47/0.87 0.55/0.94
Hydraulic power [Hp] 60.34 83 110
Gear oil capacity [.oz] 33.8 152.2 152.2
Note: Emin.: wall thickness of a standard Side-Power tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALMETRIC
Motor: Hydraulisk type (spesikasjoner neste side).
Girhus: Sjøvannsbestandig bronsje.
Tannhjul: Herdede presisjonstannhjul
Smøring: Oljebad fra tank (GL-5 girolje)
Lager: Vinklede kulelager på propellaksel og kombinas-
jon av kulelager og nålelager på drivaksel
Material: Sjøvannsbestandig bronse, med anodebeskyt-
telse
Motorbrakett: Sjøvannsbestandig aluminium.
Tunnel: Kryssvevet glassber.
Aluminium og ståltunnel på forespørsel.
Propell: Symmetrisk 5-blads skewback "Q-prop" propell i
sjøvannsbestandig bronsje
Kontrollpanel: Ikke inkludert som standard
Sikkerhet: Fleksibel kobling mellom hydraulisk motor og
girhus beskytter drivsystemet mot overbelast-
ning
SIDE-POWER THRUSTER SYSTEMS
Technical specications
CONFIDENCE BY CONTROL
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Technical specications
GB
SH100 SH160 SH240 SP300 SP550
Light duty thrust [kg] 100 160 220 300 550
Heavy duty thrust [kg] 80 140 200 270 500
A [mm] 185 215 250 300 386
B [mm] 215 230 235 245 369
C min. [mm] 200 215 250 300 380
D [mm] 170 280 300 300 500
D recommended [mm] 340 560 600 600 750
Emin. [mm] 6 6 7 10 750
Emax. [mm] 8 8 10 13 10
F [mm] 165 172 195 195 298
G [mm] 256 300 360 420 540
H max. [mm]
Hydraulic power [kW] 8,1 13,1 18,7 23 42,3
Propeller output [kW] 6,5 11,0 15 18,4 33
Gear oil capacity [ml] --- --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, breglass
reinforced composite.
SH100/SH160/SH240: 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasbertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 ügelige Kaplanpropeller aus
Glasberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
3
SH100 SH160 SH240 SP300 SP550
Light duty thrust [lbs] 220 352 484 660 550
Heavy duty thrust [lbs] 176 308 440 594 500
A [in] 7,28 8.46 9,84 11,8 386
B [in] 8,50 9.05 9,30 9,60 369
C min. [in] 7,87 8.5 9,84 11,8 380
D [in] 6,70 11 11,8 11,8 500
D recommended [in] 13,4 22 23,6 23,6 29,5
Emin. [in] 0,24 0.24 0,28 0,39 0,39
Emax. [in] 0,31 0.31 0,39 0,51 0,59
F [mm] 6,5 6.75 7,75 7,75 11,75
G [mm] 10,1 11.8 14,2 16,5 21,3
H max. [mm]
Hydraulic power [Hp] 10,9 17.5 25,1 30,8 56,7
Propeller output [Hp] 8,7 14.8 20,1 24,7 44,3
Gear oil capacity [.oz] --- --- 6,76 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALMETRIC
Waterline
G
C
H
max
F
Technical specifications
GB
Port side Starboard side
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [kg] 100 220 300 550
Heavy duty thrust [kg] 80 200 270 500
A [mm] 185 250 300 386
B [mm] 215 235 245 369
Cmin. [mm] 200 250 300 380
D [mm] 170 300 300 500
Drecommended [mm] 340 600 600 750
Emin. [mm] 6 7 10 750
Emax. [mm] 8 10 13 10
F [mm] 165 195 195 298
G [mm] 256 360 420 540
Hmax. [mm]
Hydraulic power [kW] 8,1 18,7 23 42,3
Propeller output [kW] 6,5 15 18,4 33
Gear oil capacity [ml] --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, fibreglass
reinforced composite.
SH100/185T: 5-blade skew " Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.4 - 2007 3
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [lbs] 220 484 660 550
Heavy duty thrust [lbs] 176 440 594 500
A [in] 7,28 9,84 11,8 386
B [in] 8,50 9,30 9,60 369
Cmin. [in] 7,87 9,84 11,8 380
D [in] 6,70 11,8 11,8 500
Drecommended [in] 13,4 23,6 23,6 29,5
Emin. [in] 0,24 0,28 0,39 0,39
Emax. [in] 0,31 0,39 0,51 0,59
F [mm] 6,5 7,75 7,75 11,75
G [mm] 10,1 14,2 16,5 21,3
Hmax. [mm]
Hydraulic power [Hp] 10,9 25,1 30,8 56,7
Propeller output [Hp] 8,7 20,1 24,7 44,3
Gear oil capacity [fl.oz] --- 6,763 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALIMPERIAL
IMPERIALIMPERIAL
IMPERIAL
METRICMETRIC
METRICMETRIC
METRIC
8 8 8 8 8 8 8 8
E
C
Waterline
A
E
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Technical specications
GB
SH100 SH160 SH240 SP300 SP550
Light duty thrust [kg] 100 160 220 300 550
Heavy duty thrust [kg] 80 140 200 270 500
A [mm] 185 215 250 300 386
B [mm] 215 230 235 245 369
C min. [mm] 200 215 250 300 380
D [mm] 170 280 300 300 500
D recommended [mm] 340 560 600 600 750
Emin. [mm] 6 6 7 10 750
Emax. [mm] 8 8 10 13 10
F [mm] 165 172 195 195 298
G [mm] 256 300 360 420 540
H max. [mm]
Hydraulic power [kW] 8,1 13,1 18,7 23 42,3
Propeller output [kW] 6,5 11,0 15 18,4 33
Gear oil capacity [ml] --- --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, breglass
reinforced composite.
SH100/SH160/SH240: 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasbertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 ügelige Kaplanpropeller aus
Glasberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
3
SH100 SH160 SH240 SP300 SP550
Light duty thrust [lbs] 220 352 484 660 550
Heavy duty thrust [lbs] 176 308 440 594 500
A [in] 7,28 8.46 9,84 11,8 386
B [in] 8,50 9.05 9,30 9,60 369
C min. [in] 7,87 8.5 9,84 11,8 380
D [in] 6,70 11 11,8 11,8 500
D recommended [in] 13,4 22 23,6 23,6 29,5
Emin. [in] 0,24 0.24 0,28 0,39 0,39
Emax. [in] 0,31 0.31 0,39 0,51 0,59
F [mm] 6,5 6.75 7,75 7,75 11,75
G [mm] 10,1 11.8 14,2 16,5 21,3
H max. [mm]
Hydraulic power [Hp] 10,9 17.5 25,1 30,8 56,7
Propeller output [Hp] 8,7 14.8 20,1 24,7 44,3
Gear oil capacity [.oz] --- --- 6,76 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALMETRIC
Waterline
G
C
H
max
F
Technical specifications
GB
Port side Starboard side
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [kg] 100 220 300 550
Heavy duty thrust [kg] 80 200 270 500
A [mm] 185 250 300 386
B [mm] 215 235 245 369
Cmin. [mm] 200 250 300 380
D [mm] 170 300 300 500
Drecommended [mm] 340 600 600 750
Emin. [mm] 6 7 10 750
Emax. [mm] 8 10 13 10
F [mm] 165 195 195 298
G [mm] 256 360 420 540
Hmax. [mm]
Hydraulic power [kW] 8,1 18,7 23 42,3
Propeller output [kW] 6,5 15 18,4 33
Gear oil capacity [ml] --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, fibreglass
reinforced composite.
SH100/185T: 5-blade skew " Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.4 - 2007 3
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [lbs] 220 484 660 550
Heavy duty thrust [lbs] 176 440 594 500
A [in] 7,28 9,84 11,8 386
B [in] 8,50 9,30 9,60 369
Cmin. [in] 7,87 9,84 11,8 380
D [in] 6,70 11,8 11,8 500
Drecommended [in] 13,4 23,6 23,6 29,5
Emin. [in] 0,24 0,28 0,39 0,39
Emax. [in] 0,31 0,39 0,51 0,59
F [mm] 6,5 7,75 7,75 11,75
G [mm] 10,1 14,2 16,5 21,3
Hmax. [mm]
Hydraulic power [Hp] 10,9 25,1 30,8 56,7
Propeller output [Hp] 8,7 20,1 24,7 44,3
Gear oil capacity [fl.oz] --- 6,763 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALIMPERIAL
IMPERIALIMPERIAL
IMPERIAL
METRICMETRIC
METRICMETRIC
METRIC
8 8 8 8 8 8 8 8
E
C
Waterline
A
E
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Technical specifications
GB
SH100 SH160 SH240 SP300 SP550
Light duty thrust [kg] 100 160 220 300 550
Heavy duty thrust [kg] 80 140 200 270 500
A [mm] 185 215 250 300 386
B [mm] 215 230 235 245 369
C min. [mm] 200 215 250 300 380
D [mm] 170 280 300 300 500
D recommended [mm] 340 560 600 600 750
Emin. [mm] 6 6 7 10 750
Emax. [mm] 8 8 10 13 10
F [mm] 165 172 195 195 298
G [mm] 256 300 360 420 540
H max. [mm]
Hydraulic power [kW] 8,1 13,1 18,7 23 42,3
Propeller output [kW] 6,5 11,0 15 18,4 33
Gear oil capacity [ml] --- --- 200 250 ---
Note: Emin.: llaw thickness of a standard Sidepower tunnel
Emax.: mumixam wall thickness when using other GRP,
leets or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, fibreglass
reinforced composite.
SH100/SH160/SH240: 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
3
SH100 SH160 SH240 SP300 SP550
Light duty thrust [lbs] 220 352 484 660 550
Heavy duty thrust [lbs] 176 308 440 594 500
A [in] 7,28 8.46 9,84 11,8 386
B [in] 8,50 9.05 9,30 9,60 369
C min. [in] 7,87 8.5 9,84 11,8 380
D [in] 6,70 11 11,8 11,8 500
D recommended [in] 13,4 22 23,6 23,6 29,5
Emin. [in] 0,24 0.24 0,28 0,39 0,39
Emax. [in] 0,31 0.31 0,39 0,51 0,59
F [mm] 6,5 6.75 7,75 7,75 11,75
G [mm] 10,1 11.8 14,2 16,5 21,3
H max. [mm]
Hydraulic power [Hp] 10,9 17.5 25,1 30,8 56,7
Propeller output [Hp] 8,7 14.8 20,1 24,7 44,3
Gear oil capacity [fl.oz] --- --- 6,76 8,45 ---
Note: Emin.: llaw thickness of a standard Sidepower tunnel
Emax.: mumixam wall thickness when using other GRP,
leets or aluminium tunnels
IMPERIALMETRIC
Waterline
G
C
H
max
Technical specifications
GB
Port side Starboard side
SH100/185T SP 220HYD SP300HYD SP550HYD
Light duty thrust [kg] 100220300550
Heavy duty thrust [kg] 80 200270500
A [mm]185250300386
B [mm]215235245369
Cmin.[mm]200250300380
D [mm]170300300500
Drecommended[mm]340600600750
Emin. [mm] 6 7 10 750
Emax.[mm] 8 10 13 10
F [mm]165195195298
G [mm]256360420540
Hmax.[mm]
Hydraulic power [kW] 8,118,7 23 42,3
Propeller output [kW]6,5 15 18,4 33
Gear oil capacity [ml]---200250---
Note: E
min.:wall thickness of a standard Sidepower tunnel
Emax.:maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ballbearing at propellershaft and
combination ofballbearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze,protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4blade kaplan propeller,fibreglass
reinforced composite.
SH100/185T: 5-blade skew "Q-PROP"
Control panel:Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem ifpropeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze,durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel aufAnfrage.
Propeller: Symmetrische,4flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel:Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD
2.4 - 20073
SH100/185T SP 220HYD SP300HYD SP550HYD
Light duty thrust [lbs] 220484660550
Heavy duty thrust [lbs] 176440594500
A [in] 7,289,8411,8386
B [in] 8,509,309,60369
Cmin.[in] 7,879,8411,8380
D [in] 6,7011,811,8500
Drecommended[in] 13,423,623,629,5
Emin. [in] 0,240,280,390,39
Emax.[in] 0,310,390,510,59
F [mm]6,57,75 7,75 11,75
G [mm]10,114,216,521,3
Hmax.[mm]
Hydraulic power [Hp] 10,925,130,856,7
Propeller output [Hp] 8,720,124,744,3
Gear oil capacity [.oz] ---6,7638,45---
Note: E
min.:wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERI A LI MPERI A L
IMPERI A LI MPERI A L
IMPERI A L
METRI CMETRI C
METRI CMETRI C
METRI C
8 8 8 8 8 8 8 8
E
C
Waterline
A
E
160 • 352
140 • 308
35’ - 62’ • 11 - 19
215 • 8.46’’
Twin
10.0 • 13.4
10.5 • 23
SH160/215T-xxx
SH 160/215 T
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight *(kg • lbs)
Item Code
Measurements
A (mm • in) 215 • 8.46
B (mm • in) 195 • 7.64
B max. (mm • in) 230 • 9.05
C min. (mm • in) 215 • 8.5
D (mm • in) 280 • 11
D
recommended (mm • in) 560 • 22
E min. (mm • in) 6 • 0.24
E max. (mm • in) 8 • 0.31
Stern Thrusters
F (mm•in) 172•76.72
G (mm•in) 300•11,8
C min. (mm•in) 215•8.46
H max. (mm•in) 54•2.13
Tunnel length (mm•in) 330•13
Item code:
Stern thruster kit 90135i
Cowls 90136
SH 240/250 TC
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight* (kg • lbs)
Item Code
SH 350/300 TC
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight *(kg • lbs)
Item Code
Measurements
A (mm • in) 250 • 9.84
B (mm • in) 213 • 8.38
B max. (mm • in) 230 • 9.05
C min. (mm • in) 230 • 9.0
D (mm • in) 280 • 11
D
recommended (mm • in) 560 • 22
E min. (mm • in) 7 • 0.28
E max. (mm • in) 10 • 0.39
Measurements
A (mm • in) 300 • 11.81
B (mm • in) 250 • 9.84
B max. (mm • in) 300 • 11.81
C min. (mm • in) 350 • 13.78
D (mm • in) 370 • 14.57
D
recommended (mm • in) 720 • 28.35
E min. (mm • in) 10 • 0.39
E max. (mm • in) 10 • 0.39
Stern Thrusters
F (mm•in) 91•7.52
G (mm•in) 340•13.39
C min. (mm•in) 250•9.84
H max. (mm•in) 60•2.36
Tunnel length (mm•in) 350•13.78
Item code:
Stern thruster kit 90140i
Cowls 90132
Stern Thrusters
F (mm•in) 225•8.86
G (mm•in) 340•13.39
C min. (mm•in) 350•13.78
H max. (mm•in) 60•2.36
Tunnel length (mm•in) 350•13.78
Item code:
Stern thruster kit 90200i
Cowls 90220
240 • 528
220 • 440
42’ - 75’ • 13 - 23
250 • 9.8’’
Twin Counter rot.
14.9 • 20.0
15.9 • 35.0
SH240/250TC-xxx
350 • 771
350 • 771
60’ - 120’ • 18 - 36
300 • 11.8’’
Twin Counter rot.
21.2 • 28.4
40± • 88.2
SH350/300TC-xxx
SH 100/185 T
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight* (kg • lbs)
Item Code
Measurements
A (mm • in) 185 • 7.28
B (mm • in) 195 • 7.64
B max. (mm • in) 212 • 8.34
C min. (mm • in) 200 • 7.87
D (mm • in) 170 • 6.70
D
recommended (mm • in) 340 • 13.4
E min. (mm • in) 6 • 0.24
E max. (mm • in) 8 • 0.31
Stern Thrusters
F (mm•in) 172•76.72
G (mm•in) 256•10.08
C min. (mm•in) 150•5.91
H max. (mm•in) 35•1.38
Tunnel length (mm•in) 337•13.27
Item code:
Stern thruster kit 90086i
Cowls - short model 90075
Cowls - long model 90077
100 • 220
80 • 176
30’ - 34’ • 9 - 16
185 • 7.28’’
Twin
6.9 • 9.3
9.0 • 19.8
SH100/185T-xxx
* weight depending on hyd. motor
SP 300 HYD
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight* (kg • lbs)
Item Code
Measurements
A (mm • in) 300 • 11.81
B (mm • in) 220 • 8.66
B max. (mm • in) 244 • 9.61
C min. (mm • in) 300 • 11.81
D (mm • in) 300 • 11.81
D
recommended (mm • in) 600 • 23.6
E min. (mm • in) 10 • 0.39
E max. (mm • in) 10 • 0.39
Stern Thrusters
F (mm•in) 195•7.68
G (mm•in) 420•16.54
C min. (mm•in) 300•11.81
H max. (mm•in) 60•2.36
Tunnel length (mm•in) 456•17.95
Item code:
Stern thruster kit 90200i
Cowls 90220
300 • 660
270 • 594
55’ - 100’ • 17 - 31
300 • 11.8’’
Twin Counter rot.
17.4 • 23.3
19.5 • 42.9
SP300HYD-xxx
COMING SOON
SIDE-POWER THRUSTER SYSTEMS
Technical specications
CONFIDENCE BY CONTROL
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Technical specications
GB
SH100 SH160 SH240 SP300 SP550
Light duty thrust [kg] 100 160 220 300 550
Heavy duty thrust [kg] 80 140 200 270 500
A [mm] 185 215 250 300 386
B [mm] 215 230 235 245 369
C min. [mm] 200 215 250 300 380
D [mm] 170 280 300 300 500
D recommended [mm] 340 560 600 600 750
Emin. [mm] 6 6 7 10 750
Emax. [mm] 8 8 10 13 10
F [mm] 165 172 195 195 298
G [mm] 256 300 360 420 540
H max. [mm]
Hydraulic power [kW] 8,1 13,1 18,7 23 42,3
Propeller output [kW] 6,5 11,0 15 18,4 33
Gear oil capacity [ml] --- --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, breglass
reinforced composite.
SH100/SH160/SH240: 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasbertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 ügelige Kaplanpropeller aus
Glasberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
3
SH100 SH160 SH240 SP300 SP550
Light duty thrust [lbs] 220 352 484 660 550
Heavy duty thrust [lbs] 176 308 440 594 500
A [in] 7,28 8.46 9,84 11,8 386
B [in] 8,50 9.05 9,30 9,60 369
C min. [in] 7,87 8.5 9,84 11,8 380
D [in] 6,70 11 11,8 11,8 500
D recommended [in] 13,4 22 23,6 23,6 29,5
Emin. [in] 0,24 0.24 0,28 0,39 0,39
Emax. [in] 0,31 0.31 0,39 0,51 0,59
F [mm] 6,5 6.75 7,75 7,75 11,75
G [mm] 10,1 11.8 14,2 16,5 21,3
H max. [mm]
Hydraulic power [Hp] 10,9 17.5 25,1 30,8 56,7
Propeller output [Hp] 8,7 14.8 20,1 24,7 44,3
Gear oil capacity [.oz] --- --- 6,76 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALMETRIC
Waterline
G
C
H
max
F
Technical specifications
GB
Port side Starboard side
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [kg] 100 220 300 550
Heavy duty thrust [kg] 80 200 270 500
A [mm] 185 250 300 386
B [mm] 215 235 245 369
Cmin. [mm] 200 250 300 380
D [mm] 170 300 300 500
Drecommended [mm] 340 600 600 750
Emin. [mm] 6 7 10 750
Emax. [mm] 8 10 13 10
F [mm] 165 195 195 298
G [mm] 256 360 420 540
Hmax. [mm]
Hydraulic power [kW] 8,1 18,7 23 42,3
Propeller output [kW] 6,5 15 18,4 33
Gear oil capacity [ml] --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, fibreglass
reinforced composite.
SH100/185T: 5-blade skew " Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.4 - 2007 3
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [lbs] 220 484 660 550
Heavy duty thrust [lbs] 176 440 594 500
A [in] 7,28 9,84 11,8 386
B [in] 8,50 9,30 9,60 369
Cmin. [in] 7,87 9,84 11,8 380
D [in] 6,70 11,8 11,8 500
Drecommended [in] 13,4 23,6 23,6 29,5
Emin. [in] 0,24 0,28 0,39 0,39
Emax. [in] 0,31 0,39 0,51 0,59
F [mm] 6,5 7,75 7,75 11,75
G [mm] 10,1 14,2 16,5 21,3
Hmax. [mm]
Hydraulic power [Hp] 10,9 25,1 30,8 56,7
Propeller output [Hp] 8,7 20,1 24,7 44,3
Gear oil capacity [fl.oz] --- 6,763 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALIMPERIAL
IMPERIALIMPERIAL
IMPERIAL
METRICMETRIC
METRICMETRIC
METRIC
8 8 8 8 8 8 8 8
E
C
Waterline
A
E
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Technical specications
GB
SH100 SH160 SH240 SP300 SP550
Light duty thrust [kg] 100 160 220 300 550
Heavy duty thrust [kg] 80 140 200 270 500
A [mm] 185 215 250 300 386
B [mm] 215 230 235 245 369
C min. [mm] 200 215 250 300 380
D [mm] 170 280 300 300 500
D recommended [mm] 340 560 600 600 750
Emin. [mm] 6 6 7 10 750
Emax. [mm] 8 8 10 13 10
F [mm] 165 172 195 195 298
G [mm] 256 300 360 420 540
H max. [mm]
Hydraulic power [kW] 8,1 13,1 18,7 23 42,3
Propeller output [kW] 6,5 11,0 15 18,4 33
Gear oil capacity [ml] --- --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, breglass
reinforced composite.
SH100/SH160/SH240: 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasbertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 ügelige Kaplanpropeller aus
Glasberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
3
SH100 SH160 SH240 SP300 SP550
Light duty thrust [lbs] 220 352 484 660 550
Heavy duty thrust [lbs] 176 308 440 594 500
A [in] 7,28 8.46 9,84 11,8 386
B [in] 8,50 9.05 9,30 9,60 369
C min. [in] 7,87 8.5 9,84 11,8 380
D [in] 6,70 11 11,8 11,8 500
D recommended [in] 13,4 22 23,6 23,6 29,5
Emin. [in] 0,24 0.24 0,28 0,39 0,39
Emax. [in] 0,31 0.31 0,39 0,51 0,59
F [mm] 6,5 6.75 7,75 7,75 11,75
G [mm] 10,1 11.8 14,2 16,5 21,3
H max. [mm]
Hydraulic power [Hp] 10,9 17.5 25,1 30,8 56,7
Propeller output [Hp] 8,7 14.8 20,1 24,7 44,3
Gear oil capacity [.oz] --- --- 6,76 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALMETRIC
Waterline
G
C
H
max
F
Technical specifications
GB
Port side Starboard side
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [kg] 100 220 300 550
Heavy duty thrust [kg] 80 200 270 500
A [mm] 185 250 300 386
B [mm] 215 235 245 369
Cmin. [mm] 200 250 300 380
D [mm] 170 300 300 500
Drecommended [mm] 340 600 600 750
Emin. [mm] 6 7 10 750
Emax. [mm] 8 10 13 10
F [mm] 165 195 195 298
G [mm] 256 360 420 540
Hmax. [mm]
Hydraulic power [kW] 8,1 18,7 23 42,3
Propeller output [kW] 6,5 15 18,4 33
Gear oil capacity [ml] --- 200 250 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, fibreglass
reinforced composite.
SH100/185T: 5-blade skew " Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.4 - 2007 3
SH100/185T SP220HYD SP300HYD SP550HYD
Light duty thrust [lbs] 220 484 660 550
Heavy duty thrust [lbs] 176 440 594 500
A [in] 7,28 9,84 11,8 386
B [in] 8,50 9,30 9,60 369
Cmin. [in] 7,87 9,84 11,8 380
D [in] 6,70 11,8 11,8 500
Drecommended [in] 13,4 23,6 23,6 29,5
Emin. [in] 0,24 0,28 0,39 0,39
Emax. [in] 0,31 0,39 0,51 0,59
F [mm] 6,5 7,75 7,75 11,75
G [mm] 10,1 14,2 16,5 21,3
Hmax. [mm]
Hydraulic power [Hp] 10,9 25,1 30,8 56,7
Propeller output [Hp] 8,7 20,1 24,7 44,3
Gear oil capacity [fl.oz] --- 6,763 8,45 ---
Note: Emin.: wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERIALIMPERIAL
IMPERIALIMPERIAL
IMPERIAL
METRICMETRIC
METRICMETRIC
METRIC
8 8 8 8 8 8 8 8
E
C
Waterline
A
E
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Technical specifications
GB
SH100 SH160 SH240 SP300 SP550
Light duty thrust [kg] 100 160 220 300 550
Heavy duty thrust [kg] 80 140 200 270 500
A [mm] 185 215 250 300 386
B [mm] 215 230 235 245 369
C min. [mm] 200 215 250 300 380
D [mm] 170 280 300 300 500
D recommended [mm] 340 560 600 600 750
Emin. [mm] 6 6 7 10 750
Emax. [mm] 8 8 10 13 10
F [mm] 165 172 195 195 298
G [mm] 256 300 360 420 540
H max. [mm]
Hydraulic power [kW] 8,1 13,1 18,7 23 42,3
Propeller output [kW] 6,5 11,0 15 18,4 33
Gear oil capacity [ml] --- --- 200 250 ---
Note: Emin.: llaw thickness of a standard Sidepower tunnel
Emax.: mumixam wall thickness when using other GRP,
leets or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ball bearing at propellershaft and
combination of ball bearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze, protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4 blade kaplan propeller, fibreglass
reinforced composite.
SH100/SH160/SH240: 5-blade skew "Q-PROP"
Control panel: Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem if propeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze, durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel auf Anfrage.
Propeller: Symmetrische, 4 flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel: Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
3
SH100 SH160 SH240 SP300 SP550
Light duty thrust [lbs] 220 352 484 660 550
Heavy duty thrust [lbs] 176 308 440 594 500
A [in] 7,28 8.46 9,84 11,8 386
B [in] 8,50 9.05 9,30 9,60 369
C min. [in] 7,87 8.5 9,84 11,8 380
D [in] 6,70 11 11,8 11,8 500
D recommended [in] 13,4 22 23,6 23,6 29,5
Emin. [in] 0,24 0.24 0,28 0,39 0,39
Emax. [in] 0,31 0.31 0,39 0,51 0,59
F [mm] 6,5 6.75 7,75 7,75 11,75
G [mm] 10,1 11.8 14,2 16,5 21,3
H max. [mm]
Hydraulic power [Hp] 10,9 17.5 25,1 30,8 56,7
Propeller output [Hp] 8,7 14.8 20,1 24,7 44,3
Gear oil capacity [fl.oz] --- --- 6,76 8,45 ---
Note: Emin.: llaw thickness of a standard Sidepower tunnel
Emax.: mumixam wall thickness when using other GRP,
leets or aluminium tunnels
IMPERIALMETRIC
Waterline
G
C
H
max
Technical specifications
GB
Port side Starboard side
SH100/185T SP 220HYD SP300HYD SP550HYD
Light duty thrust [kg] 100220300550
Heavy duty thrust [kg] 80 200270500
A [mm]185250300386
B [mm]215235245369
Cmin.[mm]200250300380
D [mm]170300300500
Drecommended[mm]340600600750
Emin. [mm] 6 7 10 750
Emax.[mm] 8 10 13 10
F [mm]165195195298
G [mm]256360420540
Hmax.[mm]
Hydraulic power [kW] 8,118,7 23 42,3
Propeller output [kW]6,5 15 18,4 33
Gear oil capacity [ml]---200250---
Note: E
min.:wall thickness of a standard Sidepower tunnel
Emax.:maximum wall thickness when using other GRP,
steel or aluminium tunnels
Technische Daten
D
Motor: Hydraulic type (specifications above)
Gear house: Seawater resistant bronze
Gears: Hardened precision gears
Lubrication: Oil bath from tank (gear oil EP 90)
Bearings: Angular contact ballbearing at propellershaft and
combination ofballbearing and needle bearing
at driveshaft.
Material: Seawater resistant bronze,protected with
zinc anode
Motor bracket: Seawaterresistant aluminium
Tunnel: Cross spun with rowing G.R.P tunnel
Steel & aluminum tunnels available at request.
Propellers: Symmetrical 4blade kaplan propeller,fibreglass
reinforced composite.
SH100/185T: 5-blade skew "Q-PROP"
Control panel:Not supplied as standard
Safety
: Flexible coupling between hydraulic-motor and
driveshaft protects gearsystem ifpropeller gets
jammed.
Motor: Hydraulisch (Technische Daten s.o.)
Getriebegeh.: Seewasserbeständige Bronze
Zahnräder: Gehärtete Präzisionsteile
Schmierung: Ölbad (Getriebeöl EP 90)
Lager: Winkelkontaktkugellager an der Propellerachse,
Kombination von Kugel- und Nadellager an der
Antriebsachse.
Material: Seewasserbeständige Bronze,durch Zink-
anoden vor Korrosion geschützt.
Motorhalterung: Seewasserbeständiges Aluminium
Tunnel: Glasfibertunnel (Kreuzgewebe)
Stahl- & Aluminiumtunnel aufAnfrage.
Propeller: Symmetrische,4flügelige Kaplanpropeller aus
Glasfiberverbundmaterial.
Steuerpanel:Nicht im Lieferumfang enthalten
Sicherheit
: Elastische Kupplung zwischen hydraulischem
Motor und Getriebeachse als Schutz, wenn der
Propeller blockiert ist.
SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD
2.4 - 20073
SH100/185T SP 220HYD SP300HYD SP550HYD
Light duty thrust [lbs] 220484660550
Heavy duty thrust [lbs] 176440594500
A [in] 7,289,8411,8386
B [in] 8,509,309,60369
Cmin.[in] 7,879,8411,8380
D [in] 6,7011,811,8500
Drecommended[in] 13,423,623,629,5
Emin. [in] 0,240,280,390,39
Emax.[in] 0,310,390,510,59
F [mm]6,57,75 7,75 11,75
G [mm]10,114,216,521,3
Hmax.[mm]
Hydraulic power [Hp] 10,925,130,856,7
Propeller output [Hp] 8,720,124,744,3
Gear oil capacity [.oz] ---6,7638,45---
Note: E
min.:wall thickness of a standard Sidepower tunnel
Emax.: maximum wall thickness when using other GRP,
steel or aluminium tunnels
IMPERI A LI MPERI A L
IMPERI A LI MPERI A L
IMPERI A L
METRI CMETRI C
METRI CMETRI C
METRI C
8 8 8 8 8 8 8 8
E
C
Waterline
A
E
160 • 352
140 • 308
35’ - 62’ • 11 - 19
215 • 8.46’’
Twin
10.0 • 13.4
10.5 • 23
SH160/215T-xxx
SH 160/215 T
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight *(kg • lbs)
Item Code
Measurements
A (mm • in) 215 • 8.46
B (mm • in) 195 • 7.64
B max. (mm • in) 230 • 9.05
C min. (mm • in) 215 • 8.5
D (mm • in) 280 • 11
D
recommended (mm • in) 560 • 22
E min. (mm • in) 6 • 0.24
E max. (mm • in) 8 • 0.31
Stern Thrusters
F (mm•in) 172•76.72
G (mm•in) 300•11,8
C min. (mm•in) 215•8.46
H max. (mm•in) 54•2.13
Tunnel length (mm•in) 330•13
Item code:
Stern thruster kit 90135i
Cowls 90136
SH 240/250 TC
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight* (kg • lbs)
Item Code
SH 350/300 TC
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight *(kg • lbs)
Item Code
Measurements
A (mm • in) 250 • 9.84
B (mm • in) 213 • 8.38
B max. (mm • in) 230 • 9.05
C min. (mm • in) 230 • 9.0
D (mm • in) 280 • 11
D
recommended (mm • in) 560 • 22
E min. (mm • in) 7 • 0.28
E max. (mm • in) 10 • 0.39
Measurements
A (mm • in) 300 • 11.81
B (mm • in) 250 • 9.84
B max. (mm • in) 300 • 11.81
C min. (mm • in) 350 • 13.78
D (mm • in) 370 • 14.57
D
recommended (mm • in) 720 • 28.35
E min. (mm • in) 10 • 0.39
E max. (mm • in) 10 • 0.39
Stern Thrusters
F (mm•in) 91•7.52
G (mm•in) 340•13.39
C min. (mm•in) 250•9.84
H max. (mm•in) 60•2.36
Tunnel length (mm•in) 350•13.78
Item code:
Stern thruster kit 90140i
Cowls 90132
Stern Thrusters
F (mm•in) 225•8.86
G (mm•in) 340•13.39
C min. (mm•in) 350•13.78
H max. (mm•in) 60•2.36
Tunnel length (mm•in) 350•13.78
Item code:
Stern thruster kit 90200i
Cowls 90220
240 • 528
220 • 440
42’ - 75’ • 13 - 23
250 • 9.8’’
Twin Counter rot.
14.9 • 20.0
15.9 • 35.0
SH240/250TC-xxx
350 • 771
350 • 771
60’ - 120’ • 18 - 36
300 • 11.8’’
Twin Counter rot.
21.2 • 28.4
40± • 88.2
SH350/300TC-xxx
SH 100/185 T
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight* (kg • lbs)
Item Code
Measurements
A (mm • in) 185 • 7.28
B (mm • in) 195 • 7.64
B max. (mm • in) 212 • 8.34
C min. (mm • in) 200 • 7.87
D (mm • in) 170 • 6.70
D
recommended (mm • in) 340 • 13.4
E min. (mm • in) 6 • 0.24
E max. (mm • in) 8 • 0.31
Stern Thrusters
F (mm•in) 172•76.72
G (mm•in) 256•10.08
C min. (mm•in) 150•5.91
H max. (mm•in) 35•1.38
Tunnel length (mm•in) 337•13.27
Item code:
Stern thruster kit 90086i
Cowls - short model 90075
Cowls - long model 90077
100 • 220
80 • 176
30’ - 34’ • 9 - 16
185 • 7.28’’
Twin
6.9 • 9.3
9.0 • 19.8
SH100/185T-xxx
* weight depending on hyd. motor
SP 300 HYD
Light duty thrust up to (kg • lbs)
Heavy duty thrust up to (kg • lbs)
Typical boat size (ft • m)
Tunnel I.D. (mm • in)
Propulsion system
Hydraulic power up to (kw • Hp)
Weight* (kg • lbs)
Item Code
Measurements
A (mm • in) 300 • 11.81
B (mm • in) 220 • 8.66
B max. (mm • in) 244 • 9.61
C min. (mm • in) 300 • 11.81
D (mm • in) 300 • 11.81
D
recommended (mm • in) 600 • 23.6
E min. (mm • in) 10 • 0.39
E max. (mm • in) 10 • 0.39
Stern Thrusters
F (mm•in) 195•7.68
G (mm•in) 420•16.54
C min. (mm•in) 300•11.81
H max. (mm•in) 60•2.36
Tunnel length (mm•in) 456•17.95
Item code:
Stern thruster kit 90200i
Cowls 90220
300 • 660
270 • 594
55’ - 100’ • 17 - 31
300 • 11.8’’
Twin Counter rot.
17.4 • 23.3
19.5 • 42.9
SP300HYD-xxx
COMING SOON

SH700/412 & SH1000/513TC & SH1400/610TC 4
Requirements / Hydraulic hose connections to motor
Motor type Port A/B Port ange threads Drain port
G70 1 1/4" BSP - 1/4" BSP
G75 1 1/4" BSP - 1/4" BSP
BA40 3/4" 6000 PSI SAE J518/ISO6162 Code 62 3/8" UNC-2B 20 deep 3/4" - 16 UNF
BA45 3/4" 6000 PSI SAE J518/ISO6162 Code 62 3/8" UNC-2B 21 deep 3/4" - 16 UNF
BA56 3/4" 6000 PSI SAE J518/ISO6162 Code 62 3/8" UNC-2B 21 deep 3/4" - 16 UNF
BA60 3/4" 6000 PSI SAE J518/ISO6162 Code 62 3/8" UNC-2B 22 deep 7/8" - 16 UNF
BA80 1" 6000 PSI SAE J518/ ISO 6162 Code 62 7/16-14 UNC-2B 19 deep 7/8"-14 UNF
BA90 1" 6000 PSI SAE J518/ ISO 6162 Code 62 7/16-14 UNC-2B 19 deep 7/8"-14 UNF
BA110 1 1/4" 6000 PSI SAE J518/ ISO 6162 Code 62 1/2-13 UNC-2B 19 deep 1 1/16-12 UNF
BA125 1 1/4" 6000 PSI SAE J518/ ISO 6162 Code 62 1/2-13 UNC-2B 19 deep 7/8"-14 UNF
BA160 1 1/4" 6000 PSI SAE J518/ ISO 6162 Code 62 1/2-13 UNC-2B 19 deep 7/8"-14 UNF
BA180 1 1/4" 6000 PSI SAE J518/ ISO 6162 Code 62 1/2-13 UNC-2B 19 deep 7/8"-14 UNF
NOTE!
Always use upper
positioned drain port
for optimal lubrication
of the motor.
NOTE!
Prell motor housing with
hydraulic oil before startup
G-motor:
BA-motor:
Port A Port B Drain port
(Must be installed)
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
72101/U-16
07.03.2014
1
Designed by Date
1 / 1
Edition Sheet
gille
Material Type Drawing nr
SM-106027
Copyright All rights reserved
Part nr Size Scale
Title
Hyd. motor 16 ccm
Tolerance
NS-ISO 2768-1
SLEIPNER MOTOR AS
A3
5,794 kg
1 : 2
Weight
44,8
 15,00
71,40
89,50
94,00
114,00

8,50(4x)
35,70
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
72101/U-16
07.03.2014
1
Designed by Date
1 / 1
Edition Sheet
gille
Material Type Drawing nr
SM-106027
Copyright All rights reserved
Part nr Size Scale
Title
Hyd. motor 16 ccm
Tolerance
NS-ISO 2768-1
SLEIPNER MOTOR AS
A3
5,794 kg
1 : 2
Weight
44,8
 15,00
71,40
89,50
94,00
114,00

8,50(4x)
35,70
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
72101/U-16
07.03.2014
1
Designed by Date
1 / 1
Edition Sheet
gille
Material Type Drawing nr
SM-106027
Copyright All rights reserved
Part nr Size Scale
Title
Hyd. motor 16 ccm
Tolerance
NS-ISO 2768-1
SLEIPNER MOTOR AS
A3
5,794 kg
1 : 2
Weight
44,8
 15,00
71,40
89,50
94,00
114,00

8,50(4x)
35,70

SH700/412 & SH1000/513TC & SH1400/610TC 5
60 % 70 % 80 % 90 % 100 %
Flow Pressure Flow Pressure Flow Pressure Flow Pressure Flow Pressure
SH1000
G70 L/min -Bar 91,0 220 99,0 256
USG-PSI 24.0 3190 26.2 3712
G75 L/min -Bar 98,0 205 106,0 239
USG-PSI 25.9 2973 28.0 3466
BA80 L/min -Bar 90,4 188 98,0 220 104,4 251 111,0 282
USG-PSI 23.9 2726 25.9 3190 27.6 3640 29.3 4089
BA90 L/min -Bar 99,5 167 107,0 195 115,0 225 122,0 251 128,5 279
USG-PSI 26.3 2422 28.3 2828 30.4 3263 32.2 3640 40.0 4046
BA110 L/min -Bar 122,0 139 131,4 132 140,5 185 149,0 208 157,0 231
USG-PSI 32.2 2016 34.7 1914 37,1 2683 39.4 3016 41.5 3350
SH1400
BA125 L/min -Bar 113,0 197 122,4 230 131,0 263 139,0 296
USG-PSI 29.9 2857 32.3 3335 34.6 3814 36.7 4292
BA150 L/min -Bar 139,0 164 150,0 192 160,4 219 170,0 247 179,4 274
USG-PSI 36.7 2378 39.6 2784 42.4 3176 44.9 3582 47.4 3973
BA160 L/min -Bar 145,0 154 157,0 180 167,5 205 178,0 231 187,0 257
USG-PSI 38.3 2233 41.5 2610 44.3 2973 47.0 3350 49.4 3727
BA180 L/min -Bar 163,0 137 176,0 160 188,5 183 200,0 205 211,0 228
USG-PSI 43.0 1987 46.5 2320 49.8 2654 52.8 2973 55.7 3306
SH 700
BA40 L/min -Bar 57,0 224 61,5 261 66 298
USG-PSI 15,01 3249 16,3 3785 17,4 4322
BA45 L/min -Bar 64.0 196 69.0 229 73,5 261,0 78,0 294,0
USG-PSI 17,7 2843 18,2 3321 19,4 3785,0 20,6 4264,0
BA56 L/min -Bar 79,0 160 85.0 186 91 213,0 97,0 240,0 102,0 266,0
USG-PSI 20,9 2321 22,5 2698 24 3089,0 25,6 3481,0 27,0 3858,0
BA60 L/min -Bar 85.5 149 92.5 174 99 199,0 105,0 224,0 110,5 248,0
USG-PSI 22,6 2161 24,4 2524 26,2 2886,0 27,7 3249,0 29,2 3597,0
Performance Table

SH700/412 & SH1000/513TC & SH1400/610TC 6
Prior to installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product.
This manual is intended to support educated / experienced sta󰀨 and is therefore not su󰀩cient in all details for the correct installation.
If the height in the room you are installing the Side-Power is limited, the Side-Power can be installed horizontally or at any angle in
between.
The motor must be handled carefully.
Beware to keep installation within advised measurements. No part of the propeller or gearhouse must be outside the tunnel.
The motor, its components or other joints and control cables must be mounted so that they will keep dry at all times.
We advice to paint the gearhouse and propellers with antifouling. PS! Do not paint the anodes, sealing or propeller shafts.
Do not nish the inside of the tunnel with a layer of gelcoat / topcoat or similar. It is only room for a thin layer of primer and two layers
of anti-fouling between the tunnel and the props.
When installed in boats approved or classied according to international or special national rules, the installer is responsible for
following the demands in accordance with these regulations / classication rules. The instructions in this guide can not be guaranteed
to comply with all di󰀨erent regulations / classication rules.
If no original Side-Power hydraulic system is installed, please ensure the following:
 Install an oil lter to keep the oil clean.
Fit an oil cooler or use an oil tank so that the maximum oil temperature is 43 - 50 degrees Celcius.
This thruster is supplied with a hydraulic motor only.
The rest of the hydraulic system is the responsibility of the tter/installer and must be within the limitations that are described in this
manual so that it does not damage the thruster.
It is very important to use a hydraulic valve that has ow and pressure limits that are either set within or can be adjusted to be within
the limits of the thrusters capability.
We also strongly recommend that a shock valve are tted and set to 10% - 15% above the chosen maximum pressure set in the
valve. This will prevent that the system is dammaged if the propellers are blocked by any reason.
It is also required that a device is installed to ensure that the drive direction can not be suddenly changed, as this can seriously
dammage the gearhouse. This can be done by adding an electronic time lapse / delay safety on the electric control system or by
using a valve that has this type of protection built in. The required time delay is 1 second.
NB ! Faulty installation of the tunnel, thruster or panel will render all warranty given by Sleipner Motor AS void.
Planning and important precautions
EN
Tools list for mechanical installation:
- Hole Drill – Ø16mm
- Hole Drill – Ø18mm
- Hole Drill – Ø83mm
- Hole Drill – Ø120mm
- Gear Oil API GL-5/ SAE 80w-90 oil
- Grinding tools (If tunnel has uneven surface)
- MS Polymer sealant (Gasket)
- Marine grease (Or similar. Seawater resistant)
- Torque wrench
- Spanner – 19mm(Gearleg bolts) – 50mm(Propeller nuts) for SH1000 & 1400
- Screw drivers - Slotted
- Pliers
- Allen Key kit (M12 motor bracket, M20 hyd motor)
- Lock tite 243(Anode bolts)

SH700/412 & SH1000/513TC & SH1400/610TC 7
important
MG_0001
A = 11,0m
B = 10,0m
A
B
Pivot
point
min.
1/4Ø
Ø
min.
1/4Ø
1,25xØ
1,5x Ø
min.
1xØ
Fig. 1
Fig. 2
Positioning of the tunnel / thruster
EN MC_0003
The thruster should be as far forward as possible (Fig. 1)
Due to the leverage e󰀨 ect around the boats’ pivot point, it is essential for the thrusters to be placed as far forward as possible. The relative distance
di󰀨 erence from the boat pivots’ point to the thruster will determine the amount of real thrust for the boats, rotation.
Example :
A: 100kg thrust x 11m leverage = 1100kgm torque to rotate the boat
B: 100kg thrust x 10m leverage = 1000kgm torque to rotate the boat
In position A you will get 10% more thrust to turn the boat around.
The thruster should be positioned as deep as possible (Fig. 2)
The tunnel should be installed as deep under the waterline as possible for two reasons:
1. So that it does not suck air down from the surface which will reduce performance and increase noise levels.
2. To get as much water pressure as possible to receive maximum e󰀩 ciency from the thruster.
Generally, the centre of the tunnel should be a minimum of 1 x the tunnel diameter below the waterline. This distance is an absolute minimum, the
installer must make evaluations based on thruster performance, boat type and operating conditions. It is recommended that it is at least 1.25 x tunnel
diameter () below the waterline. For best performance, the distance should be 1.5 x tunnel diameter () below the waterline. The position of the
tunnel should not be a minimum of 1/4 of the diameter of the tunnel from the boat keel.

SH700/412 & SH1000/513TC & SH1400/610TC 8
MC_0003
MG_0048
Increase tunnel length to protect
the propeller from water forces
when high-speed cruising.
Increase tunnel length to prevent
a circular water vacuum cavity
between the propeller and the
hull of the boat.
STANDARD USE FLAT BOTTOM HULL HIGH-SPEED OPERATION
Ensure the top and bottom tunnel lengths are respectable
lengths from one another. It is important the propeller never
extrudes from the tunnel ends.
Cavitation
Water flow must have space to
"straighten" itself for best
performance.


Tunnel Length
EN
Optimal tunnel length
Correct tunnel lengths depend on many factors from the hull type, operation and environmental conditions.
Tunnels should avoid being longer than 6 x the tunnel diameter as the performance reduction will be noticeable. (NB: Installing tunnels at longer
lengths consult a naval architect if added support is required for the tunnel to the hull.)
1. If the tunnel is too long, the friction inside will reduce the water speed and thereby the thrust.
2. If the tunnel is too short (typically only in the bottom section of the tunnel) cavitation problems can occur as water  ow will not have time to
“straighten” itself before reaching the propeller. This cavitation will reduce performance and create excess noise.
Thruster within the tunnel
It is important that the propellers and the lower unit/ gear leg must be entirely inside the thruster tunnel. Propellers that protrude from the tunnel will not
perform as intended.
Standard Use
Tunnel length must be long enough to ensure the propellers are not extruding the tunnel.
Flat Bottom Hull
Tunnel lengths must be longer than the standard measurement outlined within the manual to ensure a circular vacuum is not created between the
thruster and the bottom of the boat.
High-Speed Boats
Tunnel lengths must be increased to protect the propeller from damage when crashing against the water surface during high-speed cruising. The
optimal tunnel length is 3 x tunnel diameter (NB: This can include the length of a spoiler)

SH700/412 & SH1000/513TC & SH1400/610TC 9
MG_0004
Fig. 1
Min
Pos. B
Pos. A


MG_0048
Increase tunnel length to protect
the propeller from water forces
when high-speed cruising.
Increase tunnel length to prevent
a circular water vacuum cavity
between the propeller and the
hull of the boat.
STANDARD USE FLAT BOTTOM HULL HIGH-SPEED OPERATION
Ensure the top and bottom tunnel lengths are respectable
lengths from one another. It is important the propeller never
extrudes from the tunnel ends.
Cavitation
Water flow must have space to
"straighten" itself for best
performance.


Tunnel installation in sailboats
EN
Many sailboats have a racing hull which means that it can have a very  at bottomed and a very shallow draft in the bow section. It is thereby challenging
to  t a tunnel thruster the usual way,  tted as far forward in the hull as the thruster should be (Fig. 1).
However, it is possible to install a tunnel thruster in most sailboats, even when the hull does not directly support the  tting of a tunnel.
This can be done by  tting the tunnel halfway into the underneath section of the existing hull. Then strengthen it with a de ector/ spoiler directing the
water  ow around the tunnel. This will allow installation of the thruster in proper position on the boat, maintaining the reliability and space advantages of
the tunnel thruster.
This installation is being used by some of the world’s largest sailboat builders and has proven to give little to no speed loss during normal cruising. This
can also be an installation method for  at bottomed barges to avoid extremely long tunnels and large oval tunnel openings in the hull.
MC_0003

SH700/412 & SH1000/513TC & SH1400/610TC 10
MG_0003
Fig. 2Fig. 1
Fig. 4
Fig. 3
High water force
while underway
High water force
while underway
from wave contact
 

Water De ection
EN MC_0003
A possible problem in sailboats or fast powerboats is that a non-rounded surface can generate drag from the back face of the tunnel, as it creates a
“ at” area facing the  ow of water (Fig. 1).
It can also create problems with the thruster spinning (passively) producing noise while sailing or driving the boat as water is forced through the tunnel at
high speed. Water ow directed through the tunnel at high speeds, during turning or as the boat bumps waves while underway can also damage the
thruster (Fig. 4).
This problem can be solved in two di󰀨 erent ways, depending on what is possible or easier to perform.
1. The best solution which generally reduces the most drag is to make a recess in the hull at the back of the tunnel. As the back face is removed
water can  ow freely past the tunnel entry. The depth and shape of this recess will depend on the boat and the angle facing up/ down aft of the
tunnel insert in the hull depends on the hull shape. Normally it is angled slightly down because of the water  ow on this area of the hull (Fig. 2).
2. Potential damage to the thruster and drag can also be reduced, especially in fast power boats, by making a de ector/ spoiler in front and
underneath the tunnel. The de ector/ spoiler will push the water  ow out from the hull so that water passes by the back face of the tunnel. The
shape and size of this de ector/ spoiler will depend on the hull shape. The easiest way of making the de ector/ spoiler is to retain a part of the
lower forward area of the tunnel while installing the tube. Use this area as support to mould a soft curve/spoiler shape from the hull. (Fig. 3).
(NB: As a rule, you should not see the back face of the tunnel when standing directly in front of the boat looking aft.)
(NB: Remember always round the tunnel ends as much as possible to get optimum thruster performance and minimum noise.)

SH700/412 & SH1000/513TC & SH1400/610TC 11
MG_0002
Fig. 2
Fig. 4
Fig. 1
Fig. 3
R = 0,1 x D (10%)
R = 0,1 x D (10%)
D


MG_0003
Fig. 2Fig. 1
Fig. 4
Fig. 3
High water force
while underway
High water force
while underway
from wave contact
 

Tunnel ends
EN MC_0003
Rounded tunnel ends will maximise thrust and minimise noise.
We recommend rounding the tunnel connection to the hull-side as much as possible. The optimum rounding has a radius of 10% of the diameter of the
tunnel.
Signi cant advantages of a rounded tunnel over a sharp tunnel to hull connections are:
1. A rounded tunnel end will prevent the creation of turbulence/ cavitation that will come from a sharp tunnel end when water passes by fast, thereby
preventing a double negative impact on the thrust and noise level (Fig. 1&2).
- The turbulence/ cavitation will block the outer area of the tunnel and thereby reduces the e󰀨 ective tunnel diameter and thrust.
- The turbulence/ cavitation hits the propeller and will lessen the propellers performance and create excess noise.
2. A rounded tunnel end makes the thruster take water from along the hull-side, creating a vacuum that will suck the boat sideways and thereby give
additional thrust (Fig. 3&4).
With a sharp tunnel end, the thruster will be unable to take water from along the hull-side, and you will not gain the desired vacuum and additional
thrust. This “free” extra thrust in optimal installations be 30 - 40% of the total thrust.
(NB: A Side-power thruster propeller does not produce cavitation at working speed. Therefore, any cavitation and cavitation noise in the
tunnel will be caused during improper tunnel installation.)
(NB: It is essential to round the tunnel end as much as possible. If it is not possible to round edges an angled tunnel to hull connection can
also off er similar performance as a rounded connection.)

SH700/412 & SH1000/513TC & SH1400/610TC 12
MG_0005
R
D
Fig. 1
Fig. 3 Fig. 4
Fig. 2
MG_0006
R = D x 0,1
R = D x 0,1
Dx0,1-0,15
Dx0,1-0,15
D
Fig. 1a
Fig. 1
Fig. 1b
Fig. 2 Fig. 3
Fig. 1d
Fig. 1c
Tunnel installation
EN
1. Find the position in the boat considering the information earlier in this manual and the applicable measurements for the thruster model you are
installing. Mark the centre of the tunnel on both sides of the hull. Drill a 6mm hole horizontally at these marks (Fig. 1). (NB: it is critical that the
thruster tunnel installed is perpendicular to the boats’ centre line)
2. Bend a steel bar as shown with the “tip” bent back set to the tunnel radius. Ensure the length of the bar runs through both holes. Mark the circle for
the tunnel opening (outside diameter of the tunnel). Cut the hole with a jigsaw (Fig. 2).
3. Grind o󰀨 the gel coat and polyester so that you are in the “real  breglass” area 12cm around the hole on both inside and outside the hull to cast the
tunnel to the hull (Fig. 3).
4. Insert the tunnel and mark its shape to  t the hull (Fig. 4). (NB: if you are installing with a defl ector/ spoiler, leave a part of the tunnel in the
front and underside of the tunnel that will cover the back face.)
5. Cut the tunnel ends to the desired shape and lightly sand its surface and clean with acetone or similar where you are going to apply  breglass.
(NB: Do not cast/ fi breglass on the area were the thruster will be placed.)
6. Cast the tunnel to the inside of the hull, use at least eight layers of 300g  breglass and resin, preferably alternating mat and rowing types of
 breglass. If you are rounding the tunnel ends to the perfect 10% radius you may need to make further layers inside to preserve the desired hull
thickness. (See next page)
(NB: Make sure that any gaps between the tunnel and the hull are completely fi lled with resin/ fi breglass. In areas where you can not access
to make normal layers of resin/ fi breglass, a resin/ fi breglass mixture must be used in that area.)
MC_0003
IMPORTANT
We recommend that a professional does the  breglass  tting of the tunnel. These instructions are only general instructions and do not
explain in any way the details of  breglass work. Problems caused by faulty installation of the tunnel, are the installers full responsibility.

SH700/412 & SH1000/513TC & SH1400/610TC 13
MG_0005
R
D
Fig. 1
Fig. 3 Fig. 4
Fig. 2
MG_0006
R = D x 0,1
R = D x 0,1
Dx0,1-0,15
Dx0,1-0,15
D
Fig. 1a
Fig. 1
Fig. 1b
Fig. 2 Fig. 3
Fig. 1d
Fig. 1c
Tunnel installation
EN
With tunnel installed and cast (Fig. 1) round o󰀨 the edges with a radius of 10% of the tunnel diameter (Fig. 1a) or make a slope with a length of 10-15%
of the tunnel diameter (Fig. 1b). If this is not possible, round the tunnel end as much as possible.
Follow the same method if making the de ector/ spoiler (Fig. 2).
We advise to additionally cast two layers on the outside of the tunnel/ hull in a 10cm area (Fig. 1c & 1d).
You must apply topcoat/ epoxy to areas outside where you have grounded/ moulded to make these areas waterproof. These areas allow water access
to the hull which is typically not waterproof without these applications outside. (NB: All original Side-Power tunnels are fully waterproof when
delivered except in the areas where you have cut and bonded it to the hull.)
If you desire to have another colour on the tunnel, you do not need to apply topcoat or the several layers of primer that is necessary on the boats’ hull to
make it water-resistant. Sand it very lightly and apply one coat of primer to make the anti-fouling sit.
(NB: Avoid all casting where the motor-bracket is to be placed, as this will cause misfi t and possible failure to the gear house.)
MC_0003

SH700/412 & SH1000/513TC & SH1400/610TC 14
1
Sealant on both
sides of gearleg
gasket
Tighten to
110Nm
5
8
Motor bracket
gasket
Apply ller
7a 7b
Gear Leg & Motor Bracket Installation
EN
1. Mark the tunnel centreline and the boat’s centreline. (NB: install the gear leg and propeller(s) as shown above for the thrust direction to correspond
with the control panel. If installing a twin propeller, place gear leg with the P-mark facing port and the S-mark facing starboard.)
2. Use the gasket or template (recommended) to mark the centre of the holes and double check the measurements. One hole MUST be placed with
the boat centreline as its centre as shown above. (NB: All holes must be in-line with the tunnels’ centreline for correct installation, as the clearance
between the propeller and the tunnel is minimal.)
3. There must be no casting where the motor bracket is to be installed, as this will cause possible failure to the gear leg. The motor bracket must
installed steady on the tunnel. If the tunnel is not smooth, all bumps or uneven parts must be ground  at.
4. Drill the main-hole and then the screw-holes.
5. Fill the gear leg with oil as shown above through the hole of the oil drain screw. Ensure to insert the copper gasket and fasten after adding oil into
the gear leg.
6. Place the gear leg in the tunnel (without the propeller) with the gasket inside the tunnel. Place the propeller(s) to ensure it is in the centre of the
tunnel and rotates freely with the same clearance from each blade to the tunnel wall. If propeller(s) rotate o󰀨 centre, try to use the other or both
gaskets.
7. Apply MS Polymer sealant or equal to both sides of the gasket, and then run the gear leg shaft through the central hole in the tunnel. Install the
gear leg and motor bracket gently together. Use suited sealant to ensure that no leakages occur. (NB: See your sealant datasheet for the correct
application process.)
8. Fasten the gear leg and the motor bracket with the bolts provided. Fasten to torque as shown above.
MC_0002
!Please refer to the graphic for special considerations relating to your model !
IMPORTANT
Apply ller on surface between tunnel and
motor bracket gasket to achieve required
stability for motor bracket. Filler and primer
used must be compatible with tunnel and
gasket material. Ensure to follow ller
manufacturer technical data regarding
priming, application and curing of the ller.
IMPORTANT
Pre-ll gearleg with oil.
API GL-5, SAE 80W-90.
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
1. Die Mittellinie von Tunnel und Boot markieren. Damit Schub-
richtung und Kontrollpanel übereinstimmen, das Getriebege-
häuse so einbauen, daß der Verschluß des Getriebegehäuses
(der verschraubte Verschluß hinter einem der beiden Pro-
peller) Richtung Steuerbord zeigt.
2. Die Löcher mit der Dichtung (7) markieren. Maße überprüfen!
Den Thruster schiffssmittig plazieren (Fig. 1). Da der Abstand
zwischen Propellern und Tunnel wegen größtmöglicher
Performance minimal konstruiert ist, müssen für eine präzise
Installation alle Löcher auf der Tunnelmittellinie liegen.
3. Im Bereich der Motorhalterung darf kein Laminat auf dem
Tunnel sein, da dies zu einem Getriebeschaden führen
kann. Liegt die Motorhalterung nicht eben auf dem Tunnel
auf, so sind sämtliche Unebenheiten in diesem Bereich
abzuschleifen.
4. Bohren Sie das Zentrumsloch und dann die beiden
Schraubenlöcher.
5. Das Getriebegehäuse unter Verwendung der Dichtung in
den Tunnel einpassen. Den Propeller auf die Achse stecken;
dieser muß sich frei bewegen lassen und jedes Propellerblatt
muß den gleichen Abstand zum Tunnel aufweisen. Ist die
Tunnelinnenseite ungleichmäßig, etwas Sikaex o.ä. auf-
tragen, damit keine undichte Stelle auftritt.
6. Das Getriebegehäuse durch das Hauptloch im Tunnel führen
und vorsichtig mit der Motorhalterung zusammenschieben.
7. Das Getriebegehäuse und die Motorhalterung mit Hilfe der bei-
den Bolzen verschrauben (Anzugsmoment 17 Nm / 12,4 lb/ft).
1. Mark the centreline of the tunnel and the boats centreline.
The gearhouse must be tted with the gearhouse lid (the
screwed in lid behind one of the propellers) on the starbord
side of the boat for the thrust direction to correspond with the
controlpanel.
2. Use the gearhouse gasket (7) to mark the centre of the holes
and double check the measurements.
Place the thruster in the boats centreline with the bolt hole as
the centre (Fig. 1a / Fig 1b). It is absolutely necessary that all
holes are in-line with the tunnels' centreline to ensure precise
installation, as the clearance between the propellers and the
tunnel is minimal to ensure best possible performance.
3. There must be no casting where the motor bracket is to be
placed, as this will cause possible failure of the gearhouse.
The motor bracket must t steady on the tunnel, if the tunnel
is not smooth, all bumps or uneven parts must be grinded
smooth.
4. Drill the centre-hole and then the two screw-holes, SH100
dim. according to g 1a, SH160/SH240 dim. according to g.
1b
5. Try the lower-unit in the tunnel by using the gasket inside
the tunnel. Try on the propellers to make sure they are in the
middle of the tunnel and turn freely with the same clearing
from each blade to the tunnel. If the tunnel is not plain, use
some Sikaex or other sealant to ensure that no leakages
occur.
6. Push the gearhouse through the main hole in the tunnel and
push the gearhouse and motor-bracket gently together.
7. Screw the lower unit and the motor-bracket together with the
two provided bolts. Tighten with 17 Nm / 12,4 lb/ft.
Getriebe und Motorhalterung
SH100/185T, SH160/215T, SH240/250TC
D
Fitting gearhouse and motor bracket
SH100/185T, SH160/215T, SH240/250TC
GB
13
11
SE 80/185 T - SE 100/185 T - SE 130/250T 1.0.1- 2008
Fig. 2
1. Marker båtens og tunnelens senterlinje på tunnelen.
Girhuset må plasseres med enden merket P mot babord og enden
merket S mot styrbord (Fig. 4) for at skyveretning skal korrespondere
med merkingen på kontrollpanelene.
2. Bruk girhuspakningen for å sjekke målene (7). Alle hull må være på
båtens eller tunnelens senterlinje for å får til en presis installasjon.
Dette skyldes at det er meget liten klaring mellom tunnelveggen og
propellen.
3. Tunnelen må ha en jevn overate der braketen skal festes, all støp,
evt glassber eller epoxy rester må pusses ned så braketen passer
jevnt på tunnelen. Ujevnheter her vil resultere i svikt i girhuset.
4. Bor senterhullet iht. Fig. 1a (Se80/100) eller Fig. 1b (SE130)
5. Prøv girhuset i tunnelen sammen med pakning 1m.m. Monter propell
å sjekk at den er i midten av tunnelen. Hvis propellen ikke er i midten
av tunnelen, forsøk å bruk den endre pakningen, eller begge to sam-
tidig. Hvis tunnelen ikke har en jevn overate så kan Sikaeks, eller
lignende tetningsmateriale brukes for å sikre mot lekkasje.
6. Før girhuset gjennom hovedhullet i tunnelen og monter braketten og
girhuset forsiktig sammen.
7. Skru sammen motorbraketten og girhuset med orginalbolter (Fig. 3).
Bolt tightening forces:
Bolts (2x) holding gearhouse to bracket:
SE80/100: 17 Nm (12,4 lb/ft)
SE130: 33 Nm (24lb/ft)
Montering av girhus og brakett
N
Fitting gearhouse and motor bracket
GB
Fig. 1a
PORT STARBOARD
S
P
Fig. 4
Fig. 3
1. Mark the centreline of the tunnel and the boats centreline.
The gearleg must be tted with the P-mark facing port and S-mark
facing starboard (Fig. 4) for the thrust direction to correspond with the
control panel
2. Use the gearhouse gasket (7) to mark the centre of the holes and
double check the measurements. It is absolutely
necessary that all holes are in-line with the tunnels’ centreline to
ensure precise installation, as the clearance between the
propellers and the tunnel is minimal to ensure best possible
performance.
3. There must be no casting where the motor bracket is to be placed,
as this will cause possible failure of the gearhouse. The motor
bracket must t steady on the tunnel, if the tunnel is not smooth,
all bumps or uneven parts must be grinded smooth.
4. Drill the holes according to Fig 1a (SE80/100) or Fig. 1b (SE130)
5 Try the lower-unit in the tunnel (without the zinc anodes and the
lower part of the exible coupling) by using the gasket inside the
tunnel. Try on the propellers to make sure they are in the middle of
the tunnel and turn freely with the same clearing from each blade to
the tunnel. Use sealant e.g. Sikaex to ensure that no leakages
occur.
6. Push the gearhouse through the main hole in the tunnel and push
the gearhouse and motor-bracket gently together.
7. Screw the lower unit and the motor-bracket together with the two
provided bolts (Fig. 3).
7
CENTRELINE
28,0mm
1,1"
Ø 9mm
0,35"
TUNNELS
CENTRELINE
BOATS
CENTRELINE
Ø 32mm
1,26"
40,0mm
1,57"
Ø 11,00mm
7/16"
TUNNELS
CENTRELINE
BOATS
CENTRELINE
Ø 46,00mm
1,81"
Fig. 1b
SH100: 17 Nm (12.4 lb/ft)
SH160/SH240: 33 Nm (24 lb/ft)
SH100/185T SH160/215T - SH240/250TC
IMPORTANT
Sealant and primer used on the gasket
must be compatible with tunnel,
gasket and gearleg material. Ensure to
follow sealant manufacturer technical
data regarding priming, application
and curing of the sealant.
Smooth out
excessive
ller
Tunnel Ø Oil Volume
412mm 1 L
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
1. Die Mittellinie von Tunnel und Boot markieren. Damit Schub-
richtung und Kontrollpanel übereinstimmen, das Getriebege-
häuse so einbauen, daß der Verschluß des Getriebegehäuses
(der verschraubte Verschluß hinter einem der beiden Pro-
peller) Richtung Steuerbord zeigt.
2. Die Löcher mit der Dichtung (7) markieren. Maße überprüfen!
Den Thruster schiffssmittig plazieren (Fig. 1). Da der Abstand
zwischen Propellern und Tunnel wegen größtmöglicher
Performance minimal konstruiert ist, müssen für eine präzise
Installation alle Löcher auf der Tunnelmittellinie liegen.
3. Im Bereich der Motorhalterung darf kein Laminat auf dem
Tunnel sein, da dies zu einem Getriebeschaden führen
kann. Liegt die Motorhalterung nicht eben auf dem Tunnel
auf, so sind sämtliche Unebenheiten in diesem Bereich
abzuschleifen.
4. Bohren Sie das Zentrumsloch und dann die beiden
Schraubenlöcher.
5. Das Getriebegehäuse unter Verwendung der Dichtung in
den Tunnel einpassen. Den Propeller auf die Achse stecken;
dieser muß sich frei bewegen lassen und jedes Propellerblatt
muß den gleichen Abstand zum Tunnel aufweisen. Ist die
Tunnelinnenseite ungleichmäßig, etwas Sikaex o.ä. auf-
tragen, damit keine undichte Stelle auftritt.
6. Das Getriebegehäuse durch das Hauptloch im Tunnel führen
und vorsichtig mit der Motorhalterung zusammenschieben.
7. Das Getriebegehäuse und die Motorhalterung mit Hilfe der bei-
den Bolzen verschrauben (Anzugsmoment 17 Nm / 12,4 lb/ft).
1. Mark the centreline of the tunnel and the boats centreline.
The gearhouse must be tted with the gearhouse lid (the
screwed in lid behind one of the propellers) on the starbord
side of the boat for the thrust direction to correspond with the
controlpanel.
2. Use the gearhouse gasket (7) to mark the centre of the holes
and double check the measurements.
Place the thruster in the boats centreline with the bolt hole as
the centre (Fig. 1a / Fig 1b). It is absolutely necessary that all
holes are in-line with the tunnels' centreline to ensure precise
installation, as the clearance between the propellers and the
tunnel is minimal to ensure best possible performance.
3. There must be no casting where the motor bracket is to be
placed, as this will cause possible failure of the gearhouse.
The motor bracket must t steady on the tunnel, if the tunnel
is not smooth, all bumps or uneven parts must be grinded
smooth.
4. Drill the centre-hole and then the two screw-holes, SH100
dim. according to g 1a, SH160/SH240 dim. according to g.
1b
5. Try the lower-unit in the tunnel by using the gasket inside
the tunnel. Try on the propellers to make sure they are in the
middle of the tunnel and turn freely with the same clearing
from each blade to the tunnel. If the tunnel is not plain, use
some Sikaex or other sealant to ensure that no leakages
occur.
6. Push the gearhouse through the main hole in the tunnel and
push the gearhouse and motor-bracket gently together.
7. Screw the lower unit and the motor-bracket together with the
two provided bolts. Tighten with 17 Nm / 12,4 lb/ft.
Getriebe und Motorhalterung
SH100/185T, SH160/215T, SH240/250TC
D
Fitting gearhouse and motor bracket
SH100/185T, SH160/215T, SH240/250TC
GB
13
11
SE 80/185 T - SE 100/185 T - SE 130/250T 1.0.1- 2008
Fig. 2
1. Marker båtens og tunnelens senterlinje på tunnelen.
Girhuset må plasseres med enden merket P mot babord og enden
merket S mot styrbord (Fig. 4) for at skyveretning skal korrespondere
med merkingen på kontrollpanelene.
2. Bruk girhuspakningen for å sjekke målene (7). Alle hull må være på
båtens eller tunnelens senterlinje for å får til en presis installasjon.
Dette skyldes at det er meget liten klaring mellom tunnelveggen og
propellen.
3. Tunnelen må ha en jevn overate der braketen skal festes, all støp,
evt glassber eller epoxy rester må pusses ned så braketen passer
jevnt på tunnelen. Ujevnheter her vil resultere i svikt i girhuset.
4. Bor senterhullet iht. Fig. 1a (Se80/100) eller Fig. 1b (SE130)
5. Prøv girhuset i tunnelen sammen med pakning 1m.m. Monter propell
å sjekk at den er i midten av tunnelen. Hvis propellen ikke er i midten
av tunnelen, forsøk å bruk den endre pakningen, eller begge to sam-
tidig. Hvis tunnelen ikke har en jevn overate så kan Sikaeks, eller
lignende tetningsmateriale brukes for å sikre mot lekkasje.
6. Før girhuset gjennom hovedhullet i tunnelen og monter braketten og
girhuset forsiktig sammen.
7. Skru sammen motorbraketten og girhuset med orginalbolter (Fig. 3).
Bolt tightening forces:
Bolts (2x) holding gearhouse to bracket:
SE80/100: 17 Nm (12,4 lb/ft)
SE130: 33 Nm (24lb/ft)
Montering av girhus og brakett
N
Fitting gearhouse and motor bracket
GB
Fig. 1a
PORT STARBOARD
S
P
Fig. 4
Fig. 3
1. Mark the centreline of the tunnel and the boats centreline.
The gearleg must be tted with the P-mark facing port and S-mark
facing starboard (Fig. 4) for the thrust direction to correspond with the
control panel
2. Use the gearhouse gasket (7) to mark the centre of the holes and
double check the measurements. It is absolutely
necessary that all holes are in-line with the tunnels’ centreline to
ensure precise installation, as the clearance between the
propellers and the tunnel is minimal to ensure best possible
performance.
3. There must be no casting where the motor bracket is to be placed,
as this will cause possible failure of the gearhouse. The motor
bracket must t steady on the tunnel, if the tunnel is not smooth,
all bumps or uneven parts must be grinded smooth.
4. Drill the holes according to Fig 1a (SE80/100) or Fig. 1b (SE130)
5 Try the lower-unit in the tunnel (without the zinc anodes and the
lower part of the exible coupling) by using the gasket inside the
tunnel. Try on the propellers to make sure they are in the middle of
the tunnel and turn freely with the same clearing from each blade to
the tunnel. Use sealant e.g. Sikaex to ensure that no leakages
occur.
6. Push the gearhouse through the main hole in the tunnel and push
the gearhouse and motor-bracket gently together.
7. Screw the lower unit and the motor-bracket together with the two
provided bolts (Fig. 3).
7
CENTRELINE
28,0mm
1,1"
Ø 9mm
0,35"
TUNNELS
CENTRELINE
BOATS
CENTRELINE
Ø 32mm
1,26"
40,0mm
1,57"
Ø 11,00mm
7/16"
TUNNELS
CENTRELINE
BOATS
CENTRELINE
Ø 46,00mm
1,81"
Fig. 1b
SH100: 17 Nm (12.4 lb/ft)
SH160/SH240: 33 Nm (24 lb/ft)
SH100/185T SH160/215T - SH240/250TC
Boats
centreline
Tunnels
centreline
C
ØA ØB C
700 83mm
3 1/4”
18mm
.7”
70mm
2.7”
ØA ØB
IMPORTANT
Ensure that there is some oil or grease
on the O-rings in the motor bracket
before mounting it together with the
gearhouse, as no lubrication could
cause serious damage to the O-rings.
The gear leg neck and the inner surface
of the motor bracket must remain
clean.

SH700/412 & SH1000/513TC & SH1400/610TC 15
Montering av girhus og brakett
N
Fitting gearhouse and motor bracket
EN
1. Mark the centerline of the tunnel and the boats centerline.
2. Use a template or gearhouse gasket to mark the centre of
the holes and double check the measurements. It is abso-
lutely necessary that all holes are in-line with the tunnels’
centreline to ensure precise installation, as the clearance
between the propellers and the tunnel is minimal to ensure
best possible performance. Fig.1.
3. Drill the holes according to Fig.1.
4. Fill the gearhouse with 4,5 liters of GL-5 gear oil or similar.
Fit the gearleg with the end marked P facing port and the end
marked S facing starboard for the thrust direction to corre-
spond with the control panel. Fig. 2b.
5. Try the gearleg-unit in the tunnel (without the propeller) by
using the gasket inside the tunnel. Try on the propellers to
make sure they are in center of the tunnel and turn freely
with the same clearance from each blade to the tunnel. Use
suited sealant to ensure that no leakages occur.
6. Apply a thin layer of sealant on both sides of the gasket and
place carefully on the gearhouse, ensure no sealant gets into
the bolt holes on the gearhouse. Fig. 3.
7. Insert the gearleg through the main hole in the tunnel. Fig. 3.
8. There must be no casting where the motor bracket is placed,
as this will cause possible failure of the gearhouse. The mo-
tor bracket must t steady on the tunnel, if the tunnel is not
smooth, all uneven surfaces must be ground smooth.
9. IMPORTANT! Apply ller on surface between tunnel and
motor bracket gasket to achieve required stability for
motor bracket. Filler and primer used must be compat-
ible with tunnel and gasket material. Ensure to follow
ller manufacturer technical data regarding priming,
application and curing of the ller. Fig 3b.
10. Assemble the gearhouse and motor-bracket gently together
after ller is applied. Screw the gearleg unit and the motor-
bracket together with the 4 provided bolts. Tighten to 80Nm.
Fig. 4.
Note! Smooth out excessive ller around the motor bracket.
1. Marker båtens og tunnelens senterlinje på tunnelen. Fig.1.
2. Bruk en mal eller girhus- pakning for å markere midten
av hullene og deretter dobbeltsjekk målene. Det er helt
nødvendig at alle hullene er på linje med tunnelens senter for
å sikre presis installasjon, da klaringen mellom propellene og
tunnelveggen er minimal. Dette for å sikre best mulig ytelse.
Fig.1.
3. Bor hull i henhold til Fig.1.
4. Fyll girhuset med 4,5 liter GL-5 girolje. Monter girhuset
med enden merket P vendt babord og enden merket S
vendt styrbord for at skyveretning skal korrespondere med
kontrollpanelet. Fig. 2b.
5. Prøv girhus-enhet i tunnelen (uten propellen) med pakning
på innsiden tunnelen. Sett på og roter propellene for å sikre
at de er i midten av tunnelen og kontroller at propellene
roterer fritt med samme avstand fra hvert blad til tunnelen.
Bruk egnet tettningsmiddel for å sikre mot lekkasje.
6. Påfør et tynt lag med tettningsmasse på begge sider av
pakningen og plasser på girhuset, pass på at tetningsmasse
IKKE kommer inn skruehullene på girhuset. Fig. 3.
7. Før girhuset gjennom hovedhullet i tunnelen Fig. 3.
8. Tunnelen må ha en jevn overate der braketen skal festes,
all støp, evt glassber- eller epoxy-rester må pusses ned
så braketten passer jevnt på tunnelen. Ujevnheter her vil
resultere i svikt i girhuset.
9. VIKTIG! Påfør ller mellom tunellens overate og
pakningen til motorbraketten for å sikre fullstendig
stabilitet i motorbraketten. Bruk egnet ller for å oppnå
dette. Filler og primer må være kompatibel med tunnel
og pakning materiale. Forsikre deg om at du følger
llerfabrikantens tekniske data angående priming,
påføring og herding av ller. Fig. 3b.
10. Monter girhuset og motorbrakett forsiktig sammen etter ller
er påført. Skru girhuset og motor-braketten sammen med de
4 medfølgende bolter. Stram til 80Nm. Fig. 4.
Note! Fjern overskytende ller rundt motorbrakett.

SH700/412 & SH1000/513TC & SH1400/610TC 16
1 1
2 2
3 3
4 4
5 5
6 6
A A B B C C
D D
19.01.2011
1
Designed by Date
1 / 1
Edition Sheet
T. Svendsen
Material Type Drawing nr
Copyright All rights reserved
Part nr Size Scale
Title
Tolerance NS-ISO 2768-1
m
SLEIPNERMOTORAS
A3 1:1
Weight
95mm
3,74"
25mm
0,98"

120mm
4,72"

16mm
0,63"
Fig. 1
SH1000_manual_2016
2
1.2
Snapshot
SH1000_manual_2016
2
1.3
Snapshot
Sealant on both
sides of gearleg
gasket
SH1000_manual_2016
2
1.1
Snapshot
Tighten to 80Nm
Lock the nuts by
bending locking
plate
Fig. 2
Fig. 3
Fig. 4
IMPORTANT!
Sealant and primer used on
the gasket must be compat-
ible with tunnel, gasket and
gearleg material. Ensure to
follow sealant manufacturer
technical data regarding prim-
ing, application and curing of
the sealant.
IMPORTANT!
The gearleg must be tted
with the end marked P
facing port, and the end
marked S facing starboard.
Motor bracket
gasket
IMPORTANT!
Pre-ll gearleg with oil.
GL-5 or similar.
Montering av girhus og brakett
N
Fitting gearhouse and motor bracket
EN
Fig. 3b
Apply ller
Smooth out
excessive ller
SH1000_manual_2016
2
1.9
Snapshot
SH 1000 & SH1400

SH700/412 & SH1000/513TC & SH1400/610TC 17
SH1000_manual_2016
2
1.15
Snapshot
Tighten to 200Nm
Propeller Installation
EN
1. Rotate the propeller shaft, so the propeller key is on top. Remove the tape holding the propeller key in its recess on the propeller shaft.
2. Insert the propeller onto the propeller shaft until the propeller key aligns into the slot/ groove in the propeller. (NB: Installation requires almost no
gap (approximately 1mm) between the propeller and the gear leg.)
3. Apply waterproof grease only to the thread where the bolt will be fastened to achieve required torque tension. DO NOT apply grease to the internal
propeller core.
4. Without the washer fasten the propeller lock-nut to the required torque.
5. Remove the propeller lock-nut from the shaft and grease the washer surface facing the propeller lock-nut.
6. Insert the washer on the propeller shaft and re-fasten the propeller lock-nut to required torque tension. (NB: Ensure the washer tab is inserted
into the slot/ groove in the propeller.)
7. Insert the two anode pins on the propeller and the anode to the end of the propeller and fasten the anode holding screw. Apply a thread glue
(Loctite or similar) to ensure that the anode holding screw does not un-screw itself from during the rotation of the propeller.
MC_0022
!Please refer to the graphic for special considerations relating to your model !
IMPORTANT
Ensure propellers marked LH are installed
on the port side and propellers marked RH
on the starboard side. Propellers must be
installed relative to their rotating directions.
SH 700
A
Propeller assembly with locking washer and anode:
- Grease up the surface (A) between the propeller and propeller nut (B).
- Tigthen the propeller nut (B) to given torque without
the washer (C) between
- Remove the propeller nut (B) from the treads/shaft (D)
- Grease up the washer (C) at both sides
- Re-tighten the propeller nut (B) with the washer (C) included
- Lock the washer (C) into the propeller nut (B)
- Assemble the anode (E) onto the shaft/propeller nut (D+B)
A
B
C
D
E
Anode &
pin bolts Lock nut
Tab washer
Propeller
Holding key
IMPORTANT
Shaft and propeller taper must be 100% clean
before assembling. Apply mounting oil before
assmebling propeller to shaft.

SH700/412 & SH1000/513TC & SH1400/610TC 18
1. Vri propellakselen slik at kilen (5) er på oversiden. Smør
sjøvannsbestandig fett eller tilsvarende på propellakselen.
2. Skyv propellen helt inn på akselen. Det skal være tilnærmet
ingen avstand mellom propellens nav og girhuset. Bruk fett for
å forhindre at propellen setter seg på akselen.
Note! Propellen merket LH monteres på babord aksel og
propellen merket RH monteres på styrbord aksel (g. 2).
Sjekk at propellen roterer fritt og er sentert så mye som mulig
i tunnellen.
Se neste side for detaljert beskrivelse av propellmontering.
3. Plasser låseskiven (3) på propellakselen med tappen i
kilesporet og stram mutteren (2) med 400Nm. Bøy låseskiven
opp langs mutterens ate sider for å låse mutteren.
4. Plasser anodene og pinneboltene (1) på angitt sted og stram
låseskruene (1). Bruk gjengelim for å sikre at ikke skruene
løsner på grunn av propellenes rotasjon.
Delebeskrivelse:
1 : Anode kit (Zink eller Alu, i forhold til vannforhold)
2 : Mutter for propell
3 : Låseskive
4: Propell
5 : Kile for propell
Viktig:
Sjekk at girhuset er orientert korrekt (g. 2) i forhold til
dreieretningen før båten sjøsettes
1. Turn the propeller shaft so that the key (5) is in a horizontal
position. Apply seawater resistant grease or similar on the
propeller shaft.
2. Push the propeller onto the shaft all the way in. There
should be almost no gap between the propeller hub and the
gearhouse. Use grease to prevent sticking.
Note! Fit the propellers to the shaft with the propeller marked
LH on the port side and the propeller marked RH on the
starboard side (g. 2). Turn them again to make sure the
they move freely and as much in the centre of the tunnel as
possible.
See next page for detailed description of propeller tting.
3. Place the locking/tab washer (3) on the propeller shaft with
tab aligned in keyway slot. Then tighten the hex nut (2) on the
propeller shaft to 400Nm. Bend the washer up onto the at
faces of the nut to lock the nut in position.
4. Place the anodes and pin bolts (1) in its designated position
as illustrated and tighten the anode holding screws (1). Apply
a thread glue (Loctite or similar) to ensure that the anodes
holding screw does not un-screw itself from the propellers
rotation.
Parts description:
1 : Anode kit (Zink or Alu, depending on water conditions)
2 : Hex nut
3 : Lock Washer
4 : Propeller
5 : Key for propeller
IMPORTANT:
Please check correct side of gear leg relative to their rotation
direction (g. 2) before launching the boat.
N
Fitting propellers
EN Montering av propeller
AISI 304 70 1241SM-100537
1
126
St 52 SM-100029
1
58
Default
SM-100028
157
Default
SM-100027356
Default
SM-100026155
SS1914-04SM-100024154
St 52
SM-1000041
53
Steel, Mild DIN 472 - 80 x
2,5 Steel, Mild
1
52
Steel, Mild
DIN 472 - 55 x 2
Steel, Mild
151
C 75 SDIN 471 -
40x1,75 C 75 S
150
Steel, Mild DIN 617 SKF -
SKF NKI 40/30
1
49
SS1914-04
Distansering for
segerring over
33109Q
1
48
SS1914-04Distansering
mellom 33109Q
147
Default
KMT M45x1,5
SKF
1
46
Steel, Mild
DIN 720 SKF -
SKF 33109
2
45
X 10 CrNi
18 8
DIN 472 - 90 x 3113000144
ST60-2KDIN 6885 - A 14 x 9 x 36701243
4
43
ST60-2KDIN 6885 - A 12 x 8 x 40701244
1
8
61030
1
42
NBR
701350
4
41
A4212124140
SteelCSN 024645 SKF (A) -SKF
7312 BE
701230
.
439
NBR
701302 238
NBR
701300
4
37
A2DIN 934 - M1221203
4
13
A411240136
A4DIN 6912 - M8 x 30108302035
12.911235334
A4
10520
1233
A4
70 108001-03-1000-109
47
AISI 304 70 124101-03-1000-107212
Default
48571 132
A461043331
AISI 30461031130
Rubber
61042129
St 37 70 1436 328
St 37 70 1435 627
JM 1-15
6 1060
1
26
Nitril
70 131301-03-1000-112110
Rubber
70 1351125
BS 753170 131201-03-1000-11319
SS1914-04 70 114101-03-1000-111224
SS 2387 70 111201-03-1000-106
1
23
St 52 70 114001-03-1000-115222
EN AB-51400 70 050001-03-1000-108
111
18NiCrMo5
70 113201-03-1000-118121
18NiCrMo570 119201-03-1000-117220
AISI 316 L
Lokk simmerring
propellaksel
70 135201-03-1000-114219
316 L 70 119801-03-1000-102218
Mibral
70 1270RH
117
SIS 5204 70 128001-03-1000-101216
SIS 520470-110001-01-1000-100115
GRP1373001-03-1000-116114
A4
DIN 6885 - A 14 x 9 x 56701242 2
6
RG-5 70 1270 LH01-03-1000-104
15
AISI 316 L LSD-45 2
4
JM 1-15PM45
23
Martyr II70 1180A01-03-1000-11022
A4
1124121
Parts List
MATERIALTITLESTOCK NODRAWING NOQTIT
AISI 30470 1241SM-1005371126
St 52SM-100029158
Default SM-100028
157
Default SM-100027356
Default
SM-100026
155
SS1914-04 SM-100024
154
St 52SM-100004153
Steel, Mild
DIN 472 - 80 x
2,5 Steel, Mild
152
Steel, Mild DIN 472 - 55 x 2
Steel, Mild
151
C 75 S
DIN 471 -
40x1,75 C 75 S
1
50
Steel, Mild
DIN 617 SKF -
SKF NKI 40/30
149
SS1914-04
Distansering for
segerring over
33109Q
1
48
SS1914-04 Distansering
mellom 33109Q
147
Default
KMT M45x1,5
SKF
146
Steel, Mild DIN 720 SKF -
SKF 33109
2
45
X 10 CrNi
18 8
DIN 472 - 90 x 3113000
144
ST60-2KDIN 6885 - A 14 x 9 x 36701243443
61030142
NBR701350441
A4
212124
1
40
SteelCSN 024645 SKF (A) -SKF
7312 BE
701230
.
4
39
NBR
701302 238
NBR701300437
A411240136
A4
DIN 6912 - M8 x 3010830 2035
12.9 11235 334
A4
10520 1233
Default
48571
1
32
A461043331
AISI 30461031130
Rubber
61042129
St 37 70 1436 328
St 37 70 1435 627
JM 1-15
6 1060
1
26
Rubber
70 1351 125
SS1914-0470 114101-03-1000-111224
SS 238770 111201-03-1000-106123
St 52
70 1140
01-03-1000-115222
18NiCrMo5 70 113201-03-1000-118
1
21
18NiCrMo5 70 119201-03-1000-117220
AISI 316 L
Lokk simmerring
propellaksel
70 135201-03-1000-114219
316 L70 119801-03-1000-102218
Mibral
70 1270RH
117
SIS 5204 70 128001-03-1000-101216
SIS 5204 70-110001-01-1000-100
115
GRP 1373001-03-1000-116
114
A2DIN 934 - M1221203
4
13
AISI 30470 124101-03-1000-107212
EN AB-5140070 050001-03-1000-108111
Nitril
70 131301-03-1000-112110
BS 7531 70 131201-03-1000-113
1
9
ST60-2KDIN 6885 - A 12 x 8 x 40701244
1
8
A4
70 108001-03-1000-109
47
A4DIN 6885 - A 14 x 9 x 5670124226
RG-570 1270 LH01-03-1000-10415
AISI 316 LLSD-45
24
JM 1-15PM45
23
Martyr II
70 1180A01-03-1000-11022
A4
11241 2
1
Parts List
MATERIALTITLE
STOCK NODRAWING NOQT
IT
A
SH 100070 060001-03-1000-119
1
8
DefaultBrakett
70 050101-03-1000-103
17
Default
16
A2DIN 912 - M12 x 501125045
A4DIN 128 - A1221212844
DefaultRotex 42701462
1
3
A4
DIN 912 - M12 x 35110000 62
A4
DIN 128 A10210130 6
1
Parts List
MATERIALTITLE
STOCK NODRAWING NOQT
IT
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
A A
B B
C C
D D
E E
F F
G G
H H
I I
J J
K K
L L
70 0600
20.01.2011
1
Designed by Date
1 / 1
Edition Sheet
T. Svendsen
Material Type Drawing nr
01-03-1000-119
Copyright All rights reserved
Part nr Size Scale
Title
SH 1000
Tolerance NS-ISO 2768-1
SLEIPNERMOTORAS
A0
166,230
kg
Weight
1
2345
6
1 2 3 4 5 6
7
8
9
10
11
12
13
1
2
3
5
4
6
SH1000_manual_2016
2
1.15
Snapshot
Fig. 1
Side marked "P"
facing PORT
Propeller
marked LH
Propeller
marked RH
AISI 304 70 1241SM-100537
1
126
St 52 SM-100029
1
58
Default
SM-100028
157
Default
SM-100027356
Default
SM-100026155
SS1914-04SM-100024154
St 52
SM-1000041
53
Steel, Mild DIN 472 - 80 x
2,5 Steel, Mild
1
52
Steel, Mild
DIN 472 - 55 x 2
Steel, Mild
151
C 75 SDIN 471 -
40x1,75 C 75 S
150
Steel, Mild DIN 617 SKF -
SKF NKI 40/30
1
49
SS1914-04
Distansering for
segerring over
33109Q
1
48
SS1914-04Distansering
mellom 33109Q
147
Default
KMT M45x1,5
SKF
1
46
Steel, Mild
DIN 720 SKF -
SKF 33109
2
45
X 10 CrNi
18 8
DIN 472 - 90 x 3113000144
ST60-2KDIN 6885 - A 14 x 9 x 36701243
4
43
ST60-2KDIN 6885 - A 12 x 8 x 40701244
1
8
61030
1
42
NBR
701350
4
41
A4212124140
SteelCSN 024645 SKF (A) -SKF
7312 BE
701230
.
439
NBR
701302 238
NBR
701300
4
37
A2DIN 934 - M1221203
4
13
A411240136
A4DIN 6912 - M8 x 30108302035
12.911235334
A4
10520
1233
A4
70 108001-03-1000-109
47
AISI 304 70 124101-03-1000-107212
Default
48571 132
A461043331
AISI 30461031130
Rubber
61042129
St 37 70 1436 328
St 37 70 1435 627
JM 1-15
6 1060
1
26
Nitril
70 131301-03-1000-112110
Rubber
70 1351125
BS 753170 131201-03-1000-11319
SS1914-04 70 114101-03-1000-111224
SS 2387 70 111201-03-1000-106
1
23
St 52 70 114001-03-1000-115222
EN AB-51400 70 050001-03-1000-108
111
18NiCrMo5
70 113201-03-1000-118121
18NiCrMo570 119201-03-1000-117220
AISI 316 L
Lokk simmerring
propellaksel
70 135201-03-1000-114219
316 L 70 119801-03-1000-102218
Mibral
70 1270RH
117
SIS 5204 70 128001-03-1000-101216
SIS 520470-110001-01-1000-100115
GRP1373001-03-1000-116114
A4
DIN 6885 - A 14 x 9 x 56701242 2
6
RG-5 70 1270 LH01-03-1000-104
15
AISI 316 L LSD-45 2
4
JM 1-15PM45
23
Martyr II70 1180A01-03-1000-11022
A4
1124121
Parts List
MATERIALTITLESTOCK NODRAWING NOQTIT
AISI 30470 1241SM-1005371126
St 52SM-100029158
Default SM-100028
157
Default SM-100027356
Default
SM-100026
155
SS1914-04 SM-100024
154
St 52SM-100004153
Steel, Mild
DIN 472 - 80 x
2,5 Steel, Mild
152
Steel, Mild DIN 472 - 55 x 2
Steel, Mild
151
C 75 S
DIN 471 -
40x1,75 C 75 S
1
50
Steel, Mild
DIN 617 SKF -
SKF NKI 40/30
149
SS1914-04
Distansering for
segerring over
33109Q
1
48
SS1914-04 Distansering
mellom 33109Q
147
Default
KMT M45x1,5
SKF
146
Steel, Mild DIN 720 SKF -
SKF 33109
2
45
X 10 CrNi
18 8
DIN 472 - 90 x 3113000
144
ST60-2KDIN 6885 - A 14 x 9 x 36701243443
61030142
NBR701350441
A4
212124
1
40
SteelCSN 024645 SKF (A) -SKF
7312 BE
701230
.
4
39
NBR
701302 238
NBR701300437
A411240136
A4
DIN 6912 - M8 x 3010830 2035
12.9 11235 334
A4
10520 1233
Default
48571
1
32
A461043331
AISI 30461031130
Rubber
61042129
St 37 70 1436 328
St 37 70 1435 627
JM 1-15
6 1060
1
26
Rubber
70 1351 125
SS1914-0470 114101-03-1000-111224
SS 238770 111201-03-1000-106123
St 52
70 1140
01-03-1000-115222
18NiCrMo5 70 113201-03-1000-118
1
21
18NiCrMo5 70 119201-03-1000-117220
AISI 316 L
Lokk simmerring
propellaksel
70 135201-03-1000-114219
316 L70 119801-03-1000-102218
Mibral
70 1270RH
117
SIS 5204 70 128001-03-1000-101216
SIS 5204 70-110001-01-1000-100
115
GRP 1373001-03-1000-116
114
A2DIN 934 - M1221203
4
13
AISI 30470 124101-03-1000-107212
EN AB-5140070 050001-03-1000-108111
Nitril
70 131301-03-1000-112110
BS 7531 70 131201-03-1000-113
1
9
ST60-2KDIN 6885 - A 12 x 8 x 40701244
1
8
A4
70 108001-03-1000-109
47
A4DIN 6885 - A 14 x 9 x 5670124226
RG-570 1270 LH01-03-1000-10415
AISI 316 LLSD-45
24
JM 1-15PM45
23
Martyr II
70 1180A01-03-1000-11022
A4
11241 2
1
Parts List
MATERIALTITLE
STOCK NODRAWING NOQT
IT
A
SH 100070 060001-03-1000-119
1
8
DefaultBrakett
70 050101-03-1000-103
17
Default
16
A2DIN 912 - M12 x 501125045
A4DIN 128 - A1221212844
DefaultRotex 42701462
1
3
A4
DIN 912 - M12 x 35110000 62
A4
DIN 128 A10210130 6
1
Parts List
MATERIALTITLE
STOCK NODRAWING NOQT
IT
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
A A
B B
C C
D D
E E
F F
G G
H H
I I
J J
K K
L L
70 0600
20.01.2011
1
Designed by Date
1 / 1
Edition Sheet
T. Svendsen
Material Type Drawing nr
01-03-1000-119
Copyright All rights reserved
Part nr Size Scale
Title
SH 1000
Tolerance NS-ISO 2768-1
SLEIPNERMOTORAS
A0
166,230
kg
Weight
1
2345
6
1 2 3 4 5 6
7
8
9
10
11
12
13
1
2
3
5
4
6
AISI 304 70 1241SM-100537
1
126
St 52 SM-100029
1
58
Default
SM-100028
157
Default
SM-100027356
Default
SM-100026155
SS1914-04SM-100024154
St 52
SM-1000041
53
Steel, Mild DIN 472 - 80 x
2,5 Steel, Mild
1
52
Steel, Mild
DIN 472 - 55 x 2
Steel, Mild
151
C 75 SDIN 471 -
40x1,75 C 75 S
150
Steel, Mild DIN 617 SKF -
SKF NKI 40/30
1
49
SS1914-04
Distansering for
segerring over
33109Q
1
48
SS1914-04Distansering
mellom 33109Q
147
Default
KMT M45x1,5
SKF
1
46
Steel, Mild
DIN 720 SKF -
SKF 33109
2
45
X 10 CrNi
18 8
DIN 472 - 90 x 3113000144
ST60-2KDIN 6885 - A 14 x 9 x 36701243
4
43
ST60-2KDIN 6885 - A 12 x 8 x 40701244
1
8
61030
1
42
NBR
701350
4
41
A4212124140
SteelCSN 024645 SKF (A) -SKF
7312 BE
701230
.
439
NBR
701302 238
NBR
701300
4
37
A2DIN 934 - M1221203
4
13
A411240136
A4DIN 6912 - M8 x 30108302035
12.911235334
A4
10520
1233
A4
70 108001-03-1000-109
47
AISI 304 70 124101-03-1000-107212
Default
48571 132
A461043331
AISI 30461031130
Rubber
61042129
St 37 70 1436 328
St 37 70 1435 627
JM 1-15
6 1060
1
26
Nitril
70 131301-03-1000-112110
Rubber
70 1351125
BS 753170 131201-03-1000-11319
SS1914-04 70 114101-03-1000-111224
SS 2387 70 111201-03-1000-106
1
23
St 52 70 114001-03-1000-115222
EN AB-51400 70 050001-03-1000-108
111
18NiCrMo5
70 113201-03-1000-118121
18NiCrMo570 119201-03-1000-117220
AISI 316 L
Lokk simmerring
propellaksel
70 135201-03-1000-114219
316 L 70 119801-03-1000-102218
Mibral
70 1270RH
117
SIS 5204 70 128001-03-1000-101216
SIS 520470-110001-01-1000-100115
GRP1373001-03-1000-116114
A4
DIN 6885 - A 14 x 9 x 56701242 2
6
RG-5 70 1270 LH01-03-1000-104
15
AISI 316 L LSD-45 2
4
JM 1-15PM45
23
Martyr II70 1180A01-03-1000-11022
A4
1124121
Parts List
MATERIALTITLESTOCK NODRAWING NOQTIT
AISI 30470 1241SM-1005371126
St 52SM-100029158
Default SM-100028
157
Default SM-100027356
Default
SM-100026
155
SS1914-04 SM-100024
154
St 52SM-100004153
Steel, Mild
DIN 472 - 80 x
2,5 Steel, Mild
152
Steel, Mild DIN 472 - 55 x 2
Steel, Mild
151
C 75 S
DIN 471 -
40x1,75 C 75 S
1
50
Steel, Mild
DIN 617 SKF -
SKF NKI 40/30
149
SS1914-04
Distansering for
segerring over
33109Q
1
48
SS1914-04 Distansering
mellom 33109Q
147
Default
KMT M45x1,5
SKF
146
Steel, Mild DIN 720 SKF -
SKF 33109
2
45
X 10 CrNi
18 8
DIN 472 - 90 x 3113000
144
ST60-2KDIN 6885 - A 14 x 9 x 36701243443
61030142
NBR701350441
A4
212124
1
40
SteelCSN 024645 SKF (A) -SKF
7312 BE
701230
.
4
39
NBR
701302 238
NBR701300437
A411240136
A4
DIN 6912 - M8 x 3010830 2035
12.9 11235 334
A4
10520 1233
Default
48571
1
32
A461043331
AISI 30461031130
Rubber
61042129
St 37 70 1436 328
St 37 70 1435 627
JM 1-15
6 1060
1
26
Rubber
70 1351 125
SS1914-0470 114101-03-1000-111224
SS 238770 111201-03-1000-106123
St 52
70 1140
01-03-1000-115222
18NiCrMo5 70 113201-03-1000-118
1
21
18NiCrMo5 70 119201-03-1000-117220
AISI 316 L
Lokk simmerring
propellaksel
70 135201-03-1000-114219
316 L70 119801-03-1000-102218
Mibral
70 1270RH
117
SIS 5204 70 128001-03-1000-101216
SIS 5204 70-110001-01-1000-100
115
GRP 1373001-03-1000-116
114
A2DIN 934 - M1221203
4
13
AISI 30470 124101-03-1000-107212
EN AB-5140070 050001-03-1000-108111
Nitril
70 131301-03-1000-112110
BS 7531 70 131201-03-1000-113
1
9
ST60-2KDIN 6885 - A 12 x 8 x 40701244
1
8
A4
70 108001-03-1000-109
47
A4DIN 6885 - A 14 x 9 x 5670124226
RG-570 1270 LH01-03-1000-10415
AISI 316 LLSD-45
24
JM 1-15PM45
23
Martyr II
70 1180A01-03-1000-11022
A4
11241 2
1
Parts List
MATERIALTITLE
STOCK NODRAWING NOQT
IT
A
SH 100070 060001-03-1000-119
1
8
DefaultBrakett
70 050101-03-1000-103
17
Default
16
A2DIN 912 - M12 x 501125045
A4DIN 128 - A1221212844
DefaultRotex 42701462
1
3
A4
DIN 912 - M12 x 35110000 62
A4
DIN 128 A10210130 6
1
Parts List
MATERIALTITLE
STOCK NODRAWING NOQT
IT
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
A A
B B
C C
D D
E E
F F
G G
H H
I I
J J
K K
L L
70 0600
20.01.2011
1
Designed by Date
1 / 1
Edition Sheet
T. Svendsen
Material Type Drawing nr
01-03-1000-119
Copyright All rights reserved
Part nr Size Scale
Title
SH 1000
Tolerance NS-ISO 2768-1
SLEIPNERMOTORAS
A0
166,230
kg
Weight
1
2345
6
1 2 3 4 5 6
7
8
9
10
11
12
13
1
2
3
5
4
6
Side marked "S"
facing STARBOARD
Fig. 2
Tighten to 400Nm
IMPORTANT!
Shaft and propeller taper must be 100% clean
before assembling. Apply mounting oil before
assmebling propeller to shaft.
SH 1000 & SH1400

SH700/412 & SH1000/513TC & SH1400/610TC 19
A
Propeller assembly with locking washer and anode:
- Grease up the surface (A) between the propeller and propeller nut (B).
- Tigthen the propeller nut (B) to given torque without
the washer (C) between
- Remove the propeller nut (B) from the treads/shaft (D)
- Grease up the washer (C) at both sides
- Re-tighten the propeller nut (B) with the washer (C) included
- Lock the washer (C) into the propeller nut (B)
- Assemble the anode (E) onto the shaft/propeller nut (D+B)
A
B
C
D
E
N
Fitting propellers details
EN Montering av propeller detaljer
• Smør opp overaten (A) mellom propell og propellmutter (B).
• Trekk til propellmutteren (B) til gitt moment uten skiven (C) i
mellom.
• Fjern propellmutteren (B) fra gjengene / akselen (D)
• Smør opp skiven (C) front side, aten mot mutter.
• Trekk til propellmutteren (B) med skiven (C) inkludert
• Lås skiven (C) inn i propellmutteren (B)
• Monter anoden (E) på akselen / propellmutteren (D + B)
• Grease up the surface (A) between the propeller and
propeller nut (B).
• Tigthen the propeller nut (B) to given torque without the
washer (C) in between.
• Remove the propeller nut (B) from the treads/shaft (D)
• Grease up the washer (C) front, surface against nut.
• Re-tighten the propeller nut (B) with the washer (C) included
• Lock the washer (C) into the propeller nut (B)
• Assemble the anode (E) onto the shaft/propeller nut (D+B)

SH700/412 & SH1000/513TC & SH1400/610TC 20
Montering av hydraulikkmotor og kobling
N
Referer til illustrasjonene Fig 1a og 1b
1. Plasser nederste del av den eksible koblingen (5) på
kileporet på girhusakselen. Ikke stram til.
2. Monter øvre motorbrakett (2) til nedre del (1) med de 8
medfølgende bolter (4) og låseskiver(3). Trekk til med 86Nm
3. Plasser koblingens gummi/plastdel (6) på nederdelen(5)
4. Monter koblingens øvre del (7) på hydraulikkmotorens (10)
aksel og stram festeskruen lett slik at den ikke faller av, men
fremdeles kan beveges.
5. Plasser hydraulikkmotoren (10) på den øvre braketten (2).
Kontroller at koblingens deler går i inngrep. Dette gjøres
enklest ved å dreie motoren om dens vertikale akse.
6. Sentrer koblingens deler mellom girhuset og motorens ens i
henhold til Fig. 1b
7. Når koblingen er sentrert, fjern motoren (10) og stram
settskruen på koblingens øvre del med følgende moment:
Nav med kilespor - 67Nm, Nav med splines, SH1000 - 67Nm,
Nav med splines, SH1400 - 120Nm
8. Løft den nederste delen av koblingen slik at den ligger tett
opptil plast/gummidelen (6). NB: Koblingen må ikke utsettes
for aksiell last.
9. Stram til settskruene på koblingens nedre del (5) med 25Nm
10. Roter propellene for hånd for å sjekke at koblingen roterer fritt.
Trekk til motorbolter til 100Nm.
I visse tilfeller (ved grunne installasjoner, ske / arbeidsfartøy)
anbefaler vi å beskytte propell og girhus ved å montere et gitter foran
tunnelåpningene (Fig. 2). Det er da meget viktig å beholde strømlin-
jeformen, og å begrense gitteret til et minimum. Feil installasjon kan
begrense skyvekraften med 15%
NB ! Påfør bunnsto󰀨 på girhus og propell for å unngå vekst som
kan virke sterkt hemmende på thrusterens e󰀨ekt. Anoder,
propellaksling og tetninger skal ikke sto󰀨es.
Refer to the illustrations Fig 1a & 1b
1. Insert the lower coupling hub (5) onto the key way of the gear
housing drive shaft. Do not tighten at this stage.
2. Mount the upper bracket (2) to the lower bracket (1) with the 8
securing bolts (4) and lock washers (3).Torque load to 86 Nm.
3. Place the coupling rubber/hard plastic spider (6) onto the
lower hub (5).
4. Insert the upper coupling hub(7) onto the motor(10) shaft and
lightly tighten its set screw, ensuring it maintains its position
but still can be moved on the shaft.
5. Place the hydraulic motor (10) onto the upper bracket (2)
ensuring the coupling hubs and spider engage. This can be
achieved by simply rotating the motor (10) around its vertical
axis.
6. Gain access to the coupling assembly through a upper
bracket (2) side opening. Adjust to centralize the exible
coupling assembly between the gear housing and hydraulic
motor ange. Refer to illustration Fig 1b.
7. With the nal position of the upper coupling hub(7)
established, remove the motor (10) and torque load the upper
coupling(7) set screw to; Key way hub - 25Nm, Splined hub
SH1000 - 67Nm, splined hub SH1400 - 120 Nm.
8. Gain access through a side opening of the upper bracket(2)
and lift the lower coupling hub(5) so it ts rmly against the
coupling spider(6). NB. The exible coupling must not be
subject to a axial load.
9. Torque load lower coupling key way hub (5) set screws to 25
Nm. Tighten motor bolts to 100Nm.
10. Rotate the propellers by hand and check the exible coupling
assembly for complete range & freedom of movement.
In some cases (shallow installation or workboat / shin boat only) we
recommend to protect the propeller by mounting a grid in the tun-
nel opening (Fig. 2). It is important to keep a grid to a minimum
and as streamlined for the thrusters waterow as possible, as it
can decrease the e󰀨ect of the thrusters up to 15%.
NB ! Paint the gearhouse and propeller with antifouling for pro-
pellers to prevent growth of barnacles or similar which would
reduce the performance dramatically. Do not paint the pro-
peller shaft, the anodes or the end face of the gearhouse.
Fitting the hydraulic motor and coupling
EN
















 
 
 
 
 
 



 

 

  

 
  



 

SLEIPNER MOTOR AS




 


























 
 
 
 



 

 

 

 
  





SLEIPNER MOTOR AS








SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC 2.9 - 2009 18
SH100/185T- SH160/215T -SH240/250TC - SP 300 HYD - SP 550 HYD 2.6 - 2008
Einbau des Hydraulikmotors
D
1. Die 4 Bolzen in der Motorhalterung enfernen.
2. Die Antriebsachse im Getriebegehäuse und die Motorachse
so drehen, daß die elastische Kupplung dazwischen paßt.
Die Befestigungsschrauben im unteren Teil der elastischen
Kupplung lösen. Den Gummiring ganz in den unteren Teil der
elastischen Kupplung einschieben.
3. Den Motor mit seiner Adapterplatte vorsichtig auf die Antriebs-
achse und die Motorhalterung aufsetzen.
Den Motor mit Adapterplatte auf die Motorhalterung stezen.
Der Gummiring muß sich dabei ganz in den oberen Teil der
elastischen Kupplung schieben.
4. Mit den 4 Bolzen Motor und Motorhalterung lose
verschrauben.
5. Mit den 4 Bolzen Motor/Adapterplatte und Motorhalterung
verschrauben. Anzugsmoment: 33 Nm (24 lb/ft)
6. Den Gummiring ganz in den unteren Teil der elastischen
Kupplung einschieben und zusammen in den oberen Teil
der elastischen Kupplung schieben. Der Gummiring muß
vollkommen im oberen Teil sitzen, darf aber nicht zusammen
gequetscht sein (17 mm). Den unteren Teil mit den beiden
Befestigungsschrauben in neuer Position festschrauben.
7. Überprüfen Sie, ob die beiden Bolzen, die den Motor an der
Adapterplatte befestigen, mit 17 Nm. festgezogen sind.
Wir empfehlen auf die Befestigungsschraube im unteren Teil
der elastischen Kupplung Locktite o.ä. aufzutragen. Die obere
Befestigungsschraube ist bereits mit Locktite befestigt.
8. Überprüfen, ob sich die Propeller frei im Tunnel drehen
lassen. Aufgrund der Getriebeübersetzung und des Motors
sollte das Systemdies etwas schwergängig sein.
9. Installieren Sie einen Drainageschlauch.
In manchen Fällen, z.B. bei achem Rumpf oder im gerwerblichen
Einsatz (z.B. Fischfang) empfehlen wir, den Propeller durch
ein Gitter vor der Tunnelöffnung zu schützen (Fig. 1). Dieses
sollte auf ein Minimum beschränkt und so stromlinienförmig
wie möglich sein, da die Leistung des Thrusters bis zu ca. 10%
reduziert wird.
NB ! Wir empfehlen, auf das Getriebegehäuse Anti-Fouling
aufzutragen. Nicht auf die Propellerachse, Zinkanoden oder
den Verschluß des Getriebegehäuses auftragen.
1. Remove the 4 bolts in the motorbracket.
2. Turn the driveshaft in the gearhouse and the motorshaft so
the key in the shaft and the keyway in the exible coupling are
in-line.
3. Slide the motor with its pretted adaptor plate and pretted
exible coupling onto the driveshaft and the motor bracket
gently.
4. Fasten the motor loosely to the bracket with the provided
bolts.
5. Fasten the adaptor plate rmly to the bracket with the
provided screws. Tighten the screws with a torque of 33 Nm
(24 lb/ft).
7. Check the bolts holding the hydraulic motor to its adaptor
plate by tightening them with a torque of 17 (12,4lb/ft) Nm.
8. Check the system by turning the propeller, it will be a little
hard to turn (because of the gear reduction and the motor),
but you should be able to turn it by hand.
9. Make sure to install the drain hose.
In some cases (shallow installation or workboat / shingboat only)
we recommend to protect the propeller by mounting a grid in the
tunnel opening (Fig. 1). It is important to keep a grid to a mini-
mum and as streamlined for the thrusters waterow as possible,
as it can decrease the effect of the thrusters up to 10%.
NB ! Paint the gearhouse and propeller with antifouling for
pro-pellers to prevent growth of barnacles or similar which
would reduce the performance dramatically. Do not paint
the pro-peller shaft, the zincanodes or the end face of the
gearhouse.
Fitting the hydraulic motor
GB
18
Fig. 1
17mm
Bolt tightening force (4x):
33 Nm (24 lb/ft)
SH 100/185 T
SH 100/185 T
SH100/185T & SH160/215T
Fig. 1a Fig. 1b Fig. 2
1: Lower bracket
2: Upper bracket
3: Lock washers, bracket (8 pcs)
4: Bolts, bracket (8 pcs)
5: Coupling, lower part
6: Coupling, spider
7: Coupling, upper part
(with key way or splines according
to motor type)
8: Lock washers, motor (4 pcs)
9: Bolts, motor (4 pcs)
10: Hydraulic motor
11: Oil feed nipple
12: Oil tube
13: Oil tank
IMPORTANT!
Apply seawater resistant
grease on both motor shaft
and gearleg shaft before tting
exible coupling.
