Sloan SF Series User manual

Code No. 0816496
Rev. 4 (04/14)
I STALLATIO I STRUCTIO S FOR SLOA SF SERIES
ELECTRO IC SE SOR ACTIVATED LAVATORY FAUCETS
LIMITED WARRANTY
Sloan Valve Company warrants its SF Series Electronic Hand Washing Faucets to be made of first class materials, free from defects of material or workmanship under normal use and
to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of one year from date of purchase.
During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost,
and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or
organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
SF-2100 Series
Adapter Powered with Battery Backup,
Sensor Activated, Pedestal Style Lavatory Faucets
SF-2150 Series
Battery Powered, Sensor Activated,
Pedestal Style Lavatory Faucets
SF-2200 Series
Adapter Powered with Battery Backup
Sensor Activated, Gooseneck Style
Lavatory Faucets
SF-2250 Series
Battery Powered, Sensor Activated
Gooseneck Style Lavatory Faucets
SF-2300 Series
Adapter Powered with Battery Backup
Sensor Activated, 4” Centerset Lavatory Faucets
SF-2350 Series
Battery Powered, Sensor Activated
4” Centerset Lavatory Faucets
SF-2400 Series
Adapter Powered with Battery Backup,
Sensor Activated, Pedestal Style Lavatory
Faucets
SF-2450 Series
Battery Powered, Sensor Activated,
Pedestal Style Lavatory Faucets
Prior to installing the Sloan SF Series Electronic Lavatory Faucet, install
the items listed below. Also, refer to the appropriate rough-in diagram.
•Plug-In Adapter
Models SF-2100/SF-2200/SF-2300/SF-2400 only — Install
electrical receptacle(s) for plug-in adapter(s) — 120 VAC, 1 amp
service for each 6 VDC plug-in adapter used.
International models may be supplied with a 220 VAC/VDC
transformer.
• Hot and cold water supply lines or tempered water supply line
• Drain lines
Important:
•
INSTALL ALL ELECTRICAL WIRING IN ACCORDANCE WITH
NATIONAL/LOCAL CODES AND REGULATIONS.
•INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES
AND REGULATIONS.
•A 6 VDC STEP-DOWN ADAPTER MUST BE USED FOR HARDWIRE
APPLICATIONS.
•BEFORE CONNECTING COPPER TUBE(S) OR FLEX HOSE(S) TO
SUPPLY STOP(S), FLUSH ALL WATER LINES UNTIL WATER IS CLEAR.
PRIOR TO I STALLATIO
TOOLS REQUIRED FOR I STALLATIO
• Electric drill for drilling anchor holes (1/4” or 6 mm drill bit)
• Straight blade and phillips blade screwdrivers
• Open end wrenches (9, 11, 13, 16, 22 mm)
The components supplied with International Models of the SF Series Faucets may vary from what is shown in this manual. Consult factory to identify
variations that may apply to your market.

2

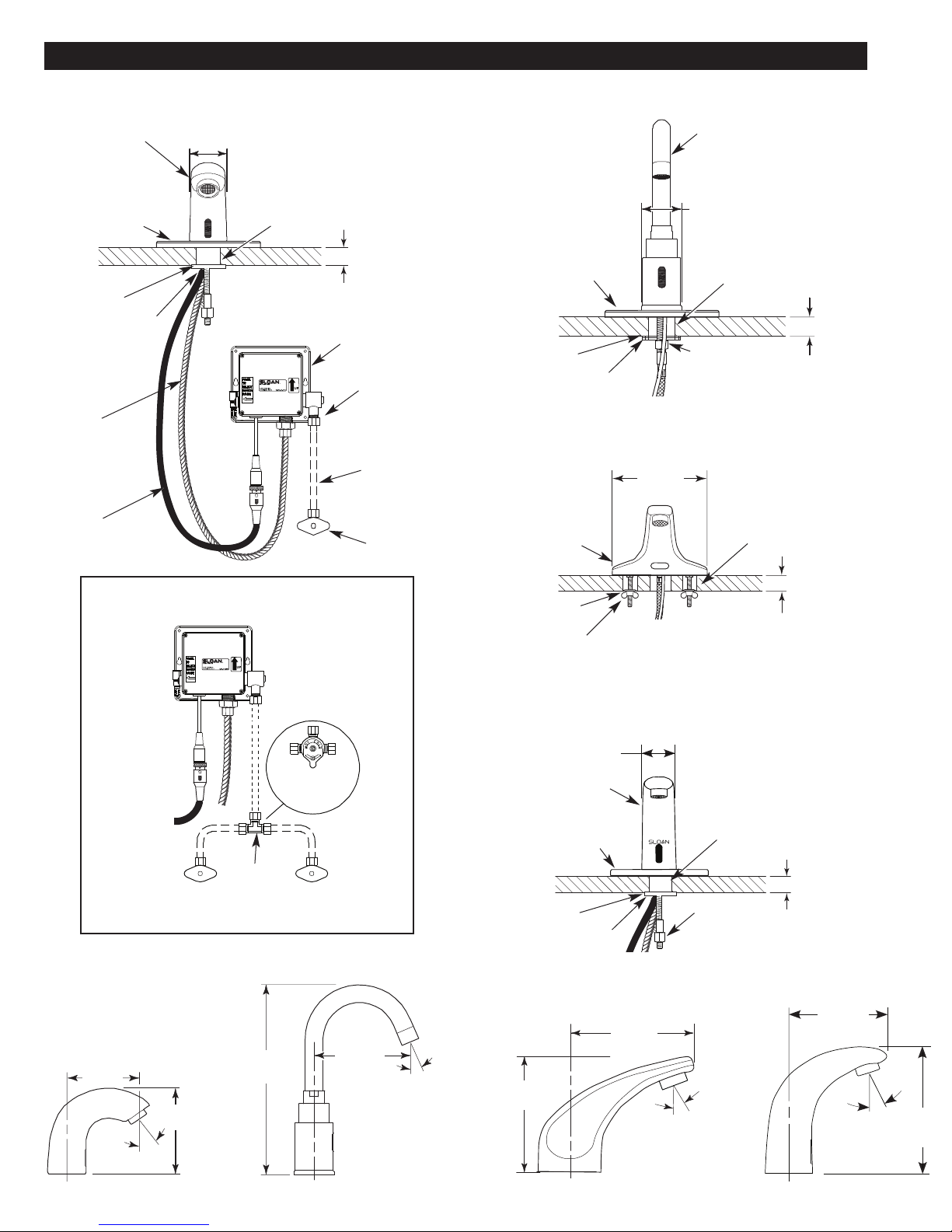

FAUCET ROUGH-I
SPOUT
TEMPERED
SUPPLY
GAS ET
RETAINER
1-1/2” (38 mm) MAX.
DEC THIC NESS
24” (610 mm)
LONG FLEX HOSE
2-1/8”
(54 mm)
36” (914 mm)
LONG SENSOR
CABLE
COPPER TUBE
OR FLEX HOSE
CONTROL MODULE
SPOUT
GAS ET
RETAINER
NUT
1-1/4” (32 mm)
MIN. DIA. HOLE
REQUIRED
1-1/2” (38 mm) MAX.
DEC THIC NESS
2-1/8” (54 mm)
1-1/4” (32 mm)
MIN. DIA. HOLE
REQUIRED
3/8” COMPRESSION
CONNECTION
SF-2100 / SF-2150 Series SF-2200 / SF-2250 Series
40°
HOT AND COLD WATER
SUPPLY APPLICATIONS
BDM VARIATION (BELOW DEC
MECHANICAL) MIXING VALVE
3/8” (10 mm)
BA -CHE TEE
HOT
SUPPLY
COLD
SUPPLY
5-1/4”
(133 mm)
27°
10”
(254 mm)
TRIM PLATE
TRIM PLATE - Supplied with
SF-2200/SF-2250
Optional item for
SF-2200-INTL/SF-2250-INTL
COPPER TUBES OR FLEX HOSES -
Flex Hoses Supplied Only with
some International Models.
SIDE VIEW
4-1/2”
(114 mm)
SPOUT
1-1/2” (38 mm) MAX.
DEC THIC NESS
1” (25 mm) MIN.
DIA. HOLE
REQUIRED
6-9/32”
(160 mm)
SLOTTED MOUNTING
WASHERS (2)
WING NUTS (2)
4-39/64”
(119 mm)
20°
4-45/64”
(117 mm)
SPOUT
GAS ET
RETAINER
NUT (1)
1-1/2” (38 mm)
MAX. DEC
THIC NESS
2-1/8”
(54 mm)
1-1/4” (32 mm)
MIN. DIA. HOLE
REQUIRED
SF-2400 / SF-2450 Series
4-1/2”
(115 mm)
7”
(180 mm)
20°
SF-2300 / SF-2350 Series
TRIM PLATE - Supplied with
SF-2400/SF-2450
Optional item for
SF-2400-INTL/SF-2450-INTL
3-7/8”
(98 mm)

3
X
X
X
X
AInstall Mounting
Stud.
BInstall Flex Hose.
X
X
X
X
AInstall Flex Hose.

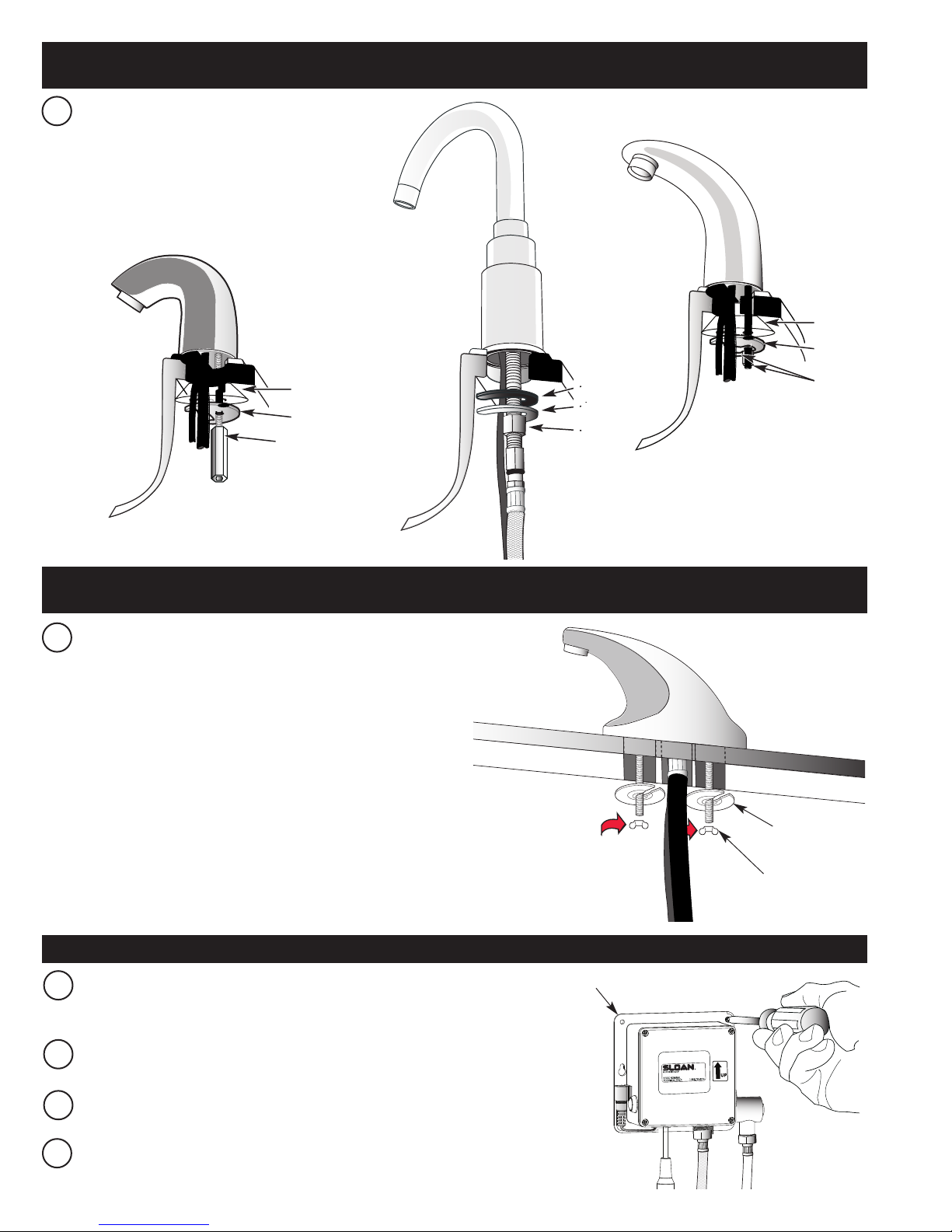

1A - SF-2100/2150 & SF-2400/2450
SERIES: I STALL FLEX HOSE
A D MOU TI G STUD
1B - SF-2200/2250 & SF-2300/2350
SERIES: I STALL FLEX HOSE
2A - SF-2100/2150, SF-2200/2250, & SF-2400/2450 SERIES: I STALL SPOUT, TRIM
PLATE A D SPACER
X
X
X
X
Pedestal
Spout
Spacer
Trim Plate
X
X
X
X
Spacer
Trim Plate
Pedestal
Spout
AApply a bead of plumbers putty around the outside of the
Faucet underbody.
Pedestal
Spout
Spacer
Trim Plate
2B - SF-2300/2350 SERIES: I STALL SPOUT

X
X
X
X
Rubber
Gasket
Retainer
Nut
Retainer
4
X
X
X
X
DInstall Control Module to wall using Fasteners supplied.
CInstall Plastic Anchors (supplied) into mounting holes in wall.
BDrill 1/4” (6 mm) hole at each mounting hole location.
AUsing Control Module as a template, mark mounting holes on
wall. When installed, Sensor Cable and Flex Hose need some
slack.
Control Module
X
X
X
X
Rubber
Gasket
Retainer
Nut
Retainer
ASecure Faucet to the Deck by installing Rubber
Gasket, Retainer and Retainer Nut(s). Tighten
Retainer Nuts securely. Do not overtighten.
Rubber
Gasket
Retainer
Nuts
Retainer
ASecure Faucet to the Deck by installing Slotted Mounting
Washers and Wing Nuts. Tighten Wing Nuts securely. Do not
overtighten.
WING NUT
SLOTTED
MOUNTING
WASHER
3A - SF-2100/2150 & SF-2200/2250 SERIES: I STALL RUBBER GASKET, RETAI ER,
A D RETAI ER UT(S)
3B - SF-2300/2350 SERIES: I STALL SLOTTED MOU TI G WASHERS A D
WI G UTS
4 - I STALL CO TROL MODULE I A APPROPRIATE LOCATIO (SEE ROUGH-I S)

X
X
X
X
5
X
X
X
X
X
X
X
X
C

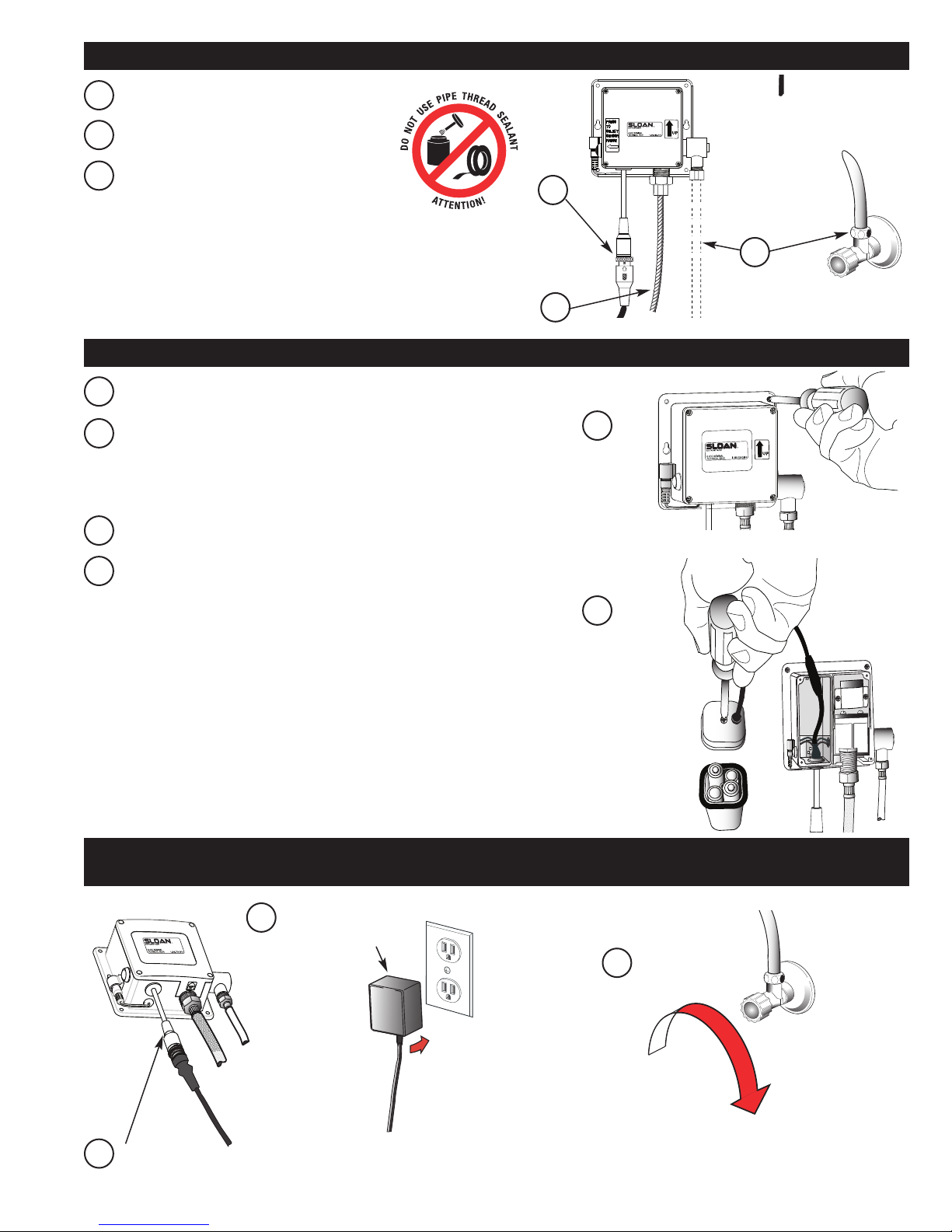

CConnect Water Line (supplied with INTL Models
only) to Supply Stop and Control Module.
B
B
BConnect Flex Hose (from Faucet).
A
A
AConnect Sensor Cable (from Faucet).
X
X
X
X
BPlug Adapter into
Receptacle.
APlug Adapter Jack into Control Module.
X
X
X
X
CTurn on Water
Supply.
BRemove Battery Compartment, remove compartment lid using
screwdriver and install four (4) AA-size batteries (supplied) as
indicated by the (+) and (—) symbols inside the Battery
Compartment. Replace compartment lid and tighten with
screwdriver.
CReinstall Battery Compartment into the Control Module.
DReinstall Control Module Cover using all four (4) Screws.
X
X
X
X
ALoosen Cover Screws and remove Cover from Control Module.
5 - CO ECT SE SOR CABLE A D WATER LI ES TO CO TROL MODULE
6 - I STALL BATTERIES
7A - CO ECT ADAPTER (ADAPTER POWERED MODELS O LY) A D TUR O
WATER SUPPLY

6
BPlace your hand (or card) in front of the sensor at the distance
you desire the Faucet to activate. Leave hand or card at this
location while the sensor range is setting. Remove hand or
card when the sensor light turns off. The sensor range is now
set.
AHold the black button in until the sensor flashes (approximately
3 - 6 seconds).
NOTE: Sensor Range can be adjusted after power is supplied to the
Faucet (battery or hardwire).
AHold the black button in for more than six seconds. The water
flow time-out setting will change from 7 seconds to 70 seconds
or from 70 seconds to 7 seconds.
NOTE: There are two available time-out settings; 7 seconds and 70
seconds.
PLUG-IN GANG ADAPTER KIT SFP-35-A
Plug-in Gang
Adapter
SFP-36 Cable
Splitter
SFP-38
Cable Splitter
SFP-38
To
Additional
Faucets
(6 Max.)
Cable Splitter
SFP-38
AConnect the Adapter and Cables to the Sensor Faucets as
shown below.
!!!!IMPORTA T!!!!
DO NOT PLUG IN THE ADAPTER UNTIL ALL CONNECTIONS ARE MADE
To connect multiple faucets to a single adapter, use the Sloan
SFP-35-A Gang Adapter it (Purchase Separately).
The SFP-35-A Gang Adapter it is supplied with cables to connect up
to 6 faucets. To connect up to 8 faucets, purchase 2 additional
SFP-38 Cable Splitters separately.
For complete installation, refer to instructions packaged with Gang
Adapter it.
SFP-35-A Gang Adapter it is available in 120 VAC only.
7B - GA G ADAPTER I STALLATIO
8 - SET RA GE ADJUSTME T
9 - SET WATER FLOW TIME-OUT
NOTE: The sensor range is dependent on the distance of your hand or
card while the sensor is in range setting mode.
NOTE: If no target is placed in front of the sensor, the sensor range
will set to its longest distance.

7
1. Faucet delivers water in an uncontrolled manner.
A. Faucet is defective. Contact Sloan Valve Company Installation
Engineering Department (see below).
2. Faucet does not deliver any water when Sensor is activated.
INDICATOR: Solenoid valve produces an audible “CLIC .”
A. Water supply stop(s) closed. Open water supply stop(s).
B. Water strainer in control module is clogged. Close supply stops
and remove water inlet line at control module. Remove, clean
and reinstall strainer and water inlet line. Replace strainer if
required.
INDICATOR: Solenoid valve DOES NOT produce an audible
“CLIC .”
A. Batteries low (battery powered models). Replace batteries.
B. Power failure (adapter powered models). Check power supply.
3. Faucet delivers only a slow flow or dribble when Sensor is
activated.
A. Water supply stop(s) are partially closed. Completely open water
supply stop(s).
B. Water strainer in control module is clogged. Close supply stops
and remove water inlet line at control module. Remove, clean
and reinstall strainer and water inlet line. Replace strainer if
required.
C. Aerator is clogged. Remove, clean, and reinstall aerator. Replace
aerator if required.
D. Valve is defective. Contact Sloan Valve Company Installation
Engineering Department (see below).
4. Faucet does not stop delivering water or continues to drip after
user is no longer detected.
A. Valve is defective. Contact Sloan Valve Company Installation
Engineering Department (see below).
5. The water temperature is too hot or too cold on a Faucet
connected to hot and cold supply lines.
A. Supply Stops are not adjusted properly. Adjust Supply Stops.
DO NOT USE abrasive or chemical cleaners (including chlorine bleach)
to clean Faucets that may dull the luster and attack the chrome or
special decorative finishes. Use ONLY mild soap and water, then wipe
dry with clean cloth or towel.
While cleaning the bathroom tile, protect the Faucet from any
splattering of cleaner. Acids and cleaning fluids will discolor or remove
chrome plating.
When assistance is required, please contact Sloan Valve Company
Installation Engineering Department at:
1-888-SLOAN-14: (1-888-756-2614)
X
X
X
X
X
X
X
X

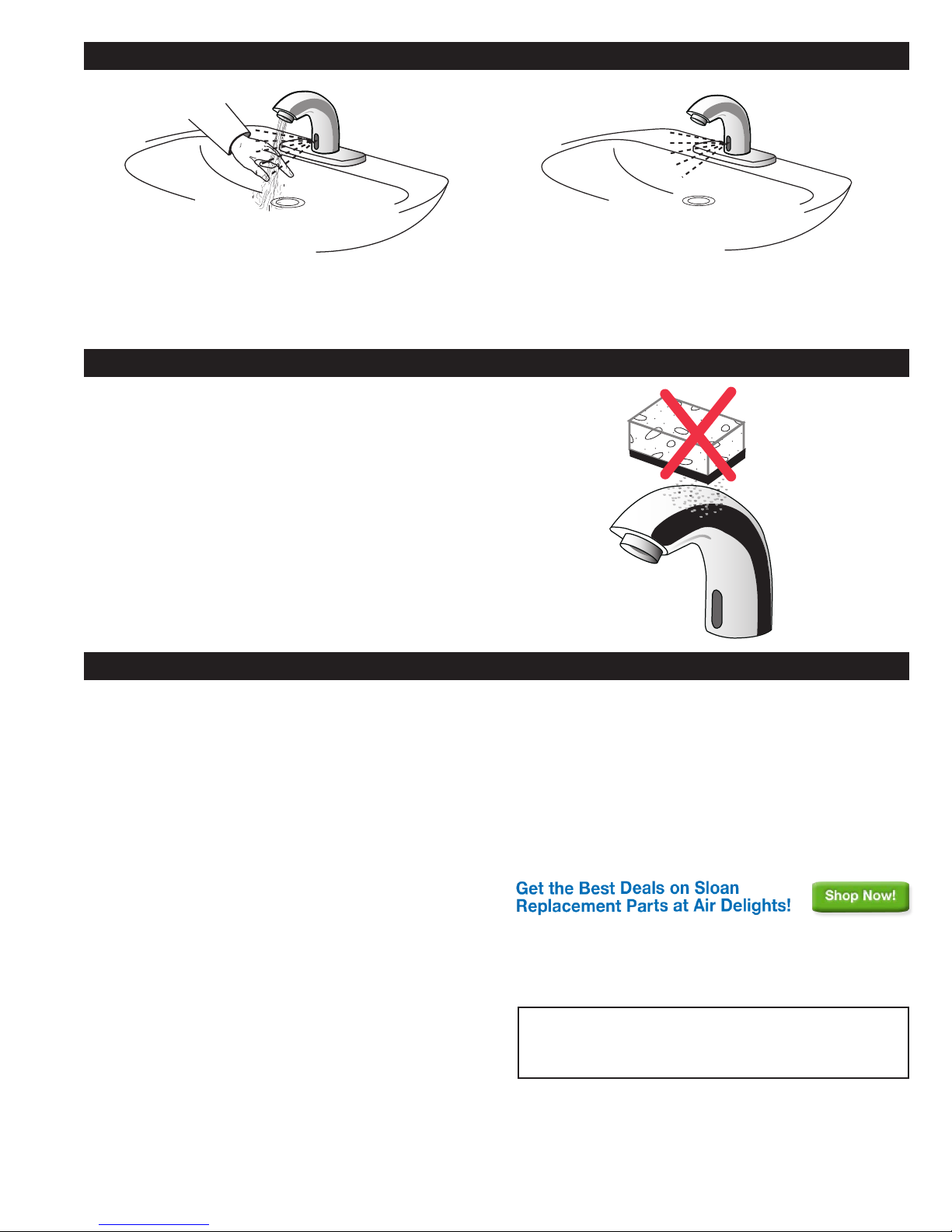

1. Place hands under faucet. Solenoid valve should “click,” LED in
sensor window should blink once and water should flow from the
spout.
2. When hands are removed, the water flow should stop.
X
X
X
X
10 - TEST FAUCET OPERATIO
CARE A D CLEA I G OF CHROME A D SPECIAL FI ISHES
TROUBLESHOOTI G GUIDE

SLOA VALVE COMPA Y • 10500 SEYMOUR AVE UE • FRA KLI PARK, IL 60131
Phone: [phone] or 1-847-671-4300 • Fax: [phone] or 1-847-671-4380 • www.sloanvalve.com
Copyright © 2014 SLOAN VALVE COMPANY Code No: 0816496 – Rev. 4 (04/14)
The information contained in this document is subject to change without notice.
1A 1B 1C 1D
7
2C
4
5A
10A
8
11
2B
2A
10C
2D
2E
2F
Item Part Description
No. No.
1A — Pedestal Faucet Assembly w/ Outlet (Models SF-2100/SF-2150)
1B — Gooseneck Faucet Assembly w/ Outlet (Models SF-2200/SF-2250)
1C — Faucet Assembly w/ Outlet (Models SF-2300/SF-2350)
1D — Pedestal Faucet Assembly w/ Outlet (Models SF-2400/SF-2450)
2SFP-44 Mounting Hardware it, (Models SF-2100/SF-2150 and
SF-2400/SF-2450) includes Items: 2A, 2B, 2D, 2E and 2F
SFP-5 Mounting Hardware it, (Models SF-2200/SF-2250) includes
Items: 2F, 2G and 2H
SFP-16 Mounting Hardware it, (Models SF-2300/SF-2350) includes
Items: 2C and 2F
2A — Beveled Gasket
2B — Metal Retainer
2C ETF-546-A Gasket, Washers (2), Wing Nuts (2) & Compression Fitting
2D — Threaded Stud
2E — Retainer Nut
2F — Screws and Anchors for Control Module
2G — Metal Washer
2H — Gasket
3SFP-6 Plug-in Adapter (110 VAC/6 VDC) – (USA)
SFP-20 Plug-in Adapter Type G Rectangular (220 VAC/6 VDC) – (U )
SFP-25 Plug-in Adapter Type C Round Pin (220 VAC/6 VDC) – (EUR)
SFP-26 Plug-in Adapter Type A Flat Blade (220 VAC/6 VDC) – (CH)
4—Batteries-AA size (4)
5A SFP-40-A 6-Pin Control Module w/ range adjustment button
6—
7SFP-10 Flex Hose, Control Module to Spout
8SFP-11 Trim Plate w/ Spacer (not supplied with most international models)
9ETF-617-A 3/8” Bak-Chek®Tee Compression Fitting
Item Part Description
No. No.
Accessories
10 SFP-35-A Gang Adapter it (100-240 VAC/ 6 VDC), includes:
10A SFP-36 Plug-in Gang Adapter (100-240 VAC/ 6 VDC)
10B SFP-38 Cable Splitter, 51”/1300 mm (5 included in kit)
10C SFP-37 Cable Extension, 51”/1300 mm
Repair Parts
11 SFP-41 Sensor (adjustable range - identified by a 6 pin connector)
12 SFP-15 Strainer (located in water inlet of control module)
13 Solenoid Assembly for SF control module
IMPORTANT: Sloan added the range adjustment feature in August 2008
for faucets made prior to August 2008 use the following
replacement items:
11 SFP-34 Sensor (identified by a 4 pin connector)
5B SFP-8 4-pin Control Module
Replacement Aerators & Spray Heads (not shown)
Models: SF-2100/2150, SF-2300/2350 & SF-2400/2450
SFP-13 0.5 gpm/1.9 Lpm Spray head
SFP-23 2.2 gpm/8.3 Lpm Aerator
SFP-15 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
SFP- 24 2.2 gpm/8.3 Lpm Vandal Resistant Aerator
Models: SF-2200/2250
SFP-12 Gooseneck Spout w/ outlet
SFP-14 1.5 gpm/5.7 Lpm Laminar Spray Head
Items without part numbers are not sold separately
10
10B
2H
9
13
12
3
PARTS LIST
2G
5B
