Sloan ESD601A User manual

Code No. 0816843
Rev. 1 (06/18)

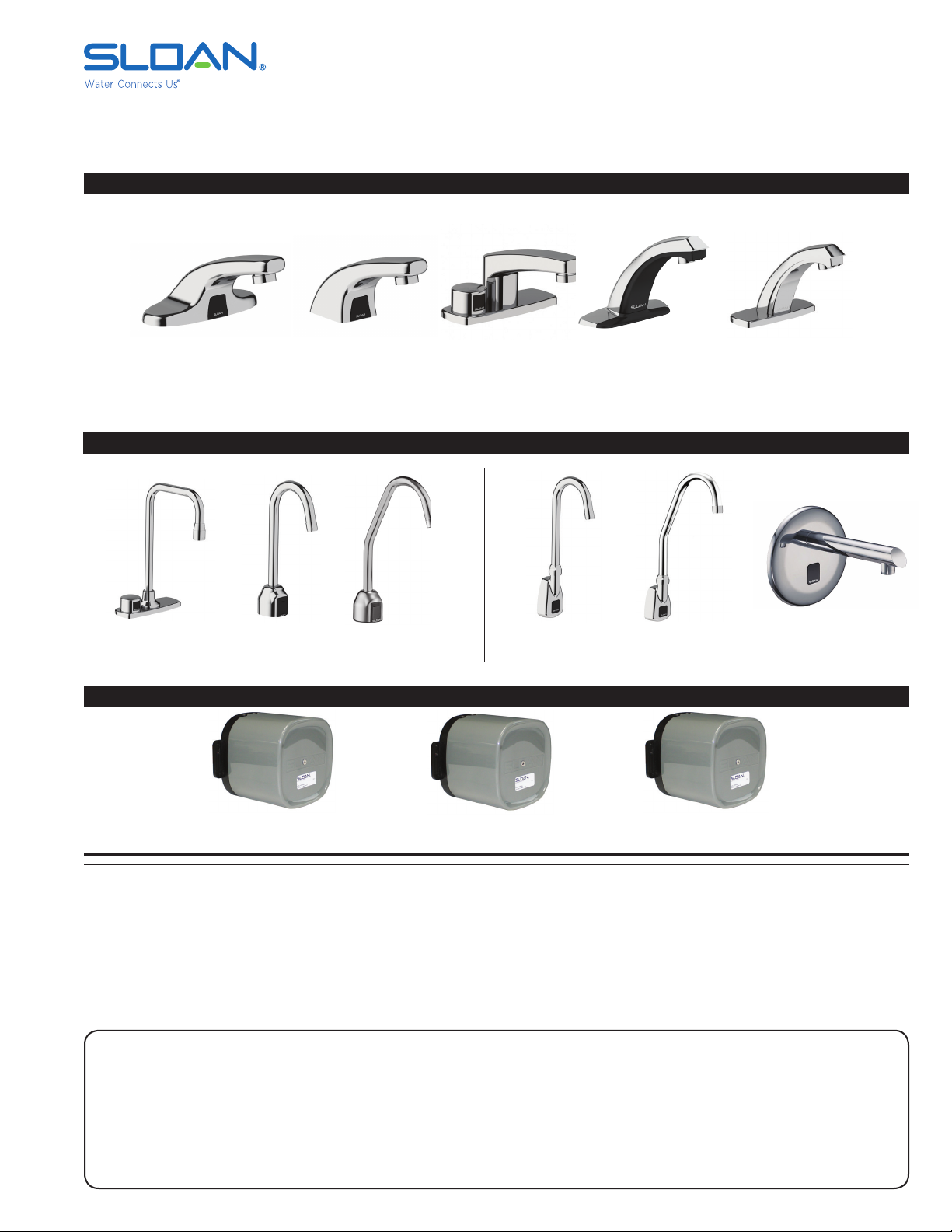

INSTALLATION INSTRUCTIONS FOR OPTIMA SENSOR ACTIVATED LAVATORY FAUCETS
WITH THE OPTIMA CONTROL BOX
GOOSENECK DECK MOUNTED OPTIMA FAUCETS
ETF-600 Low-height, hardwired
EBF-650 Low-height, battery
ETF-610 Low-height,hardwired
EBF-615 Low-height, battery
ETF-660 Low-height,
hardwire with side sensor
EBF-665 Low-height,
battery w/side sensor
ETF-80 Mid-height, hardwired
EBF-85 Mid-height, battery
ETF-880 Mid-height, hardwired
EBF-187 Mid-height, battery
DECK MOUNTED OPTIMA FAUCETS
ETF-770 Hardwired with
side sensor
EBF-775 Battery with
side sensor
ETF-700 Hardwired
EBF-750 Battery
ETF-700-S Hardwired
with surgical bend
EBF-750-S Battery
with surgical bend
WALL MOUNTED OPTIMA FAUCETS
ETF-500 Hardwired
EBF-550 Battery
ETF-800 Hardwired
EBF-850 Battery
LIMITED WARRANTY
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship
for a period of three (3) years (1 year for SF faucets, special finish and PWT electronics and 30 days on PWT software) from date of first purchase. During this period, Sloan Valve
Company will, at its option, repair, replace, or refund the purchase price of any product which fails to conform with this warranty under normal use and service. This shall be the sole
and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer’s cost. No claims will be allowed for labor, transportation or other costs.
This warranty extends only to persons or organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of resale. This warranty does
not cover the life of the battery.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES
OF ANY MEASURE WHATSOEVER.
TABLE OF CONTENTS
1
ETF-500-S Hardwired
with surgical bend
EBF-550-S Battery
with surgical bend
CONTROL BOX FOR ALL FAUCETS
Control Box w/ 0.5 gpm Turbine
EFP-40-A
Control Box w/1.5 gpm Turbine
EFP-11-A
Control Box w/o Turbine
EFP-39-A
• Prior To Install.......................................................................... 2.
• Mixing Valve Installation ........................................................... 2.
• Important ................................................................................ 2.
• Quick Connect Tee................................................................... 2.
• Tools Required......................................................................... 2.
• Deck Mounted Rough-in .......................................................... 4.
• Wall Mounted Rough-in............................................................ 5.
• Dimensional Data .................................................................... 5.
• Troubleshooting Instructions ..................................................... 7.
• Care and Cleaning Instructions................................................. 8.

2
PRIOR TO INSTALLATION
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT COMPONENT PART DAMAGE! DO NOT USE ANY SEALANT ON
COMPRESSION FITTINGS.
Prior to installing the Sloan Optima Faucet, install the items listed below. Also, refer to rough-in illustrations on pages 4 and 5.
• Lavatory/sink
• Drain line
• Hot and cold water supply lines or pre-tempered water supply line
IMPORTANT
MIXING VALVE
When installing the faucet with a Sloan mixing valve, these Installation Instructions AND the Installation Instructions packaged with the mixing valve
MUST be followed.
QUICK CONNECT BAK CHEK® FILTER TEE USAGE
A QUICK CONNECT BAK-CHEK® FILTER TEE MUST BE USED WITH EACH INSTALLATION.
When connecting a Sloan Optima Faucet to both hot and cold water supplies, a two inlet Quick Connect Bak-Chek® Filter Tee is provided and
required as Illustrated. Water temperature can be controlled by adjusting the supply stops. When connecting the faucet to a single line water supply or
a pre-tempered water supply, a single inlet Quick Connect Bak-Chek® Filter Tee must be used. A Quick Connect Bak-Chek® Filter Tee must also be
used when a Temperature Mixing Valve is included with the faucet.
TOOLS REQUIRED FOR INSTALLATION
Gather the required tools and parts before starting installation. Additional parts may be required, depending on your installation. Check local codes.
Check existing electrical supply.
1. Open end wrenches for hex sizes: 1/2”,
9/16”, 5/8”, 15/16”
2. Basin wrench 3. Phillips head screwdriver, #2
4. Hammer (if installing plastic or hollow wall
anchors to mount valve module)
5. 1/4” drill bit (if plastic wall anchors are
used to mount valve module)
6. 5/16” drill bit (if hollow wall anchors are
used to mount valve module)
7. 3/8” drill bit (if toggle nut anchors are
used to mount valve module)
8. Spray head key
(supplied with some models)
9. 13 mm Socket

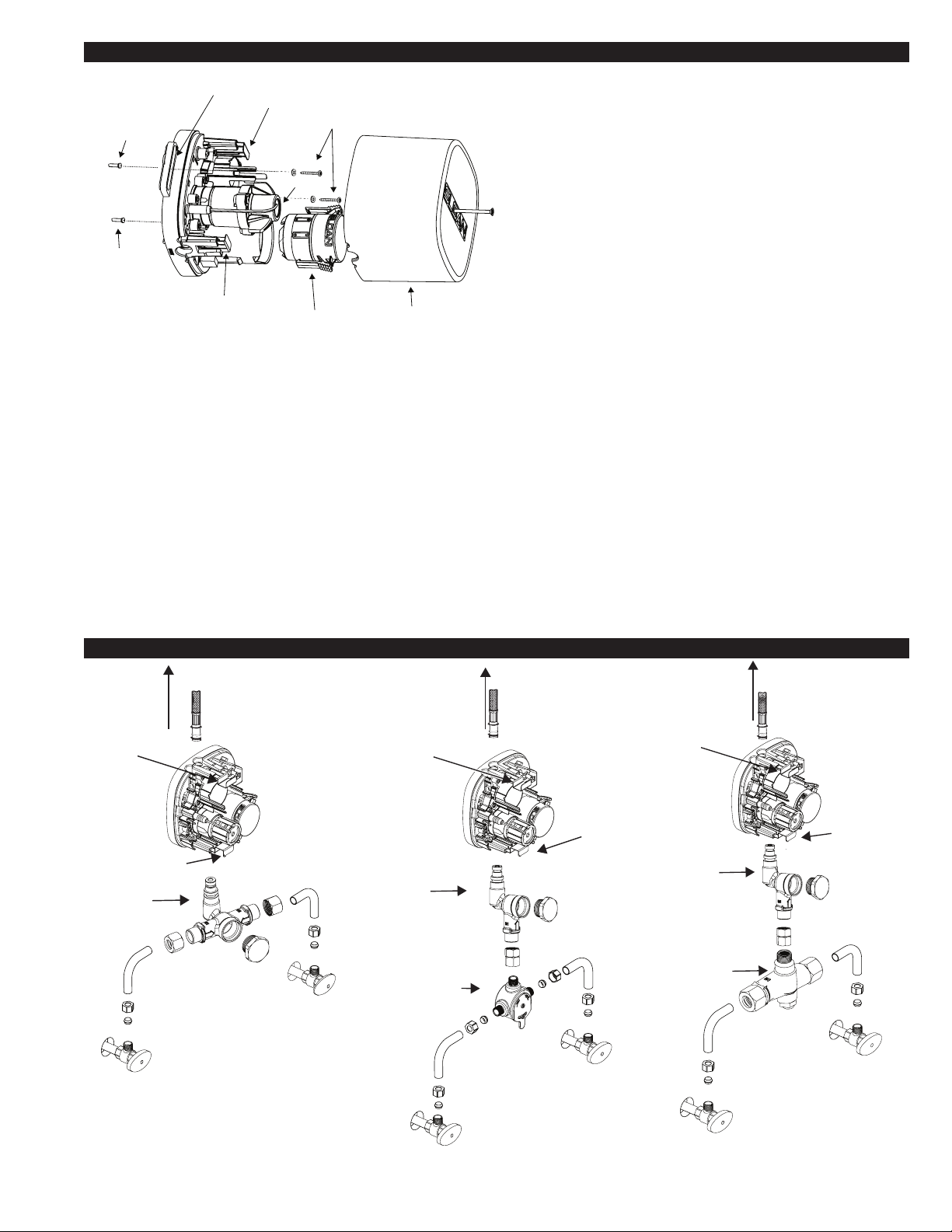

3
Quick Change
Battery Cartridge
Manifold Cover Assembly
Screws
A
nchors
Stainless Steel
Quick Connect Clips
Mounting Slot
Access
Solenoid
Stainless Steel
Quick Connect Clips
Anchors
D. Connect water supply lines from the stops to the Filter “T” tting. If a mixing valve is being used, connect water supply lines to the mixing valve.
Connect the mixing valve to the single inlet lter tee using the supplied tting.
E. Attach sensor cable and solenoid cable to the appropriate connections on the manifold.
F. Insert the battery assembly.
G. This unit can use 4 (AA) batteries alone, or accept 6 VDC or 24 VAC power to function as a hardwired unit with battery back up.
H. If a 6 VDC plug-in transformer is used, plug it into the appropriate connection on the manifold to convert the faucet into a “plug-in with battery
back-up”.
I. If 24 VAC hardwires are being used, use the supplied adapter piece to connect the wires to the appropriate connection on the manifold.
J. If the unit contains an optional turbine, connect the plug from the turbine assembly into the appropriate connection on the manifold.
K. If ganging multiple units in a “daisy chain” conguration to a single power supply use the SFP35 gang adapter kit.
L. Inspect and tighten all connections. Place the manifold cover onto the unit.
M. Turn on water.
Stops
Stops
Stops
Thermostatic
Mixing Valve
Mechanical
Mixing Valve
Y-Filter
Flexible
Supply
Hose
Flexible
Supply
Hose
Flexible
Supply
Hose
Faucet Faucet Faucet
Single Inlet
Filter Assembly
Single Inlet
Filter Assembly
Manifold
Assembly
Quick Connect
Clip
Stops
Stops
Quick Connect
Clip Quick Connect
Clip
Assembly
Quick Connect
Clip
Quick Connect
Clip
Quick Connect
Clip
Manifold
Assembly
Manifold
Assembly
Stops
Control Module with
Double Inlet Tee Filter
Assembly.
Stops
Stops
Stops
Thermostatic
Mixing Valve
Mechanical
Mixing Valve
Y-Filter
Flexible
Supply
Hose
Flexible
Supply
Hose
Flexible
Supply
Hose
Faucet
Faucet
Faucet
Single Inlet
Filter Assembly
Single Inlet
Filter Assembly
Manifold
Assembly
Quick Connect
Clip
Stops
Stops
Quick Connect
Clip
Quick Connect
Clip
Assembly
Quick Connect
Clip
Quick Connect
Clip
Quick Connect
Clip
Manifold
Assembly
Manifold
Assembly
Stops
Control Module with Single
Inlet Tee Filter Assembly
and Below Deck Manual
Mixing Valve (BDM)
Stops
Stops
Stops
Thermostatic
Mixing Valve
Mechanical
Mixing Valve
Y-Filter
Flexible
Supply
Hose
Flexible
Supply
Hose
Flexible
Supply
Hose
Faucet Faucet Faucet
Single Inlet
Filter Assembly
Single Inlet
Filter Assembly
Manifold
Assembly
Quick Connect
Clip
Stops
Stops
Quick Connect
Clip Quick Connect
Clip
Assembly
Quick Connect
Clip
Quick Connect
Clip
Quick Connect
Clip
Manifold
Assembly
Manifold
Assembly
Stops
Control Module with Single
Inlet Tee Filter Assembly
and Below Deck Thermostatic
Mixing Valve (BDT)
A. Ensure there is enough clearance for the exible supply hose from
the spout to connect to the control module
B. Secure control module to wall using the included mounting
accessories. The control module must be mounted on a level
vertical surface with the Sloan logo on the manifold facing
outwards on the top right side of the manifold. Do not mount the
manifold in any other position.
C. Insert the exible supply hose from the bottom of the spout into
the top of the mounted manifold.Insert the Filter “T” tting into
the bottom of the mounted manifold. Ensure that the stainless
steel clips on both the top and bottom of the manifold are secured.
NOTE: NEVER OPEN STAINLESS STEEL CLIPS WHEN WATER
SUPPLY IS TURNED ON.
BELOW DECK CONFIGURATION
MANIFOLD INSTALLATION
NOTE: FOR UNITS WITH TURBINES, USE ONLY 0.5GPM / 1.9 LPM CONTROL BOXES WITH SPOUTS RATED FOR THE SAME FLOW AND USE
ONLY 1.5 GPM / 5.7 LPM CONTROL BOXES WITH SPOUTS RATED FOR THAT SAME FLOW. DO NOT USE THESE CONTROL BOXES ON
ANY OTHER FLOW RATES. CONTROL BOXES WITHOUT TURBINES MAY BE USED WITH ANY SPOUT UP TO 2.2 GPM / 8.3 LPM

MOUNTING PLATE
FAUCET
SET SCREW
FLEX HOSE
SENSOR CABLE
MOUNTING SCREW
NOTE. ELECTRICAL BOX
NOT SUPPLIED BY SLOAN

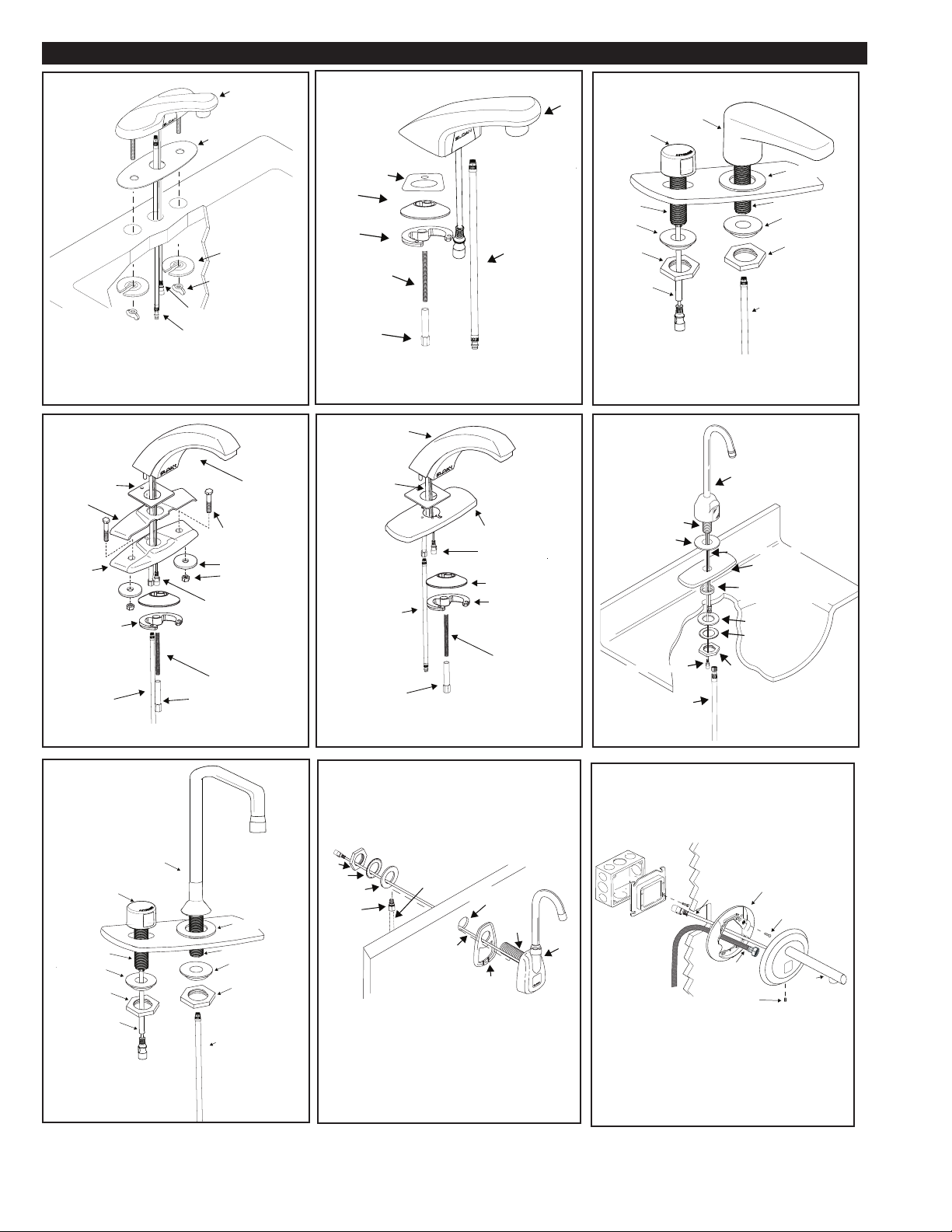

DECK MOUNTED INSTALLATIONS
FAUCET
BASE
GASKET
SENSOR
CABLE
SLOTTED MOUNTING
WASHERS (2)
WING NUTS (2)
QUICK CONNECT
SPOUT HOSE
ETF-600 Low-height, hardwired
EBF-650 Low-height, battery
BASE
GASKET
FAUCET
REVOLVING NUT
MOUNTING STUD
GASKET
FAUCET
RETAINER QUICK CONNECT
SPOUT HOSE
ETF-610 Low-height,hardwired
EBF-615 Low-height, battery
SENSOR
CABLE
NUT
SENSOR
SHANK
SENSOR
FAUCET
NUT
WASHER WASHER
FAUCET SHANK
RUBBER WASHER
QUICK CONNECT
SPOUT HOSE
ETF-660 Low-height,
hardwire with side sensor
EBF-665 Low height
battery with side sensor
FAUCET SENSOR
CABLE
FAUCET
RETAINER
REVOLVING
NUT
MOUNTING STUD
BLACK
PLASTIC BASE
PLATE
TRIM PLATE
HEX BOLTS (2)
FAUCET
WASHER GASKETS (2)
HEX NUTS (2)
RUBBER
GASKET
CHROME
COVER
PLATE
QUICK CONNECT
SPOUT HOSE
ETF-80 Mid-height, hardwired
EBF-85 Mid-height, battery
FAUCET SENSOR
CABLE
TRIM PLATE
FAUCET
GASKET
FAUCET
RETAINER
REVOLVING
NUT
MOUNTING STUD
WATERWAY
TUBE
QUICK CONNECT
SPOUT HOSE
ETF-880 Mid-height, hardwired
EBF-187 Mid-height, battery
FAUCET
FLAT
WASHER
LOCK
WASHER
NUT
BASE
GASKET
TRIM PLATE
SPACER (MUST BE
USED WITH TRIMPLATE)
(OPTIONAL)
SPOUT SHANK
3/8” SUPPLY TUBE
SENSOR CABLE
QUICK CONNECT
SPOUT HOSE
ETF-700 Hardwired
ETF-700-S Hardwired
EBF-750 Battery
EBF-750-S Battery
SENSOR
CABLE
NUT
SENSOR
SHANK
SENSOR
FAUCET
NUT
WASHER WASHER
FAUCET SHANK
RUBBER WASHER
QUICK CONNECT
SPOUT HOSE
ETF-770 Hardwired with
side sensor
EBF-775 Battery with
side sensor
ETF-500 Hardwired/ETF-500-S Hardwired
EBF-550 Battery/EBF-550-S Battery
ETF-800 Hardwired
EBF-850 Battery
4
FAUCET
SPOUT
SHANK
BASE
GASKET
SENSOR
CABLE
FLAT
WASHER
LOCK
WASHER
NUT
MOUNTING HOLE
OF WALL OR SINK
MALE
CONNECTOR
SPOUT HOSE

QUICK CONNECT

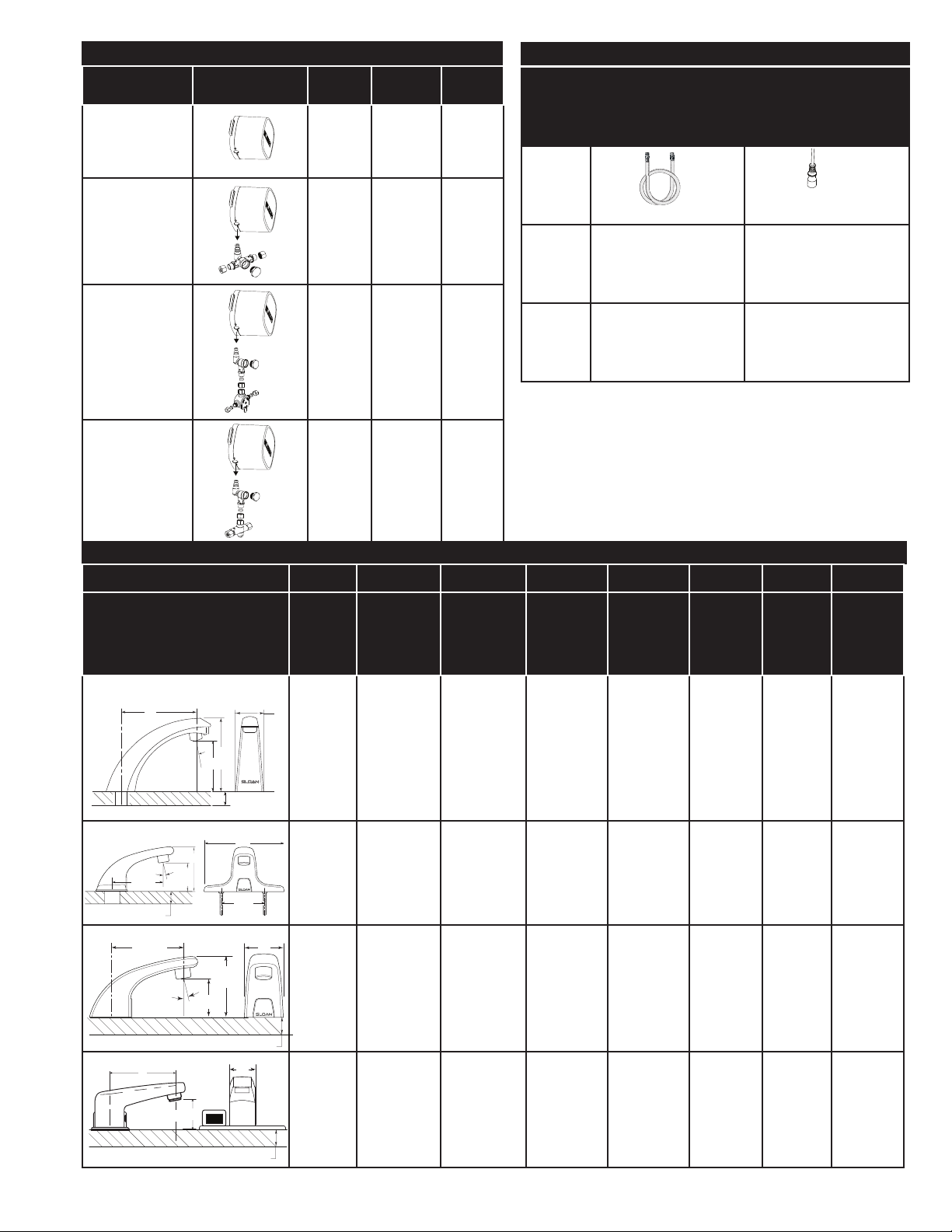

SPOUT HOSE LENGTH
SENSOR CABLE LENGTH
DECK
MOUNTED
MODELS
24”
(610 mm)
28”
(711 mm)
WALL
MOUNTED
MODELS
36”
(914 mm)
36”
(914 mm)
5

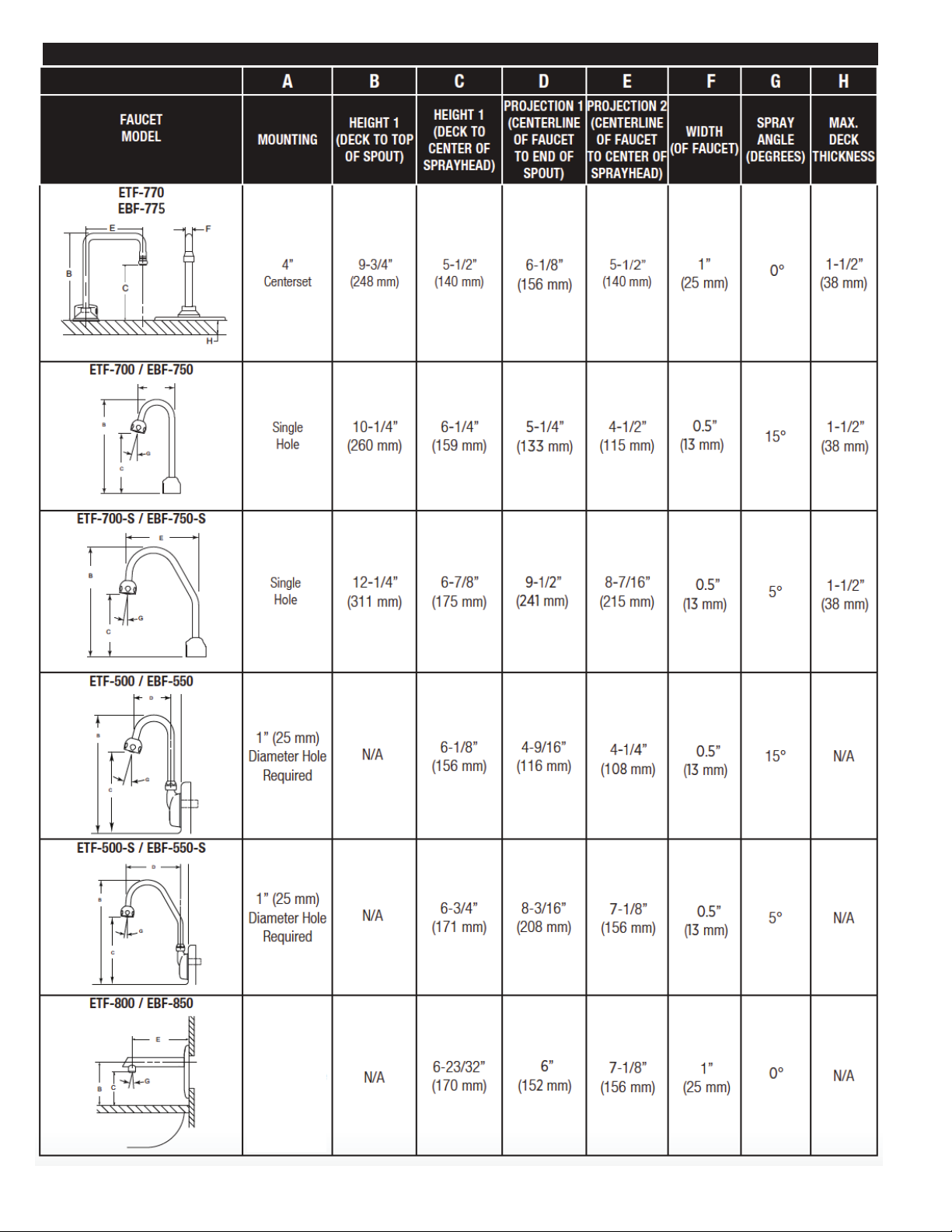

DECK MOUNTED FAUCET MODEL ROUGH-IN DIMENSIONS (WITHOUT TRIMPLATE)
A B C D E F F G H
FAUCET
MODEL MOUNTING
HEIGHT 1
(DECK TO TOP
OF SPOUT)
HEIGHT 1
(DECK TO
CENTER OF
SPRAYHEAD)
PROJECTION 1
(CENTERLINE
OF FAUCET
TO END OF
SPOUT
PROJECTION 2
(CENTERLINE
OF FAUCET
TO CENTER OF
SPRAYHEAD)
WIDTH
(OF FAUCET)
SPRAY
ANGLE
(DEGREES)
MAX.
DECK
THICKNESS
ETF-80/EBF-85
ETF-880/EBF-187
Single
Hole
5 3/4”
(146 mm)
4 1/4”
(108 mm)
6 1/2”
(165 mm)
5 1/8”
(130 mm)
2”
(51 mm) 12° 1 1/2” (38 mm)
ETF-600/EBF-650
4”
Centerset
3 5/8”
(92 mm)
2 3/16”
(56 mm)
4 1/2”
(114 mm)
4 1/2”
(114 mm)
6 5/16”
(160 mm) 12° 3/4” (19 mm)
ETF-610/EBF-625
Single 3 1/2”
(89 mm)
2 1/12”
(64 mm)
4 1/2”
(114 mm)
4 1/2”
(114 mm)
2 3/16”
(56 mm) 12° 3/4” (19 mm)
ETF-660/EBF-665
4”
Centerset
3 3/4”
(95 mm)
2 1/4”
(57 mm)
5 1/4”
(133 mm)
5 1/4”
(133 mm)
1 1/2”
(38 mm) 6° 3/4” (19 mm)
H
G
A
B
C
E
F
H
G
B
C
EF
H
C
EF
B
CB
EF
G
H
BELOW DECK CONTROL ROUGH-IN DIMENSIONS
OPTIMA
CONTROL BOX MODEL IMAGE HEIGHT WIDTH DEPTH
OPTIMA
CONTROL BOX 5”
(127 mm)
6”
(163 mm)
4 1/2”
(115 mm)
OPTIMA
CONTROL BOX
WITH DOUBLE
INLET FILTER TEE
6 1/4”
(159 mm)
6”
(153 mm)
4 1/2”
(115 mm)
OPTIMA
CONTROL BOX
WITH SINGLE
INLET FILTER
TEE AND BDM
(MIX60)
10 1/8”
(258 mm)
6”
(153 mm)
4 1/2”
(115 mm)
OPTIMA
CONTROL BOX
WITH SINGLE
INLET FILTER
TEE AND BDT
(MIX135)
10 3/4”
(274 mm)
6”
(153 mm)
4 1/2”
(115 mm)
QUICK CONNECT HOSE/SENSOR CABLE LENGTHS
SPOUT
HOSE
SENSOR
CABLE

6
GOOSENECK DECK MOUNTED / WALL MOUNTED FAUCET MODEL ROUGH-IN DIMENSIONS WITHOUT TRIMPLATE
4” Electrical
Box & Plaster
Ring or 2 ½”
Hole for
Mounting
bracket

7
TROUBLESHOOTING INSTRUCTIONS
NOTE: To automatically check battery strength, troubleshoot, diagnose and report faucet issues with a
wireless device, use the Sloan SmartPhone APP. The APP is available free-of-charge at the Apple
iPhone APP store for iOS devices or the Google Play APP store for Android devices. For more
information about the APP and its capabilities please visit www.Sloan.com.
LED indicator light in the IR (infrared) sensor is red.
A. Battery power is low.
Install four (4) new AA sized alkaline batteries. Check that the orientation of each battery matches
the positive (+) and negative (–) symbols shown in the bottom of the battery compartment.
Re-attach battery compartment to control module. Green LED will illuminate. If the Green LED does
not illuminate, remove battery compartment for 10 seconds and return into place.
Faucet DOES NOT function.
A. Batteries not installed or are exhausted.
Install four (4) AA sized alkaline batteries. Check that the orientation of each battery matches the positive (+) and negative (–) symbols
shown in the bottom of the battery compartment. Reattach battery compartment to control module. Green LED will illuminate. If the Green
LED does not illuminate, remove battery compartment for 10 seconds and return into place.
B. Power Cable not installed (Hardwire models).
IInstall power cable and check connection.
C. Sensor Cable not installed.
Install sensor cable and check connection. Conrm connection guide markings are aligned.
D. Sensor range is set too short and is not detecting the target.
Increase sensor detection range.
Sensor is activated but faucet DOES NOT deliver water.
A. Faucet has initiated its adaptive sensing calibration program.
Wait 60 seconds before activating faucet.
B. Solenoid Cable not connected.
Check solenoid cable connection. Conrm connection guide markings are aligned.
Sensor Range Requires Manual Adjustment.
Sensor Range is measured in units from 1 to 5, with 1 being closest to the faucet and 5 being farthest from the faucet. The factory default
Sensor Range is 3.
A. To determine what the current Sensor Range setting is, press the red “Sensor” button on the upper right hand corner of the Optima Control
Box for 1 second. Five seconds after pressing the button, the green LED beside it will blink to indicate the Sensor Range setting. For
example, if it is set at 2, the green LED will blink 2 times.
B. To adjust the Sensor Range, press and hold the red “Sensor” button for three seconds and release once the green LED comes on to indicate
that you are in Sensor Range adjustment mode. Then press the “Sensor” button one second at a time for however many times you wish to
increase the range. For example, if the Sensor Range is set at 2 and you wish to increase it to 4, press the “Sensor” button two times for one
second each time..
C. If you wish to decrease the Sensor Range, follow the same procedure to enter into Sensor Range adjustment mode, and then press
the “Sensor” button one second at a time. The button is designed to go up to 5 units and then back down to 1 unit. For example, if the
Sensor Range is set at 4 and you wish to decrease it to 2, press the “Sensor” button three times for one second each time.
D. To conform your changes, wait 5 seconds and then press the red “Sensor” button on the upper right hand corner of the Optima Control Box
for 1 second. Five seconds after pressing the button, the green LED beside it will blink to indicate the Sensor Range setting. For example, if it
is now set at 2, the green LED will blink 2 times.
Solenoid produces an audible “CLICK” when an object is placed in the detection zone of the sensor but
NO water flows.
A. Water supply to faucet is not open.
Open supply stop(s).
B. Inlet tting lter is clogged.
Remove, clean, and reinsert. Replace with EBF1004 solenoid lter kit if necessary.
C. Aerator or spray head is clogged.
Remove, clean, and reinsert.
Solenoid valve DOES NOT produce an audible “CLICK” and NO water flows. Green LED illuminates when
batteries installed.
A. Solenoid valve module is not working properly.
Replace EFP43A solenoid valve module.

Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
8
TROUBLESHOOTING INSTRUCTIONS (CONT.)
Faucet delivers only a slow flow or dribble when sensor is activated.
A. Water supply valve is partially closed.
Open the supply stop(s) completely.
B. Inlet tting lter is clogged.
Remove, clean, and reinsert. Replace with EBF1004 solenoid lter kit if necessary
C. Aerator or spray head is clogged.
Remove, clean, and reinsert.
Faucet DOES NOT stop delivering water or continues to drip after user is no longer detected (automatic shut-off fails even when bat-
teries are removed).
A. Solenoid valve seat is dirty.
Remove, clean, and reinsert solenoid lter. Activate faucet several times to ush out dirt.
B. Sensor range is set too long and is detecting the sink or some other object.
Reduce sensor detection range.
C. Solenoid valve module is not working properly.
Replace EFP43A solenoid valve module.
The water temperature is too hot or too cold on a faucet connected to hot and cold supply lines with
inlet filter fitting.
A. Supply stops are not adjusted properly.
Adjust supply stops.
NOTE: For some systems, a thermostatic mixing valve may be required
SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: [phone] or 1-847-671-4300 • Fax: [phone] or 1-847-671-4380 • www.sloan.com
© 2018 SLOAN Code No: 0816843 – Rev. 1 (06/18)
If further assistance is required, please contact Sloan Tech Support
at 1-888-SLOAN-14 (1-888-756-2614)

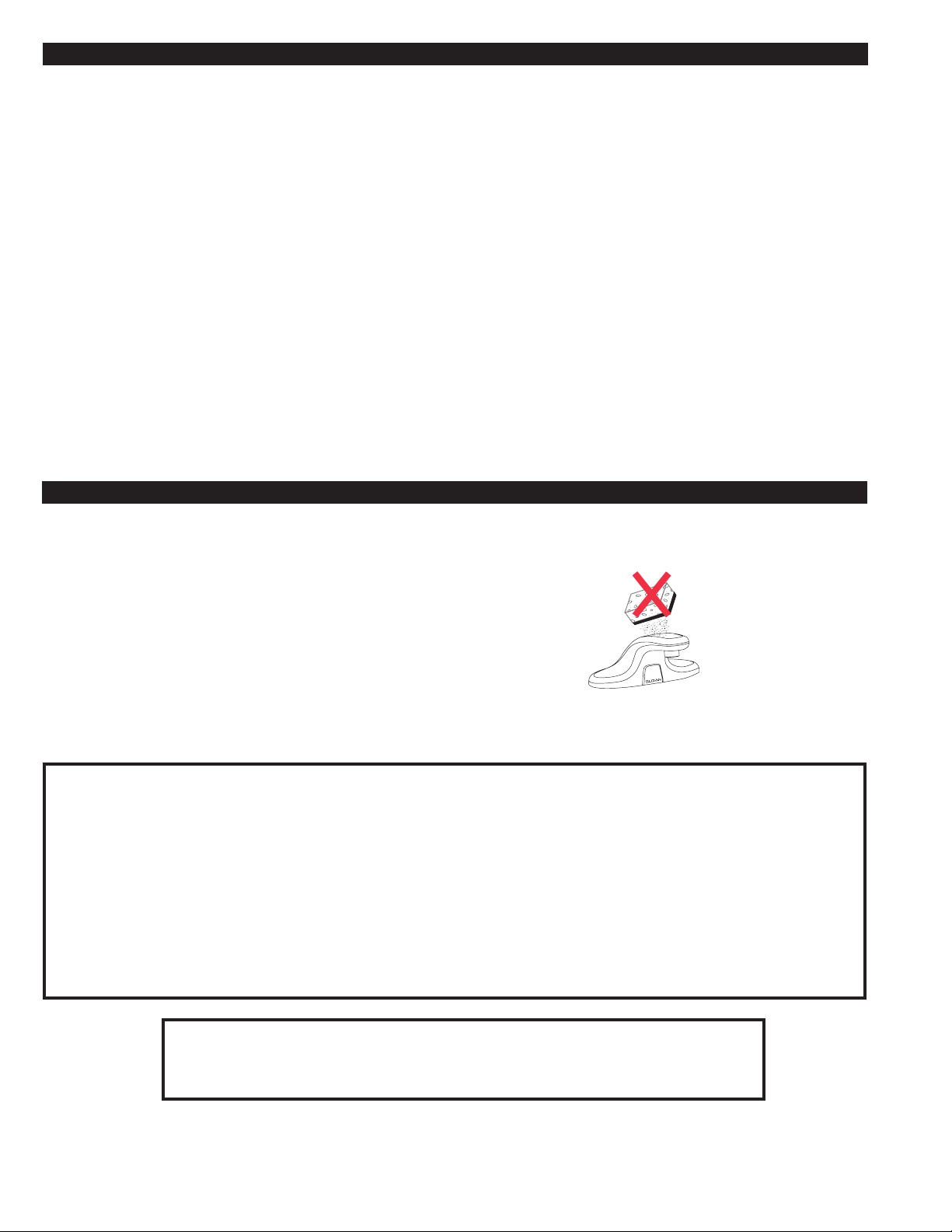

DO NOT USE abrasive or chemical cleaners (including chlorine bleach) to clean faucet that may dull the luster and attack the chrome or special deco-
rative nishes. Use ONLY mild soap and water, then wipe dry with clean cloth or towel. While cleaning the bathroom tile, protect the faucet from any
splattering of cleaner. Acids and cleaning uids will discolor or remove chrome plating.
CARE AND CLEANING INSTRUCTIONS
This equipment has been tested and found to comply with the limits for a class B digital devices, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmfull interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmul
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•
FCC INFORMATION TO USERS
•
•
•

SLOAN DECK MOUNTED SOAP DISPENSER (ESD-SERIES) INSTALLATION INSTRUCTIONS
Touchfree Counter Mounted System Installation Guide
If there is a dispenser currently installed
• Remove the existing unit, both the above and below counter assemblies
• Clean the counter area where the previous dispenser was located
• Verify the size of the existing counter hole is 15/16” to 1-1/4” in diameter
If there is no hole in the counter
• Prior to drilling, examine below the counter to ensure adequate clearance for the new unit
• Drill a 1” diameter hole in the counter top
• The hole can be drilled to either the right or left of the faucet, ensuring adequate clearance for the below counter assembly
• Clean the counter area where the new hole is located
Code no. 0816203
Rev1 (01/17)
Prior To Installation
New Soap Dispenser Installation:
• Ensure that dispenser does not interfere with anything
above or below the lavatory/counter top area
• Drill a 1” diameter hole in counter top
• Clean area around hole
To Order Replacement Soap Cartridges
800.321.9647
GOJO Industries
Rells are also available through your local plumbing or janitorial supply
distributor.
When the soap bottle is empty, a new bottle must be used. The bottle
furnished with the unit is not designed to be relled. Altering the bottle and
relling it with soap will void the warranty of the product.
LIMITED WARRANTY
Unless otherwise noted, Sloan Valve Company warrants its Products to be made of rst class materials, free from defects of material or workmanship under
normal use and to perform the service for which they are intended in a thoroughly reliable and efcient manner when properly installed and serviced, for
a period of three years (1 year for SF Faucets, special nishes and PWT electronics and 30 days on PWT software) from date of purchase. During this
period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at
customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs.
This warranty extends only to persons or organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of
resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: [phone] or 1-847-671-4380 • www.sloan.com

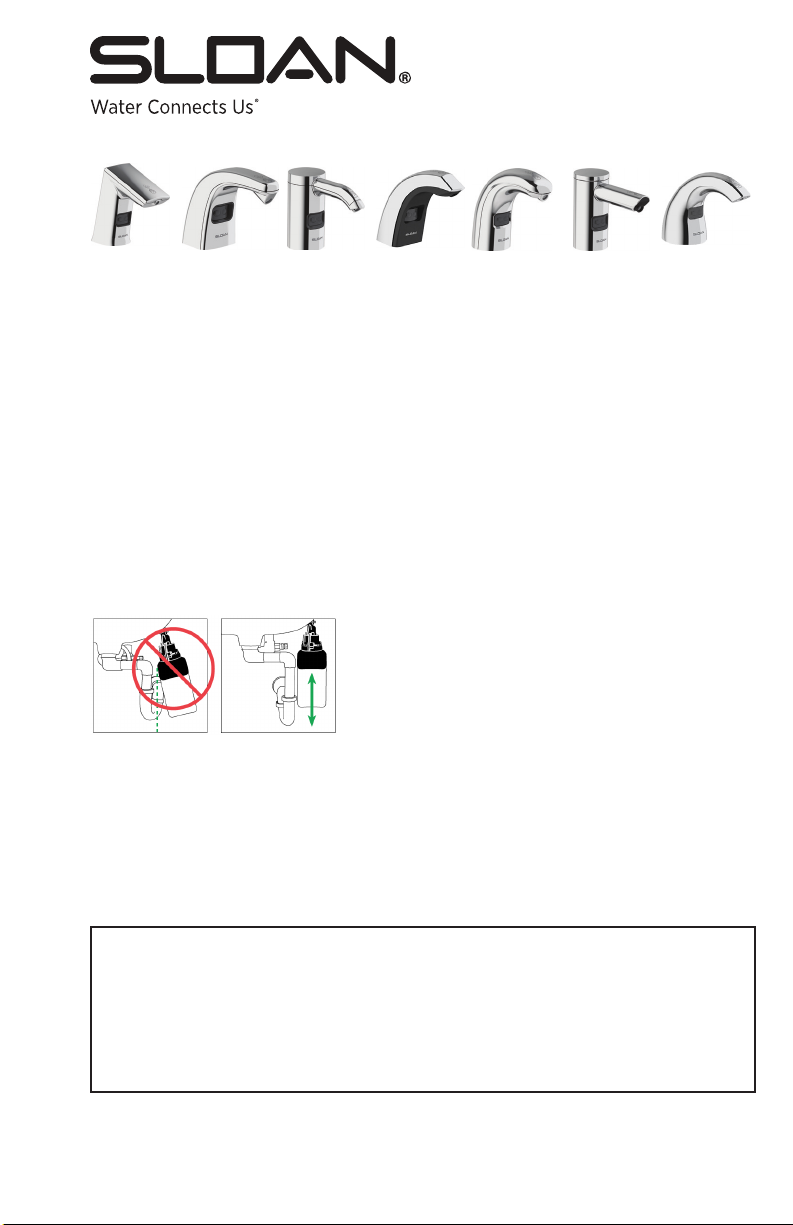

Improper installation of the
Counter Mounted Dispenser
could result in
breakage.
Dispenser must hang freely
underneath the sink.
Proper installation allows
the unit to vertically hang
beneath the sink.
ESD-1500 ESD-2000
ESD-500 ESD-600 ESD-700 ESD-800 ESD-2100

2
Soap Dispenser Installation
NOTE: ESD-2100 Shown, instructions applicable for all Sloan soap dispensers

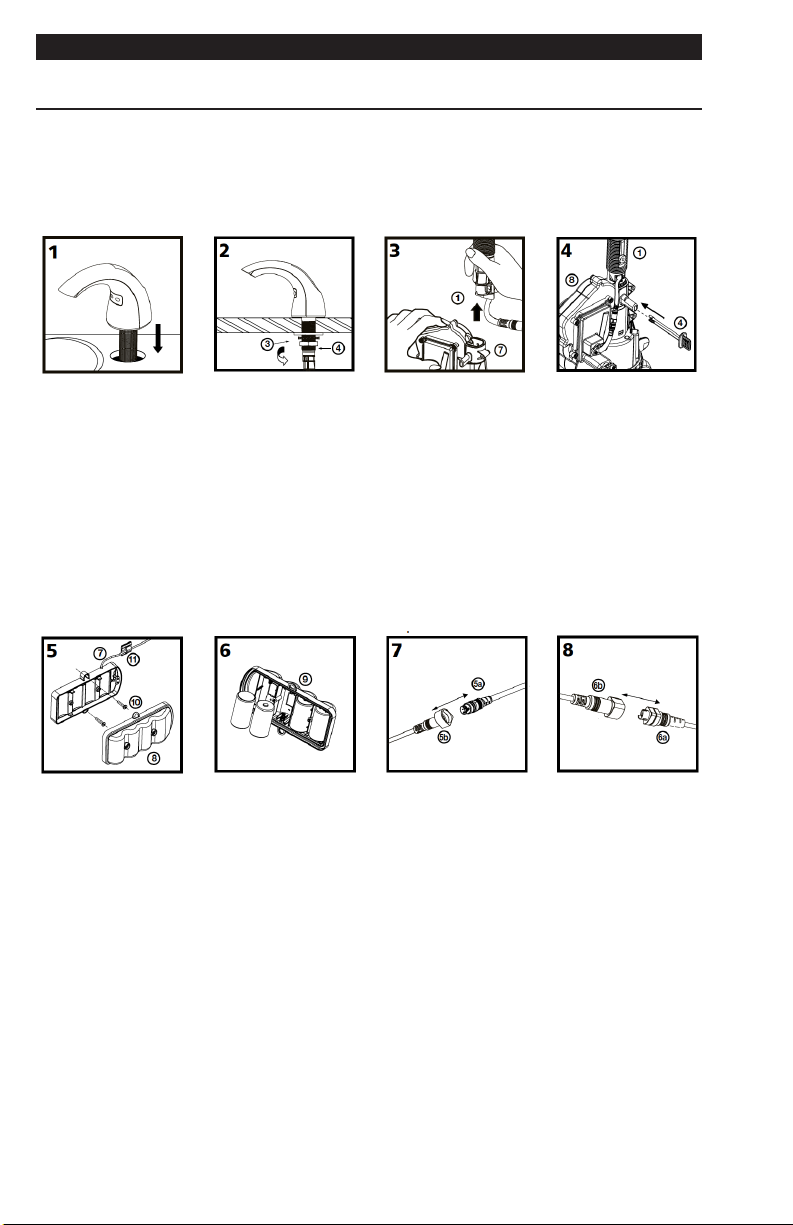

Installing the Touchfree Counter Mounted System

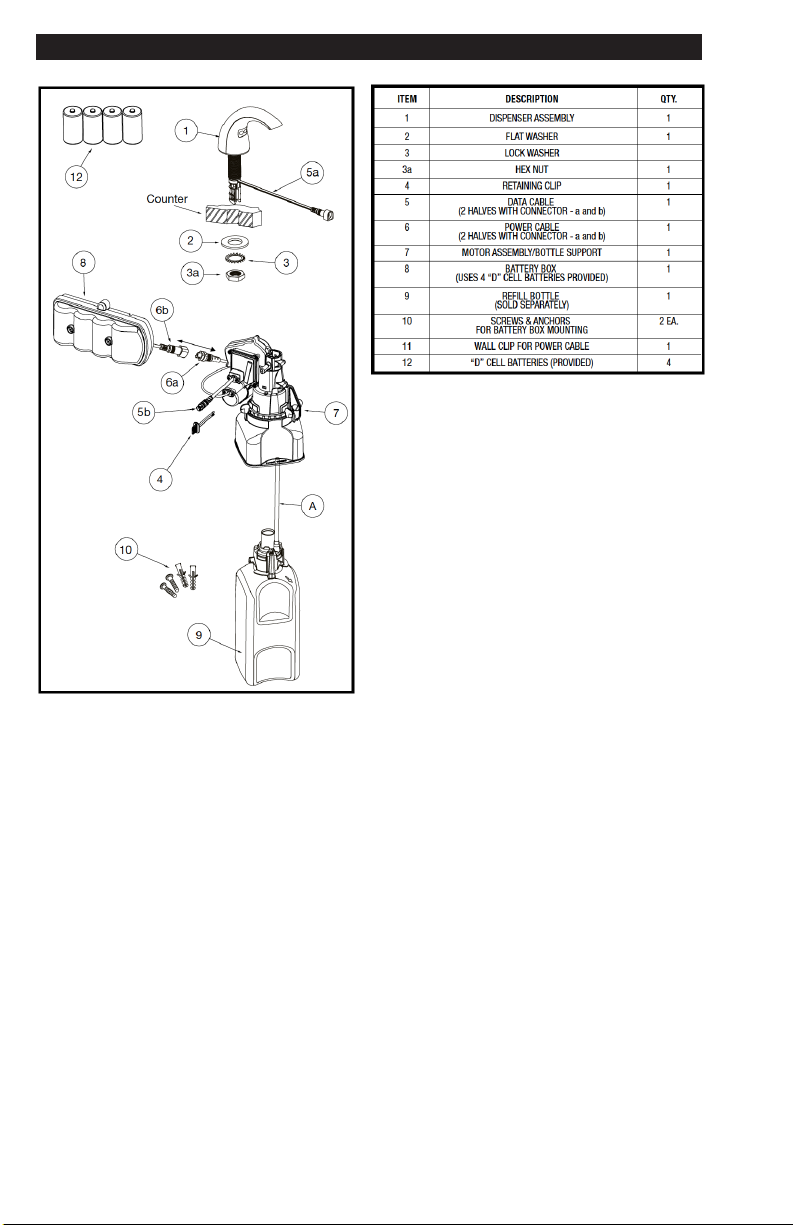

Prior to beginning installation, study the exploded view of the Touchfree Counter-Mounted System and locate all the
pieces. Also, look beneath the countertop to and a suitable place for mounting of the Battery Box (9) so that it will not
interfere with system components or plumbing.
Feed the Data Cable 5a and the
shank of the Dispenser Assembly
1 through the hole in the
countertop. Point the spout of the
Dispenser into the sink bowl.
From underneath the counter,
feed the Lock Washer 3 and then
the Mounting Nut 3a over the
Data Cable 5a and onto the
threaded shank of the Dispenser
Assembly 1. Tighten the nut
securely.
Align the indent inside the top of
the Motor Assembly/Bottle
Support 7 with the indent on the
shank of the Dispenser Assembly
1 and rmly push the Motor
Assembly/Bottle Support up, onto
the shank.
NOTE: Hold the Data Cable rmly
out of the way as you push up on
the Motor Assembly/Bottle
Support. Continue pushing
upward until the vertical slots in
the Dispenser shank and the
Motor Assembly/Bottle Support
line up.
Secure the Motor Assembly/Bottle
Support 7 to the Dispenser
Assembly 1 shank by pushing the
Retaining Clip 4 into place
through the vertical slots, until it
goes all the way through the Motor
Assembly.
NOTE: Motor Assembly Bottle
Support will rotate 360° to avoid
any obstruction.
Remove the cover from the
Battery Box 8 by loosening the
two captive screws on the Battery
Box cover. Position the Box on a
convenient (vertical or horizontal)
surface under the counter top that
will allow access for battery
changing. Attach the Box to the
surface using the two screws 10
and anchors (if attaching to a
plaster or masonry surface).
Use the Wall Clip 11 to secure the
Power Cable to a wall or other
under-counter surface if desired.
Place four alkaline “D” Cell
batteries into the Battery Box 9
cover. The batteries must be
positioned according to the
diagrams shown on the inside of
the cover.
NOTE: If the batteries are not
properly installed or the cover is
not properly positioned on the
Box, the System will not work.
Position the cover (with batteries
installed) on the Battery Box and
tighten the two captive screws.
IMPORTANT: Connect the two
halves of the Data Cable 5a
and 5b
by visually lining up the white
stripes on each half and gently
pushing the cable connectors
together until the stripes touch.
Improperly assembled
connectors can cause unit to
not function as intended.
After the batteries are installed in
the battery box, connect the two
halves of the power cable 6a and
6b . Allow 20 seconds before the
system is ready to dispense soap.

3

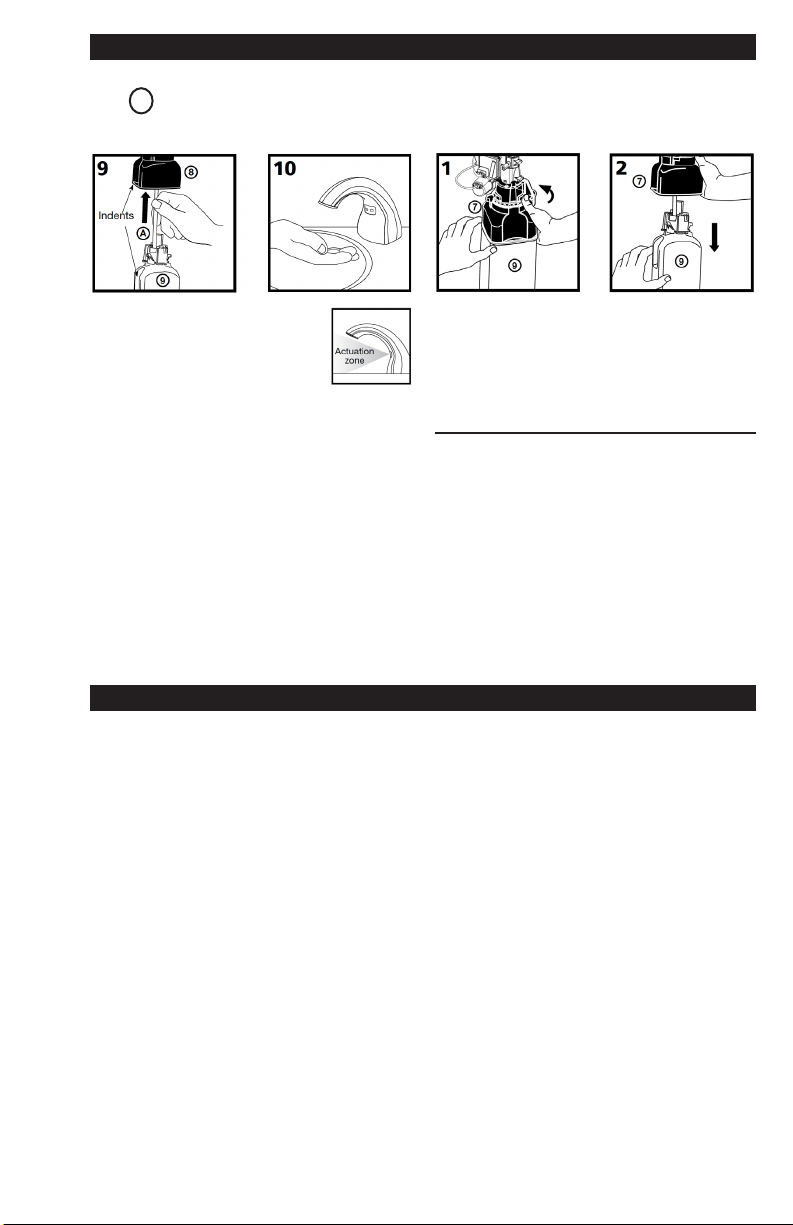

Soap Refill Bottle Installation and Removal
Refill Installation
(refill sold separately)
9
Feed the dispense tube A on the
Rell Bottle 9 up through the
Motor Assembly/Bottle Support 7
and Dispenser Assembly 1 ,
aligning the two indents in the
Bottle and the Support. Slide the
Bottle upward until it snaps into
place.
NOTE: The rell is not properly
installed until you hear the “snap”
(as the Green release latch on the
Motor Assembly/Bottle Support 7
engages).
Test the
System by
passing your
hand under
the spout of
the Dispenser
Assembly 1
(in front of the sensor window) at
least three or four times, until
foam soap appears. If the System
does not dispense soap after
passing your hand in front of the
sensor several times, repeat sev-
eral more times. If no sound heard
from motor assembly after placing
hands in front of sensor, check to
see that the Data Cable 6 halves
are rmly connected, that the
batteries are “good”, and that the
Battery Box 8 cover is properly
positioned and fastened to the
Box. Check for bent contact pins
inside connector 6b . If unit is
multi-activating, check for bent
contact pins inside connector 6b.
Refill Removal
Grasp the empty Rell Bottle 9
with one hand and use the other
hand to push the Green release
latch on the Motor
Assembly/Bottle Support 7 to
the right (counterclockwise as
seen from above).
Grasp the empty Rell Bottle 9
with one hand and use the other
hand to push the Green release
latch on the Motor
Assembly/Bottle Support 7 to
the right (counterclockwise as
seen from above).
Soap Replacement
To order replacement soap cartridges:
CONTACT GOJO Industries at 800.321.9647
Available rells
ESD-321 8565-02-N6300GN: 1500 ml Green Certied Foam Rell (2 Pack)
ESD-322 8545-04-N6300GN: 2300 ml Green Certied Foam Rell (4 Pack)
ATTENTION: do not handle by tube. For proper operation, ensure that tubing is
not loose or bent.
Cleaning the Counter Mounted System
Use only mild soap and water to clean the Touchfree Counter Mounted
System spout. Cover the sensor window with your thumb while cleaning the
spout so that you do not continue to dispense soap.
DO NOT use abrasives to clean the TouchFree Counter-Mounted System
(as this may damage the nish or the sensor window).

4
Parts Breakdown
SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: [phone] or 1-847-671-4380 • www.sloan.com
