BETRIEBSANLEITUNG FÜR
AUSSENLEUCHTE
OPERATING MANUAL FOR
OUTDOOR LUMINAIRE
MODE D’EMPLOI POUR
LUMINAIRE EXTÉRIEUR
INSTRUCCIONES DE SERVICIO PARA
LUMINARIA EXTERIOR
ISTRUZIONI DI FUNZIONAMENTO PER
LAMPADA ESTERNO
GEBRUIKSHANDLEIDING VOOR
BUITENLAMP
INSTRUKTIONSVEJLEDNING FOR
UDENDØRS LYSET
INSTRUKCJA OBSŁUGI DLA
LAMPA ZEWNĘTRZNA
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
СВЕТИЛЬНИК НАРУЖНОГО ОСВЕЩЕНИЯ
BRUKSANVISNING FÖR
UTOMHUSLAMPA
DІŞ ALAN LAMBASI
IÇIN KULLANMA KILAVUZU
KEZELÉSI ÚTMUTATÓ
KÜLTÉRI LÁMPATEST
231525 / 231535
art.
-
no. 231525
/
2315
35
14.02.2018
© SLV GmbH, Daimlerstr.
21
-
23, 52531 Übach
-
Palenberg, Germany, el. [phone]
-
0
echnische Änderungen vorbehalten.
echnical Details are
subject to change. Les détails techniques sont sujet à des changements. Nos reservamos el derecho a modificaciones técnicas. Modifiche tecniche riservate. Behoudens technische wijzigingen. Ret til
tekniske ændringer forbeholdes. Zmiany techniczne zastrzeżone. Сохраняется право на внесение технических изменений. ekniska ändringar kan förekomma. eknik değişiklik yapma hakkı
saklıdır. A technikai részletek termékenként változhatnak.
231525 1x
GX53, 9W max.
12,0 x 12,0 x 6,2 cm 0,68 kg
231535 2x 28,0 x 67,0 x 11,6 cm 1,80 kg
230V~
IP44
90°
90°
231535 231525
231535
!

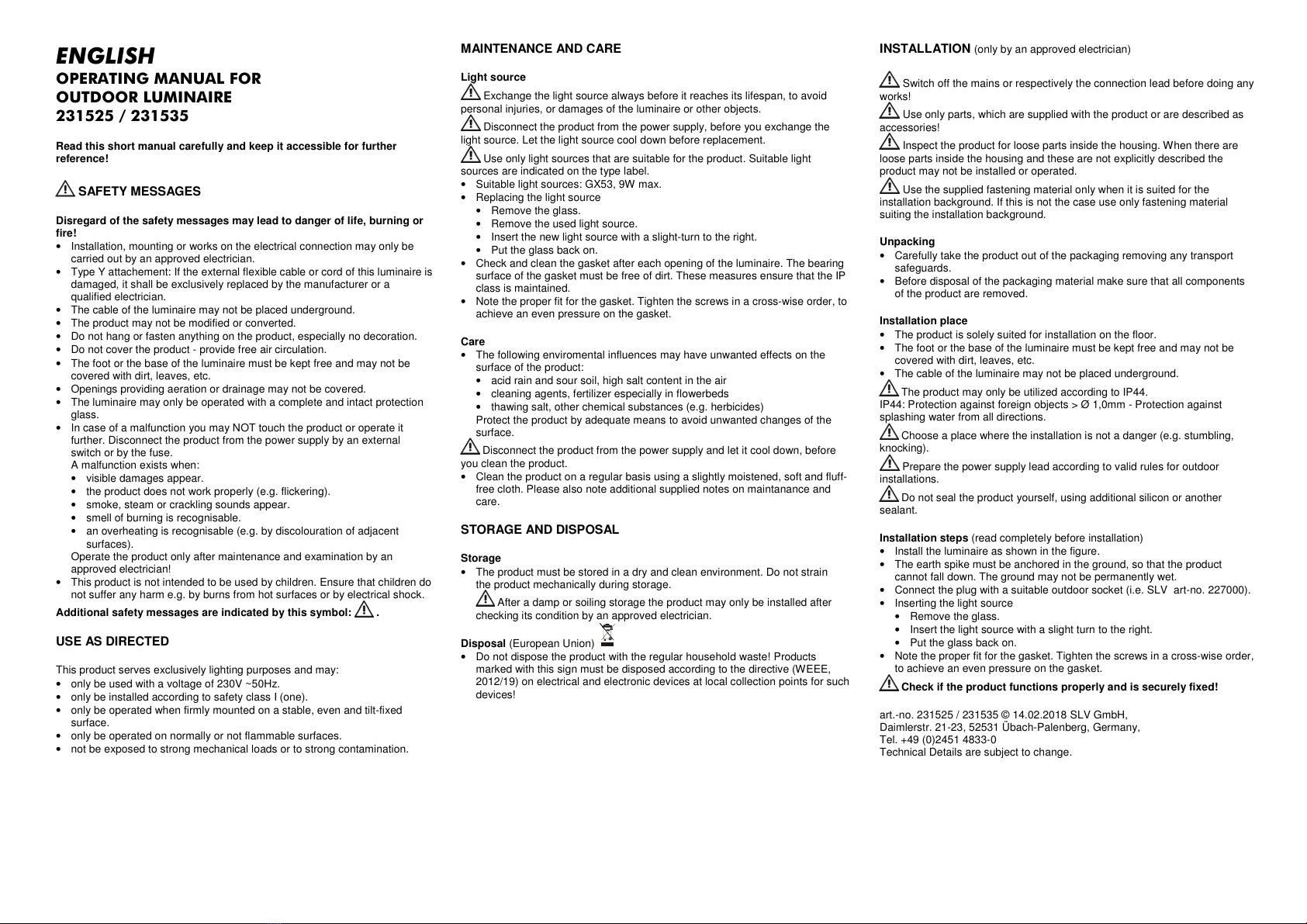

ENGLISH
OPERATING MANUAL FOR
OUTDOOR LUMINAIRE
231525 / 231535
Read this short manual carefully and keep it accessible for further
reference!
SAFETY MESSAGES
Disregard of the safety messages may lead to danger of life, burning or
fire!
•Installation, mounting or works on the electrical connection may only be
carried out by an approved electrician.
•Type Y attachement: If the external flexible cable or cord of this luminaire is
damaged, it shall be exclusively replaced by the manufacturer or a
qualified electrician.
•The cable of the luminaire may not be placed underground.
•The product may not be modified or converted.
•Do not hang or fasten anything on the product, especially no decoration.
•Do not cover the product - provide free air circulation.
•The foot or the base of the luminaire must be kept free and may not be
covered with dirt, leaves, etc.
•Openings providing aeration or drainage may not be covered.
•The luminaire may only be operated with a complete and intact protection
glass.
•In case of a malfunction you may NOT touch the product or operate it
further. Disconnect the product from the power supply by an external
switch or by the fuse.
A malfunction exists when:
•visible damages appear.
•the product does not work properly (e.g. flickering).
•smoke, steam or crackling sounds appear.
•smell of burning is recognisable.
•an overheating is recognisable (e.g. by discolouration of adjacent
surfaces).
Operate the product only after maintenance and examination by an
approved electrician!
•This product is not intended to be used by children. Ensure that children do
not suffer any harm e.g. by burns from hot surfaces or by electrical shock.
Additional safety messages are indicated by this symbol: .
USE AS DIRECTED
This product serves exclusively lighting purposes and may:
•only be used with a voltage of 230V ~50Hz.
•only be installed according to safety class I (one).
•only be operated when firmly mounted on a stable, even and tilt-fixed
surface.
•only be operated on normally or not flammable surfaces.
•not be exposed to strong mechanical loads or to strong contamination.
MAINTENANCE AND CARE
Light source
Exchange the light source always before it reaches its lifespan, to avoid
personal injuries, or damages of the luminaire or other objects.
Disconnect the product from the power supply, before you exchange the
light source. Let the light source cool down before replacement.
Use only light sources that are suitable for the product. Suitable light
sources are indicated on the type label.
•Suitable light sources: GX53, 9W max.
•Replacing the light source
•Remove the glass.
•Remove the used light source.
•Insert the new light source with a slight-turn to the right.
•Put the glass back on.
•Check and clean the gasket after each opening of the luminaire. The bearing
surface of the gasket must be free of dirt. These measures ensure that the IP
class is maintained.
•Note the proper fit for the gasket. Tighten the screws in a cross-wise order, to
achieve an even pressure on the gasket.
Care
•The following enviromental influences may have unwanted effects on the
surface of the product:
•acid rain and sour soil, high salt content in the air
•cleaning agents, fertilizer especially in flowerbeds
•thawing salt, other chemical substances (e.g. herbicides)
Protect the product by adequate means to avoid unwanted changes of the
surface.
Disconnect the product from the power supply and let it cool down, before
you clean the product.
•Clean the product on a regular basis using a slightly moistened, soft and fluff-
free cloth. Please also note additional supplied notes on maintanance and
care.
STORAGE AND DISPOSAL
Storage
•The product must be stored in a dry and clean environment. Do not strain
the product mechanically during storage.
After a damp or soiling storage the product may only be installed after
checking its condition by an approved electrician.
Disposal (European Union)
•Do not dispose the product with the regular household waste! Products
marked with this sign must be disposed according to the directive (WEEE,
2012/19) on electrical and electronic devices at local collection points for such
devices!
INSTALLATION
(only by an approved electrician)
Switch off the mains or respectively the connection lead before doing any
works!
Use only parts, which are supplied with the product or are described as
accessories!
Inspect the product for loose parts inside the housing. When there are
loose parts inside the housing and these are not explicitly described the
product may not be installed or operated.
Use the supplied fastening material only when it is suited for the
installation background. If this is not the case use only fastening material
suiting the installation background.
Unpacking
•Carefully take the product out of the packaging removing any transport
safeguards.
•Before disposal of the packaging material make sure that all components
of the product are removed.
Installation place
•The product is solely suited for installation on the floor.
•The foot or the base of the luminaire must be kept free and may not be
covered with dirt, leaves, etc.
•The cable of the luminaire may not be placed underground.
The product may only be utilized according to IP44.
IP44: Protection against foreign objects > Ø 1,0mm - Protection against
splashing water from all directions.
Choose a place where the installation is not a danger (e.g. stumbling,
knocking).
Prepare the power supply lead according to valid rules for outdoor
installations.
Do not seal the product yourself, using additional silicon or another
sealant.
Installation steps (read completely before installation)
•Install the luminaire as shown in the figure.
•The earth spike must be anchored in the ground, so that the product
cannot fall down. The ground may not be permanently wet.
•Connect the plug with a suitable outdoor socket (i.e. SLV art-no. 227000).
•Inserting the light source
•Remove the glass.
•Insert the light source with a slight turn to the right.
•Put the glass back on.
•Note the proper fit for the gasket. Tighten the screws in a cross-wise order,
to achieve an even pressure on the gasket.
Check if the product functions properly and is securely fixed!
art.-no. 231525 / 231535 © 14.02.2018 SLV GmbH,
Daimlerstr. 21-23, 52531 Übach-Palenberg, Germany,
Tel. [phone]
Technical Details are subject to change.
