SMA 9000TL User manual

CON-SMC9-11-RM-xx-10 | Version 1.0
Spare-part set "AC/DC terminal assembly"
for SunnyMiniCentral 9000TL /
9000TLRP / 10000TL / 10000TLRP /
11000TL / 11000TLRP
NR-SMC2TL-CON / NR3-SMC2TL-CON / NR-SMC3TL-CON /
NR3-SMC3TL-CON

CON-SMC9-11-RM-xx-102
ENGLISH Replacement Manual................................................................3
DEUTSCH Austauschanleitung.................................................................18
ČEŠTINA Návod kvýměně ....................................................................35
ΕΛΛΗΝΙΚΑ Οδηγίες αντικατάστασης........................................................51
ESPAÑOL Instrucciones para la sustitución............................................69
FRANÇAIS Instructions de remplacement................................................86
ITALIANO Istruzioni per la sostituzione ............................................... 102
NEDERLANDS Vervangingshandleiding..................................................... 118
PORTUGUÊS Manual de substituição ....................................................... 134
ROMÂNĂ Instrucțiuni de schimb .......................................................... 150
TÜRKÇE Değiştirme kılavuzu ............................................................. 166
Contact...................................................................................182

Legal Provisions
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 3
Legal Provisions
The information contained in these documents is the property of SMA Solar Technology AG. No
part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or
by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior
written permission of SMA Solar Technology AG. Internal reproduction used solely for the purpose
of product evaluation or other proper use is allowed and does not require prior approval.
SMA Solar Technology AG makes no representations or warranties, express or implied, with
respect to this documentation or any of the equipment and/or software it may describe, including
(with no limitation) any implied warranties of utility, merchantability, or fitness for any particular
purpose. All such representations or warranties are expressly disclaimed. Neither SMA Solar
Technology AG nor its distributors or dealers shall be liable for any indirect, incidental, or
consequential damages under any circumstances.
The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that product
improvements and field usage experience may cause SMA Solar Technology AG to make changes
to these specifications without advance notice, or per contract provisions in those cases where a
supply agreement requires advance notice. SMA Solar Technology AG shall not be responsible for
any damages, including indirect, incidental or consequential damages, caused by reliance on the
material presented, including, but not limited to, omissions, typographical errors, arithmetical errors
or listing errors in the content material.
Trademarks
All trademarks are recognized, even if not explicitly identified as such. Missing designations do not
mean that a product or brand is not a registered trademark.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Germany
Tel. [phone]
Fax [phone]
www.SMA.de
Email: [email protected]
Status: 2/10/2020
Copyright © 2020 SMA Solar Technology AG. All rights reserved.
ENGLISH

Table of Contents SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-104
Table of Contents
1 Information on this Document................................................. 5
1.1 Validity........................................................................................................................ 5
1.2 Target Group.............................................................................................................. 5
1.3 Content and Structure of this Document ................................................................... 5
1.4 Symbols in the Document .......................................................................................... 5
1.5 Levels of Warning Messages.................................................................................... 6
1.6 Typographies in the Document.................................................................................. 6
1.7 Designation in the document..................................................................................... 7
2 Safety ........................................................................................ 7
2.1 Intended Use .............................................................................................................. 7
2.2 IMPORTANT SAFETY INSTRUCTIONS.................................................................... 8
3 Scope of Delivery..................................................................... 10

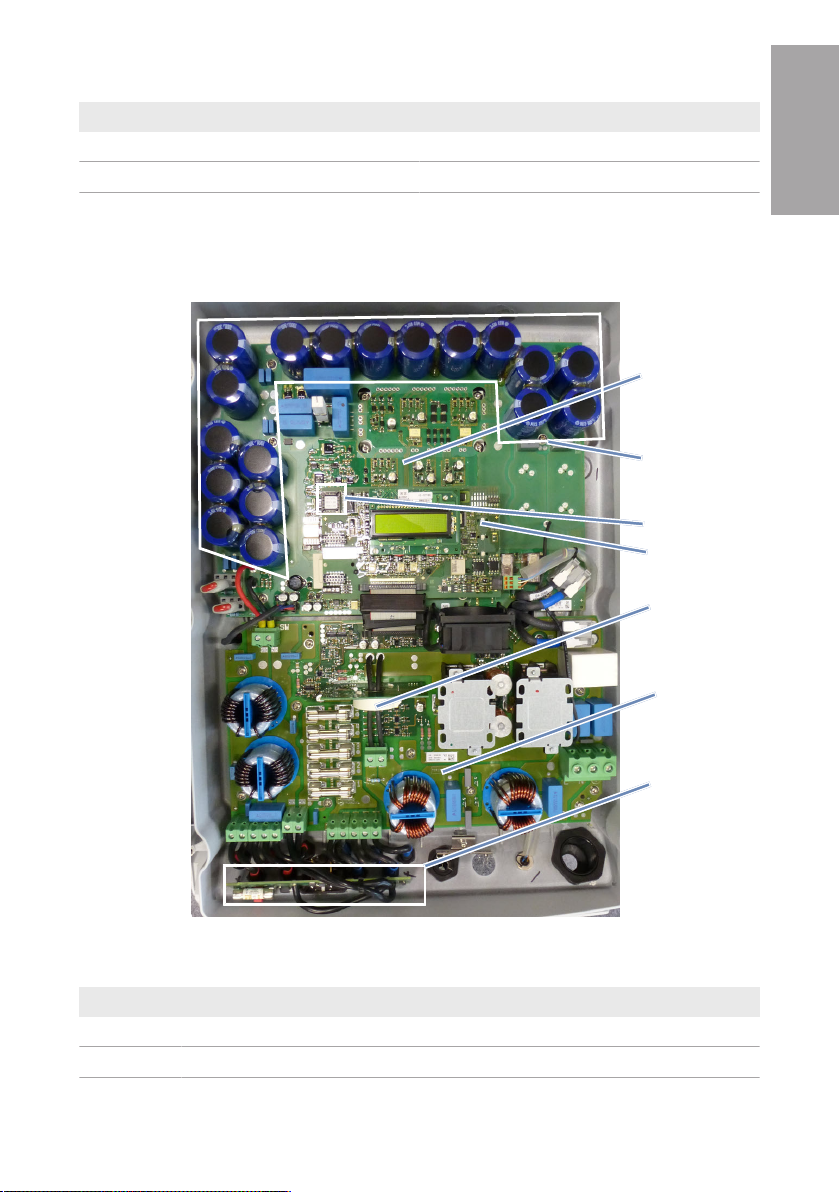

4 Overview of the Assemblies ................................................... 11

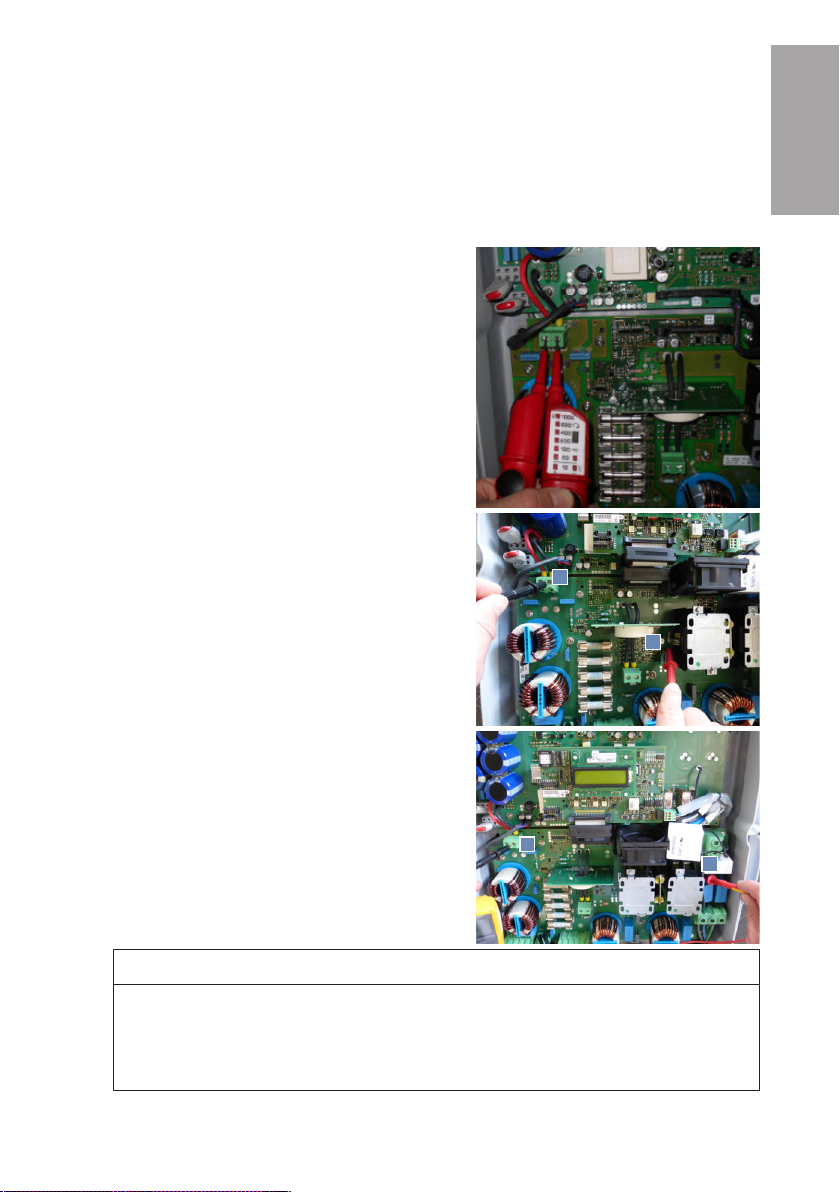

5 Disconnecting the Inverter from Voltage Sources................. 12
6 Disassembling the defective CON assembly ......................... 14
7 Installing the new CON assembly .......................................... 15
8 Returning and Disposing of the Defective Assembly ............ 17
ENGLISH

1 Information on this Document
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 5
1 Information on this Document
1.1 Validity
This document is valid for:
• NR-SMC2TL-CON
• NR3-SMC2TL-CON
• NR-SMC3TL-CON
• NR3-SMC3TL-CON
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Within the SMA factory warranty, participation in an SMA training course is mandatory for
carrying out the activities described in this document. The type of training and the media used
may vary from country to country. The type and method of training can therefore vary from
country to country, but must have been completed before the service is provided.
• Outside the SMA factory warranty, SMA Solar Technology AG recommends participation in
an SMA training course to perform the activities described in this document. This ensures the
quality requirements for proper replacement of assemblies. The type of training and the media
used may vary from country to country.
• Knowledge of how to safely disconnect SMA inverters
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing, repairing and
using electrical devices and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Content and Structure of this Document
This document describes how to replace components.
Illustrations in this document are reduced to the essential information and may deviate from the real
product.
1.4 Symbols in the Document
Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
☐
Indicates a requirement for meeting a specific goal
☑
Desired result
ENGLISH

1 Information on this Document SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-106
Symbol Explanation
✖
A problem that might occur
Example
1.5 Levels of Warning Messages
The following levels of warning messages may occur when handling the product.
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which, if not avoided, can result in property damage.
1.6 Typographies in the Document
Typography Use Example
bold • Messages
• Terminals
• Elements on a user interface
• Elements to be selected
• Elements to be entered
• Connect the insulated
conductors to the terminals
X703:1 to X703:6.
• Enter 10 in the field
Minutes.
>• Connects several elements to be
selected
• Select Settings > Date.
[Button]
[Key]
• Button or key to be selected or
pressed
• Select [Enter].
# • Placeholder for variable
components (e.g., parameter
names)
• Parameter WCtlHz.Hz#
ENGLISH

2 Safety
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 7
1.7 Designation in the document
Complete designation Designation in this document
Power assembly (AST) AST assembly, AST, assembly
Operation control assembly (BFS) OCS assembly, OCS, assembly
AC/DC terminal assembly CON assembly, CON, assembly
Residual-current monitoring unit (RCMU) RCMU
2 Safety
2.1 Intended Use
The product must only be installed in the following SMA inverters:
Spare parts set Inverters
NR-SMC2TL-CON
NR3-SMC2TL-CON
SMC9000TL-10
SMC10000TL-10
SMC11000TL-10
NR-SMC3TL-CON
NR3-SMC3TL-CON
SMC9000TLRP-10
SMC10000TLRP-10
SMC11000TLRP-10
Use SMA products only in accordance with the information provided in the enclosed
documentation and with the locally applicable laws, regulations, standards and directives. Any
other application may cause personal injury or property damage.
Alterations to the SMA products, e.g., changes or modifications, are only permitted with the express
written permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and
warranty claims and in most cases terminate the operating license. SMA Solar Technology AG
shall not be held liable for any damage caused by such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient, dry place for future reference and observe all instructions contained therein.
This document does not replace and is not intended to replace any local, state, provincial, federal
or national laws, regulations or codes applicable to the installation, electrical safety and use of the
product. SMA Solar Technology AG assumes no responsibility for the compliance or non-
compliance with such laws or codes in connection with the installation of the product.
If the replacement and all activities stated in this document are carried out by persons who are not
qualified within the meaning of this documentation, this will void the guarantee and warranty claims
and in most cases terminate the operating permit. SMA Solar Technology AG shall not be held
liable for any damage caused directly or indirectly due to such changes by unauthorized persons.
ENGLISH

2 Safety SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-108
2.2 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This section contains safety information that must be observed at all times when working.
The product has been designed and tested in accordance with international safety requirements. As
with all electrical or electronical devices, there are residual risks despite careful construction. To
prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.
DANGER
Danger to life due to electric shock when live components or cables of the
inverter are touched
High voltages are present in the conductive components or cables of the inverter. Touching live
parts and cables of the inverter results in death or lethal injuries due to electric shock.
• Disconnect the inverter from voltage sources and make sure it cannot be reconnected
before working on the device.
• Wear suitable personal protective equipment for all work on the product.
• Do not touch non-insulated parts or cables.
DANGER
Danger to life due to electric shock when live components or DC cables are
touched
When exposed to light, the PV modules generate high DC voltage which is present in the DC
cables. Touching live DC cables results in death or lethal injuries due to electric shock.
• Do not touch non-insulated parts or cables.
• Disconnect the inverter from voltage sources and make sure it cannot be reconnected
before working on the device.
• Do not disconnect the DC connectors under load.
• Wear suitable personal protective equipment for all work on the product.
DANGER
Danger to life due to electric shock when touching live system components in
case of a ground fault
If a ground fault occurs, parts of the system may still be live. Touching live parts and cables
results in death or lethal injuries due to electric shock.
• Disconnect the inverter from voltage sources and make sure it cannot be reconnected
before working on the device.
• Touch the cables of the PV array on the insulation only.
• Do not connect PV strings with ground faults to the inverter.
• Once disconnected from voltage sources, wait five minutes before touching any parts of the
PV system or the inverter.
ENGLISH

2 Safety
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 9
WARNING
Danger to life due to fire or explosion
In rare cases, an explosive gas mixture can be generated inside the inverter under fault
conditions. In this state, switching operations can cause a fire inside the inverter or explosion.
Death or lethal injuries due to hot or flying debris can result.
• Ensure that unauthorized persons have no access to the inverter.
• Do not remove the Electronic Solar Switch (ESS) from the inverter.
• Disconnect the PV array from the inverter via an external disconnection device. If there is no
disconnecting device present, wait until no more DC power is applied to the inverter.
• Disconnect the AC circuit breaker, or keep it disconnected in case it has already tripped,
and secure it against reconnection.
• Only perform work on the inverter (e.g., troubleshooting, repair work) when wearing
personal protective equipment for handling of hazardous substances (e.g., safety gloves,
eye and face protection, respiratory protection).
WARNING
Risk of injury due to toxic substances, gases and dusts.
In rare cases, damages to electronic components can result in the formation of toxic substances,
gases or dusts inside the inverter. Touching toxic substances and inhaling toxic gases and dusts
can cause skin irritation, burns or poisoning, trouble breathing and nausea.
• Only perform work on the inverter (e.g., troubleshooting, repair work) when wearing
personal protective equipment for handling of hazardous substances (e.g., safety gloves,
eye and face protection, respiratory protection).
• Ensure that unauthorized persons have no access to the inverter.
WARNING
Danger to life due to electric shock from destruction of the measuring device
due to overvoltage
Overvoltage can damage a measuring device and result in voltage being present in the
enclosure of the measuring device. Touching the live enclosure of the measuring device results in
death or lethal injuries due to electric shock.
• Only use measuring devices with a DC input voltage range of 800 V or higher.
CAUTION
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation. Touching hot enclosure parts can
result in burn injuries.
• During operation, do not touch any parts other than the enclosure lid of the inverter.
ENGLISH

3 Scope of Delivery SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-1010
NOTICE
Damage to the enclosure seal in subfreezing conditions
If you open the inverter when temperatures are below freezing, the enclosure seals can be
damaged. This can lead to moisture entering the inverter.
• Only open the inverter if the ambient temperature is not below -5°C.
• If a layer of ice has formed on the enclosure seal when temperatures are below freezing,
remove it prior to opening the inverter (e.g. by melting the ice with warm air).
NOTICE
Damage to the inverter due to sand, dust and moisture
Sand, dust and moisture penetration can damage the inverter, thus impairing its functionality.
• Only open the inverter if the humidity is within the thresholds and the environment is free of
sand and dust.
• Do not open the inverter during a dust storm or precipitation.
• Close the inverter in case of interruption of work or after finishing work.
NOTICE
Damage to the inverter due to electrostatic discharge
Touching electronic components can cause damage to or destroy the inverter through
electrostatic discharge.
• Ground yourself before touching any component.
Grounding conductor test prior to recommissioning
Prior to recommissioning SMA inverters after the installation of SMA components or power
assemblies which cannot be replaced intuitively, ensure that the grounding conductor in the
inverter is correctly connected. The function of the grounding conductor must be ensured and
all locally applicable laws, standards and directives must be observed.
Observe superordinate standards
The repair work on devices and the consideration and application of other standards which
correspond to a superordinate standard is the responsibility of the qualified person performing
the work. Unauthorized alterations will void guarantee and warranty claims and in most cases
terminate the operating license. SMA Solar Technology AG shall not be held liable for any
damage caused by such changes.
3 Scope of Delivery
Check the scope of delivery for completeness and any externally visible damage. Contact the
Service if the delivery is incomplete or damaged.
Quantity Designation
1 AC assembly (CON)
1 Ribbon cable
ENGLISH

4 Overview of the Assemblies
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 11
Quantity Designation
12 Screws with a microencapsulated pre-coating
1 Replacement Manual
4 Overview of the Assemblies
E
A
D
F
B
C
G
Figure 1 : Overview of the Assemblies
Position Explanation
A Power assembly (AST)
B DC link
ENGLISH

5 Disconnecting the Inverter from Voltage Sources SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-1012
Position Explanation
C Firmware module
D Operation control system assembly (OCS)
E Residual-current monitoring unit (RCMU)
F AC/DC terminal assembly (CON)
G Assembly of Electronic Solar Switch
Known incompatibility
The residual-current monitoring unit in the variant DI2G-01 functions exclusively with inverters
from firmware version 1.30 and higher.
5 Disconnecting the Inverter from Voltage Sources
Prior to performing any work on the inverter, always disconnect it from all voltage sources as
described in this section.
DANGER
Danger to life due to electric shock when live components or DC cables are
touched
When exposed to light, the PV modules generate high DC voltage which is present in the DC
cables. Touching live DC cables results in death or lethal injuries due to electric shock.
• Do not touch non-insulated parts or cables.
• Disconnect the inverter from voltage sources and make sure it cannot be reconnected
before working on the device.
• Do not disconnect the DC connectors under load.
• Wear suitable personal protective equipment for all work on the product.
WARNING
Danger to life due to electric shock from destruction of the measuring device
due to overvoltage
Overvoltage can damage a measuring device and result in voltage being present in the
enclosure of the measuring device. Touching the live enclosure of the measuring device results in
death or lethal injuries due to electric shock.
• Only use measuring devices with a DC input voltage range of 800 V or higher.
1. Disconnect the circuit breaker and secure it against reconnection.
2. Remove the ESS.
3. Use a current clamp to ensure that no current is present in the DC cables.
4. Ensure that the DC connectors are in perfect condition and that none of the DC conductors or
DC plug contacts are exposed.
5. Carefully loosen the DC connectors.
6. Ensure that no voltage is present at the DC inputs of the inverter.
ENGLISH

5 Disconnecting the Inverter from Voltage Sources
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 13
7. Wait 10 minutes before opening the enclosure lid.
8. Loosen all screws of the enclosure lid and remove the enclosure lid.
9. Ensure that no voltage is present between L and N at the AC terminal using a suitable
measuring device.
10. Ensure that no voltage is present between L and PE at the AC terminal using a suitable
measuring device.
11. Actively discharge the DC link. For this purpose use,
for example, a 2-pole voltage detector that does not
have its own voltage source. Using the voltage
detector, conduct a measurement on the connection
screws of the terminal of the DC link connection
cable until a value of 0V is displayed.
12. Actively discharge the charging circuit of the
contactor on the left. For this purpose use, for
example, a 2-pole voltage detector that does not
have its own voltage source. Using the voltage
detector, conduct a measurement on the connection
screw of the terminal with the black connection
cable (1) and on the metal tongue of the contactor
on the left (2) until a value of 0V is displayed.
1
2
13. Actively discharge the charging circuit of the
contactor on the right. For this purpose use, for
example, a 2-pole voltage detector that does not
have its own voltage source. Using the voltage
detector, conduct a measurement on the connection
screw of the terminal block with the red connection
cable (1) and on the metal tongue of the contactor
on the right (2) until a value of 0V is displayed.
1
2
14. NOTICE
Damage to the inverter due to electrostatic discharge
The internal components of the inverter can be irreparably damaged by electrostatic
discharge.
• Ground yourself before touching any component.
ENGLISH

6 Disassembling the defective CON assembly SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-1014
6 Disassembling the defective CON assembly
AC
D
F
L
E
K
I
H
B
G
Figure 2 : Overview of the CON assembly
Procedure:
1. Disconnect the inverter from all voltage sources (see Section5, page12).
2. Remove the ribbon cable (A) from the CON assembly, the OCS assembly and the power
assembly (AST).
3. Remove all cables:
• Remove the AC cable (F) from the screw terminals. When doing so, ensure that the
grounding conductor remains connected to the inverter in order to guarantee ESD
protection.
• Remove the connection between the power assembly (AST) and the CON assembly (E).
• If an additional capacitor has been installed, disconnect the capacitor's cable (C) and
remove the capacitor.
• Remove the cables (D) coming from the choke from the screw terminals or spring clamp
terminals. To disconnect the cables from the screw terminals, use a flat-blade screwdriver
(blade width: 5.5mm).
• Remove the DC link connection cable (L) from the screw terminals.
• Remove the DC cable (H) from the screw terminals.
ENGLISH

7 Installing the new CON assembly
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 15
4. Disassemble the fan (B). To do so, press the locking tabs at the top left and right of the retainer
outward and move the fan upward out of the retainer.
5. Remove all string fuses (I).
6. Unscrew the 12 screws of the CON assembly with a Torx screwdriver (TX 20).
7. Tilt the CON assembly slightly forward at the top and remove it through the front.
8. Remove the RCMU (K) from the CON assembly:
• Remove the residual-current monitoring unit’s cables (G) from the screw terminals.
• Lead the cables through the residual-current monitoring unit back to their origin.
• Press the 2 locking tabs on the rear side of the CON assembly together and remove the
residual-current monitoring unit from the CON assembly.
7 Installing the new CON assembly
NOTICE
Damage to the inverter due to excessive torques during screw tightening
Screw contact areas may be ruptured due to excessive torques.
• Use only the new screws included in delivery to install the new assembly.
• Tighten all screws with a Torx screwdriver. On no account exceed the specified torques.
Procedure:
1. Disconnect the inverter from all voltage sources (see Section5, page12).
2. Install the RCMU on the new CON assembly:
• Lead the residual-current monitoring unit's locking tabs through the openings in the CON
assembly until they snap into place.
• Lead the 2 connection cables through the residual-current monitoring unit to the screw
terminals in parallel form.
3. Break the top-left edge of the new CON assembly out at the predetermined breaking point.
4. Insert the new CON assembly into the inverter's enclosure. When doing so, ensure that there
are no cables below the CON assembly and no cables get stuck there, and that the screw
holes in the CON assembly are located directly above the screw holes in the inverter’s
enclosure.
5. Secure the CON assembly in place. To do so, insert 2 new screws with a microencapsulated
pre-coating into the screw holes at the top left and right and tighten them slightly.
6. Insert the remaining 8 new screws with a microencapsulated pre-coating into the screw holes
and tighten all 10 screws (TX20, torque: 3Nm).
7. Connect the new ribbon cable from the delivery scope to the OCS assembly, the power
assembly (AST) and the CON assembly.
8. Connect all cables to the CON assembly:
• Connect the DC link connection (H) to the screw terminals or spring clamp terminals
(torque for connection to screw terminals: 1.5Nm). Ensure the color assignment is correct
(BK = black, RD = red).
ENGLISH

7 Installing the new CON assembly SMA Solar Technology AG
Replacement ManualCON-SMC9-11-RM-xx-1016
• Connect the cables coming from the choke (A) to the screw terminals or spring clamp
terminals (torque for connection to screw terminals: 2.5Nm). When connecting the
cables, ensure the color assignment is correct (BK = black, BL = blue).
• Mount the flat male tab onto the blade connector between the contactor and AC terminal
block (B).
• Connect the residual-current monitoring unit's connection cable (G) to the screw terminals
(torque: 1.5Nm).
• Connect the AC cable (C) to the screw terminals.
• Connect the positive DC cable (D) to the screw terminals (torque: 1.5Nm).
• Connect the cable of the Electronic Solar Switch (E) to the screw terminals (torque:
1.5Nm).
• Connect the negative DC cable (F) to the screw terminals (torque: 1.5Nm).
A
C
H
F
GB
D
E
9. Check the tension of every cable.
ENGLISH

8 Returning and Disposing of the Defective Assembly
SMA Solar Technology AG
Replacement Manual CON-SMC9-11-RM-xx-10 17
10. Insert the fan into the retainer at the bottom first of
all and then press it into the locking tabs at the top
so that the locking tabs snap into place. The
direction arrow on the fan must point away from the
retainer.
11. Ensure that the fan is seated in the retainer correctly and securely.
12. If string fuses are present, remove the jumpers that are connected to the fuse holders of the
new CON assembly and insert the string fuses into the fuse holders.
13. Carry out the necessary tests according to the locally applicable laws, standards and
directives for the correct recommissioning after power assembly replacement. Take the
requirements for component replacements into account (see Section2.2 "IMPORTANT
SAFETY INSTRUCTIONS", page8).
14. Ensure that the grounding conductor in the inverter is correctly connected and functions
properly.
15. After replacing the defective component, ensure operational and system safety in accordance
with the locally applicable electrotechnical rules.
16. Recommission the inverter (see inverter manual).
17. If the inverter is in permanent operation inhibition, which is indicated by the glowing yellow
LED, reset the permanent operation inhibition using a communication device. This allows the
inverter to feed into the utility grid again.
8 Returning and Disposing of the Defective Assembly
If the defective assembly is to be returned, this will be stated on the order form.
Procedure:
1. If the defective assembly is to be returned:
• Pack the defective assembly for shipping. Use the original packaging for this, or
packaging that is suitable for the weight and size of the assembly.
• Organize the return shipment to SMA Solar Technology AG. Contact the Service.
2. If the assembly is not to be returned, dispose of the assembly in accordance with the locally
applicable disposal regulations for electronic waste.
ENGLISH

Rechtliche Bestimmungen SMA Solar Technology AG
AustauschanleitungCON-SMC9-11-RM-xx-1018
Rechtliche Bestimmungen
Die in diesen Unterlagen enthaltenen Informationen sind Eigentum der SMA Solar Technology AG.
Kein Teil dieses Dokuments darf vervielfältigt, in einem Datenabrufsystem gespeichert oder in einer
anderen Art und Weise (elektronisch, mechanisch durch Fotokopie oder Aufzeichnung) ohne die
vorherige schriftliche Genehmigung von SMA Solar Technology AG übertragen werden. Eine
innerbetriebliche Vervielfältigung, die zur Evaluierung des Produktes oder zum sachgemäßen
Einsatz bestimmt ist, ist erlaubt und nicht genehmigungspflichtig.
SMA Solar Technology AG gewährt keine Zusicherungen oder Garantien, ausdrücklich oder
stillschweigend, bezüglich jeglicher Dokumentation oder darin beschriebener Software und
Zubehör. Dazu gehören unter anderem (aber ohne Beschränkung darauf) implizite Gewährleistung
der Marktfähigkeit und Eignung für einen bestimmten Zweck. Allen diesbezüglichen Zusicherungen
oder Garantien wird hiermit ausdrücklich widersprochen. SMA Solar Technology AG und deren
Fachhändler haften unter keinen Umständen für etwaige direkte oder indirekte, zufällige
Folgeverluste oder Schäden.
Der oben genannte Ausschluss von impliziten Gewährleistungen kann nicht in allen Fällen
angewendet werden.
Änderungen an Spezifikationen bleiben vorbehalten. Es wurden alle Anstrengungen unternommen,
dieses Dokument mit größter Sorgfalt zu erstellen und auf dem neusten Stand zu halten. Leser
werden jedoch ausdrücklich darauf hingewiesen, dass sich SMA Solar Technology AG das Recht
vorbehält, ohne Vorankündigung bzw. gemäß den entsprechenden Bestimmungen des
bestehenden Liefervertrags Änderungen an diesen Spezifikationen durchzuführen, die sie im
Hinblick auf Produktverbesserungen und Nutzungserfahrungen für angemessen hält. SMA Solar
Technology AG übernimmt keine Haftung für etwaige indirekte, zufällige oder Folgeverluste oder
Schäden, die durch das Vertrauen auf das vorliegende Material entstanden sind, unter anderem
durch Weglassen von Informationen, Tippfehler, Rechenfehler oder Fehler in der Struktur des
vorliegenden Dokuments.
Warenzeichen
Alle Warenzeichen werden anerkannt, auch wenn diese nicht gesondert gekennzeichnet sind.
Fehlende Kennzeichnung bedeutet nicht, eine Ware oder ein Zeichen seien frei.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Deutschland
Tel. [phone]
Fax [phone]
www.SMA.de
E-Mail: [email protected]
Stand: 10.02.2020
Copyright © 2020 SMA Solar Technology AG. Alle Rechte vorbehalten.
DEUTSCH

Inhaltsverzeichnis
SMA Solar Technology AG
Austauschanleitung CON-SMC9-11-RM-xx-10 19
Inhaltsverzeichnis
1 Hinweise zu diesem Dokument............................................... 20
1.1 Gültigkeitsbereich....................................................................................................... 20
1.2 Zielgruppe .................................................................................................................. 20
1.3 Inhalt und Struktur des Dokuments............................................................................ 20
1.4 Symbole im Dokument............................................................................................... 20
1.5 Warnhinweisstufen..................................................................................................... 21
1.6 Auszeichnungen im Dokument .................................................................................. 21
1.7 Benennungen im Dokument....................................................................................... 22
2 Sicherheit................................................................................... 22
2.1 Bestimmungsgemäße Verwendung........................................................................... 22
2.2 Wichtige Sicherheitshinweise.................................................................................... 23
3 Lieferumfang............................................................................. 27
4 Übersicht der Baugruppen...................................................... 28
5 Wechselrichter spannungsfrei schalten.................................. 29
6 Defekte CON-Baugruppe ausbauen ...................................... 31
7 Neue CON-Baugruppe einbauen........................................... 32
8 Defekte Baugruppe zurücksenden oder entsorgen.............. 34
DEUTSCH

1 Hinweise zu diesem Dokument SMA Solar Technology AG
AustauschanleitungCON-SMC9-11-RM-xx-1020
1 Hinweise zu diesem Dokument
1.1 Gültigkeitsbereich
Dieses Dokument gilt für:
• NR-SMC2TL-CON
• NR3-SMC2TL-CON
• NR-SMC3TL-CON
• NR3-SMC3TL-CON
1.2 Zielgruppe
Die in diesem Dokument beschriebenen Tätigkeiten dürfen nur Fachkräfte durchführen. Fachkräfte
müssen über folgende Qualifikation verfügen:
• Innerhalb der SMA Werksgarantie ist die Teilnahme an einem SMA Schulungsangebot zur
Durchführung der in diesem Dokument beschriebenen Tätigkeiten zwingend erforderlich. Die
Art der Schulung und die verwendeten Medien können länderspezifisch voneinander
abweichen. Die Art und Weise der Schulung kann daher von Land zu Land unterschiedlich
sein, muss aber vor Leistungserbringung durchlaufen worden sein.
• Außerhalb der SMA Werksgarantie empfiehlt SMA Solar Technology AG die Teilnahme an
einem SMA Schulungsangebot zur Durchführung der in diesem Dokument beschriebenen
Tätigkeiten. Dadurch werden die Qualitätsanforderungen für einen ordnungsgemäßen
Austausch von Baugruppen sichergestellt. Die Art der Schulung und die verwendeten Medien
können länderspezifisch voneinander abweichen.
• Sicherer Umgang mit dem Freischalten von SMA Wechselrichtern
• Kenntnis über Funktionsweise und Betrieb eines Wechselrichters
• Schulung im Umgang mit Gefahren und Risiken bei der Installation, Reparatur und Bedienung
elektrischer Geräte und Anlagen
• Ausbildung für die Installation und Inbetriebnahme von elektrischen Geräten und Anlagen
• Kenntnis der einschlägigen Gesetze, Normen und Richtlinien
• Kenntnis und Beachtung dieses Dokuments mit allen Sicherheitshinweisen
1.3 Inhalt und Struktur des Dokuments
Dieses Dokument beschreibt den Austausch von Komponenten.
Abbildungen in diesem Dokument sind auf die wesentlichen Details reduziert und können vom
realen Produkt abweichen.
1.4 Symbole im Dokument
Symbol Erklärung
Information, die für ein bestimmtes Thema oder Ziel wichtig, aber nicht sicher-
heitsrelevant ist
☐
Voraussetzung, die für ein bestimmtes Ziel gegeben sein muss
DEUTSCH
