SMA SUNNY TRIPOWER 3.0 User manual

SUNNY TRIPOWER
STP3-6-3AV-40-IS-xx-11 | 112818-00.01 | Version 1.1
SUNNY TRIPOWER 3.0 / 4.0 / 5.0 / 6.0
STP3.0-3AV-40 / STP4.0-3AV-40 / STP5.0-3AV-40 /
STP6.0-3AV-40

STP3-6-3AV-40-IS-xx-112
ENGLISH Quick Reference Guide ............................................................3
DEUTSCH Schnelleinstieg...........................................................................9
БЪЛГАРСКИ Кратко ръководство ..............................................................16
ČEŠTINA Stručný průvodce....................................................................23
DANSK Kort vejledning........................................................................30
ΕΛΛΗΝΙΚΑ Σύντομες οδηγίες....................................................................36
ESPAÑOL Instrucciones breves ...............................................................43
EESTI Kiirülevaade............................................................................50
SUOMI Pikaohje...................................................................................56
FRANÇAIS Notice résumée .......................................................................62
HRVATSKI Kratke upute za uporabu.......................................................69
MAGYAR Gyors útmutató .......................................................................75
ITALIANO Guida rapida...........................................................................82
LIETUVIŠKAI Sparčioji apžvalga..................................................................89
LATVISKI Īsā pamācība...........................................................................95
NEDERLANDS Beknopte handleiding ......................................................... 101
POLSKI Skrócona instrukcja ............................................................. 108
PORTUGUÊS Instruções sumárias ............................................................. 115
ROMÂNĂ Instrucţiuni pe scurt .............................................................. 122
SLOVENSKY Rýchly sprievodca................................................................ 129
SLOVENŠČINA Kratka navodila................................................................... 136
SVENSKA Snabbanvisning ................................................................... 143
Instructions.............................................................................149

Legal Provisions
SMA Solar Technology AG
Quick Reference Guide STP3-6-3AV-40-IS-xx-11 3
Legal Provisions
The information contained in these documents is the property of SMA Solar Technology AG. No
part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or
by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior
written permission of SMA Solar Technology AG. Internal reproduction used solely for the purpose
of product evaluation or other proper use is allowed and does not require prior approval.
SMA Solar Technology AG makes no representations or warranties, express or implied, with
respect to this documentation or any of the equipment and/or software it may describe, including
(with no limitation) any implied warranties of utility, merchantability, or fitness for any particular
purpose. All such representations or warranties are expressly disclaimed. Neither SMA Solar
Technology AG nor its distributors or dealers shall be liable for any indirect, incidental, or
consequential damages under any circumstances.
The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that product
improvements and field usage experience may cause SMA Solar Technology AG to make changes
to these specifications without advance notice, or per contract provisions in those cases where a
supply agreement requires advance notice. SMA Solar Technology AG shall not be responsible for
any damages, including indirect, incidental or consequential damages, caused by reliance on the
material presented, including, but not limited to, omissions, typographical errors, arithmetical errors
or listing errors in the content material.
SMA Warranty
You can download the current warranty conditions from the Internet at www.SMA-Solar.com.
Software licenses
The licenses for the used software modules can be called up on the user interface of the product.
Trademarks
All trademarks are recognized, even if not explicitly identified as such. Missing designations do not
mean that a product or brand is not a registered trademark.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Germany
Tel. [phone]
Fax [phone]
www.SMA.de
Email: [email protected]
Status: 12/7/2018
Copyright © 2018 SMA Solar Technology AG. All rights reserved.
ENGLISH

1 Information on this Document SMA Solar Technology AG
Quick Reference GuideSTP3-6-3AV-40-IS-xx-114
1 Information on this Document
1.1 Validity
This document is valid for:
• STP3.0-3AV-40 (Sunny Tripower 3.0)
• STP4.0-3AV-40 (Sunny Tripower 4.0)
• STP5.0-3AV-40 (Sunny Tripower 5.0)
• STP6.0-3AV-40 (Sunny Tripower 6.0)
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing, repairing and
using electrical devices and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Content and Structure of this Document
This document contains safety information as well as graphical instructions on installing and
commissioning (see page 149). Observe all information and carry out the actions illustrated
graphically in this document in the specified order.
The latest version of this document and the comprehensive manual for installation, commissioning,
configuration and decommissioning are to be found in PDF format and as eManual at www.SMA-
Solar.com. You will find the QR code that links to the eManual on the title page of this document.
You can also call up the eManual via the user interface of the product.
Illustrations in this document are reduced to the essential information and may deviate from the real
product.
1.4 Levels of warning messages
The following levels of warning messages may occur when handling the product.
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
ENGLISH

2 Safety
SMA Solar Technology AG
Quick Reference Guide STP3-6-3AV-40-IS-xx-11 5
NOTICE
Indicates a situation which, if not avoided, can result in property damage.
1.5 Symbols in the Document
Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
Section in which the installation and commissioning process is illustrated
graphically.
2 Safety
2.1 Intended Use
The Sunny Tripower is a transformerless PV inverter which converts the direct current of the PV array
to grid-compliant three-phase current and feeds it into the utility grid.
The product is suitable for indoor and outdoor use.
The product must only be operated with PV modules of protection class II in accordance with
IEC61730, application class A. The PV modules must be compatible with this product.
The product is not equipped with a transformer and therefore has no galvanic isolation. The
product must not be operated with PV modules whose outputs are grounded. This can cause the
product to be destroyed. The product may be operated with PV modules whose frame is grounded.
PV modules with a high capacity to ground must only be used if their coupling capacity does not
exceed 2.25μF (for information on how to calculate the coupling capacity, see the Technical
Information "Leading Leakage Currents" at www.SMA-Solar.com).
All components must remain within their permitted operating ranges and their installation
requirements at all times.
The product must only be used in countries for which it is approved or released by SMA Solar
Technology AG and the grid operator.
Use this product only in accordance with the information provided in the enclosed documentation
and with the locally applicable laws, regulations, standards and directives. Any other application
may cause personal injury or property damage.
Alterations to the product, e.g. changes or modifications, are only permitted with the express written
permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and
warranty claims and in most cases terminate the operating license. SMA Solar Technology AG
shall not be held liable for any damage caused by such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient, dry place for future reference and observe all instructions contained therein.
ENGLISH

2 Safety SMA Solar Technology AG
Quick Reference GuideSTP3-6-3AV-40-IS-xx-116
This document does not replace and is not intended to replace any local, state, provincial, federal
or national laws, regulations or codes applicable to the installation, electrical safety and use of the
product. SMA Solar Technology AG assumes no responsibility for the compliance or non-
compliance with such laws or codes in connection with the installation of the product.
The type label must remain permanently attached to the product.
2.2 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This section contains safety information that must be observed at all times when working on or with
the product.
The product has been designed and tested in accordance with international safety requirements. As
with all electrical or electronical devices, there are residual risks despite careful construction. To
prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.
DANGER
Danger to life due to electric shock when live components or DC cables are
touched
When exposed to sunlight, the PV modules generate high DC voltage which is present in the DC
cables. Touching live DC cables results in death or lethal injuries due to electric shock.
• Disconnect the product from voltage sources and make sure it cannot be reconnected
before working on the device.
• Do not touch non-insulated parts or cables.
• Do not disconnect the DC connectors under load.
• Wear suitable personal protective equipment for all work on the product.
DANGER
Danger to life due to electric shock when touching live system components in
case of a ground fault
If a ground fault occurs, parts of the system may still be live. Touching live parts and cables
results in death or lethal injuries due to electric shock.
• Disconnect the product from voltage sources and make sure it cannot be reconnected
before working on the device.
• Touch the cables of the PV array on the insulation only.
• Do not touch any parts of the substructure or frame of the PV array.
• Do not connect PV strings with ground faults to the inverter.
CAUTION
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation.
• During operation, do not touch any parts other than the enclosure lid of the inverter.
ENGLISH

3 Symbols on the Product
SMA Solar Technology AG
Quick Reference Guide STP3-6-3AV-40-IS-xx-11 7
CAUTION
Risk of injury due to weight of product
Injuries may result if the product is lifted incorrectly or dropped while being transported or when
attaching it to or removing it from the wall mounting bracket.
• Transport and lift the product carefully. Take the weight of the product into account.
• Wear suitable personal protective equipment for all work on the product.
NOTICE
Damage due to cleaning agents
The use of cleaning agents may cause damage to the product and its components.
• Clean the product and all its components only with a cloth moistened with clear water.

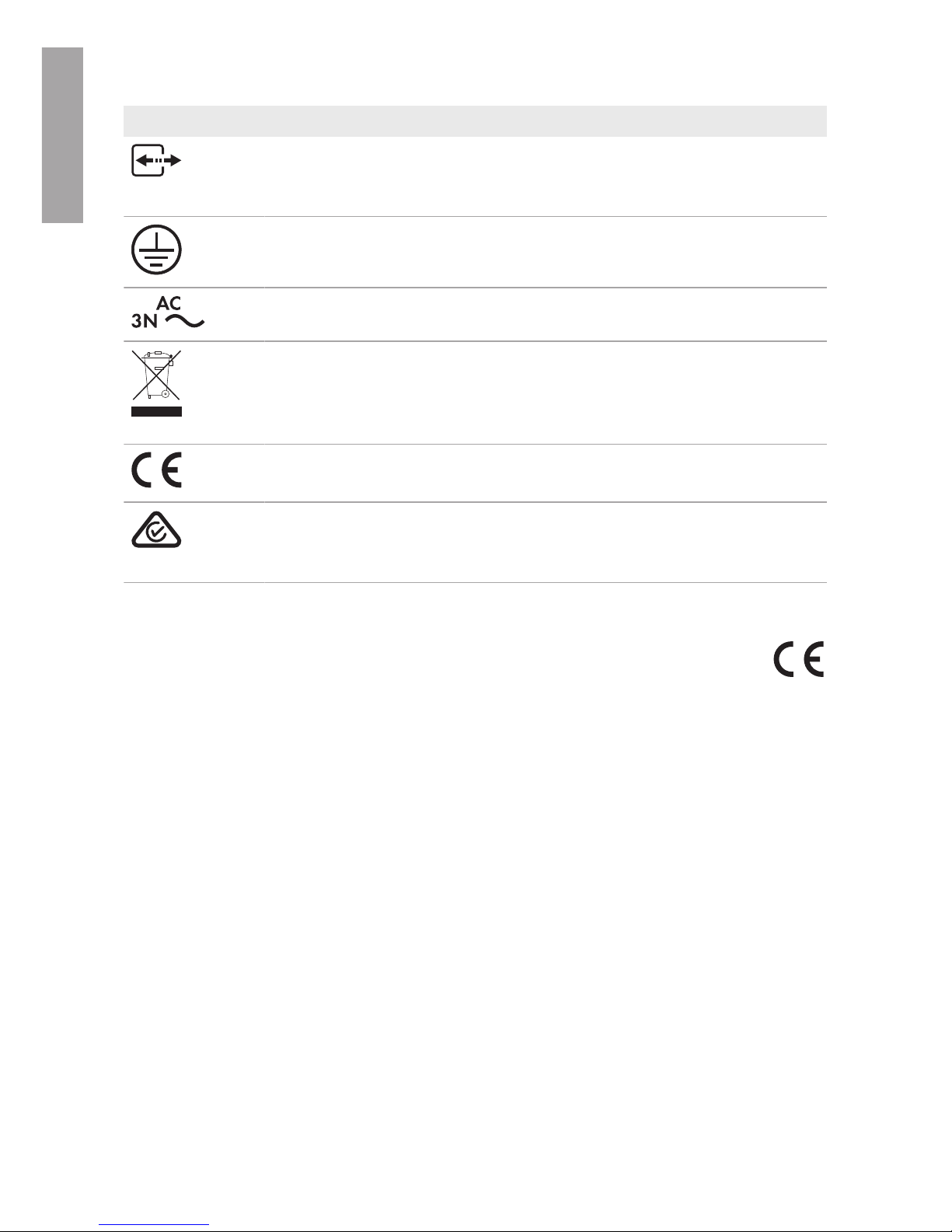

3 Symbols on the Product
Symbol Explanation
Beware of a danger zone
This symbol indicates that the product must be additionally grounded if addi-
tional grounding or equipotential bonding is required at the installation site.
Beware of electrical voltage
The product operates at high voltages.
Beware of hot surface
The product can get hot during operation.
5 min
Danger to life due to high voltages in the inverter; observe a waiting time of 5
minutes
High voltages that can cause lethal electric shocks are present in the live com-
ponents of the inverter.
Prior to performing any work on the inverter, disconnect it from all voltage
sources as described in this document.
Observe the documentation
Observe all documentation supplied with the product.
Observe the documentation
Together with the red LED, this symbol indicates an error.
Inverter
Together with the green LED, this symbol indicates the operating state of the in-
verter.
ENGLISH

4 EU Declaration of Conformity SMA Solar Technology AG
Quick Reference GuideSTP3-6-3AV-40-IS-xx-118
Symbol Explanation
Data transmission
Together with the blue LED, this symbol indicates the status of the network con-
nection.
Grounding conductor
This symbol indicates the position for connecting a grounding conductor.
Three-phase alternating current with neutral conductor
WEEE designation
Do not dispose of the product together with the household waste but in accor-
dance with the disposal regulations for electronic waste applicable at the in-
stallation site.
CE marking
The product complies with the requirements of the applicable EU directives.
RCM (Regulatory Compliance Mark)
The product complies with the requirements of the applicable Australian stan-
dards.
4 EU Declaration of Conformity
within the scope of the EU directives
• Electromagnetic compatibility 2014/30/EU (29.3.2014 L 96/79-106)
(EMC)
• Low Voltage Directive 2014/35/EU (29.3.2014 L 96/357-374) (LVD)
• Radio Equipment Directive 2014/53/EU (22.5.2014 L 153/62) (RED)
SMA Solar Technology AG confirms herewith that the products described in this document are in
compliance with the fundamental requirements and other relevant provisions of the above-
mentioned directives. The entire EU Declaration of Conformity can be found at www.SMA-
Solar.com.
ENGLISH

Rechtliche Bestimmungen
SMA Solar Technology AG
Schnelleinstieg STP3-6-3AV-40-IS-xx-11 9
Rechtliche Bestimmungen
Die in diesen Unterlagen enthaltenen Informationen sind Eigentum der SMA Solar Technology AG.
Kein Teil dieses Dokuments darf vervielfältigt, in einem Datenabrufsystem gespeichert oder in einer
anderen Art und Weise (elektronisch, mechanisch durch Fotokopie oder Aufzeichnung) ohne die
vorherige schriftliche Genehmigung von SMA Solar Technology AG übertragen werden. Eine
innerbetriebliche Vervielfältigung, die zur Evaluierung des Produktes oder zum sachgemäßen
Einsatz bestimmt ist, ist erlaubt und nicht genehmigungspflichtig.
SMA Solar Technology AG gewährt keine Zusicherungen oder Garantien, ausdrücklich oder
stillschweigend, bezüglich jeglicher Dokumentation oder darin beschriebener Software und
Zubehör. Dazu gehören unter anderem (aber ohne Beschränkung darauf) implizite Gewährleistung
der Marktfähigkeit und Eignung für einen bestimmten Zweck. Allen diesbezüglichen Zusicherungen
oder Garantien wird hiermit ausdrücklich widersprochen. SMA Solar Technology AG und deren
Fachhändler haften unter keinen Umständen für etwaige direkte oder indirekte, zufällige
Folgeverluste oder Schäden.
Der oben genannte Ausschluss von impliziten Gewährleistungen kann nicht in allen Fällen
angewendet werden.
Änderungen an Spezifikationen bleiben vorbehalten. Es wurden alle Anstrengungen unternommen,
dieses Dokument mit größter Sorgfalt zu erstellen und auf dem neusten Stand zu halten. Leser
werden jedoch ausdrücklich darauf hingewiesen, dass sich SMA Solar Technology AG das Recht
vorbehält, ohne Vorankündigung bzw. gemäß den entsprechenden Bestimmungen des
bestehenden Liefervertrags Änderungen an diesen Spezifikationen durchzuführen, die sie im
Hinblick auf Produktverbesserungen und Nutzungserfahrungen für angemessen hält. SMA Solar
Technology AG übernimmt keine Haftung für etwaige indirekte, zufällige oder Folgeverluste oder
Schäden, die durch das Vertrauen auf das vorliegende Material entstanden sind, unter anderem
durch Weglassen von Informationen, Tippfehler, Rechenfehler oder Fehler in der Struktur des
vorliegenden Dokuments.
SMA Garantie
Die aktuellen Garantiebedingungen können Sie im Internet unter www.SMA-Solar.com
herunterladen.
Software-Lizenzen
Die Lizenzen für die eingesetzten Software-Module können Sie auf der Benutzeroberfläche des
Produkts aufrufen.
Warenzeichen
Alle Warenzeichen werden anerkannt, auch wenn diese nicht gesondert gekennzeichnet sind.
Fehlende Kennzeichnung bedeutet nicht, eine Ware oder ein Zeichen seien frei.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Deutschland
Tel. [phone]
DEUTSCH

1 Hinweise zu diesem Dokument SMA Solar Technology AG
SchnelleinstiegSTP3-6-3AV-40-IS-xx-1110
Fax [phone]
www.SMA.de
E-Mail: [email protected]
Stand: 07.12.2018
Copyright © 2018 SMA Solar Technology AG. Alle Rechte vorbehalten.
1 Hinweise zu diesem Dokument
1.1 Gültigkeitsbereich
Dieses Dokument gilt für:
• STP3.0-3AV-40 (Sunny Tripower 3.0)
• STP4.0-3AV-40 (Sunny Tripower 4.0)
• STP5.0-3AV-40 (Sunny Tripower 5.0)
• STP6.0-3AV-40 (Sunny Tripower 6.0)
1.2 Zielgruppe
Die in diesem Dokument beschriebenen Tätigkeiten dürfen nur Fachkräfte durchführen. Fachkräfte
müssen über folgende Qualifikation verfügen:
• Kenntnis über Funktionsweise und Betrieb eines Wechselrichters
• Schulung im Umgang mit Gefahren und Risiken bei der Installation, Reparatur und Bedienung
elektrischer Geräte und Anlagen
• Ausbildung für die Installation und Inbetriebnahme von elektrischen Geräten und Anlagen
• Kenntnis der einschlägigen Gesetze, Normen und Richtlinien
• Kenntnis und Beachtung dieses Dokuments mit allen Sicherheitshinweisen
1.3 Inhalt und Struktur des Dokuments
Dieses Dokument enthält sicherheitsrelevante Informationen sowie eine grafische Anleitung für
Installation und Inbetriebnahme (siehe Seite 149). Beachten Sie alle Informationen und führen Sie
die grafisch dargestellten Handlungen in der vorgegebenen Reihenfolge aus.
Die aktuelle Version dieses Dokuments sowie die ausführliche Anleitung für die Installation,
Inbetriebnahme, Konfiguration und Außerbetriebnahme finden Sie im PDF-Format und als eManual
unter www.SMA-Solar.com. Den QR-Code mit dem Link zum eManual finden Sie auf der Titelseite
dieses Dokuments. Das eManual können Sie auch über die Benutzeroberfläche des Produkts
aufrufen.
Abbildungen in diesem Dokument sind auf die wesentlichen Details reduziert und können vom
realen Produkt abweichen.
1.4 Warnhinweisstufen
Die folgenden Warnhinweisstufen können im Umgang mit dem Produkt auftreten.
DEUTSCH
