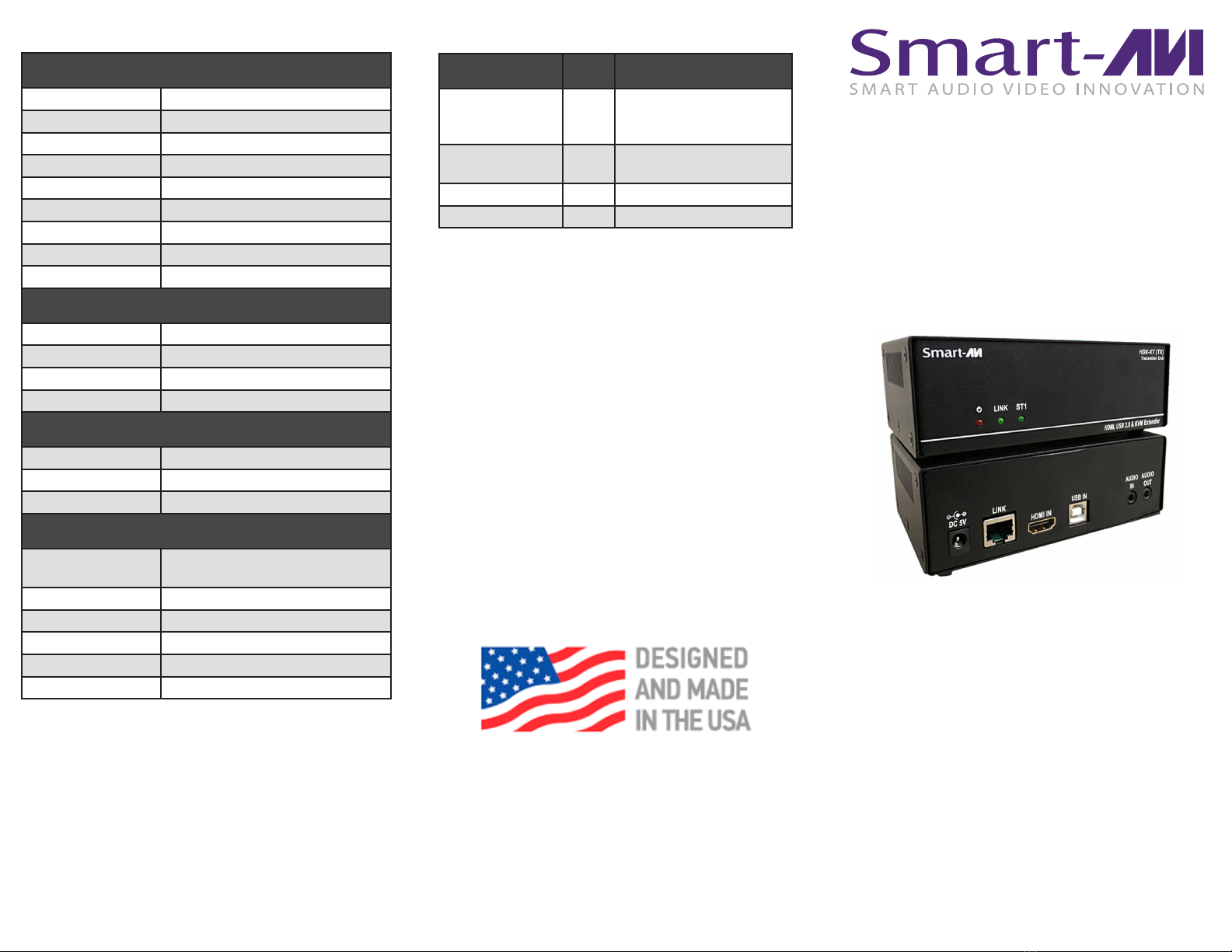

SMART-AVI HDX-XT User manual

Single Head HDMI,
USB 2.0 and Audio
KVM CAT5/6 Extender
EXTEND DIGITAL VIDEO
(SINGLE HEAD HDMI 4K20HZ),
USB 2.0, USB 1.1 KEYBOARD/
MOUSE AND AUDIO
UP TO 330 FT (100 M) OVER
A SINGLE CAT5E/6/6A
UNCOMPRESSED
Quick Start Guide
VIDEO
Format HDMI 2.0
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth 275 MHz
Input Interface (TX) (2) HDMI (19-pin female)
Output Interface (RX) (2) HDMI (19-pin female)
DDC via AUX
Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
AUDIO
Format Stereo
Frequency 30KHz to 80KHz
Input Interface (TX) (1) 3.5mm (Female)
Output Interface (RX) (1) 3.5mm (Female)
USB
Signal Type USB 1.1 and USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC3A
@ 15 W
Dimensions 11.9” W x 1.7” H x 2.9” D
Weight 1.75 lb (per unit)
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
HDX-XT
WHAT’S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDX-XT-TX 1
Single Head HDMI, USB and
Audio CAT5/5e/6
Transmitter
HDX-XT-RX 1 Single Head HDMI, USB and
Audio CAT5/5e/6 Receiver
PS5VD3A-WMT 2 PS5VD3A Power Supply
Quick Start Guide 1
ABOUT HDX-XT-2P
The HDX-XT is an extender supporting Single Head HDMI
video signals at resolutions up to 4K/30Hz, with
bi-directional audio and fully-transparent USB 2.0
up to 330ft.
The HDX-XT is the rst extender on the market to feature
HDMI 4K/30Hz, USB 2.0, and full KVM extension on one
cohesive system. Its HDMI 4K (3840x2160 @ 30Hz) video
outputs are optimized for a HD monitor with
crystal-clear picture; excellent for detail-driven work.
The HDX-XT extends fully-transparent USB 2.0, supporting
keyboard, mouse, ash-drive, digital cameras, printer(s)
and a wide variety of other USB 2.0 devices!
FEATURES
• Extends Single Head HDMI 2.0, USB 2.0 and audio up
to 330 ft (100 m) from the source
• Supports up to 3840x2160 digital
video resolution @ 30Hz
• Uncrompressed Video
• Supports keyboard and mouse USB 1.1
• USB 2.0 Transparent
• Carries HDMI, USB 2.0 and Audio
Over a Single CAT 5e/6/6a
• DisplayPort Auxiliary Bypass
• Plug-and-Play Ready
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use a HDMI cable to connect the HDMI output port from each computer to the corresponding HDMI IN ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computers to the AUDIO IN
ports of the unit.
5. Connect a monitor to the HDMI OUT console port of the unit using a HDMI cable.
6. Connect a USB keyboard and mouse in the two USB console ports.
7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
8. Finally, power on the KVM by connecting a 5VDC power supply to the power connector, and then turn on all the
computers.
HARDWARE INSTALLATION
HDX-XT-TX
FRONT
HDX-XT-TX
BACK
HDX-XT-RX
BACK
HDX-XT-RX
FRONT
HDMI IN
HDMI OUT
USB IN
USB 2.0 OUT
USB K/M OUT
AUDIO IN
AUDIO OUT
CAT5/6
330 ft
DC5V USB IN
DPIN
LINK AUDIO
IN
AUDIO
OUT
DC5V
DPOUT
LINK AUDIO
IN
AUDIO
OUT
USB
HDX-XT-TX
HDX-XT-RX
