Smart power SBP0400TBF-6U User manual

USER'S GUIDE
Uninterruptible
Power Supply
400VA - 800VA
SBP Series
Models:
SBP-TBF UPS Series
SBP0400TBF-6U,SBP0600TBF-6U,
SBP0800TBF-6U
SBP0400TBF-6U-LCD,SBP0600TBF-6U-LCD,
SBP0800TBF-6U-LCD

1
This manual contains important instructions for models SBP0400TBF-6U, SBP0600TBF-6U,
SBP0800TBF-6U, SBP0400TBF-6U-LCD, SBP0600TBF-6U-LCD, SBP0800TBF-6U-LCD that
should be followed during installation and maintenance of the UPS and batteries.
Safety Caution!
Maximum output power during reserve mode shall not exceed 240W for model
SBP0800TBF-6U, SBP0800TBF-6U-LCD and 180W for models SBP0600TBF-6U,
SBP0600TBF-6U-LCD and 120W for models SBP0400TBF-6U, SBP0400TBF-6U-LCD
This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The
unit contains no user serviceable parts. Only factory service personnel may perform repairs.
• Connection to any other type of receptacle other than a two-pole, three wire grounding
receptacle may result in s shock hazard as well as violate local electrical codes.
• In the event of an emergency, turn the power switch to the “off ” position and disconnect the
power cord form the AC power supply to properly disable the UPS.
• Do not allow any liquids or any foreign object to enter the UPS. Do not place beverages or any
other liquid-containing vessels on or near the unit.
• This unit intended for installation in a controlled environment (temperature controlled, indoor
area free of conductive contaminants). Avoid installing the UPS in locations where there is
standing or running water, or excessive humidity.
• Do not plug the UPS input into its own output.
• Do not attach a power strip or surge suppressor to the UPS.
• Do not attach non-computer-related items, such as medical equipment, life-support
equipment, microwave ovens, or vacuum cleaners to UPS
• To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and avoid
exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as
space heaters or furnaces.
• Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
• Do not dispose of battery or batteries in a fire. The battery may explode.
• Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and
eyes. It may be toxic.
• A battery can present a risk of electrical shock and high short circuit current. The following
precautions should be observed when working on batteries:
1) Remove watches, rings, or other metal objects from the hand.
2) Use tools with insulated handles. ear rubber gloves and boots.
4) Do not lay tools or metal parts on the top of batteries.
5) Disconnect charging source prior to connecting or disconnecting batteries
terminal. Servicing of batteries should be performed or supervised by personnel
knowledgeable of batteries and the required precautions. Keep unauthorized
personnel away from batteries
• When replacing batteries, replace with the same number of the sealed
lead-acid batteries.

2
Ce manuel contient des instructions importantes pour les modèles SBP0400TBF-6U,
SBP0600TBF-6U, SBP0800TBF-6U, SBP0400TBF-6U-LCD, SBP0600TBF-6U-LCD,
SBP0800TBF-6U-LCD qui doivent être suivies lors de l'installation et de la maintenance de
l'onduleur et des batteries.
Sécurité Attention!
Puissance de sortie maximale en mode de réserve ne doit pas dépasser 240W pour le modèle
SBP0800TBF-6U, SBP0800TBF-6U-LCD et 180W pour les modèles SBP0600TBF-6U,
SBP0600TBF-6U-LCD et 120W pour les modèles SBP0400TBF-6U, SBP0400TBF- 6U-LCD
Cet onduleur utilise des tensions qui peuvent être dangereux. Ne pas tenter de démonter
l'appareil. L'unité ne contient aucune pièce réparable par l'utilisateur. Seul le personnel de
service de l'usine peuvent effectuer des réparations.
• La connexion à tout autre type de récipient autre que deux pôles, trois fils mise à la terre prise
peut provoquer de choc électrique ainsi que violer les codes électriques locaux.
• En cas d'urgence, mettre l'interrupteur d'alimentation sur la position "off" et débranchez le
cordon d'alimentation former le bloc d'alimentation AC pour désactiver correctement l'onduleur.
• Ne laissez pas de liquides ou de tout objet étranger de pénétrer l'onduleur. Ne placez pas de
boissons ou d'autres navires contenant des liquides sur ou à proximité de l'appareil.
• Cet appareil destiné à être installé dans un environnement contrôlé (température contrôlée,
zone couverte exempt de contaminants conducteurs). Evitez d'installer l'onduleur dans des
endroits où il est eau stagnante ou courante, ou à une humidité excessive.
• Ne pas brancher l'entrée de l'onduleur dans sa propre production.
• Ne pas fixer une bande de puissance ou parasurtenseur à l'onduleur.
• Ne fixez pas des éléments non liés à l'informatique, tels que les équipements médicaux, le
matériel de soutien de la vie, les fours à micro-ondes, ou des aspirateurs à UPS
• Pour réduire le risque de surchauffe de l'onduleur, ne couvrent pas les orifices de ventilation
de l'onduleur »et éviter d'exposer l'appareil directement au soleil ou d'installer l'appareil à
proximité d'appareils émettant de la chaleur tels que les radiateurs ou les fours espace.
• Débranchez-le avant de le nettoyer et ne pas utiliser de détergent liquide ou aérosol.
• Ne jetez pas les batteries dans un feu. La batterie peut exploser.
• Ne pas ouvrir ni mutiler la batterie ou des piles. L'électrolyte libéré est nocif pour la peau et les
yeux. Il peut être toxique.
• Une batterie peut présenter un risque de choc électrique et de courant de court circuit élevé.
Les précautions suivantes doivent être respectées lors de travaux sur les batteries:
1) Retirez montres, bagues ou autres objets métalliques de la main.
2) Utilisez des outils avec des poignées isolées. des gants et des bottes en caoutchouc oreille.
4) Ne pas poser d'outils ou de pièces métalliques sur le dessus des batteries.
5) Débrancher la source de charge avant de connecter ou de déconnecter les batteries
terminal. Entretien des batteries doit être effectué ou supervisé par un personnel connaissant
bien les batteries et les précautions requises. Garder le personnel non autorisé loin des
batteries
• Lorsque vous remplacez les piles, remplacez-les par le même nombre de batteries plomb-
acide scellées.
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES INSTRUCTIONS

3
System Description
FRONT PANEL
BACK PANEL FOR LED & LCD
LCD
LED
Power Switch
Power Switch
LED Indicators
AC Mode:
Green lighting
Battery Mode:
Green flashing
LCD back-light
USB Port
Modem/Phone/
Network Protection
2 TBF™ power
conditioned outlets
4 battery +
conditioned outlets
TBF™ power
AC Input
Circuit Breaker

Installation and Operation
Installing the UPS is as easy as following the steps shown. Be aware the
Power Switch must be kept in the “ON” position, otherwise, the UPS will be
disabled and your equipment will not be protected during apower failure．
1. Inspection
Remove the UPS from its packaging and inspect it for damage that may
have occurred during shipping．If any damage is discovered, repack the
unit and return it to the place of purchase. O
2. Placement
Install the UPS unit in any protected environment that provides adequate
airflow around the unit, and is free from excessive dust, corrosive fumes
and conductive contaminants．Do not operate your UPS in an
environment where the ambient temperature or humidity is high．On the
other hand, place the UPS unit away from monitor at least 8 inches to
avoid interference．

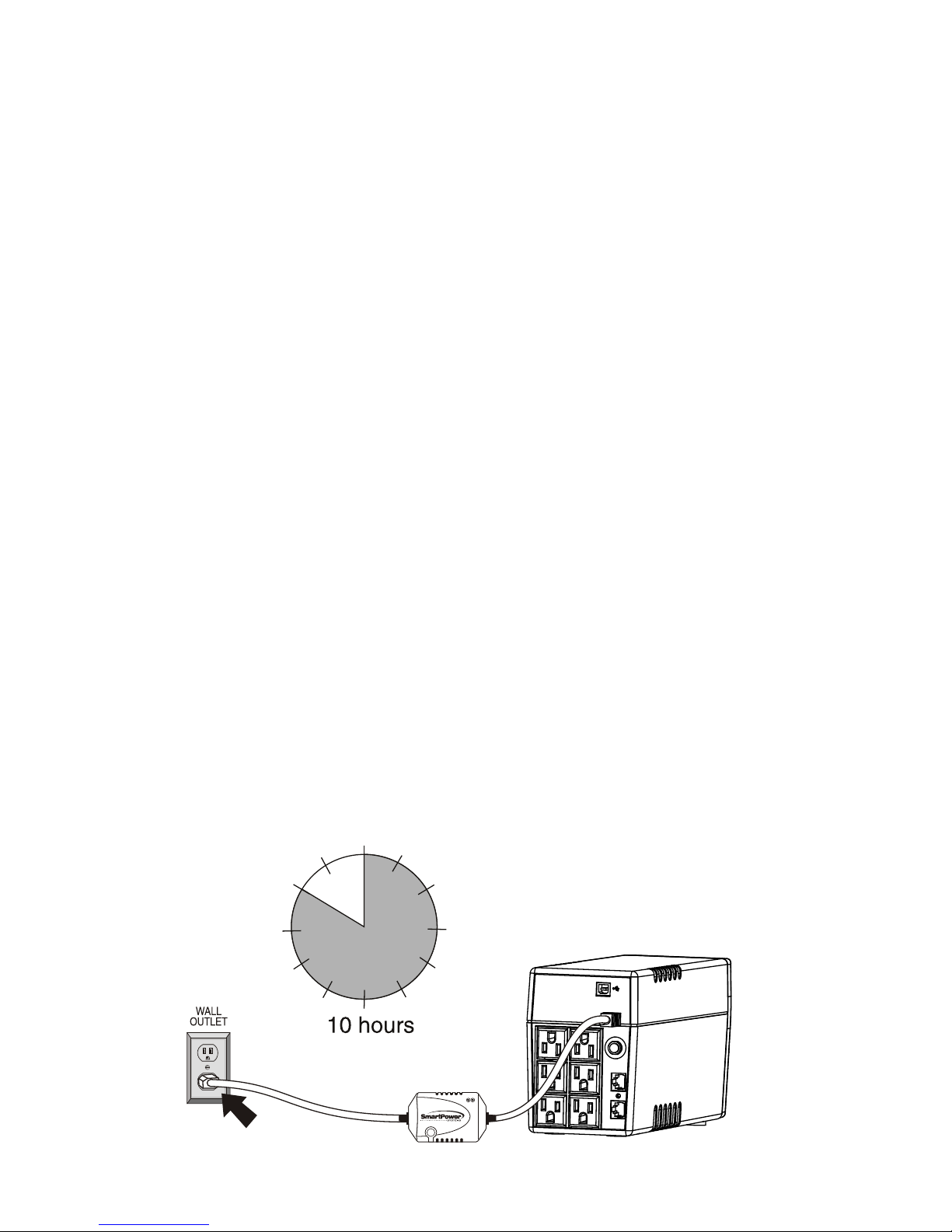

3. Charging
This unit is shipped from the factory with its internal battery fully charged,
however, some charge may be lost during shipping and the battery
should be recharged prior to use．Plug the unit into an appropriate power
supply and allow the UPS to charge fully by leaving it plugged in for at
least 8 hours．
btain an RMA (Return
Material Authorization) number before returning the unit by calling
1-800-772-7633 or by visiting our website at
www.smartpowersystems.com/rma.htm
Please inform the transport agency immediately should you find signs of
damage. Please keep the packaging in a safe place for future use.
4

Incoming
Internet line
Computer Connection
Connect one computer-related device into each of the power receptacles
supplied on the back of the UPS (maximum of three devices).
Modem/Phone line Connection
Plug incoming internet line into the “In” socket at the back of the UPS.
Use one more Internet line cable and plug one end of the Internet line
cable to the “Out” socket at the back of the UPS. Plug the other end to
the modem input socket as shown.
5
COMPUTER
UPS TBF™ Models
Uninterruptible
Power Supply
Uninterruptible
Power Supply
Uninterruptible
Power Supply
~
1.Turn off and un-plug all devices.
2.Plug UPS unit into grounded wall outlet.
3.Place the UTBF where monitoring lights can be observed.
UTBF INDICATORS:
Green light only - It confirms properly connected equipment is fully protected.
Green and Red light - Reverse polarity or loss of ground at the wall outlet. Call your electrician to
correct the problem.
Green light off - Power failure or UTBF fault. Contact customer service.
UTBF

6

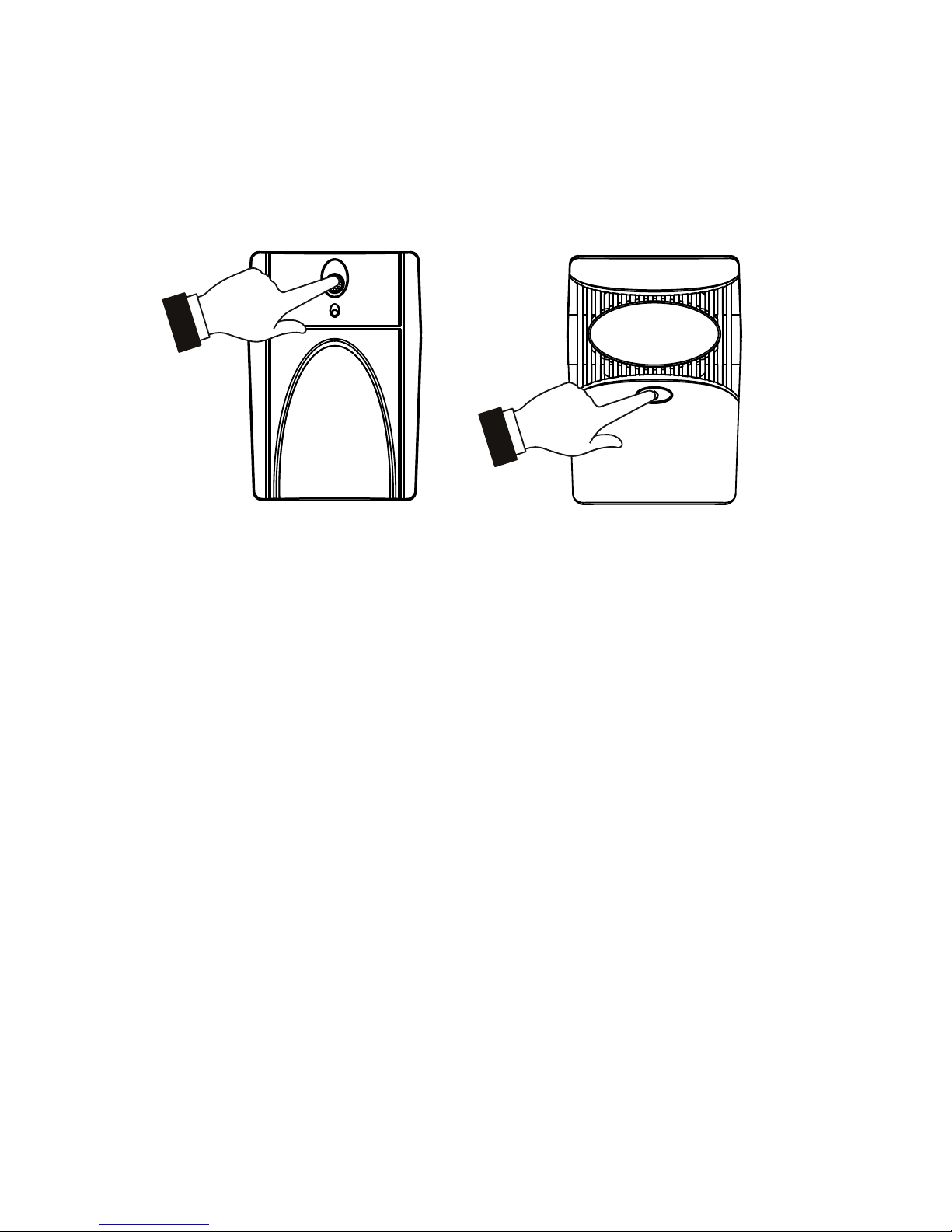

Tun On/Off
The UPS will be turned on automatically at first plug-in. At this
moment, press the power switch lightly to turn off the UPS. To turn
on the UPS again, just simply press power switch again. Please DO
NOT punch it to extend the life of the power switch.
DC Start Function
DC Start Function enables UPS to be started up when AC utility power
is not available and battery is fully charged. Just simply press the
power switch to turn on the UPS.
Green Power Function
All UPS are equipped with Green Power function. If no load connects
to the UPS, it will automatically shut down in 5 minutes for energy saving
while power failure. The UPS will restart while AC recovery.

Battery Removal (SBP400-800)
Before replacing the battery, turn off the UPS
and unplug the UPS cord from the wall outlet.
Follow Chart 1 to remove the screw located
on the bottom of the front panel and then open
the front cover.
After removing the front cover, follow Chart 2 to remove partition by removing the
screw. Then follow Chart 3 to pull out battery by pulling attached white vinyl sheet.
Disconnect the wires connected to the battery. Be sure to replace the same type of
batteries and dispose of old batteries properly at an appropriate recycling facility.
Chart 1
Chart 2
Screw
Partition
Chart 3
7

8
SmartPower Systems provides a complete
line of software solutions for standalone
and networked computers, including SNMP
support.
FEATURES
• Automatic Save and Shutdown for unattended PCs
• Reboot/Shutdown scheduling
• Self test scheduling
• Power condition analysis
• Online display of input / output voltage and frequency, battery capacity
and load level
• Dashboard interface
• Send on-line commands to UPS such as Test, Shutdown, Sleep and
restart
• Extensive logging of all UPS operation and power quality data
• Event & date analysis
• Events and data bar charts presentation
• Graphical display of power quality
• Run in background even before user login
Free Software Download
POWER MANAGEMENT SOFTWARE
TM
Downloading UPSWING from the internet is a simple process:
1. Go to
2. Double click on the Setup.exe file and follow instructions.
For Network support version contact us at [email protected]
www.smartpowersystems.com/downloads/Setup.exe
Supports: Windows XP/ME/7/NT/2000/2003
UPSwing Pro™ is also available for SCO UNIX,
Sun Solaris, LINUX, FreeBSD and Windows™
with Networking capability.

9
Troubleshooting
Symptom Possible Cause Solution
If abnormal situations occur that are not listed above, please call customer
service immediately.
No LED or no LCD display
on the front panel
1. Missing battery
2. Battery defect
3. Power switch is not
pressed
1. Charge battery up to
8 hours
2. Replace with the same
type of battery
3. Ensure the power switch
is pressed
Alarm buzzer beeps
continuously when AC
supply is normal
Overload of the UPS Verify that the load matches
the UPS capability specified
in the specs
When power failure,
back-up time is shorten
1. Overload of the UPS
2. Battery voltage is too low
3. Battery defect due to high
temperature operation
environment, or improper
operation to battery
1. Remove some noncritical
load
2. Charge battery 8 hours
or more
3. Replace with the same
type of battery
Mains normal
but LED is flashing 1. Circuit Breaker is broken
2. Power cord is loose
1. Reset the circuit breaker
2. Reconnect the power
cord properly
1. Software is not installed
well.
1. Check the setting of the
software.
Communication
lost between UPS
and computer. 2. Cable is not properly 2. Make sure both ends of the
connected. USB cable is connected
and recheck settings.
1. Circuit breaker is broken. 1. Reset the circuit breaker..Mains normal but
LCD display
Battery mode. 2. Power cord is loose. properly.
2. Reconnect the power cord

10
Specifications - 400VA - 800VA
Specifications and features subject to change without notice.
ENVIRONMENT
CONFORMANCE
<40 dBA (1 meter from surface)
Audible Noise
Ambient Operation
Warranty
Safety
0-90% humidity non-condensing 0-40 deg C
cUL, UL
Two years for the SBP unit. Four years pro-rated
battery warranty. $25,000 Connected Equipment
Protection Warranty
MODEL
CAPACITY VA/W 400VA/240W 600VA/360W 800VA/480W
Voltage 120VAC
INPUT
Voltage Range 89-145VAC
Voltage 120VAC
Voltage Regulation +/- 10% (Battery Mode)
Frequency
Frequency
Regulation +/-1 Hz (Battery Mode)
OUTPUT
Output Waveform Simulated Sine-wave
Battery Model SP012 SP012 SP013
Back up Time
(minutes) Half load
BATTERY
Recharge Time
Battery Test
6 Hours to 90% after complete discharge
14 8 7
TRANSFER TIME
The LCD will always turn on when UPS work,
INDICATOR LCD Display Models Including in off charging mode and fault mode
Backup Mode Sounding every 10 seconds
Sounding every 1 second
Sounding every 0.5 second
Battery replace Sounding every 2 seconds
AUDIBLE ALARM
PROTECTION
Full Protection Discharge, Overcharge short circuit
and Overload Protection
PHYSICAL Dimension (DxWxH) 330 x 100 x 140mm/12.9 x 3.9 x5.5 inch
WEIGHT Net Weight
COMMUNICATION
PORT
50Hz/60Hz
All trade names are registered trademarks of respective manufacturers listed.
Typical 2-6ms typical
Battery Low
Overload
Fault Continuous Sounding
SBP0400TBF-6U
SBP0400TBF-6U-LCD
SBP0600TBF-6U
SBP0600TBF-6U-LCD
SBP0800TBF-6U
SBP0800TBF-6U-LCD
Tel / Fax / Modem
/ DSL / Network
Unit Input
Spike Protection
Circuit breaker protection
1710 Joules
RJ11/45 compatible jacks
Overload
UPS automatic shutdown if overload exceeds:
1) Line mode: 110% of nominal at 5 minutes, 120% immediately
2) Battery mode: 110% of nominal at 5 seconds, 120% immediatel y
UPSWING for
Windows
Optional Software
Software detects power failure, battery low, schedule
UPS on/off, AC power status display, bat / load level display
USB
UPSWING PRO SCO UNIX, Linux, Sun, Solaris
11.02 / 5.0 12.34 / 5.6 12.56 / 5.7
Automatically every month

11
LIMITED PRODUCT WARRANTY
We warrant this product to be free from defects in material and workman-
ship for 2 years. The battery has a 4 year pro-rated warranty. If a product
proves to be defective in material or workmanship during the warranty
period, we will at our sole option repair or replace the product with a like
product. Visit our website for details - www.smartpowersystems.com
IMPORTANT
If for any reason you need to return the unit to the manufacturer, you
should obtain an RMA (Return Material Authorization) number before
returning the unit. To request an RMA number please call 1-800-772-7633
or visit the website at www.smartpowersystems.com/rma.htm
In order to validate your Connected Equipment Warranty,
you MUST complete the warranty registration card provided
and mail it within 20 days of purchasing the unit.
If the Smart Power Systems equipment fails and this failure causes the
surges to pass through and damage the connected equipment, Smart
Power Systems will pay for the repair or replacement of the connected
equipment up to $25,000 in accordance to the Connected Equipment
Protection Policy. Visit our website for details -
http://www.smartpowersystems.com/content/main/cepp.html
CONNECTED EQUIPMENT PROTECTION POLICY

P.N.16002100
Rev.07/14
1760 Stebbins Dr. • Houston, TX 77043
1-800-882-8285 • URL:www.smartpowersystems.com
Email:[email protected]
