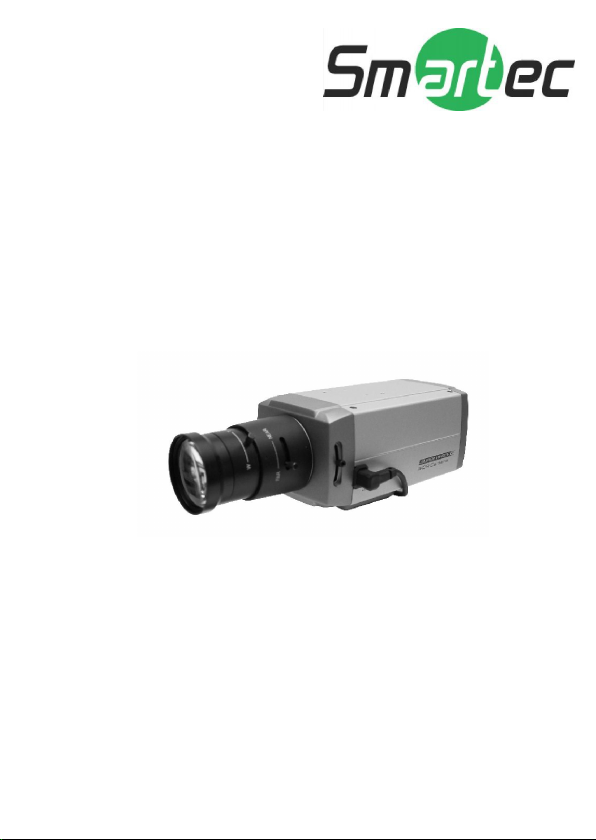

Smartec WDR Super High Resolution Day & Night Color... User manual

WDR Super High Resolution Day &
Night Color Camera
1/3"
DOUBLE SCAN CCD HIGH
RESOLUTION
USER’S MANUAL
www.smartec-security.eu

THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO
BE ACCURATE IN ALL RESPECTS, HOWEVER, WE CANNOT
ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES
RESULTING FROM THE USE THEREOF. THE INFORMATION
CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT
NOTICE. REVISIONS OR NEW EDITIONS TO THIS
PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH
CHANGES.
LIMITATION OF LIABILITY

WARNINGS AND CAUTIONS:
CAUTION:
CAUTIONCAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by the qualified
personnel before operating it any further.
Unplug the unit from the wall oulet if it is not going to
be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.
Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials(curtains, draperies)
that may block the ventilation holes.
Height and vertical linearity controls located at the
rear panel are for special adjustments by qualified
personnel only.
Do not install the unit in an extremely hot or
humid place or in a place subject to excessive
dust, mechanical vibration.
The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use
strong solvents such as thinner or benzine as
they might damage the finish of the unit.
Retain the original carton and packing
materials for safe transport of this unit in the
future.
Safety ----------------------------------------- Installation -----------------------------------
Cleaning --------------------------------------
PRECAUTIONS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR
OTHER OPENINGS ON THE EQUIPMENT.

FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED
AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE
LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION
AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS
OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT
GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH
THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE
TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN
A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL
INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
CAUTION : CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN
ICES-003.
NORME NMB-003 DU CANADA.
WARNING
This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required
to take adequate measures.
CE COMPLIANCE STATEMENT
FCC COMPLIANCE STATEMENT

IMPORTANT SAFEGUARDS
1. READ AND RETAIN INSTRUCTIONS
Read the instruction manual before operating the
equipment. Retain the manual for future eference.
2. CLEANING
Turn the unit off and unplug from the power outlet
before cleaning. Use a damp cloth for cleaning.
Do not use harsh cleansers or aerosol cleaners.
3. ATTACHMENTS
Do not use attachments unless recommended by
manufactured as they may affect the functionality
of the unit and result in the risk of fire, electric
shock or injury.
4. MOISTURE
Do not use equipment near water or other liquids.
5. ACCESSORIES
Equipment should be installed in a safe, stable
location. Any wall or shelf mounting accessory
equipment should be installed using the
manufacture's instructions. Care should be used
when moving heavy equipment. Quick stops,
excessive force, and uneven surfaces may cause
the equipment to fall causing serious injury to
persons and objects.
6. VENTILATION
Openings in the equipment, if any, are provided for
ventilation to ensure reliable operation of the unit
and to protect if from overheating. These openings
must not be blocked or covered.
7. POWER SOURCES
The equipment should be operated only from the
type of power source indicated on the marking label.
If you are not sure of the type of power supplied at
the installation location, contact your dealer. For
equipment designed to operate from battery power,
refer to the operating instructions.
8. GROUNDING OR POLARIZATION
Equipment that is powered through a polarized plug
(a plug with one blade wider than the other) will fit
into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. Do not defeat
the safety purpose of the polarized plug.
Alternate Warning: If the equipment is powered
through a three-way grounding-type plug, a plug
having a third (grounding) pin, the plug will only fit
into a grounding-type power outlet. This is a safety
feature. Do not defeat the safety purpose of the
grounding-type plug. If your outlet does not have
the grounding plug receptacle, contact your local
electrician.
9. CORD AND CABLE PROTECTION
Route power cords and cables in a manner to protect
them from damage by being walked on or pinched by
items places upon or against them.
10. LIGHTNING
For protection of the equipment during a lightning
storm or when it is left unattended and unused for
long periods of time, unplug the unit from the wall
outlet. Disconnect any antennas or cable systems
that may be connected to the equipment. This will
prevent damage to the equipment due to lightning or
power-line surges.
11. OVERLOADING
Do not overload wall outlets and extension cords as
this can result in a risk of fire or electric shock.
12. SERVICING
Do not attempt to service the video monitor or
equipment yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
13. DAMAGE REQUIRING SERVICE
Unplug the equipment from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power supply cord or the plug has been
damaged.
B. If liquid has spilled or objects have fallen into the
unit.
C. If the equipment has been exposed to water or
other liquids.
D. If the equipment does not operate normally by
following the operating instructions, adjust only
those controls that are covered by the operating
instructions. Improper adjustment of other controls
may result in damage to the unit.
E. If the equipment has been dropped or the casing
damaged.
F. When the equipment exhibits a distinct change in
performance.
14. REPLACEMENT PARTS
When replacement parts are required, be sure the
service technician uses replacement parts specified
by the manufacturer or that have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or
other hazards.
15. SAFETY CHECK
Upon completion of any service or repairs to the
equipment, ask the service technician to perform
safety checks to verify that the equipment is in proper
operating condition.
16. FIELD INSTALLATION
The installation of equipment should be made by a
qualified service person and should conform to all
local codes.

Use certified/Listed Class 2 power supply
17. CAUTION - THESE SERVICING
INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE
THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE
QUALIFIED TO DO SO.
18.
transformer only.

INTRODUCTION 1
CAMERA OVERVIEW 2
FUNCTION DESCRIPTION 3
CONTROL AND CONNECTIONS / DAY&NIGHT I/O TERMINALS 14
CONTENTS OF PACKAGE 16
LENS 17
BACK FOCUS ADJUSTMENT 19
ZOOM LENS BACK FOCUS ADJUSTMENT 20
TROUBLESHOOTING AND MAINTENANCE 21
SPECIFICATIONS 22
CAMERA ADJUSTMENT 4
TABLE OF CONTENTS

The camera provides high-quality images using SONY Wide Dynamic 1/3"
CCD and digital signal processing LSIs.
Features:
1/3" Super HAD Double Scan CCD for an image of high sensitivity
Wide Dynamic Range(WDR)
Excellent picture quality
580 lines(Color), 680 lines(B/W) of resolution
0.5 Lux(Color), 0.04 Lux(B/W), 0.001Lux(Low-shutter)@ F1.2 Sensitivity
C/CS, backfocus cam for easy adjustment
Auto electronic shutter [1/60(1/50) ~ 1/100,000] and manual electronic
shutter modes
OSD (On Screen Display)
Auto and manual white balance modes
Selectable BLC Zone
Day&Night (Auto/Manual, FILTER DLY)
Privacy Zone 16point, Motion Detection 4 Point
SHARPNESS, D-ZOOM, NEGA/POSI, MIRROR, V FLIP, ROTATION,
FREEZE
AGC (Auto Gain Control)
VIDEO OUT(BNC, UTP)
RS485 CONTROL
Internal/AC line lock
Compatible with
with 4-pin connector
Operates in 12VDC or 24VAC
Operates in 100-240VAC
Use Certified / Listed Class 2 power supply only.
One year warranty
video- or DC-type lenses with OSD select
Quick connect for video or DC lens
INTRODUCTION
IMPORTANT : The user of this camera is responsible for
checking and complying with local, state, and federal laws
and statutes concerning the recording and monitoring of
audio signals.

CAMERA OVERVIEW
C Mount Ring
(C MOUNT LENS)
(CS MOUNT LENS)
SIDE VIEW
1-32UNEF
56.0mm
66.0mm
120.0mm
7.0mm
FRONT VIEW
14.0mm 43.0mm
1/4-20UNC
TOP VIEW

FUNCTION DESCRIPTION
- SIDE VIEW
- REAR VIEW
1
2
3
4
5
6
7
Left Button
Up Button
Enter Button
Right Button
Down Button
UTP Video Output
Day / Night External I/O
ALARM OUT
RS - 485
Power Indicator
1
2
Focus Adjusting Fixing Screw
Auto Iris Lens Connector
1
Video Out Connector (BNC)
8
9
UTP or BNC Transformation Switch
Terminal
Block
2
1
23 4
5
6
7
10 8
9
AC power Cord
11
11
1
23 4
5
6
7
8
9
10 AC/DC Compatible Input Terminal

CAMERA
CAM 001
Camera title.
Status of the dc level.
Camera ID.
CAMERA ADJUSTMENT
OSD MAIN SCREEN
DC LEVEL

<MAIN MENU>
FIGURE 1. MAIN MENU TABLE
WB
AE
BLC / WDR
MOTION DET
PRIVACY
SPECIAL
EFFECT
CAM SET
END EXIT
<WB>
Press the MENU button to access the "WB" mode.
<WB MENU>
MODE
FIGURE 2. WB TABLE
R GAIN
B GAIN
END
1) MODE
Gain manually.
2) R GAIN A R-GAIN value.(0~255)
Can be adjusted while in manual mode.
O O
- AWB Set the color temperature 2500 K to 9500 K
- WAWB Wide range auto white balance mode.
O
- INDOOR Set the color temperature to 3200 K
O
- OUTDOOR Set the color temperature to 6300 K
- MANUAL Manual mode. User can change R and B
djust
3) B GAIN Adjust R-GAIN value.(0~255)
Can be adjusted while in manual mode.
<MAIN MENU>

<AE>
<AE MENU>
LENS
MODE
SHUTTER
AGC
DC LEVEL(BRIGHTNESS)
FLICKERLESS
LOW SHUTTER
MAX LOW-SHUT
END
FIGURE 3. AE TABLE
1) LENS
2) MODE
- AUTO Auto Exposure mode.
- SHUTTER Manual Shutter mode.
DC, Video, Manual Lens selected.
3) SHUTTER Select the shutter mode.(1/60(50) ~ 1/100,000 sec)
Can be changed while in shutter mode.
4) AGC Auto gain control ON/OFF
5) DC LEVEL / BRIGHTNESS
- DC LEVEL Adjust DC level (0 ~ 255)
Can be adjusted while in dc lens mode.
- BRIGHTNESS Adjust BRIGHTNESS level (0 ~ 255)
Can be adjusted while in manual lens mode.
6) FLICKERLESS Removes screen flickering caused by discordance of
freguency and lighting.
7) LOW SHUTTER Use under very low light condition for full color surveillance.
8) MAX LOW-SHUT Select maximum Low-Shutter value. (x2 ~ x256)
Press the MENU button to access the "AE” mode.

< WDR>BLC/
Press the MENU button to access the " WDR" mode.BLC/
1) BLC MODE Sharpens subjects with backlight.
(OFF / CENTER / LEFT )TOP / BOTTOM / RIGHT /
2) WDR MODE Wide dynamic range ON/OFF
L- LEVEL Can be adjust long-time WDR level (0~200)
S- LEVEL Can be adjust short-time WDR level (0~200)
FIGURE 4. WDR TABLEBLC/
< WDR MENU>BLC/
END
BLC MODE
WDR MODE
L- LEVEL
S-LEVEL

<MOTION DET>
Press the MENU button to access the "MOTION DET" mode.
FIGURE 5. MOTION DET
1) AREA SEL Select MD area number.
2) FUNCTION Select MD ON/OFF
with boundary
6) SENSITIVITY Adjust sensitivity of MD area.(1~255)
3) DEFAULT Set MD area as default.
4) ADJ TOP/LEFT Adjust the location of the MD area with boundary TOP and
LEFT.(MD 1~4)
5) ADJ BOT/RIGHT Adjust the location of the MD area BOTTOM
and RIGHT.(MD 1~4)
<MOTION DET MENU>
AREA SEL
FUNCTION
DEFAULT
ADJ TOP / LEFT
ADJ BOT / RIGHT
SENSITIVITY
END

<PRIVACY>
Press the MENU button to access the "PRIVACY" mode.
FIGURE 6. PRIVACY TABLE
1) MASK SEL Select MASK area number.
2) MASKING Select MASK ON/OFF
default.
boundary
with boundary
6) M COLOR Select MASK color. (WHITE/GRAY/BLACK)
3) DEFAULT Set MASK area as
4) ADJ TOP/LEFT Adjust the location of the MASK area with TOP
and LEFT.(MASK 1~16)
5) ADJ BOT/RIGHT Adjust the location of the MASK area
BOTTOM and RIGHT. (MASK 1~16)
<PRIVACY MENU>
MASK SEL
MASKING
DEFAULT
ADJ TOP / LEFT
ADJ BOT / RIGHT
M COLOR
END

<SPECIAL>
Press the MENU button to access the "SPECIAL" mode.
<SPECIAL MENU>
SYNC
PHASE
DN MODE
DN DELAY
END
FIGURE 7. SPECIAL TABLE
1) SYNC Select Internal or Line Lock mode.
- INT This mode is necessary for using the internal
synchronization.
-L/L This mode is necessary for the operation of multi
camera because it synchronizes the camera phase by
using the external signal (AC Signal).
-AUTO Filter operates automatically according to brightness.
-COLOR The camera outputs the video image only in
color.
-BW The camera outputs the video image only in
black and white.
-EXT This menu automatically converts the COLOR Mode into
the BW Mode or vice versa depending on illumination with
an external sensor.
4) DN DELAY Adjust the working time of the filter when D&N operated.
(05sec / 10sec / 20sec)
2) PHASE Sync phase is adjustable in line lock mode.
3) DN MODE

<EFFECT>
Press the MENU button to access the "EFFECT" mode.
<EFFECT MENU>
SHARPNESS
D-ZOOM
NEGA / POSI
D EFFECT
FREEZE
END
FIGURE 8. EFFECT TABLE
1) SHARPNESS Can be adjusted SHARPNESS of outlines.(0~15)
5) FREEZE Select the real or still mode.
2) D-ZOOM Digital Zoom ON / OFF
3) NEGA / POSI Select the negative or positive mode.
4) D EFFECT Reverse the screen in 3 modes selection.
(OFF / MIRROR / V FLIP / ROTATION)

1) CAM ID Select the camera ID. (001 ~ 255)
2) BPS Select serial communication speed.
(2400 / 4800 / 9600 / 19200)
3) PROTOCOL Select operating protocol.
COMMAND : Camera controlled by RS-232C command.
FASTRAX : Fastrax protocol.
PELCO-D : Pelco-D protocol.
PELCO-P : Pelco-P protocol.
4) DISP MODE On screen display is ON/OFF
5) DISP ITEM
-DISP0 Display title and camera ID.
-DISP1 Display title, camera ID and DC Level
6) TITLE
7) SAVE Save preset parameters of CAM SET MENU.
<CAM SET MENU>
CAM ID
BPS
PROTOCOL
DISP MODE
DISP ITEM
TITLE
SAVE
END
< >CAM SET
FIGURE 9. CAM SET TABLE
CMD
TITLE
<TITLE MENU>
B
C
A
A. TITLE
B. Character Table
C. Command Line
: Move to left
: Move to right
< : Erase a left character
> : Erase a right character
S : Save title
E : End
Press the MENU button to access the "CAM SET” mode.

<END>
1) DEFAULT & EXIT Set parameters as factory setting and terminate the MAIN
MENU.
2) SAVE & EXIT Save the changed preset parameter and terminate the
MAIN MENU.
3) EXIT Terminate the MAIN MENU without saving parameters.
Press the MENU button to access the "END” mode.
