smartheart 01-509 User manual

Blood Pressure
Monitor
Model # 01-509
INSTRUCTION MANUAL
ENGLISH AND SPANISH
Please read this instruction manual
completely before operating this unit.
12

2 • ENGLISH
Digital Monitor Storage Case
Instruction Manual
Quick Start Guide
Blood Pressure Reading Tracking Log
FAQ Information Sheet
STOP!
PLEASE ENSURE YOU HAVE ALL OF THE
FOLLOWING COMPONENTS BEFORE USING
YOUR DIGITAL BLOOD PRESSURE MONITOR
IF YOU ARE MISSING ANY PARTS, INCLUDING INSERTS OR
INSTRUCTION MANUALS, DO NOT RETURN TO PLACE OF
PURCHASE. CONTACT CUSTOMER CARE AT 866-326-1313.
12
DC Wall Adapter

ENGLISH • 3
Care & Safety Information.................................................. 4-5
Introduction & Indications for Use........................................... 6
Digital Blood Pressure Monitor Features .................................. 7
Getting Started .................................................................... 8
Charging the Battery ........................................................... 9
Setting Date and Time.................................................... 10-11
Applying Your Blood Pressure Cuff .................................. 12-13
Taking Your Blood Pressure Reading ................................ 14-15
Interpreting your Results ................................................. 16-17
Memory Functions ........................................................ 18-19
Care and Maintenance....................................................... 20
Device and Label Symbols................................................... 21
Description of Symbols ....................................................... 22
Troubleshooting ................................................................. 23
Error Codes....................................................................... 24
FCC Statement................................................................... 25
Electromagnetic Compatibility......................................... 26-31
Specications .................................................................... 32
Complied Standards........................................................... 33
Warranty .......................................................................... 34
Instrucciones en Español ................................................ 35-68
INDEX
Toll-Free Customer Care Help Line: 1-866-326-1313
Monday – Friday 8:30 a.m. – 4:30 p.m. CST
SmartHeart™
Manufactured for
Veridian Healthcare
1175 Lakeside Drive
Gurnee, IL 60031
Made in China
#93-1399 05/18
©2018 Veridian Healthcare, LLC

4 • ENGLISH
CARE & SAFETY INFORMATION
NOTE: Read all instructions carefully before use. The following basic precautions are
needed when using an electrical product.
CAUTION: Failure to read and observe all precautions could result in personal
injury or equipment damage.
Improper care or use of your blood pressure monitor may result in injury, damage
to the unit or ineffective treatment. Following these instructions will ensure the blood
pressure monitor’s efcacy and long life.
GENERAL CAUTIONS AND WARNINGS
• Measurement results should be discussed with your physician or healthcare
professional; never self-diagnose or attempt treatment as this may be dangerous
• Intended for adult use only; this device is not approved for infant or child
• Keep out of reach of children
• Do not use the unit if it has any damaged parts (including power cord or plug and
cuff), if it has been submersed in water or dropped
• If any abnormality occurs, discontinue use until the unit has been examined and
repaired
• Only use included attachments and parts; do not use attachments from other
brands or models as these may not be properly calibrated for use with this device
and may result in measurement error
• Do not share the cuff with an infected person.
• Do not disassemble the unit or attempt to repair it; substitution of a component
different from that supplied may result in measurement error and will void
manufacturer warranty
• Always follow local regulations for proper disposal of the monitor, cuff and
batteries
OPERATING CAUTIONS AND WARNINGS
• Prolonged over-ination may cause congestion, swelling or bruising in some
people

ENGLISH • 5
CARE & SAFETY INFORMATION
• Wait a minimum of 2 minutes between measurements (20-minutes is
recommended); excessive frequent measurements may restrict blood circulation
• Do not use this device while connected to any monitoring equipment on the same
limb
• Consult with your healthcare professional for guidance for use if you have any of
the following: intravascular shunt; mastectomy on the arm corresponding to the
measurement side of the body
• Consult with your healthcare professional before using the device in pregnancy
including pre-eclampsia, or if diagnosed with arrhythmia or arteriosclerosis
• If you experience any discomfort or an abnormality occurs, stop using the device
immediately; to stop the device during operation, press the START/STOP button
and the cuff will automatically deate
• Operation outside of stated operating temperature may result in measurement
error or device malfunction; operation environment temperature is: 41°F – 104°F
(5°C – 40°C); Humidity: 15% to 90% RH (non-condensing)
• Never use this unit while operating a vehicle or in the bathtub or shower
STORAGE CAUTIONS AND WARNINGS
• Storage outside of stated storage temperature may result in measurement error or
device malfunction; storage environment temperature is: -4°F – 140°F (-20°C –
60°C); Humidity: ≤93%RH (non-condensing) at water vapor pressure to 50hPa
• Keep the unit out of reach of small children
• Always keep the unit unplugged while not in use; remove the batteries if the unit
will not be used for an extended period of time
CLEANING CAUTIONS AND WARNINGS
• Never immerse the unit in water to clean as it may damage the unit
• Follow the ‘Cleaning and Maintenance’ portion of this manual for instruction on
how to clean and care for your monitor

6 • ENGLISH
INTRODUCTION & INDICATIONS FOR USE
It is recommended that you rst seek the advice and recommendation of your
physician or healthcare professional when using home diagnostic devices,
including blood pressure monitors.
The Blood Pressure Monitor is digital monitors intended for use in measuring blood
pressure and heartbeat rate with an arm circumference ranging from 8.6” to
16.5” inches (about 22 – 42 cm). It is intended for adult indoor use only.
Automatic digital blood pressure monitors use the oscillometric method to
electronically measure your blood pressure. The monitor detects your blood’s
movement through the artery in your arm and converts the movements into a
digital reading. The oscillometric method does not require a stethoscope, making
the monitor ideal for home use.
Blood pressure readings determined with this device are equivalent to
measurements obtained by a trained healthcare professional using the cuff/
stethoscope auscultation method, within the limits prescribed by the American
National Standard for Electronic or Automated Sphygmomanometers.
Thank you for purchasing a Veridian Automatic Digital Blood Pressure Monitor.
With proper care and use, your monitor will provide you with many years of
reliable readings.
PLEASE READ THIS INSTRUCTION MANUAL
COMPLETELY BEFORE OPERATING THIS UNIT.

ENGLISH • 7
BLOOD PRESSURE MONITOR FEATURES
DETAILS OF THE DIGITAL DISPLAY SCREEN AND
INTERPRETATION OF THE SYMBOLS ARE INCLUDED
THROUGHOUT THIS MANUAL.
DC Power
Connection
Wide Range
Arm Cuff
Digital
Display
User 2
Button
User1/Set
Button
Memory
Recall
Button
12
TOP VIEW
ON/OFF
Switch
NOTE: The USER 1 and USER 2 buttons also
act as POWER buttons for this model

8 • ENGLISH
GETTING STARTED
Before taking a measurement
1. Your readings should only be interpreted by your physician or
healthcare professional with access to your individual medical history.
Regular use of a home blood pressure monitor will allow you to track
and record your readings for discussion with your physician.
2. Conduct your measurement in a quiet place while seated in a relaxed
position. Rest for 15 minutes before taking your reading. If an error
occurs or you desire to take a second reading, allow 15 minutes
between readings for your blood vessels to return to normal.
3. Avoid smoking, eating, taking medication, alcohol, physical activity or
any other stressful activity for 30 minutes prior to taking a reading.
4. Always remove any jewelry or constrictive clothing that may interfere
with the cuff placement.
5. Keep yourself and the monitor still during measuring; do not talk during
the reading.
6. It is recommended that you take your readings as the same time each
day to better monitor any indications in your results.
7. Record your daily measurement on the included chart or some other
written document to share with your physician.

ENGLISH • 9
Before rst use, the device should be fully charged.
Charging time may take up to 90 minutes from
depleted battery.
1. Connect the DC cable to the arm monitor and
plug into a standard power outlet.
2. During charging the digital display will show a
battery ashing to indicate the current charge
level. When the device is fully charged, the
battery symbol will be stop ashing and remain
solid on the display.
3. Unplug the charger and monitor when fully
charged; never operate the unit while charging.
CHARGING THE BATTERY
This device includes an internal rechargeable battery
with and DC Wall Adapter.
It is necessary to charge the battery when the unit does not
power ON, the low battery symbol appears on the display,
when the display dims or when the display does not illuminate.
The ‘Low Battery’ symbol
will appear on the lower
right of the display.

10 • ENGLISH
SETTING DATE/TIME
IT IS NECESSARY TO SET THE DATE AND TIME FOR THE UNIT
EVERY TIME BATTERIES ARE INITIALLY INSTALLED OR REPLACED.
HOW TO SET DATE AND TIME
1. When the unit is off (a blank display screen), press and hold the U1/SET
button for 3-5 seconds to enter clock setting mode.
2. HOURS/MINUTES—rst the hour will ash on the display. Press the
MEMORY button to advance the display to the desired hour, press the U1/
SET button to conrm your selection and advance to the minute setting. Press
the MEMORY button to advance to the correct minute, press U1/SET to
conrm.
3. MONTH—next the Month will ash on the display. Press the MEMORY
button to advance the display to the desired month, press the U1/SET button
to conrm your selection and advance to the date settings.
The date/time feature is on the bottom right
of the display screen. This unit stores the
date, time and year allowing for a date/
time stamp on all readings in the memory
recall function. The date/time alternate view
while in use.
The MEMORY RECALL and U1 buttons are
located on the bottom center of the monitor
and are necessary for setting the date/time
of this device.
MEMORY
Recall Button U1/SET Button U2 Button
12

ENGLISH • 11

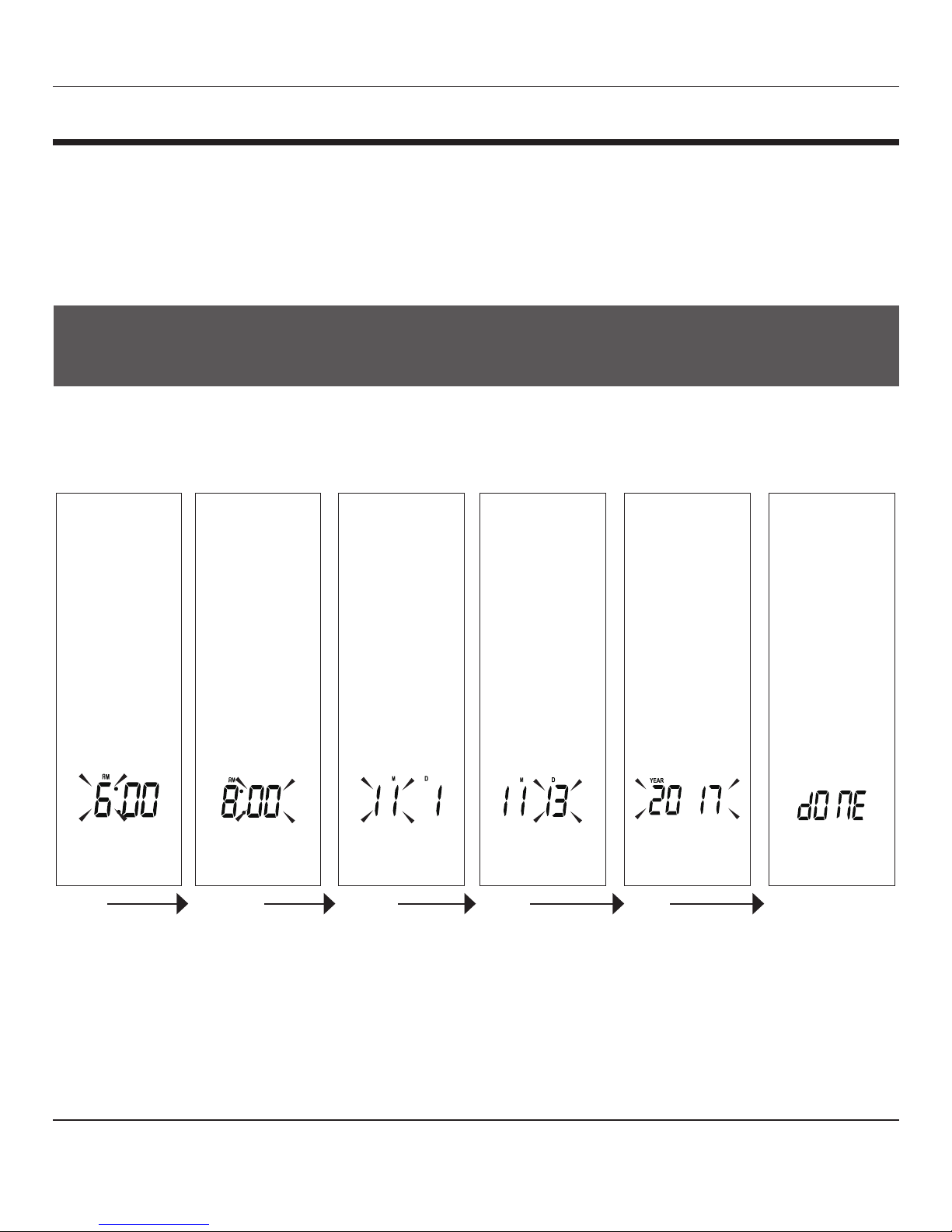

SETTING DATE/TIME
PLEASE SET DATE AND TIME BEFORE INITIAL USE TO ENSURE YOUR
READINGS ARE LABELED AND STORED IN MEMORY PROPERLY.
Hour Minutes Month Date Year Complete
4. DATE—repeat the same sequence of step 2 to conrm the MONTH.
5. YEAR—repeat the same sequence of step 2 to conrm the YEAR.
6. After conrming YEAR, the LCD will display “dONE” and then shut off.

12 • ENGLISH
FITTING AND APPLYING YOUR CUFF
PROPER CUFF FIT AND PLACEMENT IS CRITICAL IN OBTAINING
ACCURATE BLOOD PRESSURE MEASUREMENTS. PLEASE READ THESE
INSTRUCTIONS CAREFULLY AND CONSIDER CONSULTING WITH YOUR
PHYSICIAN FOR FURTHER DIRECTION.
Before applying your blood pressure cuff,
be sure your arm is within the appropriate
cuff range:
Arm Circumference Range Suitable for
8.6” – 16.5” (22 – 42 cm).
To determine the proper cuff size, measure the circumference of your left upper
arm at the point midway between inside bend of your elbow and your shoulder,
Fig 1. If your arm is outside of this range, this device may not be suitable for you
and your results may be inaccurate.
Reminder, it is important to avoid smoking, eating, taking medication, alcohol
consumption or physical activity 30 minutes prior to taking a reading.
If for any reason you are unable to or should not use your left arm, please modify
the instructions for cuff application to your right arm. Your physician can help you
identify which arm is best for you to take measurements from.

ENGLISH • 13
FITTING AND APPLYING YOUR CUFF
Applying Your Cuff
1. Remove any constrictive clothing or
jewelry that may interfere with cuff
placement.
2. Be seated at a table or desk with your
feet at on the oor.
3. Hold your left arm in front of you with
your palm facing upward.
4. Apply the cuff to your left arm so that
the digital display face is positioned
on the inside area of your arm facing
you, and the word ‘ELBOW’ is
centered over the inside bend of your
elbow.
5. Adjust the cuff 3/4” - 1” from the
bend of your elbow.
6. The cuff should t comfortably, yet
snugly around your arm. You should
be able to insert one nger easily
between your arm and the cuff.
If you are not comfortable with applying your cuff,
please seek the assistance of another member of your
household or work with your physician to practice the
cuff application. Incorrectly applied cuffs may result in
inaccurate readings.

14 • ENGLISH
TAKING YOUR BLOOD PRESSURE READING
1. Rest your elbow on a solid surface with your palm facing
upward. Elevate your arm so that the cuff is at the same level
as your heart, Fig 1. Be certain that cuff is elevated to the
proper level; you may choose to support your hand with a
folded towel or book. Relax your left hand.
2. When the monitor is off, press the U1/SET or U2 button to
POWER on the monitor; the unit will run a self test, Fig 2.
3. The display will briey show a ‘0’ before the measurement
begins.
4. You will see the numbers increase on the digital display during
measurement as the cuff inates.
Please read the preceding portions of this manual prior to taking your rst reading.
Reminder, it is important to avoid smoking, eating, taking medication, alcohol
consumption or physical activity 30 minutes prior to taking a reading.
Fig. 2
YOU CAN STOP THE INFLATION OR DEFLATION PROCESS AT
ANY TIME BY PRESSING THE POWER (U1/U2) BUTTONS.
Select the desired user, 1 or 2, before
measurement; this selection will determine
where the measurement is stored for review.
When the monitor is off, press U1/SET OR U2 button to
POWER on the monitor. Throughout the measurement, the
corresponding icon will show on the bottom of the digital
display.
Fig. 1

ENGLISH • 15
Fig. 3
TAKING YOUR BLOOD PRESSURE READING
5. When the measurement is complete, the cuff will
automatically deate and your blood pressure
measurement and pulse reading results will
show on the display screen at the same time,
Fig 3.
6. The Hypertension Indicator will indicate your
reading range on the display, Fig 3. See page
17 for information regarding interpreting the
Hypertension Indicator results.
7. If an irregular heartbeat was detected during
the reading, the Irregular Heartbeat Detector
indicator will appear on the display, Fig 4. See
page 16 for more information on the Irregular
Heartbeat Detector feature.
8. The reading will automatically be stored in the
USER Memory Bank selected at the start of the
reading, up to 250 readings per user.
9. Select U1/SET or U2 button to turn the unit off
and conserve energy and battery life.
10. The unit will automatically shut-off approximately
1 minute after use.
Fig. 4

16 • ENGLISH

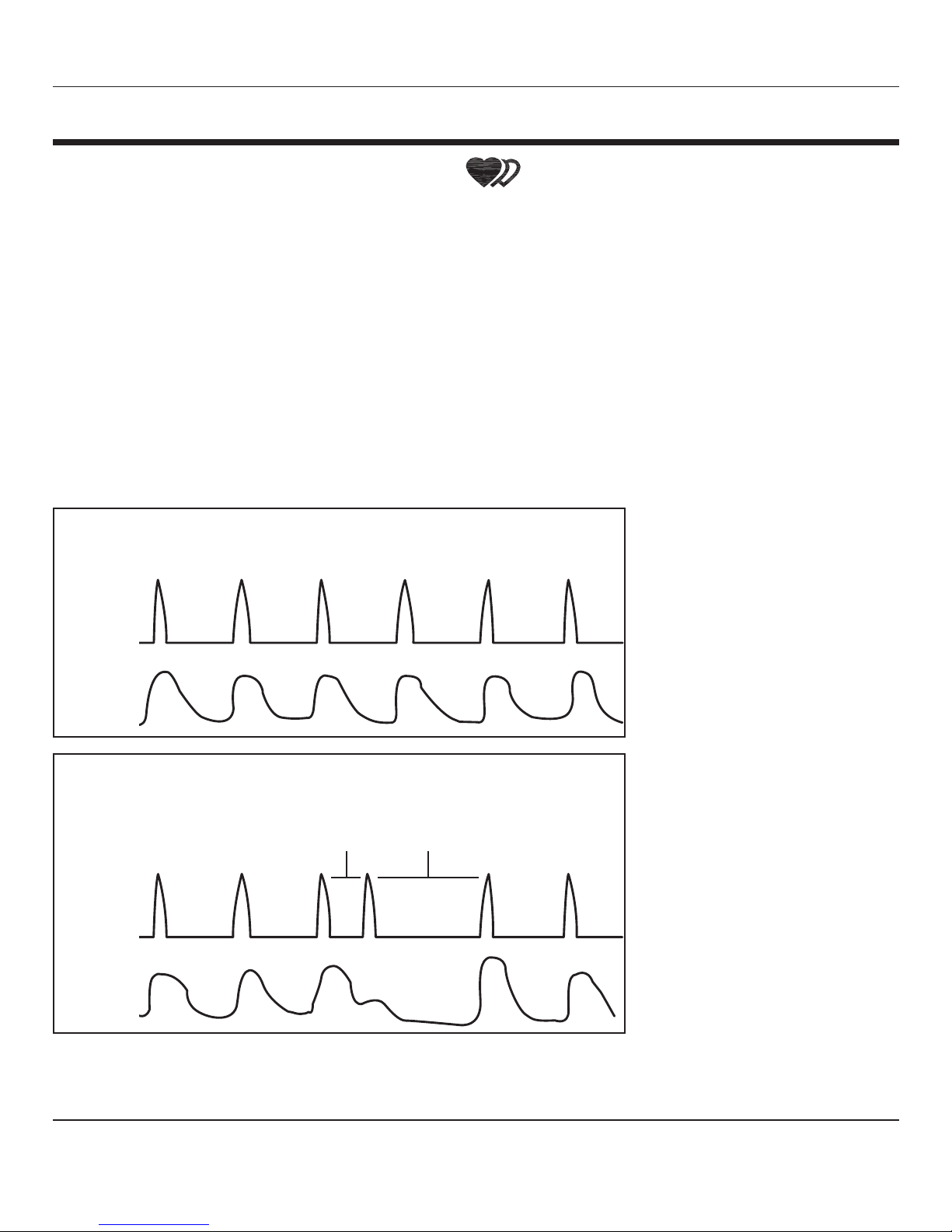

Irregular Heartbeat Detector
An irregular heartbeat is dened as a heartbeat rhythm that is more than 25%
slower or 25% faster than the average measurement detected while the monitor is
conducting the measurement. When this device detects an irregular rhythm two or
more times during the reading, the IHB symbol will appear on the display screen.
This monitor will operate if the icon appears, but the results may be compromised,
especially if this symbol appears often. Please consult with your physician or
trained healthcare professional for further information regarding an irregular
heartbeat and if this symbol appears frequently.
INTERPRETING YOUR BLOOD PRESSURE READING
Pulse
Pulse
Irregular Heartbeat
Normal Heartbeat
Blood
Pressure
Blood
Pressure
Short
Beat Long Beat

ENGLISH • 17
INTERPRETING YOUR BLOOD PRESSURE READING

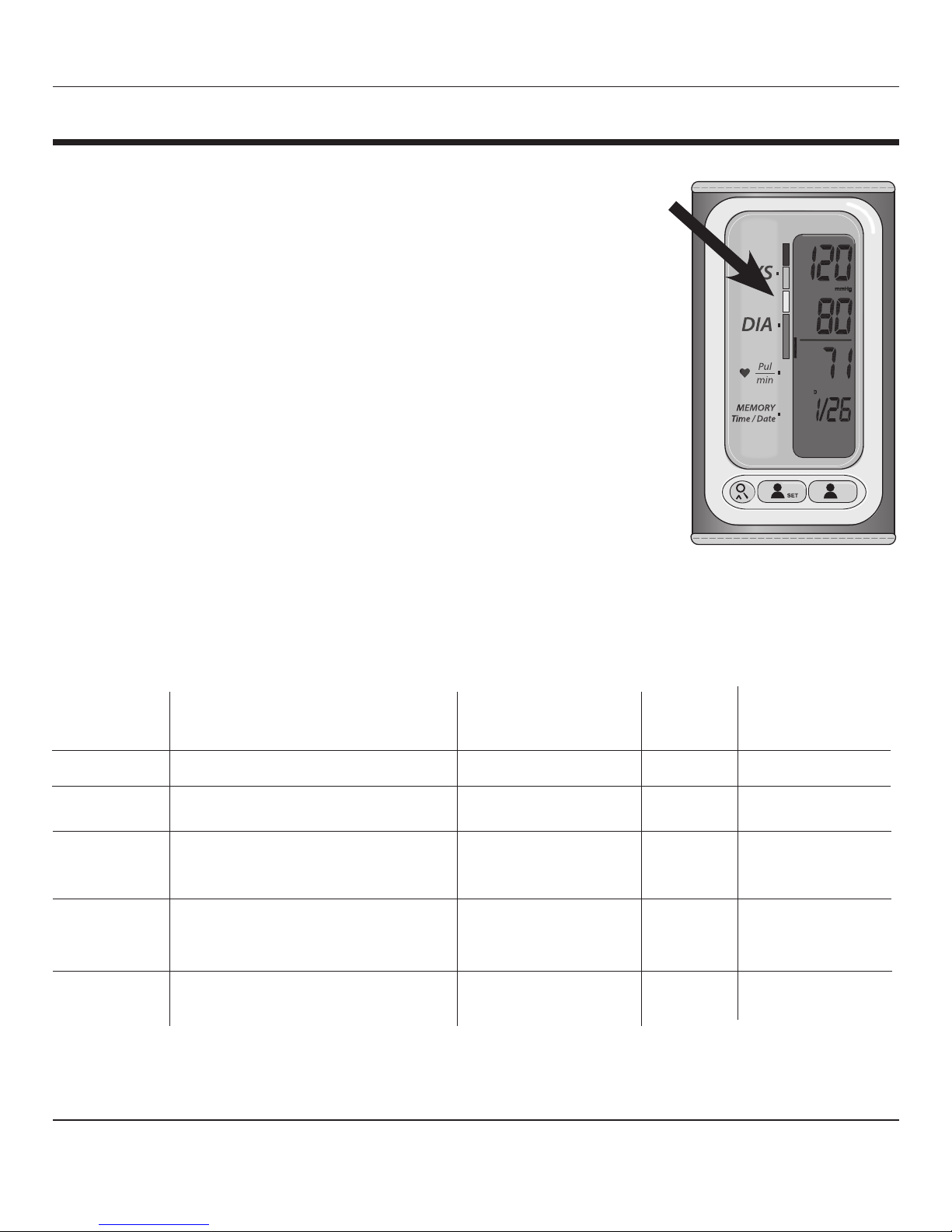

Hypertension Indicator
This unit features our unique Hypertension Indicator.
The color bars on the left side of the monitor display
correspond with an icon on the digital display, indicating
where the measurement results fall within the American
Heart Association standards.
The American Heart Association has established globally
accepted standards for the assessment of high or low
blood pressure readings. The below chart should be
considered only as a guideline, always consult with your
physician or health care professional to interpret your
individual results. Never adjust your medication(s) dosage,
or severely alter your diet or exercise routine without
consulting with your physician.
Bar Category Systolic Diastolic
Color (mmHg) (mmHg)
Green Normal <120 and <80
Green Prehypertension / Elevated 120-129 and <80
Yellow High Blood Pressure, 130-139 or 80-89
Stage 1 Hypertension
Orange High Blood Pressure, ≥140 or ≥90
Stage 2 Hypertension
Red Hypertensive Crisis >180 and/or >120
12

18 • ENGLISH
MEMORY FUNCTIONS

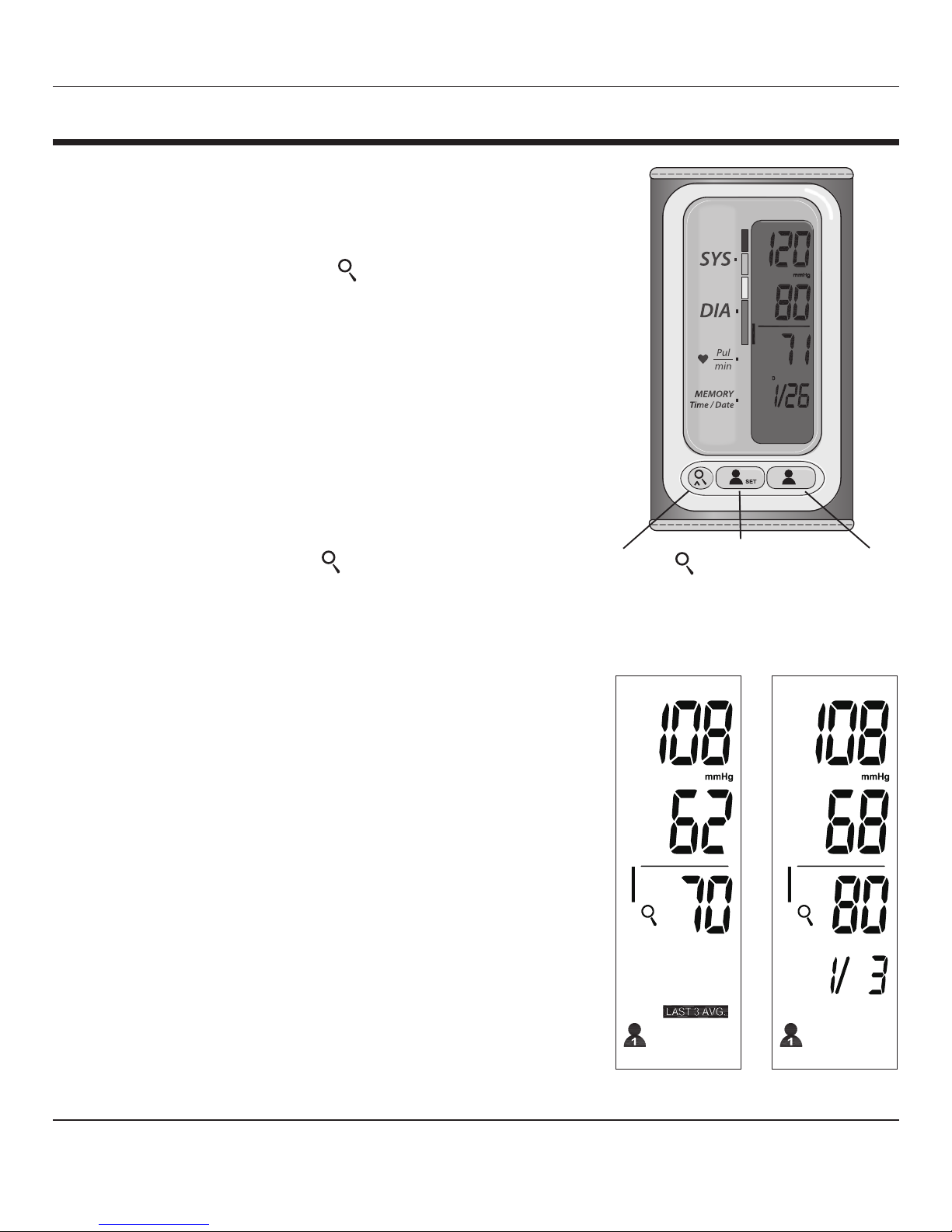

Recalling Measurements in Memory
1. When the monitor is off, press and
release the MEMORY button to access
the memory bank.
2. Select U1/SET or U2 to review the
respective readings in memory.
3. The unit will rst display the average
of the last three measurements, Fig
1. If there are less than 3 readings in
memory, the most recent reading will
display.
4. Press the MEMORY button again to
begin scrolling through the saved
measurements. Measurements will
appear on the display from most current
to oldest; the memory number alternate
in the same position as the date/time
stamp.
5. All results for a given measurement will
display, including measurement results,
pulse rate, Hypertension Indicator and
Irregular Heartbeat alert (if applicable).
The date/time stamp of the measurement
will alternate as well, Fig 2.
6. When the number of readings exceeds
250, the oldest data will be replaced
with the new record.
MEMORY
Recall Button U1/SET Button U2 Button
12
Fig. 1 Fig. 2

ENGLISH • 19
MEMORY FUNCTIONS

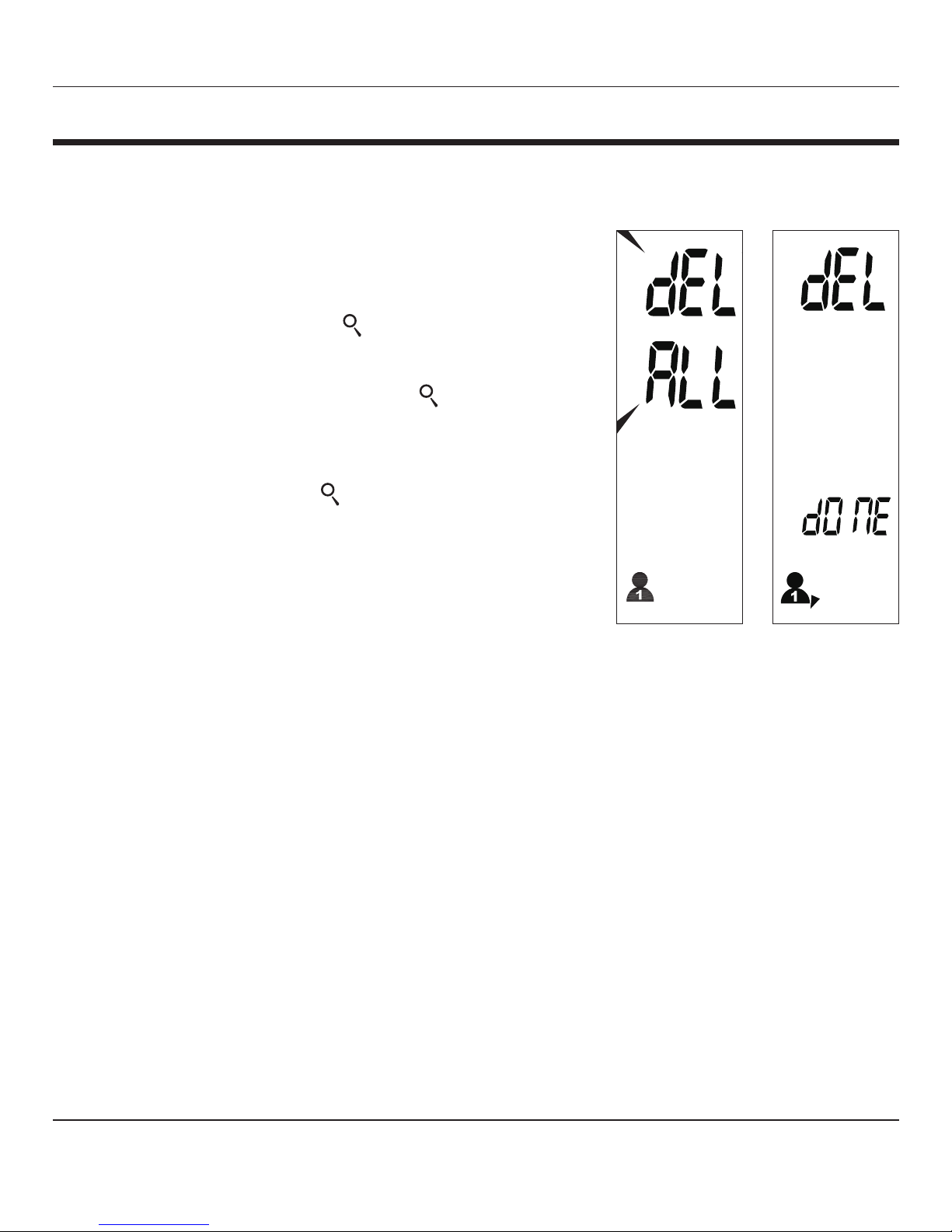

Clearing Measurements From Memory
To delete a all results in a given bank:
1. When the monitor is off, press and
release the MEMORY button to
access the memory bank feature.
2. Press and hold the MEMORY button
for 3 seconds; the display will ash dEL
and ALL, Fig 1.
3. Press the MEMORY button again to
conrm you would like to delete the
memory bank, Fig 2; the display will
show dONE and turn off.
4. Repeat the same steps for the second
memory bank if desired. Fig. 1 Fig. 2

20 • ENGLISH
CARE AND MAINTENANCE
Proper care and maintenance of your blood pressure monitor will help
ensure long life for the product; improper use of the monitor may void the
included warranty.
Monitor Care and Maintenance
• Do not use any liquids on the monitor; use a soft, dry cloth to clean the
monitor as needed
• Storage outside of stated storage temperature may result in measurement
error or device malfunction; storage environment temperature is: -4°F –
140°F (-20°C – 60°C); Humidity: 10% to 93%RH (non-condensing)
• Remove the batteries if the unit will not be used for an extended period
of time
• Do not attempt to disassemble your monitor; disassembling your monitor
may void the manufacturers warranty
• Do not subject the monitor to strong shocks; take care not to drop the
monitor
• No component of this device can be maintained by the user; the circuit
diagrams, component part lists, descriptions, calibration instruction or
other information which will assist the user’s appropriately qualied
technical personnel to repair those parts of equipment which are
designated repairable can be supplied
Cuff Care and Maintenance
• The cuff should not be submerged or washed in a washing machine, but
may be spot cleaned with a mild-detergent as needed
• Never attempt to iron or dry the cuff; if the cuff becomes wet, allow the
cuff to air dry completely before use or storage
• To disinfect the cuff, wipe the inside (skin contact side) of the cuff using a
cloth lightly moistened with 70% - 90% ethyl rubbing alcohol and allow
to air dry; it is suggested to disinfect the cuff frequently when used in
clinical sittings or if the cuff is contaminated in any way.
