Smartlink Vibrating-Blue User manual

Vibrating-Blue
The intelligent pendant
with tactile feedback &
Bluetooth LE capabilities
User Guide

2
Contents
Intended use 3
What is Vibrating Blue? 4
What is in the box? 5
Before first use 5
Wearing the Vibrating Blue …6
… on a neck chain “Recommended” ...................................8
… as a brooch/clipped to clothing.......................................9
… on a belt................................................................................... 10
How it works 10
Manual alarm operation 11
Taking care of Vibrating Blue 11
Cleaning ....................................................................................... 12
Spares and accessories 12
Battery replacement 13
To replace the battery ............................................................ 14
Frequently asked questions 15
Troubleshooting 16
Specifications 17
Technical information 17

3
Intended use
This device is intended to enable a user in a non-
medical setting to request assistance by
providing a method of activating their home base
unit, from within the operating range, in the
event of a potential medical emergency. (Also
has inbuilt Blue tooth functions for further
enhancement if required –Please refer to
supplier for this extra capability if required)
Please read this user guide carefully

4
What is Vibrating Blue?
Your Vibrating Blue is an intelligent pendant. Like
other pendants, it allows you to press a help
button to generate an alarm call when you need
help. The Vibrating Blue also provides user
confidence by vibrating when your alarm
transmission is received by the home base unit.
Help Button
Status LED
Neck chain
attachment
point
Battery cover

5
What is in the package?
The package contains this user guide, a Vibrating
Blue pendant and a neck chain.
Vibrating Blue
pendant
Neckchain
Before first use
Ensure the Vibrating Blue is programmed
correctly to your home base unit. To test this,
press the help button and ensure that it
generates an alarm call to the monitoring center.
Tell the monitoring centre that you are making a
test call and follow their instructions.

6
It is important to test the Vibrating Blue in all
the areas of your home, including the
bathroom, basement and garage.
Environmental conditions such as
furnishings, building structure, presence of
moisture or liquid may affect the range of
the Vibrating Blue. A help call will NOT be
initiated if the Vibrating Blue is activated
while out of range of the home base unit. If
the Vibrating Blue is not programmed
correctly, please contact your supplier.
Wearing the Vibrating Blue …
Your Vibrating Blue will have been setup with a
specific wearing accessory. Once setup you
should not change the wearing accessory without
contacting your supplier.
The correct wearing positions for the different
wearing accessories available are shown on the
following pages.

7
Wearing the Vibrating Blue in line with this
guide is important as it helps to ensure it is in
the best position to activate while also helping
to reduce the chance of incorrect activations.
Please remember to wear your Vibrating Blue
at all times when you are at home, including in
the shower or bath. You may also wear your
Vibrating Blue in bed. This will help to ensure
the Vibrating Blue is at hand if you require it at
night.
WARNING –if you wear the Vibrating Blue
under your clothing ensure you do not restrict
access to the help button.

8

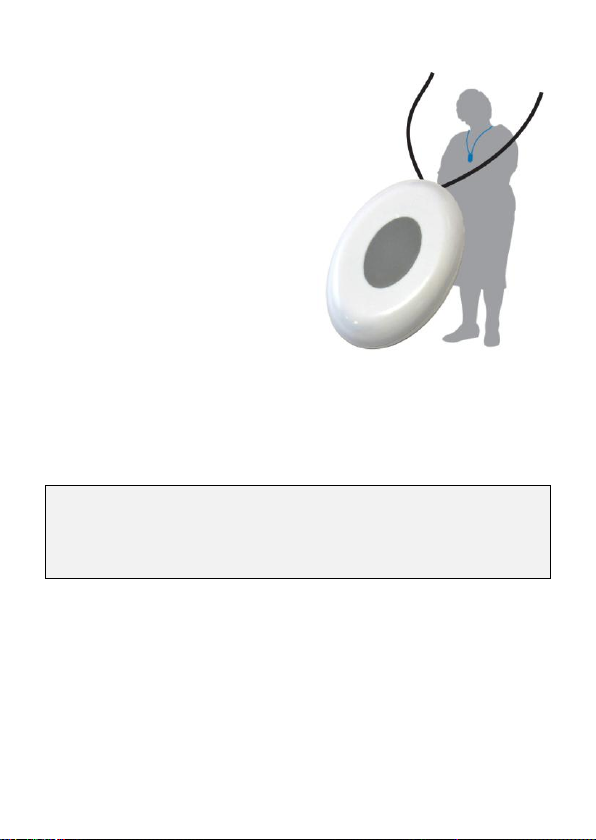

… on a neck chain
“Recommended”
A neck chain is provided
which may be adjusted
to ensure the Vibrating
Blue is worn within easy
reach.
Avoid adjusting the
length of the chain each
time you put the Vibrating Blue on.
WARNING –only use the neck chain supplied
with the Vibrating Blue as it includes safety break
links to reduce the risk of entanglement or injury.

9
Taking off/Putting on Vibrating Blue
Avoid trying to adjust the length of the neck
chain each time you take off or put on Vibrating
Blue.
… as a brooch/clipped to clothing
Although not recommended (Should always be
around the neck if possible) Vibrating Blue can be
worn in either of these orientations using any
type of clothing clip or safety pin in order to clip
it to the top of a shirt pocket or to shirt/blouse
openings etc.
The Vibrating Blue should be worn at chest
height when using a clothing clip.

10
… on a belt
If any type of belt clip is used (Not Supplied)
please ensure that the belt clip is fixed to firmly
hold the Vibrating Blue in place.
Test the Vibrating Blue monthly by pressing
the help button.
Regularly check the status LED on the
Vibrating Blue (see page 17).
How it works
Vibrating Blue is a simple to use device that
includes a help button to enable you to generate
a call for help if you require assistance or fall.

11
Alarm operation
1) Press the help button on the Vibrating Blue
to generate a call for help.
2) The red LED indicates the Vibrating Blue is
sending an alarm call.
3) If the red LED flashes, the Vibrating Blue is
still sending an alarm call, but is also
indicating to you that the battery needs to
be replaced (see battery replacement).
4) The Vibrating Blue will vibrate briefly after
the alarm has been received by the Home
Base Unit.
Taking care of Vibrating Blue
Your Vibrating Blue is water resistant and
should be worn at all times including in the
Help button

12
shower and bath. When wearing in the bath
you should avoid submerging the Vibrating
Blue in water for more than a minute.
If Vibrating Blue does get wet, dry it gently
using a soft towel being careful not to press
the help button. If you do press the help
button by accident, don’t worry, just inform
the operator. They will be happy to hear
from you and it will act as a useful test of the
system.
Cleaning
If required, Vibrating Blue may be cleaned
periodically with a damp cloth and mild
detergent or an alcohol wipe.
Spares and accessories
The following replacement parts are available.
Please contact your supplier for more details.
-Battery (CR2430)
-Battery cover

13
Battery replacement
The battery will need replacing approximately
every 12 to 24 months.
When a low battery is indicated the
battery should be replaced
immediately/as soon as possible.
If it is necessary for you to change the
battery, the fall detector uses a CR2430 3
Volt lithium battery.
NOTE: Dispose of used batteries only in accordance
with your local laws and regulations. Do not dispose
of in household waste.
WARNING –During battery replacement Vibrating
Blue will not be able to generate a help call.

14
To replace the battery
1) To access the battery, turn the battery
cover anti-clockwise to the unlocked
position, replace the battery then replace
and lock the battery cover in a clockwise
rotation.
2) NOTE. Insert the new battery with the
Positive (+) side facing downwards in the
lid.
Battery compartment,
turn anti-clockwise to
open
Insert CR2430 battery,
positive side down in
the lid.
Replace the lid and lock
clockwise.

15
Frequently asked questions
Can I wear Vibrating Blue in the shower or
bath?
Yes, Vibrating Blue is water resistant and should
be worn at all times including in the shower.
When wearing in the bath you should avoid
submerging Vibrating Blue in water for longer
than a minute. While submerged, the range of
Vibrating Blue may be reduced, meaning that the
help call may not be received by your home base
unit.
When should I wear Vibrating Blue?
You should wear your Vibrating Blue at all times
when you are in your home and within receiving
range of your home base unit.
Can I wear Vibrating Blue under my clothes?
Yes, Vibrating Blue can be worn under clothing
however please make sure you can easily press
the help button if you need assistance.

16
What happens if I accidentally press the help
button?
Vibrating Blue will generate a call to the
monitoring center. Tell the operator that you
pressed it by accident and do not need
assistance. Don’t worry they will be happy to hear
from you and it will act as a test of the system.
Will Vibrating Blue call for help if I drop it
accidentally?
Vibrating Blue is unlikely to trigger an alarm
when dropped.
Can I wear Vibrating Blue in bed?
Yes, if you wish you can wear Vibrating Blue in
bed. This will help to ensure Vibrating Blue is
nearby if you require it at night.
Troubleshooting
If the area around the button becomes damaged
please contact your supplier.

17
LED operation
Event
LED action
Action
Alarm
button
pressed
Red LED on for 2 seconds.
If Red LED flashes battery
is low.
If possible,
speak clearly to
the monitoring
centre
Specifications
The Vibrating Blue operates on a frequency of 902 to 928 MHz (USA and
Canada).
Technical information
Weight: 25g [0.88oz]
Dimensions: 52 x 32 x 12mm [2.1” x 1.3” x 0.45”] (WxHxD)
Battery: CR2430 (3v Lithium cell)
Battery Life: 12 to 24 months
Radio Freq: 902 to 928 MHz
Type: Crystal Stabilized
Radio Range: Up to 300 metres open air (Subject to environmental
conditions)
Water resistance: IP67 (up to 1 metre [3ft.] for 30 minutes)
Bluetooth: Bluetooth LE (BLE) NB: Refer to Manufacturer for blue
tooth extra functions and uses
Environmental
Temperature: Operating temperature (to perform to full
specification) = 0°C to 45°C, storage = -10°C to 50°C
Humidity: Operating relative humidity (non condensing to
perform to full specification) = 0 to 80%, storage
relative humidity (non condensing) = 0 to 93%

18
“A division of Ness Corporation Pty Ltd”
Ness Corporation manufacturing processes are accredited to ISO9001 quality standards and all possible
care and diligence has been applied during manufacture to ensure the reliable operation of this product.
However there are various external factors that may impede or restrict the operation of this product in
accordance with the product’s specification.
To the best of our knowledge, the information contained in this manual is correct at the time of print.
SmartLink “A division of NESS CORPORATION PTY LTD” reserves the right to make changes to the
features and specifications at any time without prior notice in the course of product development.
FCC Part 15.19 Warning Statement-
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
FCC Part 15.21 Warning Statement-
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
IC RSS-GEN, Sec 8.4 Warning Statement-
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
EQUIPMENT NAME: Vibrating Blue Pendant
Model: TRMBV915
FCC ID: O2K-TRM915
CANADA IC: 2290B-TRM915
SmartLink “A division of Ness Corporation”
www.smartlink.com.au
USA Contact:
Elk Products. 3266 US-70, Connelly Springs, NC 28612
Tel: [phone]
© Ness Corporation Pty Ltd ABN 28 069 984 372
