Smartparts Digital picture frame 7 User manual

DIGITAL
PICTURE FRAME

QsMARTPARTS

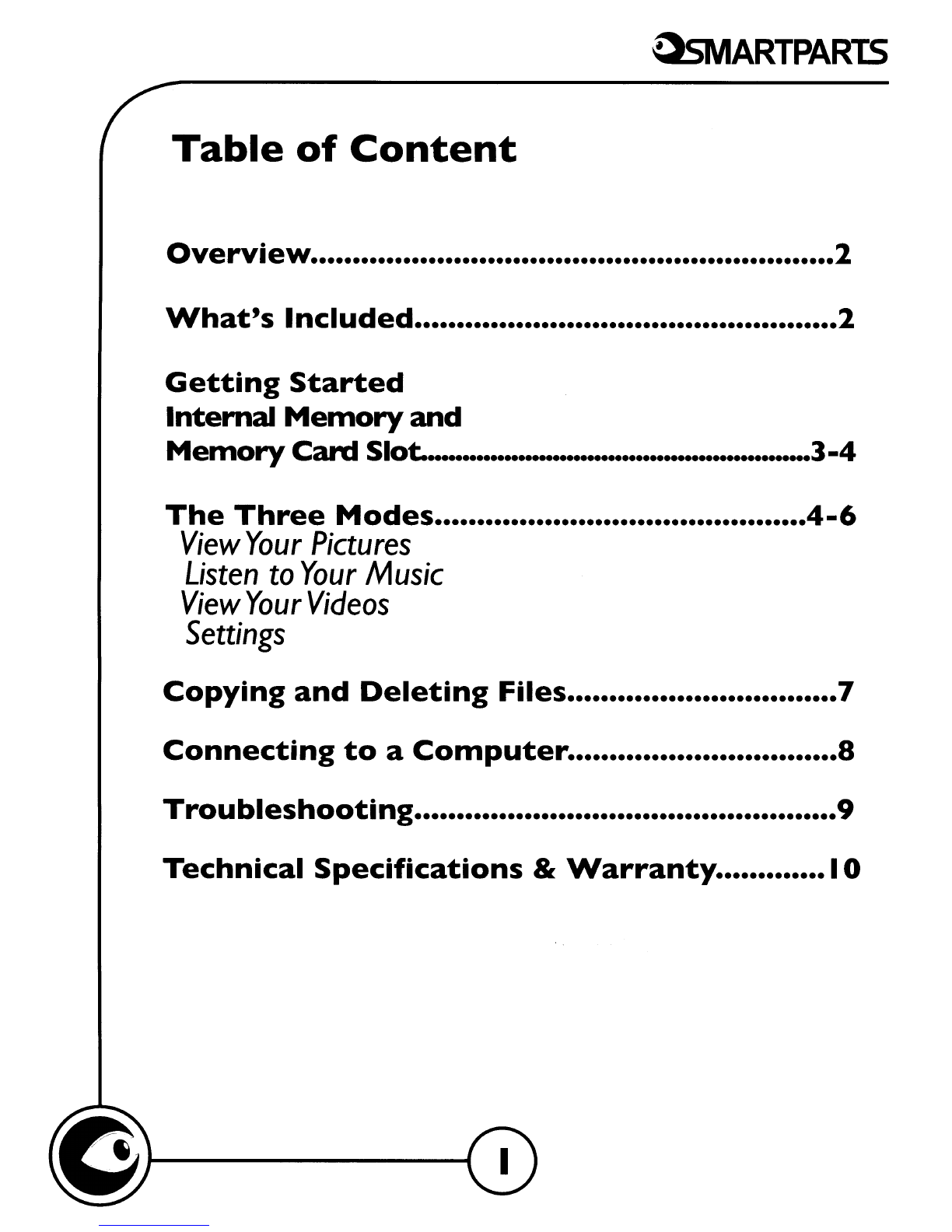

Table of Content
4:)"E!fW\fiE!~ •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• ~
What's IncludE!d •••••••••••••••••••••••••••••••••••••••••••••••••• ~
GE!tting StartE!d
IntE!mal ME!mory and
ME!mory Card Slot._._ ••••••• _ •• _ •• _ ••••••••••• _ ••••••••• _ ••• _._.3-4
ThE! ThrE!E! ModE!s •••••••••••••••••••••••••••••••••••••••••••• 4-6
View Your Pictures
Listen to Your Music
View Your Videos
Settings
Copying and DE!IE!ting FilE!s •••••••••••••••••••••••••••••••• 7
ConnE!cting to a ComputE!r •••••••••••••••••••••••••••••••• a
TroutJlE!shooting •••••••••••••••••••••••••••••••••••••••••••••••••• ~
TE!chnical SpE!cifications & Warranty ••••••••••••• I0

QsMARTPARtS

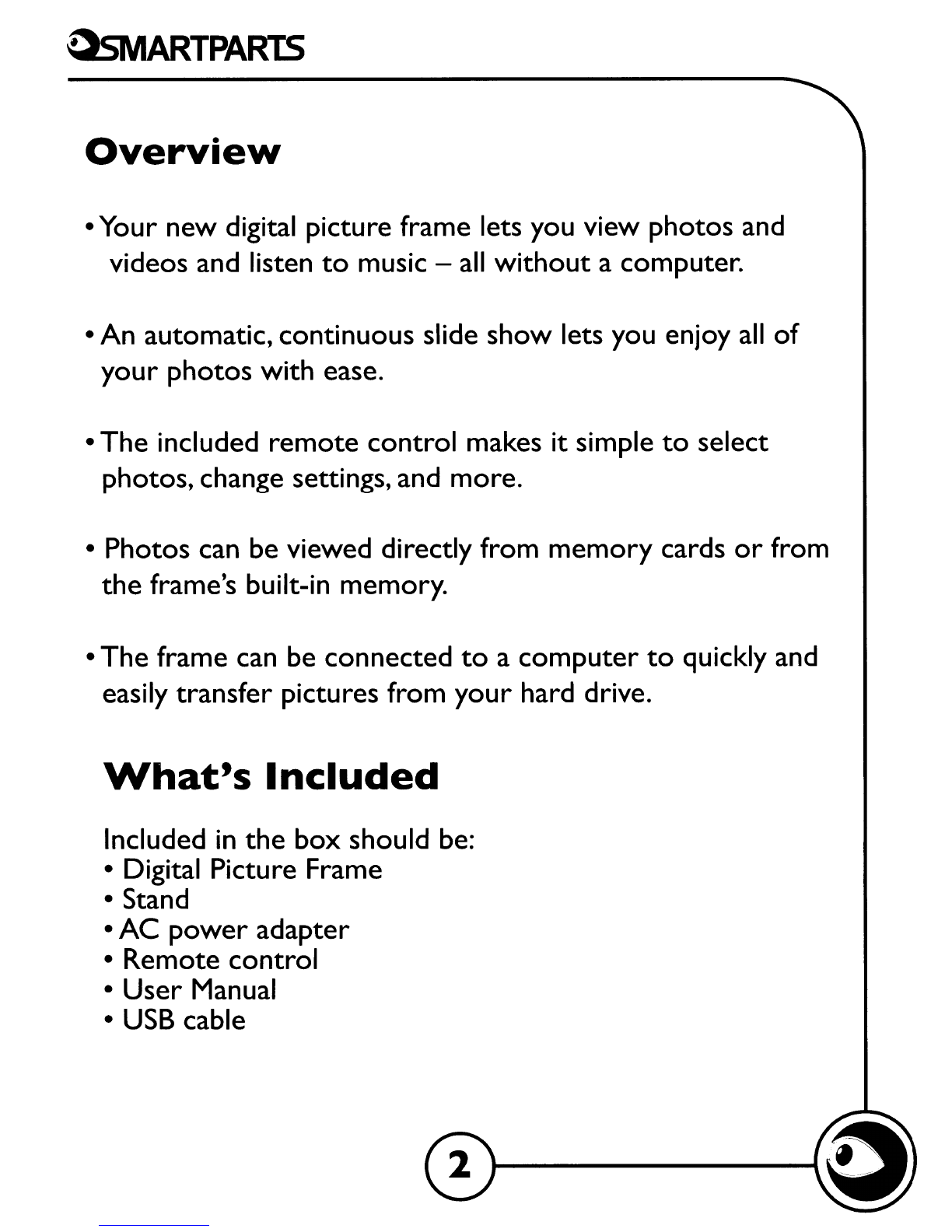

Overview
•Your new digital picture frame lets you view photos and
videos and listen
to music - all without a computer.
•An automatic, continuous slide show lets you enjoy all of
your photos with ease.
•
The included remote control makes it simple to select
photos, change settings, and more.
• Photos can be viewed directly from memory cards or from
the frame's built-in memory.
•
The frame can be connected to a computer to quickly and
easily
transfer pictures from your hard drive.
What's Included
Included in the box should be:
•Digital Picture Frame
•Stand
•
AC power adapter
• Remote control
• User Manual
•
USB cable

QsMARTPARtS

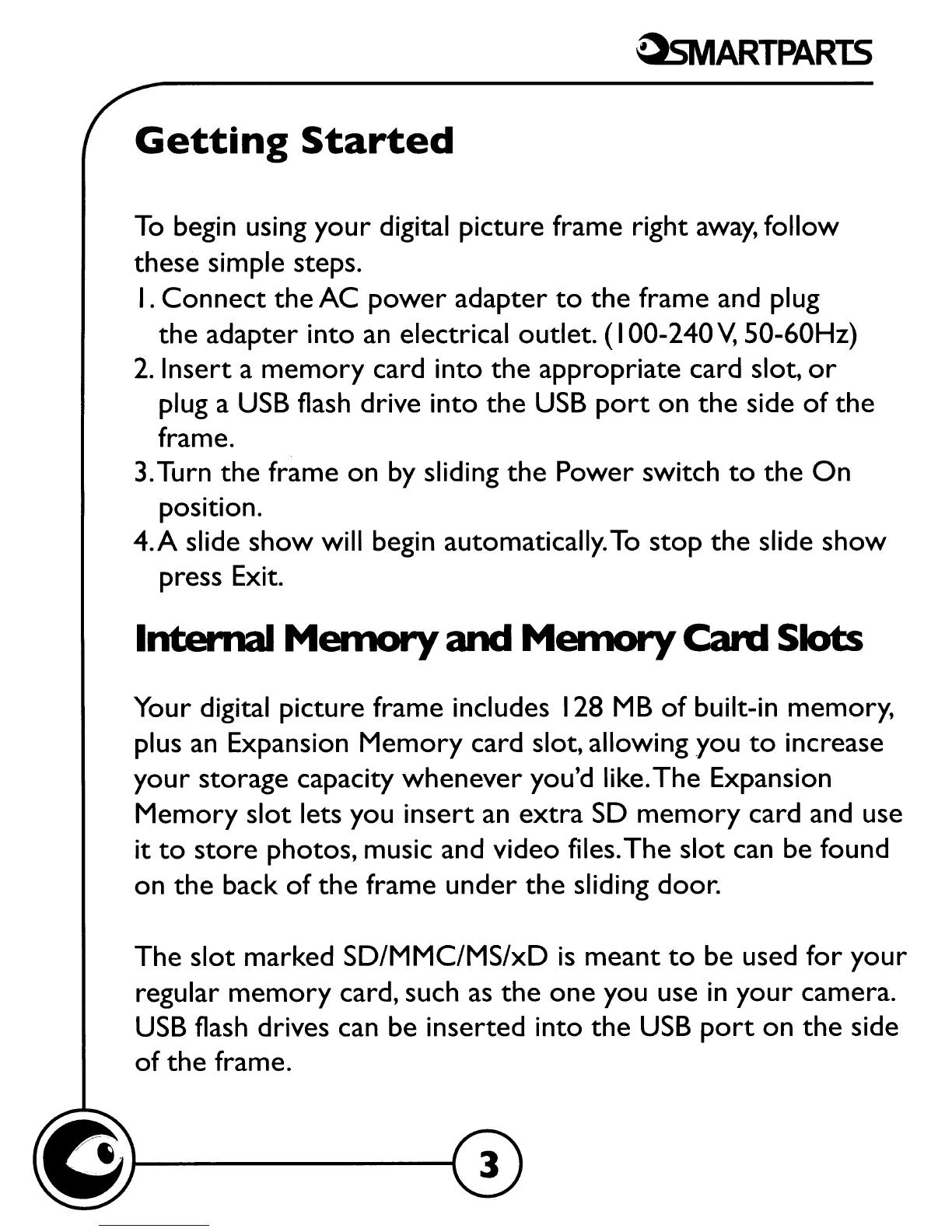

Getting Started
To begin using your digital picture frame right away, follow
these simple steps.
I. Connect the AC power adapter to the frame and plug
the adapter into an electrical outlet. (I00-240 V, 50-60Hz)
2. Insert a memory card into the appropriate card slot, or
plug a USB flash drive into the USB port on the side of the
frame.
3. Turn the frame on by sliding the Power switch to the On
position.
4.A slide show will begin automatically. To stop the slide show
press Exit.
Internal Memory and Memory Card Slots
Your digital picture frame includes 128 MB of built-in memory,
plus an Expansion
Memory card slot, allowing .you to increase
your storage capacity whenever you'd like. The Expansion
Memory slot lets you insert an extra SD memory card and use
it
to store photos, music and video files. The slot can be found
on the back of the frame under the sliding door.
The slot marked SD/MMC/MS/xD is meant to be used for your
regular memory card, such as the one you use in your camera.
USB flash drives can be inserted into the USB port on the side
of the frame.

QsMARTPARtS

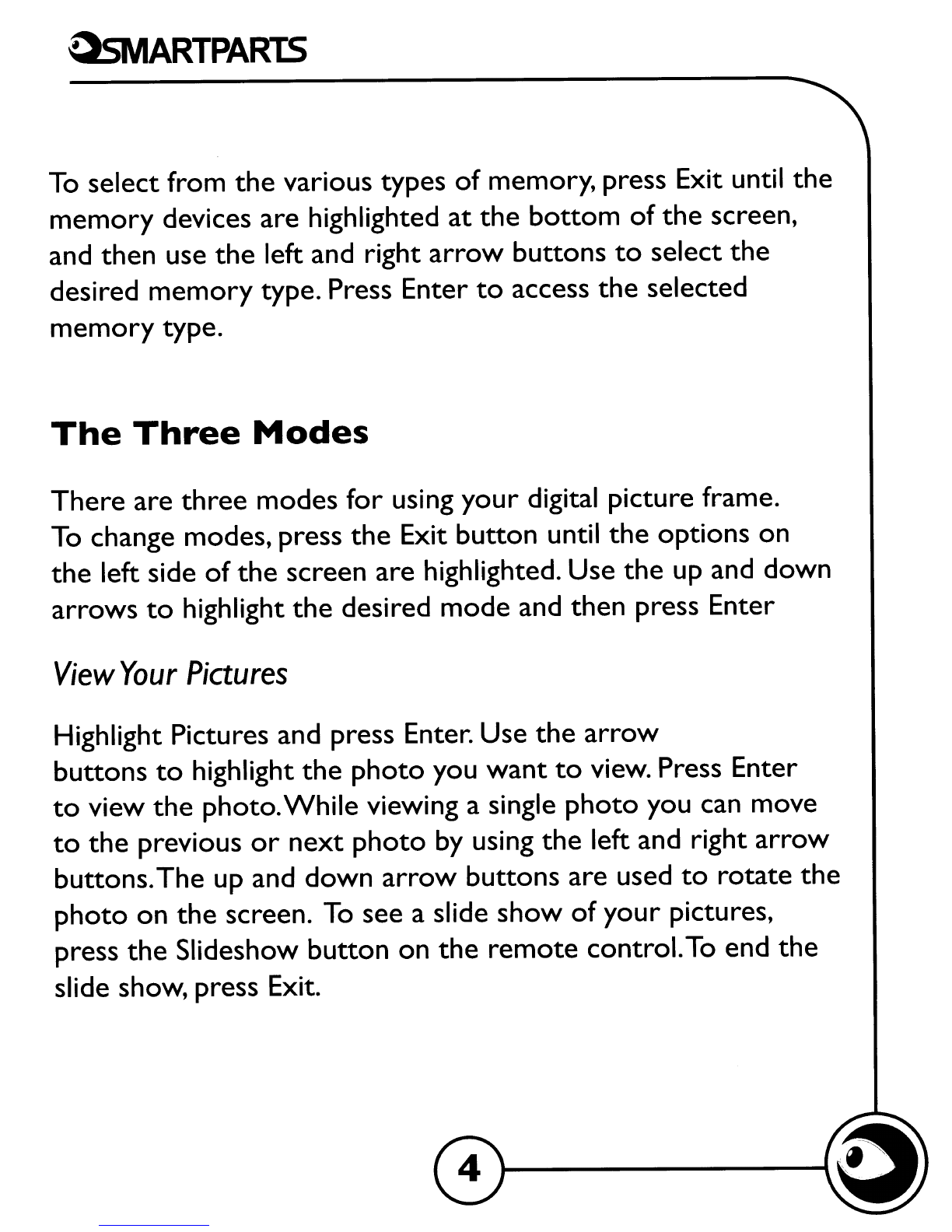

To select from the various types of memory, press Exit until the
memory devices are highlighted at the bottom of the screen,
and then use
the left and right arrow buttons to select the
desired memory type. Press Enter to access the selected
memory type.
The Three Modes
There are three modes for using your digital picture frame.
To change modes, press the Exit button until the options on
the left side of the screen are highlighted. Use the up and down
arrows
to highlight the desired mode and then press Enter
View Your Pictures
Highlight Pictures and press Enter. Use the arrow
buttons to highlight the photo you want to view. Press Enter
to view the photo.While viewing asingle photo you can move
to the previous or next photo by using the left and right arrow
buttons.The up and down arrow buttons are used to rotate the
photo on the screen. To see aslide show of your pictures,
press
the Slideshow button on the remote control.To end the
slide show, press Exit.

OsMARTPAR1S

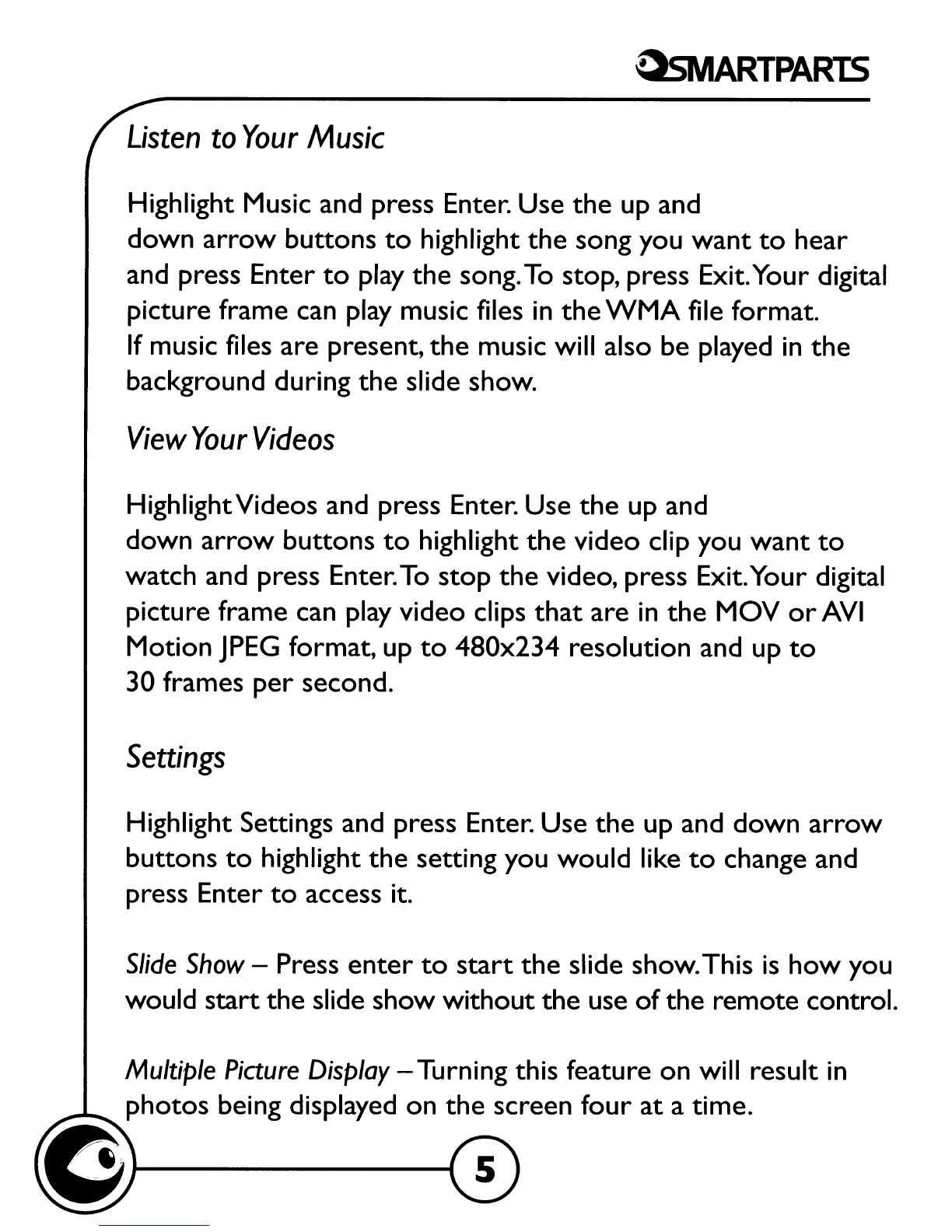

Listen to Your Music
Highlight Music and press Enter. Use the up and
down
arrow buttons to highlight the song you want to hear
and press Enter to play the song. To stop, press Exit.Your digital
picture frame can
play music files in the WMA file format.
If music files are present, the music will also be played in the
background during the slide show.
View Your Videos
HighlightVideos and press Enter. Use the up and
down
arrow buttons to highlight the video clip you want to
watch and press Enter.To stop the video, press Exit.Your digital
picture frame can play video clips
that are in the MOV or AVI
Motion JPEG format, up to 480x234 resolution and up to
30 frames per second.
Settings
Highlight Settings and press Enter. Use the up and down arrow
buttons to highlight the setting you would like to change and
press Enter
to access it.
Slide Show -Press enter to start the slide show.This is how you
would
start the slide show without the use of the remote control.

asMARTPARTS

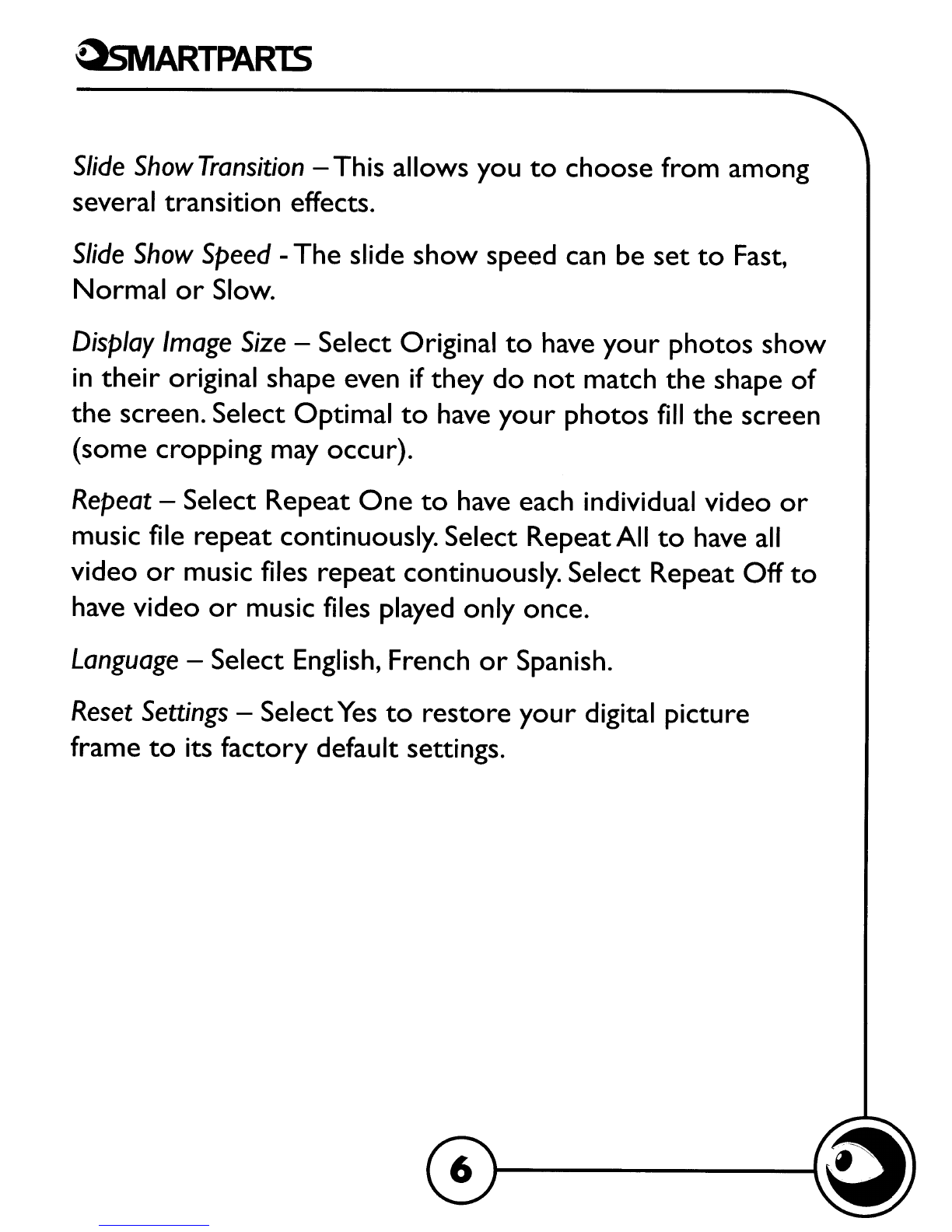

Slide Show Transition -This allows you to choose from among
several transition effects.
Slide Show Speed - The slide show speed can be set to Fast,
Normal
or Slow.
Display Image Size -Select Original to have your photos show
in their original shape even if they do not match the shape of
the screen. Select Optimal to have your photos fill the screen
(some cropping may occur).
Repeat -Select Repeat One to have each individual video or
music file repeat continuously. Select Repeat All to have all
video or music files repeat continuously. Select Repeat Off to
have video or music files played only once.
Language -Select English, French or Spanish.
Reset
Settings -Select Yes to restore your digital picture
frame
to its factory default settings.

QsMARTPARtS

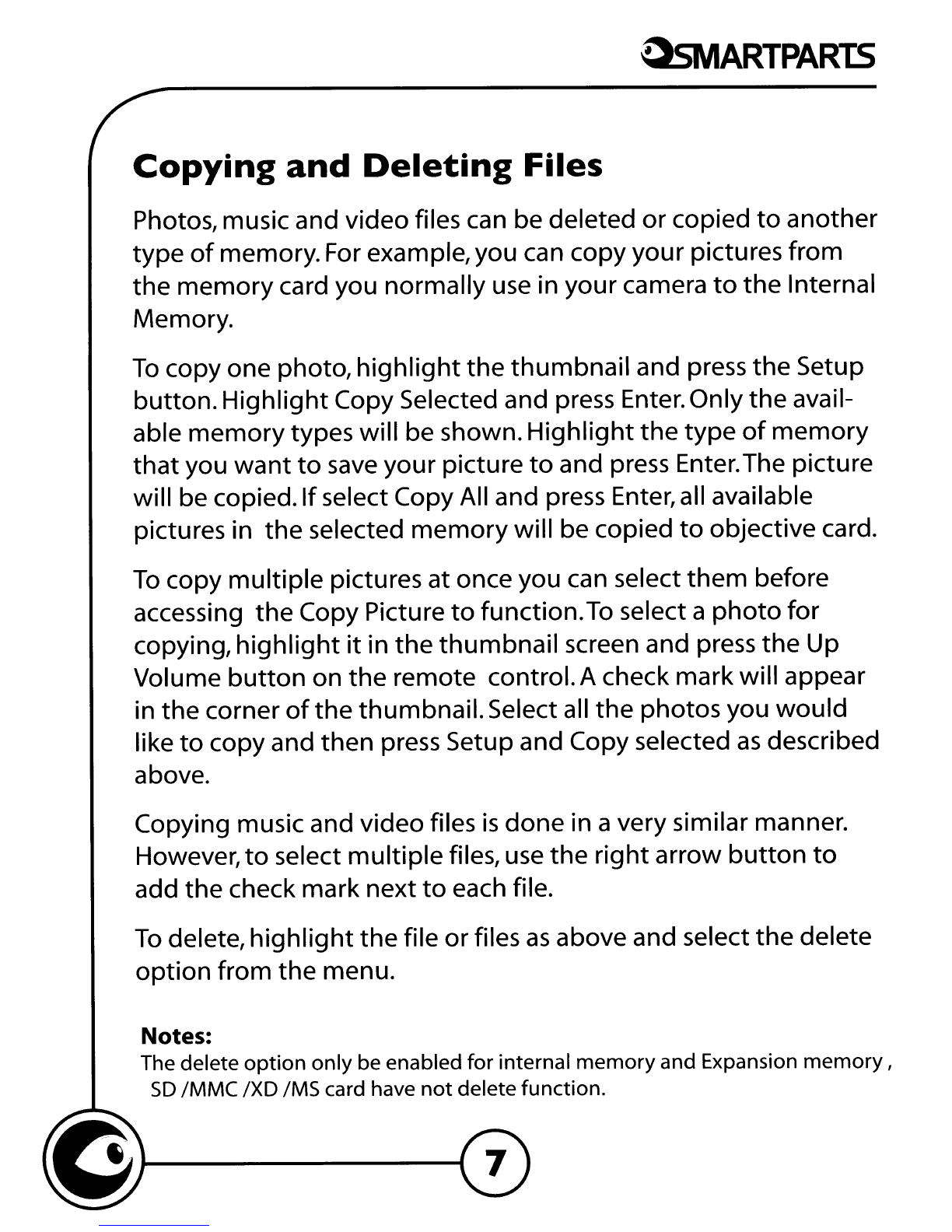

Copying and Deleting Files
Photos, music and video files can be deleted or copied to another
type of memory.For example,you can copy your pictures from
the
memory card you normally use in your camera to the Internal
Memory.
To copy one photo, highlight the thumbnail and press the Setup
button.
Highlight Copy Selected and press Enter. Only the avail-
able
memory types will be shown. Highlight the type of memory
that you want to save your picture to and press Enter.The picture
will be copied.
If select Copy All and press Enter, all available
pictures in the selected
memory will be copied to objective card.
To copy multiple pictures at once you can select them before
accessing the Copy Picture
to function. To select a photo for
copying,
highlight it in the thumbnail screen and press the Up
Volume
button on the remote control.Acheck mark will appear
in the corner
of the thumbnail.Select all the photos you would
like to copy and then press Setup and Copy selected as described
above.
Copying music and video files
is done in avery similar manner.
However,
to select multiple files, use the right arrow button to
add the check mark next to each file.
To delete, highlight the file or files as above and select the delete
option from the menu.
Notes:
The delete option only be enabled for internal memory and Expansion memory,
sD /MMC /XD /Ms card have not delete function.

QsMARTPARtS

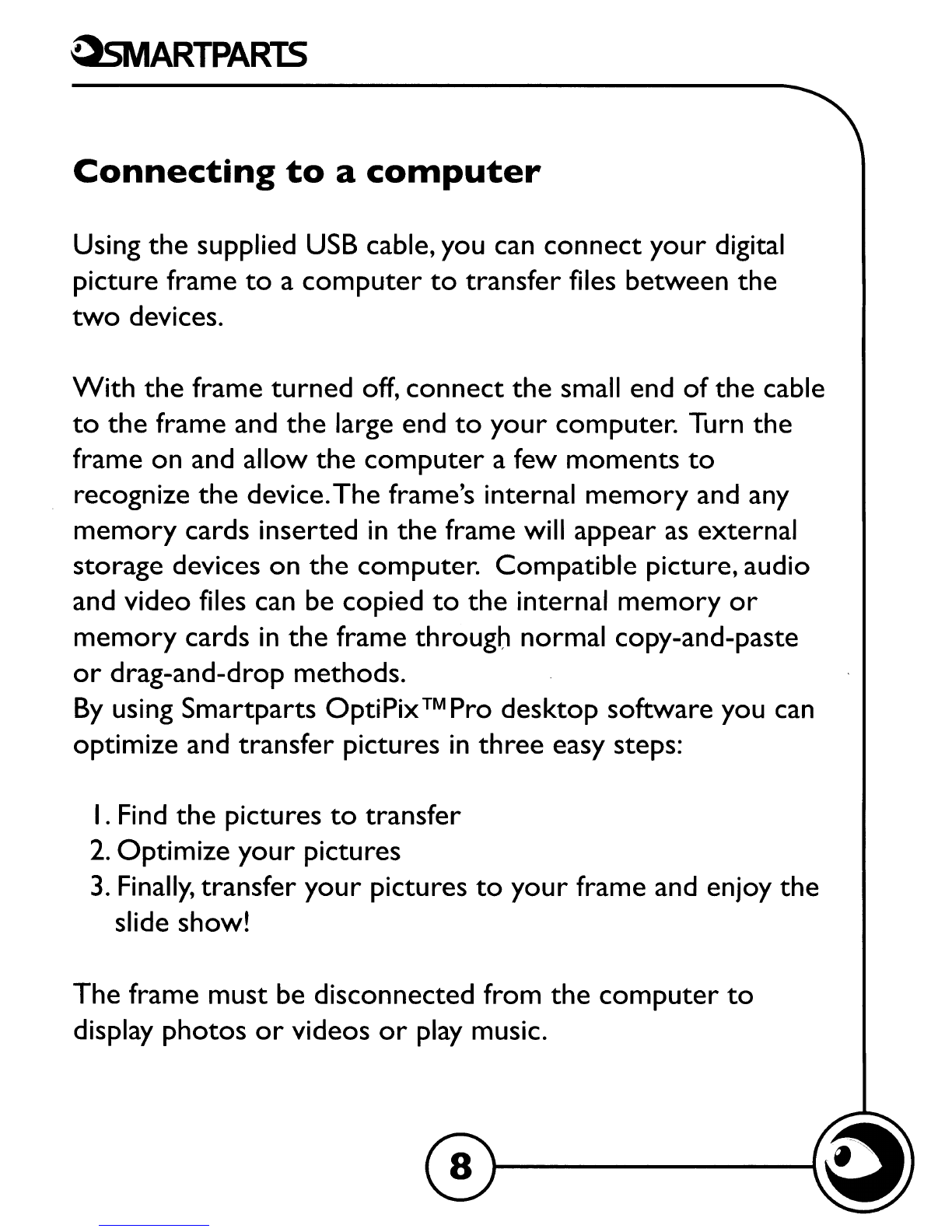

Connecting to a computer
Using the supplied USB cable, you can connect your digital
picture frame
to a computer to transfer files between the
two devices.
With the frame turned off, connect the small end of the cable
to the frame and the large end to your computer. Turn the
frame on and allow the computer afew moments to
recognize the device. The frame's internal memory and any
memory cards inserted in the frame will appear as external
storage devices
on the computer. Compatible picture, audio
and video files can be copied
to the internal memory or
memory cards in the frame through normal copy-and-paste
or drag-and-drop methods.
By using Smartparts OptiPix™Pro desktop software you can
optimize and transfer pictures
in three easy steps:
I. Find the pictures to transfer
2. Optimize your pictures
3. Finally, transfer your pictures to your frame and enjoy the
slide show!
The frame must be disconnected from the computer to
display photos or videos or play music.

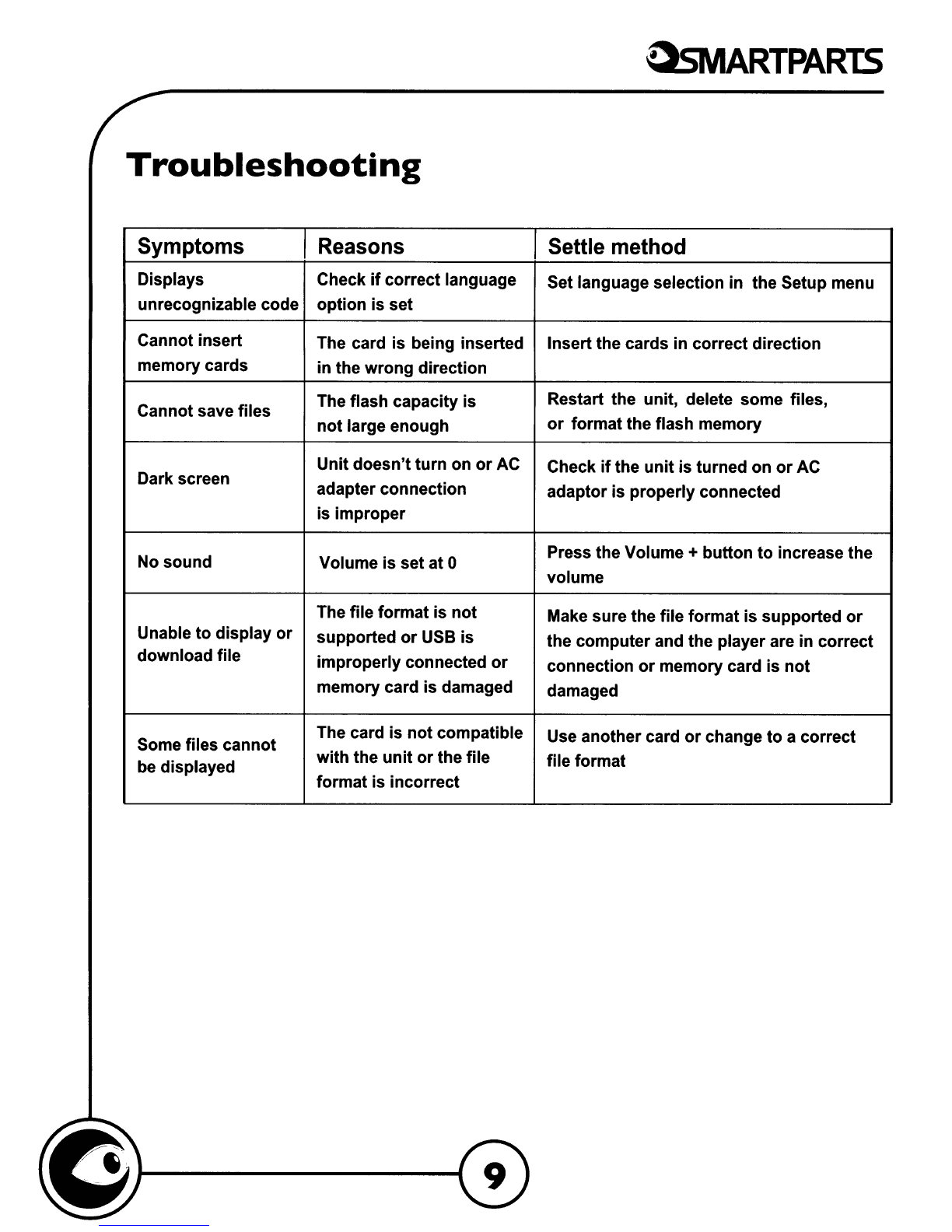

Troubleshooting
QsMARTPARTS
Symptoms Reasons Settle method
Displays Check
if correct language Set language selection in the Setup menu
unrecognizable code option is set
Cannot insert The card is being inserted Insert the cards in correct direction
memory cards in the wrong direction
The flash capacity is Restart the unit, delete some files,
Cannot save files not large enough
or format the flash memory
Unit doesn't turn on or AC
Check if the unit is turned on or AC
Dark screen adapter connection adaptor is properly connected
is improper
No sound Volume is set at 0Press the Volume +button to increase the
volume
The file format is not
Make sure the file format is supported or
Unable to display or supported
or USB is the computer and the player are in correct
download file improperly connected or connection
or memory card is not
memory card is damaged damaged
Some files cannot
The card is not compatible
Use another card or change to acorrect
be displayed with the unit orthe file file format
format is incorrect

QsMARTPARtS

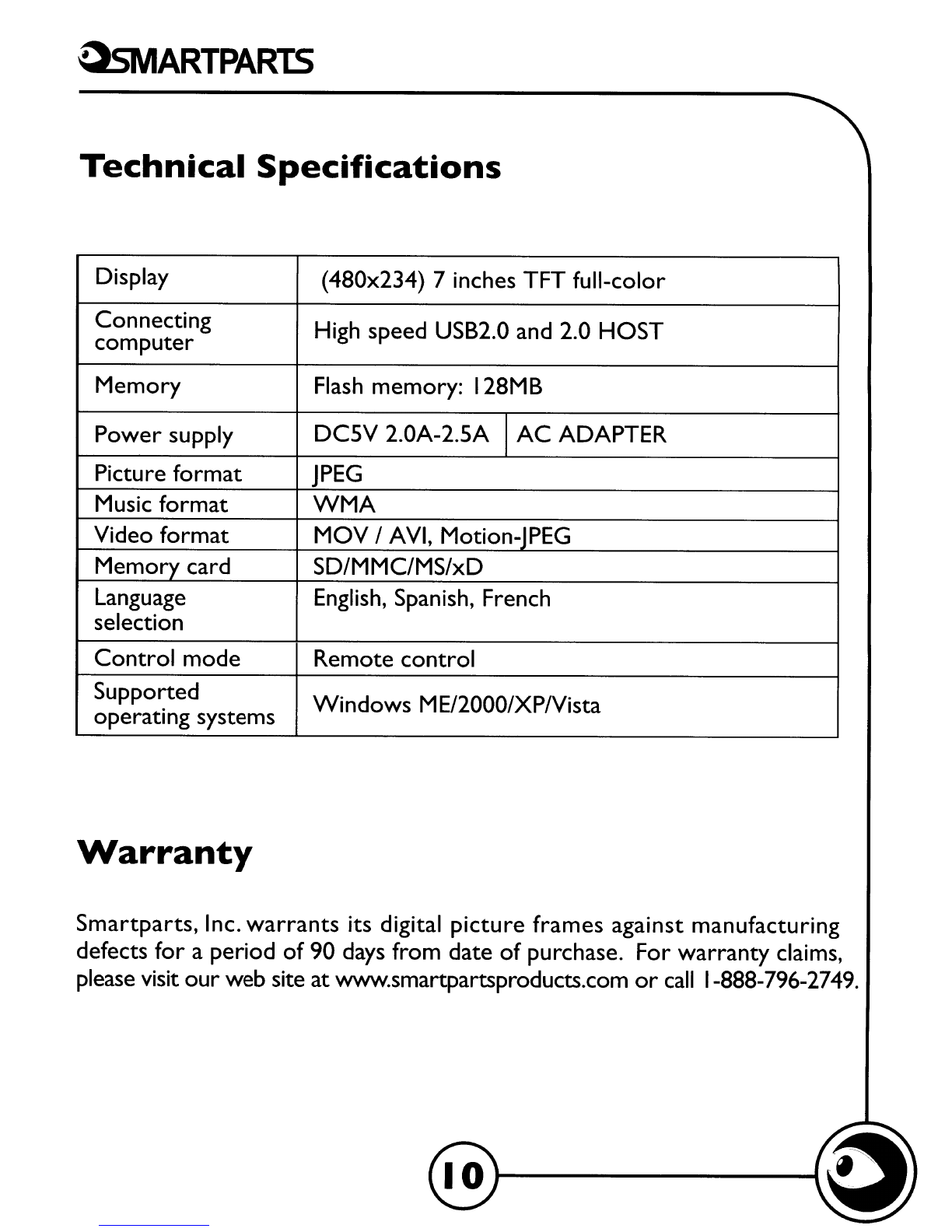

Technical Specifications
Display (480x234) 7inches TFT full-color
Connecting High
speed USB2.0 and 2.0 HOST
computer
Memory Flash memory: 128MB
Power supply DC5V 2.0A-2.5A I
AC ADAPTER
format
JPEG
Music
format
WMA
Video format
MOV / AVI, Motion-JPEG
Memory card SD/MMC/MS/xD
Language English, Spanish, French
selection
Control mode Remote control
Supported
Windows ME/2000/XPNista
operating systems
Warranty
Smartparts, Inc. warrants its digital picture frames against manufacturing
defects for aperiod of 90 days from date of purchase. For warranty claims,
please visit our web site at www.smartpartsproducts.com or call 1-888-796-2749.

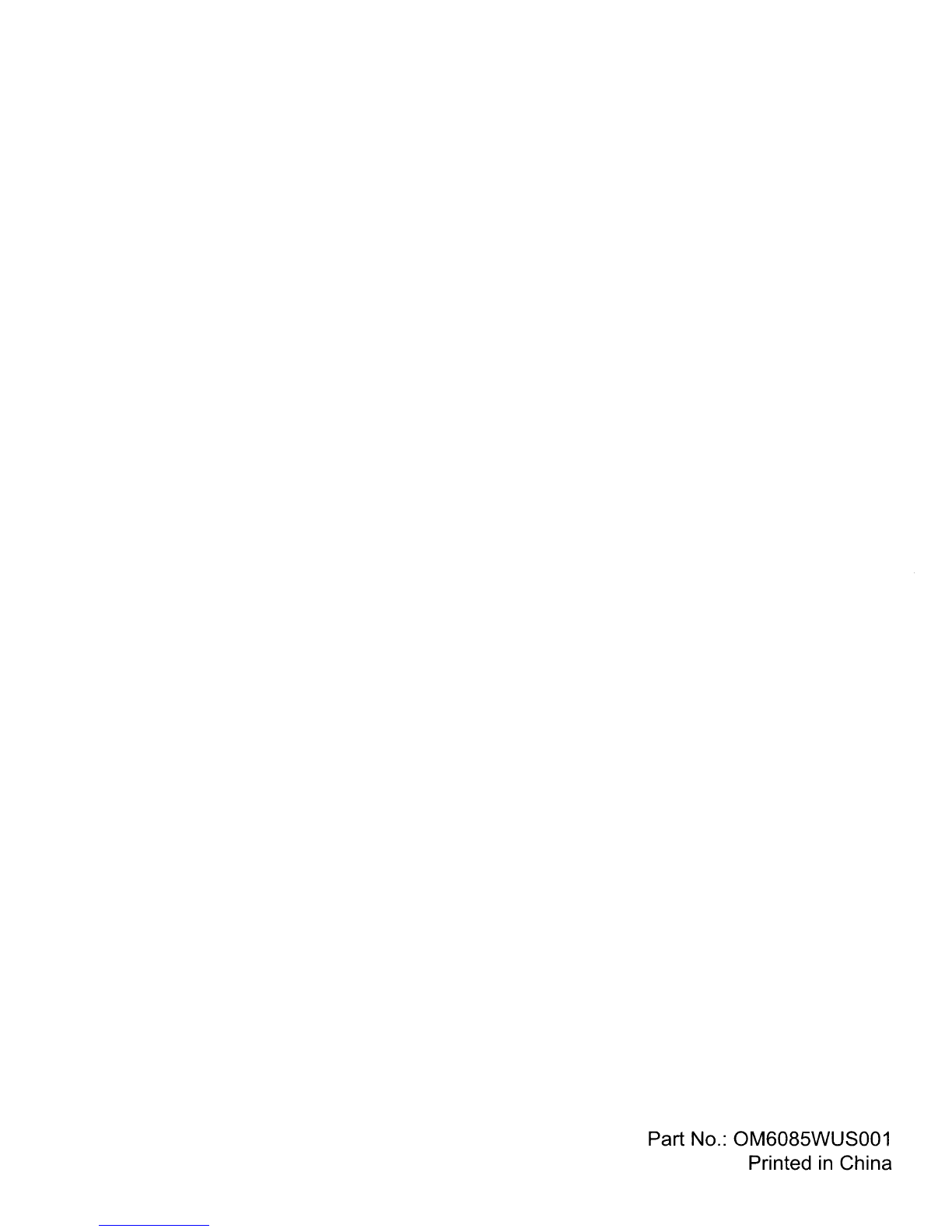

Part No.: OM6085WUS001
Printed
in China

ARTPARLS
QUICK START GUIDE
e Switch on the frame
Automatic slideshow will begin in a
few
seconds.
~~ 0 Insert memory card
into the card slot labeled SD/MMC/MS/xD
@ Insert AC Power
adapter into the DC input jack.
Plug
the power adapter into an
electrical
outlet.
For additional features and instruction~ please refer to the user manual.
www.smartpartsproducts.com
QG6085US001

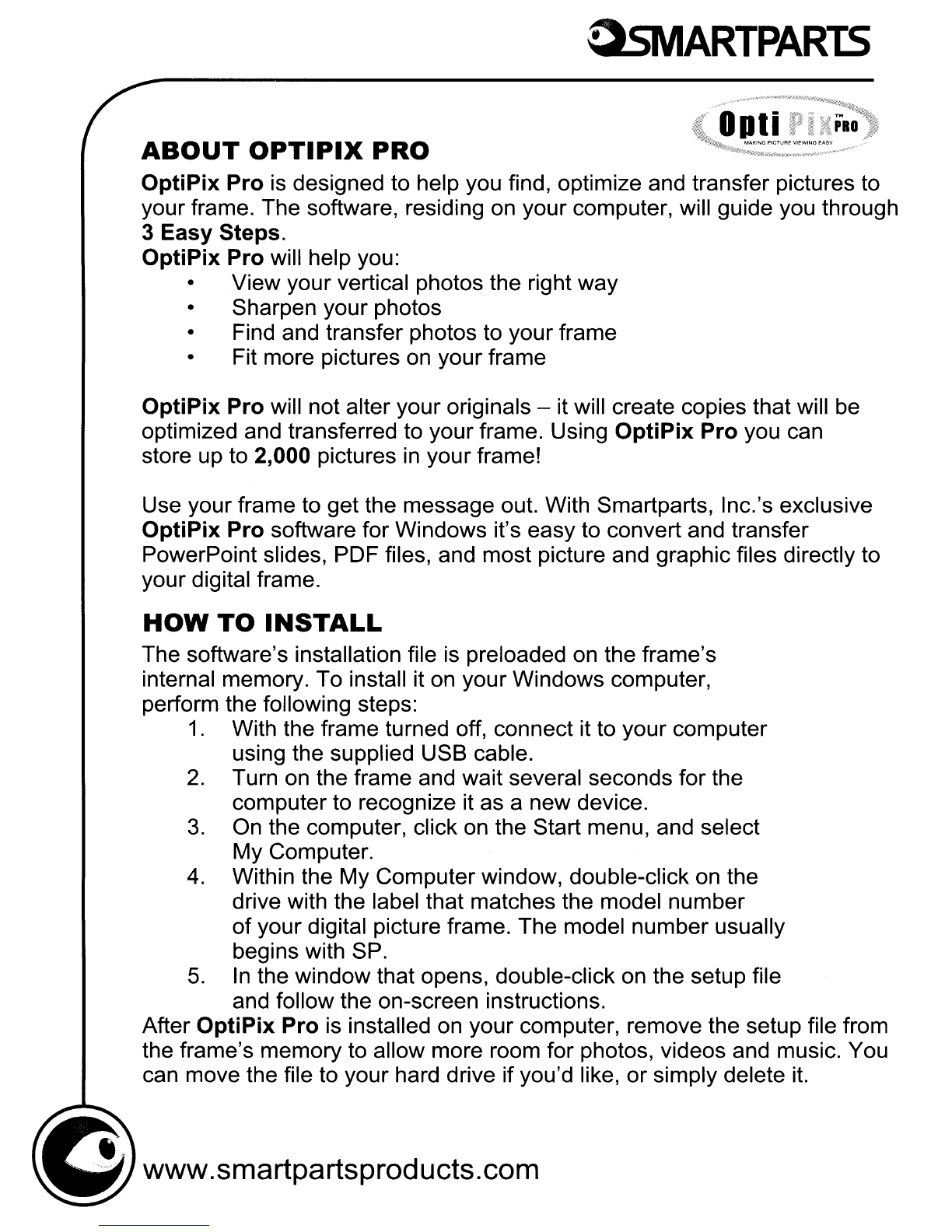

ABOUT OPTIPIX PRO
QsMARTPARtS
OPli
MAKING PICTURE VIEWING EA,SY
OptiPix Pro is designed to help you find, optimize and transfer pictures to
your frame. The software, residing on your computer, will guide you through
3Easy Steps.
OptiPix Pro will help you:
•View your vertical photos the right way
•Sharpen your photos
•Find and transfer photos to your frame
•Fit more pictures on your frame
OptiPix Pro will not alter your originals -it will create copies that will be
optimized and transferred to your frame. Using
OptiPix Pro you can
store up to 2,000 pictures
in your frame!
Use your frame to get the message out. With Smartparts, Inc.'s exclusive
OptiPix Pro software for Windows it's easy to convert and transfer
PowerPoint slides, PDF files, and most picture and graphic files directly to
your digital frame.
HOW TO INSTALL
The software's installation file is preloaded on the frame's
internal memory. To install it on your Windows computer,
perform the following steps:
1. With the frame turned off, connect it to your computer
using the supplied USB cable.
2. Turn on the frame and wait several seconds for the
computer to recognize it as anew device.
3. On the computer, click on the Start menu, and select
My Computer.
4. Within the My Computer window, double-click on the
drive with the label that matches the model number
of your digital picture frame. The model number usually
begins with SP.
5. In the window that opens, double-click on the setup file
and follow the on-screen instructions.
After OptiPix Pro is installed on your computer, remove the setup file from
the frame's memory to allow more room for photos, videos and music. You
can move the file to your hard drive if you'd like, or simply delete it.
