USER MANUAL
Digital Picture Frame
SP-DPF84

www.smartpartsproducts.com Page 2
Table of Contents
Overview .................................................................................................... 4
Features ..................................................................................................... 5
Getting Started ...........................................................................................5
a. Unpacking your Digital Picture Frame 5
b. Removing the protective plastic film 5
c. Attaching the Fold Out stand 6
d. Connecting the frame to the Power Supply 6
e. Connecting the frame to a computer 6
Changing and Adding Pictures ……………………………………….....7
a. View contents on your memory card 7
b. Formatting pictures from your computer 8
c. Using Smartparts website for HELP 8
Product Diagram ………………………………………………………….9
Viewing Pictures …………………………………………………..……..11
a. Turning the frame on 12
b. Selecting the mode 12
The Photo Folder ………………………………………………………...12
a. Viewing a picture 12
b. Rotating a picture 12
c. Slideshow mode 12
d. Delete a picture 13

www.smartpartsproducts.com Page 3
The Music Folder …..………………………………………………..…..13
a. Playing Music 13
b. Play / Pause Music 14
c. Volume 14
Set Up Menu …………………………………………………………....14
a. Photo Options 15
b. Music Mode 16
c. Systems Mode 16
Warranty and Technical Support ……………………………………...16

www.smartpartsproducts.com Page 4
Overview
¾The SP-DPF84 Digital Picture Frame lets you view your
digital pictures and listen to your MP 3 music from
memory cards.
¾You can enjoy or edit your photos any time and
anywhere.
¾The frame is an ideal way to display your digital
photographs
¾The Slide Show mode is a convenient method to display
all your picture in a continuous mode – it offers you many
pre –programmed transitions from slide to slide
¾Most functions of your digital picture frame can be
controlled from the enclosed Remote Control
¾The Digital Picture Frame doesn’t require a direct
connection to a computer – the build-in card reader can
read memory cards
¾It supports most popular types of memory cards and file
formats
¾The digital picture frame is a digital photo album – that
let’s you display hundreds of pictures – anywhere in your
home or office
¾It can be connected to a computer and pictures can be
up-loaded (from computer to memory card) or
downloaded (from memory card to computer)
¾Music in the MP3 format can be played on the Digital
Picture Frame
¾The frame should not be “On” for more than 10
hours at a time

www.smartpartsproducts.com Page 5
Features
¾The SP-DPF84 supports JPEG and MP3 music files
¾The resolution of the screen is 800 x 600
¾Compatible with: Compact Flash (CF), Secure Digital (SD).
Memory Stick (MS) and Xtreme Digital (xD) memory cards
¾USB 2.0 connection – compatible with Windows XP and
Windows 2000
¾The frame allows user to delete, rotate and/or pan pictures,
play Music (MP3 format), create slide shows and move
pictures between the memory cards and a computer
Getting Started
The following chapter provides step-by-step instructions on setting
up your Digital Picture Frame for the first time.
a. Unpacking your Digital Picture Frame
The box should include:
-SP-DPF 84 digital picture frame
-User Manual
-Remote Control
-USB cable
-AC Power Adapter
b. Removing the protective plastic film from the LCD panel
The digital picture frame ships with a protective plastic film on

www.smartpartsproducts.com Page 6
its LCD panel to protect it from being scratched during the
manufacturing and shipping process.
We suggest you remove the film to improve the quality /
clarity of the picture. Please be advised however that the LCD
screen scratch easily and the film will protect it.
c. Connecting the frame to the Power Supply
Use only the supplied AC power supply. Make sure that the
frame’s power switch is in the OFF position before you
connect or disconnect the power supply.
Plug the AC power supply only into a 120 VAC 60 Hz (regular
North American) wall outlets – connecting the frame to a
different power source or wall outlet will harm the unit and
void the warranty.
d. Connecting the frame to your computer (optional)
Use the supplied USB cable and connect the frame to your
computer.
The Hardware wizard will show that you connected a new
device and will recognize it as a disk drive.
No software needs to be installed. Just follow the start menu
and click on “My Computer” – your memory card will be listed
under “Devices with Removable Storage”. You can open it by
double clicking on the icon representing your memory card.
Most likely this device will be named after the manufacturer of
your memory card.
There will be no data available as long as you do not insert a
memory card into your frame.
Once you insert a memory you will see the respective drive
on your computer and you will be able to access your pictures
and the frame can act as a regular card reader.
Please note that the Digital Picture Frame will not display
pictures while it is connected to a computer. Please
disconnect the USB cable to view pictures.

www.smartpartsproducts.com Page 7
Changing & adding pictures on your memory card
The following chapter provides step-by-step instructions on how to
add and format pictures from your computer onto your memory
card for viewing in your Digital Picture Frame.
TECHNICAL ALERT:
The pictures have to be stored in the correct folder on your
memory for the Digital Picture Frame to display the pictures!
The pictures have to be stored in the right file format with the
correct file naming!
a. View Contents on your memory card
After you connect your frame to your computer you can see
your memory card under “My Computer” as an external drive.
By clicking on the symbol you will get access to the DCIM
folder. All pictures are stores in this folder and all NEW
pictures HAVE to be stored in this folder as well.
b. Formatting the Pictures from your computer
The preferred file format for the Digital Picture Frame is
JPEG. However, there are different variations of the JPEG
format and not all formats can be read by the Digital Picture
Frame or your Digital Camera.
We recommend using standard Microsoft picture editing
software to save your pictures in JPEG format. Even
PHOTOSHOP or PHOTOSHOP ELEMENTS files should be
opened in a standard Microsoft Picture Editor and saved as a
JPEG file to the memory card.
We also recommend naming the pictures without using
underscores or more then 4 number digits in the name.

www.smartpartsproducts.com Page 8
c. Using Smartparts Website for HELP
We provide a useful tool on our website to help you:
- Save your pictures in the proper and
readable format
- Name your pictures so the Digital Picture
Frame can find and read it
- Save it in the proper resolution – so you can
maximize the space on your memory card
and speed up the functions in your Digital
Picture Frame
Please log on to www.smartpartsproducts.com and click on
“My Photos”.
Please register under your name – your access will be
immediate.
Now you can browse for the pictures on your computer and
upload and preview them in the frame illustrated on our
website.
Once the file is uploaded you can just copy drag and drop or
by right – clicking on the picture and saving it into the DCIM
file on your memory card.
Product Diagram

www.smartpartsproducts.com Page 9
1
2
3
4
5
6
7
9
8

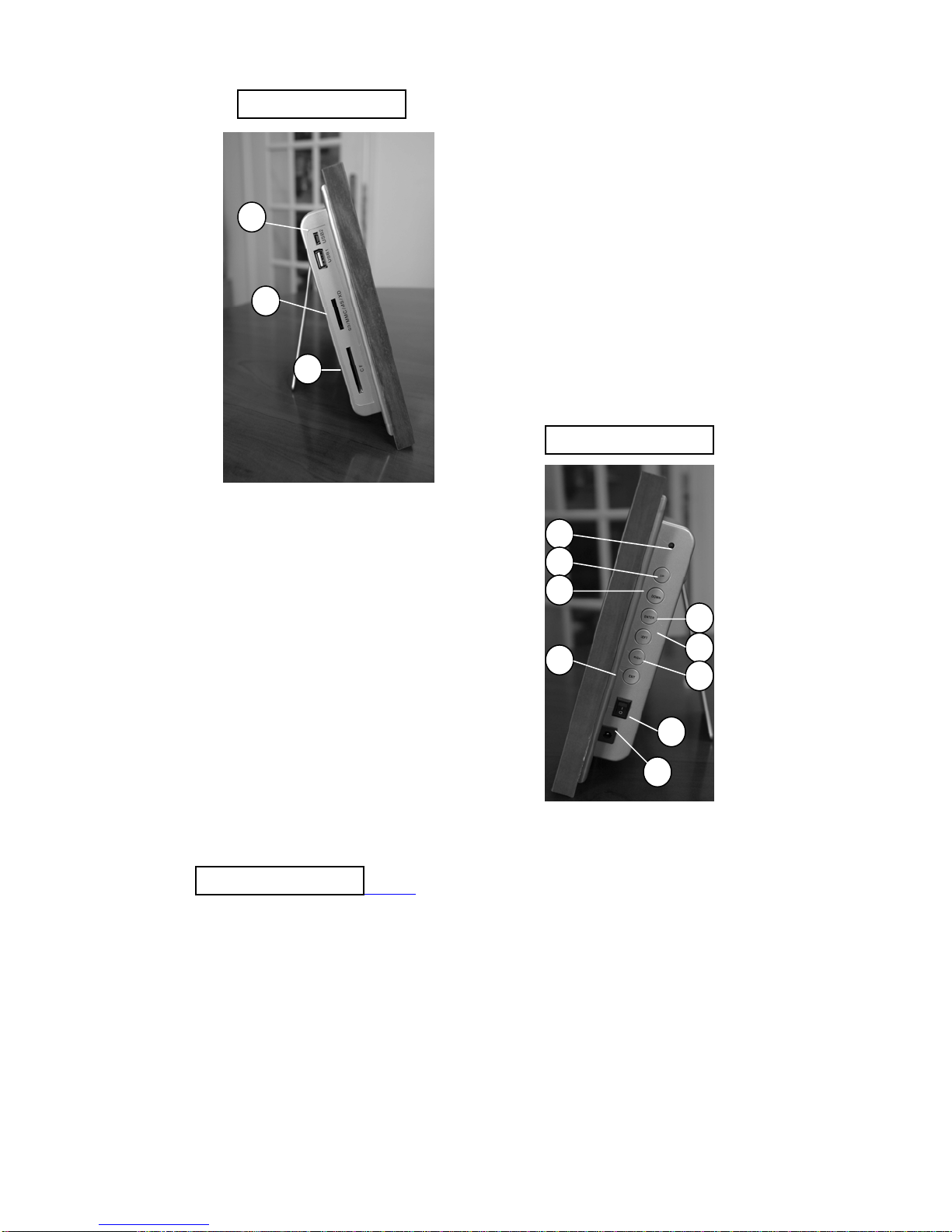

1. Power Indicator Light
2. Cursor Up in Set Up & Preview
mode
3. Cursor Down in Set Up &
Preview mode
4. Enter – selection button
5. Rotate Left
6. Rotate Right
7. Exit – “go back” button
8. On / Off switch
9. AC power
Side View - Ri
g
ht
1
2
3
1. USB 2.0 Connection
2. SD / MS / xD card reader slot
3. CF / Micro Drive card reader slot
Side View - Left
Remote Control

www.smartpartsproducts.com Page 10

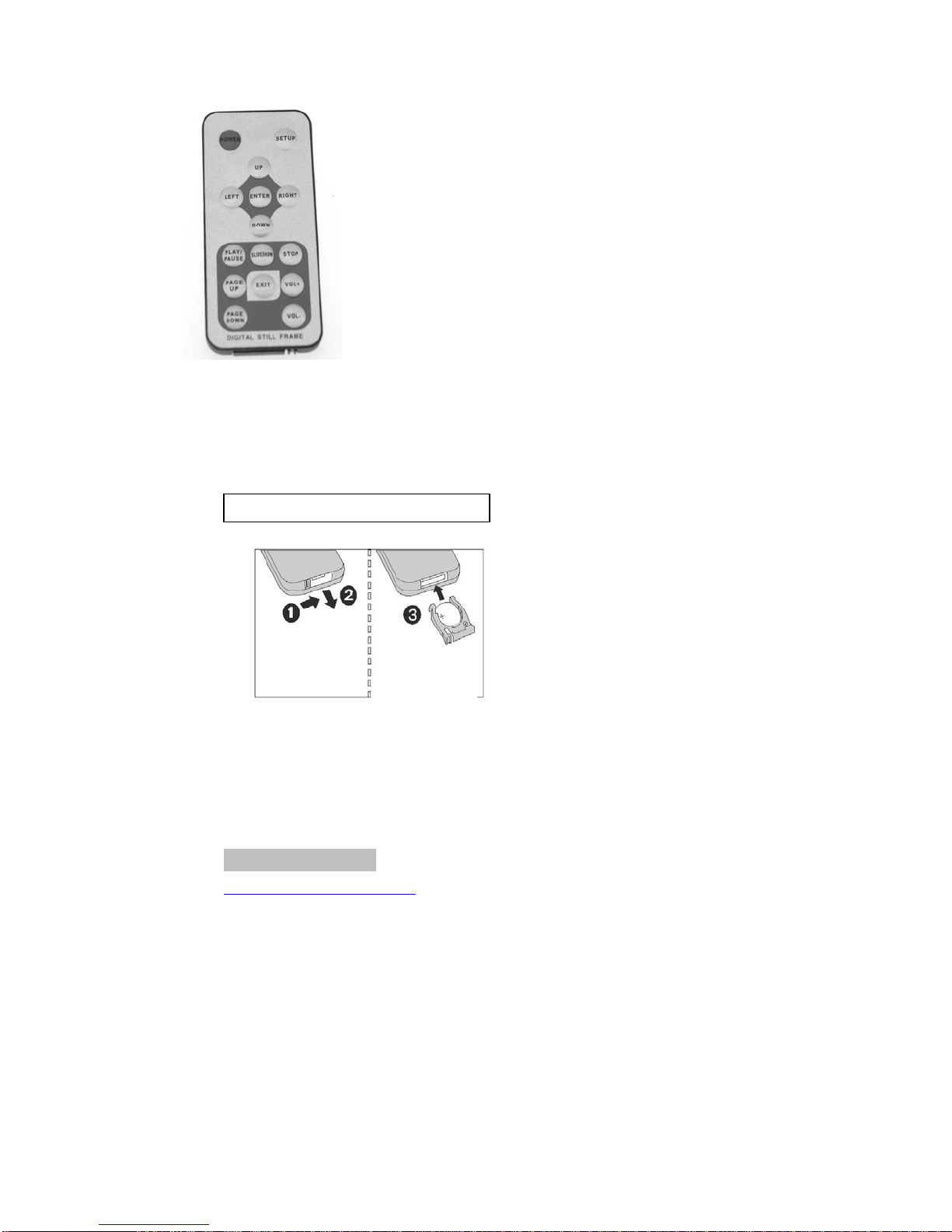

Hold the remote control, push the button right, and pull the button to
the outside. Then put the battery (Model CR2025) into the button with
“+” Polarity facing up, and then push it back to the place.
Viewing Pictures
POWER: Turn Power on and off (Switch on
Frame needs to be on “On”)
Set-Up: General Options Set-Up screen
Up: Cursor Up / Rotate Picture Right
Down: Cursor Down / Rotate Picture Left
Left: Cursor Left / Skip to previous Picture
Right: Cursor Right / Skip to the next picture
Enter: Selection
Play/Pause: Play / Pause Slideshow
Slideshow: Start Slideshow
Stop: Stop Slideshow
Page-Up: Turns page up in preview mode
Page-Down: Turns page down in preview mode
Exit: Exit and “Go-Back”
VOL +: Turn up volume
VOL - : Turn down volume
“+”Polarity is up
Note: Before using remote
control, please remove the
protective tab.
Remote Control - Maintenance

www.smartpartsproducts.com Page 11
a. Turning the Frame on
Connect your Digital Picture Frame to the AC adapter.
Insert a memory card into the respective slot.
Turn the power switch on.
b. Selecting the Mode

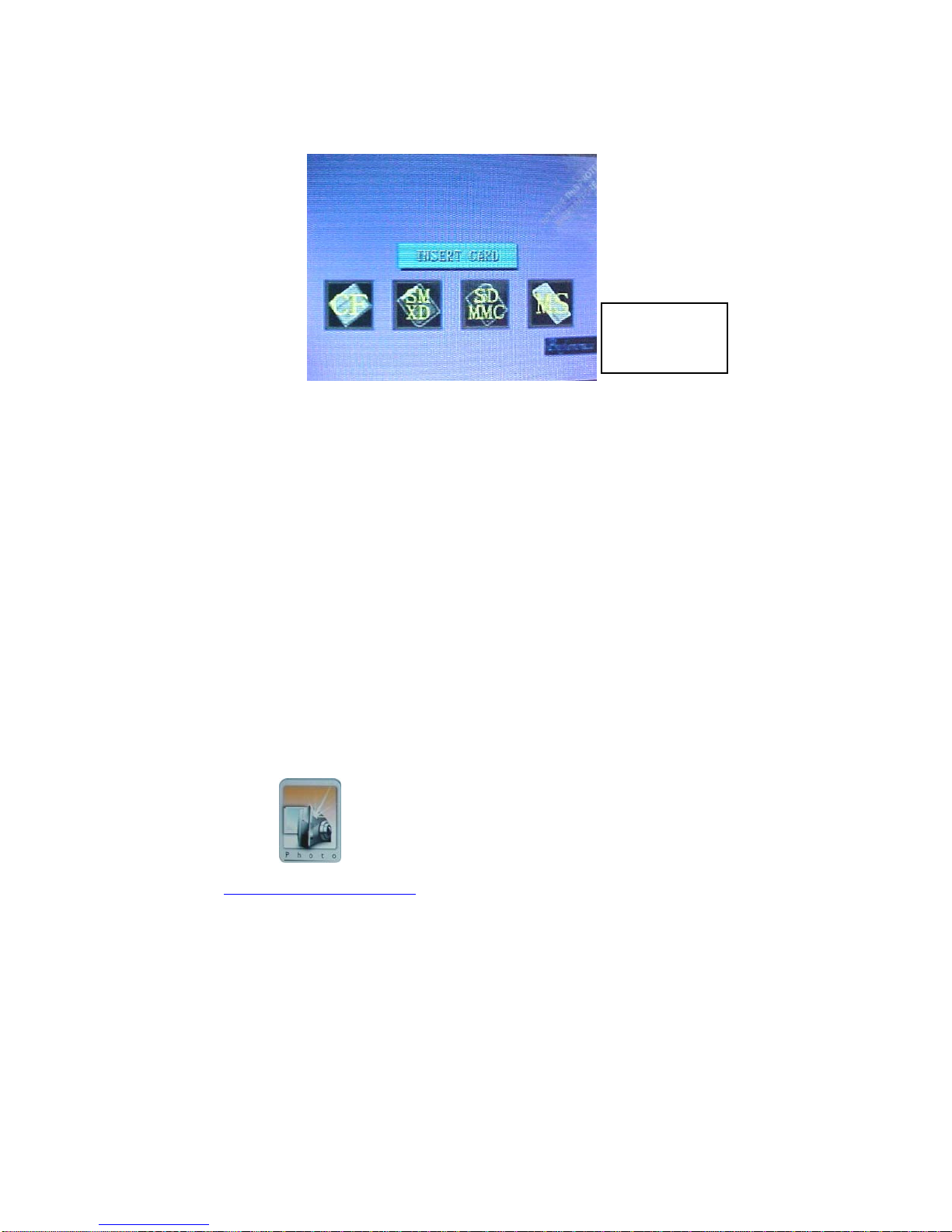

The first screen you will see are the symbols for the
different types of memory cards. Please select the type
that corresponds with the type of card you are using. The
frame should automatically detect the right card format
and highlight it on your screen.
Make the selection by using the ENTER button.

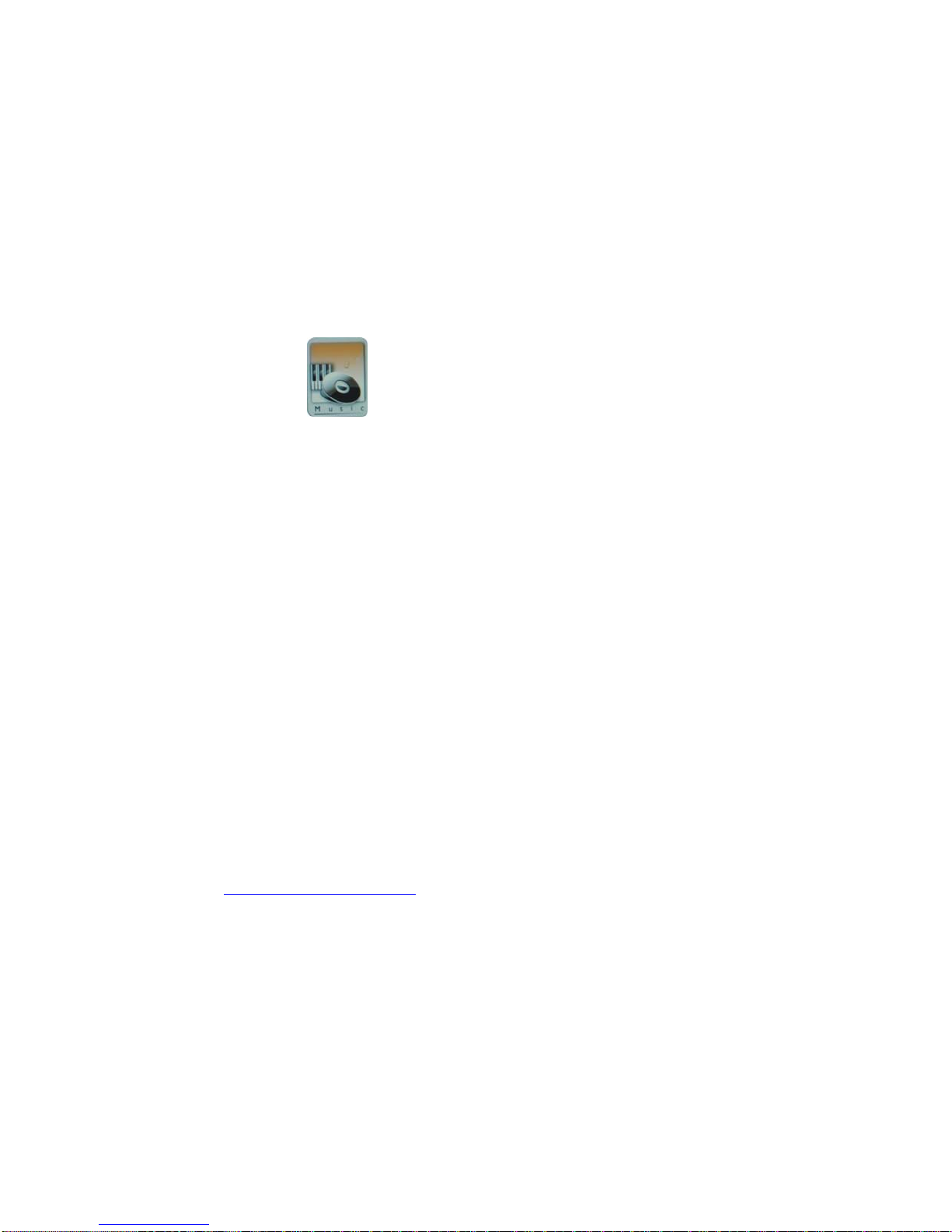

The frame will display 3 folder symbols – you can
navigate from Folder to Folder using the Left / Right
button on your remote control or your frame. To select
your folder please press ENTER.
The Photo Folder
* Sample screenshot
– the actual picture
may vary – due to
software upgrades

www.smartpartsproducts.com Page 12

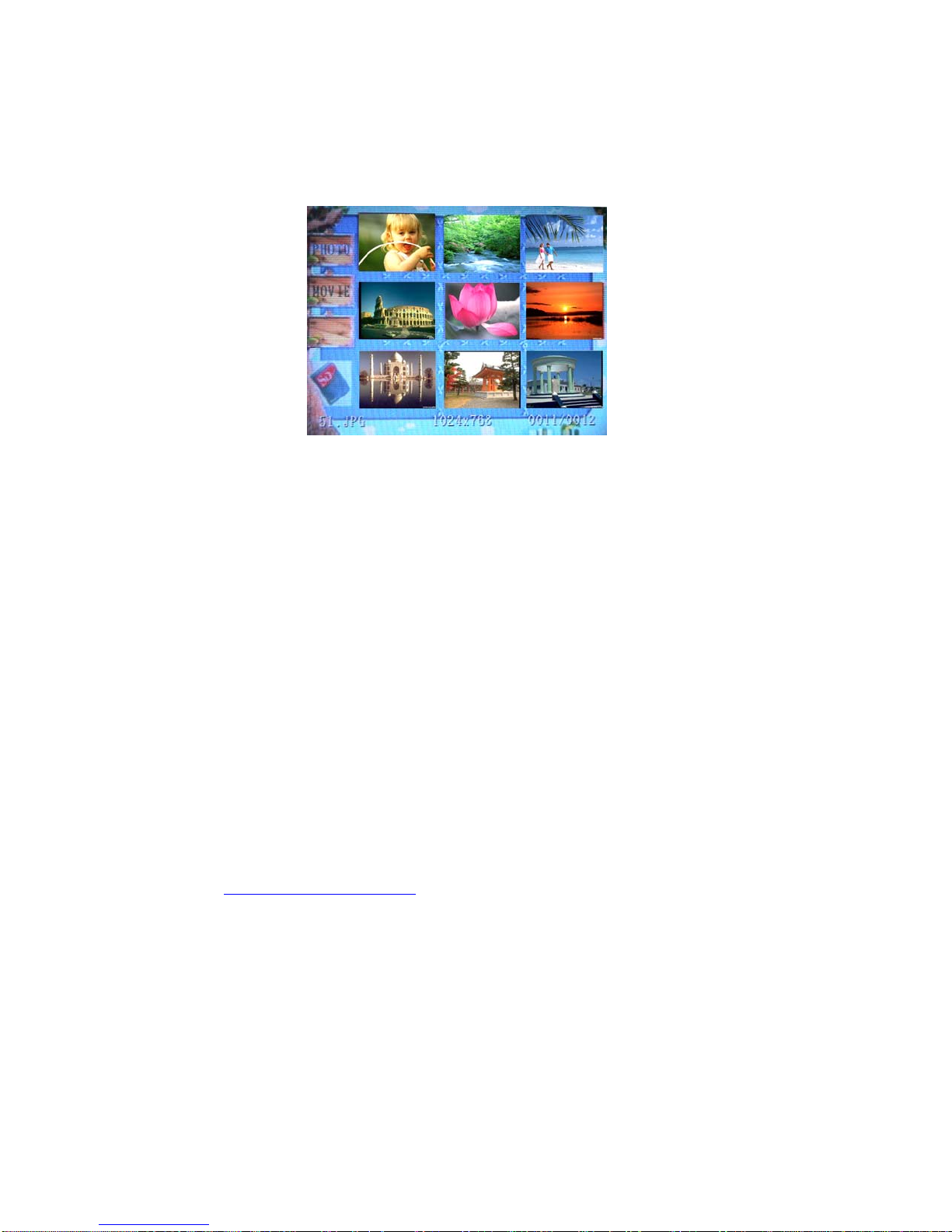

The frame will now preview all the pictures that are on the
card. The frame will display 9 pictures in the preview
mode at a time. You can scroll up and down using the
Page UP and Page DN buttons on your remote control
You can use your cursor buttons on your remote control
or on the Digital Picture Frame to move from one picture
to another.
a. Viewing a Picture
Once you selected your picture in the preview mode you
can display the full picture by pressing the ENTER button
b. Rotating a picture
If a picture was taken vertically – you can select the
picture and press the Left or Right button on your frame –
the frame will rotate the picture by 90 degrees. Pressing
the Left / Right button repeatedly will allow you to rotate
the picture up to 360 degrees.
c. Slideshow
Select any picture in the preview mode and press
ENTER. Then press SLIDESHOW on your remote control
or frame.
The frame will display all your pictures in a slide show. It
will show all your pictures continuously.
To return to the PREVIEW mode – just press the EXIT

www.smartpartsproducts.com Page 13
button on your remote control.
d. Delete a picture
While in the preview mode (multiple pictures on your
screen) you can delete one or all pictures on your card.
Make sure you are in the preview mode and press the
Set-Up button on your remote control.
Select the function Delete or Delete All and press enter.
The file will be deleted from your card.
Press the Exit button to get back to the previous menu
and leave the Set Up mode.
The Music Folder
The frame will now preview all the MP3 music / sound
files that are on the card. The frame will display 8 files in
the preview mode at a time.
You can scroll up and down using the Page UP and Page
DN buttons on your remote control
You can use your cursor buttons on your remote control
or on the Digital Picture Frame to move from one file to
another.
You can always exit the music player by pressing the Exit
button and return to the Preview menu. Pressing Exit
again will bring you back to the Mode Selection Menu.
a. Playing Music
Once you selected your music file in the preview mode
you can play the file by pressing the ENTER button.
b. Play / Pause
You can Play / Pause and Stop the music file.
c. Volume
You can turn up or turn down the volume using the

www.smartpartsproducts.com Page 14
Volume buttons on your remote control.
The File Folder
The frame will now preview all the files on your card. If
they are picture files you will see a low resolution version
of that picture.
The Set Up Menu
The Set Up menu let’s you pre-set some of the major functions on
your frame.
Press the Set-Up button on your remote control while you are in
the Select Mode or Select Card Mode!
The menu gives you 3 Main Choices:
MUSIC
SYSTEM
And the choice to EXIT.
a. Photo Option
In this mode you can pre-set the options for displaying your
pictures and particularly the options for your slideshow.
You select your options by pressing Enter and return to the

www.smartpartsproducts.com Page 15
previous menu option by pressing the Exit button.
INFORMATION
The frame can display the picture settings while displaying
the pictures such as file size and file name, etc. This option
lets you set whether you want the frame to display the
information or not.
Regardless of the setting you choose – the frame will not
display the information while in the slideshow mode.
Information will only be displayed in the Preview or Single
Picture mode.
INTERVAL
This option lets you set the “time” for the transition
between slides in the slideshow mode. You have the option
to select from 4 different speeds.
TRANSITION
This option lets you preset the transitions between slides in
the Slideshow mode.
You can choose from 10 different transition modes.
We suggest you choose the “Random” option. This option
will pick on its own the different transition modes and apply
them to different pictures.
SLIDE MUSIC
This option lets you choose to run music while displaying
your pictures in the Slideshow mode.
This option only applies if you do have MP 3 files on your
memory card along with your pictures.
b. Music Mode
In the Music Mode you can pre set some basic playing
options for your MP 3 files.

www.smartpartsproducts.com Page 16
REPEAT
The Repeat function lets you pre set whether you repeat
your songs one at a time or none of them.
c. System Mode
The Systems mode lets you pre set your language.
Warranty and Technical Support
Please refer to our website at www.smartpartsproducts.com
for Technical Support and Warranty information.
