Smeg SA9058X User manual

Contents
3
1INSTRUCTIONS SAFETY AND US
E
_
_______________________________
_
________
4
2INSTRUCTIONS FOR DISPOSAL – OUR ENVIROMENTAL CARE _________________6
3INSTALLATION OF THE APPLIANCE ________________________________________7
4ADAPTATION TO DIFFERENT GAS TYPES __________________________________11
5FINAL PROCEDURES____________________________________________________13
6DESCRIPTION OF CONTROLS ON THE FRONT PANEL________________________14
7USING THE HOB________________________________________________________16
8USING THE OVEN ______________________________________________________17
9ELECTRONIC PROGRAMMER (ONLY FOR MODELS WHICH ARE EQUIPPED WITH
ONE)______________________________________________________________________19
10 AVAILABLE ACCESSORIES_______________________________________________21
11 CLEANING AND MAINTENANCE ___________________________________________22
12 EXTRAORDINARY MAINTENANCE _________________________________________24
THESE INSTRUCTIONS ARE ONLY VALID FOR THE DESTINATION COUNTRIES WHOSE
IDENTIFICATION SYMBOLS APPEAR ON THE FRONT OF THIS GUIDE.
INSTALLER INSTRUCTIONS: these are intended for the qualified technician who must carry out a
suitable check on the gas circuit and install, start up and test the appliance.
USER INSTRUCTIONS: these contain recommendations for use, a description of the controls and the
correct procedures for cleaning and maintaining the appliance.

Introduction
4
1INSTRUCTIONS SAFETY AND USE
THIS GUIDE IS AN INTEGRAL PART OF THE APPLIANCE. IT SHOULD BE KEPT IN A SAFE
PLACE WITHIN EASY REACH THROUGHOUT THE LIFE CYCLE OF THE COOKING RANGE. WE
RECOMMEND THAT YOU READ THIS GUIDE CAREFULLY TOGETHER WITH ALL THE
INSTRUCTIONS GIVEN BEFORE USING THE COOKING RANGE. ENSURE YOU ALSO KEEP
THE INJECTORS PROVIDED WITH THE APPLIANCE. THE APPLIANCE MUST BE INSTALLED
BY QUALIFIED PERSONNEL AND IN ACCORDANCE WITH THE APPLICABLE LEGISLATION.
THIS APPLIANCE IS INTENDED FOR DOMESTIC USE ONLY AND IT MEETS THE
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN DESIGNED TO CARRY OUT THE
FOLLOWING FUNCTION: COOKING AND HEATING FOOD; IT IS NOT SUITABLE FOR ANY
OTHER USE.
THE MANUFACTURER DOES NOT ACCEPT ANY RESPONSIBILITY IN THE EVENT THAT THE
COOKING RANGE IS USED OTHER THAN AS INDICATED IN THIS GUIDE.
DO NOT DISCARD THE PACKAGING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS
PACKAGING MATERIALS AND TAKE THEM TO YOUR NEAREST COLLECTION CENTRE.
THE APPLIANCE MUST BE EARTHED IN COMPLIANCE WITH THE ELECTRICAL SYSTEM
SAFETY REGULATIONS.
THE PLUG TO BE ATTACHED TO THE SUPPLY CABLE AND THE CORRESPONDING SOCKET
MUST BE THE SAME TYPE AND MUST MEET THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE ONCE THE APPLIANCE HAS BEEN FITTED IN PLACE.
NEVER REMOVE THE PLUG FROM THE ELECTRICAL SUPPLY BY PULLING ON THE CABLE.
AFTER INSTALLATION, CHECK THE APPLIANCE IN ACCORDANCE WITH THE INSTRUCTIONS
GIVEN BELOW. IF IT IS NOT OPERATING PROPERLY, TURN OFF THE ELECTRICAL SUPPLY TO
THE APPLIANCE AND CONTACT YOUR NEAREST AFTER-SALES SERVICE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
EVERY TIME YOU FINISH USING THE APPLIANCE, MAKE SURE THAT THE CONTROL KNOBS
ARE SET TO (OFF).
NEVER PUT FLAMMABLE OBJECTS INSIDE THE OVEN: IN THE EVENT OF AN ACCIDENTAL
SWITCH-ON, THIS COULD LEAD TO FIRE.
THE ID PLATE CONTAINING ALL THE TECHNICAL DATA, THE SERIAL NUMBER AND BRAND
NAME IS AFFIXED INSIDE THE STORAGE COMPARTMENT.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
DO NOT PUT SAUCEPANS ON THE HOB RACKS UNLESS THEIR BASES ARE PERFECTLY
FLAT AND EVEN.

Introduction
5
DO NOT USE COOKWARE OR BAKING TRAYS WHICH ARE LARGER THAN THE HOB.
WHEN LOWERING THE GLASS COVER ONTO THE HOB, KEEP HOLD OF IT WITH YOUR HAND
(THE COVER IS ONLY AVAILABLE WITH CERTAIN MODELS).
ATTENTION: THE GLASS COVER MAY BREAK IF IT IS OVERHEATED. TURN OFF ALL
BURNERS AND WAIT UNTIL THEY COOL DOWN BEFORE CLOSING IT.
DURING USE, THE APPLIANCE BECOMES VERY HOT. PLEASE ENSURE THAT YOU DO NOT
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS ONLY. DO NOT ALLOW CHILDREN TO
PLAY WITH THE APPLIANCE.
WHEN THE GRILL IS IN OPERATION, THE ACCESSIBLE PARTS OF IT CAN BECOME VERY
HOT: KEEP CHILDREN AT A SAFE DISTANCE.
IF THE APPLIANCE IS PLACED ON A SUPPORT, IT MUST BE INSTALLED IN SUCH A WAY
THAT IT DOES NOT SLIDE OFF THE SUPPORT.
THIS APPLIANCE HAS BEEN MARKED IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THE DIRECTIVE SETS OUT THE FRAMEWORK FOR COLLECTION AND RECOVERY OF WASTE
EQUIPMENT AS APPLICABLE WITHIN THE EC MEMBER STATES.
BEFORE STARTING UP THE APPLIANCE, ALL LABELS AND PROTECTIVE FILMS BOTH INSIDE
AND OUTSIDE THE APPLIANCE MUST BE REMOVED.
THE MANUFACTURER DOES NOT ACCEPT ANY RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM A FAILURE TO RESPECT THE REQUIREMENTS
SET OUT ABOVE, FROM ANY ALTERATION MADE TO ANY PART OF THE APPLIANCE OR
FROM THE USE OF NON-ORIGINAL SPARE PARTS.

Instructions for disposal
6
2INSTRUCTIONS FOR DISPOSAL – OUR ENVIROMENTAL CARE
Our product's packing is made of non-polluting materials, therefore compatible with the environment
and recyclable. Please help by disposing of the packing correctly. Find the addresses of collection,
recycling and disposal centres from your retailer or from the competent local organisations.
Do not throw the packing or any part of it away. They can constitute a suffocation hazard for children,
especially the plastic bags. Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the collection of household
appliances no longer in use. Correct disposal means intelligent recycling of valuable materials.
It is also necessary to cut the interconnecting cable to the power supply network, removing it along
with the plug.
DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE
MATERIALS AND TAKE THEM TO THE NEAREST SELECTIVE WASTE COLLECTION CENTRE.

Instructions for the installer
7
3INSTALLATION OF THE APPLIANCE
It is the law that all gas appliances are installed by authorised persons. Clearance around
the cooker must comply with the requirements of AS5601.
3.1 Electrical connection
Make sure that the power line voltage matches the specifications indicated on the rating plate located
inside the storage compartment.
This rating plate must never be removed.
On the power line, install a two-pole cut-off device with contact cut-off distance greater than or equal to
3 mm, located in an easily accessible position near the unit.
The wire section on the cable must not be less than 1.5
mm2(3 x 1.5 cable), keeping in mind that the end to be
connected to the cooker must have the ground wire
(yellow-green) longer by at least 20 mm. Use only the
special cables available at our Service Centres.
The manufacturer declines all responsibility for damage to persons or things caused by non-
observance of the above prescriptions or by interference with any part of the appliance.
Overall dimensions: location of gas and electrical connection points (all measures in mm).
A
B
C
D
900
930
A 100
B 660
C 160
D 220

Instructions for the installer
8

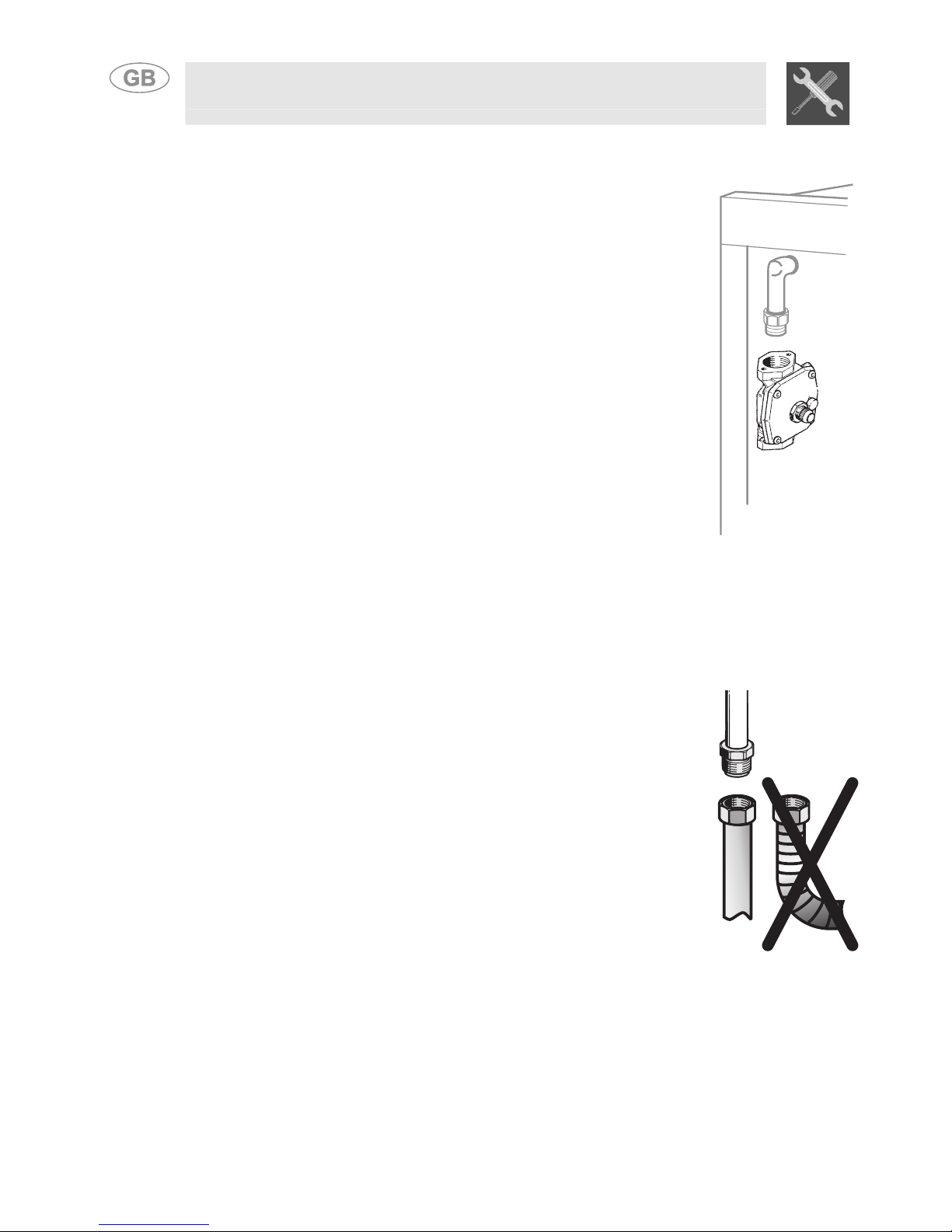

3.2 Gas connection
This appliance is suitable for installation with Natural Gas or ULPG (propane).
Refer to page 13 for the relevant burner pressure and appropriate injector sizes.
When the appliance is to be connected to Natural Gas then the pressure
regulator supplied must be fitted to the gas inlet. A test point (for checking the gas
pressure) is supplied either with the regulator or as a separate fitting in the case
of ULPG (propane) appliances.
Connection of the appliance to the gas supply must be in accordance with the
requirements of AS5601. A ½” BSP connector at the inlet is recommended and
the gas supply line to the appliance must be of adequate length to allow sufficient
withdrawal of appliance for service or disconnection and be:
1. annealed copper pipe or;
2. Flexible hose according to AS/NZ1869 & be at least Class “B”, 10 mm
diameter, max length 1000 mm.
The cooker must be installed with provision to allow the gas to be turned off and
disconnected for servicing and removal of the appliance as required from the gas
supply.
Before the cooker is operated make certain all relevant parts are placed in the
correct position.
When the installation is completed the installation connections of cooker will
require to be leak tested, the burner operating pressure and flame checked and
adjusted.
Warranty service calls do not cover these adjustments!
To check the operating pressure of the appliance it is recommended at least 2
large size burners are used. Ensure appliance is secured to wall when installation
is completed.
N.G. The regulator supplied must be fitted to the ½ BSP thread at the rear of the
appliance. An approved manual shut-off valve must be installed. The N.G.
regulator must be checked and adjusted to 1.0kPa after installation.
U.L.P.G. Can be connected to the inlet fitting directly. The pressure must be
checked to ensure it is operating at 2.75kPa. A separate test point fitting must
be installed between the piping & the appliance for the pressure to be checked
to ensure it is operating at 2.75kPa.

Instructions for the installer
9
3.3 Room ventilation
The appliance may only be installed in constantly ventilated rooms, in accordance with the
regulations in force. The room where the appliance is installed must provide sufficient air for frequent
gas combustion and the renewal of the air in the room. The air intakes, which are protected by grates,
must be of a suitable size (in accordance with the regulations in force) and be placed where they
cannot be obstructed either wholly or partially. The openings must enable 2 m
3/h of air to enter per
kW of gas power of the appliance.
The kitchen must be suitably ventilated in order to eliminate the heat and humidity produced by
cooking. In particular, after extended use, you are advised to open a window or step up the speed of
any fans in use.
3.4 Discharge of combustion products
Combustion products must be discharged by means of a hood connected to a reliable naturally
drawing chimney or one using forced suction. An effective suction system must be carefully designed
by a specialist, respecting the positions and distances set out in the relevant regulation. When the
installation is complete, the installer must provide a certificate of conformity.

Instructions for the installer
10

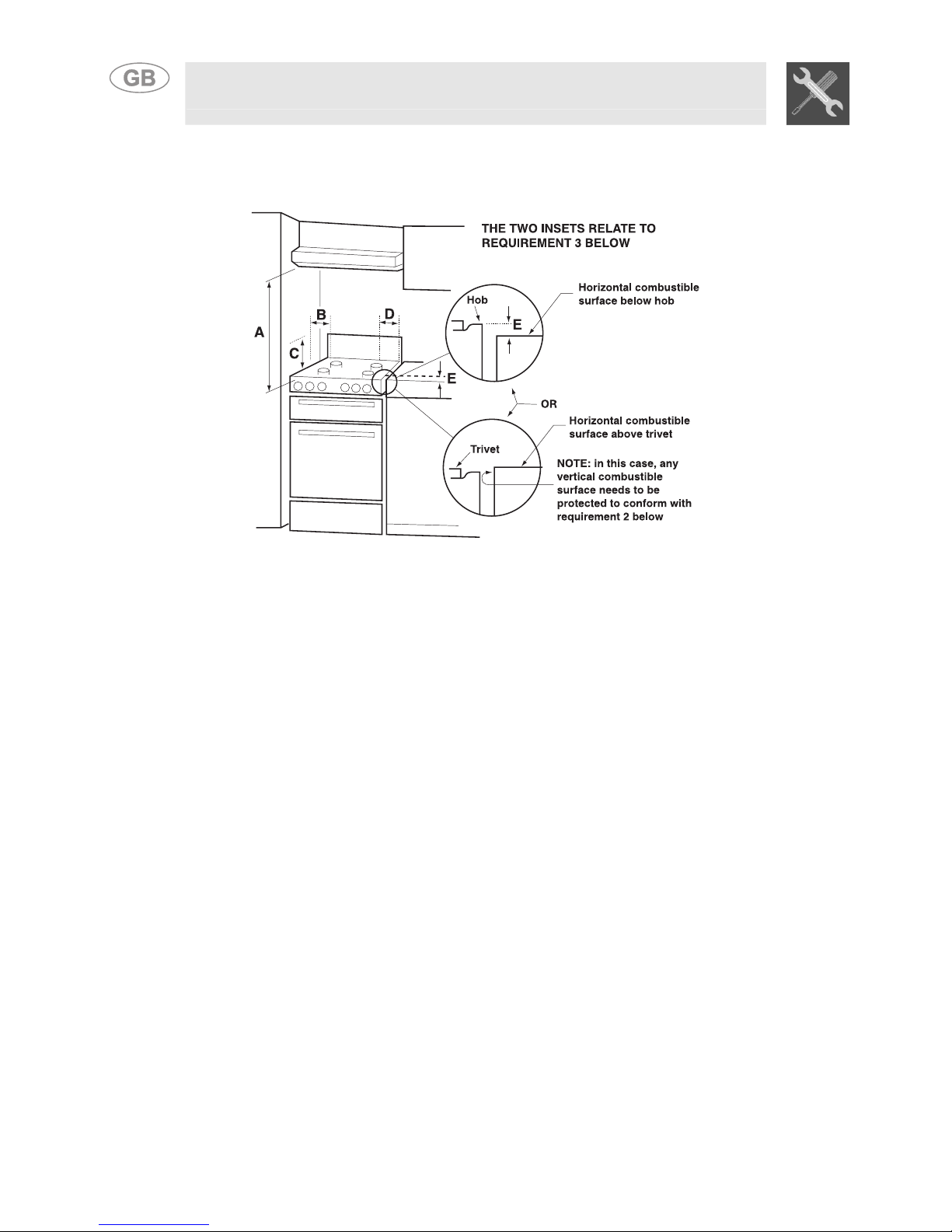

3.5 Clearance above and around domestic cookers
Extract from AS5601
REQUIREMENTS
1Overhead clearances – (Measurement A)
Range hoods and exhaust fans shall be installed in accordance with the manufacturer’s
instructions. However, in no case shall the clearance between the highest part of the hob of the
cooking appliance and a range hood be less than 600 mm or, for an overhead exhaust fan, 750
mm.
Any other downward facing combustible surface less than 600 mm above the highest part of the
hob shall be protected for the full width and depth of the cooking surface area in accordance with
Clause 5.12.1.2. However, in no case shall this clearance to any surface be less than 450 mm.
2Side clearances – (Measurements B& C)
Where B, measured from the periphery of the nearest burner to any vertical combustible surface, is
less than 200 mm, the surface shall be protected in accordance with Clause 5.12.1.2 to a height C
of not less than 150 mm above the hob for the full dimension (width or depth) of the cooking surface
area. Where the cooking appliance is fitted with a ‘splashback’, protection of the rear wall is not
required.
3Additional requirements for Freestanding and Elevated Cooking Appliaces – (Measurements D& E)
Where D, the distance from the periphery of the nearest burner to a horizontal combustible surface
is less than 200 mm, then Eshall be 10 mm or more, or the horizontal surface shall be above the
trivet. See insets above.
NOTES
1Requirement 3 does not apply to a freestanding or elevated cooking appliance which is
designed to prevent flames or the cooking vessels from extending beyond the periphery of
the appliance.
2The ‘cooking surface area’ is defined as that part of the appliance where cooking normally
takes place and does not include those parts of the appliance containing control knobs.
3For definition of hob, see Clause 1.4.64.
4For definition of trivet, see Clause 1.4.109.
5Consideration is to be given to window treatments when located near cooking appliances.
See Clause 5.3.4.

Instructions for the installer
11

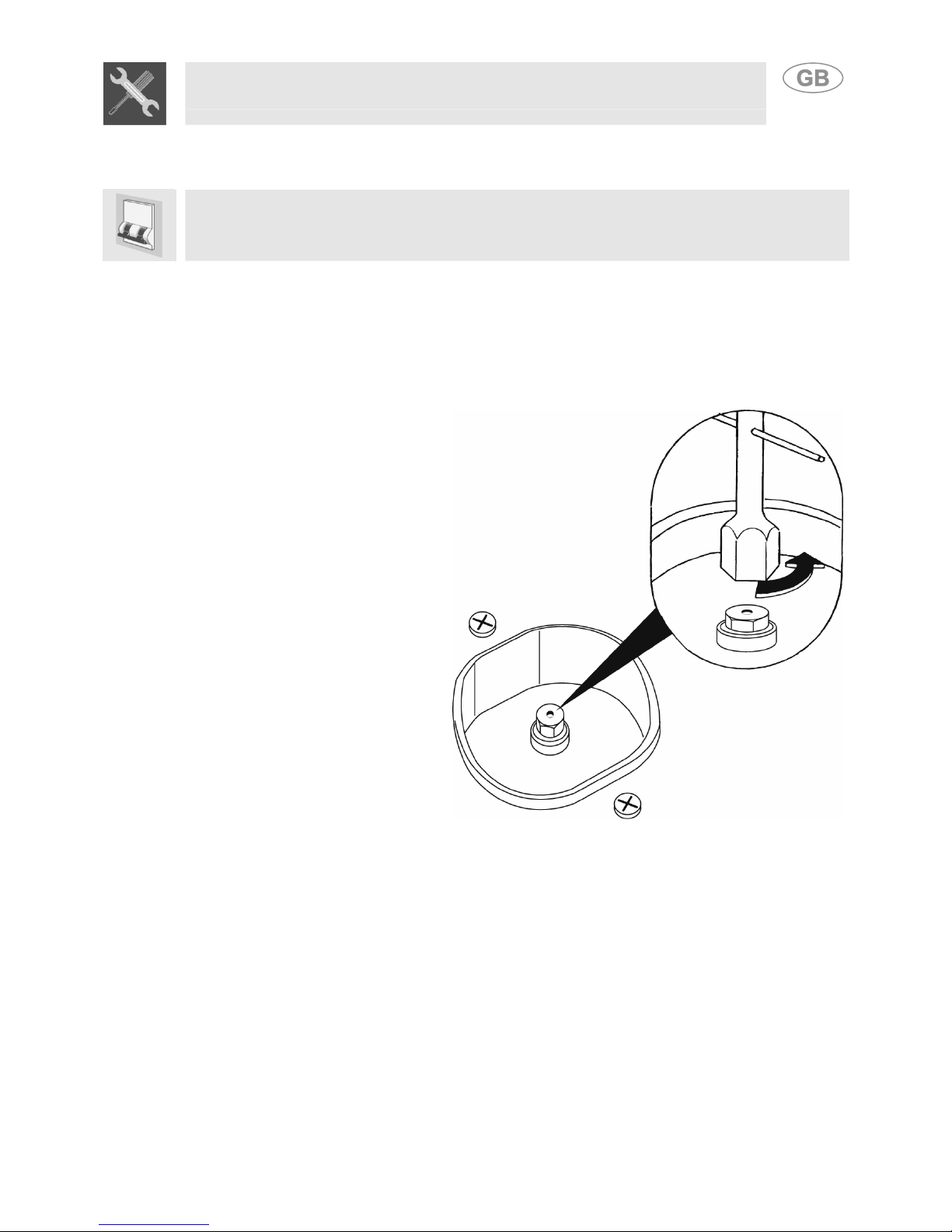

4ADAPTATION TO DIFFERENT GAS TYPES
Before carrying out any procedure, cut the electrical supply to the appliance.
The cooking range hob is set to use natural gas G20/G25 (2E+) at a pressure of 20/25 mbars in
cooking ranges with a large oven, and butane/propane gas G30/G31 (3+) at a pressure of 28/37
mbars in cooking ranges provided with a cylinder housing. Moreover, the guide eye of the hose must
be replaced with the appropriate one provided. If other types of gas are used, the burner injectors

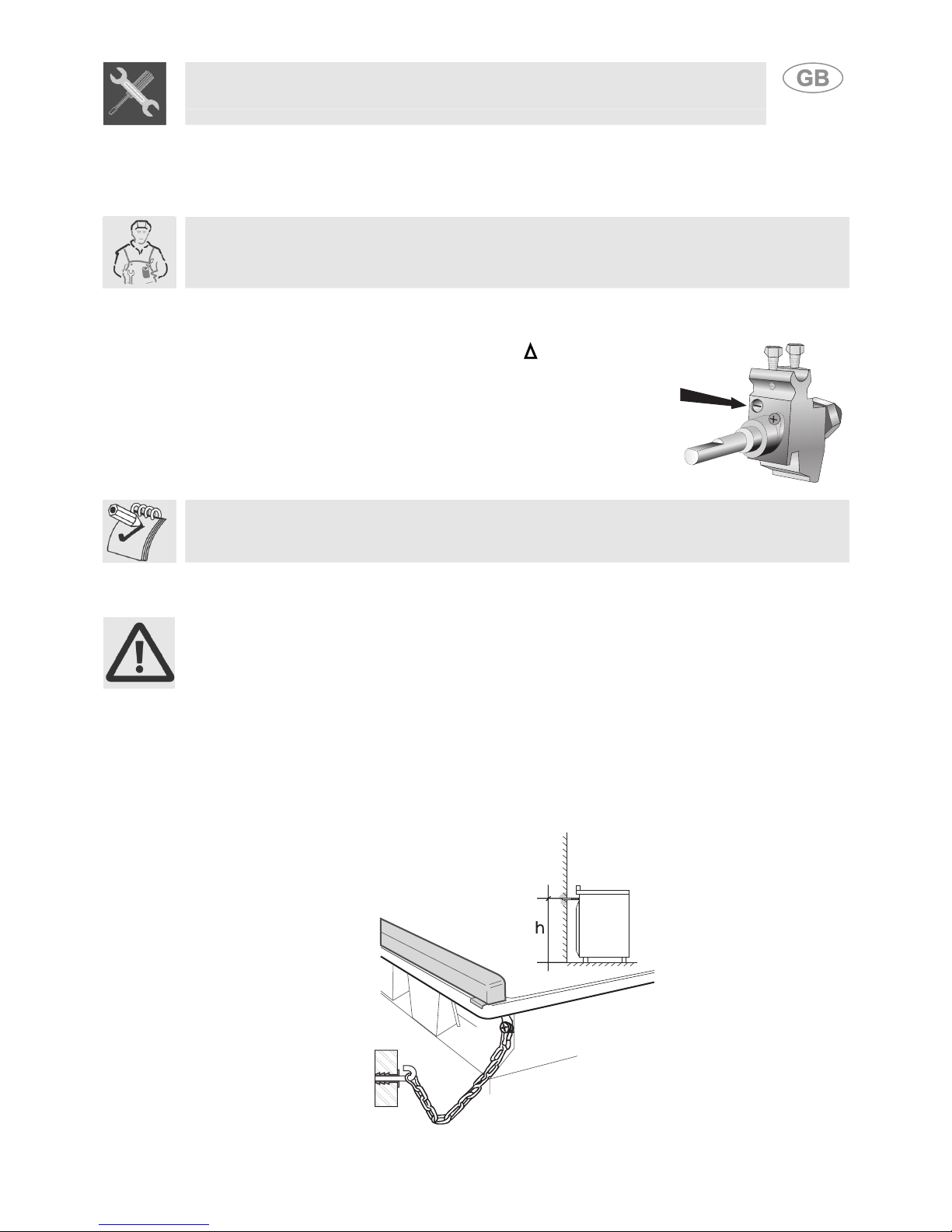

must be replaced, then the minimum flame must be adjusted on the gas taps. To replace the
injectors, follow the instructions set out below.
4.1 Replacing the hob injectors
This process does not require the
primary air supply to be adjusted.
1. Remove the racks, take out all
flame spreaders and caps;
2. use a 7-mm tubular spanner to
unscrew the burner injectors;
3. replace the burner injectors
according to the gas to be used
and as described in paragraph
“3.2/3.3 Tables of burner and
injector characteristics”.
4. Put the burners back into their
housings correctly.

Instructions for the installer
12
4.2 Burner and nozzle characteristics table
Burner ULPG (PROPANE)–2.75 KPa
Nominal gas Turn-down gas Injector
consumption consumption (mm)
(MJ/h) (MJ/h)
Auxiliary 3.9 1.5 0,54
Semi rapid 6.3 1.5 0,68
Rapid 10.8 2.7 0,88
WOK 13.5 5.4 1,00
Burner NG –1.0 KPa
Nominal gas Turn-down gas Injector
consumption consumption (mm)
(MJ/h) (MJ/h)
Auxiliary 3.9 1.5 0,90
Semi rapid 7.5 1.5 1,20
Rapid 12.0 2.7 1,55
WOK 15.0 5.4 1,75
4.3 Burner arrangement on the hob
BURNERS
1Auxiliary
2Semi rapid
3Rapid
4WOK
