General warnings
WARNING: Keep vantilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended
by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance, it
must be fixed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn this
information from the label on the cooler- you should be careful during
shipment and installation to prevent your appliance’s cooler elements
from being damaged. Although R600a is an environmentally friendly
and natural gas. As it is explosive, in the event of a leak due to
damage to the cooler elements, move your fridge from open flame
or heat sources and ventilate the room where the appliance is located
for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler
gas circuit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, offices and other working environments
- farm houses and by clients in hotels, motels and other residential
type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
CHAPTER 1. BEFORE USING YOUR FRIDGE

EN - 3 -
• If the socket does not match the refrigerator plug, it must be replaced
by the manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable
of your refrigerator. This plug should be used with a specially
grounded socket of 16 amperes. If there is no such socket in your
house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazard involved. Children shall not play with
the appliance. Cleaning and user maintenance, shall not be made
by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similar qualified persons in order to avoid a
hazard.

EN - 4 -
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!
• Do not place explosive or flammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by
closing their necks tightly in the fridge.
• Do not cover the body or top of fridge with lace. This affects the
performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent
damage to accessories.
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling /
storing foods. It is not suitable for commercial or common use and/or for storing
substances except for food. Our company is not responsible for the losses to be
occurred in the contrary case.

EN - 5 -
Installing and Operating your Fridge
• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded
usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves,
ovens and heater cores, and should be at least 5 cm away from
electrical ovens.
• It should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should
be at least 2 cm between them to prevent humidity on the outer
surface.
• Do not place anything on your fridge, and install your fridge in a
suitable place so that at least 15 cm is available on the upper
side.
• If you will place your fridge next to your kitchen cabinets, leave a
space of 2 cm between them.

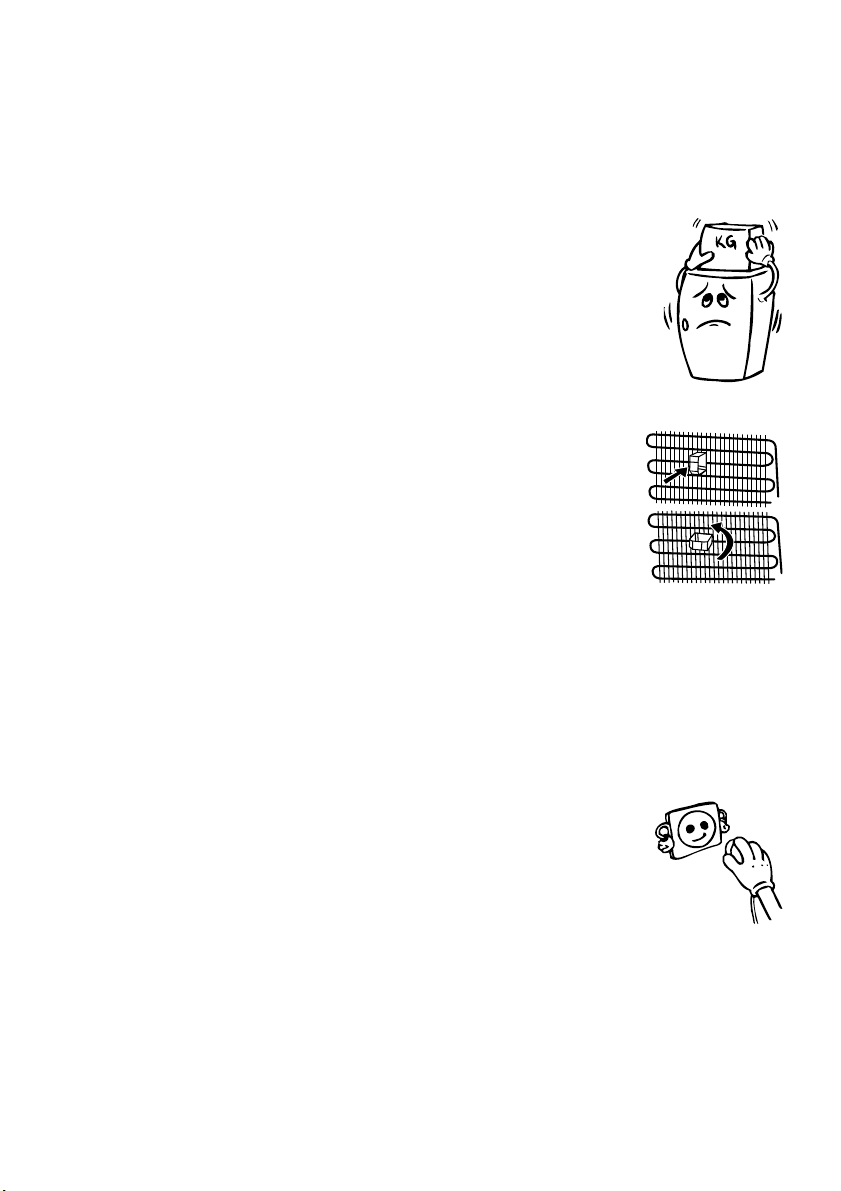

• Fit the plastic wall spacers to the condenser at the back of the
refrigerator in order to prevent leaning to the wall for good
performance.
• Install the distance adjustment plastic (the part with black vanes
at the rear) by turning it 90° to prevent the condenser from
touching the wall.
• The adjustable front legs should stabilized in an appropriate height to allow your
fridge operate in a stable and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be done before placing food in
the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful of
sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
Before Using your Fridge
• When it is operated for the first time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to
allow efficient operation. Otherwise, you may damage the
compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade
away when your fridge starts to cool.

EN - 6 -
CHAPTER 2. USAGE INFORMATION
Thermostat Setting
Larders (coolers) have not any freezer compartment but can cool below 5°C.
Thermostat automatically regulates the inside temperature of the refrigerator compartment.
By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.
Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.
• For short-term storage of food in the refrigerator compartment, you can set the knob
between minimum and medium position.(1-3)
• For long-term storage of food in the refrigerator compartment, you can set knob to
medium position.(3-4)
• Note that; the ambiant temperature, temperature of the freshly stored food and
how often the door is opened, affects the temperature in the refrigerator
compartment. If required,change the temperature setting.
• Larders (coolers) have not any freezer compartment but can cool below 5°C.
• When you first switch on the appliance, for starting a suitable cooling, the appliance
should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before
restarting or re-plugged the unit in order not to damage the compressor.

EN - 7 -
• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator and freezer compartment should be cleaned
periodically using a solution of bicarbonate of soda and
lukewarm water
• Clean the accessories separately with soap and
water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After
washing, rinse with clean water and dry carefully. When the
cleaning operations have been completed reconnect the plug
of the unit with dry hands.
• You should clean the condenser (back of the appliance)
with broom ones a year in order to provide energy saving
and increase the productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.
CHAPTER 3. CLEANING AND MAINTENANCE

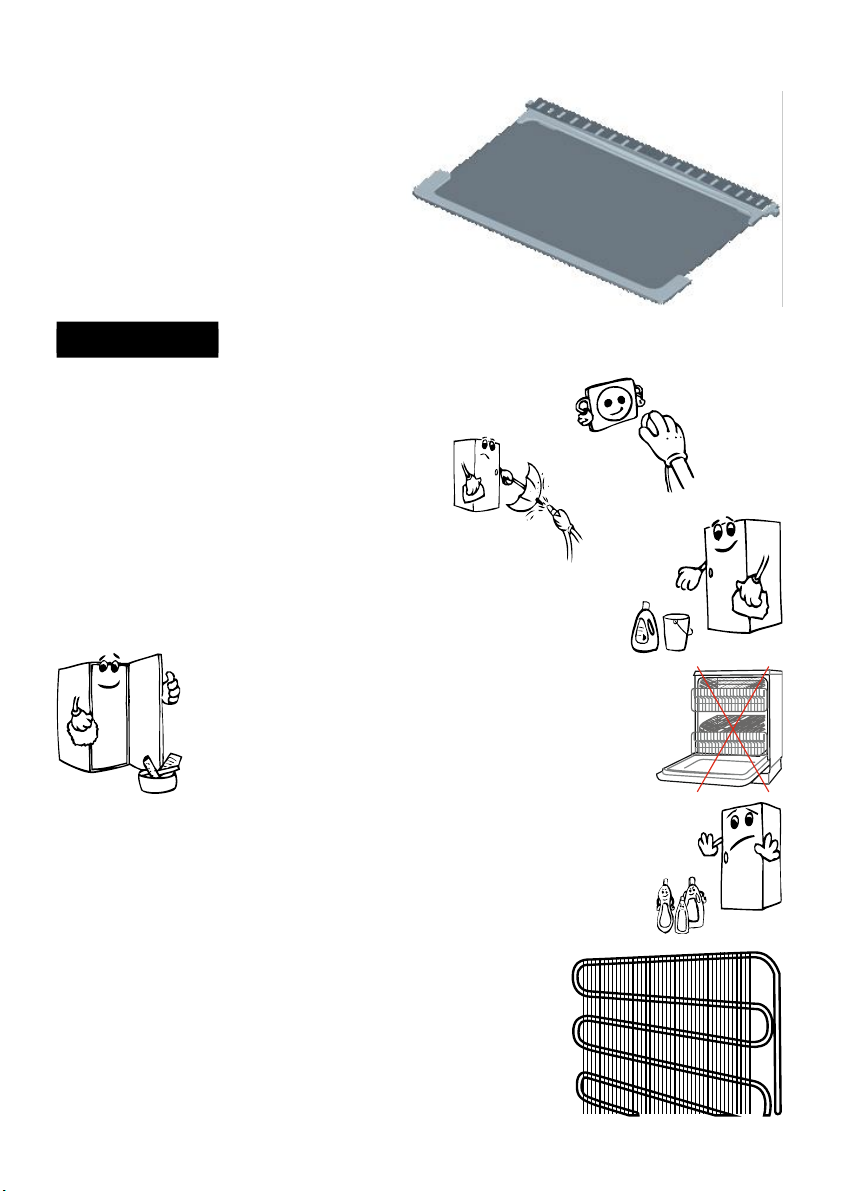

Glass shelf with slide damper
The slide damper above the crisper bins
allows the temperature and humidity in
the bins to be regulated.
• Opening the damper reduces the
temerature and humidity.
• Closing the damper increases the
temperature and humidity.
Accessoires

EN - 8 -
Defrosting
• Defrosting occurs automatically in refrigerator compartment during operation ; the
defrost water is collected by the evaporating tray and evoparates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically
with defrost drain plug to prevent the water from collecting on the bottom of the
refrigerator instead of flowing out.
• You can also pour ½ glass of the water to drain hole to clean inside.

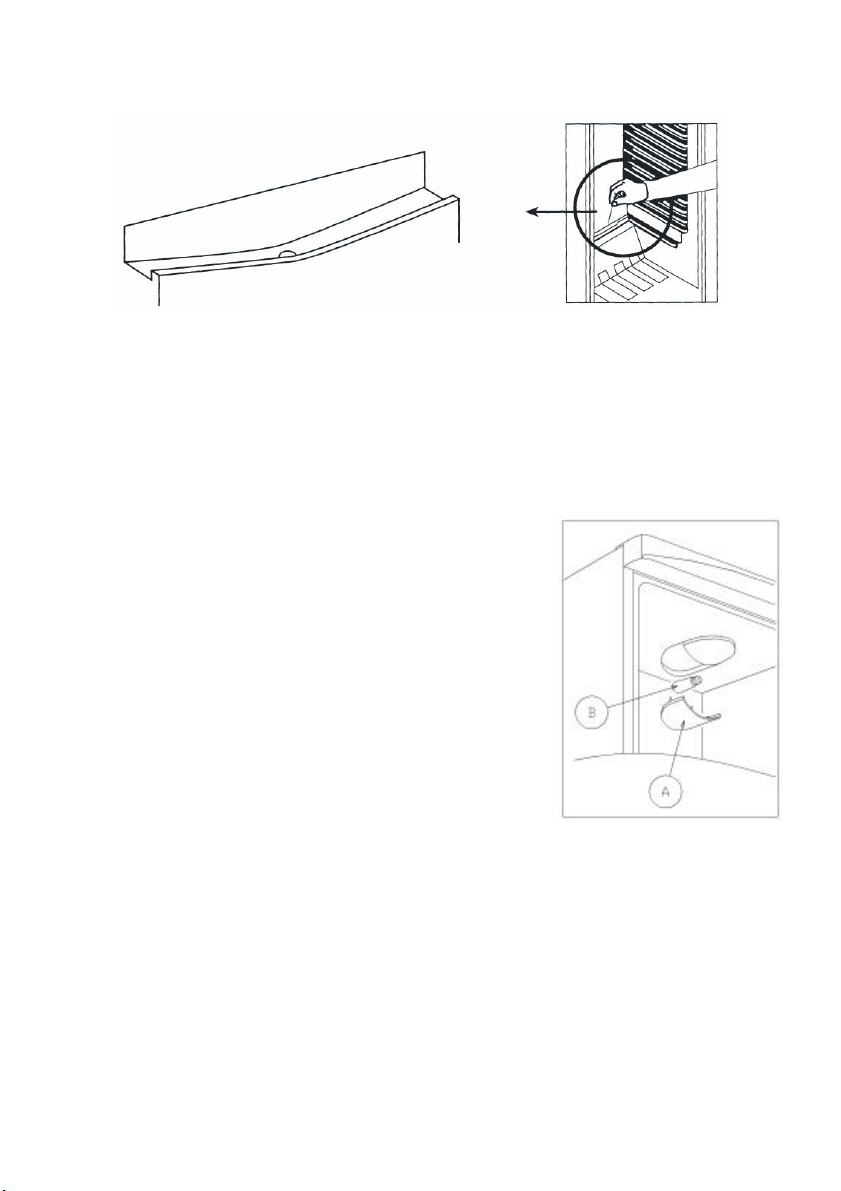

Replacing the Bulb
To replace the bulb in freezer and fridge departments;
1- Unplug your fridge.
2- Remove the cover of the box from the claws using a
screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and bring the
thermostat to its original position.
Replacing LED Lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by
authorized personnel only.

EN - 9 -
CHAPTER 5. BEFORE CALLING SERVICE
If your refrigerator is not working properly,it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your refrigerator does not operate ;
Check that ;
• There is no power,
• The general switch in your home is not disconnected ,
• The thermostat setting is on «•» position,
• The socket is not sufficient. To check this, plug in another appliance that you know
which is working into the same socket.
What to do if your refrigerator performs poorly ;
Check that ;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
CHAPTER 4. SHIPMENT AND REPOSITIONING
Repositioning the Door
• It is not possible to change the opening direction of your fridge door, if the door
handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any
handles.
• If the door opening direction of your fridge may be changed, you should contact the
nearest Authorized Service to have the opening direction changed.
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow
the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves,
accessories, vegetable bins etc.) or fix
them into the fridge against shocks using
bands during re-positioning and
transportation.
• Carry your fridge in the upright position.

EN - 10 -
If there is noise ;
The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If
these sounds are different check that ;
• The appliance is well leveled ,
• Nothing is touching the rear ,
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator
Check that ;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain
hole)
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. We do not
recommend operating your fridge out of stated temperatures value limits in terms of cooling
effectiveness.
Climate Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)
IMPORTANT NOTES:
• Compressor protection function will be activated after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not
stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it.
Clean your fridge according to Chapter 4 and leave the door open to prevent humidity
and smell.
• If the problem persists after you have followed all the instructions above, please
consult to the nearest Authorized service.
Conformity Information
• This appliance is designed for use at an ambient temperature within the 16°C - 43°C
range.
• The appliance is designed in compliance with the EN62552, IEC60335-1 /
IEC60335-2-24, 2004/108/EC standards.

EN - 11 -
Tips for saving energy
1- Install the appliance in a cool, well ventilated room , but not in direct sunlight and
not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When placing, drinks and slops they must be covered. Otherwise humidity
increases at the appliance. Therefore the working time gets longer. Also covering
drinks and slops helps to save smell and taste.
4- When placing food and drinks, open the appliance door as briefly as possible.
5- Keep close the covers of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
6- Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 12 -
CHAPTER 6. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1) HEAD PANEL
2) LIGHT BULB
3) TURBO FAN (GLASS SHELF MODELS)
4) GLASS SHELVES (OPTIONAL WITH WIRE SHELVES)
5) TOP CRISPER COVER(SAFETY GLASS*) (OPTIONAL)
6) TOP CRISPER(OPTIONAL)
7) BOTTOM CRISPER COVER(SAFETY GLASS*)
8) BOTTOM CRISPER
9) LEVELING FEET 11) DOOR SHELVES
10) BOTTLE HOLDER 12) TOP SHELF COVER
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.

DE FR IT NL
1 Marke Marque Marca Merk
2 Modell Modèle Modello Model
3 Kategorie Catégorie produit Categoria prodotto Productcategorie
4Energieefzienzklasse Classe énergétique Classe energetica Energieklasse
5 Jährlicher Energieverbrauch (kWh/ Jahr)* Consommation énergétique annuelle * Consumo energetico annuo* Jaarlijks energieverbruik*
6Nutzinhalt brutto gesamt (L) Volume brut total Volume lordo totale Totaal bruto inhoud
7Nutzinhalt netto gesamt (L) Volume net total Volume netto totale Totaal netto inhoud
8Nutzinhalt Kühlschrank (brutto gesamt) (L) Volume brut du réfrigérateur Volume lordo frigorifero Koelkast bruto inhoud
9Nutzinhalt Kühlschrank (netto gesamt) (L) Volume net du réfrigérateur Volume netto frigorifero Koelkast netto inhoud
10 Nutzinhalt Gefrierfach (brutto gesamt) (L) Volume brut du congélateur Volume lordo congelatore Diepvriezer bruto inhoud
11 Nutzinhalt Gefrierfach (netto gesamt) (L) Volume net du congélateur Volume netto congelatore Diepvriezer netto inhoud
12 Sternekennzeichnung Nombre d'étoiles Livello di qualità Ster klassering
13 Kühlsystem Système de réfrigération Sistema refrigerante Koelingsysteem
14 Temperaturanstiegszeit Durée de montée en température
(-18°C / -9°C)
Tempo di aumento della temperatura
(-18°C / -9°C)
Temperatuurverhogingstijd
(-18°C / -9°C)
15 Gefriervermögen (kg/24h) Pouvoir de congélation Capacità di congelamento Vriesvermogen
16 Klimaklasse** Classe climatique ** Classe climatica ** Klimaatklasse **
17 Luftschallemission dB(A) Niveau sonore Emissione di rumore Geluidsemissie
ES PT DK NO
1 Marca Marca Varemærke Merke
2 Modelo Modelo Model Modell
3 Categoría Categorıa do produto Produktkategori Produktkategori
4Clasicación energética Classicaçăo energética Energiklasse Energiklasse
5Consumo eléctrico anual * Consumo anual de energia * Årligt energiforbrug Årlig energiforbruk
6Volumen total (bruto) Volume total bruto Samlet bruttorumfang Total bruttovolum
7Volumen total (neto) Volume total líquido Samlet nettovolumen Total nettovolum
8Volumen total (bruto) del frigoríco Volume bruto do frigoríco Køleskabs bruttorumfang Kjøleskap bruttovolum
9Volumen total (neto) del frigoríco Volume líquido do frigoríco Køleskabs nettovolumen Kjøleskap nettovolum
10 Volumen del congelador (bruto) Volume bruto do congelador Frysers bruttorumfanget Frys bruttovolum
11 Volumen del congelador (neto) Volume líquido do congelador Frysers nettovolumen Frys nettovolum
12 Categoría de Estrellas Classicaçăo por estrelas Stjernebedømmelse Stjernevurdering
13 Sistema de refrigeración Sistema de refrigeraçăo Køleanlæg Kjølesystem
14 Tiempo de incremento de
temperatura (-18°C / -9°C)
Tempo de aumento de
temperatura (-18°C / -9°C) Temperaturstigetid (-18°C / -9°C) Temperaturstigning tid (-18°C / -9°C)
15 Capacidad de congelación Capacidade de congelaçăo Indfrysning Frysekapasitet
16 Clasicación climática ** Classicaçăo climatérica ** Klimaklasse Klima klasse
17 Emisión de ruidos Emissăo de ruído Støjemission Støyutslipp
EN PRODUCT FICHE
1Brand SMEG
2 Model FA35PX4
3Product category 1 (Refrigerator)
4Energy class A+
5Annual energy consumption* 143 kWh
6Total gross volume 353 l
7Total net volume 349 l
8Refrigerator gross volume 353 l
9Refrigerator net volume 349 l
10 Freezer gross volume -
11 Freezer net volume -
12 Star rating -
13 Refrigeration system Static
14 Temperature rise time (-18°C/-9°C) -
15 Freezing capacity -
16 Climate class ** T/N (16°C - 43°C)
17 Noise emission 40 dB(A)
*
Energy consumption of 143 kWh per year, calculated on the basis
of results obtained in 24 hours under normalised test conditions.
Real energy consumption depends on the conditions in which the
equipment is used as well as where it is placed.
** This appliance is designed for use at an ambient temperature
within the 16°C - 43°C range.
