Smeg KV90XE User manual

Libretto di Istruzioni (IT)
Instruction booklet (EN)
(AR)
Mode d’emploi (FR)
Bedienungsanleitung (DE)
Instruktionsvejledning (DA)
Manual de instrucciones (ES)
Instrukcja (PL)
Manual de lnstruções (PT)
Instructiehandleiding (NL)
Bruksanvisning (NO)
Руководство по эксплуатации (RU)
Instruktionshandbo (SE)
Ohjekirja (FI)

EN
1
WARNINGS!
INSTALLATION
• Read the instructions closely before installing and/or using the
hood.
• The manufacturer will not be held liable for damage caused by installation
that is incorrect or not up to standard.
• We recommend that all installation and adjustment procedures are
carried out by trained personnel.
• When the hood is taken out of its packaging inspect it to ensure that it
is intact. If the product is damaged, do not use it and contact the Smeg
assistance service.
• Before making any connections, make sure that the mains voltage
correspondstothevoltageshownonthelabellocatedinsidetheappliance.
• For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
• The minimum distance between the hob and the lower part of the hood
must be at least 650mm.
• The extracted air must not be conveyed in a duct used to conduct fumes
from appliances powered by gas or other fuel.
• Connect the outlet for the air extracted by the hood to fumes discharge
ducts with a suitable internal diameter, and no less than 120 mm.
• The room must be adequately ventilated when the hood or gas appliances
are used simultaneously.
• If the power cable is damaged it must be replaced by the manufacturer
or its technical assistance service, or nonetheless by an individual with a
similar qualication, so as to prevent any risk.
• Comply with any legal regulations relative to the extraction of air when
operating the extraction hood.
OPERATION
• Do not cook or fry in a way that creates strong ames. These could be
drawn into the hood during operation and cause a re.
• Do not ambé food under the kitchen hood; Fire hazard
• The hood can be used by individuals under the age of 8 and by individuals
with physical, sensorial or mental impairments, or without experience or
the required knowledge, as long as they are under supervision or have
been given instructions on safe use of the appliance and are familiar with

EN
2
the dangers it entails.
• Children must be supervised to ensure that they do not play with the
appliance
• ATTENTION: The accessible parts can become very hot if they are used
with cooking equipment.
MAINTENANCE
• Before carrying out any maintenance procedure or cleaning, disconnect
the appliance from the electricity supply.
• Carry out thorough and timely maintenance of the lters in accordance
with the intervals recommended by the manufacturer.
• To clean the hood surfaces, use a damp cloth and a mild liquid
detergent.
• Cleaning and maintenance carried out by the user must not be performed
by children without supervision;
• THE MANUFACTURER DECLINES ALL RESPONSIBILITY IF THE
ABOVE INDICATIONS ARE NOT FOLLOWED
USE:
• This appliance was designed to be used as an EXTRACTION (extraction
of air to the outside) or FILTER hood (recirculation of air indoors).
• EXTRACTION VERSION: To turn the hood into the extraction version
connect the motor inlet, by means of a rigid or exible pipe with a suitable
internal diameter and no less than 120 mm, directly to the external vapour
and odour extraction duct.
NB. Remove any active carbon odour-control lters.
• FILTER VERSION: If it is not possible to direct the air outdoors, the hood
can be transformed into the lter version. In this version, the air and
vapours are puried by active carbon lters and recirculated into the
room through the lateral ventilation grilles of the ue.
Note: using the hood in lter mode can increase the level of noise
perceived.

EN 3

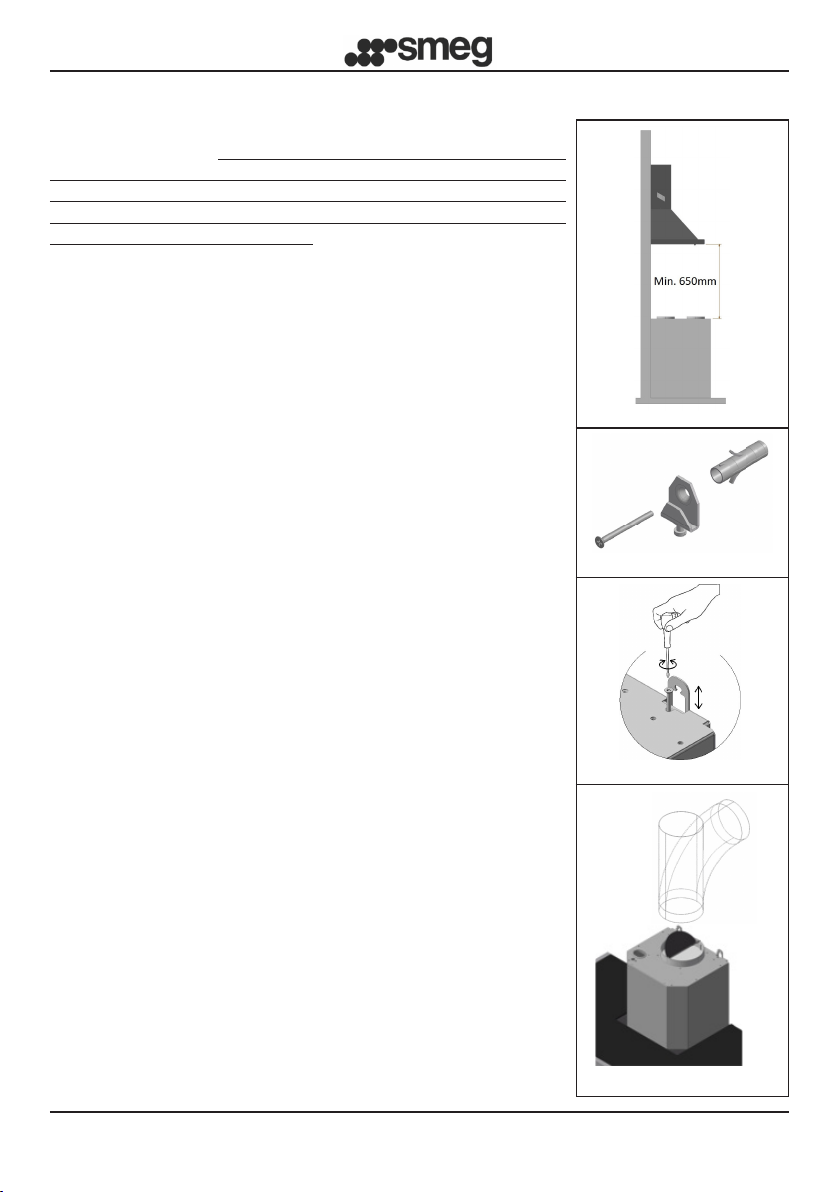

INSTALLATION INSTRUCTIONS:
The hood is supplied with all the accessories necessary
for its installation. The minimum distance between the
lower surface of the hood and the hob must be at least
650mm for electric hobs (Fig. 1). If the motor inlet is
equipped with a non-return valve for fumes, make sure
it can open and close freely.
For easy installation it is recommended to follow the
procedures described below:
1) The hood must be centred with respect to the hob surface.
2) There are different installation procedures depending
on the hood model. Choose one of the following xing
systems:
a) 2 levelling hooks that fasten on with the supplied
expansion plugs (Fig. 2)
b) Rear levelling bracket that fastens on with the
supplied expansion plugs (Fig. 3)
c) For island models refer to the special installation
attachment.
N.B.: Fixing systems a) and b) t on to the back of the
hood in the holes L1 (Fig. 5).
3) Remove the grease lters and position the hood on the
wall and mark the reference position for the holes to
anchor the relative xing system.
4) Drill the 2 holes previously marked after removing the
hood from the wall
5) Anchor the xing system to the wall by tightening the
expansion plug
6) Mark holes L2 on the wall to secure the plugs safely in
the holes. (plugs supplied)
7) Hang the hood on the xing system (g. 2 and 3) and
level it using the adjustment screws ( g.2 ).
8) Securely x the hood by fully tightening the two expansion
screws of the holes L2
AIR CONNECTION SYSTEMS:
EXTRACTION version:
Connect the fume expulsion duct (inside diameter Ø 150
mm) to the exhaust of the motor inlet. The expulsion duct
must not have a diameter Ø of less than 120 mm.
Note that if the hood is supplied with an active carbon
lter, this must be removed (see page 8)
Deviation for Germany:
When the hood and other appliances powered by energy
other than electricity are simultaneously ON, the negative
pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
Fig. 1
Fig. 2
Fig. 3
Ø150
Fig. 4

Fig. 5
Fig. 6
Fig. 7
L2
L1
K
Z
Z
L
L
Z
EN
4

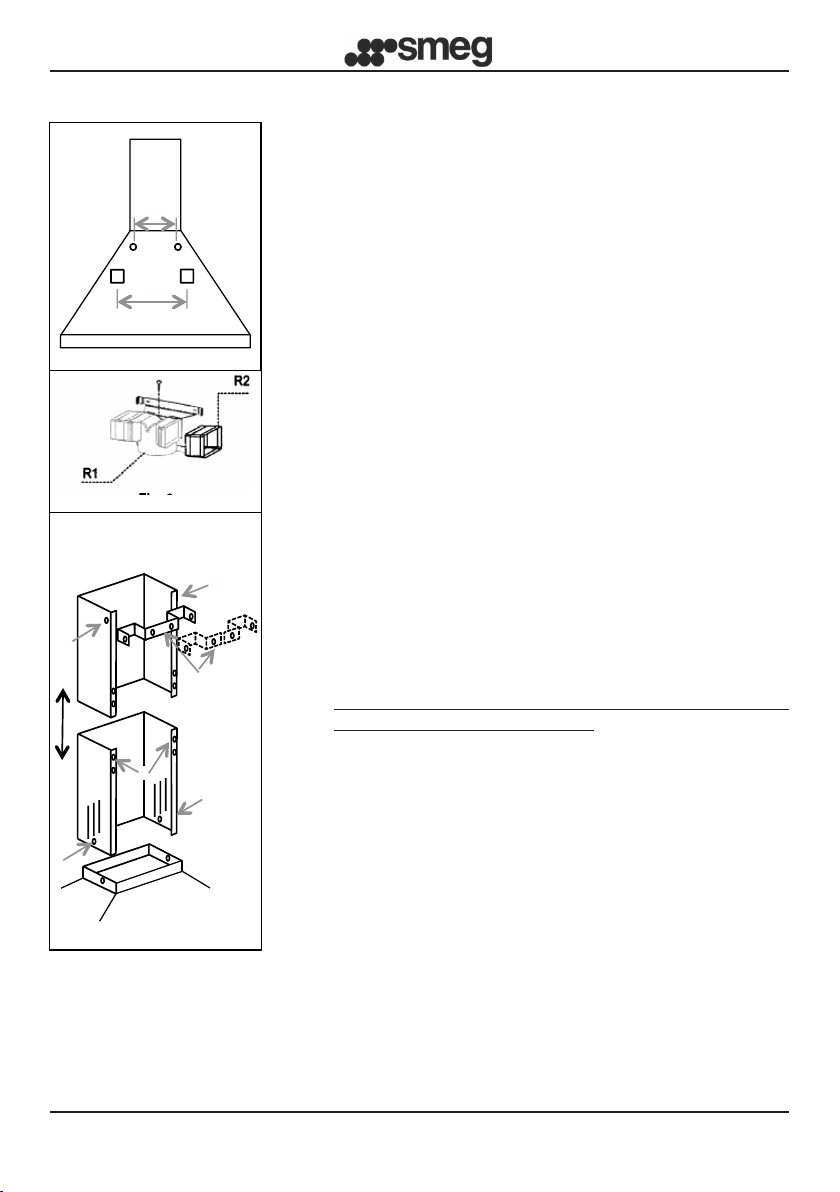

FILTER version:
Leave the motor inlet free. Install the active carbon lters as
shown on page 8.
If the hood is not supplied with an active carbon lter you
must buy it separately at your nearest authorised Smeg
dealer.
For some models there is a standard set of ttings (g.6) to
be xed to the wall by expansion plugs at a suitable height
in order to channel the airow in correspondence with the
ue slits. Insert laterally the extensions R2 on the tting
R1. Connect the tting R1 at the outlet of the hood body by
means of a tube of diameter D.150mm.
• FLUE ASSEMBLY (g. 7):
Position the one-piece or two-piece (K) ue bracket to
the required top limit.
Mark the two holes on the wall to x the bracket. Drill
and x the bracket with the supplied expansion plugs.
Carefully position the ue unit on the hood. Fix the lower
ue to the hood by means of the screws Z. Carefully
extend the top ue to the upper limit.
Secure the top ue to the ue bracket K using the screws
L.
• ELECTRIC CONNECTION
• We recommend that electric connections are carried
out by a professional installer.
In the case of a direct electric connection to the mains,
between the appliance and the mains, place a bipolar
switch with a minimum opening of 3mm between
contacts, sized to the load and compliant with the
current regulations.

EN
5
USER INSTRUCTIONS
• CONTROLS UNIT
For an optimal and efcient use of the product it is advisable to start the hood a
few minutes before you start cooking and to keep it on for at least 15min after you
have nished cooking or until steam and odours have completely disappeared.
To start the hood, identify the command type of the hood and then follow the
relative indications:
The timed intensive function is that mode of service for which the hood, for a limited
time, works at its maximum capacity. The timed intensive speed of the hood is activated
by turning the knob (B) clockwise from position 3. Once the timed intensive speed
is activated, the knob automatically turns to position 3. The intensive speed can be
switched off by turning the control (B) counter-clockwise again. When the intensive
speed timer has expired it returns to the third speed by default.
(A) (B)
(A) (B)

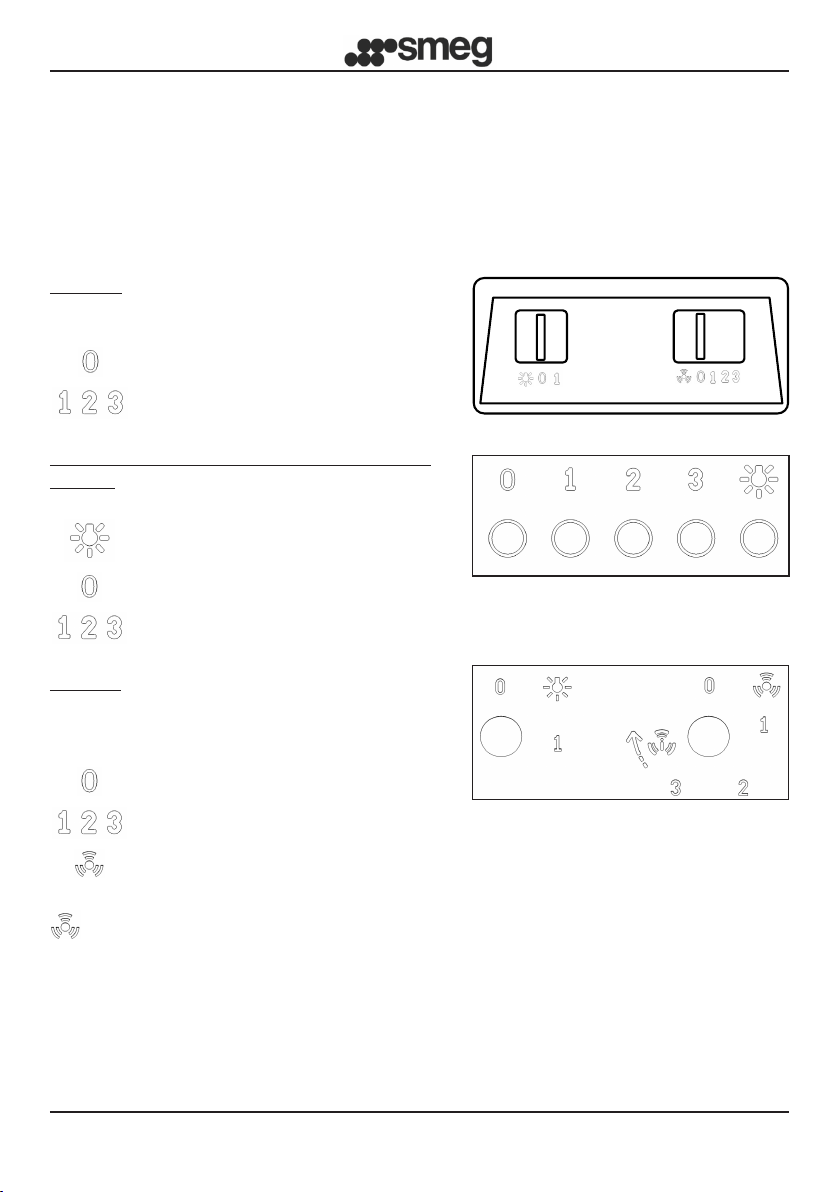

SLIDER:
- Slider (A) lighting ON/OFF
- Slider (B) with four positions:
Motor OFF
ON/Speed selection
ELECTRO-MECHANICAL PUSHBUTTON
PANEL:
Lights ON/OFF key
Motor OFF key
Power key/hood speed selection
KNOBS:
- Knob (A): lighting ON/OFF (0-1)
- Knob (B):
Motor OFF position
Hood speed selection
Start timed intensive speed
Timed intensive speed:

EN 6

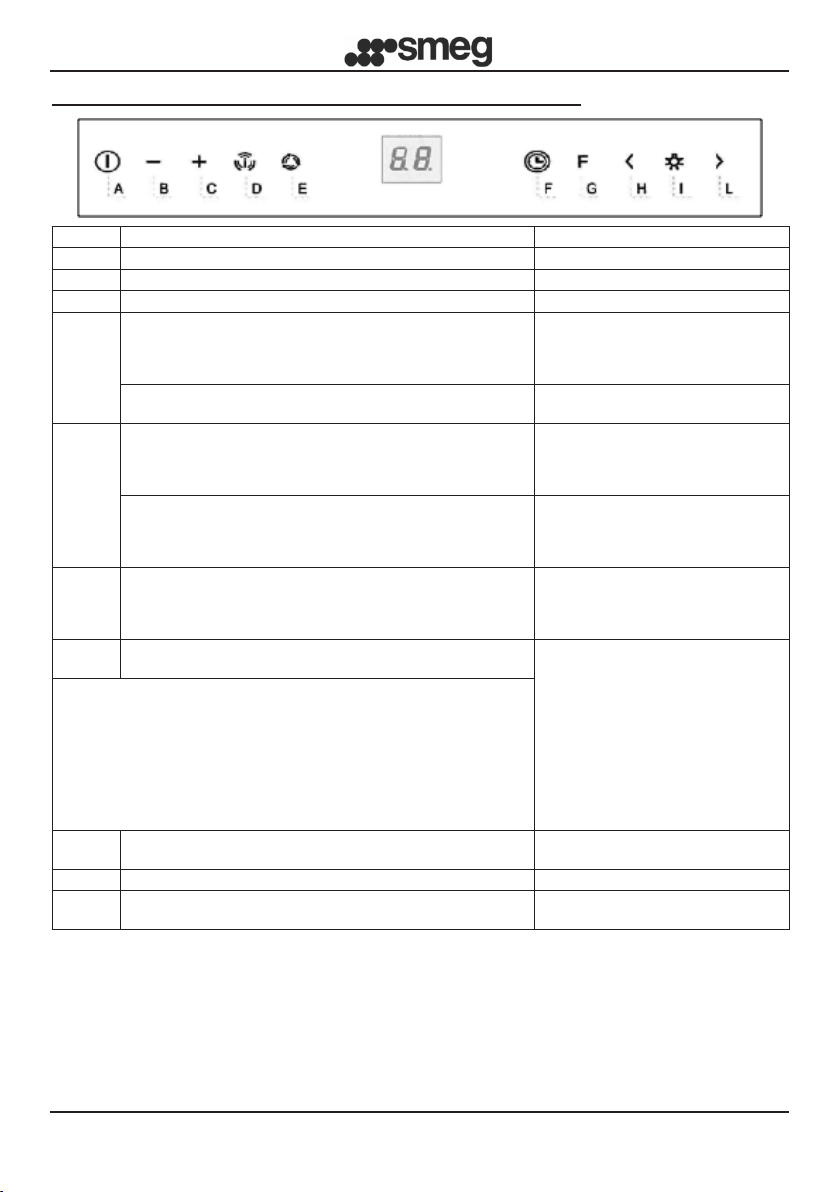

2-DIGIT 10-KEY CAPACITIVE PUSHBUTTON BOARD:
Key Function Display
ATurns the suction motor on / off. Displays the set speed
BDecreases the operation speed. Displays the set speed
CIncreases the operation speed. Displays the set speed
D
Activates the Intensive speed from any speed even with the
motor off, this speed is timed. At the end, the system returns to
the speed previously set. Suitable for dealing with the maximum
emissions of cooking fumes.
Displays alternatively HI
Hold the button down for about 5 seconds, when all loads are off
(Motor + Light), to switch the keyboard lock On / Off. "- -" Keyboard lock On.
E
24 H function
Activates the motor at the rst speed and allows extraction for
10 minutes every hour.
It displays 24 and the point at the
bottom right ashes once a second,
while the motor is in operation. Press
the key to disable it.
Holding the button down for about 5 seconds when all loads are
off (Motor + Light), holding key "B" down during the animation,
the Active Carbon Filters Alarm switches On / Off.
Displays a rotary animation for
5 seconds. "EF" ashes twice in
activation. "EF" ashes once in
deactivation.
F
Delay function
Enables the automatic shutdown delay of 30'. Suitable for
removing residual odours. Can be activated from any position.
You disable it by pressing the key or turning the motor off.
Displays the operating speed and the
point on the lower right ashes.
GWith the lter alarm in progress, pressing the key for about 3
seconds resets the alarm.
After the procedure, the signal
previously displayed turns off:
FF signals the need to wash the
metallic grease lters. The alarm
comes on after 100 hours of actual
operation of the Hood.
EF signals the need to replace the
active carbon lters and the metallic
grease lters must also be washed.
The alarm comes on after 200 hours of
actual operation of the Hood.
HDecreases the light intensity at each press of the Key in a cyclic
manner.
1Turns the lighting system on and off at maximum intensity.
LIncreases the light intensity at each press of the Key in a cyclic
manner.
Keyboard lock command: you can lock the keyboard, for example, to clean the glass
surface, when the Hood has the motor and lights switched off. By pressing key D
for about 5 seconds, you can enable or disable the keyboard lock which is always
conrmed with:
“- -” Keyboard lock On.

Motor OFF key/ Filters reset key
Power key/hood speed selection
Start timed intensive speed
Lights ON/OFF key

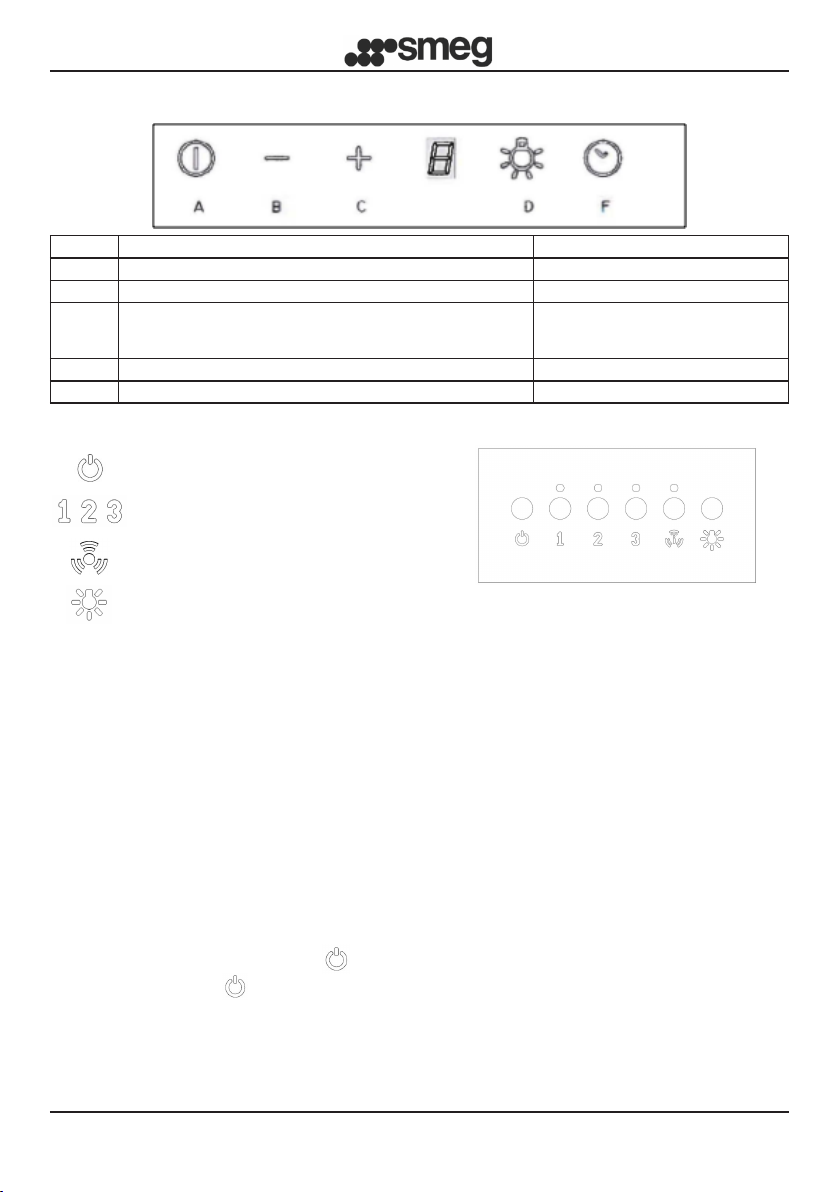

EN 7

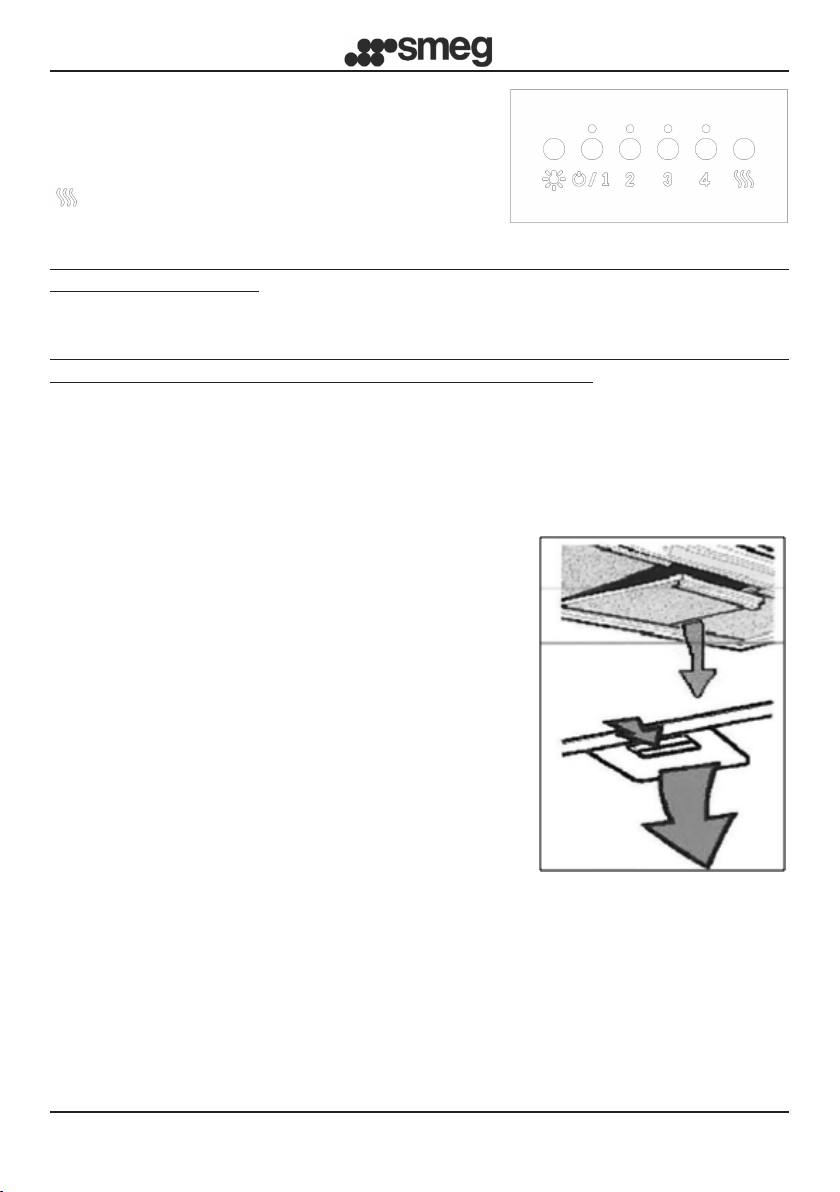

The timed intensive function is that mode of service for which the hood, for a limited
time, works at its maximum capacity.
Activating the function is displayed by the LED located under the key ashing. When
the intensive speed timer has expired it returns to the third speed by default.
KEY FUNCTION DISPLAY
ASWITCH THE SUCTION MOTOR ON / OFF. DISPLAYS THE SET SPEED
BDECREASE THE OPERATING SPEED DISPLAYS THE SET SPEED
CINCREASE THE OPERATING SPEED
START TIMED INTENSIVE SPEED
DISPLAYS THE SET SPEED
FLASHING TIMED INTENSIVE
SPEED
DTURN THE LIGHTING SYSTEM ON AND OFF
FENABLES THE AUTOMATIC SHUTDOWN DELAY OF 15' FLASHES
1-DIGIT CAPACITIVE PUSHBUTTON BOARD:
SOFT TOUCH ELECTRONIC PUSHBUTTON BOARD:
- TIMED AUTO POWER OFF: By pressing one of the motor speed keys (2-3), twice,
you will activate the function "TimedAuto Power Off" which turns off both lights and hood
motor after 10 mins. Activating this function is demonstrated by the LED immediately
above the pressed button ashing.
- FILTER CLEANING SIGNAL: the simultaneous ashing of the 4 LEDs, (programmed
to run every 200h of operation), is to indicate the need to clean /replace the lters.
By pressing the OFF button , the 200h time can be reset. N.B. Accidentally
pressing the OFF button before the 200h does not result in the lter being
reset in the lter cleaning memory. It is good practice to clean the grease lters
and replace the active carbon lters every 200h of operation.
OPTIONAL FUNCTIONS:

EN 8
Before performing any maintenance and/or cleaning always disconnect the hood
from the power supply
Regular cleaning guarantees good operation and a long appliance service life. The
grease lters and lter hoods with carbon lters require special care.
N.B. The accumulation of grease inside the lter panels as well as affecting the
performance of the extractor, can also create a re hazard.
FUNCTIONS AND MAINTENANCE:
EXTERNAL CLEANING: The external and internal cleaning of the hood must be
carried out using a damp cloth and mild liquid detergent. Completely avoid the use
of solvents or abrasives. It is recommended to use specic products, following the
instructions on the product. It is advisable to clean the hood by always rubbing the
steel in the direction of the surface nish.
N.B. In some countries, the 4-speed version
is also available, with the layout shown on the
right, where:
Filters Reset Key
Particular attention should be paid to the metal grease
lter panels. The accumulation of grease inside the
lter panels as well as affecting the performance of the
extractor, can also create a re hazard.
In order to minimise the risk of re, the lters must be
cleaned regularly, at least once a month or with greater
frequency in the case of a particularly intensive use of
the appliance.
After identifying your hood model, remove one lter at
a time as shown in the next gure. Thoroughly wash
lters with a mild detergent either by hand or in the
dishwasher. Replace the lters, making sure that the
handle is on the outside of the hood
METAL FILTER CLEANING:
The carbon lters are capable of retaining odours until the carbon reaches
saturation level. They cannot be washed and they are not renewable, therefore, it is
recommended to replace them at least every six months or more often if the hood is
used often.
Before starting operations make sure the electrical power supply to the hood is
disconnected.
Access the active carbon lters by removing the metal lters as described above.
With the help of the gures, identify the carbon lters kit supplied with the hood.
REPLACING CARBON FILTERS: (Only for the lter version)

EN 9
In the case of the disc lter, simply tilt the two lters by
90° as shown in (g.A) and then extract them from their
housing.
In the case of a cartridge lter attached with springs, (g.B)
exert the pressure required to counteract the resistance of
the spring and then remove the lter
In the case of a cartridge lter blocked with a bracket and
threaded knob, (g. C), unscrew the knob, remove the locking
bracket and then remove the active carbon lter. Replace the
carbon lters and the metal non-grease lters by performing
the operations in inverse order
Before performing any maintenance and/or cleaning always disconnect the
hood from the power supply
Depending on the model, the hood can be equipped
with different types of lighting, with LED or halogen
lamps:
a) WITH LED LIGHTS: The LED lights guarantee a
signicant number of hours of operation. Should it be
replace due to being worn or faulty, the entire spotlight
must be replaced. In this case, contact qualied
Technical Support. This appliance is equipped with
Class 1M white LED light, in accordance with EN
standard 60825-1: 1994 + A1:2002 + A2:2001;
maximum emitted optical power@439nm: 7μW.
Donot lookdirectly atthe lightwith optical instruments
(binoculars, magnifying glass...).
b) Halogen: lamp with G4 tting, 20W power and 12V
voltage. Replace the lamp by removing the glass
support ring of the spotlight with a screwdriver. Once
the glass is removed, remove the faulty lamp from
its housing and t the new lamp. Replace the glass
of the spotlight by blocking it with the ring.
Code ILCOS: HSG/C/UB-20-12-G4
REPLACEMENT LAMPS:

EN
10
Pursuant to art. 26 of the Italian Legislative Decree dated 14 March
2014, no. 49 "Implementation of directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE)"
WEEE DISPOSAL:
The crossed out wheeled bin symbol on the equipment or its packaging
indicates that the product at the end of its useful life must be collected
separately from other waste.
Therefore, any products that have reached the end of their useful
life must be given to waste disposal centres specializing in separate
collection of waste electrical and electronic equipment.
As an alternative to autonomous disposal, the device you want to
dispose of can be given back to the retailer at the time of purchasing
new similar equipment.
At electronic product retailers with a sales area of at least 400 m2, it is
possible to return, without any obligation to buy, electronic products to
dispose of with dimensions below 25 cm free of charge.
The separate collection for the delivery of the equipment to recycling, to
treatment and environmentally compatible disposal helps avoid possible
negative effects on the environment and health and promotes the reuse
and/or recycling of materials that make up the equipment.
