Smith & Nephew CORI User manual

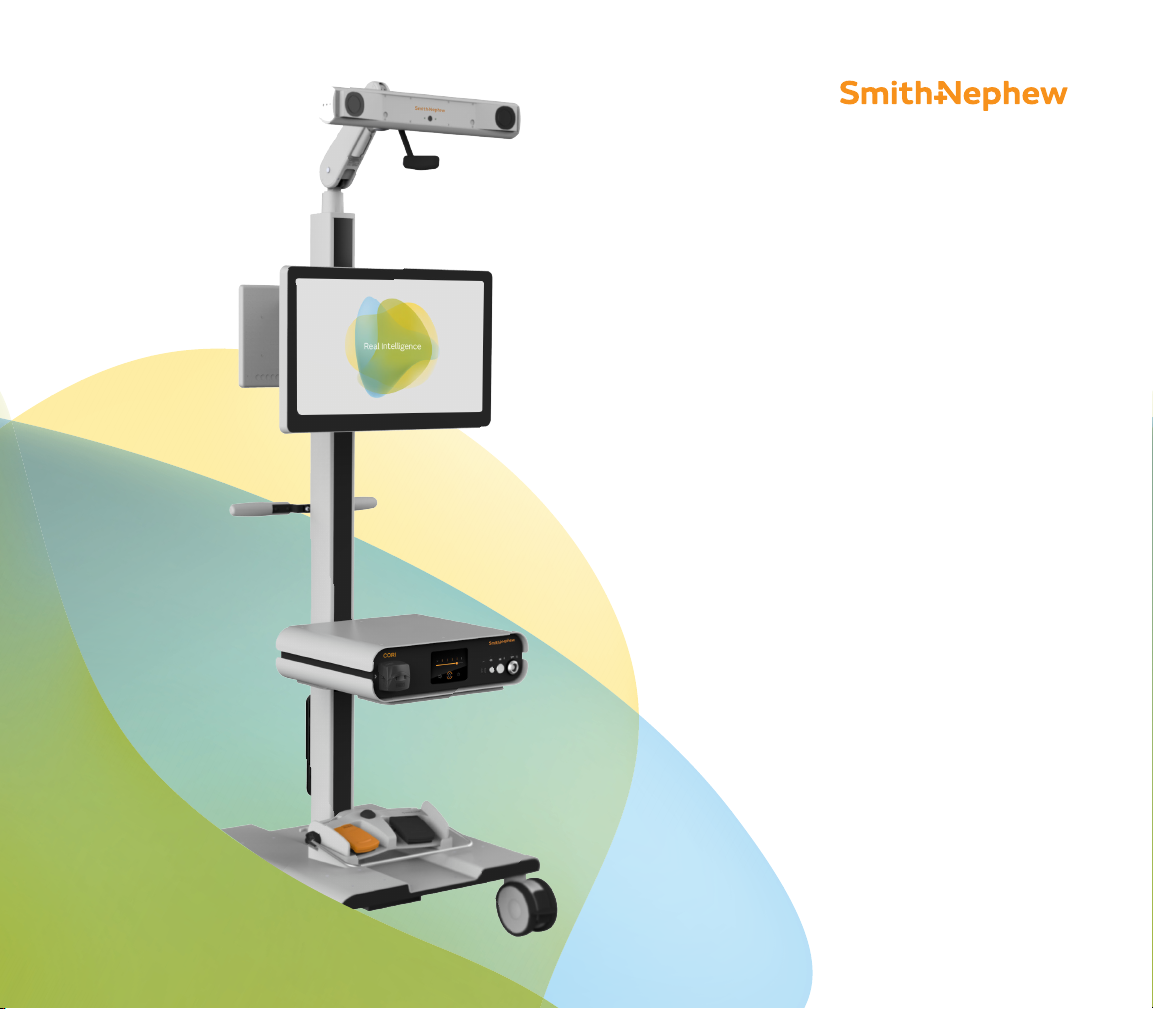

CORI
Robotics Cart
Quick Start Guide

Welcome to
Real Intelligence
There’s nothing artificial about our intelligence
CORI
CORI
CORI
CORI
CORI
CORI
C
D
B
A
Note: Remove the
camera’s protective
foam cover to reveal

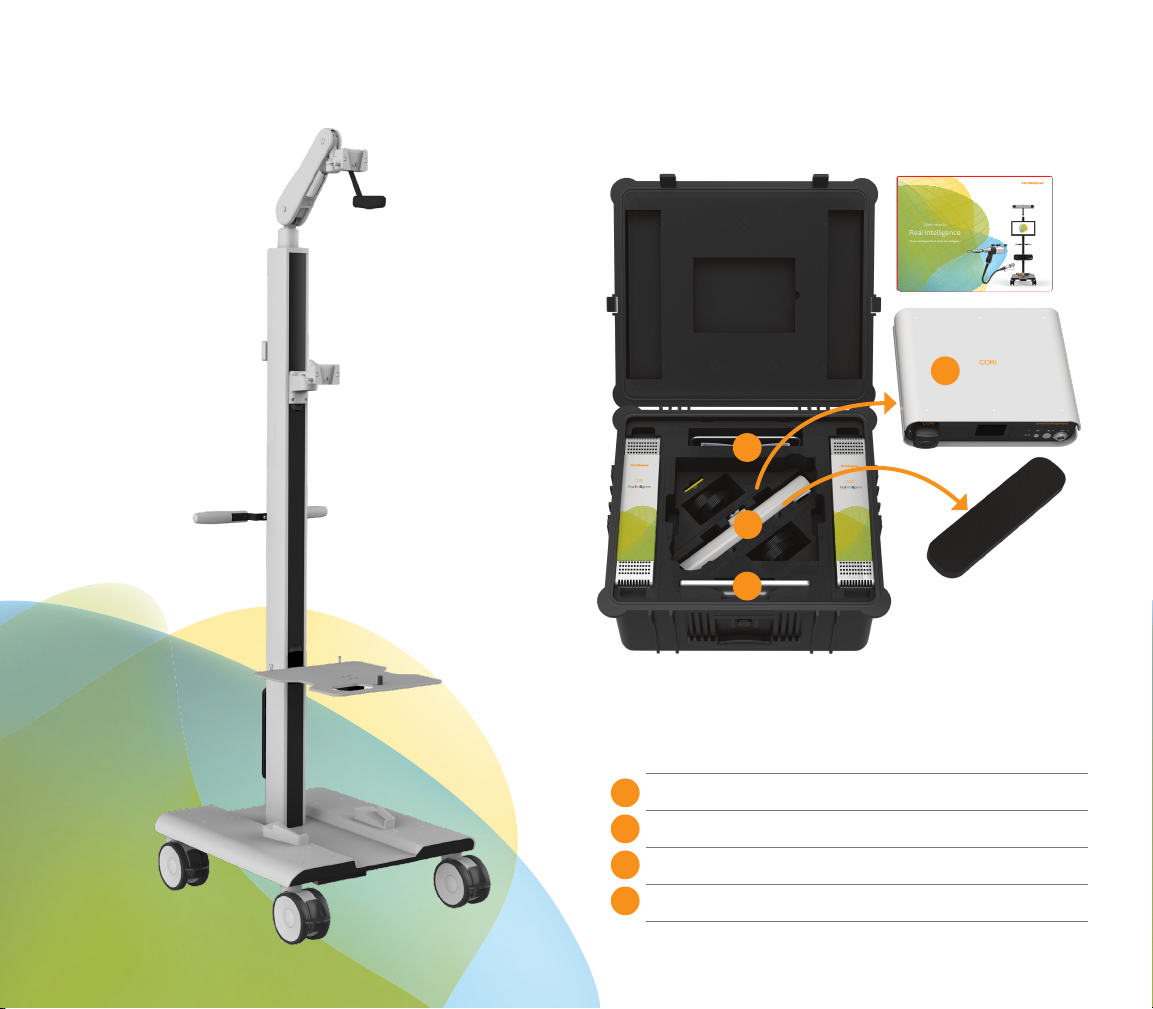

CORI Starter Kit Contents
Assembled Robotics Cart
CORI 1 ROB10024
Tracking Camera 1 ROB10025
Foot Pedal 1 ROB10026
Tablet 1 ROB10027
A
B
C
D
CORI Starter Kit ROB10000

Welcome to
Real Intelligence
There’s nothing artificial about our intelligence
CORI
CORI
CORI
CORI
CORI
CORI
Attach Components
Note: Attachment points for the
camera, monitor and tablet use
the quick connect system
Step 1
Attach CORI
Step 4
Attach Foot Pedal
A
C
Foot Pedal
Step 2
Attach Tracking
Camera
Step 3
Attach Tablet and
place cord on hook
Touchscreen
Note: This is an optional component
that is not included in the Starter Kit
B
D

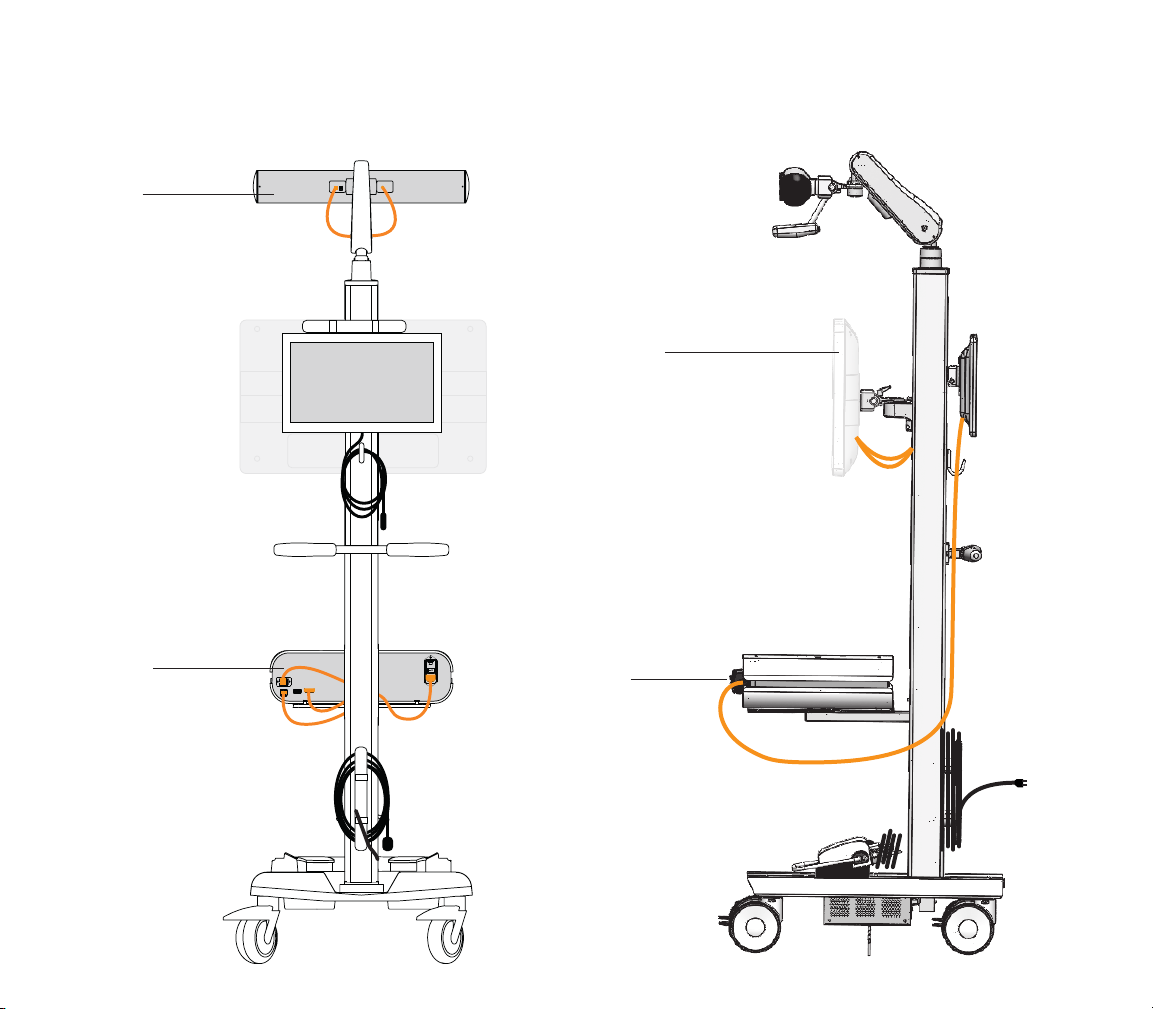

Connect Cords to Components
Ethernet Laser
Ethernet
Power
USB
DVI
Note: Use pre-routed cords in Robotics Cart to connect components
Step 5
Connect
Tracking Camera
Step 6
Connect CORI
Step 8
Connect Tablet
to FRONT of CORI
Step 9
Plug in Main
Power to Wall
Step 7
Connect Optional
Touchscreen
DVI
Power

Completed Robotics Cart Assembly
Confirm Power-up
Tur n O  CORI
Step 11
Press power standby and slide to turn o CORI
Flip power switch to OFF position on back of CORI
Real Intelligence™
This product may be covered by one or more U.S. patents.
Blue Belt Technologies,Inc.
2905 Northwest Blvd., Suite 40
Plymouth, MN 55441 USA
Tel: [phone]
Smith + Nephew
Orthopaedics, GmbH
Alemannenstrasse 14, 78532
Tuttlingen, Germany
ROB10024
100-240 V ~ 50/60 Hz
See smith-nephew.com/patents for details.
™ Trademark(s) of Smith + Nephew
IPX1
Robotics Console
50°C
-10°C
PN 701027 REV1
37.5
Maximum weight console
can support.
17.0
FUSE: 8A, 250V
WARNING: NO USER
SERVICEABLE PARTS.
WARNING: FOR CONTINUED
PROTECTION AGAINST RISK
OF FIRE AND ELECTRIC
SHOCK,REPLACE FUSE ONLY
AS MARKED.
(01)0088SAMPLEGTIN (21)12345678
Real Intelligence™
This product may be covered by one or more U.S. patents.
Blue Belt Technologies, Inc.
2905 Northwest Blvd., Suite 40
Plymouth, MN 55441 USA
Tel: [phone]
Smith & Nephew
Orthopaedics, GmbH
Alemannenstrasse 14, 78532
Tuttlingen, Germany
ROB10024
100-240 V ~ 50/60 Hz
See smith-nephew.com/patents for details.
™ Trademark(s) of Smith & Nephew
IPX1
Robotics Console
50°C
-10°C
PN 701027 REV1
37.5
Maximum weight console
can support.
17.0
FUSE: 8A, 250V
WARNING: NO USER
SERVICEABLE PARTS.
WARNING: FOR CONTINUED
PROTECTION AGAINST RISK
OF FIRE AND ELECTRIC
SHOCK,REPLACE FUSE ONLY
AS MARKED.
(01)0088SAMPLEGTIN (21)12345678
Step 10
Flip power switch to ON position on back of CORI
Press the power button on front of CORI
Real Intelligence™
This product may be covered by one or more U.S. patents.
Blue Belt Technologies,Inc.
2905 Northwest Blvd., Suite 40
Plymouth, MN 55441 USA
Tel: [phone]
Smith + Nephew
Orthopaedics, GmbH
Alemannenstrasse 14, 78532
Tuttlingen, Germany
ROB10024
100-240 V ~ 50/60 Hz
See smith-nephew.com/patents for details.
™ Trademark(s) of Smith + Nephew
IPX1
Robotics Console
50°C
-10°C
PN 701027 REV1
37.5
Maximum weight console
can support.
17.0
FUSE: 8A, 250V
WARNING: NO USER
SERVICEABLE PARTS.
WARNING: FOR CONTINUED
PROTECTION AGAINST RISK
OF FIRE AND ELECTRIC
SHOCK,REPLACE FUSE ONLY
AS MARKED.
(01)0088SAMPLEGTIN (21)12345678
Real Intelligence™
This product may be covered by one or more U.S. patents.
Blue Belt Technologies, Inc.
2905 Northwest Blvd., Suite 40
Plymouth, MN 55441 USA
Tel: [phone]
Smith & Nephew
Orthopaedics, GmbH
Alemannenstrasse 14, 78532
Tuttlingen, Germany
ROB10024
100-240 V ~ 50/60 Hz
See smith-nephew.com/patents for details.
™ Trademark(s) of Smith & Nephew
IPX1
Robotics Console
50°C
-10°C
PN 701027 REV1
37.5
Maximum weight console
can support.
17.0
FUSE: 8A, 250V
WARNING: NO USER
SERVICEABLE PARTS.
WARNING: FOR CONTINUED
PROTECTION AGAINST RISK
OF FIRE AND ELECTRIC
SHOCK,REPLACE FUSE ONLY
AS MARKED.
(01)0088SAMPLEGTIN (21)12345678
Note: Home screen will be displayed on touchscreen and/or tablet.

Welcome to
Real Intelligence
There’s nothing artificial about our intelligence
CORI
CORI
CORI
CORI
CORI
CORI
• CORI Robotics Quick Start Guide
• Supporting Documentation Flash Drive
- CORI Robotics Cart Quick Start Guide
- Real Intelligence CORI Users Manual
- Real Intelligence Knee Surgical Techniques
- Real Intelligence Cleaning and Sterilization Addendum
- SNN Ortho Cleaning & Sterilization
- Real Intelligence Robotics Instruments Tray Guide
• Archiving Flash Drive
• Application Soware Flash Drive
Welcome Box Contents
CORI Starter Kit Contents
Hex key for monitor adjustment
Accessories
F
Note: These are located in bags labeled “Spares”.
Display port Cable 5.0 m (16.4 )
DVI Cable 5.0 m (16.4 )
HDMI Cable 5.0 m (16.4 )
USB type A to type B Cable 5.0 m (16.4 )
Ethernet Cable 5.0 m (16.4 )
Display port to HDMI Adapter 1
Display port to DVI Adapter 1
Display port to VGA Adapter 1
Spare Cables and Adapters
G
Robotics Instruments 2 ROB10001
Instrument Trays
E
CORI 1 ROB10024
Tracking Camera 1 ROB10025
Foot Pedal 1 ROB10026
Tablet 1 ROB10027
A
B
C
D
CORI Starter Kit ROB10000
B
A
C
D
E E
F
G
G
Note: Remove the
camera’s protective
foam cover to reveal

Available Disposables
Tablet Drape 4951
Tubing Set ROB10031
Flat Markers ROB10032
6 mm Bullet Bur ROB10033
6 mm Chip Breaker Bullet Bur ROB10034
5 mm Cylindrical Bur ROB10035
6 mm Cylindrical Bur ROB10036
110 mm Speed Pin 74013401
80 mm Speed Pin 74013490

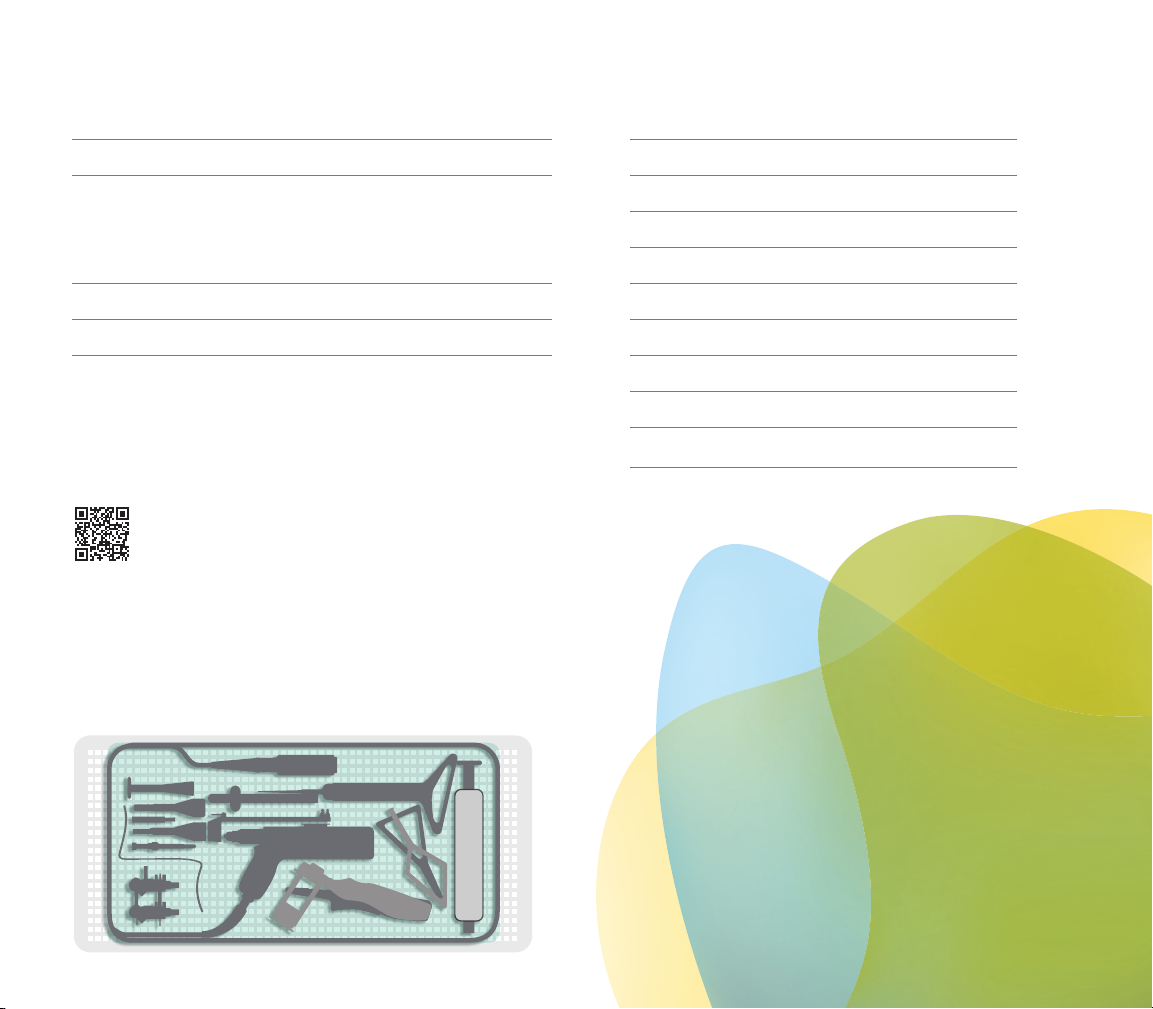

Robotics Instruments Tray Guide
See the CORI tray guide for cleaning, sterilization and
instrument reduction module setup instructions.
Robotics Cart Column ROB10002
Robotics Cart Base 120 ROB100021
or
Robotics Cart Base 220 ROB100022
24” Touchscreen ROB10003
24” Touchscreen Power Supply 1 ROB10250
Shipped Separately
Note: The Touchscreen is an optional component
and is not included in the case
Accessories
Spare Cables and Adapters
On-line Resources
Smith+Nephew education resources,
Real Intelligence.

1/2020 500221 REVA
