Smiths Level 1 H-1000 Operating manual

Made in U.S. A.
P/N 4533801 Rev. 001
Level 1 H-1000
Fluid Warmer
-
H-1000 100V
OPERATOR’S AND SERVICE MANUAL
Manufacturer:
Smiths Medical ASD, Inc.
160 Weymouth Street
Rockland, MA 02370, USA
USA/Canada: 1-800-258-5361
International: [phone]
www.smiths-medical.com
®

Level 1®H-1000 Operator's & Service Manual
About This Manual 2
Purpose 2
Concept 2
System Features 3
Filter with Gas Vent 3
Temperature Control 4
Flanking I.V. Pole Brackets 4
Unpacking and Set up 4
System 1000 Hardware 6
Power and Alarm Test Panel 6
Display Panel 7
Interlocks 8
Accessories: System 1025 Pressure Infusers 9
Set-up and Use 9
Disposables: Set up and Performance 12

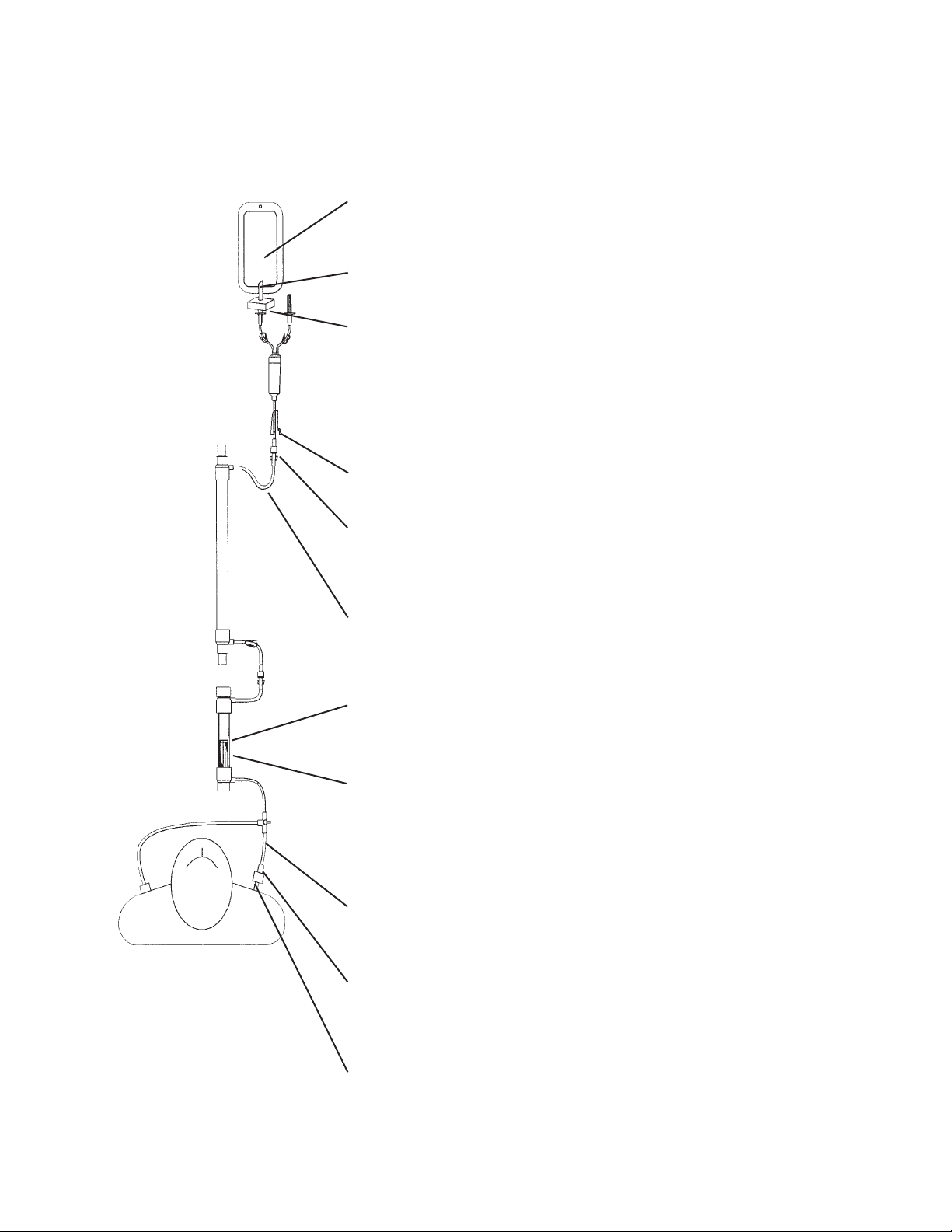

Setting Up Disposable Sets 12
Priming Disposable Sets 13
Filter with Gas Vent Replacement in IV Disposable Sets 13
Trouble Shooting 15
Trouble Shooting Slow Flow Rates 16
Testing 17
Add Water Alarm 17
Check Disposables Alarm 17
Water Over Temperature Alarm 18
Alarm Testing 18
Performance Testing 18
Earth Leakage 19
Ground Continuity 19
Dialectric Strength 20
Maintenance 20
Maintenance and Testing Log 22
Service 22
Warranty Service 22
Non-Warranty Service 24
Specifications 24
Physical Specifications 24
Electrical and Environmental Specifications 24
Accessory, Maintenance and Calibration Part Numbers 25
Parts and Electrical Schematics 25
International Symbols 28
No part of this manual may be reproduced in any form without prior written permission from Smiths Medical ASD, Inc.
(Smiths Medical)
Level 1 and Smiths design mark are trademarks of the Smiths Medical family of companies. The symbol ® indicates the
trademark is registered in the U.S. Patent and Trademark office and certain other countries.
*Cover pictures the H-1025, a combination of the H-1000 Fluid Warmer and two accessory H-2 Pressure Infusion Chambers.
The products described are covered by one or more of the following U.S. Patent Nos. 4,759,749; 4,878,537; 4,900,308;
5,063,994; 5,097,898; and 4,678,460; other patent(s) pending.
© 2006 Smiths Medical family of companies. All rights reserved.
Operator’s Manual Part #4533801 (Rev 001) 2006/08

About This Manual
These instructions contain important information for safe use of the product. Read the
entire operator's manual, including Warnings and Cautions, before using the
Level 1®H-1000 Fluid Warmer. Failure to properly follow warnings, cautions, and
instructions could result in death or serious injury to the patient.
! WARNING !
Messages that are headed by "! WARNING !" indicate information or procedures that if not
followed correctly can cause improper results, damage to the equipment, injury to
personnel, or patient death.
Messages that are headed by "CAUTION:" indicate information or procedures that if not
followed correctly can cause improper results and damage to the equipment.
Messages that are headed by "NOTE:" indicate information or procedures that if not
followed correctly can cause improper results.
Purpose
The Level 1®H-1000 fluid warmer has been designed for safe, rapid in-line warming of I.V.
fluids as they are administered to patients. Disposable sets designed for warming at
various infusion rates are available. Blood and I.V. solutions may be infused through the
Level 1®I.V. Sets, and will be delivered near 40 °C.
High flow capacity, warm fluid delivery, simple operation, and continuous on-board safety
systems make the H-1000 the ideal choice for all procedures requiring routine to rapid
infusion of normothermic fluids. Typical uses of the system include blood and solution
warming during elective surgery, in the I.C.U., the Emergency Room and in Trauma.
Concept
The H-1000 fluid warmer consists of a reusable hardware device and a single-use
disposable set. Similar to extracorporeal warming technology found in the heart room,
warmed water is rapidly circulated through a disposable anodized aluminum tube to warm
fluids as they are delivered to the patient. The use of a thermal conductor, rapid warm
water circulation, and counter-current flow all contribute to the high warming capacity of
the H-1000.
2

3
System features
Filter with Gas Vent
Level 1®D-Series Disposable Sets employ a unique "hands-off" Gas Vent which vents
micro-bubbles of gas that are always released from fluids as they are warmed. In many
other warming systems, these micro-bubbles are actually delivered to the patient along
with the warmed fluids.
The Filter with Gas Vent assembly in the I.V. Sets contains a 170-micron screen filter to
trap macro-aggregates found in blood products. This filter has luer-lock connections and
Figure 1. Block diagram of Level 1®fluid warmers.
Circulating
water bath
flow
Heat
Exchanger
Heater
Pump
Figure 1 diagrams the H-1000 and its operation.
An onboard pump circulates warm water through
the aluminum heat exchanger in the disposable
set. Note that the circulating water bath and the
infusate flow against each other, or counter-
current, which maximizes heat transfer. This
diagram describes the essence of all Level 1®fluid
warmers.

can be easily changed without patient disconnection or repriming of the entire disposable
set. The Filter with Gas Vent should be changed every three hours or when the filter
becomes clogged, whichever comes first.
Temperature control
The H-1000 employs a safe circulating water heating system, inherently free of any "hot
spots." The primary temperature control circuit sets the circulating water bath to a
temperature of approximately 42 °C for efficient heat exchange and maximum fluid
warming.
Flanking I.V. Pole Brackets
The sturdy design of the H-1000 offers a compact, custom I.V. pole mount set up. This
versatile workstation features flanking side poles for Level 1®pressure infusers, syringe
pumps or infusion pumps.
Unpacking and Set up
The H-1000 packaging should contain the following items:
Contents Quantity
H-1000 Warming Unit 1
H-1000 I.V. Pole Base 1
H-1000 I.V. Bag Hanger 1
H-1000 I.V. Pole with Flanking Brackets 1
Accessory Pack:
H-1000 Manual 1
D-Series Instruction Card 1
Y-Connector 1
Black Pneumatic Tubing 1
Hex Wrench 1
1. Place the base upright on its wheels. Lock casters to prevent pole movement during
set up.
2. Remove the three threaded pole screws on the vertical base tube. Slide the I.V. pole
with flanking brackets down over the vertical base tube lining up the three screw holes in
the pole with the three screw holes in the base as shown in Figure 2. Note: the flanking
brackets should face the longer side of the base.
3. Thread the three pole screws back through the holes at the base of the pole and
tighten.
4. Attach the H-1000 warming unit to the flanking brackets by sliding the eight threaded
screws on the back of the unit into the eight keyhole notches on the flanking I.V. pole
brackets. (Refer to Figure 2.) Tighten all eight screws to secure warmer to I.V. pole and
flanking brackets.
5. Lock I.V. bag hanger into place on the top of the I.V. pole.
4

5
6. Close the drain valve (seen in Figure 7) on the bottom of the unit. Remove the fill port
plug on the front of the unit and fill the tank with 1.4 liters of distilled water. Replace the fill
port plug.
CAUTION: Tap water will increase earth leakage current. For proper system operation and
component life, use only DISTILLED WATER in the water reservoir.
7. Plug the unit into the appropriate electrical outlet. (See specifications for details. )

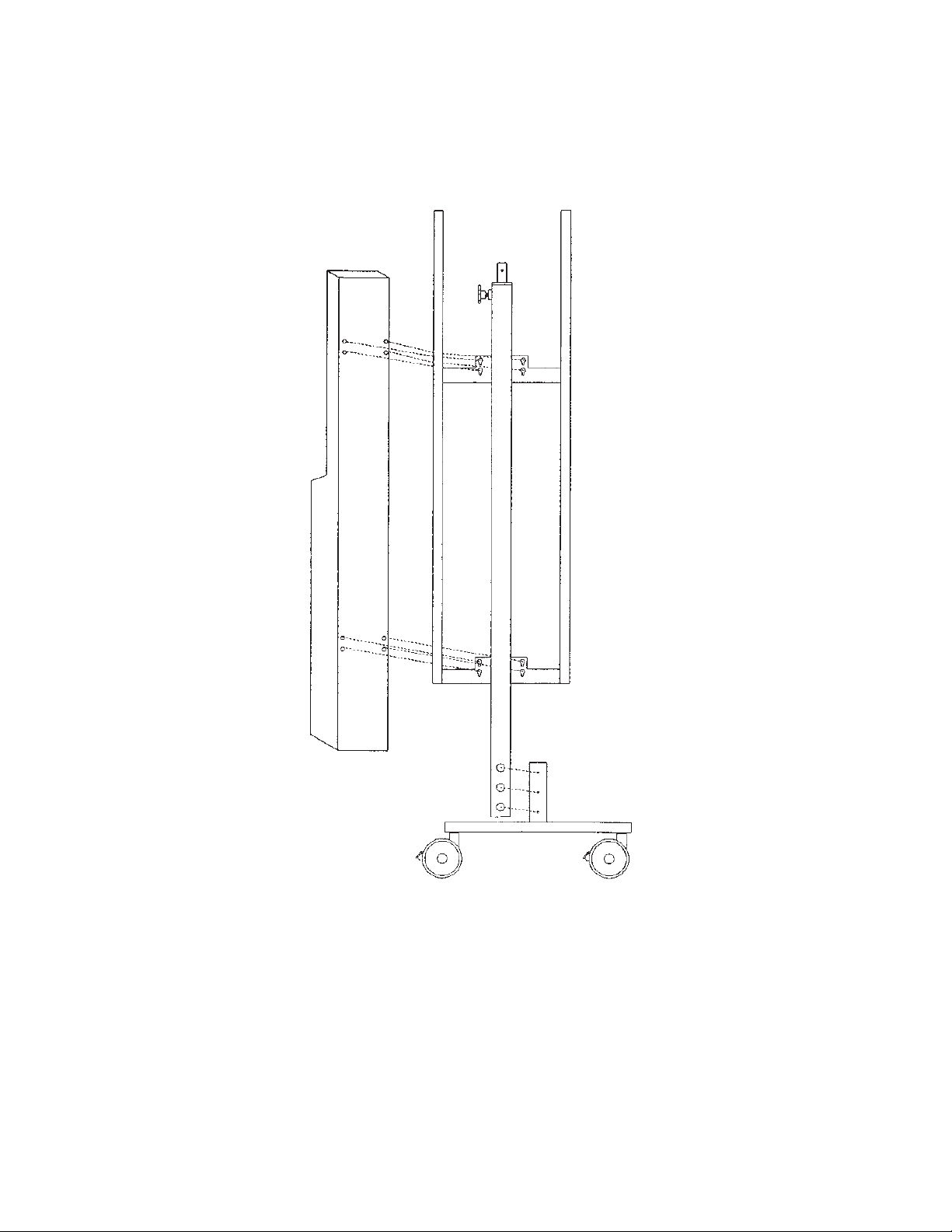

Figure 2. H-1000 assembly

6
CAUTION: This device must be assembled and tested by Smiths Medical technical
personnel, an authorized distributor of Smiths Medical or a trained biomedical engineer
prior to placing the device into service. Refer to the Testing section of this manual for
complete system testing instruction.
H-1000 Hardware
The H-1000 has an onboard water supply heated to 41.7 °C. This temperature controlled
water supply is rapidly circulated through the heat exchanger of the disposable set. Two
independent circuits continuously control and monitor water temperature, and will shut the
system down and alarm in the event of an over temperature condition.
Power and Alarm Testing
The power and alarm test panel on the front of the H-1000 cabinet is shown in Figure 3
below. It contains four membrane switches. Only a gentle press is required to activate
each switch.
1. POWER ON
The green switch on the left powers ON the H-1000 warming unit including the onboard
compressor for the pressure infuser accessory system.
2. POWER OFF
The orange switch on the right powers OFF the unit.
3. ALARM TEST
This alarm test button confirms proper operation of visual and audible alarm systems.
Press and hold this button to test alarm systems. When the switch is released the WATER
OVER TEMPERATURE alarm will continue to sound. This is normal operation. To clear
the alarm condition, turn the unit OFF and then back ON.
4. OVER TEMPERATURE TEST
This alarm test button confirms proper operation of the OVER TEMPERATURE circuitry.

7
Press and hold this button to test this alarm circuitry. When the switch is released the
WATER OVER TEMPERATURE alarm will continue to sound. This is normal operation.
To clear this alarm condition, turn the unit OFF and then back ON.
Display Panel
The display panel shown in Figure 4 contains visual information that continuously
indicates the status of the H-1000 during operation. Five displays provide information for
safe, convenient use of the device.
1. CIRCULATING WATER BATH TEMPERATURE
Displays temperature of the circulating water bath in °C. This is not the temperature of the
fluid delivered to the patient.
2. SYSTEM OPERATIONAL
This GREEN indicator illuminates when the power switch is ON and the heat exchanger
has been properly installed.
1.4 Liters
H2O
Figure 3. Power and Alarm Panel Figure 4. Display Panel
41

8
3. CHECK DISPOSABLES
This Yellow indicator and pulsing AUDIBLE ALARM indicate the heat exchanger is NOT
properly installed.
4. ADD WATER
This Yellow indicator and pulsing AUDIBLE ALARM indicate additional distilled water must
be added to the water reservoir.
5. WATER OVER TEMPERATURE
This RED indicator and AUDIBLE ALARM indicate an over temperature condition. Press
and hold this switch to confirm proper operation of the OVER TEMP circuitry.
NOTE: When any one or more of the alarms are activated, and the red and/or yellow
indicators are illuminated, and the audible alarm is sounding, no water is circulating and
no fluid warming is taking place.
Interlocks
Three low voltage interlocks are located in the cabinet. They sense the presence of a
properly installed heat exchanger and filter with gas vent. These interlocks prevent the
pump from pumping water when there is no disposable in place to complete the circulation
loop. If the "CHECK DISPOSABLE" alarm is activated and the light next to the "2" socket
is illuminated, press the #2 socket down firmly to engage the interlock switch.
The H-1000 display panel provides information for safe, convenient set up and use of the
device.

Accessories: H-1025 Pressure Infusers
The H-1000 is equipped with an onboard compressor that is used to operate two Level 1®
pressure infusion chambers (H-2’s). Pressure Infusion chambers are sold separately as an
accessory to the H-1000. The H-1000 combined with two pressure infusion chambers is
referred to as the H-1025. Pressure Infusers are not required to operate the H-1000, but
are a valuable accessory to complete this total fluid management system.
H-1025 pressure infusers provide controlled, convenient pressurization of I.V. blood and
fluid bags for rapid administration of fluids. These automated pressure chambers quickly
reach and hold a preset pressure of 300 mmHg for high speed fluid delivery not possible
with manually pumped pressure cuffs. The factory set 300 mmHg pressure is constant
and not adjustable. At 300 mmHG pressure, flow rates may be altered by adjusting the
roller clamp on the Level 1®D-series disposable I.V. fluid warming set.
With the H-1025 infusion chambers, pressure can be applied or released with the throw of
a switch. Empty I.V. fluid bags can be de-pressurized, replaced and repressurized in
seconds. Each pressure infuser contains an expansion bladder to accommodate either a
500 ml bag or a 1000 ml bag. And a safety relief valve is also contained in each chamber
to help prevent over-pressurizing fluid bags.

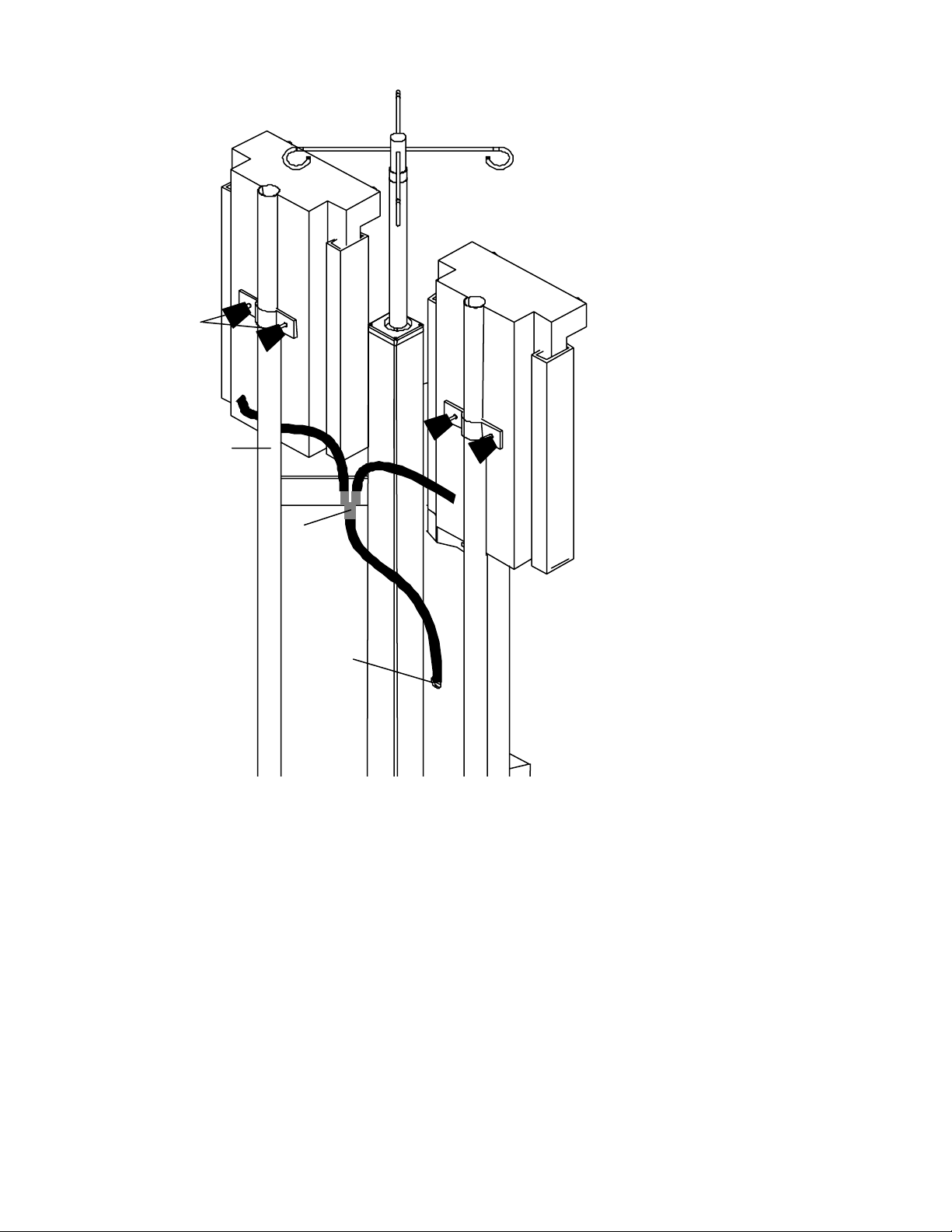

If you have purchased a pair of pressure infusion chambers, please refer to the following
pressure infuser set up instructions for proper installation.
Packaging for each pair of H-1025 pressure infusers should contain the following items:
Contents Quantity
H-2 Pressure Infuser 2
Y-Connector 1
Black Tubing 1
Set-up and Use
CAUTION: This device must be assembled and tested by Smiths Medical technical
personnel, an authorized distributor of Smiths Medical or a trained biomedical engineer
prior to placing the device in service.
! WARNING !: Level 1®pressure chambers are to be used only as a component of the
Level 1®fluid warmer. Do not connect to compressed gas bottles, O.R. Air, or any other
pneumatic pressure source. Be sure that the chrome poles on the H-1000 are in the
upright position.
1. Loosen the two pole mounting thumb screws on the back of one H-2 pressure chamber
as seen in Figure 5. Slide the H-2 over the top of the flanking bracket.
9

2. Secure the H-2 in
place by tightening the
two pole mounting
screws.
3. Repeat steps 1 and 2
for the second H-2
pressure chamber.
4. Remove the orange
plug from the red ring
connector located on the
back of the H-1000. This
is done by depressing the
red plastic ring and
pulling the plug out.
5. Press the piece of
black pneumatic tubing
firmly into the connector
on the back of the H-
1000 until it bottoms out.
Press the other end of
the tubing into bottom of
the Y-connector.
6. Press the black tube
from one of the H-2s into
the Y-connector. Press
the black tube from the
other H-2 into the Y-
connector.
Once the H-1000 is turned on, 300 mmHg pressure can be automatically applied by
pushing the toggle switch on the top front of the H-2 chamber all the way over to the "+"
or ON position. Always make sure that the chamber door is closed and latched when
pressure is activated.
With the Level 1®pressure infusion chambers properly installed, the H-1000 fluid warmer
becomes the H-1025, a complete fluid management system.
10
Figure 5. Installing Pressure Infusers
Mounting Screws
Chrome Pole
Y-Connector
Remove Plug and
insert black tubing

To Load
In order to help avoid inadvertent infusion of air to the patient the following warnings
should be observed:
! WARNING !
Remove all air from solution bags.
! WARNING !
Not for use with commercial I.V. solution bags less than 1 liter with air.
! WARNING !
Not for use with autotransfusion bags.
1. Set up and prime Level 1®D-Series disposable I.V. fluid warming set following the
instructions on disposable package.
2. Flip toggle switch on top front of the H-2 chamber all the way over to the "-" or OFF
position.
3. Open chamber door by swinging out hinged latch on right side.
4. Hang air-free solution bag on door post.
NOTE: Each pressure chamber can hold either a 500 ml bag or a 1000 ml bag. For a 500
ml bag, the hanging post is located on the inside of the door. For a 1000 ml bag, the post
is located on the top of the door. For optimum drainage of 1 liter bags, the upper molded
post is for longer style bags. The lower molded post is used for standard size bags.
5. Close door and secure side latch.
To Pressurize
CAUTION: Be certain latch is secure before chamber is pressurized. Never pressurize with
door open.
CAUTION: Do not exceed 300 mmHg.
1. Push toggle switch all the way over to "+" or ON position. Observe pressure gauge to
ensure 300 mmHg (approx.) is achieved.
NOTE: The pressure is not adjustable on this device. The fluid warmer power switch must
be ON for pressure chambers to operate.
To Unload
1. Push toggle switch all the way over to the "-" or OFF position. This will release pressure
in the chamber and deflate bladder.
2. Open door and remove fluid bag.
11

NOTE: Chamber pressure must be released before the pressure chamber door can be
opened.
To Clean
Please refer to the maintenance section of this manual for complete cleaning and
disinfecting procedures for the H-1025 pressure infusers.
Disposables: Set up and Performance
! WARNING !
Refer to D-series disposable packaging for complete set up and priming instructions,
indications, contraindications, warnings, cautions and additional product information.
Setting Up Disposable Sets
Level 1®D-series disposable sets have been designed to be highly effective and easy to
use in combination with the H-1000 fluid warming hardware. By following the simple 1-2-3
blocks found on the H-1000 fluid warmer, properly trained users can confidently have the
system safely set up and operating within seconds.
Following the numbers found on the H-1000:
1. Push the bottom end of the heat exchanger into the bottom heat exchanger #1 socket.
Be sure the heat exchanger is fully seated.
! WARNING !
Do not bend heat exchanger. Bending the heat exchanger may damage the inner
aluminum tube. If the tube is bent, serious patient injury or death could result.
2. Slide the top (#2) socket up. Snap the heat exchanger into the heat exchanger guide.
Be sure it is fully seated. Slide the top heat exchanger socket down over the heat
exchanger tube.
3. Insert the Filter with Gas Vent into the #3 holder on the front of the cabinet.
4. Press the green power switch on the front of the cabinet to turn ON the unit and allow it
to reach operating temperature while the disposable set is being primed. It takes
between 3 and 7 minutes for the water in the H-1000 to reach operating temperature.
12

When the H-1000 is plugged in and turned ON and the disposable set is correctly
installed, a green"OPERATING" light will illuminate and the water temperature will begin
to increase on the display panel. If the disposable set is incorrectly installed and the unit is
turned ON, the yellow "CHECK DISPOSABLE" light will illuminate and an intermittent
alarm will sound.
Priming Disposable Sets
! WARNING !
Set up, priming and use require aseptic technique. Follow applicable hospital policy and
procedures.
! WARNING !
Remove all air from fluid bags before spiking with D-series disposable set.
! WARNING !
All air must be removed from fluid lines prior to patient connection. Failure to do so could
result in the introduction of air to the patient.
! WARNING !
Monitor fluid lines to ensure they are air-free. Never infuse fluids if there are bubbles in
the line between the filter chamber and patient connection.
1. CLOSE the Y-Set clamps.
2. Remove one bag spike cap and spike it into an air-free fluid bag with a twisting motion.
3. Hang the fluid bag from the adjustable I.V. pole and open the lead clamp to the I.V.
bag.
4. Squeeze the drip chamber to the I.V. bag so it is 1/3 to 1/2 full.
5. Remove the male luer cap on the patient line and open the Y-set clamps to the I.V.
bag.
6. Close the patient line clamp when the disposable set is completely primed. The filter
with gas vent will self prime.
7. Gently tap the filter with gas vent against the cabinet to release all trapped air. Priming
is complete. Make patient connection without entrapping air.
8. Adjust flow rate using roller clamp.
Filter with Gas Vent Replacement in I.V. Disposable Sets
Replace the filter with gas vent every THREE HOURS or when the filter becomes clogged
or air is slowly vented. Replace with Level 1®product number F-10 or F-30. Refer to
disposable packaging for appropriate filter replacement product number.
13

! WARNING !
Replacement filter with gas vent must be fully primed before continuing infusion.
Thoroughly check patient line for air bubbles before opening roller clamp. If air bubbles
are present, disconnect from the patient and re-prime before continuing infusion.
1. Close all clamps on the D-series disposable set and on new filter with gas vent.
2. Remove the used filter with gas vent from the holder while still connected to the
disposable set.
3. Install the new filter assembly into the #3 holder.
4. Using aseptic technique, disconnect upper luer-lock fitting and, after removing upper
male luer end cap from the new filter, connect the set to the new filter inlet.
5. Holding the used filter horizontally, disconnect the lower patient line luer-lock. Connect
the used filter luer-lock fittings together and discard.
6. With the filter outlet tube clamped, open the clamps above the filter. The filter with gas
vent will self prime.
7. Slowly release the outlet tube clamp and allow the outlet tube to fill completely.
8. Remove the second luer-lock end cap and connect the outlet tube luer-lock to patient
line.
9. Remove the filter with gas vent from its holder and tap it against the cabinet several
times until all trapped air bubbles have been vented out. Return the filter to its holder.
Note: The "CHECK DISPOSABLE" alarm will be activated whenever the filter with gas vent
assembly is removed from its #3 holder.
14

15
Trouble Shooting
PROBLEM
No Power
Check Disposables Alarm
Add Water Alarm
Water Over Temperature Alarm
Hot cabinet
Difficult to Install Heat Exchanger
THINGS TO CHECK
Make sure that the unit is plugged in and the
power switch is ON.
Is it plugged into correct circuit?
Make sure the heat exchanger and filter are
properly installed and the top (#2) socket is
down. If the top (#2) socket is not properly
seated, the yellow light next to it will illuminate.
Make sure that the water tank is filled above
the minimum mark level. Fill or top off the tank
with DISTILLED water only.
Turn off the power switch to clear the alarm.
Turn on the power switch again. If the unit
continues to alarm, remove it from service for
repair.
Make sure that the air inlet on the bottom of
the unit is not blocked or clogged with dust.
Lubricate the O-Rings in heat exchanger (#1)
and (#2) sockets with silicone. Order Part #
80-04-002 to replace O-Rings.

16
Many factors which are insignificant in low fluid administration are restrictors
of higher flow infusion. If you encounter flow restriction with any Level 1®Fluid
Warmer, CHECK EACH OF THESE POSSIBLE CAUSES.
OLD BLOOD
Stored blood begins to develop particulate within 5 to 7 days. This may
partially block fluid pathways, impeding flow.
FULLY SPIKED BAG
Bag port membranes may only be split, not completely pierced.
BAG PORT FILTER (if used)
40 micron to 80 micron filters used between the blood bag and the bag spike
of the Disposable set may restrict flow because:
1. Cold, viscous blood does not flow well through small pore filters.
2. As they are directly connected to the source of particulate with no pre-
filtering, they clog quickly.
3. They may trap air which can block filter media surface area.
CLAMPS PARTLY ENGAGED
Check to be sure all clamps are fully open.
TUBE SET
Leaving clamps engaged for extended periods of time when the Disposable
Set is not in use (such as pre-set-up) will cause the tubing to take a SET in
the clamped position.
TUBE KINK
Be sure no tube kinks are present anywhere in the set, especially in the Y-set
when a pressure cuff is employed and the IV Pole is used in a lowered
position.
TRAPPED AIR IN FILTER
As noted in the Priming instructions, remove the Filter from the holder and tap
against the Cabinet to dislodge air bubbles and allow them to vent out.
CLOGGED FILTER
If good quality blood is used, this filter should never cause flow restriction. In
the event of a clogged filter, this component may be changed. If frequent
clogging is encountered, discuss the QUALITY of the blood being used with
your Blood Bank
EXTENSION LINES
Use only extension lines with a bore of .130" (3.3 mm) or larger, equipped
with large bore fittings, such as Level 1®Part No’s. X-36 or Y-30.
STOPCOCK OR Y ADAPTER
Any fittings attached to the male luer-lock at the end of the Patient Line
should have large bores. If their bores are smaller than the male luer-lock
bore, they are restrictors.
NEEDLE or CATHETER
If possible, use a minimum 18 Gauge needle or 16 French catheter. Smaller
sizes will reduce flow.
Trouble Shooting Slow Flow Rates

Testing
The H-1000 is equipped with disposable set sensing interlocks. To operate the device and
perform testing operations a Level 1®non-sterile, not for patient use D-series disposable
set with heat exchanger and filter assembly must be in place.
! WARNING ! Do not attempt to defeat the disposable sensing interlocks or try to
operate the H-1000 without a disposable in place. Water may spill from the unit if the
interlocks are defeated.
CAUTION: Prior to placing the H-1000 into service, the device must be tested by Smiths
Medical technical personnel, an authorized distributor of Smiths Medical or a trained
biomedical engineer. Periodic testing and maintenance should be performed by a
biomedical engineer or trained personnel.
NOTE: Refer to Maintenance and Testing Log section of this manual for safety testing
frequencies and intervals.
Add Water Alarm
The H-1000 is equipped with a float switch which senses the water level in the onboard
reservoir. When the water level is too low, a yellow indicator on the display panel
illuminates and an audible alarm sounds. In the alarm condition the pump will not circulate
water.
With a test disposable set in place, the ADD WATER alarm may be tested by turning the
drain valve on the bottom of the unit 90 degrees clockwise and allowing water to drain out
into a container. Drain until the water level falls below the minimum mark on the water
tank.
Check Disposables Alarm
Three interlocks sense a properly installed heat exchanger. If a heat exchanger is not in
place and the power switch is ON, a yellow indicator will illuminate and an audible alarm
will sound. With the unit running, the interlocks may be tested one at a time by following
these simple steps.
1. Top Heat Exchanger Socket
Slide up slowly, two yellow indicators will illuminate and the audible alarm will sound.
2. Heat exchanger interlock
Gently pull on the middle of the heat exchanger, one yellow indicator will illuminate and
the audible alarm will sound.
3. Filter holder interlock
Remove the Filter with Gas Vent, one yellow indicator will illuminate and the audible alarm
will sound.
17

Water Over Temperature Alarm
Press and hold the Water Over Temperature alarm test button on the power and test panel
on the front of the unit. The display will jump to 45 °C (as long as the button is pressed
on), and the red over temperature indicator will illuminate and the audible alarm will start to
pulse.
NOTE: The Water Over Temperature Alarm test button actually tests the over temperature
circuitry of the system, not just the visible red display indicator and the audible alarm.
NOTE: Pressing the Water Over Temperature test button or the Alarm test button will disable the
H-1000 even after the buttons have been released. The unit must be shut off and then re-started to
clear the alarm condition.
Alarm Testing
The audible alarm and all indicator lights may be tested by pressing the Alarm test button
on the power and test panel on the front of the cabinet.
NOTE: Pressing the Alarm test button or the Water Over Temperature test button will disable the
H-1000 even after the buttons have been released. The unit must be shut off and then re-started to
clear the alarm condition.
Performance Testing
Periodic testing of the overall operating efficiency of the H-1000 can be accomplished in
one of two simple ways:
1. COLD START TEST
NOTE: This performance test requires a non-sterile, not for patient use Level 1®D-series
disposable set to be installed properly on the H-1000.
Store the H-1000 unit in a room where the room temperature is approximately 21 °C
(70 °F). With a non-sterile D-series disposable set in place, note the time, and then turn
the power switch ON. The green "OPERATING" indicator will illuminate. Rapidly rising
numbers will appear on the circulating water bath temperature display. A 41 °C
temperature reading will appear in approximately 3 to 7 minutes on an efficiently operating
unit.
NOTE: If the H-1000 does not pass the cold start test, it should be returned to Smiths
Medical or an authorized distributor of Smiths Medical for service. Do not attempt to
change the calibration settings.
2. THERMAL CALIBRATION WELL (TCW)
Available from Smiths Medical, a TCW may also be used to test performance and confirm
proper calibration of the water bath temperature.
18
