SmokerStore Taifun BTD User manual

®
BTD
1
Instructions
Please read the following instructions carefully before using the product and keep them for future needs.
1. Usage and storage instructions
Do not expose the product to humid environments or extreme temperatures, it could be damaged. If water enters
by accident, stop the operation to prevent a short circuit. Do not use our product more often or for a longer pe-
riod than traditional cigarettes. Keep the product out of the reach of children, adolescents and pets.
2. Contraindications
hen using liquids with and without nicotine: Please note the warnings and instructions for use of the liquid pro-
ducts and do not mix them with other substances. Do not use the product if you have a known problem with
nicotine or other liquid ingredients. In case of nausea, dizziness or rash, discontinue use and consult a medic
immediately. The electronic cigarette is not for smoking cessation.
3. Warnings
Delivery to and use by children and adolescents under the age of 18 is prohibited. The product is not recom-
mended for non-smokers.
This product is not suitable for pregnant women, women who are breastfeeding, people with cardiovascular and
respiratory diseases, alcoholics and epileptics. Do not use the product if you have lung disease (such as
asthma, COPD, bronchitis, pneumonia). The released vapor may cause an asthma attack, shortness of breath
and coughing fits in the case of a previously damaged lung. If complaints occur, please seek medical attention
immediately. Do not use our product if you have a known problem (allergies, intolerances, etc.) with nicotine or
other ingredients of our product. Since the product contains glycerol, it can lead to hyperglycaemia or glucosuria
in diabetics.
hen using nicotine-containing liquids: nicotine-containing products are not suitable for people who, for medical
reasons, should abstain from nicotine products. If the liquid is swallowed, contact the emergency number. You
can also contact the poison emergency service in your area.
4. Information on possible adverse ealt effects
- none known, see the instructions of the liquid.
5. Information on addictive effects
If you use products containing nicotine, the following warning is displayed on the packaging of the liquids: "This
product contains nicotine: a substance that is highly addictive.
6. Information on toxicological data
Overheating the liquid (over 240 ° C) in the electronic cigarette may cause toxicological substances. Please use
the electronic cigarette according to the manufacturer's recommendation and operating instructions. The use of
this product is at your own risk.
7. Contact
If you need additional information or if you have questions about the products and their use, please contact our
local shops or visit our website: www.smokerstore.de
Manufacturer:
SmokerStore GmbH,
Eisenwerkstraße 26,
58332 Schwelm, Deutschland
Email: [e-mail]
Tel.: [phone]
Fax: [phone]

®
BTD
2
1. PRODUCT DESCRIPTION
SCOPE OF DELIVERY
1x Taifun® BTD
1x mouthpiece
1x positive pole (dripper)
1x spare parts bag
1x user manual
1x card for authenticy verification
TECHNICAL SPECIFICATIONS
Dimensions: 22 x 2 mm Weight: ~ 28 g
Thread: 510 Capacity: –
Material: Stainless steel (1.4301) / POM / PEEK / PEI
2. SAFETY INSTRUCIONS
• Do not expose the device to extreme temperatures; Avoid exposure to direct sunlight and high humidity.
• Do not use the device in an environment that is enriched with flammable gases, vapors or dusts; There is a danger
of explosion!
• Do not drop, throw, or apply excessive force to the device to prevent damage; Do not use the device if you detect
damage.
• Refill the liquid early to prevent dry hit.
• The device heats up during use; Give it time to cool down again.
• Change the cotton if you change the flavour.
• Clean the device regularly, as condensate and dirt may settle.
• Make sure that the mod that you use with the device is capable of performance; Use of unregulated mods or mods
without protection is not recommended.
3. MANUFACTURER RECOMMENDATIONS
• The resistance of the used coil should not be less than 0.3 Ohms.
• Adjust the power of your mod to an appropriate level, depending on the used coil.
4. STORAGE INSTRUCTIONS
• If you don’t use the device for an extended period of time, close the airflow control or empty the tank, remove the
cotton and clean the device.
• Keep the device out of the reach of children and pets.
• Ensure that the device is firmly and securely in place.
• Store the device clean and dry; Avoid high humidity.
• Do not store the device under extreme temperatures; Avoid exposure to direct sunlight.
5. DISPOSAL NOTICE
• The packaging must be disposed of in an environmentally friendly manner.
• Products marked with the crossed out bin, do not belong in the trash. These products can be disposed of free of
charge in your local trade or at community collection points. Check with your local council, town hall or local waste
management company.

®
BTD
3

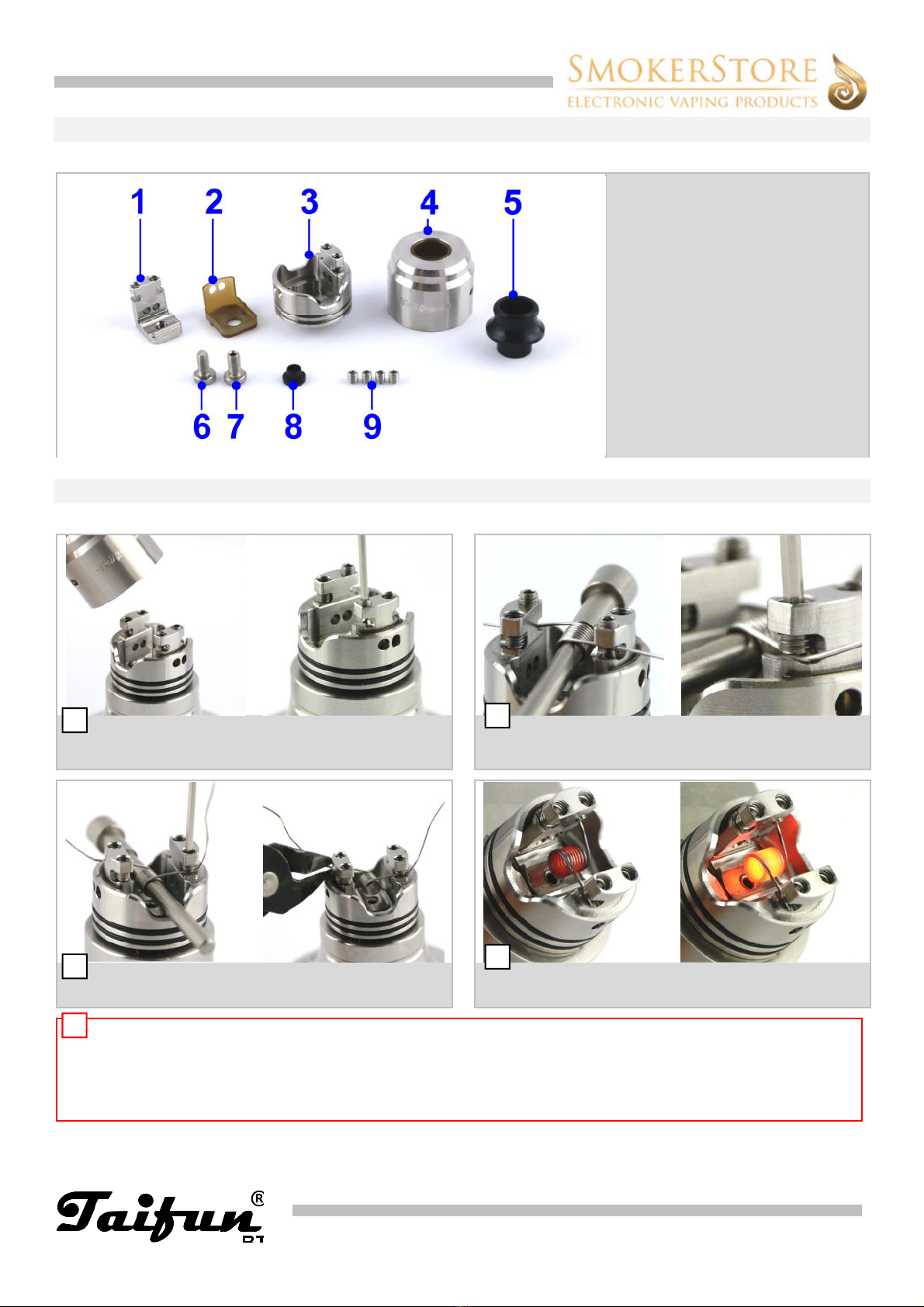

6. PRODUCT OVERVIEW
COMPONENT-OVERVIEW
1 positive pole
2 insulator (PEI)
3 base wit negative pole
2x o-ring (NBR 50 17x1 mm)
4 top cap
5 drip tip
6 positive pole screw (dripper)
7 positive pole screw (squonker)
8 insulator (POM)
9 4x allen screw (M2,5x3 mm)
7. START UP
ATTACHING A COIL
Pull the top cap off the base and unscrew
the required screws.
Insert the coil and fix it at the contact
points with the allen screws. Make sure
that the coil points downwards.
Cut the coil ends.
Make sure that the coil glow evenly from the
inside to the outside and do not form any heat spots.
WARNING
• Use an ohm meter to check the resistance of the coil/device before using it. Don’t use the device, if a short circuit is de-
tected. This could lead to battery damage. Check if there is a contact between the coil ends and surrounding parts..
• Make sure the coil points down when installing. Otherwise, the coil can not be reached correctly by the airflow and is too
close to the drip tip (danger of short circuit).
!
1
2
3
4

®
BTD
4
INSERT COTTON
Cut a strip of cotton an sharpen it on the edge.
Pull the cotton through the coil, until
both sides have the same length.
Shorten the cotton and turn the ends sideways. The ends of the cotton should touch the bottom slightly
to be able to absorb the liquid. Then pre-moisten the cotton with liquid
PREPARATION AND ADJUSTMENT
Now, the top cap will be put on again.
A turn on the top cap regulates the airflow.
By pressing the liquid container of the squonker box,
the liquid is transported to the coil.
WARNING
• Always make sure that the tank is filled sufficiently to avoid dry hit.
• Make sure that no liquid gets on your skin, otherwise wash these areas thoroughly.
!
1
2
3
1
2

®
BTD
5
ADJUST AIRFLOW CONTROL
By twisting the top cap opposite the base, one or two air holes (per side) are opened, depending on the position. This
allows the airflow to be set individually. If the top cap is turned all the way to the left, the air supply is completely
closed (eg for transport)
Turning to the left, until it stops,
closes the airflow completely.
Turning to the middle position
opens both air holes.
Turning to the right, until it stops,
opens one of the air holes.
WARNING
• Never vape with completely closed airflow control.
• Make sure there is sufficient air supply at higher wattage levels.
USE OF AN ALTERNATIVE DRIP TIP
The drip tip of the Taifun® BTD can be exchanged for another standard drip tip. However, it is important that the
connection of the Drip Tip is max. 5 mm long. Otherwise, it may happen that the drip tip jut out into the chamber and
touches the coil. Especially with the use of metal drip tips, there is a risk of short circuit.
T erefore, make sure to install t e coil pointing downwards.
The Drip Tip may not extend more
than 5 mm into the top cap.
Please note this length when
using other drip tips.
The coil has to be installed
pointing downwards.
!

®
BTD
USE AS DRIPPER
The positive pole screw, which is installed in the Taifun® BTD, has a channel through which the liquid is led to the coil.
Alternatively, this screw can also be replaced by a closed version (included in delivery). ith this screw the Taifun®
BTD can also be used as a regular dripper.
First, the positive pole screw is unscrewed. Now the positive pole in the inside gets loose. If necessary, hold it with
one finger. Then the positive pole screw is replaced and screwed back in again. It fixes the positive pole inside. Make
sure that the positive pole sits correctly in the insulator and is not bent or twisted.
hen changing the positive pole screw, there should be no coil in the device.
Unscrew the positive pole screw Replace positive pole screw
Screw back again the positive
pole screw
8. CLEANING
Do not use cleaning agents as they could harm the o-rings.
Before assembling, check the completeness and positioning of the o-rings to prevent leakage of liquid.
• Disassemble the device into its components.
• Do not remove the PEI insert in the top cap..
• Clean the components (not the cotton) with warm water or in an ultrasonic bath.
• Completely dry the components before reassembling the device.
9. MAINTENANCE
• ait until the device has completely cooled down before disassembling, to prevent burns.
• Make sure that there is no power supply by unscrewing the device from the mod or by switching off the mod.

®
BTD
7

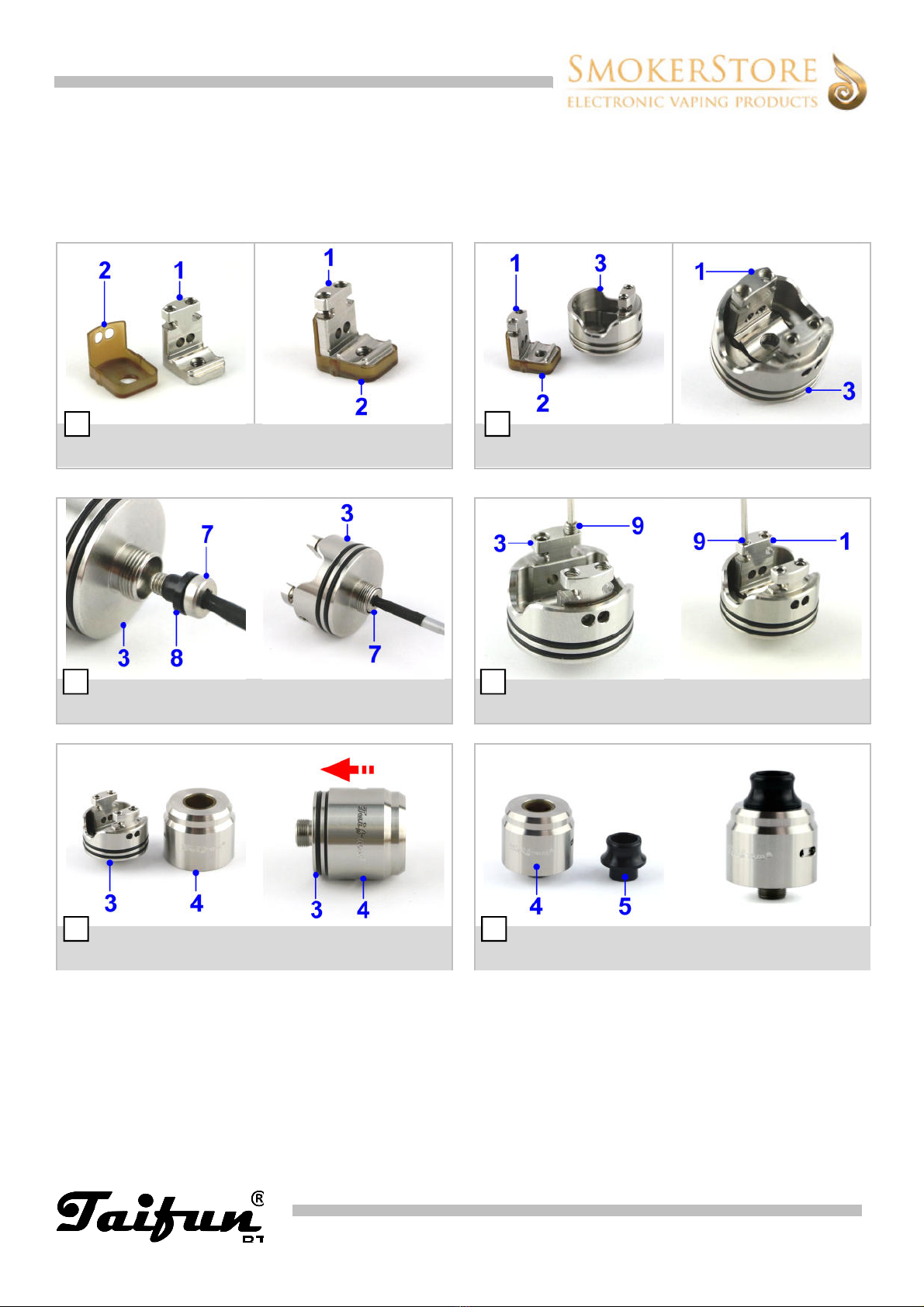

ASSEMBLING DEVICE
• The device is usually delivered fully assembled, the following instructions are for the assembly after cleaning.
• Moistening the sealing rings with liquid makes the assembly easier.
.
The Insulator (2) is placed on the positive pole (1).
The positive pole (1) is inserted into the base (3)
together with the insulator (2)
The positive pole screw (7) is pushed through the
insulator (8) into the base (3) and screwed to the positive pole (1).
The four screws (9) for wire fastening
are screwed into poles (1, 3).
The top cap (4) is put on the base (3). The drip tip (5) is inserted into the top cap (4).
1
2
3
4
5

®
BTD
8
REPLACING SEALING RINGS
Sealing rings are used to seal the device.
• If you notice liquid or moisture leaking out of the device, the cause may be brittle seal rings that need to be replaced.
• Moistening the sealing rings with liquid makes the assembly easier.
IMPORTANT

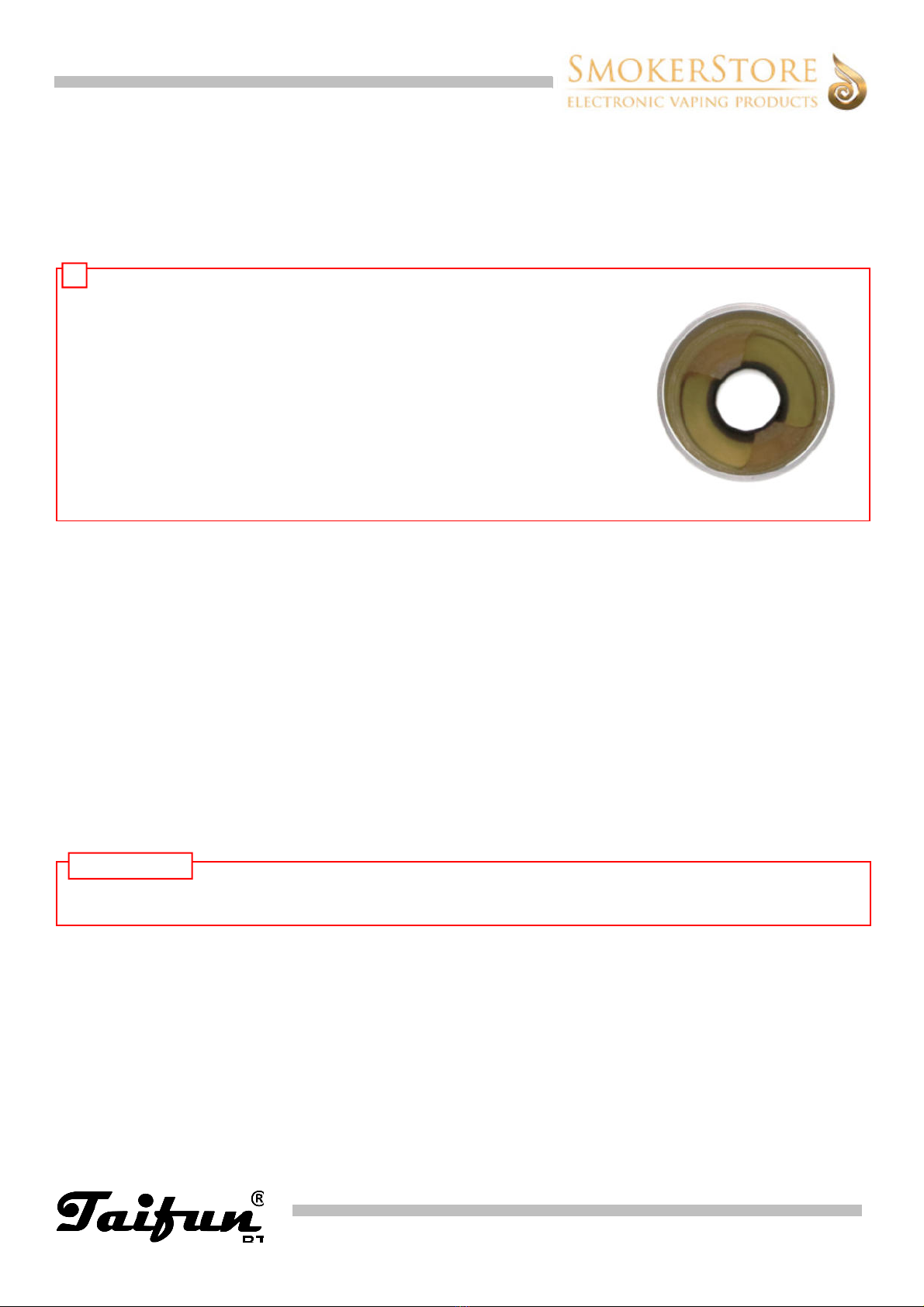

• Inside the top cap is a PEI insert. Under no circumstances this should be remo-
ved, as otherwise there is a risk of a short circuit and the airflow control will be rui-
ned.
• Even at an intensive cleaning of the device, the insert must remain in the top
cap. For this reason, the insert is pressed firmly and accurately positioned.
• Should the insert be removed or damaged, please contact SmokerStore Custo-
mer Service.
A more comprehensive user guide can be downloaded at www.smokerstore.de as PDF..
!
INFO
RMATION
