Smooth Fitness 4.25 User manual

OWNER’S MANUAL
4.25 MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 250lbs (110 kgs)
SERIAL NUMBER (found on frame):

2
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that blocks
air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
•When choosing a location for the treadmill make sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or
near water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 250lbs (110 kgs)
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the
treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing
only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by
an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow these
instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.
•The equipment is for Class B (Home Use).

3
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS
TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH
THE PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage
spikes, surges and noise interference can result from weather conditions or from other appliances being turned on
or off. To reduce the possibility of treadmill damage, always use a surge protector (not included) with your
treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet
surge protector with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed
voltage rating of 400V or less and an electrical rating 110VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least
resistance for electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having
an equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge protector, and
plug the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like the plug illustrated in
the drawing below. GFCI outlets and GFCI Circuit Breakers are NOT recommended for use on this product. GFCI
outlets and GFCI Circuit Breakers may cause this equipment to function improperly.

4
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
BEFORE YOU BEGIN
Open the boxes:
Open the boxes of your new equipment. Inventory all parts included in the boxes. And Compare them to the
supplied components and supplied Hardware lists on page 5 for a full count of the parts included . If you are
missing any parts or have any assembly questions contact us directly at 1-888-800-1167 .
Assembly instructions begin on page 12 .
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may
require to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the
assembly quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space
is free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is
a comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of
another person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 250Lb (Approx. 100Kg). it
is not recommended that you use this product. Serious injury may occur if the user’s weight exceeds the
limit shown here. This product is not intended to support users whose weight exceeds this limit.
Care and maintenance:
1. The safety level can be maintained only if it is examined for damage and wear.
2. Replace any defective components immediately and stop all use of equipment until repaired.
3. Always take care when you mounting the equipment. Straddle the equipment by placing your feet on the
straddle rails. Dismount from the equipment only after all parts have stopped.
4. Always check the easily wear components like pulley etc….to prevent danger.
5. There is an emergency stop, in the form of a SAFETY KEY, to prevent injury, you can stop the treadmill
immediately by actuated the emergency stop for emergency dismount.

5
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com

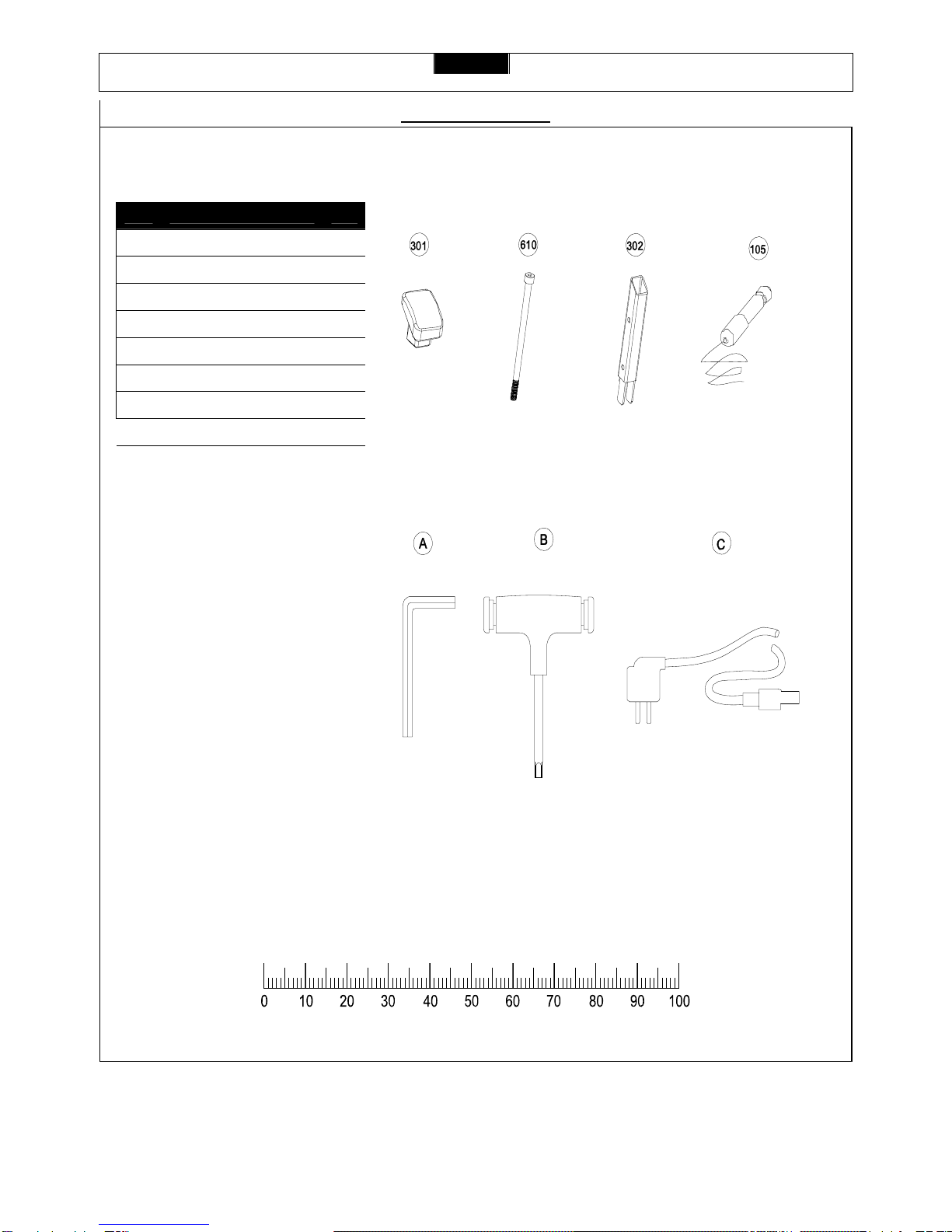

Supplied Hardware
This list identifies the hardware you will use to assemble the product. To help distinguish between the various
types of screws and bolts, use the scale below to measure them and compare them to the sizes listed.
No. Description Qty.
301 Fold Up Foot Cover 2
302 Fold Up Foot 2
610 M8×130 Screw 2
105 Safety Key 1
A 6mm Allen Wrench 1
B 5mm Allen Wrench 1
C Power Cord 1
MILLIMETERS

6
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
Part List
No. Part name Qty Order No. No. Part name Qty Order No.
101 Button Cover 1 4.25-101 412 Switch 1 4.25-412
102 Computer 1 4.25-102 413 Switch Board Holder 1 4.25-413
103 Console Housing -Lower 1 4.25-103 414 Electric Outlet 1 4.25-414
104 Safety Key Base 1 4.25-104 415 Electric Outlet holder 1 4.25-415
105 Safety Key 1 4.25-105 416 Electric Protector 1 4.25-416
106 Console Housing Holder-Upper 1 4.25-106 417 PU Cushion 1 4.25-417
107 Console Housing Holder-Lower 1 4.25-107 418 Motor Cover -Lower 1 4.25-418
108 Console Fix Lower Cover 1 4.25-108 419 Transport Wheel Bracket 1 4.25-419
109 Pulse Sensor Wire-Upper 2 4.25-109 420 Main Frame Foot Cover 2 4.25-420
110 Overlay 1 4.25-110 421 Control Board 1 4.25-421
201 Fold Up Grip 1 4.25-201 501 Side Rail 2 4.25-501
202 Upright -Left 1 4.25-202 502 Rear End Cap -Left 1 4.25-502
203 Upright -Right 1 4.25-203 503 Rear End Cap -Right 1 4.25-503
204 Heart Rate Handle Bar 1 4.25-204 504 Running Belt 1 4.25-504
205 Pulse Sensor Set 2 4.25-205 505 Running Deck 1 4.25-505
206 Console Support Tube Bushing 2 4.25-206 506 Side Rail Guider 8 4.25-506
207 Handlebar Cover Right -Inner 1 4.25-207 601 M4x14 mm Screw 22 4.25-601
208 Handlebar Cover Right -Outside 1 4.25-208 602 M3x10 mm Screw 6 4.25-602
209 Handlebar Cover Left -Inner 1 4.25-209 603 M5X14 mm Screw 2 4.25-603
210 Handlebar Cover Left -Outside 1 4.25-210 604 M4X10 mm Screw 8 4.25-604
213 Upright Lower Cover 2 4.25-213 605 M5 Nut 4 4.25-605
214 Side Cover 2 4.25-214 606 M8×18 mm Allen Bolt 2 4.25-606
215 Fold Up Grip Connect Rod 2 4.25-215 607 M4×40 mm Screw 2 4.25-607
216 Spring 2 4.25-216 608 M8×52 mm Bolt 4 4.25-608
217 Upright Lock Pin 2 4.25-217 609 Ø10 Washer 5 4.25-609
218 Fold Up Grip Connector 2 4.25-218 610 M8×130 Screw 2 4.25-610
219 Safety Key Wire -Lower 1 4.25-219 611 M6×45 mm Screw 3 4.25-611
220 5 Pin Computer Wire -Lower 1 4.25-220 612 Ø6 Washer 3 4.25-612
301 Fold Up Foot Cover 2 4.25-301 613 M12x25 mm Cap Allen Head Bolt 2 4.25-613
302 Fold Up Foot 2 4.25-302 614 M6×14 Screw 4 4.25-614
303 Front Foot Base 2 4.25-303 615 M6 Washer 4 4.25-615
304 Main Frame 1 4.25-304 616 M4X35 Screw 2 4.25-616
305 Rear Transport Wheel 1 4.25-305 617 Φ26 Washer 2 4.25-617
306 Rear Transport Axle Cap 2 4.25-306 618 M8 Nut 5 4.25-618
307 Transportation Wheel 4 4.25-307 619 M8X85 Bolt 1 4.25-619
308 Belt Cover- Bottom 1 4.25-308 620 M8X48 Bolt 1 4.25-620
309 Rear Roller Tube 1 4.25-309 621 M10 Nut 1 4.25-621
310 Rear Roller Shaft 1 4.25-310 622 M10X116 mm Screw 1 4.25-622
311 Front Roller Tube 1 4.25-311 623 Φ8 Plate Washer 10 4.25-623
312 Front Roller Shaft 1 4.25-312 624 Ø8 Spring 2 4.25-624
401 Motor Hood 1 4.25-401 625 M8×12 Allen Head Bolt 2 4.25-625
402 DC Driving Motor 1 4.25-402 626 M8 Bump Bolt 2 4.25-626
403 Driving Belt 1 4.25-403 627 4×19 Screw 18 4.25-627
404 Motor Holder 1 4.25-404 628 M8 Special Bolt 1 4.25-628
405 Motor Holder Bracket End Cap -Upper 2 4.25-405 629 Ø8 Washer 2 4.25-629
406 Motor Holder Bracket End Cap -Lower 2 4.25-406 630 M10×25 Allen Head Bolt 2 4.25-630
407 Front Foot Bracket 1 4.25-407 631 M8×30 Allen Head Bolt 4 4.25-631
408 Motor holder bracket locate frame 1 4.25-408 632 Plastic Insert 14 4.25-632
409 Motor Holder Bracket Base -Left 1 4.25-409
410 Motor Holder Bracket Base -Right 1 4.25-410
411 Switch Board 1 4.25-411

7
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
110

8
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
607
220
219
632
632
632 632
218
218
604
206 205
603
205
605
206 207 604 203
201
607
204
605
210
202 209
606
606
208
608
608
217
609
215
216
214 601
213
213 601 214
623 623

9
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
616
401
418
602
602
602
623
413
412 411
630 627
623
410
631
307
614
406
405
407
405
403
402
609
621
618 619
617
417
618
404
629 624
625
622
406
307
618
628
408
614
409
419
414
415
631 416
618
626
626
618
603
420
604
420
604
620
601
629
421

10
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

11
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOW HERE HAVE BEEN PRE-ASSEMBLED.

12
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
ASSEMBLY

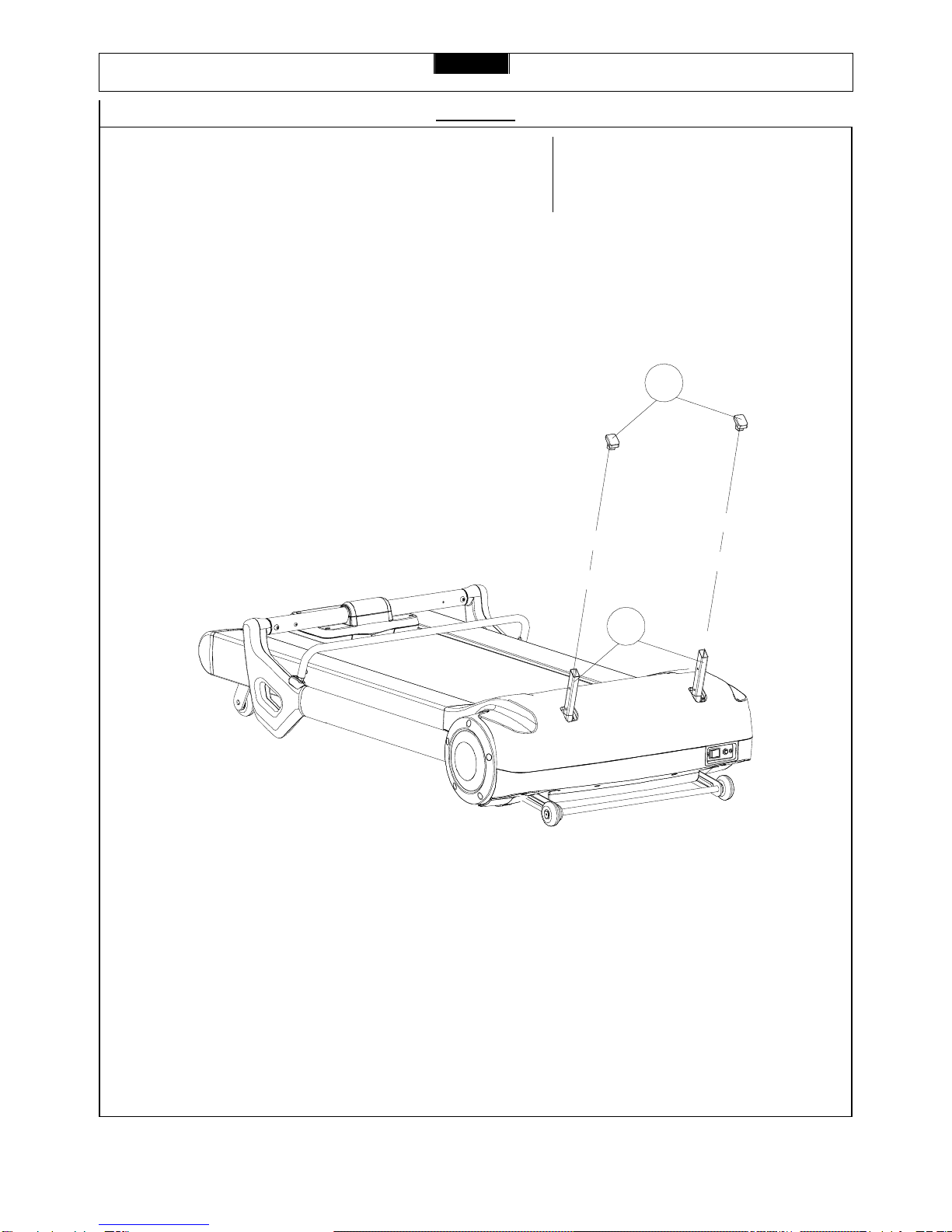

STEP 1: Attach Front Foot Brackets
A. Place your treadmill in an open area.
B. Attach the Fold up foot (302) to the Front Foot Bracket (407) and secure
using M8x30 mm Bolt.
C. Tighten bolts using the provided Allen key.
610 x2
302 x2

13
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
ASSEMBLY
STEP 2: Attach Foot Covers
A. Attach the Fold Up Foot Cover (301) to the Fold Up Foot (302).
301 x 2
301
302

14
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com

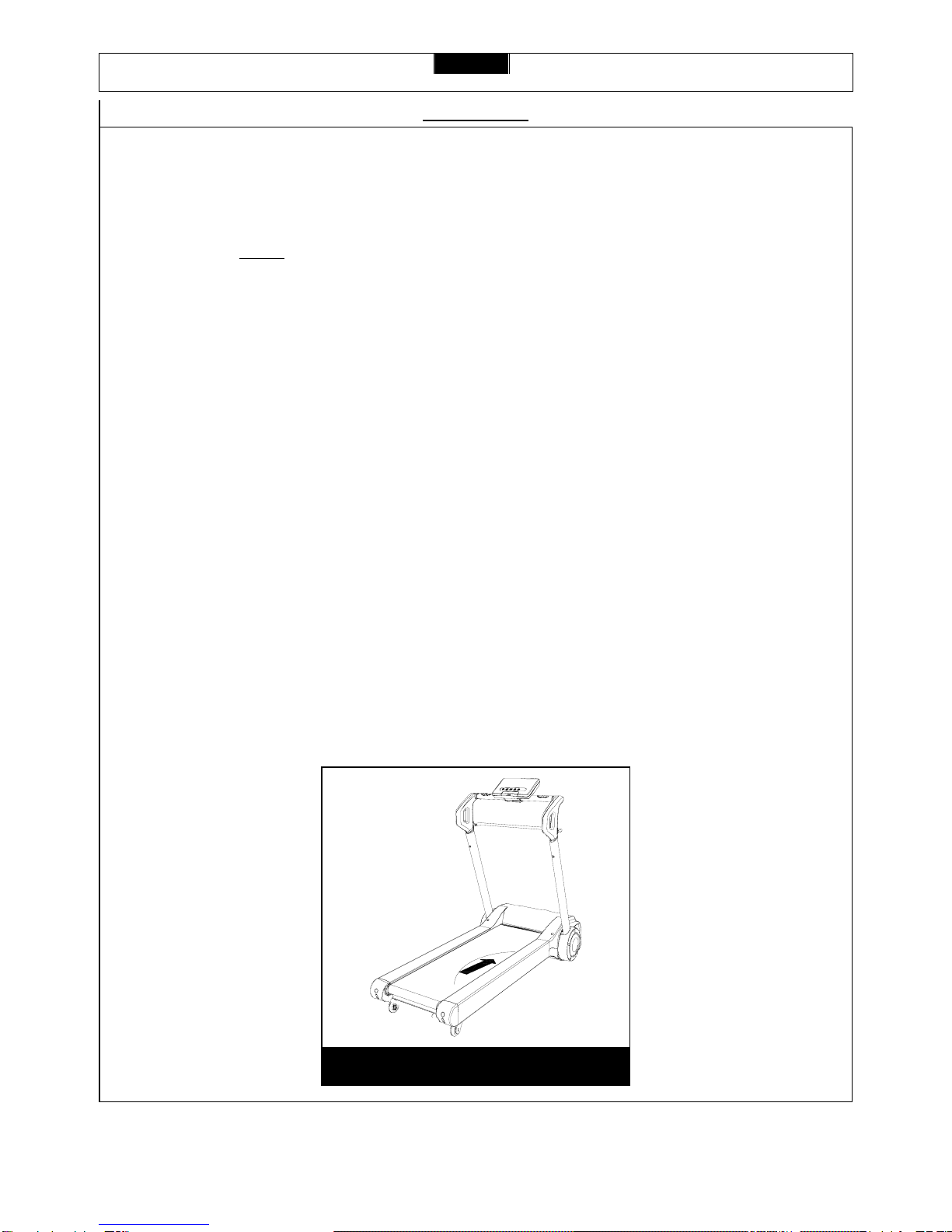

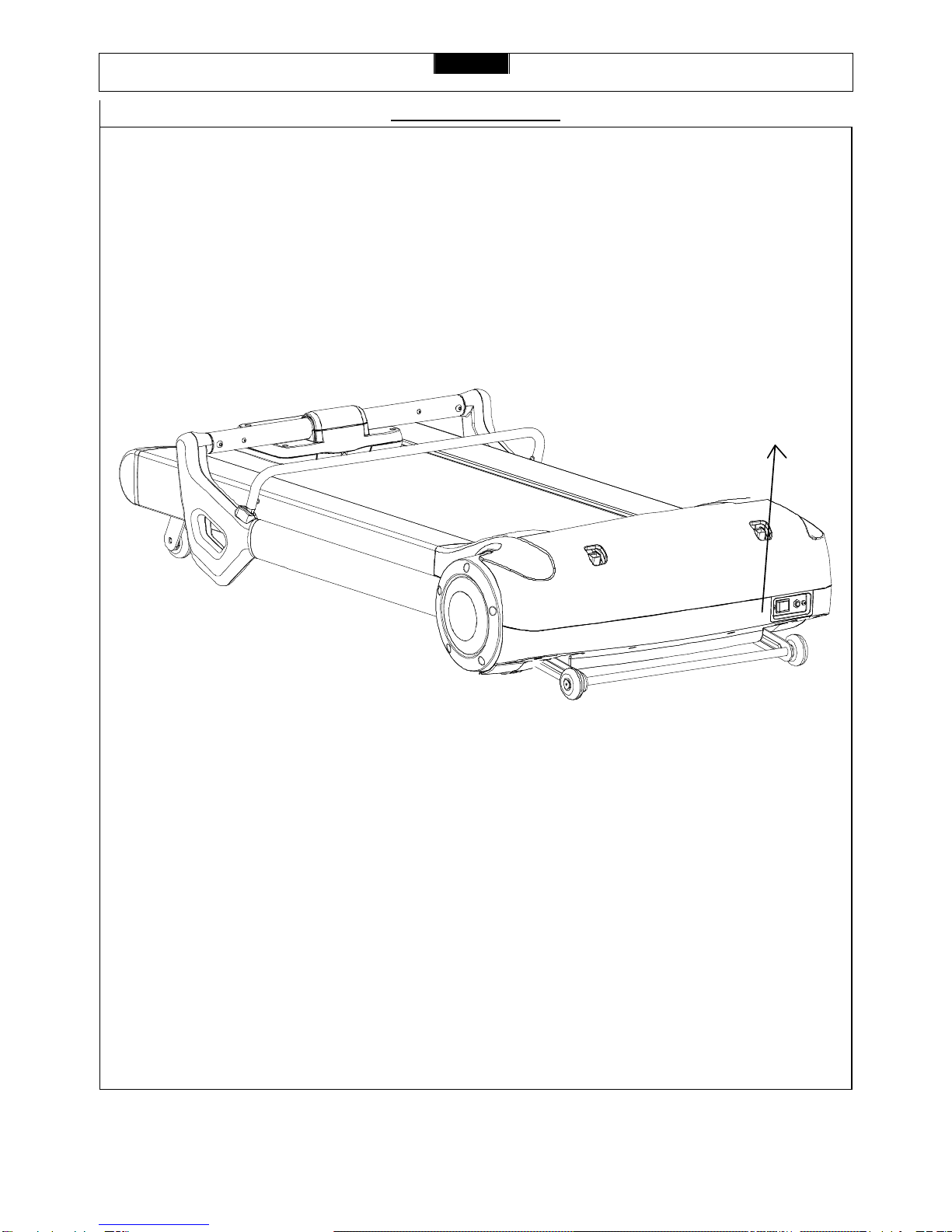

FOLD UP
A. Pull the fold up grip and lift the upright up from the rear of the treadmill.
B. Fold up until the uprights lock in place. You should hear a “click” sound to indicate the uprights are locked
C. To prevent injury be sure you have a firm hold when raising the upright.
D. The Safety Key must be inserted to operate the treadmill.

15
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
TRANSPORT

16
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
Location of Serial Number
location of serial number

17
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
MAINTENANCE
CLEANING:
Routine cleaning of your treadmill will extend the product's life.
•Warning: To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord
is unplugged from the wall electrical outlet before attempting any cleaning or maintenance.
•Important: Do not use abrasives or solvents to clean the treadmill. To prevent damage to the
computer, keep liquids away and keep it out of direct sunlight.
•After each workout: Wipe off the console and other treadmill surfaces with a clean, water
dampened soft cloth to remove excess perspiration.
•Weekly: Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts
the belt and eventually makes it to underneath the treadmill. Vacuum underneath treadmill once a
week.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be
checked periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be
lubricated usually within the first 400 hours of use.
Every 2 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far
as you can reach. If you feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow
the instructions below.
To purchase lubricant kit please contact Smooth Fitness 1-888-800-1167
To apply lubricant to the walking belt:
1. Position the walking belt so that the seam is located on top and in center of the walking board.
2. Insert the spray nozzle into the spray head of the lubricant can.
3. While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board
approximately 6" from the front of the treadmill. Apply the silicone spray to the walking board, moving
from the front of the treadmill to the rear. Repeat this on the other side of the belt. Spray approximately
1/4 bottle (supplied with treadmill) each side..
4. Allow the silicone to "set" for 1 minute before using the treadmill.
Apply from front to back.

18
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
COMPUTER INSTRUCTIONS
Before assembling or using your fitness equipment, please carefully read the precautions included in the
assembly instructions.
Display
1
2
3
4
567 8 9 10 12
13
11
(1) CALORIES ----------The calories display range is from 0 to 999.
(2) TIME ------------------The TIME display range is from 0:00 to 99:00. The initial TIME is “32:00”
(3) PULSE ---------------The range of the PULSE display is from 0 to 199 BPM.
(4) DISTANCE ----------The DISTANCE display range is from 0.0 to 99 km/h; Mph.
(5) PROGRAM – MANUAL
(6) MEASURE in KM/ML
(7) PROGRAM – DISTANCE
(8) PROGRAM – TIME
(9) PROGRAM – CALORIES
(10) PROGRAM – 15 Minutes
(11) PROGRAM – 30 Minutes
(12) PROGRAM – 45 Minutes
(13) SPEED ------------The range of the Speed is from 0.0 to 8.8 Mph.
!

19
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com

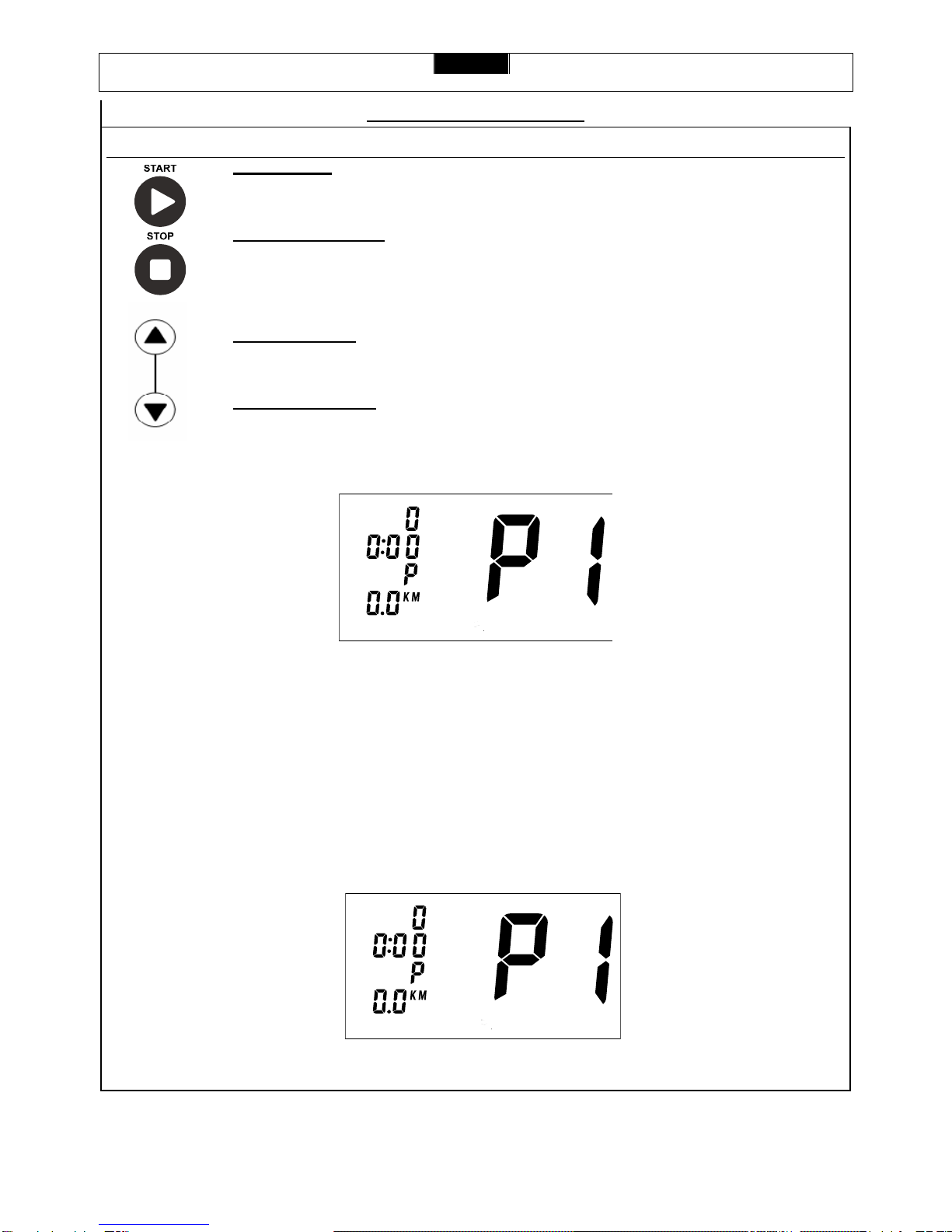

COMPUTER INSTRUCTIONS
Buttons Function START button
Press the button to start the computer or start the program.
The initial speed of 0.8 km/h / 0.5 mph
STOP / ENTER button
Press to confirm a program and preset function values under setting mode.
Press to quit preset program and function values after completing a single program.
Setting procedure: returns to beginning of setting mode before pressing the START key.
Press to stop exercise during workout time.
SPEED Up button
Press the button to increase the speed or set the program.
SPEED Down button
Press the button to decrease the speed or set the program.
POWER ON
After connecting the power cord switch the power button on. The LCD screen will light up.
SAFETY KEY
The safety key must be inserted into the slot on the console in order to operate the treadmill. Always insert the
safety key and attach the clip to your clothing at your waist before beginning your workout.
If you should encounter problems and need to stop the motor quickly, simply pull on the cord to disengage the
safety key from the console. To continue set the speed controller to stop and then reinsert the safety key into the
console, then press start.
SLEEP MODE
When the power is ON the computer will automatically enter POWER OFF MODE if it is left idle for 5 minutes,
press any button to return to the power on status when the computer is in the POWER OFF MODE.
COMPUTER OPERATION
Power on – “P1” (manual) will flash in the LCD display. Press SPEED UP / DOWN keys for desired program.
Please refer to the following instructions for different program options.

20
4.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
COMPUTER INSTRUCTIONS
QUICK START
Press the START key directly to start exercise without a function value.
PROGRAM 1 – MANUAL
1. Select the desired program by pressing the UP/DOWN button.
2. Press STOP / ENTER to confirm the program.
3. Press START to begin your exercise.
TIME: Accumulates and displays workout time from start of exercise.
DISTANCE: Accumulates and displays workout distance from start of exercise.
CALORIES: Accumulates and displays calories consumed during workout time.
SPEED: Displays current speed.
To pause the program while exercising, press the STOP/ENTER button. To resume exercising, press the “START”
button. To stop the program press the STOP/ENTER button twice.
PROGRAM 2 – DISTANCE
1. Select the desired program by pressing the UP/DOWN button.
2. Press STOP / ENTER to confirm the program.
3. Adjust your desired distance by pressing UP/DOWN and confirm with STOP/ENTER
4. Press START to begin your exercise.
DISTANCE: Press SPEED UP/ DOWN to preset the distance target values and press START.
The distance will count down from preset target value. While distance counts down to 0 (zero), speed
goes down to 0 (zero) by 0.5 km per second (when the preset target is reached).
TIME: Accumulates and displays workout time from start of exercise.
CALORIES: Accumulates and displays calories consumed during workout time.
SPEED: Displays current speed.
To pause the program while exercising, press the STOP/ENTER button. To resume exercising, press the “START”
button. To stop the program press the STOP/ENTER button twice.
PROGRAM 3 – TIME
1. Select the desired program by pressing the UP/DOWN button.
2. Press STOP / ENTER to confirm the program.
3. Adjust your desired time by pressing the UP/DOWN button, press STOP/ENTER to confirm
4. Press START to begin your exercise.
TIME: Press SPEED UP / DOWN keys to preset time target value and press START.
The time will count down from preset target value when starting exercise. While time counts down,
the speed goes down to 0 (zero) by 0.5 km per second (when the preset target is reached).
DISTANCE: Accumulates and displays workout distance from start of exercise.
CALORIES: Accumulates and displays calories consumed during workout time.
SPEED: Displays current speed.
To pause the program while exercising, press the STOP/ENTER button. To resume exercising, press the “START”
button. To stop the program press the STOP/ENTER button twice.
