USER’S MANUAL
6.25 MOTORIZED TREADMILL
MODEL NUMBER: 6.25
USER WEIGHT LIMITATION: 350lbs (160kgs)
SERIAL NUMBER (found on frame):

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
2
PRECAUTIONS
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important
precautions and information before operating the treadmill. It is the responsibility of the owner to ensure that all
users of this treadmill are adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 2 meters (6 feet) of clearance behind it. Do not place the treadmill on any
surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the
treadmill.
•When choosing a location for the treadmill make sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered
patio, or near water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 350lbs (160kgs)
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support
clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should
be on the same circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill.
Do not operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be
performed by an authorized service representative, unless authorized and/or instructed by the
manufacturer. Failure to follow these instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS
TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH
THE PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage
spikes, surges and noise interference can result from weather conditions or from other appliances being turned on or
off. To reduce the possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge
protector with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage
rating of 400V or less and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance
for electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an
equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge protector, and plug
the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are
included in the boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this
product to be assembled properly. If you are missing any parts or have any assembly questions call the
manufacturer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require
to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly
quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350lbs (160kgs) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit
shown here. This product is not intended to support users whose weight exceeds this limit.

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
5

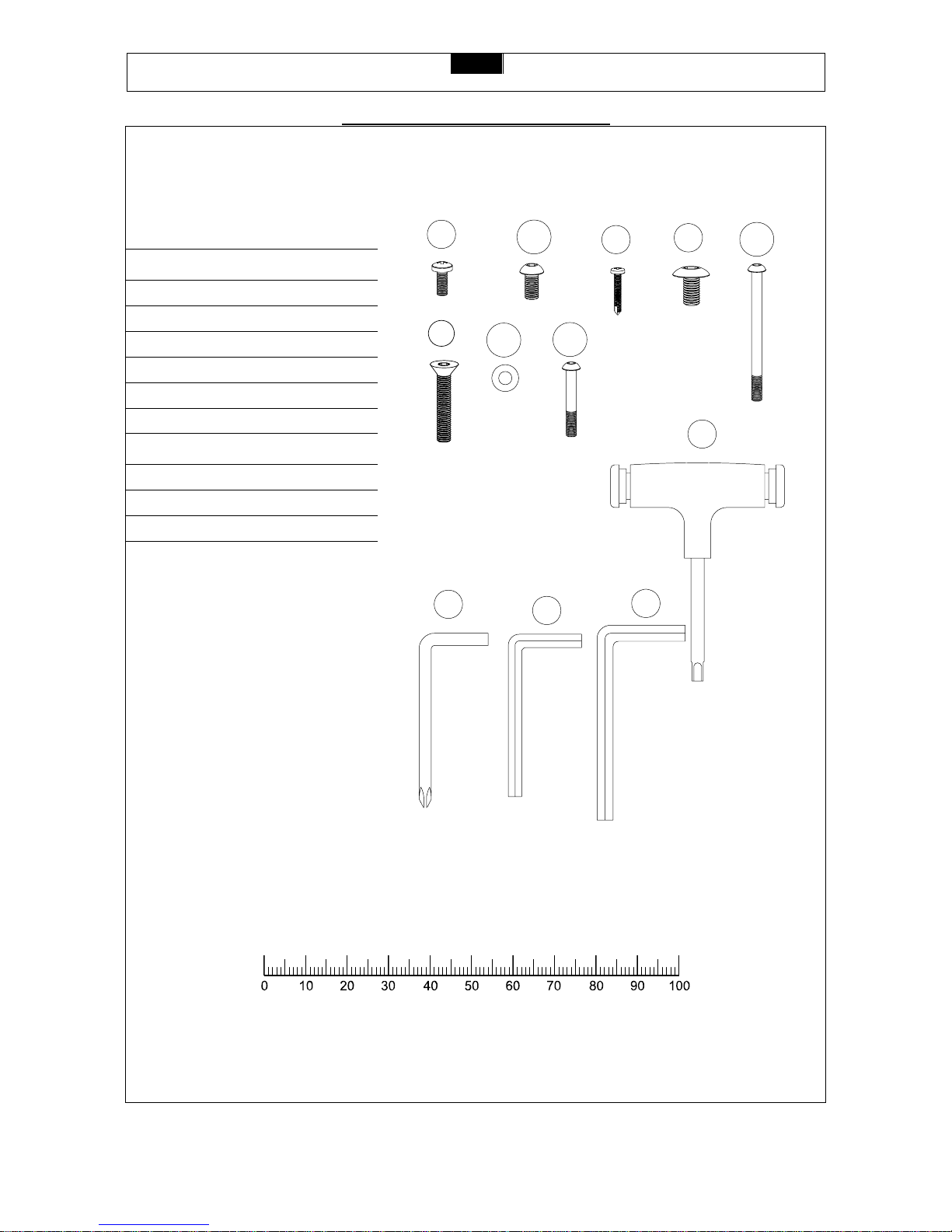

HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to
help you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
4 M6 x 20mm Console
Fixing Screw 2
5 M8 x 55mm Allen Bolt 4
15 4 x 19mm Screw 8
56 M8 x 16mm Bolt (Silver) 4
103 M8 x 110mm Bolt 2
104 Curve Washer 2
111 M6 x 50 Allen Bolt 2
116 Front Handlebar Fixing Bolt 2
A Allen Wrench 1
B Phillips Head Wrench 1
C 5mm Allen Key 1
D 8mm Allen Key 1
15
456 103
104
116
C
B
A
D
5111
MILIMETERS

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
6
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
1 COMPUTER INSERT 1 6.25-01 29 POWER PLATE 1 6.256.25-29
2 EKG PULSE SENSOR 2 6.25-02 30 M5 X 12MM SCREW 1 6.25-30
3 FRONT HANDLE BAR FOAM GRIP 2 6.25-03 31 WASHER 1 6.25-31
4 M6 X 20MM CONSOLE FIXING SCREW 2 6.25-04 32 FOOT LOCKER 1 6.25-32
5 M8 X 55MM ALLEN BOLT 4 6.25-05 33 FOOT LOCKER SPRING 1 6.25-33
6 FRONT HANDLEBAR 1 6.25-06 34 BASE FRAME END CAP 2 6.25-34
7 COMPUTER WIRE - UPPER SECTION 1 6.25-07 35 LEVEL ADJUSTER 2 6.25-35
8 SAFETY KEY 1 6.25-08 36 BASE FRAME 1 6.25-36
9 HANDLE BAR 2 6.25-09 37
FOLD UP SUPPORT
BUSHING 2 6.25-37
10 HANDLE BAR FOAM GRIP 2 6.25-10 38 PLASTIC INSERT 1 6.25-38
11 HANDLE BAR END CAP 2 6.25-11 39 3/8" X 30 ALLEN BOLT 1 6.25-39
12 CONSOLE SUPPORT TUBE 1 6.25-12 40 BUSHING 1 6.25-40
13 LEFT UPRIGHT 1 6.25-13 41 FOLD UP SUPPORT WHEEL 1 6.25-41
14 RIGHT UPRIGHT 1 6.25-14 42 FOLD UP SUPPORT 1 6.25-42
15 M4 X 19 SCREW 34 6.25-15 43 SHOCK 1 6.25-43
16 CROSS BRACE 1 6.25-16 44 C CLIP 2 6.25-44
17 HANDLE BAR COVER - LEFT #1 1 6.25-17 45 RUBBER CUSHION 2 6.25-45
18 HANDLE BAR COVER - LEFT #2 1 6.25-18 46 RUNNING BELT 1 6.25-46
19 HANDLE BAR COVER - RIGHT #1 1 6.25-19 47 M8 X 25MM DECK SCREW 8 6.25-47
20 HANDLE BAR COVER - RIGHT #2 1 6.25-20 48 RUNNING DECK 1 6.25-48
21 PLASTIC COVER FIXING INSERT 12 6.25-21 49 MOTOR HOOD PAD 1 6.25-49
22 TRANSPORT WHEEL
COVER 2 6.25-22 50 MOTOR HOOD 1 6.25-50
23
M10 X 35 MM
TRANSPORT WHEEL
BOLT 2 6.25-23 51 MOTOR BOTTOM COVER 1 6.25-51
24
7 PINS CONTROL
WIRE - LOWER
SECTION 1 6.25-24 52
SAFETY KEY WIRE -
LOWER SECTION 1 6.25-52
25 TRANSPORTATION WHEEL 4 6.25-25 53 FLAT WASHER 2 6.25-53
26 M10 NYLON NUT 4 6.25-26 54 RUBBER CUSHION 1 6.25-54
27 M14 X 90MM BOLT 2 6.25-27 55 M8 X 85MM BOLT 1 6.25-55
28 M5 X 12MM POWER PLATE SCREW 2 6.25-28 56 M8 X 25MM ALLEN BOLT (SILVER) 8 6.25-56

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
7
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
57 M10 X 136MM BOLT 1 6.25-57 86 REAR ROLLER SHAFT 1 6.25-86
58 MOTOR HOLDER 1 6.25-58 87 M6 X 70 ALLEN BOLT 3 6.25-87
59 DRIVING MOTOR 1 6.25-59 88 SIDE RAIL END CAP - LEFT 1 6.25-88
60 ELEVATION MOTOR 1 6.25-60 89 SIDE RAIL END CAP - RIGHT 1 6.25-89
61 ELEVATION GEAR SLEEVE 1 6.25-61 90 M8 NYLON NUT 4 6.25-90
62 4 X 12 WASHER 10 6.25-62 91 M8 X 43MM BOLT 2 6.25-91
63 #8 X 25 SCREW 10 6.25-63 92 ELEVATION SUPPORT CAP 2 6.25-92
64 N/A 93 ELEVATION SUPPORT TUBE COVER - LEFT 1 6.25-93
65 SIDE RAIL - LEFT 1 6.25-65 94 M10 X 63MM BOLT 1 6.25-94
66 RUNNING DECK SUPPORT TUBE 1 6.25-66 95 M10 X 90MM BOLT 1 6.25-95
67 DECK FRAME SIDE COVER - LEFT 1 6.25-67 96 ELEVATION SUPPORT TUBE 1 6.25-96
68 MOTOR CONTROL BOARD 1 6.25-68 97
ELEVATION SUPPORT
TUBE COVER - RIGHT 1 6.25-97
69 ELEVATION CONTROL BOARD 1 6.25-69 98
PLASTIC CLAMP -
BOTTOM 2 6.25-98
70 M10 X 35MM BOLT 1 6.25-70 99 CONSOLE SUPPORT FIXING PLATE 2 6.25-99
71 DECK FRAME 1 6.25-71 100
BASE FRAME ROUND
ENDCAP 2 6.25-100
72 6 X 13 WASHER 3 6.25-72 101 M8X40BOLT 1 6.25-101
73 FRONT ROLLER 1 6.25-73 102
REAR TRANSPORTATION
WHEEL 1 6.25-102
74 FRONT ROLLER SHAFT 1 6.25-74 103 M8 X 80MM ALLEN BOLT 2 6.25-103
75 DRIVING BELT 1 6.25-75 104 CURVE WASHER 2 6.25-104
76 DECK RUBBER CUSHION 2 6.25-76 105 BOLT 2 6.25-105
77 SIDE RAIL - RIGHT 1 6.25-77 106 CONSOLE HOUSING - UPPER 1 6.25-106
78 SAFETY KEY WIRE -
UPPER SECTION 1 6.25-78 107
CONSOLE HOUSING -
BOTTOM 1 6.25-107
79 PLASTIC BUSHING 2 6.25-79 108
WATER BOTTLE
HOLDER 2 6.25-108
80 10MM SHAFT 1 6.25-80 109
GLOVE COMPARTMENT
FRAME 2 6.25-109
81 DECK FRAME SIDE COVER - RIGHT 1 6.25-81 110 GLOVE COMPARTMENT COVER 2 6.25-110
82 PLASTIC CLAMP - TOP 2 6.25-82 111 M6 x 50mm Allen Bolt 2 6.25-111
83 ELEVATION SUPPORT 2 6.25-83 112 SPRING 1 6.25-112
84 DECK FRAME - REAR 1 6.25-84 113 FOLD UP SENSOR 1 6.25-113
85 REAR ROLLER 1 6.25-85 114
TRANSPORTATION
WHEEL BRACKET 1 6.25-114
115
TRANSPORTATION
WHEEL BRACKET
PIVOT 1 6.25-115
116
FRONT HANDLEBAR
FIXING BOLT 2 6.25-116
117
EKG PULSE WIRE –
UPPER SECTION 2 6.25-117
118
EKG PULSE WIRE –
LOWER SECTION 2 6.26-118
119 M6 x 16mm Allen Bolt 2 6.25-119
120
HARDWARE PACK (not
shown on exploded
diagram) 1 6.25-120

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
8
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
2
9
10
11
11
9
10
12
13
14
23
25
22
25
27
28
33
30
3132
34
38 39 40 41 42 43 44
29
36
37
78 7
24
52
45
45
15
15
35
23
8
1
3
4
6
17
18
19
20
21
21
16
5
5
99
99
100
100
56
56
103
104
103
104
15
15
15
105
105
15
15
108
106
107
109
110
115
112 114
90
102
113
101
116
116
111
117
117
118
104
104

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
46
47
62
48
63 62
63
65
49
50
21
90
53
54
26
57
60
61
15 67
66
58
55
51
15
76
68
69
26 70
59 87
72
15
81 73 74
75
77
92 15
93
56
83
98
26
26 9495 96 97
15
92
82
82
80 79 44
71
85
86
72
87
15
88
89
90
25
91
84
119
119

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
10
ASSEMBLY
STEP 1:
Remove packing material form the treadmill carton as shown in FIG 1.
Please refer to the page 21 “Folding Instruction” to fold up the running deck. Remove the parts that underneath the
running deck. Refer to the page 22 “Unfolding Instruction” to unfold the running deck.
FIG. 1

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
11
ASSEMBLY

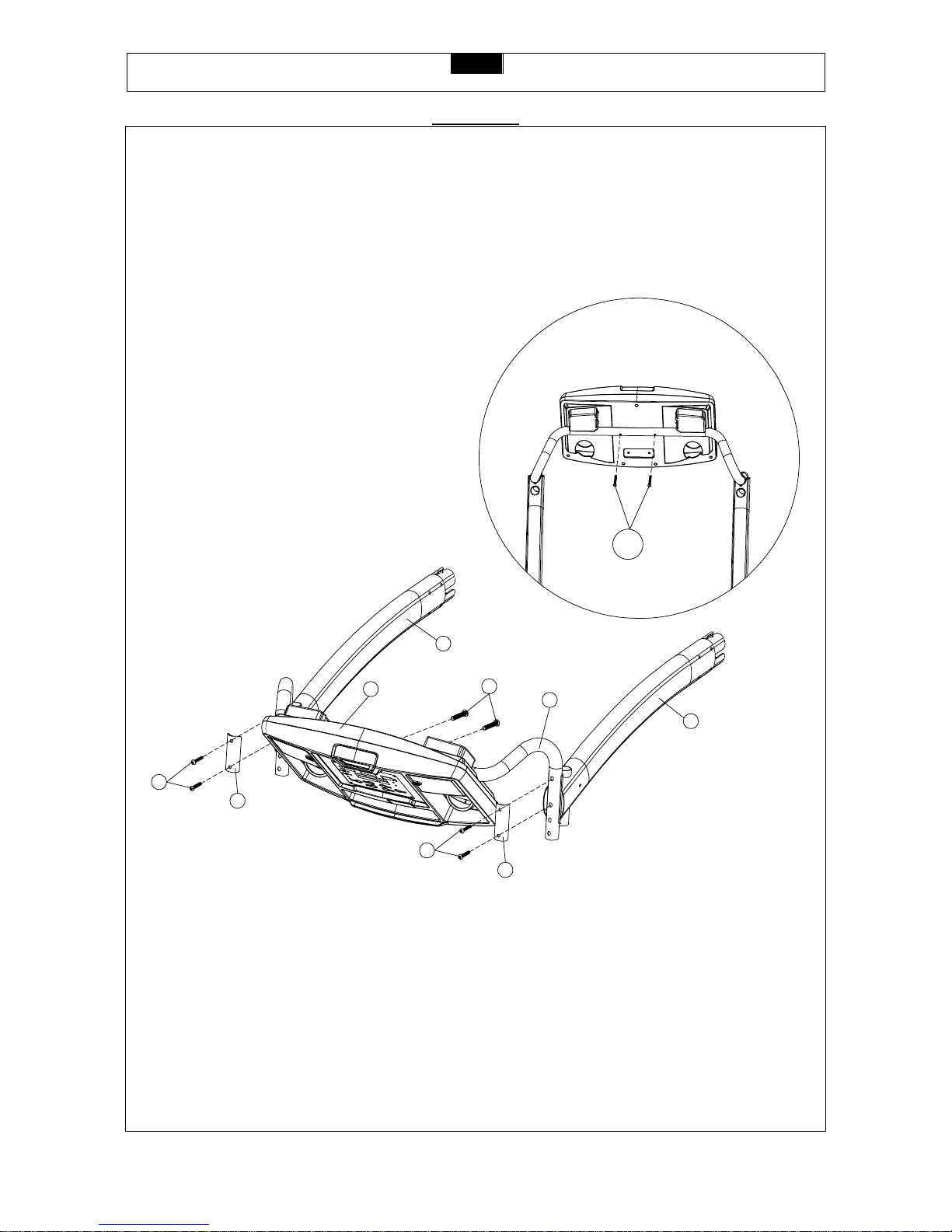

STEP 2:
Attach the Left Upright (13) and Right Upright (14) to Console Support Tube (12) with four M8 x 55mm Allen Bolt (5)
and two Console Support Fixing Plate (99).
Secure the Console (107) to Console Support Tube (12) with two M6 x 50mm Bolt (111).
99
99
5
5
107 12
13
14
111
111

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
12
ASSEMBLY
STEP 3:
Connect the Upper Section Computer Wire (7) to the Lower Section 7 Pin Control Wire (24) and the Upper Section
Safety Key Wire (78) to the Lower Section Safety Key Wire (52). Insert any extra cable length into the Left Upright
(13).
Insert the Left and Right Uprights (13 and 14) into the Base Frame (36) and secure by tightening the two Bolts (105)
as shown in FIG 2. The two Bolts (105) are preassembled to the Base Frame (36) at the factory.
36
13
14
36
105
D
D
14
36
13
52 24
7
78
105

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
13
ASSEMBLY
STEP 4:
Insert the Water Bottle Holder (108) into Console (106).
106
108

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
14
ASSEMBLY
STEP 5:
Slide the Handlebar Cover – Left #2 (18) and Handlebar Cover – Right #1 (19) onto the Cross Brace (16) as shown.
Attach the Cross Brace (16) to the Left Upright (13) and Right Upright (14) using M8 x 80mm Allen Bolt (103).
Do not fully tighten the M8 x 110mm Allen Bolt (103) at this time.
13
14
18
19 16 18
16
103
103

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
15
ASSEMBLY

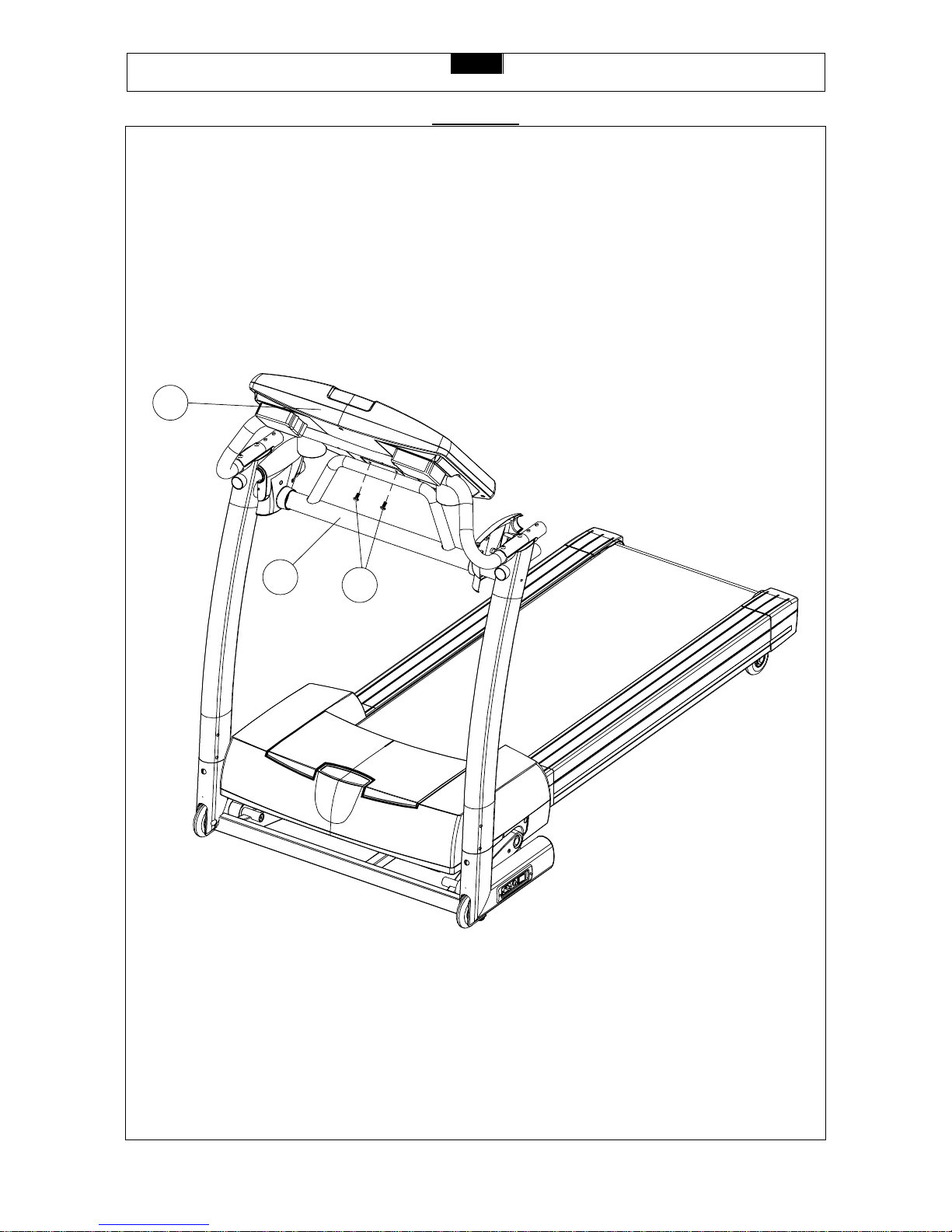

STEP 6:
Secure the Console (107) to Cross Brace (16) with two M6 x 20mm Console Fixing Screw (4).
Fully tighten the two M8 x 110mm Allen Bolts (103) used in step 5.
16 4
107

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
16
ASSEMBLY
STEP 7:
First connect the EKG Pulse Wire- Upper Section (117) to EKG Pulse Wire – Lower Section (118) as shown in FIG.2.
Insert the Front Handlebar (6) into the Console Support Tube (12) and secure using four M8 x 16mm Bolt (Silver) (56)
as shown.
56
6
56
12
118
12
117
56
6
FIG.2

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
17
ASSEMBLY

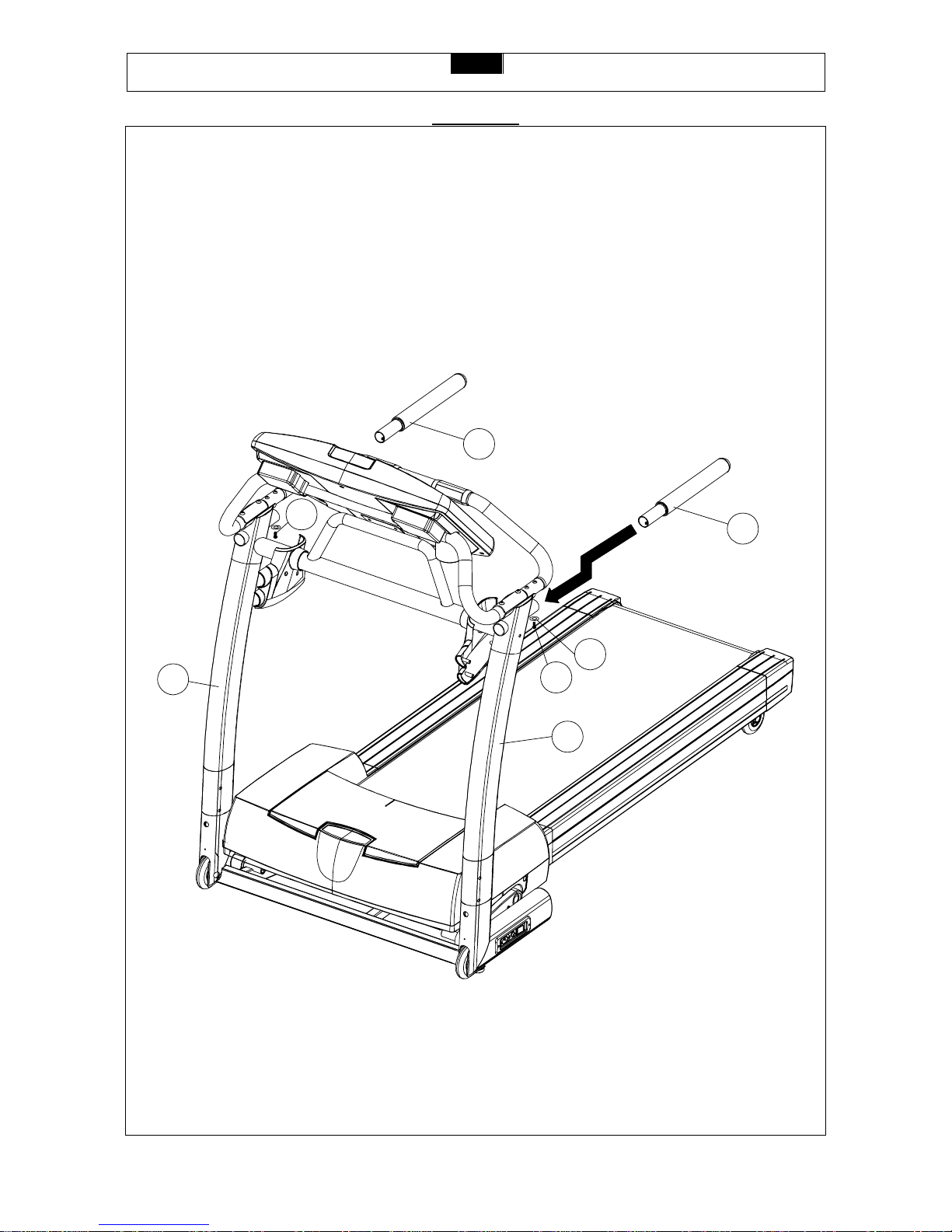

STEP 8:
Insert the Handlebars (9) into the Left and Right Uprights (13 and 14) and secure using two Front Handlebar Fixing
Bolts (116) and two Curve Washer (104).
14
116
13
9
9
116 104

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
18
ASSEMBLY

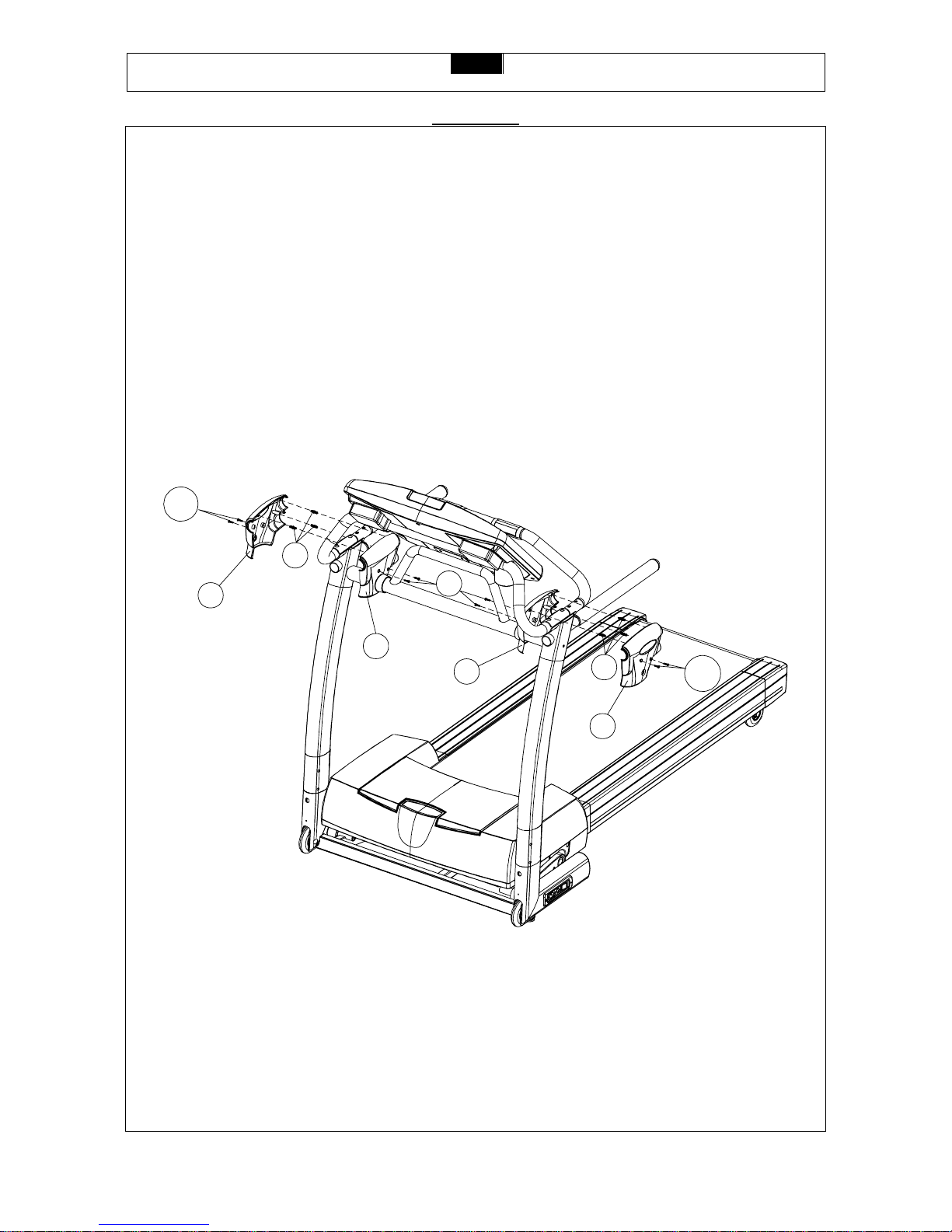

STEP 9:
Attach the Handlebar Cover – Left #1(17) to the Handlebar Cover – Left #2 (18) using three Plastic Cover Fixing
Inserts (21) and four M4 x 15mm Screws (15) as shown.
Attach the Handlebar Cover – Right #1 (20) to the Handlebar Cover – Right #2 (19) using three Plastic Cover Fixing
Inserts (21) and four M4 x 15mm Screws (15) as shown.
15
15
15
21
21
17
18 19
20

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
19
ASSEMBLY

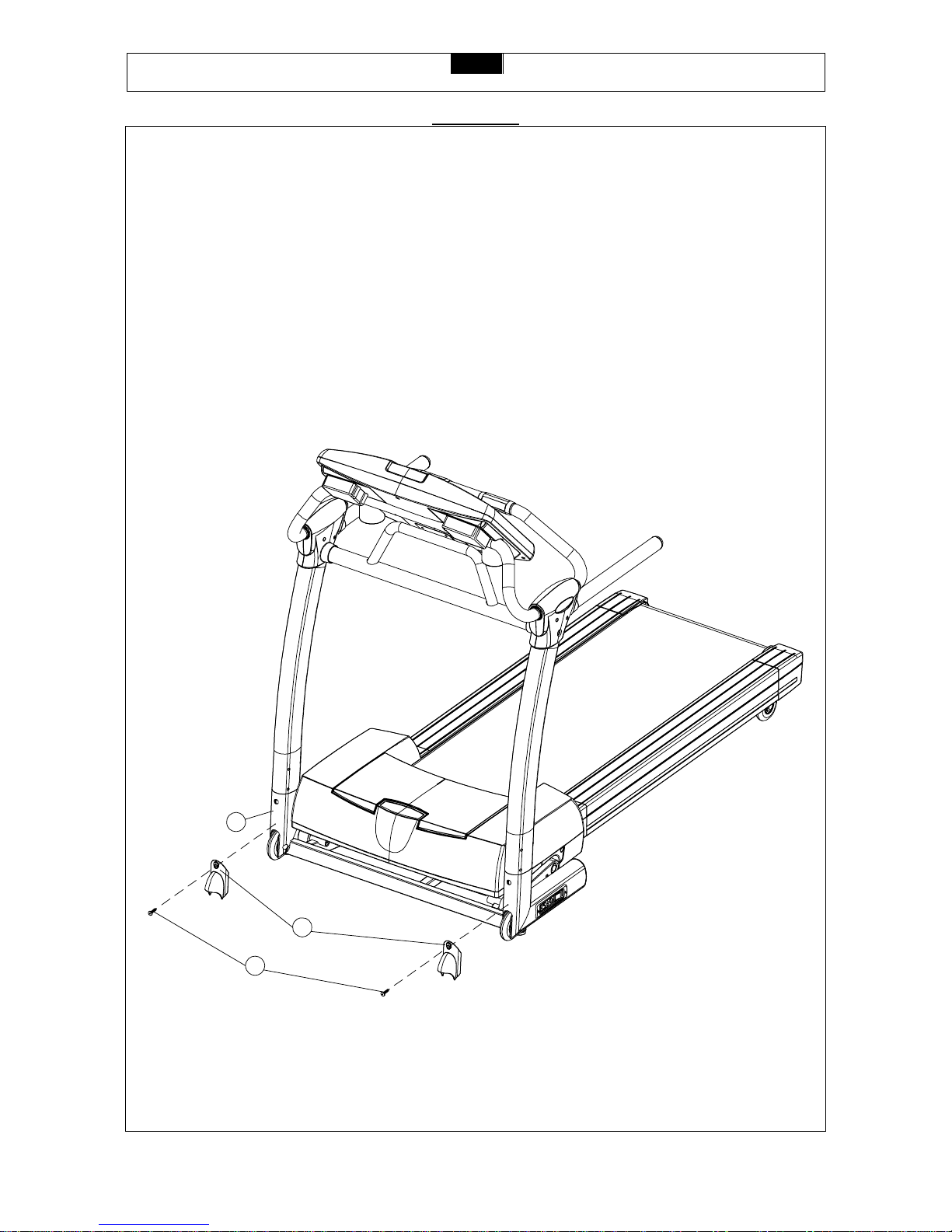

STEP 10:
Remove the two 4 x 19 Screw (15) from Base Frame (36). Attach the Transport Wheel Cover (22) to Base Frame
(36) with two 4 x 19 Screw (15)
Your treadmill is now fully assembled.
36
15
22

SMOOTH 6.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
20
STABILIZER ADJUSTMENT
How to level the treadmill:
An uneven floor or improper stabilizer level can cause the treadmill to wobble during use as well as the incline
adjustment to function incorrectly. Please follow the procedure described below to make sure the treadmill stabilizer
is adjusted correctly prior to use. You may need the assistance of another person to perform this adjustment.
1. There are four stabilizers and two
cushions located on the underside
of the treadmill as shown in drawing
1. These all need to sit firmly on
the floor to prevent the treadmill
from wobbling during use.
1. Four stabilizers towards the rear and two cushions at the front.
2. Inspect each side of the treadmill
base frame. The treadmill should
sit on the floor with all four
stabilizers and both cushions
resting firmly on the floor as shown
in drawing 2. Shake the
handlebars back and forth to check
if they are resting firmly on the floor.
If they are not, tilt the treadmill to
one side to adjust the stabilizers as
shown in drawing 3. Simply turn
the stabilizers like a screw to adjust
their heights. Repeat this until the
treadmill sits firmly on the floor.
2. Check position of stabilizers and cushions.
3. Tilt treadmill to access stabilizers.
