Table Of Content
s
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 3
PAGE GROUP
4BUMPER GROUP (Early Production)
6BUMPER GROUP (Late Production)
8HOOD GROUP
10 FRONT CLIP GROUP (Dash)
12 FRONT CLIP GROUP (Pedals)
16 STEERING GROUP
18 FRONT SUSPENSION GROUP
20 SEAT GROUP
22 SEAT PEDESTAL GROUP- Frame
26 SEAT PEDESTAL GROUP- Controls
30 FRONT FRAME GROUP- Sub-Assembly
32 FRONT FRAME GROUP- Final Assembly
34 REAR FRAME GROUP, LH
36 REAR FRAME GROUP, RH
40 BRAKE ASSEMBLY
42 DRIVE BASE GROUP
46 CVT AXLE GROUP
48 BED ASSEMBLY (Dump Bed)
50 BED ASSEMBLY (Tail Gate)
52 BED ASSEMBLY (Latch)
54 WHEEL GROUP (TURF & TRAIL TIRE)
56 ROPS/ACCESSORY GROUP
58 BRUSH GUARD GROUP
60 WINCH GROUP
62 DECAL GROUP (Snapper)
64 DECAL GROUP (Continued)
66 ELECTRICAL GROUP
70 WIRING HARNESS- UV & UVG Models
72 WIRING HARNESS- UVGT (UVGC) Model
74 WIRING SCHEMATIC- UV Model
76 WIRING SCHEMATIC- UVG Model
78 WIRING SCHEMATIC- UVGT (UVGC) Model

BUMPER GROUP (Early Production)
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
4

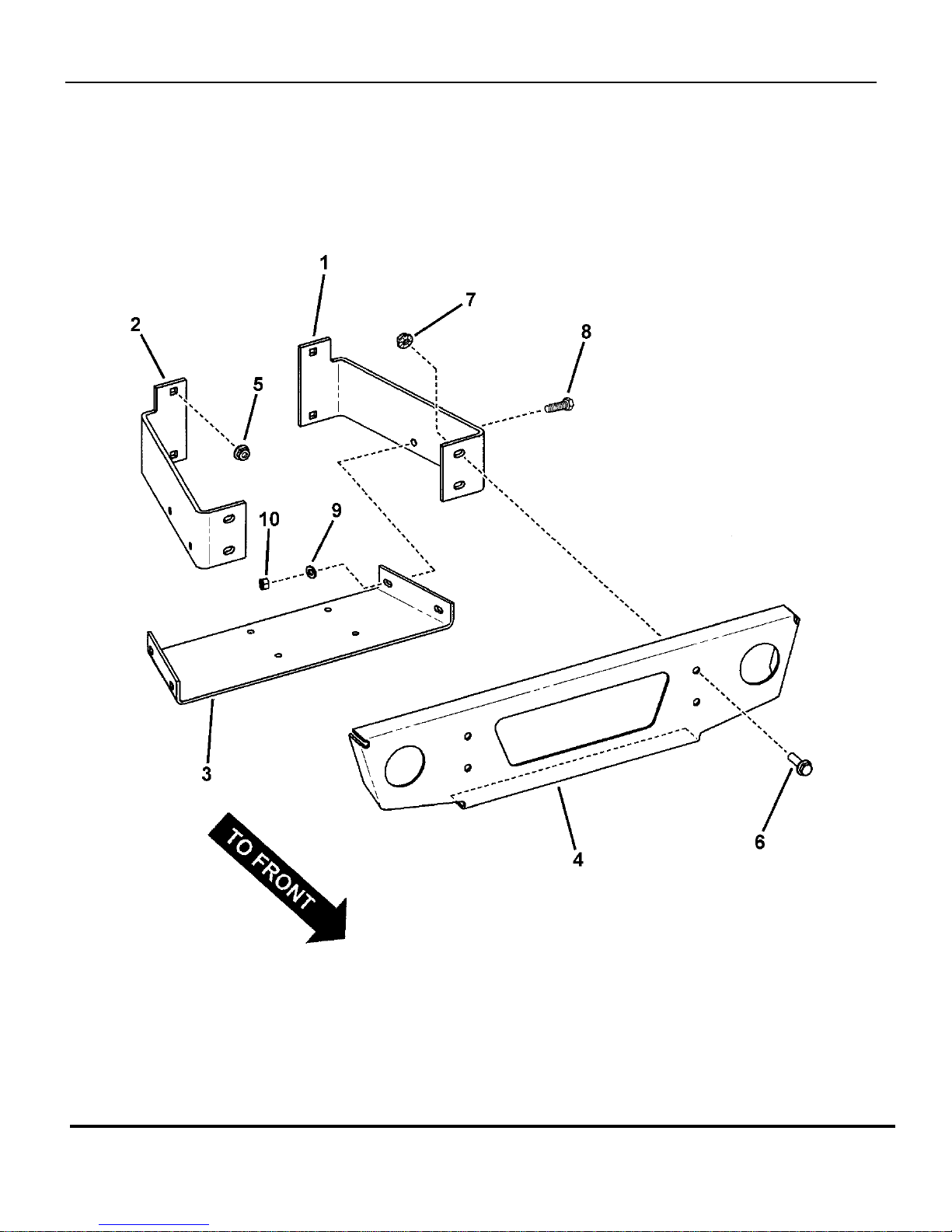

BUMPER GROUP (Early Production)
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 5
Part No Descri
p
tionItem Qt
y
Note
1 7028009 1 BUMPER SUPPORT, LH
2 7028022 1 SUPPORT, Bumper
3 7028029 1 PLATE, Winch
4 7028072 1 BUMPER
5 7091299 4 NUT, 3/8-16 Hex Nyloc or 7076979
6 7090659 4 BOLT, 3/8-16 x 1-1/4” Hex Flange Lock
7 7091298 4 NUT, 5/16-18 Hex Nyloc
8 7091681 4 BOLT, 5/16-18 x 1” Hex Flange Lock
9 7091619 4 NUT, 3/8-16 Hex Flange Lock

BUMPER GROUP (Late Production)
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
6

BUMPER GROUP (Late Production)
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 7
Part No Descri
p
tionItem Qt
y
Note
1 7078209 1 BUMPER SUPPORT, Left
2 7078208 1 BUMPER SUPPORT, Right
3 7078201 1 PLATE, Winch Mounting
4 7078210 1 BUMPER late production UV1621BV &
UVG1621BV & all UVGT(or
UVGC)621BV
5 7091299 4 NUT, 3/8-16 Hex Nyloc
6 7027198 4 BOLT, 3/8-16 x 1” Hex Flange Lock, GR 5
7 7091619 4 NUT, 3/8-16 Hex Flange Lock
8 7027168 4 SCREW, 5/16-18 x 1” Hex Head Cap, GR 5
9 7090188 2 WASHER, .34 x .69 x .08 Flat
10 7091298 4 NUT, 5/16-18 Hex Nyloc

HOOD GROUP
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
8

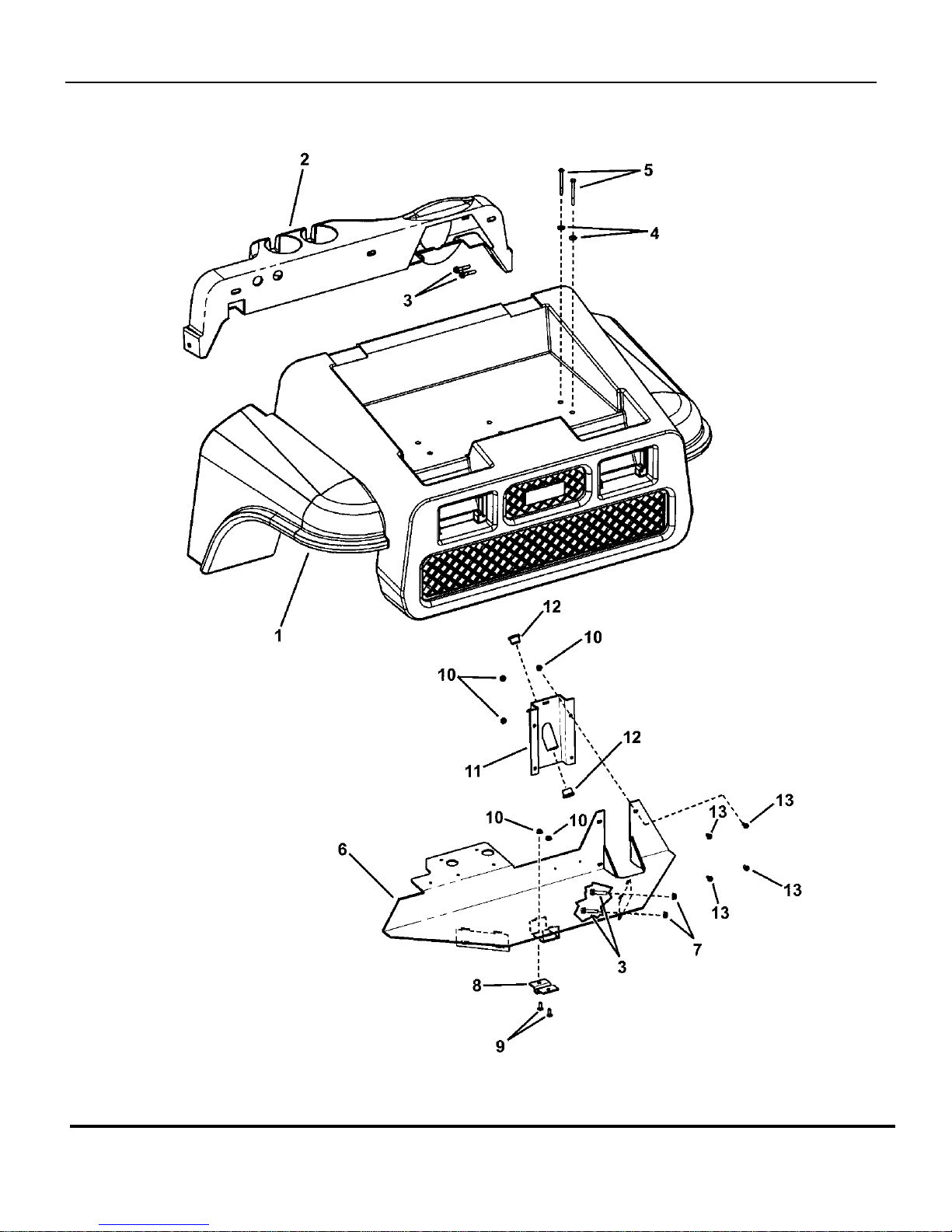

HOOD GROUP
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 9
Part No Descri
p
tionItem Qt
y
Note
1 7043253 1 WELDMENT, Hood (Red)
1 7043254 1 WELDMENT, Hood (Green)
2 7035270 5 HOOD PAD
3 7043211 1 PLATE WASHER
4 7091833 4 SCREW 5/16-18 x 5/8” Cross Recessed Pan Head
5 7043208 1 HOOD PROP
6 7043209 1 BRACKET, Hood Prop
7 7090188 1 WASHER, .34 x .69 x .08 Flat
8 7091597 1 COTTER PIN, 3/32 x 3/4”
9 7043210 1 HOLDER, Hood Prop
10 7092074 1 SCREW, #6-20 x .34 Pan Head Self-Tap
11 7091942 2 SCREW, #10-24 x 1/2” Pan Head Machine
12 7091317 6 SCREW, 1/4-20 x 3” Hex Head Cap, GR 5 Ref. FRONT CLIP GROUP
(Dash) page, item 5
13 7091216 4 SCREW, #10 x 1-1/4” Hex Washer Self-Tap, HI-LO
14 7029051 2 ASSY, Hood Latch (incl. Ref, Nos. 15 & 16)
15 7028017 1 KEEPER
16 7028035 1 ASSEMBLY, Hood Handle consists of 7028035 (Handle) &
7043029 (Bracket)

FRONT CLIP GROUP (Dash)
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
10

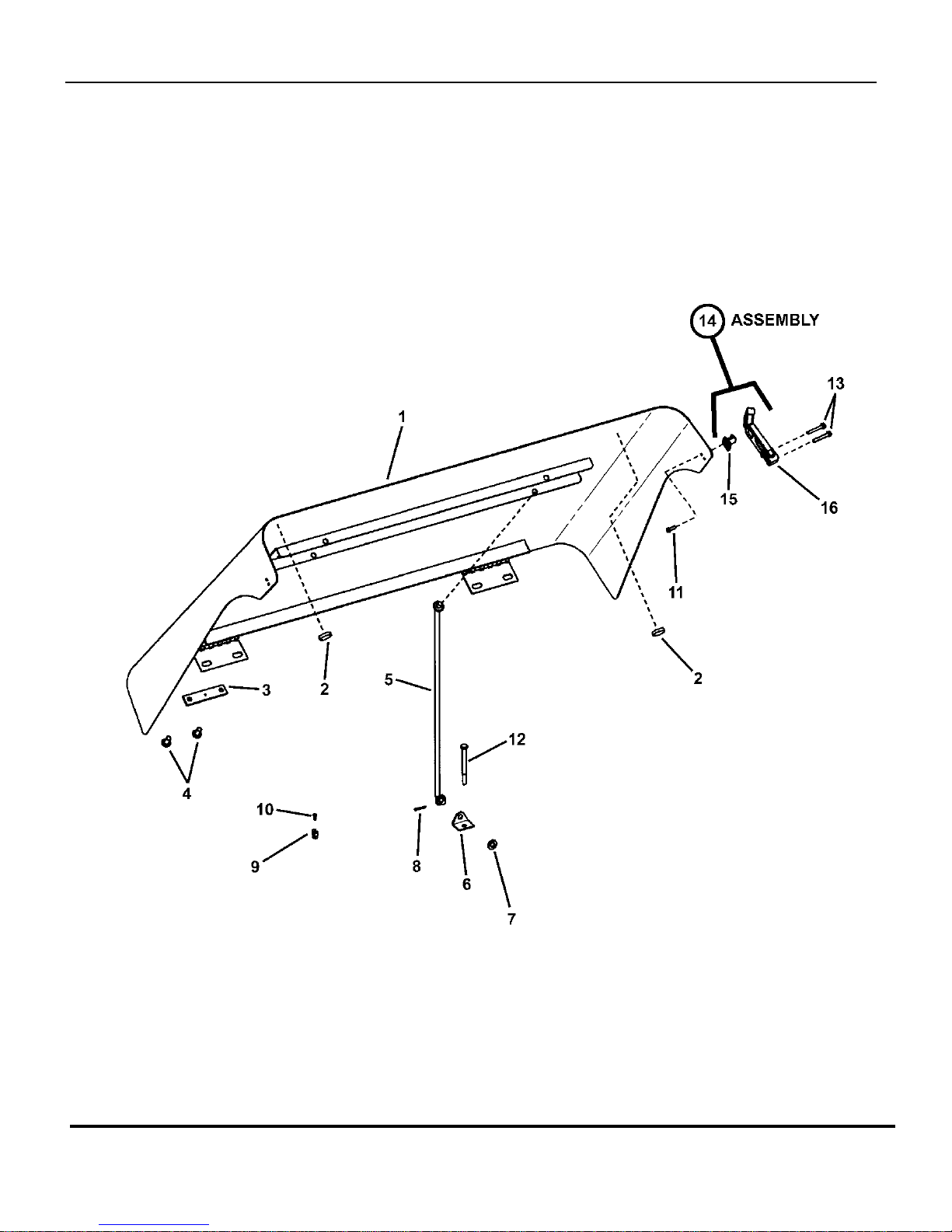

FRONT CLIP GROUP (Dash)
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 11
Part No Descri
p
tionItem Qt
y
Note
1 7075818 1 FENDER, UV-2
2 7078813 1 DASH, UV-2
3 7091602 8 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, GR 5
4 7091253 6 WASHER, .281 x .750 x .051 Flat
5 7091317 6 SCREW, 1/4-20 x 3” Hex Head Cap, GR 5
6 7063343 1 WELDMENT, Steering Support
7 7091601 4 NUT, 5/16-18 Hex Flange Lock, GR 5
8 7073163 1 PIVOT BRACKET, Throttle
9 7091776 2 BOLT, 1/4-20 x 3/4” Square Neck Carriage
10 7091584 6 NUT, 1/4-20 Hex Flange Lock, GR 5
11 7041967 1 WELDMENT, Column Support
12 7035496 2 BEARING, .750 I.D. Ref. SEAT PEDESTAL GROUP-
Controls, item 25
13 7091148 4 SCREW, 1/4-20 x 1/2” Pan Head Machine

FRONT CLIP GROUP (Pedals)
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
12

FRONT CLIP GROUP (Pedals)
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 13
Part No Descri
p
tionItem Qt
y
Note
1 7058125 1 WELDMENT, CVT Brake Pedal
2 7073876 1 SWIVEL, Brake Rod
3 7091528 1 WASHER, .375 x .875 x .083 Flat
4 7091598 2 COTTER PIN, 1/8 x 3/4”
5 7012306 1 FLANGE BUSHING, .381 x .625 x .62
6 7058753 1 WELDMENT, Brake Switch Rod
7 7014432 1 SPRING
8 7090122 1 WASHER, 3/8” SAE Flat
9 7090543 2 SCREW, 1/2-13 x 2” Hex Head Cap, GR 5
10 7091922 2 NUT, 1/2-13 Hex Nyloc or 7091121
11 7058556 1 ASSEMBLY, Upper Brake Rod composed of 7072988, 7073012
(2) and 7090559 (2)
12 7073012 2 ROD END, Female 1/2-20 thread part of item 12 assembly
13 7072988 1 ROD, Upper CVT Brake (1/2-20 thread) part of item 12 assembly
14 7090559 2 NUT, 1/2-20 Hex Jam, GR 5 or B part of item 12 assembly
15 7058748 1 WELDMENT, Throttle Pedal
16 7072502 2 PEDAL GRIP
17 7072600 1 SPRING, Throttle Pedal Return
18 7072602 1 SPRING, Inner Throttle Return
19 7012709 2 RING, 1.00 Dia. External Retaining
20 7016561 2 BUSHING, 14 Gage Machine
21 7072645 2 BEARING, 1” I.D.
22 7050520 2 BRACKET, Brake Support (Red) 7072518 is the un-painted part
22 7035752 2 BRACKET, Brake Support (Green) Trailmaster version of 7072518
23 7050522 1 FIREWALL, LH (Red) 7075870 is the un-painted part
23 7035754 1 FIREWALL, LH (Green) Trailmaster version of 7075870
24 7050523 1 FIREWALL, RH (Red) 7075871 is the un-painted part
24 7035755 1 FIREWALL, RH (Green) Trailmaster version of 7075871
25 7078098 1 FILLER, Firewall LH (Red)
25 7078103 1 FILLER, Firewall LH (Green)
26 7078099 1 FILLER, Firewall RH (Red)
26 7078104 1 FILLER, Firewall RH (Green)
27 7078031 2 GASKET, Closed Cell, Adhesive Back
28 7050521 1 PEDAL SHIELD (Red) 7072588 is the un-painted part
28 7035753 1 PEDAL SHIELD (Green) Trailmaster version of 7072588
29 7091508 8 BOLT, 5/16-18 x 3/4” Short Square Neck Carriage, GR 5
30 7091601 8 NUT, 5/16-18 Hex Flange Lock, GR 5
31 7091579 13 SCREW, 1/4-20 x 1/2” Hex Flange Lock, GR 5
Note: * Used on UVG Serial #'s 50028650 thru 699 & UV Serial #'s 50029300 thru 399.

FRONT CLIP GROUP (Pedals)
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
14

FRONT CLIP GROUP (Pedals)
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 15
Part No Descri
p
tionItem Qt
y
Note
32 7091584 9 NUT, 1/4-20 Hex Flange Lock, GR 5
33 7091819 2 SCREW, 1/4-20 x 5/8” Hex Washer Self-Tap
34 7092133 14 SCREW, #10-16 x 1-1/4” Truss Head Sheet Metal was 7092106
35 7034741 1 * KICK PLATE, LH
36 7034648 1 * KICK PLATE, RH
Note: * Used on UVG Serial #'s 50028650 thru 699 & UV Serial #'s 50029300 thru 399.

STEERING GROUP
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
16

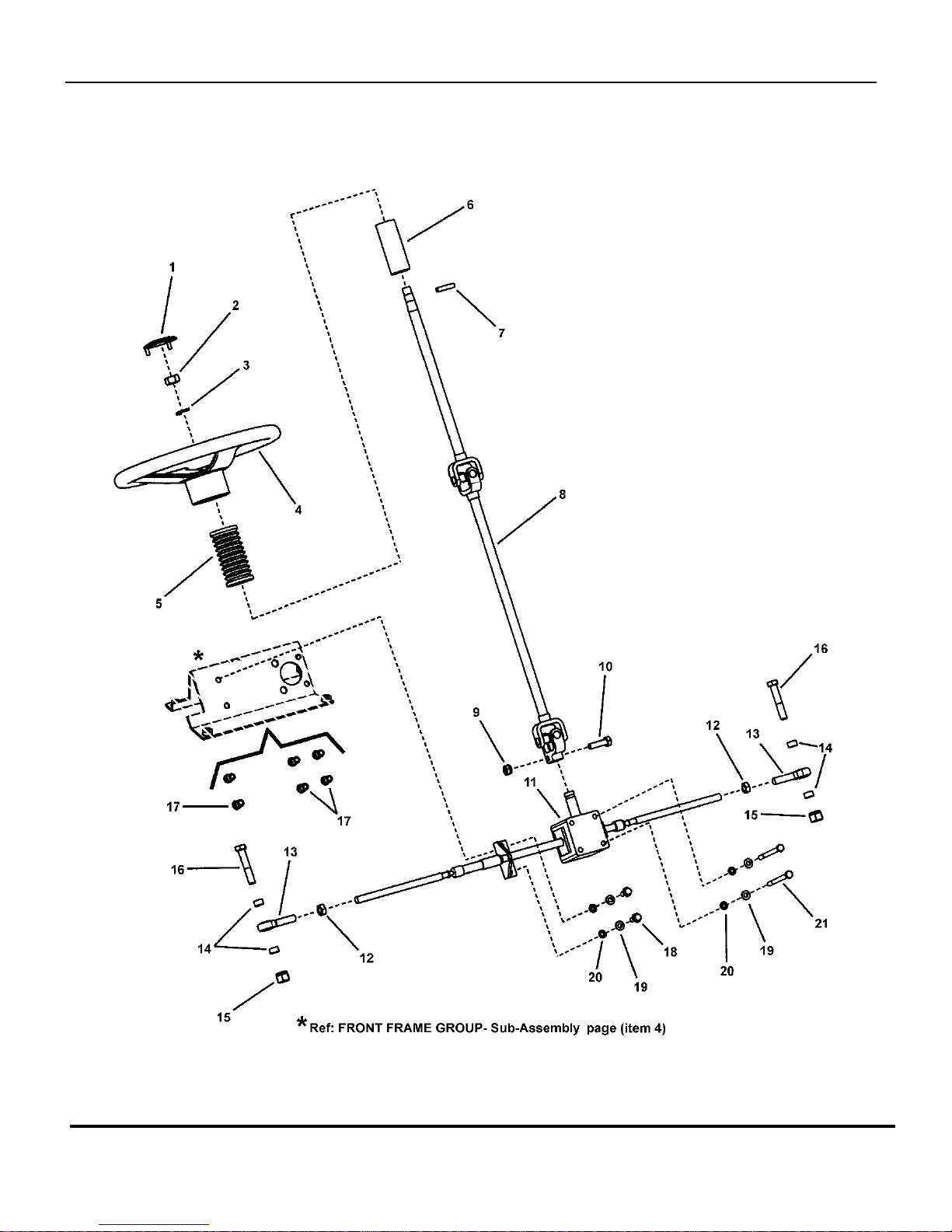

STEERING GROUP
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 17
Part No Descri
p
tionItem Qt
y
Note
1 1725024 1 CENTER CAP, Steering Wheel
2 7092036 1 NUT, M16 x 2 thread Hex, GR 5 in hardware bag
3 7092042 1 WASHER, 16mm Split Lock in hardware bag
4 1722318 1 * STEERING WHEEL (w/cross drilled hole)
4 7078088 1 STEERING WHEEL, UV-2 (w/40 tooth splined hole)
5 1678381 1 COVER, Steering Shaft
6 7072638 1 COVER, Steering Shaft 4” long
7 7090845 1 * ROLL PIN, 5/16 x 1-1/2”
8 7027496 1 * COLUMN, Steering (w/cross drilled hole)
8 7078191 1 COLUMN, Steering (w/40 tooth spline)
9 7091187 1 NUT, 10mm-1.50 Hex Nyloc
10 7091184 1 SCREW, M10-1.50 x 40mm Hex Head Cap
11 7028075 1 ASSEMBLY, Rack and Pinion Steering
12 7090559 2 NUT, 1/2-20 Hex Jam, GR 5 or B
13 7036465 2 BALL JOINT, 1/2-20
14 7072637 4 SPACER, 1/2 I.D., 5/8 O.D. x .375
15 7091121 2 NUT, 1/2-13 Hex Nyloc or 7091922
16 7090544 2 SCREW, 1/2-13 x 2-3/4 Hex Head Cap, GR 5
17 7092079 6 INSERT, 5/16-18 Hex Threaded
18 7091905 2 BOLT, 5/16-18 x 7/8” Hex Flange Lock
19 7090188 6 WASHER, .34 x .69 x .08 Flat
20 7091315 6 WASHER, .32 x .58 x .08 Split Lock
21 7091058 4 SCREW, 5/16-18 x 3-3/4” Hex Head Cap
Note: * Used on UVG Serial #'s 50028650 thru 699 & UV Serial #'s 50029300 thru 399.

FRONT SUSPENSION GROUP
TP 400-5042-2-GC-N
Manual No. 7006179 TURF / TRAIL CRUISER
SERIES 1
18

FRONT SUSPENSION GROUP
Footnotes:
TP 400-5042-2-GC-N
Manual No. 7006179TURF / TRAIL CRUISER
SERIES 1 19
Part No Descri
p
tionItem Qt
y
Note
1 7029258 8 BUSHING, Suspension
2 7072614 2 ASSEMBLY, Shock/Spring
3 7029263 4 SLEEVE, Suspension
4 7029355 4 BOLT, 1/2-13 x 3-3/4” Hex Head, GR 5
5 7091703 4 SCREW, 7/16-20 x 2-1/2” Hex Head Cap (Special) GR 5 or 7092071: SCREW, 7/16-20 x
2-1/2” Hex Head Cap, GR 5
w/locking patch
6 7090970 4 NUT, 7/16-20 Hex Top Lock
7 7019572 4 BALL BEARING, 6205-2RS
8 7092038 2 NUT, 3/4-16 Slotted Hex, GR 5
9 7090297 2 COTTER PIN, 1/8 x 1-1/2”
10 7072615 2 WHEEL HUB, Front plate with 5 pressed-in 1/2-20
threaded studs
11 7072618 2 SPACER, Front Wheel
12 7091922 4 NUT, 1/2-13 Hex Nyloc or 7091121
13 7058539 1 ASSY, RH A-Arm & Spindle (incl. Ref. Nos. 14 thru 20)
14 7013864 2 LUBE FITTING, 3/16” Serrated
15 7023556 4 BUSHING, Caster
16 7058432 1 A-ARM WELDMENT, RH
17 7058485 1 SPINDLE WELDMENT, RH
18 7072679 2 ROD, Spindle Pivot
19 7090505 2 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5
20 7091603 2 NUT, 1/4-20 Hex Nyloc
21 7058596 1 ASSY, LH A-Arm & Spindle (incl. Ref. Nos. 14, 15, 18, 19, 20, 22
& 23)
(not shown)
22 7058419 1 SPINDLE, WELDMENT, LH
23 7058484 1 A-ARM WELDMENT, LH
24 7016561 2 BUSHING, 14 Gage Machine
25 7031965 2 THRUST WASHER, 3/4” I.D.
26 7027192 10 LUG NUT, 1/2-20 Hex
