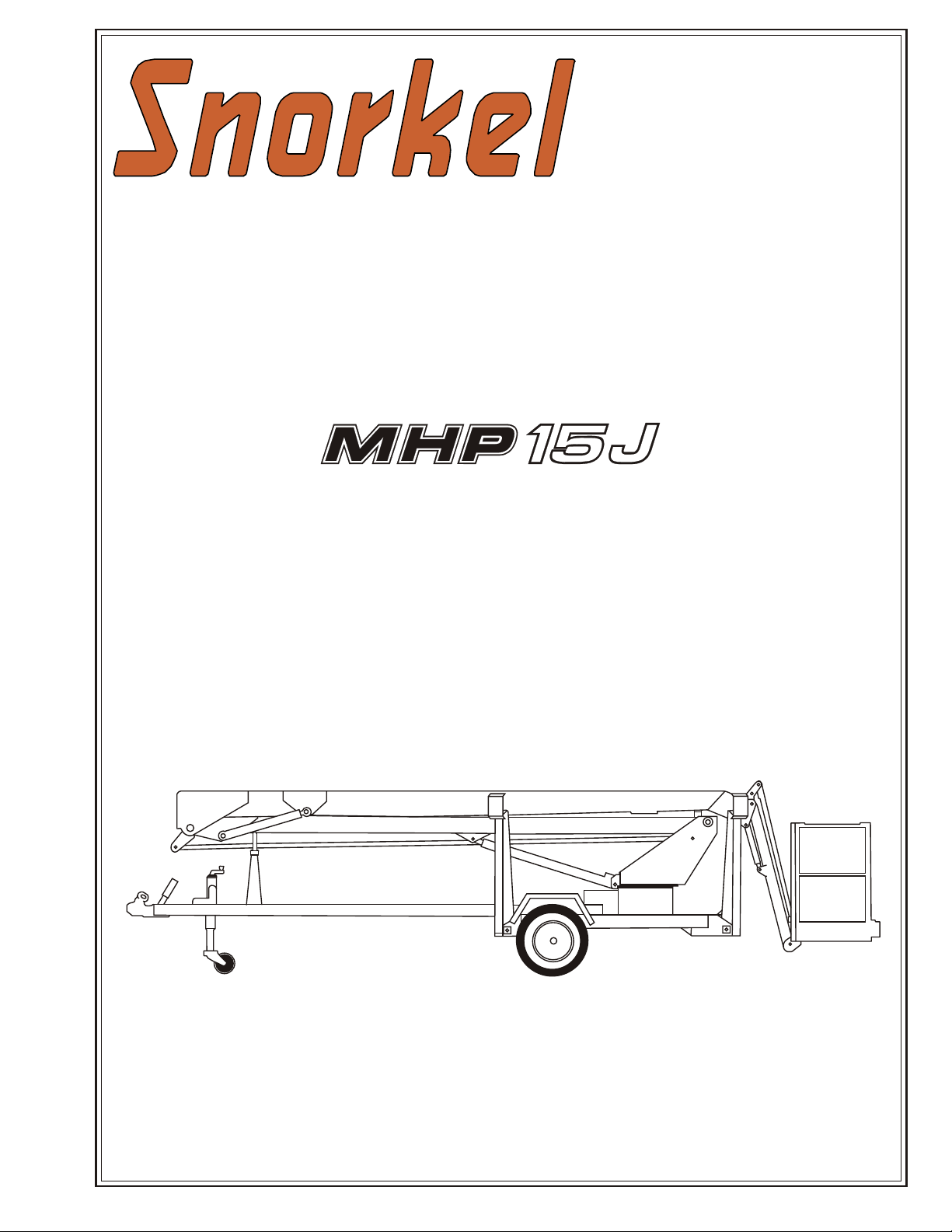

Snorkel MHP 15 J Use and care manual

P/N 11995B
September 2005 V2
Engine Powered
Gasoline
Battery Electric
Maintenance and
Repair Parts

LIMITED WARRANTY
Snorkel warrants each new machine manufactured and sold by it to be free from defects in material and workmanship for a
period of one (1) year from date of delivery to a Customer or for one year after the machine has been placed in first service in a
Dealer rental fleet, whichever comes first. Any part or parts which, upon examination by the Snorkel Service Department, are
found to be defective, will be replaced or repaired, at the sole discretion of Snorkel, through its local Authorized Dealer at no
charge.
Snorkel further warrants the structural components; specifically, the mainframe chassis, turntable, booms and scissor arms,
of each new machine manufactured by it to be free from defects in material and workmanship for an additional period of four
(4) years. Any such part or parts which, upon examination by the Snorkel Service Department, are found to be defective will
be replaced or repaired by Snorkel through its local Authorized Dealer at no charge; however, any labor charges incurred as a
result of such replacement or repair will be the responsibility of the Customer or Dealer.
The Snorkel Service Department must be notified within forty-eight (48) hours of any possible warranty situation during the
applicable warranty period. Personnel performing warranty repair or replacement must obtain specific approval by Snorkel
Service Department prior to performing any warranty repair or replacement.
Customer and Dealer shall not be entitled to the benefits of this warranty and Snorkel shall have no obligations hereunder
unless the “Pre-Delivery and Inspection Report” has been properly completed and returned to the Snorkel Service
Department within ten (10) days after delivery of the Snorkel product to Customer or Dealer’s rental fleet. Snorkel must be
notified, in writing, within ten (10) days, of any machine sold to a Customer from a Dealer’s rental fleet during the warranty
period.
At the direction of the Snorkel Service Department, any component part(s) of Snorkel products to be replaced or repaired
under this warranty program must be returned freight prepaid to the Snorkel Service Department for inspection. All warranty
replacement parts will be shipped freight prepaid (standard ground) from the Snorkel Service Department or from Snorkel’s
Vendor to Dealer or Customer.
REPLACEMENT PARTS WARRANTY
Any replacement or service part made or sold by Snorkel is not subject to the preceding Limited Warranty beyond the
normal warranty period of the machine upon which the part was installed.
THIS WARRANTY EXCLUDES AND SNORKEL DOES NOT WARRANT:
1. Engines, motors, tires and batteries which are manufactured by suppliers to Snorkel, who furnish their own warranty.
Snorkel will, however, to the extent permitted, pass through any such warranty protection to the Customer or Dealer.
2. Any Snorkel product which has been modified or altered outside Snorkel’s factory without Snorkel’s written approval, if
such modification or alteration, in the sole judgment of Snorkel’s Engineering and/or Service Departments, adversely
affects the stability, reliability or service life of the Snorkel product or any component thereof.
3. Any Snorkel product which has been subject to misuse, improper maintenance or accident. “Misuse” includes but is
not limited to operation beyond the factory-rated load capacity and speeds. “Improper maintenance” includes but is not
limited to failure to follow the recommendations contained in the Snorkel Operation, Maintenance, Repair Parts
Manuals. Snorkel is not responsible for normal maintenance, service adjustments and replacements, including but not
limited to hydraulic fluid, filters and lubrication.
4. Normal wear of any Snorkel component part(s). Normal wear of component parts may vary with the type application or
type of environment in which the machine may be used; such as, but not limited to sandblasting applications.
5. Any Snorkel product that has come in direct contact with any chemical or abrasive material.
6. Incidental or consequential expenses, losses, or damages related to any part or equipment failure, including but not
limited to freight cost to transport the machine to a repair facility, downtime of the machine, lost time for workers, lost
orders, lost rental revenue, lost profits or increased cost.
This warranty is expressly in lieu of all other warranties, representations or liabilities of Snorkel, either expressed or implied,
unless otherwise amended in writing by Snorkel’s President, Vice President-Engineering, Vice President-Sales or Vice
President-Marketing.
SNORKEL MAKES NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THIS LIMITED WARRANTY.
SNORKEL MAKES NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
AND DISCLAIMS ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT
LIMITED TO INJURY TO PERSONS OR PROPERTY.
The Customer shall make all warranty claims through its local Authorized Dealer and should contact the Dealer from whom
the Snorkel product was purchased for warranty service. Or, if unable to contact the Dealer, contact the Snorkel Service
Department for further assistance.
Effective July 1995
© Snorkel – all rights reserved Printed in New Zealand

MHP15J – 11995B page 1
Table of Contents
General Specifications
General Specifications ........................3
Engine Specifications .........................3
Working Envelope............................4
Table of Contents
Maintenance Information
About this Manual: ...........................5
Manual Organization..........................5
General Specifications.......................5
Maintenance ..............................5
Repair parts and illustrations..................5
Hydraulics ................................5
Electrical .................................5
Options...................................5
Parts index - Page locator ....................5
Maintenance and Schematics...................5
Maintenance information .....................5
Maintenance schedules .......................6
Daily Maintenance ...........................7
Pre-operational Inspection....................7
Hydraulic Hose Age ..........................7
90 Day or 150 Hour Maintenance
(Trained Service Technician) .................8
Yearly or 500 Hour Maintenance
(Trained Service Technician) .................8
Lubricants ..................................9
Pressure gun application .....................9
Rotation bearing ...........................9
Rotation gear teeth and pinion ................9
Engines ..................................9
Hydraulic oil reservoir .......................9
Battery ....................................10
Preventive inspection maintenance
90 day or 150 hour checklist .................11
Torque chart ...............................13
To order service or repair parts ................14
ANSI and OSHA compliance.................14
Manuals ................................14
Section 1. - Repair Parts
Trailer assembly ...........................1-2
Trailer assembly illustration ...................1-3
Boom assembly illustration ...................1-4
Boom assembly ............................1-5
Platform assembly ..........................1-6
Motor assembly ............................1-7
Column assembly ..........................1-8
Column assembly illustration..................1-9
Placards and decals installation ..............1-10
2000kg axle ..............................1-12
2000kg axle assembly illustration .............1-13
Levelling assembly illustration................1-14
Levelling Assembly ........................1-15

page 2MHP15J – 11995B
Table of Contents
Section 3. - Electrical
Electrical schematic illustration ................3-3
AC motor option wiring schematic illustration .....3-4
Road transport electric illustration..............3-5
Upper control box assembly ..................3-6
Lower control box assembly ..................3-7
Section 2. - Hydraulics
Hydraulic schematic illustration for standard units .2-3
Main control valve - sheet 1 ..................2-4
Main control valve - sheet 2 ..................2-5
Upper boom lift cylinder assembly .............2-6
Lower boom lift cylinder assembly .............2-7
Flyboom cylinder assembly ...................2-8
Stabiliser leg cylinder assembly ...............2-9
Oil distributor assembly - 3 port...............2-11
Oil distributor assembly 3 port illustration .......2-12
Distributor 3 port ..........................2-13
Section 4. - Options
Rotator option .............................4-2
Rotator option illustration.....................4-3

General Specifications
■General Specifications
■Engine Specifications
MHP15J – 11995B page 3
SPECIFICATIONS MHP15J
Nominal working height 14.8m 48’ 7”
Maximum height to basket floor 13m 42’ 6”
Maximum outreach 6.8m 22’ 8”
Maximum outreach height 6.90m 22’ 6”
Maximum width of base
Stabilisers retracted
Stabilisers extended
1.75m
3.53m
5’ 7”
11’ 5”
Safe working load (unrestricted) 200kg 440lbs
Standard colour Orange base/boom grey platform
Platform size 1200 x 760 x 1100mm
Aluminum
4’ x 2’ 6” x 3’ 7”
Aluminum
Travelling height 1.82m 5’ 9”
Overall length 7553mm 25’
Maximum towing speed 80km/h 50m/h
Turntable rotation 360ocontinuous
Trailer tongue weight 100kg 220lb
Engine Make Honda (gasoline)
Model GX 160
Engine type 4-stroke, over head valve, 1 cylinder
Displacement 163 cm3(9.9 cu-in)
Bore x Stroke 68 x 45 mm (2.7 x 1.8 in)
Max. output 4 kW/4,000 rpm
Max. torque 1.1 kg-m (8.0 ft-lb)/ 2500 rpm
Fuel gasoline
Fuel Grade automotive gasoline (unleaded or lowleaded preferred)
Fuel consumption 230 g/PSh
Cooling system Forced air
Ignition system Transistor magneto
PTO shaft rotation Counterclockwise
Oil Capacity 0.60 litres (0.60 US qt, 0.53 Imp qt)
Oil Grade SAE 10W-30

■Working Envelope
page 4MHP15J – 11995B
General Specifrications
16 (52.4)
15 (49.2)
14 (45.9)
13 (42.6)
12 (39.3)
11 (36.1)
10 (32.8)
9(29.5)
8
8
(26.2)
(26.2)
7
7
(22.9)
(22.9)
6
6
6
(19.6)
(19.6)
(19.6)
5
5
5
(16.4)
(16.4)
(16.4)
4
4
4
(13.1)
(13.1)
(13.1)
3
3
3
(9.8)
(9.8)
(9.8)
2
2
2
(6.5)
(6.5)
(6.5)
1
1
1
(3.2)
(3.2)
0
0
(0)
(0)
METRES
METRES
FEET
FEET

Maintenance Information
■About this Manual:
This Maintenance and Repair Parts manual covers
current production machines only.
While Snorkel has attempted in every way to
confirm that all information in this manual is correct,
improvements are being constantly made to the
machine that may not be reflected in this manual.
NOTE:
It is recommended that you record the serial and
model number of your machine (see page 14 of this
chapter). This information is found on the serial
number placard.
■Manual Organization
The Repair Parts Manual consists of five sections
with an individual table of contents preceding
sections 1 through 4.
Subassemblies and detailed parts are identified by
index numbers on the illustrations that correspond
to the item numbers on the parts listing. When
requesting any part, always specify complete part
number, description, model and serial number of
your unit.
The following is a general description of each
section and its contents.
❑General Specifications
The section immediately preceding, contains
information relating to the general specifications of
the MHP15J.
❑Maintenance
The pages immediately following, contain
information as to the maintenance schedules -
lubricants and procedures for proper lubrication of
the unit.
❑Repair parts and illustrations
Repair Parts (Section 1), contains parts listings
and illustrations for general mechanical repair
parts of all major installations and subassemblies
of the unit.Hydraulics
❑Hydraulics
(Section 2), contains parts listings and illustrations
of hydraulic components installations including
hydraulic schematics and individual components
such as cylinders, controls valves and solenoid
operated valves.
❑Electrical
Electrical (Section 3), contains listings and
illustrations of electrical components installations
including wiring schematics.
❑Options
Options (Section 4), contains parts listings and
illustrations of optional installations that may be
installed on your unit.
❑Parts index - Page locator
The parts index - page locator, identifies the
component by name and directs you to the section
and page number where you may find information
for that part such as its part order number, etc.
■Maintenance and Schematics
❑Maintenance information
The parts drawings located in the repair parts
sections, are designed for use as a guide for proper
disassembly of the machine and components as
well as for parts replacement. Always refer to the
hydraulic system installation drawings and the
electrical wiring diagram before removing or
disassembling associated parts.
Do not attempt to disconnect or remove any
hydraulic line before reading and
understanding all text concerning the
system hydraulics. In most cases,
disassembly of the machine will be obvious
from the illustration.
DO NOT modify this ariel platform without
prior written consent of Snorkel Engineering
Department.
Modification may void the warranty,
adversely affect stability, or affect the
operational characteristics of the ariel
platform.
When disassembling or reassembling
components, complete the procedural steps in
sequence. Do not partially disassemble or
assemble one part, then start on another. Always
check your work to assure that nothing has been
overlooked.
The following list is a gentle reminder when
disassembling or assembling the machine.
MHP15J – 11995B page 5
CAUTION
CAUTION

üAlways be conscious of weight.
üNever attempt to lift heavy objects without the aid of
a mechanical device.
üDo not allow heavy objects to rest in an unstable
condition.
üAlways make sure work platform is in stowed
position - blocked or the weight removed by a
suitable lifting device before disconnecting the
hydraulic hose from the motor/pump unit to the lift
cylinder.
üWhen raising a portion of the machine, be sure that
adequate blocking is properly positioned - Do not
depend on lifting device to hold and secure weight.
üIf a part resists removal, check to see if all fasteners,
electrical wiring, hydraulic lines, etc., have been
removed or that other parts are not interfering.
Parts should be thoroughly inspected before
restoring to service at the time of reassembly. Burrs,
nicks or scratches may be removed from machined
surfaces by honing or polishing with #600 crocus
cloth, followed by a thorough cleaning in an
approved cleaning solvent, and blown dry with
compressed air. Do not alter the contour of any part.
If this operation does not restore the part to a
serviceable condition, replace the part.
Replace all O-rings, seals, and gaskets at
reassembly. Use new roll pins or cotter pins. Dip all
packing rings and seals in hydraulic oil before
reassembling in cylinder and manifold installations.
Replace any part having imperfect threads. In
general, units that have been disassembled can be
reassembled by reversing the order of disassembly.
Remember that the service life of a machine can be
increased by keeping dirt and foreign materials out
of the vital components. Precautions have been
taken to safeguard against this; shields, covers,
seals and filters are provided to keep air and oil
supplies clean; however, these items must be
maintained on a scheduled basis in order to function
properly.
At any time air or oil lines are disconnected, clean
surrounding areas as well as the opening and
fittings themselves. As soon as a line or component
is disconnected, cap or cover all openings to
prevent the entry of dirt or foreign materials.
New parts should remain in their container until they
are ready to be used.
Clearly mark or tag hydraulic lines and electrical
wiring connections when disconnecting or removing
them from unit. This will assure that they are
correctly reinstalled.
Proper assembly is critical to the successful
rebuilding of any unit. Carefully inspect any parts
which are to be reused. If in doubt, replace.
“SAFETY FIRST” is a good slogan.
Replace any guards and protective devices that
have been removed to carry out maintenance and
repair work.
■Maintenance schedules
Snorkel has established a Preventive Maintenance
Schedule that includes:
üDaily Maintenance (Operator’s Inspection)
ü90 Day or 150 Hour (frequent) Maintenance
üYearly or 500 Hour (annual) Maintenance,
These schedules should ensure the detection of any
defective, damaged or improperly secured parts
and provide information regarding lubrication and
other minor maintenance items.
The Maintenance Schedule following, outlines the
requirements of these maintenance checks for each
time interval. The Operator’s Pre-operational
inspection must be performed by a trained operator.
All other maintenance and inspections must be
performed by a trained service technician only.
Note that the 90 Day or 150 hour (frequent) and
yearly or 500 hour (annual) Maintenance, require
use of the Preventive Inspection Maintenance
Checklist to pinpoint all inspection items. Retain a
copy of these forms for your records.
They also require that all placards and decals on the
unit are to be inspected.
All placards and decals must be in place and legible.
Use the placards installation drawing and parts
listing in the repair parts section 1 of this manual to
check these placards and decals.
Snorkel recommends that you make additional
copies of the Preventive Inspection Maintenance
Checklist forms for your use in performing these
Failure to perform the Preventive
Maintenance at the intervals outlined in the
Maintenance Schedule may result in a unit
being operated with a defect that could result
in INJURY or DEATH of the unit operator. DO
NOT allow a unit to be operated that has been
found to be defective.
Repair all defects before returning the unit to
service.
page 6MHP15J – 11995B
Maintenance Information
DANGER

■Daily Maintenance
MHP15J – 11995B page 7
Maintenance Information
❑Pre-operational Inspection
Item Service Required
Engine fuel level Look to see that the fuel tank is full
Fuel tank cap Check to see that the cap is tight
Engine oil level Check oil level (between dipstick lines)
Fuel leaks Visually inspect (hoses and connections)
Engine cooling Check that grills are not blocked
Wiring harnesses Visually inspect (installation, condition)
Battery terminals Visually inspect (no corrosion)
Battery fluid level Check fluid level (1/4" or 6 mm below filler neck)
Hydraulic oil level Visually inspect level (between lines on gauge)
Hydraulic oil leaks Visually inspect (hoses, tubes)
Tires and wheels Visually inspect (condition)
Bolts and fasteners Visually inspect (condition)
Structural damage and welds Visually inspect (weld cracks, dents)
Lanyard anchor points Visually inspect (condition)
Platform gravity gate Check condition and operation
Platform guardrails Visually inspect (condition)
Flashing light (option) Visually inspect (operation)
Ground control switches Actuate and inspect for proper operation
Emergency lower Check operation (causes correct motion)
■Hydraulic Hose Age
EN982 Clause 7.3.1 requires the manufacturing date of each hydraulic hose to be clearly visible on the
hose.
Hoses used in production of this unit are manufactured by Parker and the manufacturing date is present in
a coded format.
The key to decode the date is as follows:
11 - 4Q 99
11- 4Q 99
Manufacturing Plant Number
Sample Hose Code
Year of Manufacture
Manufacturing Period (i.e. 4th Quarter)

page 8MHP15J – 11995B
Maintenance Information
■90 Day or 150 Hour Maintenance
(Trained Service Technician)
Components Service Required Recommended Lubricant or Further
Instructions
Daily maintenance Perform maintenance as per schedule
Preventive inspection
maintenance checklist
Perform inspection, complete form Retain copy of checklist
Placards and decals inspection Inspect using drawing and parts listing
in section 1 (repair parts)
Replace any missing or
unreadable decals/placards
Rotation bearing Lubricate Conoco Super Sta #2
Above 32° Mobilgrease CM-P
Below 32° Mobilgrease CM-L
Rotation bearing teeth & pinion Lubricate Conoco Super Sta #2
Above 32° Mobilgrease CM-P
Below 32° Mobilgrease CM-L
Platform rotator Check smooth operation Repair or replace if not working
properly
Platform controls Check smooth operation & speeds
Battery Check specific gravity 1.260/1.275 at 27° C.
Hydraulic filter Check condition Replace if dirty
Engine RPM Check for proper engine RPM (2500) See engine manufactures owner's
manual
Engine oil Replace per engine owners manual
■Yearly or 500 Hour Maintenance
(Trained Service Technician)
Components Service Required Recommended Lubricant or Further
Instructions
90 day or 150 hour maintenance Perform maintenance per schedule
Hydraulic oil reservoir Clean and replace fluid Shell Tellus 32 or similar
Hydraulic filter Replace After 1st. 50 hours, thereafter
at recommended interval
Hydraulic pressures Check pressures

■Lubricants
Specific lubricants as recommended by Snorkel,
should be used in maintaining your unit. If in doubt
regarding the use of lubricants other than those
listed, contact Snorkel.
❑Pressure gun application
Service all fittings as indicated in the Maintenance
Schedule and lubrication illustration. Wipe away all
excess lubricant from exposed surfaces. Over
lubrication can collect dirt and foreign matter which
acts as an abrasive. Lubrication of accessory
equipment should be in accordance with the
manufacturer’s recommendations.
❑Rotation bearing
Rotation bearing. Pressure gun lubricate bearing
at recommended interval using lubricant as
outlined in the maintenance schedule. Rotate while
lubricating. Lubrication fitting is located on the font
plate of the turntable.
❑Rotation gear teeth and pinion
Rotation gear teeth and pinion. Gear teeth and
gear box pinion should be lubricated with a multi
purpose grease.
❑Engines
Engine. Refer to the engine manufacturer’s
instruction manual or consult your local engine
service representative if engine adjustments or
repairs are needed. The engine MUST be operated
in accordance with manufacturer’s instructions and
serviced at recommended intervals.
❑Hydraulic oil reservoir
Hydraulic oil reservoir. The fluid level should be
kept between the low and full marks on the dipstick
and should be checked with all cylinders fully
retracted and the platform in stowed position.
It is absolutely necessary that only new, clean
hydraulic oil is added.
If it becomes necessary to add or use an oil
other than the recommended fluid, it is
important that it be compatible and
equivalent to the factory fill. Local oil
suppliers can generally furnish this
information.
If questions still remain, contact Snorkel for further
information.
MHP15J – 11995B page 9
Maintenance Information
Coupling
Multi purpose
grease on
shaft
Rotation bearing
(2 points)
Rotation gear
teeth and
pinion
Knuckle pin
MP grease Hydraulic oil reservoir
and filter
RHS of Trailer
The illustration locates the lubrication points of the MHP15J.
CAUTION

■Battery
Battery. The battery will have longer life if the water
level is maintained and it is kept charged. The unit
will have better starting characteristics with a fully
charged battery.
In cold weather the battery should be maintained at
full charge to keep from freezing. An extremely low
or dead battery can freeze in cold weather. Make
sure connections are clean and tight.
Make sure charging equipment is operating
properly.
Lead-acid batteries contain sulfuric acid
which will damage eyes or skin on contact.
When working around batteries, ALWAYS
wear a face shield to avoid acid in eyes.
If acid contacts eyes, flush immediately with
clear water and get medical attention.
Wear rubber gloves and protective clothing
to keep acid off skin, if acid contacts skin,
wash off immediately with clear water.
Lead-acid batteries produce flammable and
explosive gases. NEVER allow smoking,
flames or sparks around batteries.
page 10 MHP15J – 11995B
Maintenance Information
DANGER

Inspection Procedures Codes
(1) Weld cracks, dents and/or rust
(2) Installation
(3) Leaks
(4) Operation
(5) Condition
(6) Tightness
(7) Residue buildup
(8) See placards and decals inspection chart
Check OK ✔X
Chassis
Structural (1)
Tires (5)
Tire pressure (5)
Hydraulic tubes and hoses (3,5)
Decals and placards (2,8)
Wheel nuts (6) Torque 95lbft 130NM
Battery disconnect switch (4)
Lubrication points
Pins, pin keepers (2)
Turntable
Structural (1)
Swivel mount assembly (2,3)
Hydraulic tubes and hoses (3,5)
Cowling (5,6)
Wire harness (2,5)
System pressure (Max 2500 psi)
Lubrication points
Emergency bleed down valve (4,3)
Engine (2,4)
Engine charging system (4)
Engine air filter (5)
Hydraulic pump (4)
Engine oil (5)
Electric choke (4)
Hydraulic oil reservoir (2,3,5)
Hydraulic oil reservoir filler/breather cap (2,6)
Hydraulic oil reservoir fluid level (5)
Hydraulic oil return filter (3,4)
Pins, pin keepers (2)
Lower Booms
Structural (1)
Boom lift cylinder pin caps (2,6)
Boom lift cylinder and holding valve (3,4)
Jib cylinder pin (3,4)
Hydraulic tubes and hoses (3,5)
Electrical Wires (5,2)
Upper Booms
Structural (1)
Electrical wires (5)
Jib cylinder pin caps (2,6)
Jib cylinder and holding valve (3,4)
Hydraulic hoses and tubes (3,5)
Decals and placards (2,8)
Platform rotator (Optional) (3,4)
Check OK ✔X
Platform rotation holding valve (3,4)
Rotator mounting bolts (2,6)
Platform
Structural (1)
Decals and placards (2,8)
Platform gate (4)
Hydraulic tubes and hoses (3,5)
Platform mounting bolts (2,6)
Correct operator's manual in document holder (2)
Battery
Battery terminals (6,7)
Battery electrolyte level (5)
Fuel Tank
Fuel tank (3,5)
Fuel tank cap (2,3,4,5)
Ground Control Station
Station selector switch - ground controls
platform controls DO NOT work (4)
Station selector switch - platform controls
ground controls DO NOT work (4)
Cold start (4) Choke
Keyed master switch (4)
Boom speed rheostat switch (4)
Turntable rotation (4)
Upper boom lift UP - DOWN (4)
Lower boom lift UP - DOWN (4)
Jib boom lift UP - DOWN (4)
Emergency stop (4)
Platform Control Station
Foot switch (4)
Foot switch, functions operate when engaged (4)
Anti-restart switch (4)
Cold start (4) Choke
Boom speed rheostat switch (4)
Turntable rotation (4)
Upper boom lift UP - DOWN (4)
Lower boom lift UP - DOWN (4)
Jib boom lift UP - DOWN (4)
Emergency stop (4)
Optional Equipment
Air line to platform (2,4)
Dual fuel system (2,4)
Platform work lights (2,4)
Platform rotation (4)
MHP15J – 11995B page 11
Maintenance Information
■Preventive inspection maintenance
90 day or 150 hour checklist
OK OK - No Service Required Serial Number
✔Corrective Action Required
XCorrected, (Record description of corrective action).

page 12 MHP15J – 11995B
Maintenance Information
Corrective Action Required
Note: If correction action is required on any item, attach sheet indicating problem and action taken.
All items have been properly checked and tested and found to be operating satisfactory or necessary corrective
action has been completed.
Inspected By: Date

MHP15J – 11995B page 13
Maintenance Information
5.03
6.78
8.78
14.2
20.1
M3 x 0.5
M3.5 x 0.6
M4 x 0.7
M5 x 0.8
M6 x 1
M8 x 1.25
M8 x 1
M10 x 1.5
M10 x 1.25
Grade marking M8.8 M10.9 M12.9
LUBED
k=0.15
DRY
k=0.20
TORQUE (N.m)
NOM SIZE
X
PITCH
CLAMP
LOAD
W
(N)
PROPERTY CLASS 8.8
TENSILE
STRESS
AREA
As
2
(mm )
PROPERTY CLASS 10.9
CLAMP
LOAD
W
(N)
TORQUE (N.m)
DRY
k=0.20
LUBED
k=0.15
36.6
39.2
58.0
61.2
2 200
2 960
3 830
6 200
8 770
1.32
2.07
3.07
6.20
10.5
0.99
1.55
2.30
4.65
7.90
2 990
4 030
5 220
8 430
11 950
1.79
2.82
4.17
8.43
14.3
1.34
2.11
3.13
6.33
10.8
15 975
17 100
25 325
26 725
25.6
27.4
51
53
19.2
20.5
38.0
40.1
21 750
23 275
34 450
36 350
34.8
37.3
69
73
26.1
27.9
52
55
M12 x 1.75
M12 x 1.25
M14 x 2
M14 x 1.5
84.3
92.1
115
125
36 800
40 200
50 200
54 550
88
96
140
155
66
72
105
115
50 075
54 700
68 300
74 250
120
130
190
210
90
98
145
155
M16 x 2
M16 x 1.5
M20 x 2.5
M20 x 1.5
157
167
245
272
68 525
72 900
106 950
118 750
220
235
430
475
165
175
320
355
93 250
99 200
145 550
161 550
300
320
580
650
225
240
435
485
M24 x 3
M24 x 2
M27 x 3
M27 x 2
353
384
459
496
154 100
167 600
200 350
216 500
740
805
1 080
1 170
555
605
810
875
209 700
228 100
272 650
294 600
1 010
1 100
1 470
1 590
755
820
1 100
1 150
M30 x 3.5
M30 x 3
M30 x 2
M33 x 3.5
M33 x 2
561
580
621
694
761
244 900
253 150
271 050
302 950
332 200
1 470
1 520
1 630
2 000
2 200
1 100
1 140
1 220
1 500
1 640
333 250
344 500
368 850
412 250
452 050
2 000
2 070
2 210
2 720
2 980
1 500
1 550
1 660
2 040
2 240
M36 x 4
M36 x 3
M39 x 4
M39 x 3
817
865
976
1 028
356 600
377 600
426 000
448 700
2 570
2 720
3 320
3 500
1 930
2 040
2 490
2 630
485 300
513 800
579 750
610 650
3 490
3 700
4 520
4 760
2 620
2 780
3 390
3 570
M42 x 4.5
M42 x 3
M45 x 4.5
M45 x 3
M48 x 5
M48 x 3
1 121
1 206
1 306
1 398
1 473
1 604
489 300
526 400
570 050
610 250
642 950
700 150
4 110
4 420
5 130
5 490
6 170
6 720
3 080
3 320
3 850
4 120
4 630
5 040
665 850
716 350
775 750
830 400
874 950
952 800
5 590
6 020
6 980
7 470
8 400
9 150
4 200
4 510
5 240
5 610
6 300
6 860
■Torque chart

■To order service or repair parts
When placing an order for service or repair parts,
please have the following information available for
your machine.
üMachine model number
üMachine serial number
üSnorkel part number
üDescription of part
üQuantity of parts required
üYour purchase order number
üAddress for order to “Ship To”
üYour desired shipment method
All correspondence relative to this unit, such as field
reports, discrepancy reports, requests for service
information, etc., should be directed to:
Snorkel
36 Bruce Road
P.O. Box 1041
Levin 5500
New Zealand
Phone: [phone]
Fax: [phone]
Attention: Parts Department
❑ANSI and OSHA compliance
All owners and users of the aerial platform must
read, understand, and comply with all applicable
regulations. Ultimate compliance to OSHA
regulations is the responsibility of the user and their
employer.
ANSI publications clearly identify the
responsibilities of all personnel who may be
involved with the aerial platform. A reprint of the
“Manual of Responsibilities for Dealers, Owners,
Users, Operators, Lessors and Lessees of
ANSI/SIA A92.5-1992 Boom-Supported Elevating
Work Platforms” is available from Snorkel dealers or
from the factory upon request.
Copies are also available from:
Scaffold Industry Association
20335 Ventura Blvd. Suite 310
Woodland Hills, CA 91364-2471 USA
❑Manuals
Manuals are available from Snorkel to support any
of the machines that we produce.
The specific manuals for MHP15J are as follows:
üOperator’s Manual
Snorkel part number - 11995A
üRepair Parts Manual
Snorkel part number - 11995B
page 14 MHP15J – 11995B
Maintenance Information
Record machine information here:
Model number*
Serial number*
Date of purchase
Purchased from
Snorkel dealer or distributor
* This information is found on the serial number placard
attached to your machine.

Section 1
Trailer assembly ...........................1-2
Trailer assembly illustration ...................1-3
Boom assembly illustration ...................1-4
Boom assembly ............................1-5
Platform assembly ..........................1-6
Motor assembly ............................1-7
Column assembly ..........................1-8
Column assembly illustration..................1-9
Placards and decals installation ..............1-10
2000kg axle ..............................1-12
2000kg axle assembly illustration .............1-13
Levelling assembly illustration................1-14
Levelling Assembly ........................1-15
MHP15J – 11995B page 1- 1
Section 1. - Repair Parts

Trailer assembly
Item Part No Qty Description
1. 9844J 1Trailer weld
2. 10929 1Drawbar weld
3. 10408 4Stabiliser weld
4. 10275A 4Stabiliser cylinder
5. 1045 1Jockey wheel
6. 1038 1Tow coupling
7. 9846 4Foot plate
8. 9948 4Pin, foot plate
9. 8628 4Pin keeper, 6mm
10. 10293 4Pin, cylinder to stabiliser
11. 8626 8Pin keeper, 10mm
12. 1771 1Boom lock pin
13. 10277-2 4Cylinder cover
14. 10291 4Pin, stabiliser to housing
15. 9981 4Pressure switch
16. 10142 4Microswitch
17. 9844-10 4Bracket, mudguard
18. 8024R-15 1Right hand mudguard
19. 9863 1Engine cover
20. 8773 1Oil tank
21. 7886 1Dipstick
22. 11956A 1Oil distributor
23. 9887 1Leg control valve
24. 9869 2Mudflap
25. 1704-004 2Wheel rim
26. 11027 1Axle assembly
27. 1704-005 2Tyre
28. 8024L-15 1Left hand mudguard
29. 9851-2 1Floor plate, rear
30. 9851-5 1Floor plate, front
31. 11492-1 8Locktab, 6mm
32. 11492-3 8Locktab, 10mm
page 1- 2MHP15J – 11995B
Trailer assembly

TITLE
Page 1 - 3
Trailer Assembly
Snorkel model MHP15J
DWG. 00000
1
9
31
27
23
11
24
13
14
29
3
17
18
21
20
19
4
15
16
2
12
26
10
7
8
28
25
6
22
30
5
32
Trailer assembly illustration

TITLE
Page 1 - 4
Boom Assembly
Snorkel model MHP15J DWG. 00000
910
10
14
27
13
19
25
25
21
22
6
1
12
12
11
11
2
7
5
8
17
17
4
27
13
26
12
12
28
3
15
20
24
23
26
24
26
16
18
18
18
18
13
Boom assembly illustration
