SNOWDOG Compact B10 ME User manual

User’s manual
SNOWDOG.COM
Snowdog

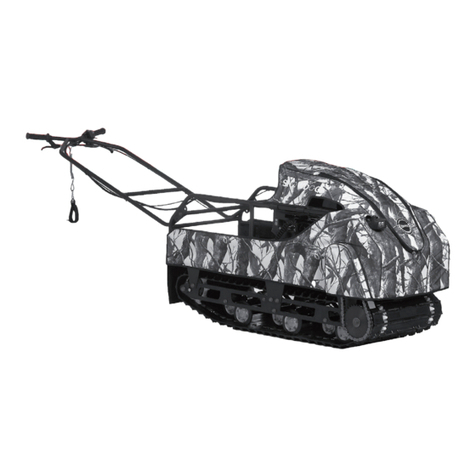

Compact B10 ME
Standard B10 ME

2
• Operating the Snowdog on the public roads
andtrails is strictly prohibited.
• Snowdog is designated strictly for outdoor use.
Indoor use is prohibited.
3 Introduction
The purpose of this manual is to familiarize you with the
Snowdog maintenance and operation procedures, and give
you troubleshooting tips. “Snowdog Compact” and
“Snowdog Standard” are towing modules primarely
designed for cargo transportation in the luggage
compartment, hauling cargo on sledge or semi-trailer over
different surfaces.
4 Snowdog purpose
The Snowdog is designed primarily to be used during winter
time. For operating it during warm season it is necessary
toremove the cover and to take measures to prevent engine
overheating. Snowdog is designed for towing the sled or
semi-trailer onmultiple terrains. Snowdog isn’t meant to be
used onroads, sandy soils and on the water.
YCaution
• Before starting the engine make sure there are no
people, animals or objects near the Snowdog that
may be damaged or injured.
• Strap the engine security switch on your hand
before starting the engine.
• Stay clear of the moving gears in the drive shaft
and chain!
• Park the Snowdog at a safe distance from people
and animals.
• Make sure the engine is stopped before removing
the transmission protective cover.
• Make sure all the gear screws and drive shafts are
tightened before operating the Snowdog.
• Do not start the engine if the handlebar is folded.
• Do not fold the handlebar while the engine is
running.
• Please do not use the parking brake during
the motion. It may cause the loss of control
ofSnowdog and trauma.
• Before starting the engine please make sure
thethrottle control lever moves freely and is not
fixed.
• Before starting the engine move the handlebar
into the operating position.
• Always check the parking brakes.
• In case of any control malfunctions you should
stop, locate the problem and fix it.
• Sled or semi-trailer must be fixed to a Snowdog
with the rigid drawbars only.
• Wearing protective hand gloves when riding
theSnowdog is recommended.
• For safety reasons we recommend using
thehelmet.
Content
1 Preamble .............................................................................2
2 Safety tips............................................................................2
3 Introduction........................................................................2
4 Snowdog purpose..............................................................2
5 Technical specifications ....................................................3
6 Overview .............................................................................3
7 Basic controls......................................................................4
8 Packaging ............................................................................5
9 Snowdog setup...................................................................6
10 Operating the Snowdog....................................................9
11 Maintenance .....................................................................10
12 Storage...............................................................................11
13 Maintenance tips..............................................................11
14 Manufacturer’s warranty Snowdog .............................15
15 Snowdog general electric circuit scheme.....................17
1 Preamble
Thank you for purchasing the Snowdog!
Before using Snowdog, please read this manual carefully.
Following technical instructions and safety tips ensure
continuous years of reliable product usage.
Snowdog is a compactly designed and highly reliable
tracksled, equipped with a high-quality Briggs & Stratton
engine and ready for off-road work or fun.
All information in this manual corresponds to the state
of the products at the date of signing and printing the
document.
The manufacturer reserves the right to make changes to
design without prior notice and without any obligations. If a
difference is found between this Manual and yours, please
contact your Snowdog dealer to get the latest information.
2 Safety tips
This Owner’s manual contains important information on
safety tips and operating instructions for Snowdog. In
case ofresale, please share this document and the engine
service manual with the next Snowdog owner due to the
importance ofthe information contained.
Please read this manual carefully before operating the
Snowdog. Non-compliance with the following rules and
instructions may cause serious damage and even injuries.
Snowdog operating safety tips and instructions are marked
with “CAUTION!” tag listed herein.
YCaution
• Before operating the Snowdog you must read
the Owner’s manual and the engine operator’s
manual.
• It is prohibited to operate the Snowdog for minors
under 16 years old, and not recommended to
operate Snowdog for people who are not capable
of safe operating for different reasons.
• It is prohibited to operate the Snowdog under the
influence of alcohol and/or drugs.
• It is prohibited to use Snowdog without the chain
protection cover, mud flaps and emergency engine
shutdown switch.
• Operating a faulty or defective Snowdog unit is
prohibited.

3
5 Technical specifications
5.1 Technical specifications for Snowdog models
Specs Snowdog Compact
B10 ME
Snowdog Standard
B10 ME
Length in transporting/operation position, in (mm) 50.0 / 86.5
(1 270 / 2 200)
58.0 / 94.5
(1 470 / 2 400)
Width (including steering handles),in (mm) 26 (650) 26 (650)
Height,in (mm) 33.5 (850) 33.5 (850)
Weight, lb (kg) 298 (135) 320 (145)
Maximum load capacity on top, lb (kg) 100 (40) 110 (50)
Maximum sledge load capacity, lb (kg) 330 (150) 440 (200)
Maximum speed, mph (km/h) 15.53 (25) 15.53 (25)
Engine series 1450 1450
Engine model, type 19N1370076 19N1370076
Engine Displacement, ci (cc) 18.67 (306) 18.67 (306)
Fuel type (gasoline) 87 octane 87 octane
Fuel tank, l 5.3 5.3
Track type Compact Standard
Tread count 48 56
Track length × width, in (mm) 95.43 × 19.69 (2 424 × 500) 111.3 × 19.69 (2 828 × 500)
Transmission type CVT CVT
CVT belt, mm 30 × 14 × 1120 30 × 14 × 1120
Center distance between CVT pulleys, in (mm) 10.2–10.8 (260–275) 10.2–10.8 (260–275)
6 Overview
1. LED headlight
2. CVT Driven pulley
3. CVT Driving pulley
4. Muffler
5. Battery
6. Engine security kill switch
7. Front mud flap
8. Axle bearings (self-centering)
9. Side plate chassis
10. Track tensioner
11. Rear mud flap
6
11107 8 9
1 2 3 4 5
12. Air filter
13. Fuel tank
14. Driving sprocket
15. Brake disk
16. Hooking device
17. Wheel trolley of suspension
18. Manual starter handle
19. Track
20. Transmission chain
21. Driven sprocket
1716 1918
13 1412 15
20 21

4
6.1 Snowdog identification
Serial no. is located on the front part of the chassis.
It is also shown on the back part of the chassis using point
marking method.
7 Basic controls
1. Handle grip
2. Parking control lever with lock
3. Handle switch assembly
4. Kill switch
5. DC socket for external devices
6. Throttle control lever
7.1 Handle switch assembly
1. Electric starter button (1).
When this button is pressed, the electric starter is working
and the engine can be started. Do not hold the button down
for more than 10 seconds.
2. Headlight switch (2).
When the switch is in position the light and the DC
socket are working.
When switch is in position the light and the DC socket
are working.
21 4 653
32
1
When switch is in position the light is off. The DC socket
is working.
!Warning
Do not turn on the headlight if the battery is not
connected!
3. Ignition on/off switch. When the switch (3) is in
position toward the operator the ignition is on.
The engine can be started.
When the switch (3) is in position away from the operator
the ignition is off. The engine cannot be started.
7.2 Engine security kill switch
There is an engine emergency kill switch in the middle of the
handlebar, it consists of the button and the safety pin.
The operator of the Snowdog should always operate it with
safety pin installed and belt around his hand. If the operator
loses control while riding Snowdog, safety pin will spring
out off the button and turn off the engine. The machine will
stop.
7.3 DC socket
The DC socket can be used for plugging lighting devices,
radio devices, charging cellphone, etc. The socket should be
used only when theengine is running.
Maximum values of parameters permitted for
using the socket:
• rated voltage — 12 V DC;
• maximum power — 20 W (1.6A).
The power is only supplied to the DC socket in mode.
!Warning
When the socket is not in use it must be covered
by a cap.
Do not plug in external power consuming devices which
require more power than the aforementioned maximum
value.

5
If external power consuming devices are used while the
engine is not running, the battery may lose charge and itwill
be impossible to start the engine using the electric starter.
Do not use car cigarette lighter and other accessories with
plugs that can produce heat as this can damage the socket.
7.4 Parking brake lever
1. Parking brake lever.
2. Parking brake lever lock.
7.4.1 Switching the parking brake on:
1. Press the lever (1).
2. Press and hold the lock (2).
3. Release the lever (1).
7.4.2 Switching the parking brake off:
1. Press the lever (1).
2. Release the lever (1).
!Warning
Never start the engine while the parking brake is
switched off or faulty.
Never start the motion while the parking brake
isswitched on.
7.5 Informational labels displacement
Informational label with serial no.
2
1
Z9JSKIT45KB019150

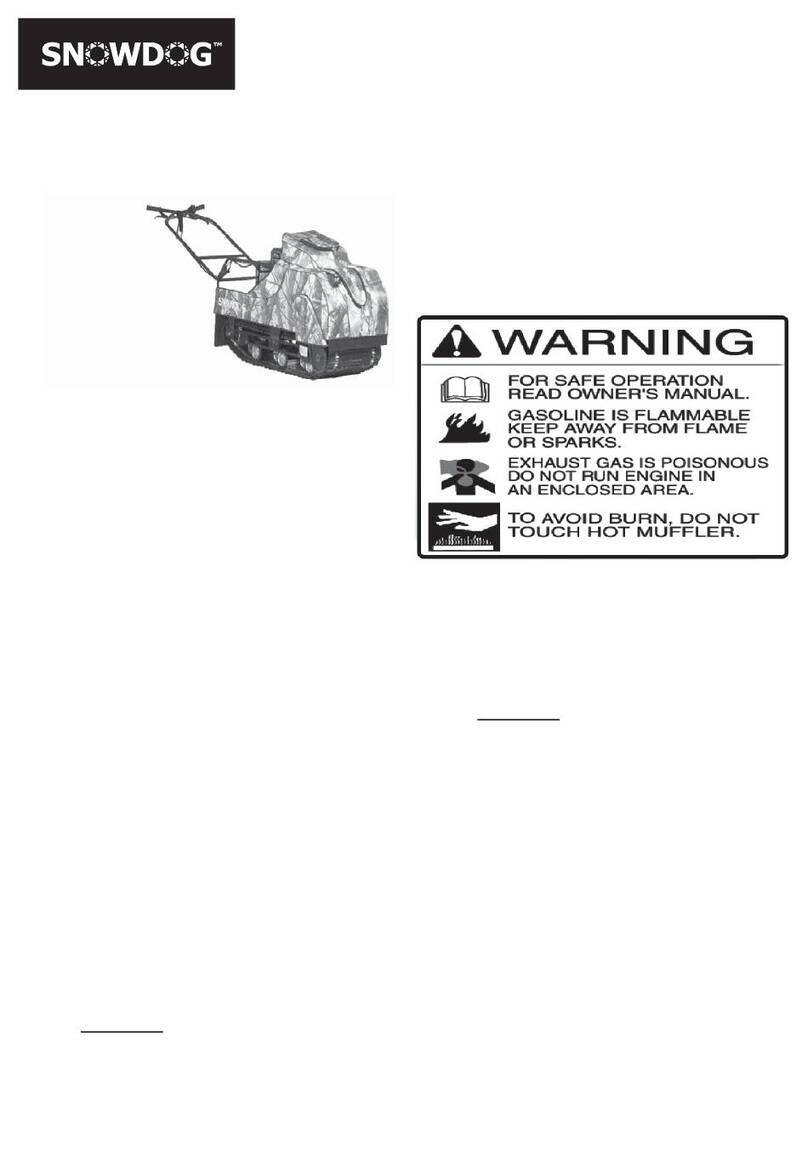

Warning labels #1 and #2.
Warning label #3.
Double sided Warning label #4.
8 Packaging
Snowdog delivery set contents:
1. Snowdog — 1 pc.
2. Support bracket — 1 pc.
3. Battery — 1 pc.
4. Eye bolt — 1 pc.
5. Owner’s documentation — 1 pc.
6. Owner’s Manual — 1 pc.
7. Operator’s engine manual — 1 pc.
VNote
Spare parts and accessories can be ordered from
your dealer.

6
9 Snowdog setup
9.1 Installation of the cover support bracket
Before the first start install the cover support bracket,
which is supplied with Snowdog. You will need a Philips
screwdriver for that (not included).
Unscrew the cover fixing screw in the top part of the chassis.
Insert the bracket under the cover, aligning the screw holes
with the holes in the chassis. If necessary, bracket may be
slightly bended to align the holes.
Screw the bolts, previously unscrewed from the chassis, so
that the bracket would be placed between chassis and the
cover, and would separate hot muffler from the cover.
Then put a fabric cover on the Snowdog. Make sure that
there is a distance between cover and muffler of not less
than 4inches (100mm). If the distance is less than 4inches
(100mm), bend the cover bracket.
!Warning
When operating the Snowdog at an ambient
temperature of over 41 °F (+ 5 °C), it is necessary
to open the zipper placed in the front part
ofthecover or remove the cover.
9.2 Battery installation
It is necessary to install and connect the battery before
using the Snowdog. You will need a battery (supplied with
the Snowdog), a metric wrench (not included) andaPhilips
screwdriver (not included).
Unscrew 2 bracket mounting bolts using metric wrench.
Install the battery, and tighten it with the bracket using the
metric wrench.
Connect the electric wires to the battery, strictly observing
the polarity. Wire with the red cover is connected to the
cleat marked with “+” si g n , w i re w i t h bla c k cover is co n nec te d
to the cleat marked with “-” sign. Tightly secure the сont ac ts.
General view of the assembled battery is shown above.
!Warning
Pay attention to the polarity when connecting
thebattery!
Do not turn on the headlight if the battery is not
connected!
VNote
The voltage of the charged battery should be
within the range of 12.6–2.9 V. If the battery
voltage is less than 12.6 V, it must be charged.
!Warning
Use chargers designed for the AGM batteries.
Donot use chargers with voltages above 14.6V as
they will damage thebattery.

7
9.3 Handlebar height adjustment
To adjust the height of the handlebar you need to rearrange
fixture in one of the three holes (1). To raise the handlebar
higher, move the mounting holes in the bottom. To lower
the handlebar, move the handlebar to the upper hole.
Please NOTE, both mountings of the handlebar must be on
the same level.
!Warning
Check fastening of wires and cables after
adjusting height of handlebar. Wires and cables
should not have any tension during transport
oroperating position of the handlebar.
Don’t exert your whole weight on the handlebar.
Do not step on the handlebar. Do not use the
handlebar as a lever for lifting front of Snowdog.
Overloading the handlebar can damage it.
9.4 Preparations to be made before every start
1. Move the handlebar from the transporting position
into the operating position.
2. Sled or semi-trailer have to be attached to the
Snowdog with a hitch.
3. Check the chain tension— the chain should be
neither loose, nor tight.
4. Check the throttle and the brake cable (lubricate
ifneeded).
5. Check how the throttle lever moves — thelever
should move easily and return to the starting
position very quickly.
6. Check the parking brake.
7. Move the parking brake into the fixed position.
8. Be sure to follow all of the procedures specified
inparagraph 9.5.
9. Prepare the engine for starting as described
intheengine manual.
1
9.5 Pre-start engine inspection
9.5.1 Checking the oil level
YCaution
Check the oil level in the engine, according tothe
engine manual before operating.
Running the engine with insufficient oil level will
cause damage and is not covered by warranty.
9.5.2 Fueling
!Warning
Fill the fuel tank with gas according tothe engine
manual.
VNote
• Fuel is highly flammable and explosive, you should
avoid getting burned and injured while working
with it.
• Stop the engine before refueling. Make sure
there are no heating appliances, sparks orflames
around.
• Refuel only outdoors.
• Refuel only in a well-ventilated area and only if the
engine is stopped. If the engine has been recently
running, let it cool down first.
• Spilled fuel is not only highly inflammable, but can
also harm the environment. In case of spilled fuel,
wipe down as soon as possible.
Make sure that there is enough fuel in the tank.
Fill the fuel tank up to the bottom part of the filler neck,
asshown in the picture below.
!Warning
Do not fill the tank with fuel above the maximum
level. The fuel expands when heated. If the tank
is overfilled then the fuel heated by engine or sun
can leak from the tank.
Do not spill fuel, especially on the engine and
themuffler as it may cause fire and severe
injuries. Wipe the spilled fuel dry.
After refueling make sure that the cap of the fuel
tank is sealed tightly.
25 mm
TOP OF THE
FUEL TANK
MAXIMUM FUEL LEVEL
(THE TYPE WITHOUT
FILTER)
MAXIMUM FUEL
LEVEL (THE TYPE
WITH FILTER)

8
!Warning
If the Snowdog leans heavily or turns over, the fuel
can leak through the tank cap.
9.6 Starting the engine
1. Open the fuel lock.
2. Close the choke onhandlebar.
3. Set the ignition switch located on the handle switch
assembly to “ON” position.
4. Install the safety pin of the kill switch on the button,
put the belt on your hand or attach itto your belt.
OPEN
CLOSE
CLOSE OPEN
5. Check how the kill switch is installed. Kill switch
which is not installed completely may lead to
improper work of the engine.
!Warning
Make sure that there are no animals, people or
objects infront of the Snowdog which can be
damaged or injured by uncontrolled movement of
Snowdog.
Following the engine start the Snowdog may start
moving uncontrollably if it has been previously
misused or improperly stored.
6. Start the engine. To start the engine press and hold
the electric starter button (1) on the steering switch
assembly. Release the button right after the engine
started.
!Warning
When starting the engine with the electric starter
do not hold the button for more than 10seconds
at each attempt.
If the engine does not start, release the starter
button. Pause for 30 seconds before making the
next attempt.
1

9
7. To start the engine with a manual starter pull out
the starter handle (1) until first noticeable
resistance. Without returning it to its place, swiftly
pull the handle further out and the engine started.
After starting the engine, slowly return the handle
back to its initial position, allowing for the cord to
wind-up.
!Warning
Do not twitch the handle when starting. Do not
pull the cord out all the way until it stops. Do not
release starter handle abruptly after starting.
8. After 5 failed attempts to start, pause for at least
30seconds before the next try.
9. Let the engine run with choke closed for about
aminute, and then gradually open the choke. Let
the engine warm up for at least two minutes.
10. Release the parking brake from the fixed position
before moving.
11. Check the hooking device and its fasteners (1).
!Warning
When operating Snowdog at an ambient
temperature of over 41 °F (+5 °C) it is necessary
to open the zipper placed in the front part of
the cover or remove the cover. Failure to do so
will lead to the engine overheat and will not be
covered by warranty.
1
1
10 Operating the Snowdog
10.1 Operation of the Snowdog
Throttle lever on the right side of the handlebar controls
arm-off and speed change. Snowdog starts moving when
the throttle lever is approximately in ¼ position.
Pull the lever slowly to engage the transmission and to start
the Snowdog moving. Increase pressure on the throttle
lever until the desired speed is reached.
When starting to move on the crumbly snow, accelerate
slowly in order to avoid slipping. To make a turn, steer
thehandlebar in the direction opposite to the turn. Tostop
the Snowdog, release the throttle back — never apply
theparking brake to stop the Snowdog while driving.
10.2 Stopping the engine
In case of emergency:
To shut down the engine in case of emergency, flip
theignition switch located on the steering switch assembly
to “OFF” position or pull out the engine security switch.
When the Snowdog stops, switch the parking brake on.
In normal cases:
1. Adjust the throttle lever to lower RPMs.
2. Slowly release the throttle lever.
3. Flip the ignition switch located on the steering
switch assembly to “OFF” position.
4. Turn the parking brake on.
!Warning
Never use the parking brake to stop the Snowdog.
This is dangerous!
5. When stopping for more than 10 minutes close the
fuel lock.
6. Switch off headlight.
7. Switch off the device, which may consume power
from the DC socket.

10
When raining or snowing, or the temperature is close to
32°F or lower it is necessary to protect the Snowdog with
cover for the time of parking. Otherwise snow and water
can freeze on engine control levers and other parts of the
Snowdog which makes operating impossible.
In case the Snowdog was riding through water or wet snow
it is necessary to clear it from snow and ice, otherwise the
water can freeze and bind down the transmission resulting
in inability to move.
YCaution
The first 20 hours of operating the Snowdog are
needed for the engine and transmission to adjust.
During this period you should use Snowdog with
lowest possible load. Prolonged lugging may cause
transmission overload and Snowdog failure.
11 Maintenance
11.1 Before each trip
1. Clear snow and ice from the Snowdog.
Thecarburetor control levers and springs between
theengine and fuel tank should be cleaned
especially carefully.
2. Check the secure connection of the parts
andassemblies of the Snowdog and tighten
thescrews if necessary. Check the parking brake.
3. Check the engine oil level.
4. Check the drive chain, lubricate if necessary.
5. Pay particular attention to handlebar mounting
andattachment of the hitch.
6. Ensure that thethrottle lever moves easily and
returns to the starting position very quickly.
11.2 After each trip
1. Shut down the fuel valve.
2. Clean Snowdog from any snow and/or dirt.
3. Lube the chain with an aerosol chain spray.
4. Visually check the track tension.
5. Visually check the driver and driven shafts of the
CVT, clean out of dirt if necessary. Be sure to check
for plastic inserts (1) in CVT driver shaft. If plastic
inserts are missing or worn out— insert new ones.
6. Check the wear and condition of the sliders
andwheels.
11.3 After the first 5 hours of Snowdog operation
1. Lubricate the throttle and parking brake cables.
2. Lubricate the drive chain and sprockets with
anaerosol chain spray.
3. Adjust throttle and parking brake arms (free motion
should have a value of 0.19–0.27in (5–7mm).
1
4. Adjust the chain tension.
5. Service the engine as specified in the engine
owner’s manual.
6. Visually check the track tension.
7. Change the engine oil.
11.4 After each 20 hours of Snowdog running
1. Lubricate the throttle and parking brake cables.
2. Lubricate the drive chain and sprockets
withanaerosol chain spray.
3. Adjust throttle and parking brake arms (free motion
should have a value of 0.19–0.27in (5–7mm).
4. Adjust the chain tension.
5. Check the track tension as described
inparagraph11.2.
6. Change the engine oil.
7. Lubricate the bearings in supporting rollers
(ifavailable).
8. Service the engine as specified in the operating
manual of the engine.
!Warning
• When operating under heavy duty conditions the
maintenance should be carried out more often.
!Heavy duty operating conditions include:
• Moving on deep loose snow (more than 16inches
in depth);
• Moving at temperature below -13 and above 50°F;
• Moving on wet snow and on snow containing
water;
• Moving on surfaces flooded by water;
• Moving on rocky terrain;
• Moving on snow crust which cannot withstand
theweight of the tracksled and sleds;
• Participation in races and competitions;
• Prolonged moving at low speed, “tightly strained”;
• Moving with a towed load more than 330 lbs;
• Moving on hard-surfaced roads;
• Moving on the mud;
• Moving on the sand;
• Prolonged moving uphill, downhill, or on slopes;
• Short trips with frequent stops.
11.5 Washing and cleaning
Before washing and cleaning, remove the cover if necessary.
Wash cover, if necessary.
Do not use high pressure for washing, it may damage some
parts of Snowdog.
Snowdog should be washed with warm water and car
detergent. Thoroughly rinse the detergent.
Wash using a bucket with a sponge or small water pressure
hose. It is necessary to ensure that water is not suffused
in parts, connectors and switches, on the air filter and
muffler. Do not use petrol or other solvents to clean
Snowdog. Powertrain and chassis must be cleaned of twigs,
leaves and other contaminants. Remove stains of oil and
other fluids.
Start up and warm up the Snowdog after washing.
!Warning
Do not allow corrosive substances on the track,
such as gasoline, solvents, acids, etc.
