SNOWDOG Sport B13 MER User manual

User’s manual
Snowdog
Sport B13 MER
Long Track B13 MER
SNOWDOG.COM

2
1 Introduction
Thank you for purchasing the Snowdog!
To get the most of your Snowdog, please read this manual
carefully. Following technical instructions and safety
tips ensures continuous years of reliable product usage.
Snowdog Sport is a compactly designed and highly reliable
towing machine, equipped with a quality Briggs&Stratton
engines and suitable for off-road work or recreation.
All information in this manual corresponds to the state of the
products at the date of signing and printing the document.
The manufacturer reserves the right to make changes to
design without prior notice and without any obligations. If a
difference is found between this Manual and yours, please
contact your Snowdog dealer for the latest information.
Service life of Snowdog is 5 years, provided the operation
and maintenance rules specified in the Manual are
observed.
2 Safety tips
This Owner’s manual contains important information on
safety tips and operating instructions for Snowdog. In case
of resale, please transfer this document and the engine
service manual to the next Snowdog owner due to the
importance of the information contained. Please read this
manual carefully before operating the Snowdog.
!Warning
Non-compliance with the following rules and
instructions may cause serious damage and
even injuries. Snowdog operating safety tips and
instructions are marked with “Warning” tag listed
herein.
All the information on operating safety tips and
instructions for Briggs&Stratton engine is in the
Briggs&Stratton user’s manual. Please read the
manual carefully before using the Snowdog. Non-
compliance with the operation instructions and
non-acquaintance with the information in the
user’s manual may cause serious damage and
even injuries.
!Warning
• Before operating the Snowdog you must read the
Owner’s manual and engine operator’s manual.
• Always engage the parking brake before starting
the engine. This Snowdog is equipped with an
automatic clutch system that, under certain
circumstances, can lead to sudden unexpected
movement of the machine when starting the
engine. To avoid possible injury or damage, be
aware of your surroundings and only start the
engine when there are no people, animals or
objects in front of or behind the Snowdog.
• It is prohibited to operate the Snowdog for minors
under 16 years old, and not recommended to
operate Snowdog for people who are not capable
of safe operating due to different reasons.
• It is prohibited to operate the Snowdog under the
influence of alcohol and/or drugs.
• It is prohibited to use Snowdog without the chain
protection cover, mud flaps and emergency engine
shutdown switch.
• Operating a faulty or defective Snowdog unit is
prohibited.
• Operating the Snowdog on public roads and trails
is strictly prohibited.
• Snowdog is designated strictly for outdoor use.
Indoor use is prohibited.
• Park the Snowdog at a safe distance from people
and animals.
• Before starting the engine make sure there are no
people, animals, or objects near the Snowdog that
may be damaged or injured.
• Strap the engine security switch on your hand
before starting the engine.
• Before starting the engine, please make sure
the throttle control lever moves freely and is not
fixed.
• Do not start the engine if the handlebar is folded.
• Do not fold the handlebar while the engine is
running.
• Always check the parking brakes.
• Stay clear of the moving gears in the drive shaft
and chain!
• Any maintenance of the Snowdog and the engine
shall be carried out only after the engine is shut
off, unless otherwise required for maintenance.
• Make sure all the screws on sprockets and shafts
are tightened before operating the Snowdog.
• If any malfunction occurs, stop the operation
immediately, locate the problem and fix it.
• Wear protective gloves when riding the Snowdog.
• Wear protective helmet when riding the Snowdog.
Content
1 Introduction........................................................................2
2 Safety tips............................................................................2
3 Snowdog purpose..............................................................3
4 Technical specifications for“Snowdog” .........................3
5 Snowdog overview.............................................................3
6 Snowdog identification,
informational labels location ..........................................6
7 Operating the Snowdog....................................................7
8 Snowdog inspection andmaintenance ........................11
9 Transportation..................................................................19
10 Storage...............................................................................19
11 Snowdog manufacturer’s warranty ..............................20
12 Warranty card.................................................................. 22
13 Service list ........................................................................ 22
14 Electrical drawing............................................................ 23

3
• Wear ear protectors to reduce the harmful effects
of noise caused by the Snowdog.
• Sled or semi-trailers must be fixed to the Snowdog
with rigid drawbars only.
3 Snowdog purpose
The Snowdog is designed primarily to be used during
wintertime. For operating it during warm season it is
necessary to remove the wear strips and the plastic covers
and to take measures to prevent engine overheating.
The Snowdog is a labor-saving support equipment (towing
module), which is operated by a nearby operator. It is
designed for hauling cargo on sledge or semi-trailer. For
operating it during warm dry season, it is recommended to
use a semi-trailer. The Snowdog is not meant to be used on
roads, sandy soils and on the water.
4 Technical specifications
Model Sport B13 MER Long Track
B13MER
Engine model Briggs&Stratton 25Т237
Engine series XR2100
Engine Displacement,
cc 420
Length in transport/
operating position, in
(mm)
58 / 94.5
(1 430/2 400)
69 / 106.7
(1 755/2 710)
Width (including the
handlebar), in (mm) 30.7 (780)
Height, in (mm) 30.3 (770) 30.6 (785)
Maximum speed,
mph (km/h) 15 (25)
Weight, lb (kg) 342 (155) 360 (163)
Maximum load
capacity on top of the
Snowdog, lb (kg)
110 (50) 132 (60)
Model Sport B13 MER Long Track
B13MER
Maximum sledge
load capacity, lb (kg) 440 (200) 550 (250)
Fuel type (gasoline) 87 octane
Fuel tank, gal (l) 1.74 (6.6)
Transmission type CVT
CVT belt, mm 30×14×1 120 30×14×1 380
Center distance
between CVT pulleys,
in (mm)
10.43–10.83
(265–275) 15.5 (395)
Track type Standard Long Track
5 Snowdog overview
!WARNING
All the images in the Manual are for referential
use only. The actual appearance of the Snowdog
may vary.
5.1 Basic elements for Snowdog:
1. Rear handle
2. Cargo box
3. Rubber hood latch
4. Air filter
5. Muffler
6. Fuel tank
7. Handlebar
8. Hood
9. LED-headlight
10. Rear mud flap
11. Track tensioner
12. Track
13. Bogie suspension
14. Protection cover
15. Transmission chain
16. Driven sprocket
17. Front mud flap
18. Front handle
13 14 15 16 17 181211
456789321
10

4
5.2 Basic controls
1. Plastic handguards
2. Throttle control lever
3. Handle switch assembly
4. Handle grip
5. Gearbox shift mechanism
6. DC outlet for external devices
7. Kill switch
8. Parking control lever with lock
5.3 Top view
1. Engine
2. Brake disk
3. Brake caliper
4. Reverse gearbox
5. CVT belt
6. Driving pulley of CVT
7. Battery
1
5
2
6
3
7
4
8
5
2
6
3
7
1
4
5.4 Handle switch assembly
(1) — Electric starter start button. When this button is
pressed, the electric starter is working and the engine can
be started. Do not hold the button down for more than 10
seconds.
(2) — Headlight switch (front light). When the switch is in
position , the light, DC outlet and heaters are working.
When switch is in position , the light and DC outlet are
working.
When switch is in position , both the light and heaters are
off. DC outlet is working.
!Warning
Do not switch on the headlight if the battery is not
connected!
(3) — Ignition on/off switch.
When the switch (3) is in position (toward the operator),
the ignition is on. The engine can be started.
When the switch (3) is in position (away from the
operator), the ignition is off. The engine cannot be started.
5.5 Engine security kill switch
There is the engine emergency kill switch in the middle of
the handlebar, it consists of the button and the safety pin.
2 3
1

5
The operator of the Snowdog should always operate it with
safety pin strap belt around his hand. If the operator should
leave the machine during a movement, the safety pin will
leave the button thereby turning the engine off.
5.6 Reverse gearbox (if available)
Choosing the direction of moving:
To shift the gear into the “forward” position, stop the
Snowdog and switch on the parking brake. Reduce the
engine to idle. Make sure the CVT belt is stoped rotating.
Switch the lever forward as shown on the picture. Slowly
start moving.
To shift the gear into the “reverse” position, stop the
Snowdog and switch on the parking brake. Reduce the
engine to idle. Make sure the CVT belt is stoped rotating.
Switch the lever backward as shown on the picture. Slowly
start moving.
If the CVT belt is moving or there are difficulties with shifting
gears, shut off the engine, switch off the parking brake and
rock the Snowdog back and forth.
!Warning
Never shift gears if the CVT driven pulley is
rotating.
Never change the direction of moving when the
parking brake is switched off. Never start moving
while the parking brake is switched on.
Never use the full throttle immediately after the
shift of the gear.
Start moving smoothly, with minimal possible
speed. For the first couple of meters after the
shift, move with the lowest possible engine load.
5.7 DC outlet
The DC outlet can be used for plugging lighting devices,
radio devices, etc. The outlet should be used only when the
engine is running.
Maximum values permitted for using the outlet:
• rated voltage — 12V;
• maximum power — 20W (1.6A).
!Warning
When the outlet is not in use it must always be
covered by a cap.
Do not plug in external power consuming devices which
require more power than the aforementioned maximum
value.
If external power consuming devices will be used while the
engine is not running, the battery may lose its charge and
it will be impossible to start the engine using the electric
starter.
Do not use car cigarette lighter and other accessories with
plugs that can produce heat as this can damage the outlet.
5.8 Parking brake lever
1. Parking brake lever.
2. Parking brake lever lock.
5.8.1 Switching the parking brake on:
1. Press the lever (1).
2. Press and hold the lock (2).
3. Release the lever (1).
4. Release the lock (2).
5.8.2 Switching the parking brake off:
1. Press the lever (1).
2. Release the lever (1).
2
1

6
!Warning
Never start the engine while the parking brake is
switched off or faulty.
Never start moving while the parking brake is
switched on.
5.9 Throttle control lever
1. Gently press the lever to increase the RPMs in the
engine.
2. Release the lever for deceleration.
!Warning
Check the operation of the throttle control lever
before every use.
5.10 Choke control lever
When the choke control lever is in the position (1), the choke
is open (used during the Snowdog operation).
When the choke control lever is in the position (2), the choke
is closed (used for starting the engine).
5.11 Fuel lock
Fuel lock controls the flow of fuel from the fuel tank to
carburetor.
The fuel lock is open when the lever is in position (I). The
fuel lock is closed when the lever is in position (O).
1
2
!Warning
If you store and transport the Snowdog with an
open fuel lock, the fuel will get into the crankcase
and mix with the oil.
6 Snowdog identification,
informational labels location
Manufacturer’s informational labels with the information
on the manufacturer, model, and Snowdog serial number
(double) are located on the front of the engine mount.
6.1 Informational label with serial no.
6.2 Warning labels #1 and #2.
Z9JSKIT45KB019150

7
6.3 Warning label #3.
6.4 Dual-sided warning label #4.
6.5 Snowdog serial number
Serial number is placed on the rear part of the engine mount
(under the cylinder) using point marking method.
6.6 Engine identification
Number, model and type of the engine are placed on the
front of the crankcase (1) using point marking method. An
adhesive label with the serial number and barcode (2) is
affixed to the front of the engine.
7 Operating the Snowdog
!Warning
Please read the user’s manual for the engine
and the Snowdog carefully before operation.
Make sure you have completely understood the
instructions for the operation and maintenance of
Snowdog.
Please read the Briggs&Stratton engine user’s
manual carefully before using Snowdog. All the
information on engine maintenance contained
in this manual serves as guidelines. If the
maintenance instructions in this Snowdog
owner’s manual are different from those in the
Briggs&Stratton engine user’s manual, follow the
instruction specified in the latter.
The first 20 hours of operating the Snowdog are
needed for engine and transmission to adjust.
During this period, use Snowdog with lowest
possible load.
When operating the Snowdog at an ambient
temperature of over 41 °F (+ 5 °C), it is necessary
to remove the covers.
When operating under severe conditions the
maintenance should be carried out more often.
7.1 Snowdog set-up
!Warning
Please read the user’s manual for the engine and
the Snowdog carefully before operation.
Make sure you have completely understood the
instructions for the operation and maintenance of
Snowdog.
2
1

8
7.1.1 Battery installation
1. It is necessary to install and connect the battery
before using the Snowdog. You will need a battery
(supplied with the Snowdog), a metric wrench (is not
provided as standard) and a Philips screwdriver (not
included).
2. Unscrew 2 bracket mounting screws using metric
wrench.
3. Install the battery and tighten it with the bracket
using the metric wrench.
4. Connect the electric wires to the battery, strictly
observing the polarity. Wire with the red cover is
connected to the cleat marked with “+” sign, wire
with black cover is connected to the cleat marked
with “-” sign. Tightly secure the contacts.
General view of the assembled battery is shown below.
!Warning
Pay attention to the polarity when connecting the
battery!
Do not switch on the headlight if the battery is not
connected!
The voltage of the charged battery should be
within the range of 12.6–12.9V. If the battery
voltage is less than 12.6V, it must be charged.
Use chargers designed for AGM batteries. Do not
use chargers with voltages above 14.6V as they
will damage the battery.
7.1. 2 Cargo box installation (if available)
Put the cargo box into luggage compartment. Align the
holes in the box and on the frame.
Install the plates (1) and tighten the screws (2).
2
1
7.1. 3 Handlebar height adjustment
To adjust the height of the handlebar you must rearrange
fixture in one of the three holes (1). In order to raise the wheel
higher, move the mounting holes in the bottom. In order to
lower the wheel, move the handlebar to the upper hole.
Please NOTE, both mountings of the handlebar must be on
the same level.
!Warning
Special attention shall be paid to the fastening of
the handlebar, as well as to the attachment of the
wiring and cables for throttle and parking brakes.
Make sure that they are not caught between the
handlebar and the crossarm. Make sure the wiring
and cables are not stretched when the handlebar
is unfolded. Make sure the wiring and cables
are not breaking or damaging when folding the
handlebar.
Do not press the handlebar during operation on
hard surface. Do not lift the front of the Snowdog
using the handlebar.
7.1.4 Installation of handguards
!Warning
Left and right handguards are different.
1. Attach the handguards to the handles with a screw
(1), bushing (3) and nut (2) but do not tighten.
2. Install a bushing (3) and a screw (4) through the
handguards.
3. Tighten the screws.
1
1
2
3
4

9
7.2 Preparation for moving
!Warning
Always engage the parking brake before
starting the engine. Snowdog is equipped with
an automatic clutch system that, under certain
circumstances, can lead to sudden unexpected
movement of the machine when starting the
engine. To avoid possible injury or damage, be
aware of your surroundings and only start the
engine when there are no people, animals, or
objects in front of or behind the Snowdog.
1. Move the handlebar from the transport to the
operating position.
2. Make sure the control cables (throttle, choke, brake,
and reverse) are not overly bended, crushed or
damaged.
3. Clean the engine carburetor control levers from
snow and other contaminations. Make sure the
carburetor control lever moves and is not blocked.
4. Make sure the throttle lever is not faulty, moves
freely and returns to the initial position. Lubricate or
change the throttle cable, if necessary.
5. Make sure the brake lever is not faulty, moves freely
and returns to the initial position. Lubricate or
change the brake cable, if necessary.
6. Switch on the parking brake. Make sure it is
functional and prevents Snowdog from moving.
7. Check the lubrication and the chain tension. If
necessary, lubricate and tighten the chain.
8. Attach the sled or semi-trailer to the Snowdog using
the hitch. Check the mounting of the hitch.
9. Check the oil level in the engine.
10. Prepare the engine for starting, as described in the
Briggs&Stratton engine manual.
11. Check the fuel level. Add fuel, if necessary. Make
sure the tank cap is securely closed.
12. Check the position of the suspension bogies and
sliders (if available).
13. Shift the reverse into the “forward”.
7.3 Starting the engine
!Warning
Snowdog is equipped with an automatic clutch
system that, under certain circumstances,
can lead to sudden unexpected movement of
the machine when starting the engine. It is
recommended to lock the Snowdog in place with
an obstacle, if you start a Snowdog, which is
faulty, or after long idle time, or at extremely low
temperatures. Check the throttle lever operation
before starting the engine. Switch on the parking
brake before starting the engine.
1. Open the fuel lock.
2. Close the choke on engine or on handlebar.
3. Shift the ignition switch located on the switch
assembly to “ON” position — .
4. Install the safety pin of the kill switch (1) on the
button (2), put the belt (3) on your hand or attach it
to your belt.
CLOSE OPEN
3
2
1

10
5. Check how the kill switch is installed. Kill switch
which is not installed completely may lead to
incorrect work of the engine.
6. Check the throttle lever operation.
7. Check the carburetor control levers and springs
between the engine and fuel tank. Clear any snow
or ice which may interfere with their operation.
8. Make sure the parking brake is on.
9. Make sure there are no people, animals, or objects
near the Snowdog that may be damaged or injured
by it.
10. Start the engine with an electric starter (if you will
not use the manual starter). To start the engine
press and hold the electric starter button on the
handlebar switch. Release the button right after the
engine started. Make sure the starter button does
not touch the parking brake lever.
!Warning
When starting the engine with the electric starter
do not hold the button for more than 10 seconds
at each attempt. If the engine does not start,
release the starter button. Wait 30 seconds
before making the next attempt.
1
11. To start the engine with a manual starter, pull out
the starter handle until first noticeable resistance.
Without returning it to its place, swiftly pull the
handle further out and the engine started. After the
engine started, slowly return the handle back to its
initial position, allowing for the cord to wind-up.
!Warning
Do not twitch the handle when starting. Do not
pull the cord out all the way until it stops. Do not
release starter handle abruptly after the engine
has started.
12. After 5 failed attempts to start, wait at least
30seconds before the next try.
13. Let the engine run with choke for about a minute,
and then gradually open the choke. Let the engine
warm up for at least two minutes.
14. Switch off the parking brake from the fixed position
before moving.
7.4 Movement
The throttle lever on the right side of the handlebar adjusts
the RPMs, changing the speed and the towing force. The
Snowdog starts moving at approximately ¼ stroke of the
throttle lever. Start moving slowly, avoid sharp increase in
the RPMs.
To make a turn while moving, tilt the handlebar in the
opposite direction. While moving in the deep snow, you can
make a turn by tilting the Snowdog in the direction of the
turn.
7.5 Maintenance during movement
When moving on wet snow, or snow with water under it, or
on puddles, clean the transmission and the suspension of
snow and ice regularly.
!Warning
When operating the Snowdog for more than
an hour, it is necessary to stop and check the
following:
1. Check the throttle lever operation.
2. Check the carburetor and centrifugal governor
levers. There should not be any ice or frozen snow
on them.
3. Check the drive chain, lubricate if necessary.
4. Visually inspect the mounting, paying particular
attention to the attachment of the hitch and
handlebar mounting.

11
7.6 Stopping the Snowdog
To stop the Snowdog, cut the throttle. The Snowdog will
slow down and eventually stop.
To shut down the engine in case of emergency, flip the
ignition switch located on the handle switch assembly on
the left side of the handlebar to “OFF” position or pull out
the engine security switch. When the Snowdog stops, switch
the parking brake on. When the Snowdog is stopped and
the parking brake is on, you can switch off the engine. When
stopping for more than 10 minutes, close the fuel lock. Turn
off the headlight. Switch off any accessories or electrical
devices that may consume power from the battery. When
it is raining or snowing, or the temperature is close to 32 °F
(0°С) or lower, it is necessary to protect the Snowdog with
cover for the time of parking. Otherwise, snow and water
may freeze on engine control levers and other parts of the
Snowdog making controlling the Snowdog impossible.
If Snowdog is used in water or wet snow conditions then
parked in freezing temperatures, water left in the drive
components can freeze resulting in inability of the machine
to move. Clear built-up snow from machine before it is left
unused in freezing temperatures.
7.7 Inspection and maintenance after operation
1. Close the fuel lock.
2. Switch off the ignition.
3. Switch off the headlight.
4. Unload the Snowdog. Do not leave it loaded to
prolong the life of the suspension springs.
5. Clean the Snowdog of any snow, ice, branches,
leaves or dirt.
6. Check the chain tension. If necessary, lubricate and
tighten the chain.
!Warning
It is recommended to use aerosol lubricants
designed for motorcycle chains.
7. Check the condition of the driving and the driven
sprockets.
8. Carefully inspect the CVT. Clean up, if necessary.
9. Check the condition of the plastic inserts in the CVT
and lubricate them. If plastic inserts are missing,
damaged or worn out, replace with new ones.
10. Visually check the track tension. If necessary,
tighten the track.
11. Visually inspect the Snowdog for leakage (fuel, oil).
12. Check the bogies and sliders (if available).
1
8 Snowdog inspection
andmaintenance
!Warning
Please read the Briggs&Stratton engine user’s
manual carefully before using Snowdog. All the
information on engine maintenance contained
in this manual serves as guidelines. If the
maintenance instructions in this Snowdog
owner’s manual are different from those in the
Briggs&Stratton engine user’s manual, follow the
instruction specified in the latter.
8.1 Engine oil
Recommended oil
Use engine oil that meets or exceeds SJ or SL standards of
API. Do not use special additives. Always check the API
service mark on the oil container to be sure it contains the
letters SJ, SL or equivalent.
8.1.1 Checking oil level
Oil level should be checked with the engine shut off and on
a horizontal surface.
1. Take the dipstick off and wipe it clean.
2. Put the dipstick into the oil fill neck to measure the
oil level, but do not tighten it. Take the dipstick out
and check the oil level.
3. If the oil level is near or lower the minimum mark on
the dipstick, add the recommended oil to the upper
mark level (lower edge of the oil fill). Do not pour oil
above the level.
4. Put the dipstick back.

12
!Warning
Operation with low oil level may damage the
engine.
Increased oil level indicates water or fuel ingress.
Do not start the engine if the dipstick is taken out.
8.1.2 Changing the oil
Change the oil for the first time after 5 hours of engine
operation.
Then change the oil every 50 hours of engine operation.
Change the oil only in a warmed-up engine.
1. Take the dipstick off and clean the oil fill area of any
debris.
2. Pump the oil out through the oil fill. Please make
sure to dispose of the used oil in an environmentally
safe way. We recommend that you take the used oil
in a closed container to your nearest waste disposal
site.
!Warning
Dispose of the oil in accordance with current
legislation.
3. The engine should be located on a horizontal
surface. Add the recommended oil to the upper
mark level (lower edge of the oil hole).
4. Put the dipstick cap back and tighten it.
Use engine oil that meets or exceeds SJ and SL standards of
API. Do not use special oil additives. Always check the API
service mark on the oil container to make sure it contains
SJ, SL or equivalent symbols.
SAE 10W-30 or SAE 5W-30 oil is recommended for common
use. Engine oil capacity is 1.1 liters.
8.2 Fueling
!Warning
Fill the gasoline engine according to the
Briggs&Stratton engine manual.
Fuel is highly flammable and explosive, you should
avoid getting burned and injured while working
with it.
Stop the engine before refueling. Make sure there are no
heating appliances, sparks or flames around.
Refuel only outdoors or in a well-ventilated area and only
if the engine is stopped. If the engine has been recently
running, let it cool down first.
Spilled fuel is not only highly flammable but toxic and may
be harmful to people and the environment. If fuel spills,
wipe it up as soon as possible.
Make sure that there is enough fuel in the tank. Fill the fuel
tank up to the bottom part of the filler neck, as shown in
Figure.
!Warning
Do not fill the tank with fuel above the maximum
level. The fuel expands when heated. If the tank is
overfilled, then the fuel heated by engine or sun
can leak from the tank.
Do not spill fuel, especially on the engine and the
muffler as it may cause fire and heavy injuries.
Wipe the spilled fuel dry.
After refueling make sure that the cap of the fuel
tank is sealed tightly.
If the Snowdog leans heavily or turn over it is
possible for the fuel to leak through the fuel tank
cap.
8.3 Chain
8.3.1 Checking the chain tension
Visually inspect the proper tension of the chain after each
use. There should be no damage to the rollers or chain links.
There should be no jamming or rusty links.
It is necessary to remove the protection cover (if available)
to check the chain tension. Correctly tensioned chain will
have a loose lift of 0.2 in (5 mm) between the sprockets.
Loose lift less than 0.2in (5mm) will result in rapid chain
wear and will lead to fast sprocket wear. An excessively
loose chain can fall off during operation. Loose chain needs
to be tightened.

13
While operating, the chain stretches and the distance
between chain links changes. If the adjustment range is not
enough, the chain should be replaced. Do not shorten the
chain by removing links.
8.3.2 Chain lubrication
During visual inspection, it should be clear that the chain is
lubricated. However, it should not be lubricated excessively
so as to avoid sand and dirt sticking. Before lubrication,
clean the chain of dirt and the old lubricant with an aerosol
cleaner or a cloth moistened in kerosene or solvent. After
cleaning, wipe the chain dry.
After cleaning the chain, lubricate it with aerosol lubricate
for motorcycle chains. Lubrication should be sprayed into
the gap between the links and rollers of the chain. Wipe the
excess lubricant with a dry cloth.
!Warning
It is recommended to use aerosol lubricates for
motorcycle chains.
8.3.3 Adjusting the chain tension.
To adjust the chain tension:
1. Loosen screws (1) that mount engine bracket with
Snowdog’s chassis platform.
2. To loosen the chain, you need to move the engine
bracket forward in the direction of movement; to
tighten the chain, you need to move the engine
bracket back against the direction of Snowdog
movement. Rotate the bolt (2) to move the engine
bracket.
3. Tighten screws (1) to the engine mounts of the
Snowdog chassis platform.
1
2
8.4 Track
8.4.1 Checking the track tension
Before starting any movement check the condition and
tension of the track.
The track tension is adjusted by feel.
Overtension causes significant overloads during running.
Low tension leads to fast wear of soft sprockets.
8.4.2 Track tensioning
1. Loosen the screws (1) on both sides of the rear
mounting shaft.
2. Turn eccentric (2) to adjust the tensioner axis.
3. Check the track tension.
4. Tighten the bolts.
!Warning
If the Snowdog is regularly leaning to one side,
increase the tension of the track on the same side.
On the opposite side, loosen the tension of the
track.
8.5 Sliders maintenance (if provided)
After each operation check the condition of sliders (1). Make
sure that the sliders pads (2) is tightly adjacent to the metal
frame.
Make sure that no less than 7 mm of the sliders pads
thickness remains. Otherwise, replace the sliders pads .
1
2
12

14

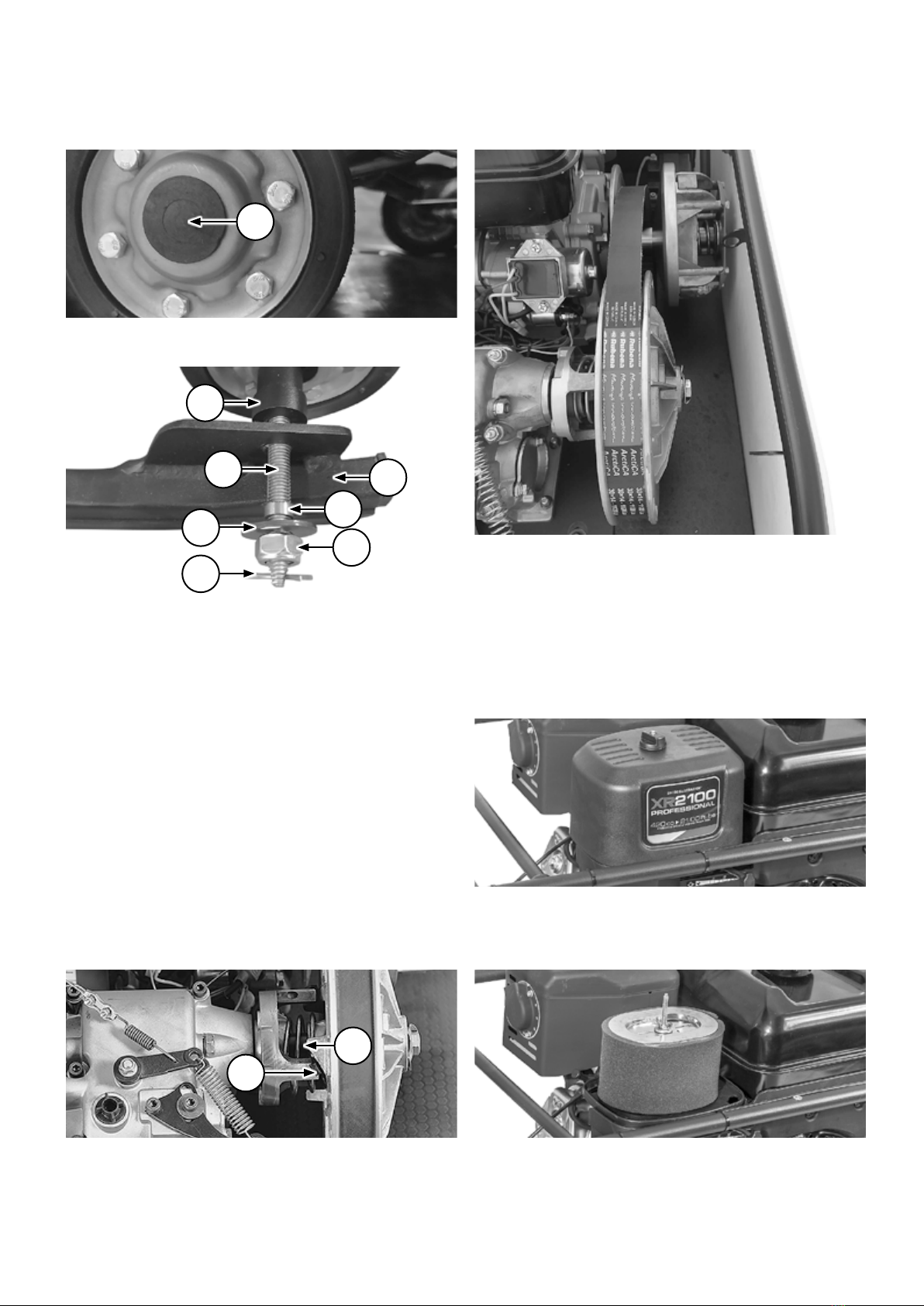

8.5.1 Sliders installation (if provided)
1. Loosen the track.
2. Unscrew and remove the central bogie (if provided).
3. Remove the plugs (3) from the wheels.
4. Install the axle (4) inside the bogie.
5. Install the bushings (5) and (6) on the axle.
6. Install the sliders (7).
7. Install the washers (8) and the nuts (9). Tighten the
nuts.
8. Install and unbend the pins (10).
8.6 CVT belt
!Warning
All the works on the CVT should be carried out
only with the stopped engine.
Carefully inspect the CVT. Clean up, if necessary.
Check the condition and availability of plastic inserts after
each case of use. Lubricate the working surface, if necessary.
If plastic inserts are missing or worn out — install new ones.
Lubricate the inserts (1) and the CVT shaft (2) every month.
8.6.1 CVT belt removal
1. Stop the engine.
2. Lift the hood and provide free access to the CVT.
3. Pull the part of the belt off to the external side of
the driven pulley of the CVT.
3
5
4
8
10
9
7
6
1
2
4. Rotate the driven pulley and guide the belt to its
external side.
5. After the belt is completely off the driven pulley of
the CVT, take it off the driving pulley.
8.6.2 CVT belt installation
1. Put the belt on the driving pulley of the CVT.
2. Put a part of the belt on the driven pulley of the CVT.
3. Rotate the driven pulley and guide the belt to the
working part of the pulley.
8.7 Air filter
The air filter body is fixed on the carburetor.
The filter element is located under the air filter cap.
To take the filter cap off, simply unscrew the wing nut.
When you install and uninstall the filter cap, pay attention
to the condition of the air filter. If there are contaminations
on the filter, it needs to be cleaned or replaced. If there is ice
or snow on the filter, it needs to be dried.

15
The oil level in the reverse gearbox can be checked with
pumping oil out and pouring a measured amount of it.
Recommended oil viscosity depending
ontheambient temperature:
• outside temperature +14 °F (-10 °C) and below
SAE5W30,
• outside temperature +23 °F (-5 °C) and below
SAE15W40,
• outside temperature -22 °F (-30 °C) and higher
SAE75W90,
• outside temperature -4 °F (-20 °C) and higher
SAE80W90.
!Warning
Dispose of the oil in accordance with current
legislation.
8.9.2 Adjustment of the shift cable
If the shift cable of the reverse gearbox is sag or there are
difficulties with shifting gears, adjust the shift cable.
!Warning
Operating the Snowdog with insufficient
adjustment of the shift cable will cause damage to
the reverse gearbox.
1. Shut down the engine. Switch the lever of the
reverse gearbox into the “forward” position.
8.8 Spark plug maintenance
!Warning
Use only spark plugs recommended by
Briggs&Stratton. Using spark plugs with the
wrong heat grade can damage the engine.
1. Take the high-voltage wire connector off the spark
plug and unscrew the spark plug using a wrench.
2. Inspect the spark plug. If you find any cracking or
significant electrode wear, replace the spark plug.
3. Measure the gap between the electrodes. If the gap
needs to be fixed, bend the side electrode. The gap
should be 0.03in (0.76mm).
4. Check the condition of the washers. Engage the
spark plug with your hands preventing it from
thread misalignment.
5. Screw the spark plug in. Tightening torque is31N·m.
!Warning
Spark plugs shall be tightened. Otherwise, it can
lead to engine damage.
8.9 Reverse gearbox (if available)
8.9.1 Oil change
1. Unscrew the oil filling plug (1) of the reverse
gearbox.
2. Pump out the used oil from the reverse gearbox.
3. Fill the gearbox with the new oil and close the oil
filling plug.
!Warning
Required amount of oil in the empty gearbox is
100ml (3.38fl.oz).
Required amount of oil when changing is 80ml
(2.7fl.oz).
1

16
2. Loosen the locknut (1), tighten the adjusting screw
(2). Loosen the cable fixing nut (3).
3. Move the lever (4) all the way down. Rotating the
driven pulley of CVT, make sure the gear “forward”
is switched on.
4. Loosen the screws (5) and move the bracket (6)
down until the moment of a significant tension of
the spring. Tighten the screws (5).
5. Pull the shift cable and tighten the cable fixing nut
(3).
6. Create the required tension using the adjusting
screw (2) and tighten the locknut (1).
7. Shift the lever of the reverse gearbox into the
“reverse” position. Rotating the driven pulley of
CVT, make sure the gear “reverse” is switched on.
8. Repeat the adjustment if necessary.
2
3
1
4
5
5
6
8.10 Battery maintenance
The Snowdog can be equipped with a Delta CT 1211
(12V/11A·h) battery or its alternatives: MG12ZS-C, ЕВZ12-4-
1, YТ12В-BS, YТZ14S.
Service life of a battery depends on its operating conditions.
When the engine is started with an electric starter, the
battery gives up part of the charge and later makes up for
this loss during the driving. Prolonged driving at low speeds
with a headlight switched on, as well as frequent starts of
the engine result in the battery not having enough time to
charge. The voltage of a charged battery should be 12.6–
12.9V. If the battery voltage is less than 12.3V, the charge is
around 70%. Charge the battery.
!Warning
Do not store the battery discharged. Leaving
the battery discharged or storing it at low
temperatures for a long time leads to its damage.
Connect and disconnect the battery only when the ignition
is switched off. Connect the red wire to the plus (+) terminal;
connect the blue or black wire to a minus (-) battery terminal.
!Warning
Incorrect battery connection will damage the
Snowdog.
To charge the battery, use a charger for AGM batteries.
!Warning
The use of a charger that is not intended for AGM
batteries will lead to the failure of the battery.

17
8.11 Parking brake
8.11.1 Brake cable adjustment
Check the free movement of parking brake lever A. It should
have a value of 0.2–0.4in (5–10mm).
To do this, loosen the locknut (1) and rotate the adjusting
screw (2) counterclockwise to pull cable so that the brake
lever has a free run within 0.2–0.4in (5–10mm).
To loosen the brake cable, loosen the locknut (1) and rotate
the adjusting screw (2) clockwise.
If the adjustment capability at the lever is at its maximum
and the brake is still not performing adequately, then
there’s also adjustment capability at the brake caliper. If this
is the case, the adjustment at the lever should be backed
off, as in loosened the opposite way of what you’re trying to
achieve, then adjust the brake at the caliper. The brake lever
adjustment should be left for finer adjustment of the brake.
8.11.2 Adjusting the brake caliper on the Snowdog with
the reverse gearbox
Fully loosen the tension of the brake cable on the lever.
Lever should move freely without binding or restriction. If it
does not, lubricate or replace the cable.
Loosen the screw (1) and pull the cable until the necessary
clearance between the brake pads and the brake disk is
setup.
Tighten the screw (1) and check the movement of the
parking brake lever.
1
2
1
Loosen the nuts (2) of the brake caliper bracket and adjust
the position of the brake pads to the brake disk.
Сheck the functioning of the parking brake.
If the brake is adjusted too tightly it won’t allow the disk to
rotate freely. At this point the brake adjustment should be
loosened.
8.12 Adjusting the throttle
To adjust the throttle lever, loosen the locknut (2) and rotate
the adjusting screw (1) counterclockwise. Pull the rope so
that the throttle has a free run within 0.2–0.3in (5–7mm).
1. To loosen the throttle cable, loosen the locknut (2)
and rotate the adjusting screw (1) clockwise. Loosen
the cable.
2. Screw the adjusting screw (2) in to increase the
free movement of the throttle lever. Unscrew the
adjusting screw (2) to decrease the free travel of the
throttle lever.
3. At the end of the adjustment, tighten the locknut (1).
4. If you cannot achieve the needed throttle lever by
rotating the adjusting screw or the throttle cable
jams while moving, please contact the Snowdog
dealer to adjust, lubricate or change the throttle
cable.
8.13 Washing and cleaning
After each trip, clean the Snowdog of any snow, ice,
branches, leaves, dirt, or other foreign parts. Use water and
a cleansing agent. Before using the cleansing agent, read its
instructions for use.
2
2
1

18
!Warning
Do not direct a jet of water under pressure at
bearings, suspension parts, muffler, air filter or
electrical parts. Water can wash out the lubricant
from the bearings and damage other parts.
8.14 Routine maintenance
Maintenance of the Snowdog should be carried out with
Snowdog dealers. For a list of Snowdog authorized service
dealers, visit www.snowdog.com
We recommend addressing any Briggs&Stratton authorized
service dealer for all maintenance work on the engine and
engine components. For a list of Briggs&Stratton authorized
service dealers, visit www.briggsandstratton.com.
!Warning
Engine maintenance should be carried out
in accordance with Briggs&Stratton engine
user’s manual. All the information on engine
maintenance contained in the manual serves as
guidelines. If the maintenance instructions in this
Snowdog owner’s manual are different from those
in the Briggs&Stratton engine user’s manual,
follow the instruction specified in the latter.
Maintenance intervals specified in this manual
are valid for the Snowdog operation in normal
conditions.
When operating under severe conditions the
maintenance should be carried out more often.
Heavy duty operating conditions include:
• Moving on deep loose snow (more than 16 inches in
depth);
• Moving at temperature below -13 and above 50 °F
(-25°С and above +10 °С);
• Moving on wet snow and on snow containing water;
• Moving on surfaces flooded by water;
• Moving on rocky terrain;
• Moving on snow crust which cannot withstand the
weight of the Snowdog and sled;
• Participation in races and competitions;
• Prolonged moving at low speed, “tightly strained”;
• Moving with a towed load more than 330 lb (150 kg);
• Moving on hard-surfaced roads;
• Moving in mud;
• Moving on the sand;
• Prolonged moving uphill, downhill, or on slopes;
• Short trips with frequent stops;
• Prolonged idling of the engine.
8.14.1 After the first 5 hours of Snowdog operation
1. Change the engine oil.
8.14.2 Every 8 hours of Snowdog operation or daily
1. Check the engine oil level.
2. Clean the area around the muffler and the controls.
3. Clean the air intake grilles.
8.14.3 After the first 20 hours of Snowdog operation
but no later than in 1 month
1. Clean or change the air filter.
2. Lubricate the throttle and parking brake cables with
silicon oil.
3. Lubricate the chain.
4. Adjust free movement of the throttle and parking
brake levers.
5. Adjust the chain tension.
6. Check the transmission bearings.
7. Check all the screws fastening bogies, bearings and
chain sprockets for tightness.
8. Check the reverse gearbox shift mechanism
(ifavailable).
8.14.4 Maintenance every 50 hours of operation, but
not less than once a year
1. Change the engine oil.
2. Clean or change the air filter.
3. Change the spark plug.
4. Lubricate the throttle and parking brake cables with
silicon oil.
5. Lubricate the chain.
6. Check the transmission bearings.
7. Adjust free movement of the throttle and parking
brake levers.
8. Adjust the chain tension.
9. Check all the screws fastening bogies, bearings and
chain sprockets for tightness.
8.15 Snowdog maintenance table
Before each trip or every 8 hours of running After each trip After the first 5 hours of operation After the first 20 hours of operation or every month* Every 50 hours of operation or every year* Under severe operation conditions Preparation for transportation Maintenance after transportation Preparation for long storage During long storage Commissioning after long storage
Engine oil I R R
Fuel I I I I R
Process fluids
leakage I I I I I
Throttle lever I A A
Parking control lever
movement I A A
Fuel lock I I I I I I
Electric starter
operation I I I
Manual starter
operation I I I I
Engine idling I I I I
Engine response
to throttle lever
position
I I I

19
Before each trip or every 8 hours of running After each trip After the first 5 hours of operation After the first 20 hours of operation or every month* Every 50 hours of operation or every year* Under severe operation conditions Preparation for transportation Maintenance after transportation Preparation for long storage During long storage Commissioning after long storage
Unusual sounds with
running engine I I I I
Handlebar and their
fitting I I I I
Hooking device
attachment I I A A A
Reverse gear shifting I I
Kill switch I
Handle switch I
Chain I
A
C
L
A
L
A
L
A
LLC L
Headlight I I I I
Cleaning from dirt or
snow I C C
Battery I I I I I I
Track I
CA A A I A
Cleaning carburetor
controls from snow I C C
Sprockets I
CI I
Sprocket fastening I I I I
Track shafts I I
Suspension bogies I I I I
Transmission shaft
bearings I I I I
Bogie bearings I I I R
CVT pulleys II
L
I
LI
CVT belt I I I
Plastic inserts I L L
Gearbox oil R R
Throttle cable I L L L L L
Air filter I
CRI CI
Fuel hose I I I
Battery cables I I I I I
Charging I I I
Parking brake pads
and brake caliper III
Before each trip or every 8 hours of running After each trip After the first 5 hours of operation After the first 20 hours of operation or every month* Every 50 hours of operation or every year* Under severe operation conditions Preparation for transportation Maintenance after transportation Preparation for long storage During long storage Commissioning after long storage
Parking brake disk I I I
Parking brake cable
lubrication I L L L
Side plate fastening I I I
Suspension bogie
fastening III
Support wheels
fastening I I L
Engine fastening III
Gearbox fastening I I
Engine mount
fastening I I
Spark plug R I
Carburetor C I
A: Adjust. C: Clean. I: Inspect. L: Lubricate. R: Replace
* carried out by a Snowdog dealer
9 Transportation
Shut down the fuel lock before transporting the Snowdog.
The Snowdog must be in a horizontal position during loading
and unloading. When transporting the Snowdog, make sure
it is secure. It is recommended to use the hitch on the rear
part of the Snowdog and the carry handle on the front part.
10 Storage
Snowdog should be stored in a dry ventilated room or
outdoors under a canopy with a waterproof cover. Snowdog
must be protected from direct sunlight.
!Warning
Make sure the storage area is free of high
humidity or dust.
Engine maintenance must be carried out in
accordance with Briggs&Stratton user’s manual.
If the instructions in this Snowdog owner’s manual
are different from those in the Briggs&Stratton
engine user’s manual, follow the instruction
specified in the latter.

20
10.1 Preparation for short storage
(lessthanonemonth)
1. Clean or wash the Snowdog.
2. Lubricate the throttle and parking brake cables with
silicon oil.
3. Lubricate the chain.
10.2 Preparation for long storage
(morethanonemonth)
1. Clean the Snowdog.
2. Warm up the engine and change the engine oil.
3. Fill the fuel tank completely.
4. Shut down the fuel lock.
5. Unscrew the drain bolt (1) on the carburetor and
drain the fuel.
6. Take the battery off and charge it. Check the battery
charge at least every two months. Charge as
needed.
7. Store the battery in a room with a temperature
range of 33 °F (+1 °C) to 68 °F (+20 °C).
8. Rotate the track half a turn at least every six
months.
9. Cover the Snowdog from dust.
This preservation ensures the safety of the Snowdog for up
to 12 months, provided the storage rules are observed.
After 12 months, prepare the Snowdog for operation and
run the engine for a few minutes. If further storage is
required, prepare it for storage again.
10.3 Snowdog commissioning after long storage
1. Clean the Snowdog of dust and dirt.
2. Fill the fuel tank with fresh fuel.
3. Charge and install the battery.
4. Lubricate the chain.
5. Adjust free movement of the throttle and parking
brake levers.
1
11 Snowdog manufacturer’s warranty
11.1 Manufacturer’s official representative
(SNOWDOG LLC) warranties against
defects of material or workmanship for a
period of 12 months from the original date
of sale (this warranty is not transferable).
Snowdog will repair or replace any parts
or assembly that is proven to be defective
in material or workmanship under normal
use during the applicable warranty time
period. Warranty repairs will be made
without charge for parts and/or labor. Any
part or assembly replaced under warranty
becomes the property of SNOWDOG LLC
and all parts and assemblies replaced
under warranty will be considered as part
of the original product and any warranty
on those parts will expire coincident with
the original Snowdog warranty (certain
exceptions to this warranty are listed
herein).
11.1.1 Throttle cable, choke cable, revers cable, parking
brake cable, wire harness, including stop switch
and track will be covered for a period of 90 days
to be free of defects. Abuse and neglect are not
covered under this warranty.
11.1.2 Drive chain, sprockets, driving and driven pulleys
of the CVT, headlight, heaters and protective
covers will be covered for a period of 30 days to be
fine of defects. Abuse and neglect are not covered
under this warranty.
11.1.3 Battery will be covered for a period of 30 days
from date of sale. Undercharged, overcharged or
frozen batteries are not covered by this warranty.
Abuse and neglect are not covered under this
warranty.
11.2 The warranty does not cover:
11.2.1 Engine warranties are the responsibility of the
manufacturer. Contact the authorized dealer for
repairs.
11.2.2 Consumables and parts subject to wear and
overcharge depending on the style, intensity
and conditions of operation, namely: supporting
wheels, drive wheels, suspension springs,
suspension wheels, shift lever, slide-ways, tubes,
bearings, rubber metal elements, dust caps, hitch
mechanism and its mount, CVT belt, CVT sliders,
parking brake pads, protection elements, filling
liquids, various types of gaskets, drive shafts,
gears, and consumables.
11.2. 3 Any damage done to the frame and sub-frame,
provided there are no holes and/or voids in the
material and welding seams.
11.2.4 Any Snowdog damage resulting from water
ingestion: riding through water, or contamination
of parts and components (if they haven’t been
cleansed in timely manner) or hitting an obstacle.
11.2. 5 Snowdog serviced by an un-authorized dealer or
using non OEM parts.
11.2.6 Any damages done to the plastic, glass, rubber,
paper, and cloth parts.
11.2.7 Any damages resulting from Snowdog exposure to
extreme environment, such as storage in improper
conditions, use of pressure washers, hitting a
stone, industrial waste, wood tar, salt, hail, storm,
lightning, natural disasters or other environmental
