Socket SocketScan S700 Installation manual

COMMAND BARCODES

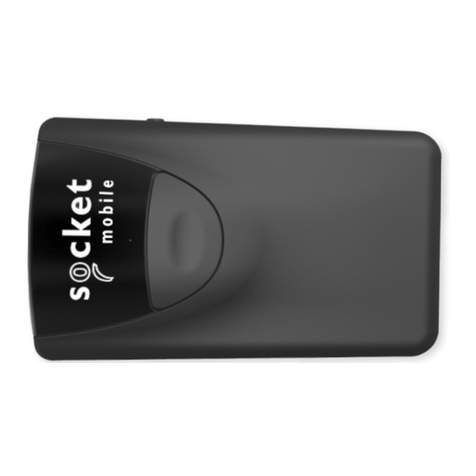

1D IMAGER MODELS - S700, S800 REV P AND ABOVE
This document pertains to the following S700 and S800 Rev P and above:
The part number (P/N) is labeled inside the battery compartment for the SocketScan®.
Model P/N
S700 Blue 8550-00152
S700 Green 8550-00153
S700 Red 8550-00154
S700 White 8550-00155
S700 Yellow 8550-00156
Model P/N
S800 Black 8550-00069
Rev P and above.

TABLE OF CONTENTS
Factory Defaults —3
Bluetooth Connection Mode —4
Data Sufx —5
Rumble/Beep Modes —6
HID Keyboard Language Settings —7
Advanced Users Only —8
Apple iOS Onscreen Keyboard —8
Bluetooth Connection Mode —10
Bluetooth Connection Roles —10
Automatic Reconnection Settings —11
Data Mode - For SPP Mode Only —11
Power Button Double key Press —12
Scanner Engine Command Barcodes —13

INSTRUCTIONS: Scan command barcode(s) to quickly congure the barcode scanner.
Make sure the scanner is not connected to a host computer or device before scanning a
command barcode!
To use the scanner on multiple hosts, perform the unpair sequence.
1.Power on the scanner.
2.Press and hold down the trigger button.
3.Press and hold down the power button.
4.After you hear 3 beeps, release both buttons.
*NOTE: You may have to “Forget” or “Delete” the pairing on your host device, as well.
By default, the scanner is in Basic Mode (HID) as a Keyboard device.
For scanners in Application Mode (SPP) or Application Mode (MFi-SPP), you can alternatively cong-
ure some settings by using the Scanner Settings app. You can download the app from iTunes, and Google
Play.
3
FACTORY DEFAULTS
Factory Reset
Congures the CHS to revert all settings to factory defaults. The CHS powers off after scanning this bar-
code.
#FNB00F0#

4
BLUETOOTH CONNECTION MODE
Download Companion App or scan one of the conguration command barcode(s). Refer to User Guide for
the full set of command barcodes: socketmobile.com/downloads
Note: Disconnect scanner from host device before scanning a command barcode.
Basic Mode (HID) (default)
(All host devices)
Congures scanner to Basic Mode. Scanner will be discoverable as a keyboard to Bluetooth host devices.
#FNB00F40001#
Application Mode (MFi-SPP) for Apple iOS devices
*Congures scanner to work with an application.
#FNB00F40002#
Application Mode (SPP) for Windows or Android 8.0 and later
(Auto Connect - No conguration required for Application pairing)
*Congures scanner to Serial Port Prole.
#FNB00F40003#
Application Mode (SPP) for Windows or Android 7.0 and lower
(Requires compatible application for Bluetooth pairing)
*Congures the Scanner to Serial Port Prole (SPP).
#FNB00F40000#
*For compatible applications developed with Socket Mobil SDK: socketmobile.com/partners/app

5
All Bluetooth connection modes OK.
You can congure the scanner to automatically add a sufx and/or prex to each scan of data.
Note: Scanning multiple commands in a single instance will overwrite (not append) the previous
command.
Sufx – Carriage Return (default)
Congures the scanner to add a carriage return after decoded data.
#FNB00F50BC6048FFEE1680DE040000#
Sufx – Tab
Congures the scanner to add a tab after decoded data
#FNB00F50BC60408FFEE016809EB040000#
Sufx – Carriage Return & Line Feed
Congures the scanner to add a carriage return and line feed after decoded data.
#FNB00F509C60408FFEE01EB010000#
Data As Is
Congures the scanner to return only the decoded data (i.e., no prex or sufx).
#FNB00F509C60408FFEE01EB00000#
DATA SUFFIX

6
Scan one of the barcodes below and recongure the scanner to remain on longer.
Note: Turn off the host device’s Bluetooth prior to scanning one of the alternate timer barcodes. Then
turn the Bluetooth back on.
Power cycle the scanner (turn off/on).
Scanner Always On*
Congures the scanner to never power off.
Continuous Power for 8 hours*
Scan Barcode to congure the scanner to remain on for 8 hours.
Continuous Power for 4 hours*
Scan Barcode to congure the scanner to remain on for 4 hours.
*These settings drain the battery faster. It is assumed you will charge the scanner within a 24-hour
period or overnight. If you don’t, the scanner’s battery will drain completely.
Return Scanner to Default Setting
Turns the scanner off when it is not in use – 3 to 5 minutes after being disconnected from host device.
ALWAYS ACTIVE MODE

7
All Bluetooth connection modes OK.
IMPORTANT! Make sure the scanner is not connected to a host computer before scanning a command bar-
code.
Vibrate “On”
Enables scanner to vibrate to indicate successful scan
#FNB01310001000100FA0000#
Vibrate “Off”
Disables scanner from vibrating to indicate successful scan
#FNB013100010000#
Beep “On”
Enables scanner to beep to indicate successful scan
#FNB01190E000100030078004B#
Beep “Off”
Disables scanner from beeping to indicate successful scans
#FNB01190E000100000078004B#
RUMBLE/BEEP MODES

8
Scan only with scanner in Basic Mode (HID).
Scan barcode to enable language.
English (Default)
#FNB01430001#
French
#FNB01430002#
German
#FNB01430003#
Spanish
#FNB01430004#
HID KEYBOARD LANGUAGE SETTINGS

9
Scan only with scanner in Basic Mode (HID).
Apple iOS Onscreen Keyboard and Beep Enabled (Default)
Congures the scanner to activate the iOS onscreen keyboard when connected to an iOS device and the
scanner power button is double-pressed.
Disable both Onscreen Keyboard and Beep
#FNB013A0000000000000000000000000000#
Enable Beep
#FNB013A0500000000000000000000000000#
Disable Beep
#FNB013A0100000000000000000000000000#
APPLE iOS ONSCREEN KEYBOARD

DATA MODE - FOR SPP MODE ONLY
All Bluetooth Connection Modes OK.
Advanced users only.
Packet Mode (default)
Congures the scanner to transmit decoded data in packet format.
#FNB013401#
Raw Mode
Congures the scanner to transmit decoded data in raw (unpacketed) format. Do not scan this barcode in
Application Mode (MFi-SPP).
#FNB013400#
10
BLUETOOTH CONNECTION ROLES
Scan only with scanner in Application Mode (SPP) or Application Mode (MFi-SPP)
Advanced users only.
Acceptor (default)
Congures the scanner to accept a Bluetooth connection puts the scanner in discoverable mode.
#FNA#
Initiator
Congures the scanner to initiate a connection to a computer/device with the Bluetooth Device Address
specied in the barcode.
The barcode must be formatted in Code 128 and contain the data #FNIaabbccddeeff# such that aabbccd-
deeff is the Bluetooth Device Address of the computer/device you want to connect to the scanner. Re-
quired for Windows when using SPP mode.
You must create a custom barcode for each computer/device that you want to connect to the scanner.
Use barcode generating software or website (e.g., http://barcode.tec-it.com))

1111
AUTOMATIC RECONNECTION SETTINGS
All Bluetooth Connection Modes OK.
Important! After scanning this command barcode, power off and power on the scanner to make sure it is
congured properly.
Enable Automatic Reconnection from scanner (default)
Congures the scanner to automatically initiate a connection to the last paired computer/device after the
scanner is powered on.
Disable Automatic Reconnection from scanner
Congures the scanner to wait for a computer/device to initiate a Bluetooth connection after the scanner
is powered on.

12
For Basic Mode (HID) only
Scanner Engine Command Barcodes
Ctrl + Z
Scan to Enable WITH BEEP
Scan to Enable NO BEEP
Ctrl + A
Scan to Enable WITH BEEP
Scan to Enable NO BEEP
Shift + Tab
Scan to Enable WITH BEEP
Scan to Enable NO BEEP
12
POWER BUTTON DOUBLE KEY PRESS

Ctrl + S
Scan to Enable WITH BEEP
Scan to Enable NO BEEP
13
CONTINUOUS SCANNING
*These settings drain the battery faster. Please ensure the scanner is charged daily.
For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning
the scanner on again and reconnecting to your host device.
Scan one of the barcodes below and recongure the scanner to remain on longer.
Note: Turn off the host device’s Bluetooth prior to scanning one of the alternate timer barcodes. Then
turn the Bluetooth back on.
Scanner Always On*
Congures the scanner to never power off.
Continuous Power for 8 hours*
Scan Barcode to congure the scanner to remain on for 8 hours.

14
CONTINUOUS SCANNING
Continuous Power for 4 hours*
Scan Barcode to congure the scanner to remain on for 4 hours.
Return Scanner to Default Setting
Turns the scanner off when it is not in use – 3 to 5 minutes after being disconnected from host device.
SCANNER ENGINE COMMAND BARCODES
Advanced Scanner Congurations
INSTRUCTIONS: Scan command barcode(s) to quickly congure the barcode scanner.
Make sure the scanner is not connected to a host computer or device before scanning a command
barcode!
To use the scanner on multiple hosts, perform the unpair sequence. For instructions, see User’s
Guide.
By default, the scanner is in Basic Mode (HID) as a Keyboard device.
Cover adjacent barcodes before scanning a command barcode to prevent scanning the wrong code.
For further assistance, contact technical support:
Create a ticket at https://support.socketmobile.com
Telephone: [phone]
Worldwide: [phone]

Socket User Manual (V 1.2) 2017/11/06
