ENGLISH

User Manual

Disinfecting Device for Ventilation Pipeline and Mask

of Positive Airway Pressure (PAP) Respirator/System I

Thank you for purchasing the SoClean 2

PAP disinfecting device*.

This manual contains a product overview and key setup

instructions. Once connected, you’ll ﬁnd that daily

disinfecting of your PAP equipment has never been easier.

The SoClean patented process destroys 99.9% of PAP

germs, bacteria, and other pathogens without the need

for water or harsh chemicals. The SoClean 2 allows you

to use disinfected PAP equipment daily, with no need to

disconnect for disinfecting.

While the SoClean is designed to ﬁt many PAP models,

some models require additional parts or steps. If you do

not currently have these parts, they can be purchased from

SoClean or an authorised reseller.

See SoClean.com for PAP model details.

SoClean is committed to developing innovative and safe

ways to improve the health and well-being of PAP users.

Please feel free to contact us with any questions you may

have at SoClean.com/contact.

Thank You!

*See Indication of Use, Cautions & Specications.

INDICATIONS FOR USE, CAUTIONS, & SPECIFICATIONS.................................2

INCLUDED WITH YOUR SOCLEAN ................................................................4

SOCLEAN CONTROL PANEL..........................................................................8

KEY PAP PARTS ............................................................................................10

CONNECTION STEPS....................................................................................12

SUPPORTED PAP MACHINES & ADAPTERS....................................................15

SET CLOCK & DISINFECTING SCHEDULE ......................................................17

USING YOUR SOCLEAN ................................................................................20

CARE & MAINTENANCE OF YOUR SOCLEAN..................................................22

FAQ ..............................................................................................................22

YOUR HEALTH & OZONE SAFETY...................................................................24

CLASSIFICATION, SYMBOLS, FCC NOTICE ....................................................25

TABLE OF CONTENTS

INDICATIONS FOR USE, CAUTIONS & SPECIFICATIONS 2

INCLUDED WITH YOUR SOCLEAN 4

SOCLEAN CONTROL PANEL 8

KEY PAP PARTS 10

CONNECTION STEPS 12

SUPPORTED PAP MACHINES & ADAPTERS 15

SET LANGUAGE, CLOCK & DISINFECTING SCHEDULE 17

USING YOUR SOCLEAN 20

CARE & MAINTENANCE OF YOUR SOCLEAN 22

FAQ 22

YOUR HEALTH & OZONE SAFETY 24

CLASSIFICATION, SYMBOLS, FCC NOTICE 25

2 | INDICATIONS FOR USE, CAUTIONS, & SPECIFICATIONS

DISCLAIMER: SoClean does not represent through the use of the term disinfect, disinfectant or disinfection

herein, or in other documentation, a kill rate of more than 99.9% of bacteria and germs in a PAP.

INDICATIONS FOR USE,

CAUTIONS, & SPECIFICATIONS

Indications for Use: The SoClean is a general Positive

Airway Pressure (PAP) disinfecting device and is intended

to be used in the home. An individual who uses Positive

Airway Pressure (PAP) for Obstructive Sleep Apnea (OSA)

treatment can use the SoClean to destroy 99.9% of germs

and bacteria on PAP equipment or when the user wants

the added beneﬁt of thorough PAP system disinfection.

The SoClean attaches to a PAP machine, and runs daily

while the mask is inside the Disinfecting Chamber. The

SoClean does not need to be disconnected before using

the PAP machine.

Contraindications for Use: Do not use the SoClean

device if a fragrant essence is used in the PAP water

reservoir or if highly fragrant detergents are used to

disinfect the PAP equipment. Discontinue use if acne or

rash develops along mask contact line.

Read the instruction manual/booklet before

operating the equipment.

Use this product only in the manner described in this User

Manual. If the equipment is used in a manner not speciﬁed

by the manufacturer, the safety protection provided by the

equipment may be impaired.

Environmental Characteristics:

Operating: 10°C to 38°C (50°F to 100°F),

15% to 70% humidity

Ozone Concentration:

10 ppm @ 5 min when measured 1 cm from the

ozone generator output tubing interface on the

SoClean device, assuming the starting ozone

concentration is < 0.3 ppm prior to turning the

SoClean device on.

Electrical Characteristics:

AC Adapter input: AC 100~240V, 50/60HZ, 0.5A

AC Adapter output: DC 12V, 1.5A Max

Power Consumption: 18W Max

Physical Characteristics:

Dimensions: 7.875” x 7.25” x 8.875”

Weight: 5.6lbs

Cord Length: 4’ 8”

Storage and Transport Conditions:

-20°C to +55°C (-4°F to 131°F),

15% to 70% humidity

ENG | 3

WARNING:

Keep away from water sources including rain, bathtubs, sinks, and pools. To clean,

wipe with a damp cloth. Do not submerge the SoClean device in liquid or use chemical cleaners.

WARNING: Do not dismantle the SoClean device.

WARNING:

Do not use in explosive air environments, near gas vapors, or other ﬂammables, etc.

Do not place any ﬂammable or ignitable items on top of the SoClean device.

WARNING:

Keep away from children. Do not inhale from tube or place any living thing inside

the Disinfecting Chamber during use.

WARNING: The SoClean device should be used according to the procedures described in this manual.

WARNING: Ozone is a gaseous disinfectant that naturally breaks down after it is generated. The

SoClean device is designed to safely contain ozone within the system and has a catalyst Cartridge Filter inside

the Disinfecting Chamber to convert ozone back to oxygen. In rare instances those with respiratory sensitivities

could experience irritation. Should this occur, please discontinue use and contact SoClean.

WARNING: Keep the SoClean Lid closed until the green status light illuminates (approximately 2 hours

after completion of disinfection cycle).

WARNING:

Ensure the proper Clock time and Cycle Start time are set before using your PAP machine.

Pay particular attention to the AM/PM setting if using 12-hr mode. Failure to do so may result in the

SoClean device operating at an unexpected time.

WARNING:

In the event of loss of power to your home or the SoClean device, ensure the proper Clock

time and Cycle Start time are set before using your PAP machine. Failure to do so may result in the

SoClean device operating at an unexpected time.

WARNING:

Do not physically alter the Hose Detect Switch on your SoClean device. Inspect the Hose

Detect Switch regularly for damage or inability to move up/down. Failure of the Hose Detect Switch on

your SoClean device may result in the SoClean operating at an unexpected time.

WARNING: Do not place Neutralizing Pre-Wash in the PAP reservoir. Neutralizing Pre-Wash is for

disinfecting your PAP equipment only

WARNING: Please be sure the black Injection Hose from the back of the SoClean is connected to

your PAP before operating your SoClean device.

4 | INCLUDED WITH YOUR SOCLEAN

Number Part Name SKU Description

1 Removable

Hose Slot Plug

PN1214 This allows you to set up the SoClean device on either the right or

left side of your PAP machine. Place this in the hose slot that you

don’t use.

2Disinfecting

Chamber

N/A Place your mask in here when you wake up.

Close the lid to ensure that the daily disinfecting cycle runs.

3 Lid Gasket PN1215 Ensures tight seal around the Disinfecting Chamber when the

SoClean lid is closed. Do not close the lid without this part in place.

4 SoClean Lid N/A Close the lid after you place your mask to ensure that the automated

disinfect cycle occurs.

5 Cartridge Filter PN1207 You can repurchase it along with the Check Valve as part of the

Cartridge Filter Kit. This Cartridge Filter converts ozone back into

normal oxygen. Remove outer plastic wrapping and blue tape.

6 Neutralizing

Pre-Wash

(not available

in all countries)

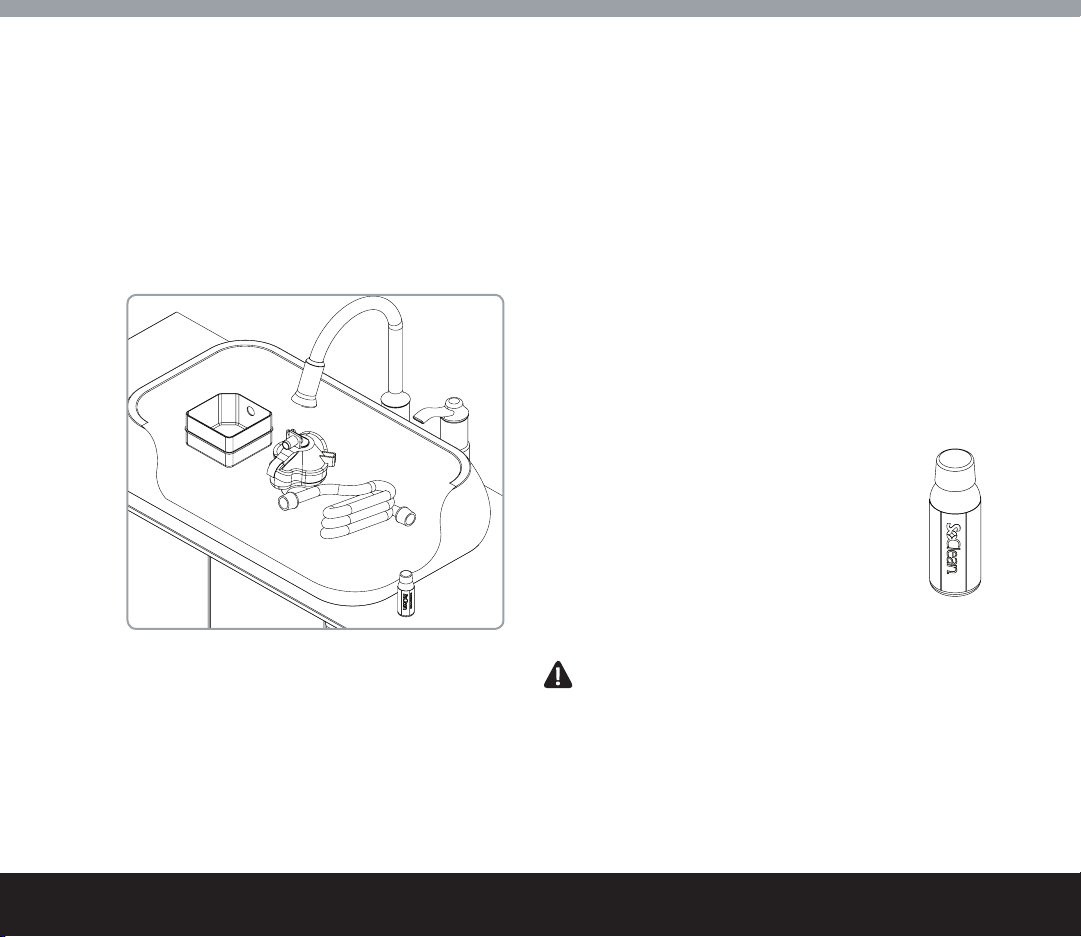

PN1101 The Neutralizing Pre-Wash removes any material or odour that could

react with ozone. Wash your PAP equipment before connecting the

SoClean device, or when you receive a new mask, hose or reservoir.

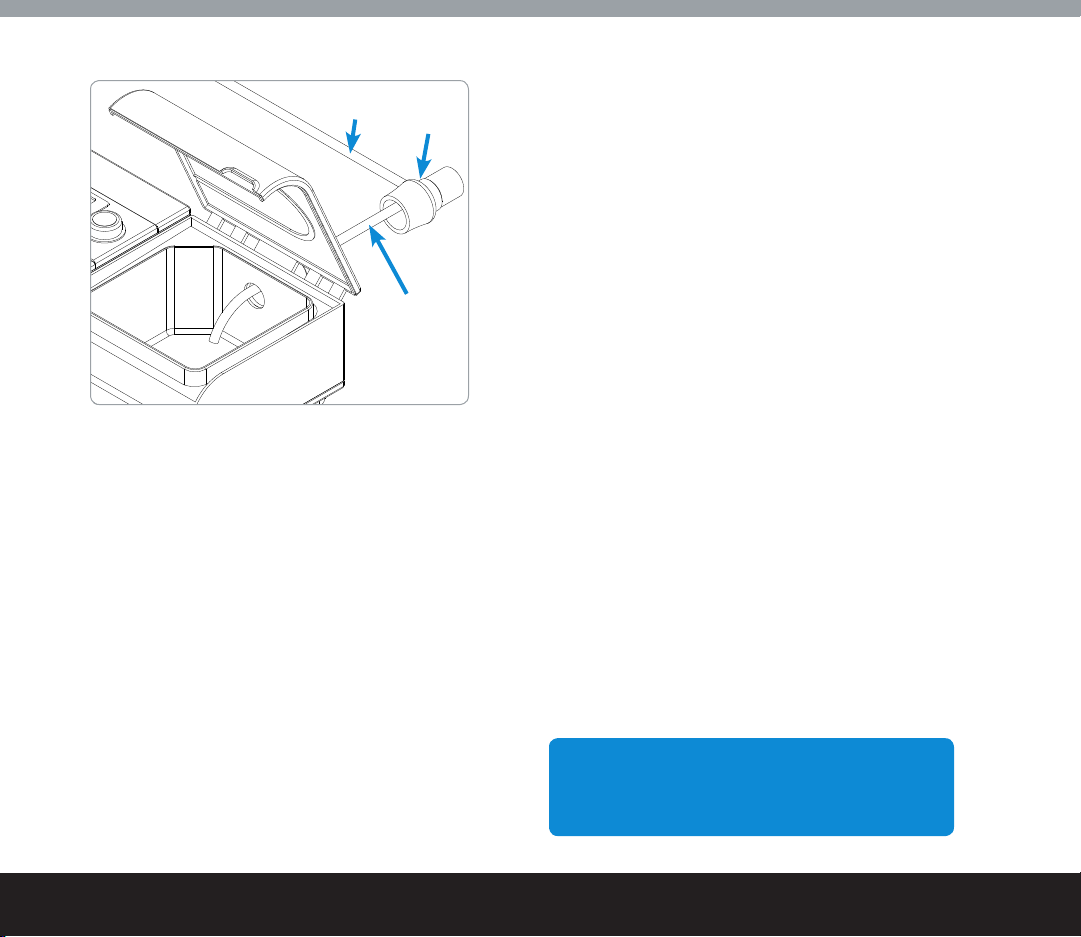

7 Hose Detect

Switch

N/A The Hose Detect Switch detects when the SoClean device is

conﬁgured for operation by detecting the presence of the hose in the

hose slot when the lid is closed. When there is no hose installed in

the hose slot the SoClean device is designed to not run a disinfecting

cycle. Hose Detect Switch operation can be inspected by gently

pushing down and releasing the gray plastic switch and hearing an

audible click. The switch should move freely down and up when

gently pressed.

Note: Do not remove gasket from Hose Detect Switch slot.

INCLUDED WITH YOUR SOCLEAN

ENG | 5

6 | INCLUDED WITH YOUR SOCLEAN

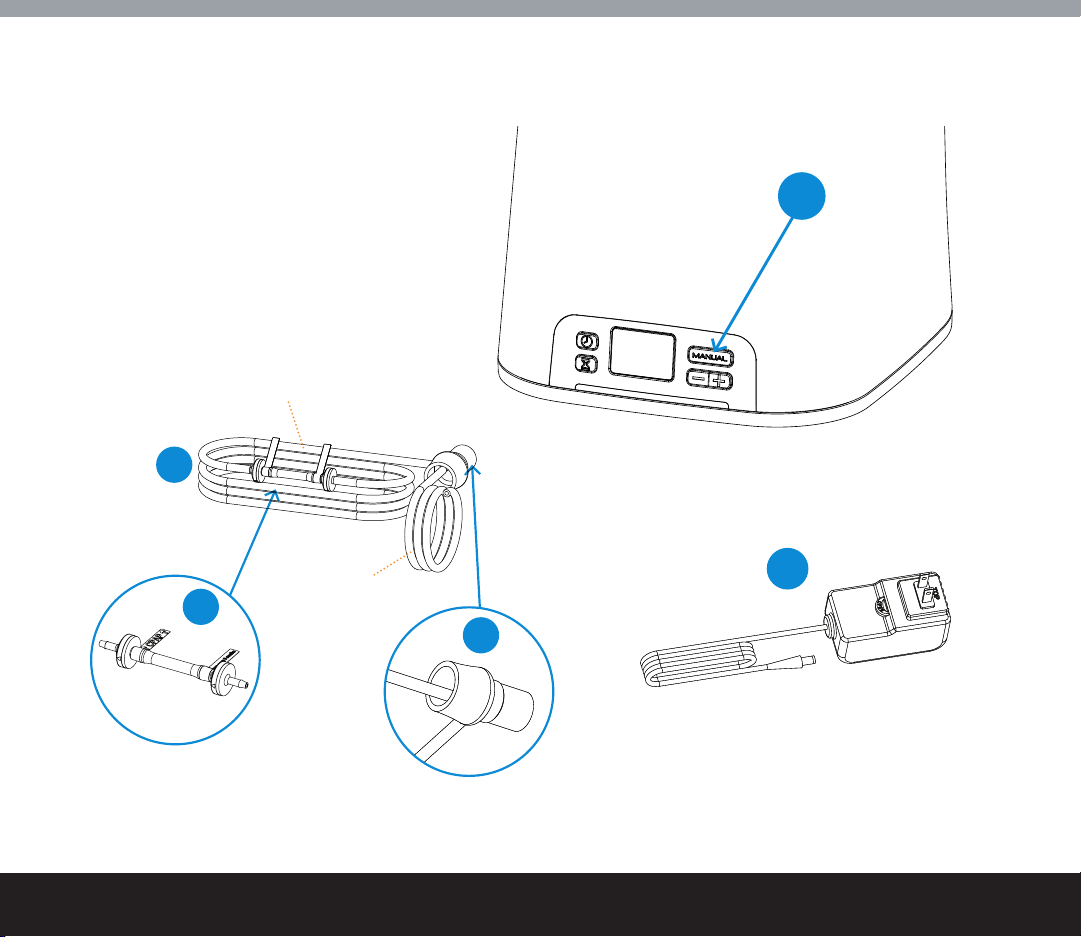

Number Part Name SKU Description

8 Control Panel N/A Buttons, display, and cycle light indicator for SoClean

functions. See page 8 for details.

9 Injection Hose

A & B

PN1104.12 The Injection Hose A & B carries ozone from the SoClean

device to the PAP machine. See page 14.

10 Check Valve PN1207 This item comes pre-installed into the Injection Hose. You

can repurchase it along with the Cartridge Filter as part of

the Cartridge Filter Kit. It is a one-way Check Valve that

prevents water in your humidiﬁer reservoir from backing up

into entering your SoClean device. If you can see water in this

clear tube, replace the Check Valve assembly immediately.

11 Injection Fitting PN1106 (with

humidiﬁer reservoir)

PN1116

(without humidiﬁer

reservoir)

Connects the Injection Hose A & B to your PAP machine.

See page 13.

12 AC Adapter PN1209 Supplies power to your SoClean device. See page 14.

INCLUDED WITH YOUR SOCLEAN

Replacement Parts

You will replace some SoClean parts regularly due to normal wear

and usage. A message appears on your SoClean after a certain

amount of use (typically around six months) as a reminder to

replace the Cartridge Filter and Check Valve. These two parts are

ordered as a set called the Cartridge Filter Kit (PN1207).

The Neutralizing Pre-Wash is also available for purchase if you run

out. You can also use another fragrance-free, dye-free dish soap.

To reorder supplies, contact your authorised reseller or

visit SoClean.com and search for the desired part.

WARNING: Please purchase your Cartridge Filter Kits from SoClean®only. Authentic Cartridge Filter Kits can be purchased from SoClean via multiple online

marketplaces, such as Amazon®and eBay®in addition to SoClean.com, however please conrm that the seller of your Cartridge Filter Kit is SoClean, and

not any other seller, to ensure the authenticity of your Cartridge Filter Kit. SoClean has discovered counterfeit Cartridge Filter Kits being sold, particularly on

Amazon®and eBay®, with check valves and lters, that leak and can cause damage to your SoClean machine or to your property due to water leakage from the

counterfeit check valves. Please contact SoClean immediately if you have had any issues with your Cartridge Filter Kit. Amazon®is a registered trademark owned

by Amazon Technologies, Inc. eBay®is a registered trademark owned by eBay, Inc. SoClean®is a registered trademark owned by SoClean, Inc.

ENG | 7

8 | SOCLEAN CONTROL PANEL

1 2 3 4 5

SOCLEAN CONTROL PANEL

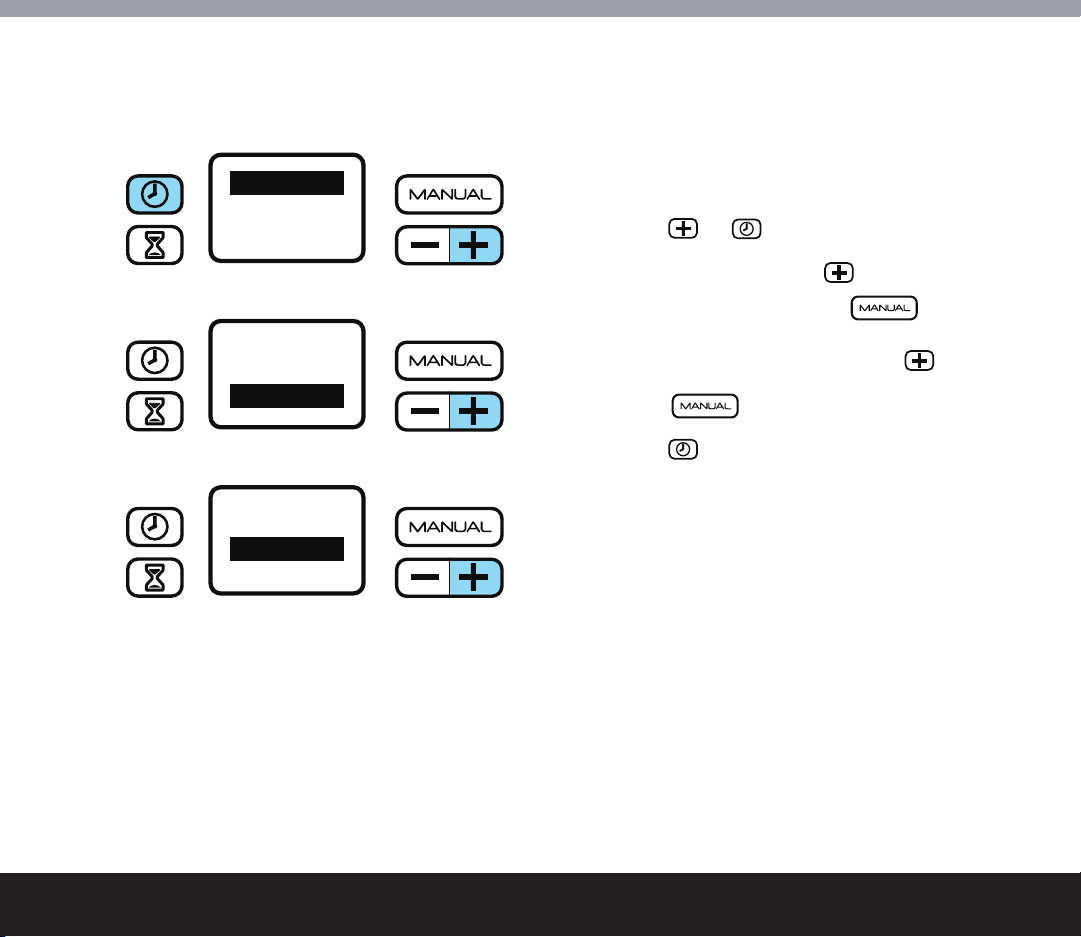

Number Button(s)/Display Description

Sets the clock. See page 17.

2 Disinfecting Cycle Length The length, in minutes, of the disinfecting cycle. See page 18 to set

this. Default disinfecting cycle length set to 7 minutes.

3 Current Time The current time. See page 17 to set. Default time set to12:00am.

4 Daily Disinfecting Start Time The time when the daily disinfecting cycle starts. See page 18 to set

the schedule. Default disinfecting cycle start time set to 10:00am.

5Starts a disinfecting cycle immediately. The scheduled disinfecting will

still occur. See page 19.

6Decreases (-) or increases (+) time.

WARNING:

In the event of loss of power to your home or the SoClean device, ensure the proper Clock time and Cycle Start

time are set before using your PAP machine. Failure to do so may result in the SoClean device operating at an unexpected time.

ENG | 9

Number Button(s)/Display Description

7 Status Light The light below the display indicates the disinfecting cycle status.

See pages 17, 18 and 19 for instructions on scheduling and

manual operation. A green light indicates that disinfecting is

complete, and you can remove your PAP mask from the SoClean

Disinfecting Chamber and use your PAP machine.

RED – The SoClean is operating and generating ozone.

YELLOW – The 2-hour disinfecting cycle is still active.

The ozone is working and dissipating.

GREEN – Disinfection cycle is complete. You can use your

PAP machine any time. The light turns off when you open the lid.

Sets daily disinfecting start time. See page 18.

Changes clock to 24-hour or 12-hour format. See page 17.

and

Messages

The SoClean display panel shows messages that can require action. This list shows the messages and how to correct them:

Message What to Do

Hose not present. Cycle will not run. Ensure that the PAP hose is seated securely in the hose slot. Check

that the Removable Hose Slot Plug is seated correctly on

the other side. See page 20.

Order Filter Kit. Your Cartridge Filter has reached the end of its life based on your

use. See page 23.

Disinfection in process. Do not open the lid! Ozone present. The SoClean device is performing disinfection. This

takes approximately 2 hours. The green cycle indicator light means

that disinfection is complete. You can now open the lid, take out

your mask, and use your PAP machine.

10 | KEY PAP PARTS

KEY PAP PARTS

The SoClean device is designed to connect permanently to

your PAP machine and allow operation of either product.

The SoClean device connects to most PAP machines

using the standard included parts. This section describes

key parts of your PAP machine in the connection

procedure. The ﬁgure on the next page shows a generic

representation of these key parts.

Some PAP machines have features that require additional

steps or parts. Adapters required for SoClean to function

with your PAP contain appropriate instructions. See page 15

for a list of available adapters for speciﬁc PAP machines.

See SoClean.com for additional instructions for speciﬁc

PAP machines.

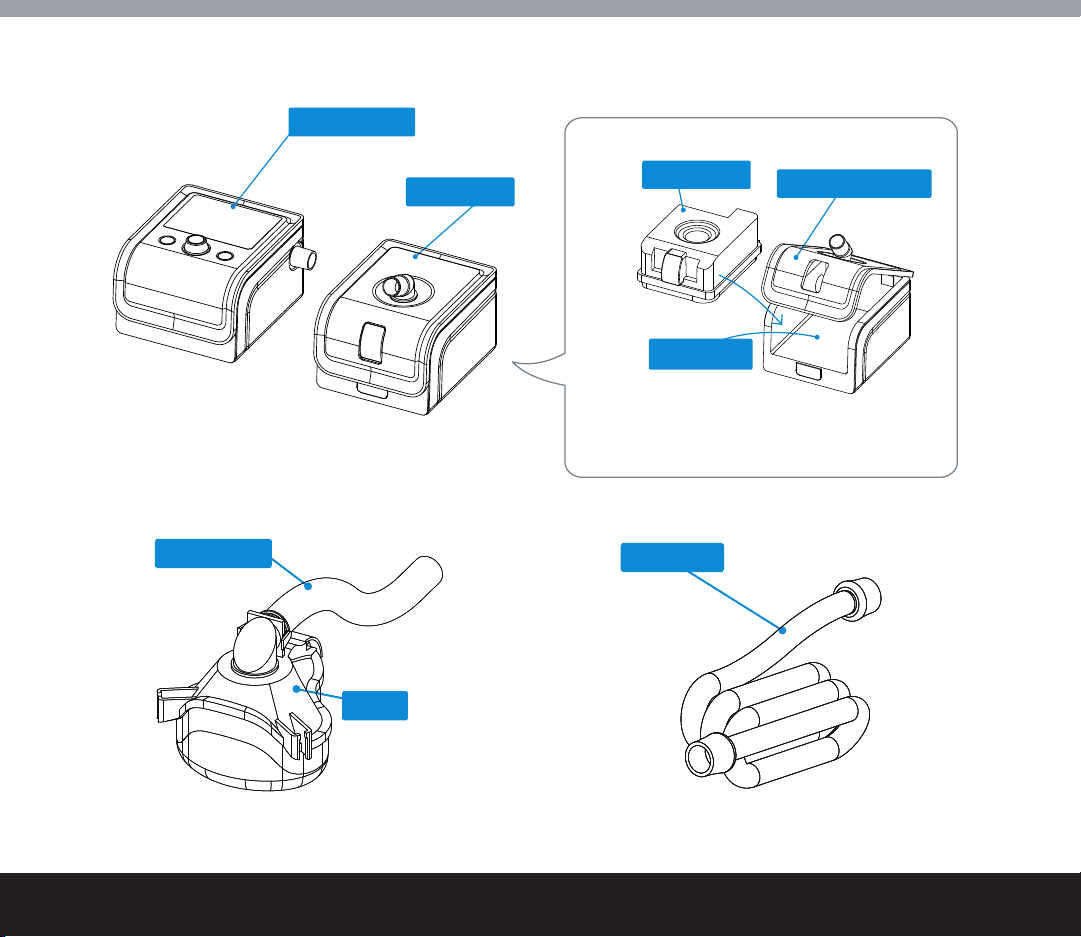

These are typical parts of a PAP machine that are referenced

in the SoClean connection procedures. These are only

representations—your actual PAP machine can look different

than these drawings. Review the documentation that came

with your PAP machine for a better idea of what these parts

look like.

ENG | 11

Humidiﬁer Open Humidiﬁer

Reservoir*

Heat Plate

PAP Machine

(CPAP, Bi-PAP, APAP)

*Reservoir contains water

and typically can be removed.

Mask

(Full, small,

nasal pillows)

PAP Hose

Mask Hose

12 | CONNECTION STEPS

CONNECTION STEPS

1. Pre-wash PAP Equipment

Disconnect your PAP mask, hose, and reservoir from the

PAP machine.

Use two capfuls of the included Neutralizing Pre-Wash

(may not be included in some countries) (fragrance-free

dish soap can be used) with a gallon (4L) of

water to wash your PAP equipment (mask,

hose, and reservoir) according to manufacturer

instructions (ﬁgure 1).

Rinse thoroughly with clean water.

Reinsert the reservoir (if used) into the PAP

machine. Do not reattach the hose or mask yet.

After following these steps, your SoClean device will

disinfect your PAP machine daily without disconnecting.

Before you disconnect your PAP machine to wash the

parts, look at where the PAP hose is connected. You

will reconnect the SoClean Injection Fitting to the same

location.

Figure 1. Disassemble and Wash PAP Equipment

WARNING: Do not place Neutralizing Pre-Wash in the

PAP reservoir. Neutralizing Pre-Wash is for cleaning your

PAP equipment only.

ENG | 13

2. Using an Adapter

If your PAP machine requires an adapter, see adapter

instructions for set-up and proceed to Step 5.

3. Connect the Injection Fitting

The Injection Fitting connects the SoClean to your PAP

machine. Once installed, you do not need to disconnect

the Injection Fitting to use your PAP. The SoClean is

intended to stay connected to your PAP continuously.

Note: Your PAP reservoir model may require additional

conﬁguration procedures or an adapter. If you have

difﬁculty with the steps in this guide, visit:

SoClean.com for information on various models.

With humidiﬁer:

1. Position the Injection Fitting onto the port of

your humidiﬁer (where your PAP hose was

connected), allowing the smaller Injection Hose B

to enter into the reservoir (ﬁgure 2). The end of the

tubing should be positioned over the heat plate.

2. If necessary, carefully trim the Injection Hose B

in increments until it is the correct length, and

over the heat plate.

Note: The SoClean will disinfect your equipment with or

without water in the reservoir. The SoClean will purify

the water only if the end of Injection Hose is below the

water level.

Injection

Fitting

Figure 2. Connect the Injection Fitting

For additional help to connect to your speciﬁc

machine, please visit our support pages at:

SoClean.com

Injection

Hose B

Injection

Hose A

14 | KEY PAP PARTS/SUPPORTED PAP MACHINES & ADAPTERS

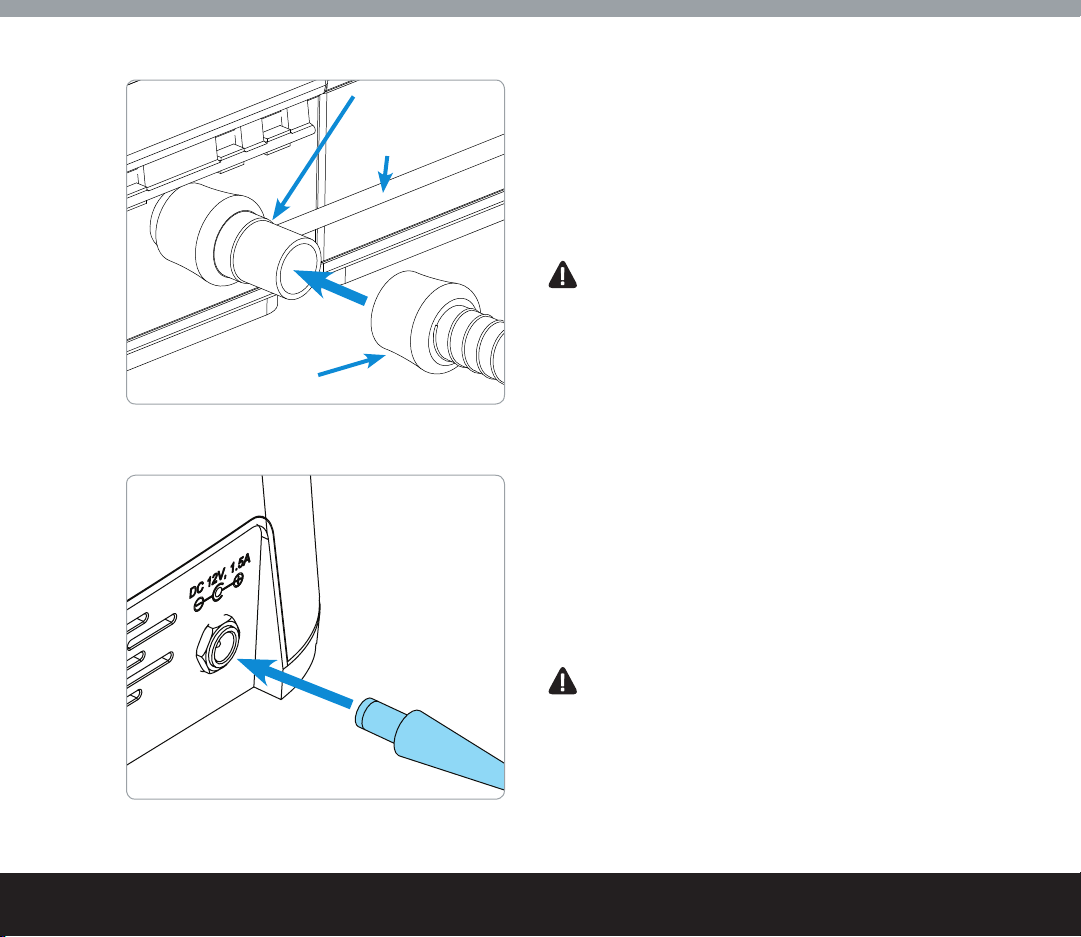

4. Connect the PAP Hose

Regardless of your humidiﬁer, you can now connect

your PAP hose to the end of the Injection Fitting, which

is connected to your PAP machine (ﬁgure 3).

5. Connect Power

On the back of the SoClean device, plug the AC Adapter

in the connector marked DC 12V, 1.5A.

The AC Adapter should be plugged into a wall outlet

that is easy to access and observe. (Figure 4)

Injection Fitting

(hose goes to

SoClean)

PAP Hose

(goes to mask)

Without humidiﬁer:

1. Pull off the small Injection Hose B from the

inside of the Injection Fitting.

2. Attach the Injection Fitting directly to your PAP

machine.

3. Reconnect your PAP hose to the end of the

Injection Fitting.

WARNING: Please be sure the black Injection Hose from

the back of the SoClean is connected to your PAP before

operating your SoClean device.

Note: If you are having difﬁculty connecting to your PAP, an

additional part may be necessary. Contact SoClean.com.

Figure 3. Connect PAP Hose to Injection Fitting

Figure 4. Connect AC Power

WARNING: In the event of loss of power to your home

or the SoClean device, ensure the proper Clock time and

Cycle Start time are set before using your PAP machine.

Failure to do so may result in the SoClean device operating

at an unexpected time.

6. Reconnect PAP Equipment

You can now reattach the mask to the end of the PAP hose.

ENG | 15

SUPPORTED PAP MACHINES & ADAPTERS

The following PAP machines have adapters available from SoClean.

To order, go to: Your authorised reseller or SoClean.com.

*Note: This list and adapter availability is based on October 2018. If there is any PAP equipment that needs

an adapter and it is not listed here please visit SoClean.com or contact your authorised reseller.

Manufacturer Model PN

Fisher & Paykel Icon PNA1100i

SleepStyle 600 Series PNA110i-600

Philips Respironics DreamStation PNA1410

PR System One REMstar 60 Series PNA1410

PR Systems One REMstar PNA1410

DreamStation Go PNA1214

ResMed S9 PNA1109

AirSense10 PNA1210

AirMini PNA1214

Transcend & Z1 Works with all models PNA1213

SoClean, is an independent company not afliated with Aeiomed, Apex Medical, Carefusion, Fisher & Paykel, Philips Respironics, PMI Probasic, Puritan Bennett,

RESmart, ResMed, or Transcend. Names and associated trademarks are solely owned by the respective companies and manufacturers. Depictions of brand logos

on our website are for informational and educational purposes only and are used for customer equipment recognition. We are not afliated or endorsed by any

PAP equipment manufacturer.
