GTX5000S USER MANUAL

GTX5000S USER MANUAL
Content
Preface.......................................................................................................................................1
1 General Information ..........................................................................................................2
1.1 Validity............................................................................................................................2
1.2 Intended Use............................................................................................................. 2
1.3 Identifying The Product......................................................................................3
2 Safety.........................................................................................................................................4
3 Technical Items ................................................................................................................... 6
4 Product Overview ..............................................................................................................7
4.1 Brief Introduction...................................................................................................7
4.2 Interface Introduction (Front Side)............................................................ 8
4.3 Interface Introduction...................................................................................... 10
5 Installation Guide............................................................................................................. 16
5.1 Checking Before Installation......................................................................... 16
5.2 Tools............................................................................................................................ 20
5.3 Installation Requirements.............................................................................20
5.4 Installation Instructions................................................................................... 21
5.5 Electrical Connection....................................................................................... 24
6 Cleaning and Maintenance.......................................................................................28
6.1 Cleaning .....................................................................................................................28
6.2 Maintenance.......................................................................................................... 28
7 Technical data.................................................................................................................... 31

GTX5000S USER MANUAL
1
Preface
Notice
The purchased products, services and features are governed by the
commercial contract made by the Company. All or part of the
products and features described in this document may not be within
the purchase scope. Except as otherwise agreed herein, no
representations or warranties, express or implied, are made as to the
contents of this document.
Save this Instruction
This manual must be considered as an integral part of the equipment.
Customer can print the electronic version to hard copy and keeping
properly for future reference. Anyone who operates the device at any
time must operate in accordance with the requirements of this
manual.
Copyright Declaration
The copyright of this manual belongs to Shenzhen SOFAR Co. ,
Ltd. Any corporation or individual should not plagiarize, partially cope
or fully copy (including software, etc. ), not allow to duplication and
publishment in any form and any way. All rights reserved, SOFAR
reserves the right of final interpretation. This manual subject to
modify according to user's or customer's feedback. Please check our
website at http://www. SOFAR. com for lasted version.

GTX5000S USER MANUAL
2
1 General Information
This manual introduces GTX5000S LFP Battery Product from SOFAR.
Please read this manual before you use the battery. Any confusion,
please contact SOFAR immediately for advice and clarification.
1.1 Validity
This user manual is applicable to SOFAR GTX5000S.
This user manual contains SOFAR GTX5000S product information,
usage guidance, safety information, installation guide and details on
common operating issues and subsequent corrective actions.
1.2 Intended Use
SOFAR GTX5000S is an energy storage unit that is designed to be
used in residential on/off grid applications with the capability for
short-term backup.
Notes regarding intended use:
SOFAR GTX5000S is not suitable for supporting life-sustaining
medical devices.
This product is intended for use only in accordance with the
information provided in the enclosed documentation and with the
locally applicable standards and regulations. Any other application
may cause personal injury or property damage.
The illustrations in this manual are meant only to help explain system
configuration concepts, includes usage guidance, safety precautions,
and common operating issues and subsequent corrective actions.
Alterations to the product, e. g. changes or modifications, are only
permitted with the express written permission of SOFAR.
Unauthorized alterations will void warranty claims. SOFAR shall not be

GTX5000S USER MANUAL
3
held liable for any damage caused by such changes. Any use of the
product other than that described in the Intended Use section does
not qualify as appropriate. The enclosed documentation is an integral
part of this product. Keep the documentation in a convenient place
for future reference and observe all instructions contained therein.
The type label (see Section 1. 3) must remain attached to the product.
Please contact SOFAR or local after-service providers within 1 week
once the user decides to cease using their SOFAR Battery products.
1.3 Identifying The Product
The type labels were attached on the product, which contain the
product identification information. For safe usage, the user must be
well-informed of the contents in the type labels.
The type labels include:

GTX5000S USER MANUAL
4
2 Safety
This section contains safety information that must be observed at all
times when working on or with batteries. To prevent personal injury or
property damage and to ensure long-term operation of the batteries,
read this section carefully and observe all safety information at all
times.
WARNING
Environmental Requirement
·Do not expose the battery to temperature above 50℃
·Do not place the battery near any heat sources
·Do not expose the battery to moisture or liquids
·Do not expose the battery to corrosive gases or liquids
·Do not expose the battery to direct sunlight for extended periods of
time
·Do not allow the battery power terminals to touch conductive
objects such as wires
Place battery in secure location away from children and animals
Operation Precautions
·Do not disassemble the battery
·Do not touch the battery pack with wet hands
·Do not crush, drop or puncture the battery
·Do not reverse the polarity or connect in series
·Do not short circuit the terminals, remove all jewelry items that
could product a short circuit before installation and handling
·Always dispose of the product according to local safety regulations

GTX5000S USER MANUAL
5
·Store and recharge battery in a manner in accordance with this
user manual
·Ensure reliable grounding
·Disconnect battery from power/load and then power off battery
before installation and maintenance
·When storing or handing, do not stack up batteries when outside
protective package
·Packaged batteries should not be stacked more than specified
number stipulated on the package
·Continued operation of a damaged battery can result in dangerous
situation that may cause severe injury due to electrical shock

GTX5000S USER MANUAL
6
3 Technical Items
No.
Terms
Comment
1
Discharge
Battery output power for load
2
Charge
To put electricity into battery by charger
3
Full charge
Battery had been full charged, SOC is 100%.
4
Standby
Ready for charging or discharging
5
Shutdown
Power off
6
SOC
State of Charge(Useable capacity)
7
Battery voltage
The voltage between B+/B-
8
Cell voltage
Single cell voltage
9
Pack voltage
The voltage between P+/P-
10
Alarm
Indicate that the battery is in abnormal status
11
Protect
Battery stops charging or discharging and is
recoverable
12
Fault
Battery or BMS is broken, need to be replaced
13
Over
discharged
Battery is lack of electricity, and needs to be
recharged in time

GTX5000S USER MANUAL
7
4 Product Overview
4.1 Brief Introduction
Product overview
SOFAR GTX5000S is a battery system with an operating voltage range
between 40. 8~57. 6V. It is utilized in household energy storage
applications and works together with a low-voltage PCS to realize the
goal of energy storage for the home.
SOFAR GTX5000S has built-in BMS (battery management system),
which can manage and monitor cells information including voltage,
current and temperature. What’s more, BMS can balance cells
charging to extend cycle life. BMS has protection functions including
over-discharge, over-charge, over-current and high/low temperature;
the system can automatically manage charge state, discharge state
and balance state.
Multiple batteries can connected in parallel to expand capacity and
power for larger capacity and longer power supporting duration
requirements, SOFAR GTX5000S support up to 4 parallel operation.

GTX5000S USER MANUAL
8
4.2 Interface Introduction (Front Side)
No.
Items
1
Start Button
Status Indicators
2
Battery Level Indicator
4.2.1 Start Button
Start button integrated LED status Indicators, to show Battery
running status or warning status.
1、Press start button more than 3s and then release the button, LED
will lights from L7 to L1, and then enters to automatic coding, all LED
lights flash and L7 is shown as purple. After the automatic coding, L1
to L6 shows the normal capacity, and L7 shows the running status:
L7: Blue, long lighting when charging and flash when discharging;
L7: Red, long bright if equipment failure or protected.
2、In parallel system, connect the parallel communication wiring
according to section 5. 3. 1, then long press the start button of the
Master PACK, after normal startup, the battery system will
automatically encode and assign ID to each parallel PACK, and then
the parallel system will run normally.
3、Press start button of Master PACK more than 3s and then release
the button, LED will lights from L1 to L7 to shut down the battery

GTX5000S USER MANUAL
9
module. In parallel system, the master pack will shut down after all
slave packs shut down.
4.2.2 LED Indicator Definition
L1 to L6: Blue, show the battery level, each light indicate 16. 67% SOC.
L7: Blue or Red, show battery running status, blue is normal, red is
abnormal.

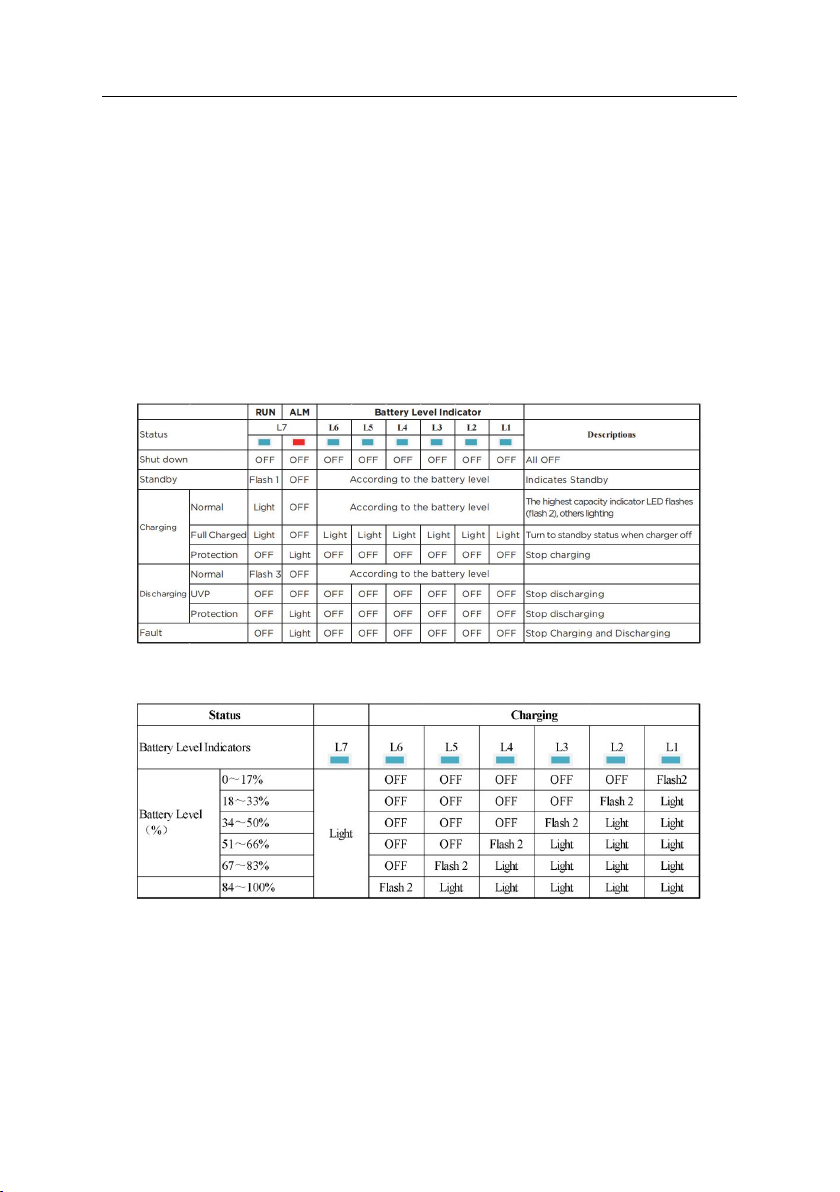

LED Indicators Instructions
Charging Battery Level Indicators Instructions

GTX5000S USER MANUAL
10

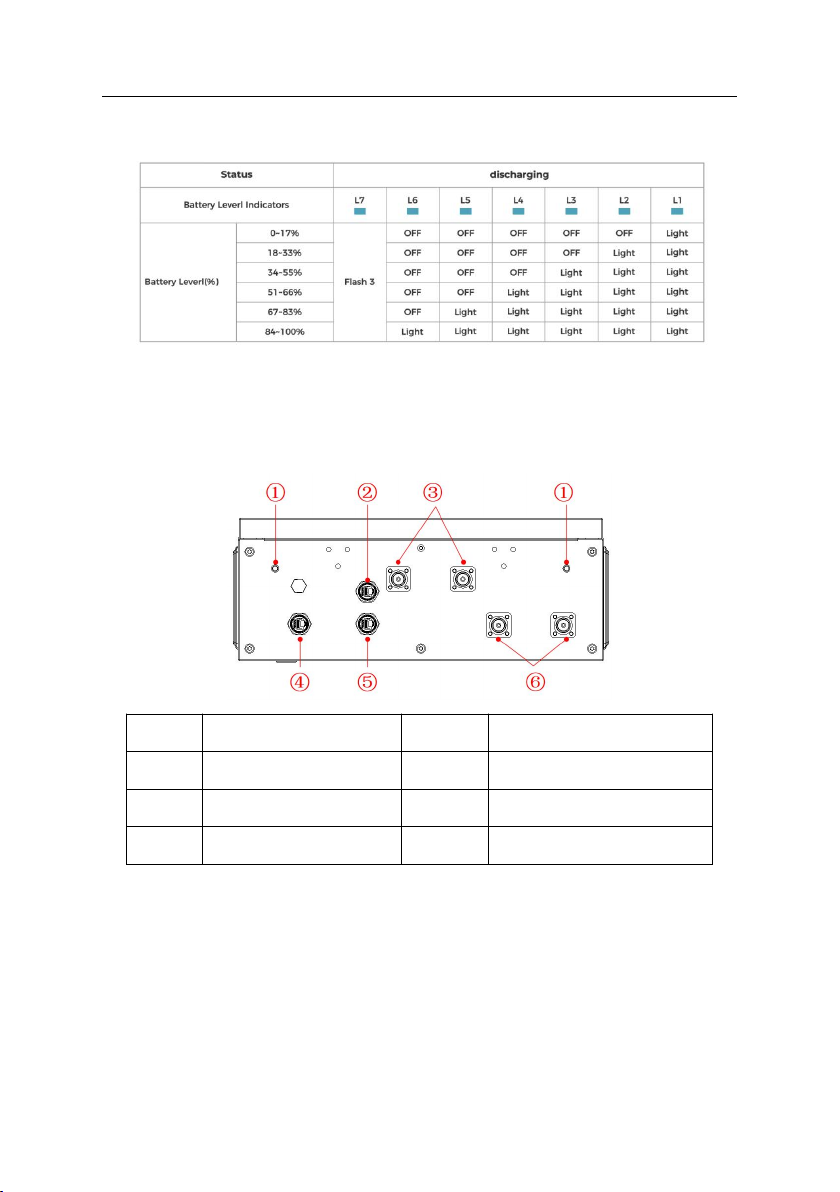

Discharging Battery Level Indicators Instructions
Note: The flashing instructions, flash 1 - light 0. 25s / off 3. 75 seconds;
flash 2 - 0. 5s light / 0. 5s off; flash 3 - 0. 5s light / 1. 5s off.
4.3 Interface Introduction
No.
Items
No.
Items
1
Grounding
4
Reserved
2
CAN/Link In
5
Link Out
3
P-
6
P+

GTX5000S USER MANUAL
11

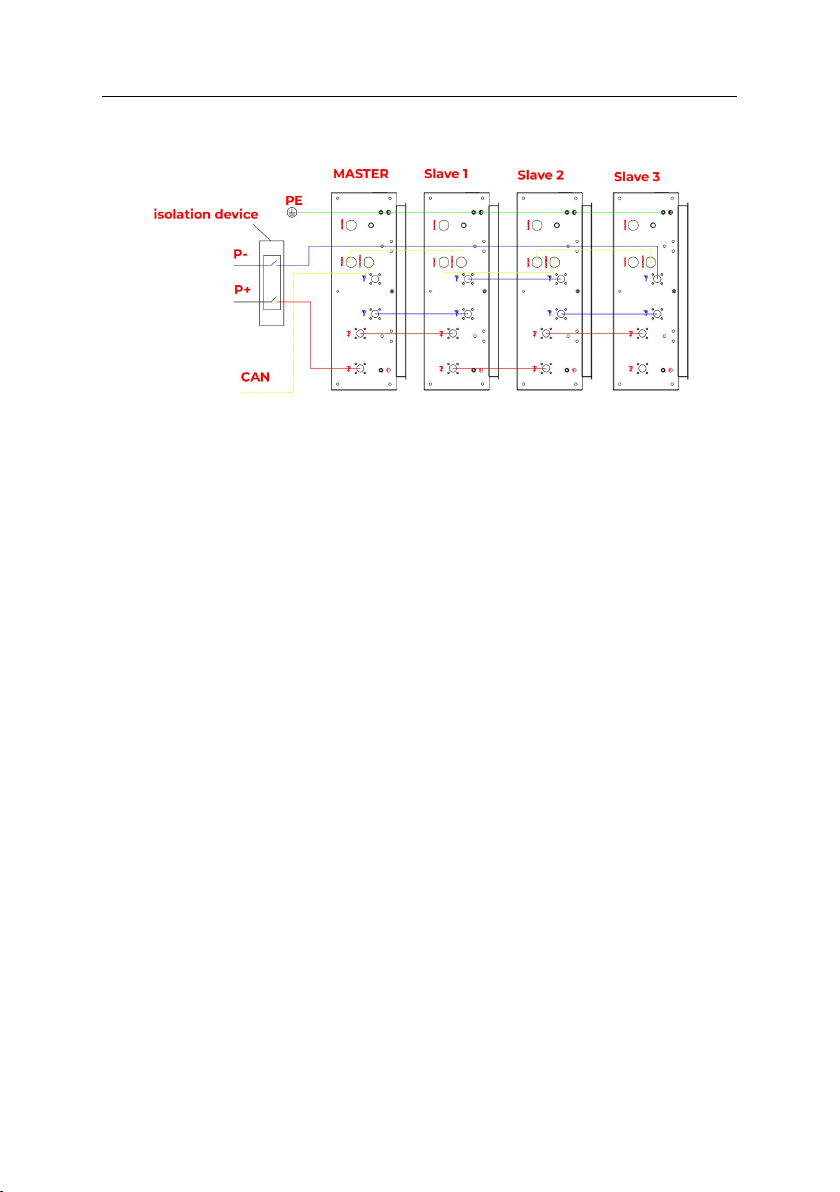

4.3.1 Wiring instructions
Applicable to CEC requirements in Australia only.
Note:
1. Power Switch larger than 125A;
2. You are advised to use the EV power cable with size min. 25 mm2 or
3AWG (600V, 125A) and length min. 1500mm. The length of the power
cable from connecter terminals of each battery pack to the battery
connecter interface of PCS should be same by isolated device.
3. Before assembling Power cable, label the cable polarities correctly
to ensure correct cable connections.
4. The power cable installation and connected must training skilled of
professional personal.
CAN
CAN
CAN

GTX5000S USER MANUAL
12
Suggest Wiring Diagram (except CEC):
1、Power cable wiring instructions
Power cable terminals: There are two pair of power terminals, each
pair with same function.
Single module: Any of the terminals of each pair can be used.
Parallel system: Multiple batteries can connected in parallel to expand
capacity and power for larger capacity and longer power supporting
duration requirements.
NOTE: P+ must connect to master pack, and P- must connect to last
slave pack.
Master pack: one of the P+ terminals connect to PCS, the other one
paralleling to another battery for capacity expanding.
Last slave pack: one of the P- terminals connect to equipment, the
other one paralleling to another battery for capacity expanding.
Other slave pack: for each pair terminals, paralleling to another
battery for capacity expanding.
2、Parallel communication cable wiring instructions
CAN/Link In and Link Out communication terminal (RJ45 port) is
integrated with the signal for automatic coding function, it's can

GTX5000S USER MANUAL
13
automatic identification the parallel connected slave batteries by
internal control software of master battery.
NOTE: The connection order of Port In and Port Out should not be
wrong, otherwise it will lead to the automatic coding failed.
It is required that the Port In of the master PACK should be connected
to the PCS, and the parallel communication wire is connected to the
Port In of the first slave PACK from the Port Out of the master PACK.
Then the Port Out of the first slave PACK is connected to the Port In of
the second slave PACK. The Port Out of the second slave PACK is then
connected to the Port In of the third slave PACK. The parallel system
support up to 4 parallel operation, and Port Out of the last slave PACK
do not connected to the communication line.
3、PCS communication cable wiring instructions
The OUT communication port of the Master pack is connected to PCS.
4、Grounding wiring instructions
The ground wire of the battery system needs to be connected reliably.
Connect the grounding of the parallel system first, and then ground it
nearby through the connection point of one of the battery packs.
4.3.2 Link Port and Automatic Coding Function
CAN/Link In and Link Out Communication follow CAN protocol, for
communication between multiple parallel batteries.
After confirming the wiring is correct(refer to section 4. 3. 1), press the
startup button of the master pack long.
After normal startup, the parallel battery system will automatically
code and assign ID to each parallel PACK, and then the parallel
system will run normally(refer to section 4. 2. 1).

GTX5000S USER MANUAL
14
4.3.3 Link Port
CAN Communication Terminal(RJ45 port) follow CAN protocol,
connect to communication port.
1. BMS controls the charging current/charging voltage or discharge
current/discharge cut-off voltage of the PCS through CAN com-
munication according to the battery voltage and battery temperature.
2. If the battery capacity is less than 8%, BMS controls the PCS to make
compulsory recharge through the CAN communication to avoid the
damage of the battery due to deep discharge.
3. If SOC was less than 97% for one consecutive month, BMS
controlled PCS by CAN communication to full charge the battery to
corrected SOC and fully charged capacity.
Note: Through the SOFAR PCS, skilled peoples can set the fully
charged time period.
PIN
Definition
Pin 1
ID IN/OUT
Pin 2
NC
Pin 3
CANH (to battery )
Pin 4
CANH (to PCS)
Pin 5
CANL (to PCS)
Pin 6
CANL (to battery )
Pin 7
NC
Pin 8
GND

GTX5000S USER MANUAL
15
4.3.4 RS232 Port
RS232 Communication Terminal(RJ45 port) follow RS232 protocol, for
manufacturer or professional engineer to debug or service.
PIN
Definition
Pin 7、Pin 1
GND
Pin 5
RS232_RX
Pin 6
RS232_TX
Pin2、Pin 3、Pin 4、Pin 5
NC

GTX5000S USER MANUAL
16
5 Installation Guide
Installation flow chart
5.1 Checking Before Installation
5.1.1 Checking Outer Packing Materials
Packing materials and components may be damaged during
transportation. Therefore, check the outer packing materials before
installing the battery. Checking the surface of packing materials for
damage, such as holes and cracks. If any damage is found, do not
unpack the battery and contact the dealer as soon as possible. You are
advised to remove the packing materials within 24 hours before
installing the battery.
Checking Deliverables
After unpacking the battery, check whether deliverables are intact
and complete. If any damage is found or any component is missed,
contact the dealer.
The below table shows the components and mechanical parts that
should be delivered.

GTX5000S USER MANUAL
17

GTX5000S USER MANUAL
18
The following accessories are configured according to the number of
parallel machines in the battery system. For example:
