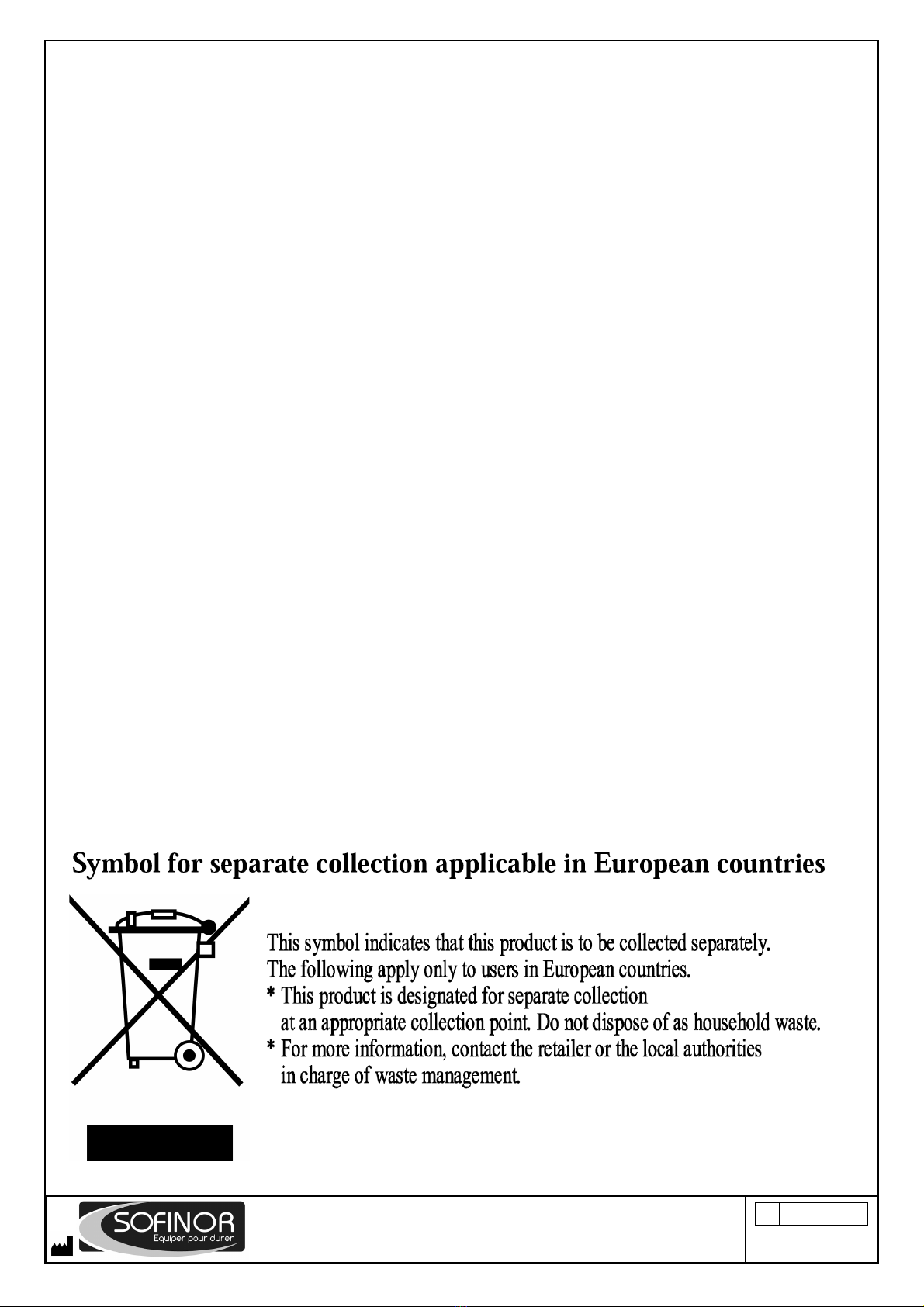

TECHNICAL INTRUCTIONS- DISINFECTION CABINETS
Reproduction prohibited without the authorization of SOFINOR
DISINFECTION CABINETS FOR KNIVES
MZ05 - 05S - 05P - 05SP
MZ10 - 10S - 10P - 10SP
MZ20 - 20S - 20P - 20SP
TECHNICAL INSTRUCTIONS
MZ10SP MZ20S

Page 2 / 4
N 26.01.15
Z.I de la Houssoye - rue Ambroise Paré - F 59280 BOIS-GRENIER
Tel [phone] - Fax [phone] - www.sofinor.com
TECHNICAL INTRUCTIONS- DISINFECTION CABINETS
Reproduction prohibited without the authorization of SOFINOR
Thank you for buying this professional disinfection cabinet SOFINOR.
In order to obtain optimum performance from this equipment, please read the
information in this brochure carefully and follow the recommendations concerning:
- Installation,
- Use,
- Maintenance.
This appliance is for professional use only and must be used by qualified
personnel.
It must be set up in compliance with the regulations in force.
DECLARATION OF CONFORMITY
 This electric appliance is made in compliance with the European Directives
•« Low Tension » Ref. 73/23/CEE
•« Electromagnetic Compatibility» Ref. 89/336/CEE
 The applied harmonised norms are as follows :
•Security of electro-domestic appliances EN 60 335-1
and analogous
•CEM – norm generic emission EN 50 081-1
(Residential, commercial and light industry)
•CEM – norm generic immunity EN 50 081-1
(Residential, commercial and light industry)

Page 3 / 4
N 26.01.15
Z.I de la Houssoye - rue Ambroise Paré - F 59280 BOIS-GRENIER
Tel [phone] - Fax [phone] - www.sofinor.com
TECHNICAL INTRUCTIONS- DISINFECTION CABINETS
Reproduction prohibited without the authorization of SOFINOR
FICHE TECHNIQUE
Cabinet with magnetic rail Cabinet with basket rail
MODELS :
5 knives
414x150x646 15 knives 580x150x646 30 knives
1060x150x646
15 knives
414x150x646
25 knives
580x150x646
50 knives
1060x150x646
Model without key MZ05 MZ10 MZ20 MZ05P
MZ10P MZ20P
Model with key
MZ05S MZ10S MZ20S MZ05SP MZ10SP MZ20SP
 Made of stainless steel ( AISI 304L )
 A transparent plexi-glass door with a magnetic closing or key lock
 A timer ( 0 – 2 hours )
 A germicide lamp 08 W (MZ05), 15 W (MZ10) or 30 W (MZ20) single phase
220-230V 50Hz (60Hz for United Kingdoms)
 Sprinkle protection: IP24
 Automatically stop if the door is open
INSTALLATION
1.1) SETTING UP
- Wall fixing with 2 screws through the metal.
- Pierce two holes in the wall, countermarked with the cabinet and place in the holes
two pegs and screws without tightening.
- Hang up the cabinet on the 2 screws and make sure that it is in horizontal position
before tightening the screws.
1.2) ELECTRICAL CONNECTION
The appliance must be supplied with the tension 220-230V single phase, 50Hz (60Hz for U.K)
Electrical connection which does not agree with the indicated tension “220-230V single
phase, 50Hz” (60Hz for U.K) cause the cancellation of the guarantee.
 If the supply cable is damaged, it must be replaced by the special supply cable reference:
6570 MZ 3075 (6570 MZ 3100ANG for U.K) available in the factory or in the after-sales service.
USE
 Connect the disinfection cabinet to the network 220-230V single phase according to indications.
Place the knives on the magnetic bar or in the basket carrier after their cleaning and drying.
Cabinet should be used carefully. The radiation UVC could cause physiological disorder.
Eyes and uncovered parts of the body should be kept away from the radiation of the
germicide lamp.
 Close the glass door(s) because it is essential to protect the skin and the eyes from the ultraviolet
radiation, opened door can also disturb the disinfection of the knives.
 Set the timer on 30 min. The bacterium are eliminated by the ultraviolet radiation.
 After 30 min, the tube goes off automatically.
Return the knives on the magnet to disinfect the other side during 30 min.
It is not necessary to return the knives in case of cabinet with slides.
 Set the timer on 30 min and wait for the automatically stop.
 We recommend disinfecting the knives just before use.
 If the knives are not used immediately, put them into an alcoholic solution to keep the disinfection
effect.

Page 4 / 4
N 26.01.15
Z.I de la Houssoye - rue Ambroise Paré - F 59280 BOIS-GRENIER
Tel [phone] - Fax [phone] - www.sofinor.com
TECHNICAL INTRUCTIONS- DISINFECTION CABINETS
Reproduction prohibited without the authorization of SOFINOR
CLEANING
- Disconnect the cabinet before cleaning.
- The timer will be protected from the infiltration
- Do not use abrasive or corrosive products (solvents, scour powder, acid
detergents)
- Do not clean with the hose.
- Use an antistatic rag or humid sponge to remove dust from the plexi-glass door.
(Proscribe all alcoholic products)
- Use only a sponge or a soft rag with a soap water to clean all chromes or visible
parts.
- Use a rag or a humid sponge to clean the non-visible parts (under cabinet).
MAINTENANCE
- Maintenance operations consist in replacing of the damaged or used parts.
- We recommend using only original SOFINOR parts that you can get from your
retailer.
- The after-sale service SOFINOR remains at your disposal for all technical
information concerning the replacing and delivery of parts.
11
10
13
5
7
2
11
10
13
6
9
8
1
Dark perspex door 308x474x5mm (MZ05) 4080ALT050
1 Connector IEC 320 reference : 6570SH43ME
2 Timer kit 120 min 6080MZ10
3 Button of timer 6080MZ11
4 Ruffle of timer 6080MZ12
5 Technical data label CE 95900E10
6 Ultraviolet rays label 95300120
7 Magnet of door 1050MZ038
8 Counter-part for magnet (MZ20) 1050MZCPNA
9 Magnetic rail length=506 (MZ10 / MZ20) 1055MZ03
or basket carrier (MZ_P ou SP) 3080MZ10
Magnetic rail length=328 (MZ05) 1055MZ02
10 Right hinge 1020CDNMZ
11 Left hinge 1020CGNMZ
12 Round Handle 1060PB25M6
13 Dark perspex door 474x474x5mm (MZ10-20) 4080ALT053
specify: without lock or with hole for lock
3
4
NOT PRESENTED
FOR U.K
19 Cable and electric plug 6570MZ3100ANG
14 Cable of electrical feeding 6570MZ3075
15 Germicid lamp 30 Watt (MZ20) 6510G30W
Germicid lamp 15 Watt (MZ10) 6510G15W
Germicid lamp 08 Watt (MZ05) 6510G08W
16 Fluorescent slide mono 30 Watt (MZ20) 6540MZ30W
Fluorescent slide mono 15 Watt (MZ10) 6540MZ15W
Fluorescent slide mono 08 Watt (MZ05) 6540MZ08W
17 Circuit breaker of door 6040MZ1640
18 Lock (MZ_S ou SP) 1050MZ911
GUARANTEE LIMITS
- All parts are guaranteed 1 year.
- Our guarantee is limited to the replacing of damaged parts, in case of the normal use of the
cabinet, described in this instruction.
- Guarantee is not valid for the parts, which were damaged because of:
- an impact,
- a connection to the wrong electric supply,
- an use of abrasive or corrosive cleaning products,
- a setting of non-guaranteed parts.
