Solano Lumino Pro User manual

10-11
08-09
06-07
01-03
04
05
Product Structure
InstaIIation&Operation

Warnings and notes are as follows:
Legends Contents
Warning It is possible to cause casualties if the wrong use is indicated.
Note It is possible to cause personnel injury or damage to the product when it is
used wrongly.
Signs indicate mandatory (things that must be observed). The specific
mandatory content is represented by text or pattern, and the left figure shows
"general mandatory".
Signs indicate forbidden (things that must not do). The specific forbidden
content is represented by text or pattern, and the left figure shows general
forbidden.
It is possible to cause personnel injury or product damage when it is
used incorrectly

37
19
308x300x736mm
L/m in
TOTAL
TIM E SET
FLO W
RATE
OXYG EN
PURI TY
MIN
HOU RS
%
functioning warning alarm
FLOW Purity

L/min O2
MAX
Reduce Enlarge

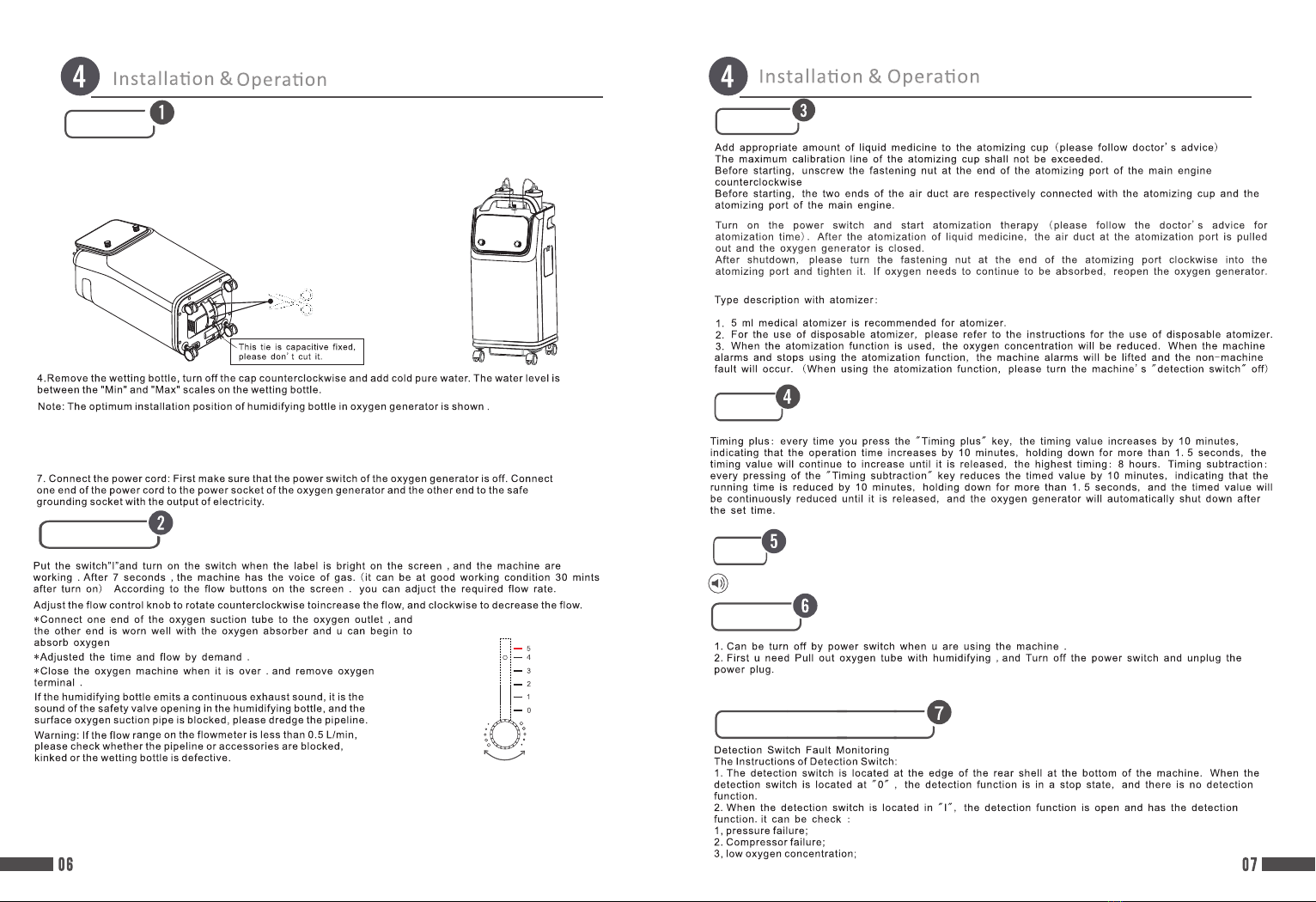

preparing work
1.Take out the oxygen generator from the box and remove all packaging.
2.Place the machine on a flat surface with the screen facing up and use scissors
to remove the tie at the bottom (this tie is for a fixed compressor).
3.Set up the machine after cutting the tie.
5. Gently tighten the cap of the wetting bottle clockwise and place the wetting bottle in the installation tank
of the main oxygen generator.
6.Insert one end of the connecting pipe with the oxygen outlet of the main engine and the other end with the
air inlet of the humidifying cylinder, as shown.
Ox y g en i n h a l a t i on
operation
Atomization
operation
timing
voice
This machine with voice function , can be turn on/off with the function by voice switch.
Shutdown
Fault Detection and Alarm Signal
The machine is a dual flowmeter for oxygen absorption, the display shows the flow value as the
sum of the output flow of the two left and right flowmeters, the maximum recommended flow of
the machine is 5L/min, for example: the flow rate of the left flowmeter is adjusted to 2.5L/min,
the flow rate on the right The maximum flow rate output is 2.5L/min. It is recommended that the
sum of the left and right double flow ≤ 5L/min.

Class1 Intake Filter
