Solar Charge IT 4501 User manual

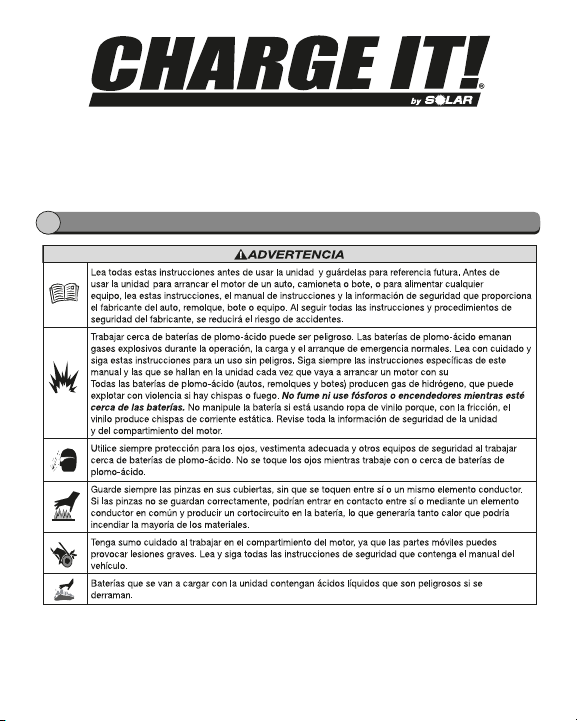

WARNING
Read these instructions completely before using the SOLAR Battery Charger and save them for
future reference. Before using the SOLAR Battery Charger to charge a battery, read these
instructions and the instruction manual/safety information provided by the car, truck, boat or
equipment manufacturer. Following all manufacturers’ instructions and safety procedures will
reduce the risk of accident.
Working around lead-acid batteries may be dangerous. Lead-acid batteries release explosive gases
during normal operation, charging and jump starting. Carefully read and follow these instructions for
safe use. Always follow the specific instructions in this manual and on the SOLAR Battery Charger
each time you use the SOLAR Battery Charger.
All lead-acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in
the presence of fire or sparks. Do not smoke, use matches or a cigarette lighter while near
batteries. Do not handle the battery while wearing vinyl clothing because static electricity sparks
are generated when vinyl clothing is rubbed. Review all cautionary material on the SOLAR Battery
Charger and in the engine compartment.
Always wear eye protection, appropriate protective clothing and other safety equipment when
working near lead-acid batteries. Do not touch eyes while working on or around lead-acid batteries.
Always store clamps away from each other or common conductors. Improper storage of clamps
may cause the clamps to come in contact with each other, or a common conductor, which would
be hazardous if the charger was plugged into an AC outlet.
Use extreme care while working within the engine compartment, because moving parts may cause
severe injury. Read and follow all safety instructions published in the vehicle's Owner's Manual.
Batteries being charged with the SOLAR Battery Charger unit likely contain liquid acids which are
hazardous if spilled.
Failure to follow instructions may cause
damage or explosion, always shield eyes.
Read entire instruction manual before use.
WARNING
Warning: This product contains chemicals, including
lead, known to the State of California to cause
cancer, birth defects and other reproductive harm.
Wash hands after handling.
Operator’s Manual
Battery Maintainer Model No. 4501

WARNING
Read these instructions completely before using the Battery Charger and save them for future
reference. Before using the Battery Charger to charge a battery, read these instructions and the
instruction manual/safety information provided by the car, truck, boat or equipment manufacturer.
Following all manufacturers’ instructions and safety procedures will reduce the risk of accident.
Working around lead-acid batteries may be dangerous. Lead-acid batteries release explosive gases
during normal operation, charging and jump starting. Carefully read and follow these instructions for
safe use. Always follow the specific instructions in this manual and on the Battery Charger each
time you use the Battery Charger.
All lead-acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in
the presence of fire or sparks. Do not smoke, use matches or a cigarette lighter while near
batteries. Do not handle the battery while wearing vinyl clothing because static electricity sparks
are generated when vinyl clothing is rubbed. Review all cautionary material on the Battery Charger
and in the engine compartment.
Always wear eye protection, appropriate protective clothing and other safety equipment when
working near lead-acid batteries. Do not touch eyes while working on or around lead-acid batteries.
Always store clamps away from each other or common conductors. Improper storage of clamps
may cause the clamps to come in contact with each other, or a common conductor, which would
be hazardous if the Charger was plugged into an AC outlet.
Use extreme care while working within the engine compartment, because moving parts may cause
severe injury. Read and follow all safety instructions published in the vehicle's Owner's Manual.
Batteries being charged with the Battery Charger unit likely contain liquid acids which are
hazardous if spilled.
Failure to follow instructions may cause
damage or explosion, always shield eyes.
Read entire instruction manual before use.
WARNING
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiver antenna
- Increase the separation between remote and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
IMPORTANT SAFETY INSTRUCTIONS - READ THESE FIRST
A

1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating
instructions for Model No. 4501.
2. Do not expose charger to rain or snow.
3. Use of an attachment not recommended or sold by the manufacturer may result in a risk
of fire, electric shock, or injury to persons.
4. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when
disconnecting charger.
5. An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in a risk of fire and electric shock. If extension cord must be
used, make sure:
a. That pins on plug of extension cord are the same number, size, and shape as those
of plug on charger,
b. That extension cord is properly wired and in good electrical condition; and
c. That the wire size is large enough for the length of cord as specified below.
Cord Length: ft.(m) 25(8) 50(16) 100(31) 150(46)
AWG size of cord: 18 16 14 12
6. To prevent electric shock - Dispose of battery charger if cord becomes defective.
7. Do not operate charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualified service center.
8. Do not disassemble charger; take it to a qualified service center when service or repair
is required. Incorrect reassembly may result in a risk of electric shock or fire.
9. To reduce risk of electric shock, unplug the charger from outlet before attempting any
maintenance or cleaning. Turning off controls will not reduce this risk.
10. Monitor battery charger daily when using it to maintain battery for extended periods.
11. WARNING – RISK OF EXPLOSIVE GASES.
a. Working in vicinity of a lead-acid battery is dangerous. Batteries generate explosive
gases during normal battery operation. For this reason, it is of utmost importance
that each time before using your charger, you read this manual and follow the
instructions exactly.
b. To reduce risk of battery explosion, follow these instructions and those published by
the battery manufacturer and the manufacturer of any equipment you intend to use
in the vicinity of the battery. Review cautionary markings on these products and in
the engine compartment.

1. Someone should be within range of your voice or close enough to come to your aid
when you work near a lead-acid battery.
2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing,
or eyes.
3. Wear complete eye protection and clothing protection. Avoid touching eyes while
working near battery.
4. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters eye, immediately flood eye with cold running water for at least 10 minutes and
get medical attention immediately.
5. NEVER smoke or allow a spark or flame in vicinity of battery or engine.
6. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or
short-circuit battery or other electrical part that may cause explosion.
7. Remove personal metal items such as rings, bracelets, necklaces, and watches when
working with a lead-acid battery. A lead-acid battery can produce a short-circuit current
high enough to weld a ring or other jewelry to metal, causing a severe burn.
8. Use charger for charging LEAD-ACID batteries only. It is not intended to supply power
to a low voltage electrical system other than in a starter-motor application. Do not
use battery charger for charging dry-cell batteries that are commonly used with home
appliances. These batteries may burst and cause injury to persons and damage to
property.
9. NEVER charge a frozen battery.
PREPARING TO CHARGE BATTERY:
1. If it is necessary to remove battery from vehicle to charge, always remove grounded
terminal from battery first. Make sure all accessories in the vehicle are off, so as not
to cause an arc.
2. Be sure area around battery is well ventilated while battery is being charged. Gas can
be forcefully blown away by using a piece of cardboard or other non-metallic material
as a fan.
3. Clean battery terminals with a mixture of baking soda and hot water. Be careful to
keep corrosion from coming in contact with eyes.
PERSONAL PRECAUTIONS
B
PREPARATION
C

1. CAUTION: Connect and disconnect DC output clips only after setting any switches
with an OFF position to OFF and removing AC power cord from electric outlet. Never
allow clips to touch each other.

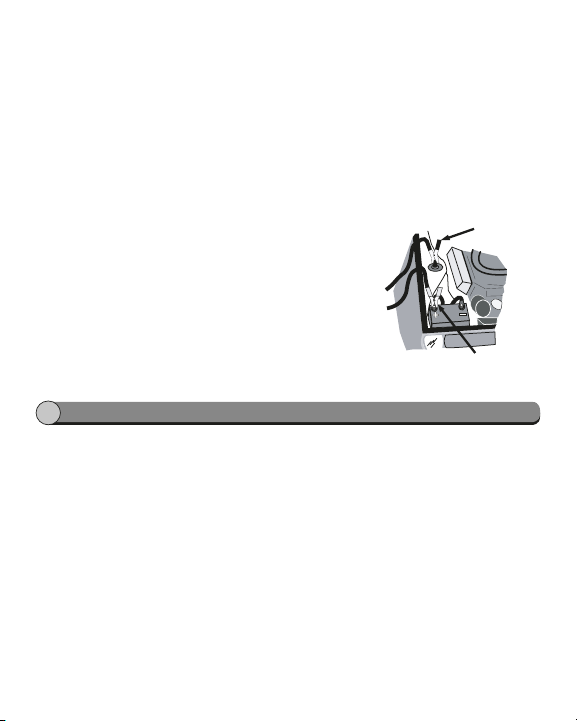

2. When hooking up charger, attach one clip to battery and the other to a point away
from battery (see sections F & G). Do not hook up charger until reading sections A–J.
3. Always make battery connections prior to plugging charger into AC outlet.
To reduce explosion risk, never connect both clips directly to the battery. When making each
connection, twist or rock clip back and forth several times to make a good connection and
to reduce the risk of a clip slipping off and creating a spark. Do not twist or rock clip on the
battery after the second clip connection is made.
1. Locate the charger as far away from the battery as DC cables permit.
2. Never place the charger directly above the battery being charged; gases from the
battery will corrode and damage the charger.
3. Never allow battery acid to drip on the charger when reading specific gravity or
filling the battery.
4. Do not operate the charger in a closed area or restrict ventilation in any way.
5. Do not set a battery on top of the charger.
6. Locate the charger at least 18” above the floor.
7. Do not place the charger where rain, snow, or other moisture could drip on it.
4. Add distilled water in each cell until battery acid reaches level specified by battery
manufacturer. This helps purge excessive gas from cells. Do not overfill. For
Maintenance Free Batteries - carefully follow manufacturer’s recharging instructions.
5. Study all battery manufacturer’s specific precautions such as removing or not
removing cell caps while charging and recommended rates of charge.
6. Determine voltage of battery by referring to vehicle owner’s manual and make sure
that charger output voltage matches vehicle voltage.
LOCATING THE CHARGER
D

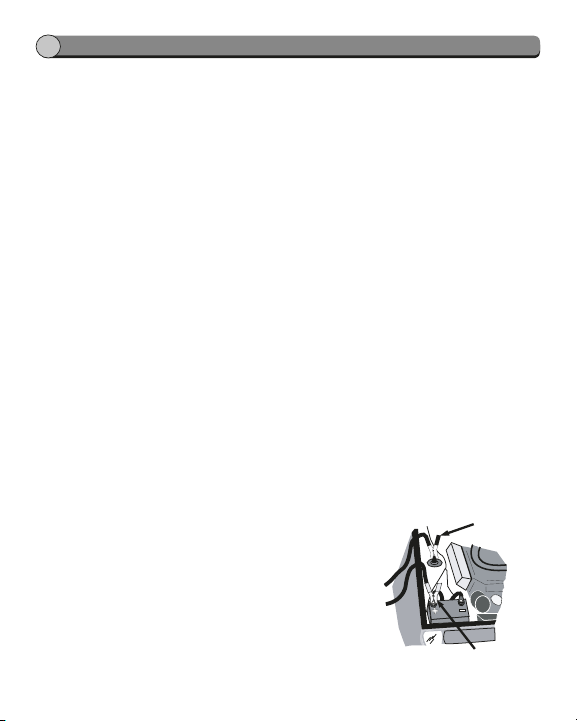

BATTERY CHARGER CONNECTION PRECAUTIONS
E
