Contents Notes on this Manual
1.1 Scope of Validity
This manual is an integral part of the X1/X3-EVC Series EV-Charger. It describes the
assembly, installation, commissioning, maintenance and failure of the product.
Please read it carefully before operating.
1 Notes on this Manual
DANGER!
“Danger” indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING!
“Warning” indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION!
“Caution” indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTE!
“Note” provides tips that are valuable for the optimal operation of
your product.
Note:
“X1” means single-phase, “X3” means three-phase.
“EVC” means “EV-Charger”.
“7.2K” means 7.2 kW, “11K” means 11 kW, “22K” means 22 kW.
“S” :, “P”: Plug Type (also called Connector Type), Socket Type, only socket outlet
with charging cable and connector.
“X” : without LCD screen, “L” : with LCD screen.
“C”: commercial edition.
Keep this manual at where it is accessible all the time.
1.2 Target Group
This manual is for qualified electricians. The tasks described in this manual can only
be performed by qualified electricians.
1.3 Symbols Used
The following types of safety instructions and general information appear in this
document as described below:
0302
7 App Setting...................................................28
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.2 Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9 Decommissioning ............................................46
9.1 Dismantling the EV-Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.2 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.3 Storage and Transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4 Disposing of the EV-Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10 Disclaimer...................................................47
* Warranty Registration Form
X1-EVC-7.2K(SXC)
X1-EVC-7.2K(PXC)
X3-EVC-11K(SXC)
X3-EVC-11K(PXC) X3-EVC-22K(PXC)
X3-EVC-22K(SXC)
X1-EVC-7.2K(PLC) X3-EVC-11K(PLC) X3-EVC-22K(PLC)

Safety Safety
2 Safety
2.1 Appropriate Usage
The series are AC EV charger, intended to be installed in a fixed location and
connected to the AC supply.
Prior to the application, please read this section carefully to ensure correct and
safe application. Please keep the user manual properly.
Use only accessories recommended. Otherwise may result in a risk of fire, electric
shock, or injury to person.
Make sure that existing wiring is in good condition and that wire is not undersized.
Do not disassemble any parts of the EV-Charger which are not mentioned in
installation guide. It contains no user-serviceable parts. See Warranty for
instructions on obtaining service. Attempting to maintain the EV-Charger by
yourself may result in a risk of electric shock or fire and will void your warranty.
Keep away from flammable, explosive materials to avoid fire disaster.
The installation place should be away from humid or corrosive substance.
2.2 Important Safety Instructions
CAUTION!
Danger of burn injuries due to hot enclosure parts!
During operation, the EV-Charger may become hot.
CAUTION!
Incorrect operation or misuse may result in:
Injury or death to the operator or third parties.
Damage to the device and other property of the operator.
Inefficient operation of the device.
DANGER!
Danger to life due to output and input high voltages in this
device!
All work must be carried out by qualified electrician who has
knowledge of and experience in dealing with electrical
installations.
The device is not to be used by children or persons with reduced
physical sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction.
Children should be supervised to ensure that they do not play
with the device.
Risk of electric shock!
WARNING!
0504
Electrical
grid
Meter*
Electricity meter,
bidirectional
AC distribution box
* In the “Private Charger” scenarios, the meter is not necessary.
OCPP1.6

2.3 Explanation of Symbols
This section gives an explanation of all the symbols shown on the EV-Charger type
label.
Symbol Explanation
CE mark.
The EV-Charger complies with the requirements of the applicable
CE guidelines.
Danger of high voltages.
Danger to life due to high voltages in the EV-Charger!
Danger.
Risk of electric shock!
The EV Charger can not be disposed together with household waste. -
Used electrical devices must be collected separately and recycled
in an environmentally responsible manner. Ensure that you return
your used device to your dealer or obtain information regarding a
local, authorised collection and disposal system.
The EV-Charger can be recycled.
Authorized service personnel must use insulated tools when installing or working
with this equipment.
Do not use the EV-Charger in case the device has defects, cracks, abrasion, bare
leakage and so on. Please contact the working staff in case of above conditions.
In case any emergency condition happens, please press the EMERGENCY STOP
button immediately, cut off all input and output power supply.
During charging, the electric vehicle is not allowed to drive. Charging only when
the electric vehicle stays still. For hybrid car, charging only when switching the
engine off.
3 Introduction
3.1 Basic Features
Thanks for purchasing with the series EV-Charger. The EV-Charger can be used for
charging electric vehicle. Also you can choose single or three phase with plug or
socket type, you can consult our salesmen for specific details. The features of the
series are listed as below.
ŸPlug or socket outlet selectable
ŸIntegrated current failure monitoring (30mA AC & 6mA DC)
ŸIntegrated with PEN protection and no earth rod
ŸEncrypted communication based on TLS
ŸIndoor and outdoor easy installation
ŸIntegrated RFID function
ŸRemote setting and monitoring with APP and website
ŸSmart dynamic load balance control
ŸSet timers to reduce your cost during peak and valley price
ŸIntegrated with OCPP 1.6(JSON) protocol
ŸDelayed startup configurable
Safety Introduction
0706
TUV certication.

Introduction Introduction
3.2 Dimension
Ø
155 mm
Socket Type Plug Type (Connector Type)
265 mm 155 mm
370 mm
0908
Ø
249 mm
370 mm

Technical Data
Introduction
3.3 Product Description
D
G
H
F
E
A
B
C
Object
A
Charging
connector base
B
C
D
E
F
G
H
Description
Card swiping
position
LED
indicator
MODE SELECTION: Reserved.
Network: When the light is on, the EV-Charger
is connected with the OCPP server.
Unavailable: When the light is on the EV-
Charger is not available for charging.
EMERGENCY STOP: Press in emergency, the EV-
Charger will stop operating.
Name
Socket outlet (for Socket Type)/Connector holder(for
Plug Type)
Operating status: The corresponding status
light will be on when operating.
Fault: The red light will be on when error occurs.
Swipe card here.
Button
4 Technical Data
4.1 General Data
Model X1-EVC-7.2K X3-EVC-11K X3-EVC-22K
AC Nominal Input
Phases/Lines
Voltage [V ]
Frequency [Hz]
AC Nominal Output
Current [A]
Voltage [V ]
Power [W]
L+N+PE 3P+N+PE
230 400 400
50/60;±5
32 16 32
7200 11000 22000
Interface
RFID Frequency
RS485
LCD Screen
YES
Optional
Housing Material
Installation Method
Wall-mount Bracket
Cable Length [m]
Operating Temperature [℃]
Working Humidity
YES
Wall-mounted(Optional: pedestal-mounted)
Plastic/Metal
6.5(for Plug Type)
-30~ +50
Working Altitude [m]
Degree of Protection
Application Site
Cooling Method
5%~95% without condensation
<2000
IP65
Indoor/Outdoor
Natural cooling
Protection Class Class Ⅰ
50/60;±5 50/60;±5
Charging Outlet Socket Type(Socket-outlet)/Plug Type (Charging cable with connector)
Dimension (W*H*D)[mm]
Net Weight [kg]
249*370*155(for Socket Type)/265*370*155(for Plug Type)
7(for Socket Type)/10.5(for Plug Type)
Communication Info
EIRP Power
Frequency
Antenna Gain
Antenna Type
Wireless Mode
17.41 dBm(Measured Max. Average)
2412~2484 MHz
4 dBi
IPEX
802.11 b/g/n
WiFi
Communication Mode
230 400 400
1110
I
J
INPUT: For AC input connection.
COM: For communication connection.
IJ
Connector
3P+N+PE
13.56 M
K
KLCD screen
(Optional) Display the EV-Charger information.

Technical Data
4.2 Security Protection
Integrated current failure monitoring (30 mA AC & 6 mA DC) *
Safety Standard
Built-in PEN fault technology
Warranty
IEC61851-1; IEC62196-2
YES
3 years
Over/Under voltage protection
Model X1-EVC-7.2K X3-EVC-11K X3-EVC-22K
Multiple Protection
Overload protection
Current leakage monitoring
Grounding protection
Surge protection
Over temperature protection
YES
YES
YES
YES
YES
YES
BCD
A
E
5 Installation
5.1 Check for Transport Damage
5.2 Packing List
Make sure the EV-Charger is intact during transportation. If there are some visible
damages, such as cracks, please contact your dealer immediately.
Open the package and fetch out the product, check the accessories at first. The
packing list is shown as below.
Object
EV-Charger
1
A
B
C
D
E
F
3/5
3/5
Expansion bolt (3 for Socket Type, 5 for Plug Type)
Self tapping screw (3 for Socket Type, 5 for Plug Type)
Documents
Quantity Description
European terminal
(3 for single-phase; 5 for three-phase)
3/5
G
G
H1
2
Cable hook (only for Plug Type)
F
/
H
3/5 Gasket (3 for Socket Type, 5 for Plug Type)
Private RFID card
Installation
1312
* This document does not replace any regional, state, provincial or national laws, regulations or
standards that apply to the installation, electrical safety and use of the product. Always observe
the local regulations as well.
Integral earth leakage monitoring

Installation Installation
5.3 Installation Precaution
Available Space Size
The EV-Charger is designed for wall-mounted installation (IP 65).
Make sure the installation site meets the following conditions:
· Not exposed to sunlight directly.
· Not in areas where highly flammable materials are stored.
· Not in potential explosive areas.
· Not near the television antenna or antenna cable.
· Not higher than altitude of about 2000 m above sea level.
· Not in environment of precipitation or humidity (5%~95%) .
· Make sure that the ventilation is good enough.
· The ambient temperature in the range of -30℃~ +50℃.
· The slope of the wall should be within ±5°.
Position Min. size
Ø
Left 300 mm
400-700 mm
200 mm
1.2-1.5 m
300 mm
Right
Top
Bottom
Front
Table: Available Space Size
The wall on which the EV-Charger will be installed should meet the conditions below:
1) Solid brick/concrete, or strength equivalent mounting surface;
2) The EV-Charger must be supported or strengthened if the wall’s strength isn’t
enough (such as wooden wall, the wall covered by thick layer of decoration).
300 mm 400-700 mm
200 mm
1.2-1.5 m
5.4 Installation Steps
STEP 1: Remove the screw from the EV-Charger with the cross screwdriver. Then
remove the back bracket away carefully.
No direct sunlight No rain exposure
No snow lay up
Direct sunlight Rain exposure Snow lay up Stay away from
antenna cables
Stay away from
combustibles
Preparation
Below tools are needed before installation.
Stripping pliers
Wire crimper Cross screwdriver Straight screwdriver
φ 8 drill
Prepare cables:
Communication cable with RJ45 if the required length exceeds 10 m;
Input cable with outer diameter of 12.5-18 mm(three-core for single-
phase, ve-core for three-phase)
●
●
Marker
1514

Installation Installation
STEP 2: Fix the back bracket and the cable hook (only for Plug Type) to the wall.
- Mark the position of the holes. - Insert the expansion bolts.
- Drill holes with φ 8 drill.
- Depth: at least 45 mm.
- Align the bracket and the cable hook (only
for Plug Type) with the holes, and screw the
self tapping screws with the cross screwdriver.
STEP 3: Hang the EV-Charger on the wall for trial, then estimate the required length
of input cable and communication cable. After that, take the EV-Charger down.
STEP 4: Unscrew the EV-Charger’s rear cover with the cross screwdriver and take it
down. the fastening heads and take the waterproof materials away as Then undo
shown below.
(torque:1.5~2 N·m)
1716
≥400 mm

Installation Installation
STEP 5: Unscrew the countersunk screw of the base plate of communication board
with the cross screwdriver. Then pull the base plate of communication board out.

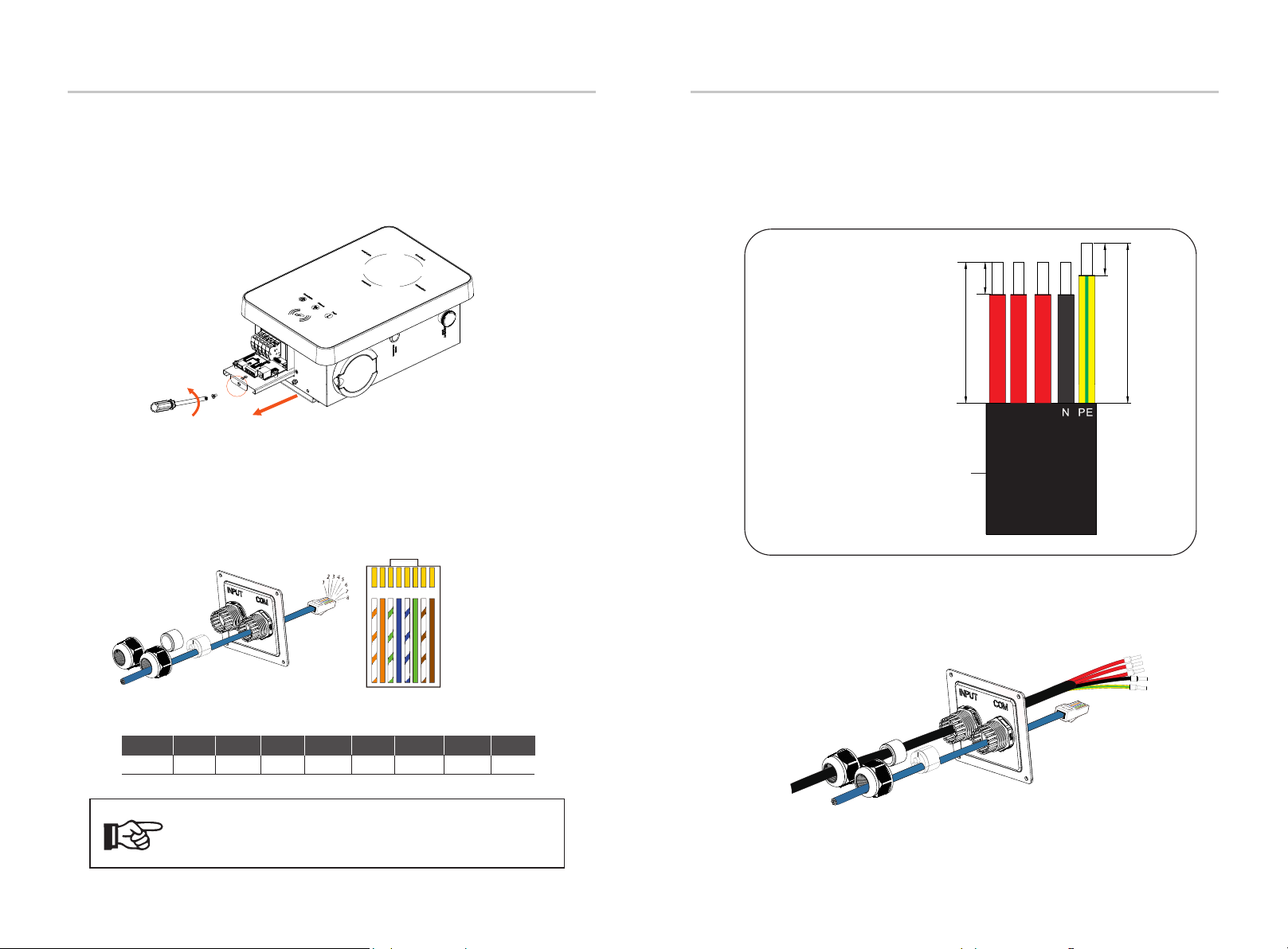

STEP 6: Insert the communication cable of the meter through the waterproof
connector in sequence as shown below. (In the “Private Charger” scenarios, the
meter is not necessary.)
1 2 3456 7 8
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
strip length
STEP 7: Strip the outer sheath of the input cable as below, ensuring all the wires can
reach the terminal blocks with a little excessive length. Use the stripping pliers to
strip approx. 12 mm of insulation from the end of all the coloured wires as below.
Then crimp the European terminal with the wire crimper.
STEP 8: Insert the input cable through the waterproof connector in sequence as
shown below.
②
①
①
③
②
①
③
②
PIN
Definition
1 2 3 4 5 6 7 8
A1 B1
1918
L1 L2 L3
60-70 mm
75-80 mm
Outer Sheath
12 mm
12 mm
X X X X X X
NOTE!
Please refer to the Quick Installation Guide of the meter for
details.

Installation Installation
STEP 9: Insert the wires into the appropriate holes of the terminal blocks, then block
the terminals with the s .traight screwdriver
STEP 10: Press the spring upward and push the base plate of communication board
in. Then screw the countersunk screw.
<4 mm
(torque:1.5~1.8 N·m)
(torque:0.8~1.5 N·m)
L1
L2
L3
N
PE
2120

Installation Installation

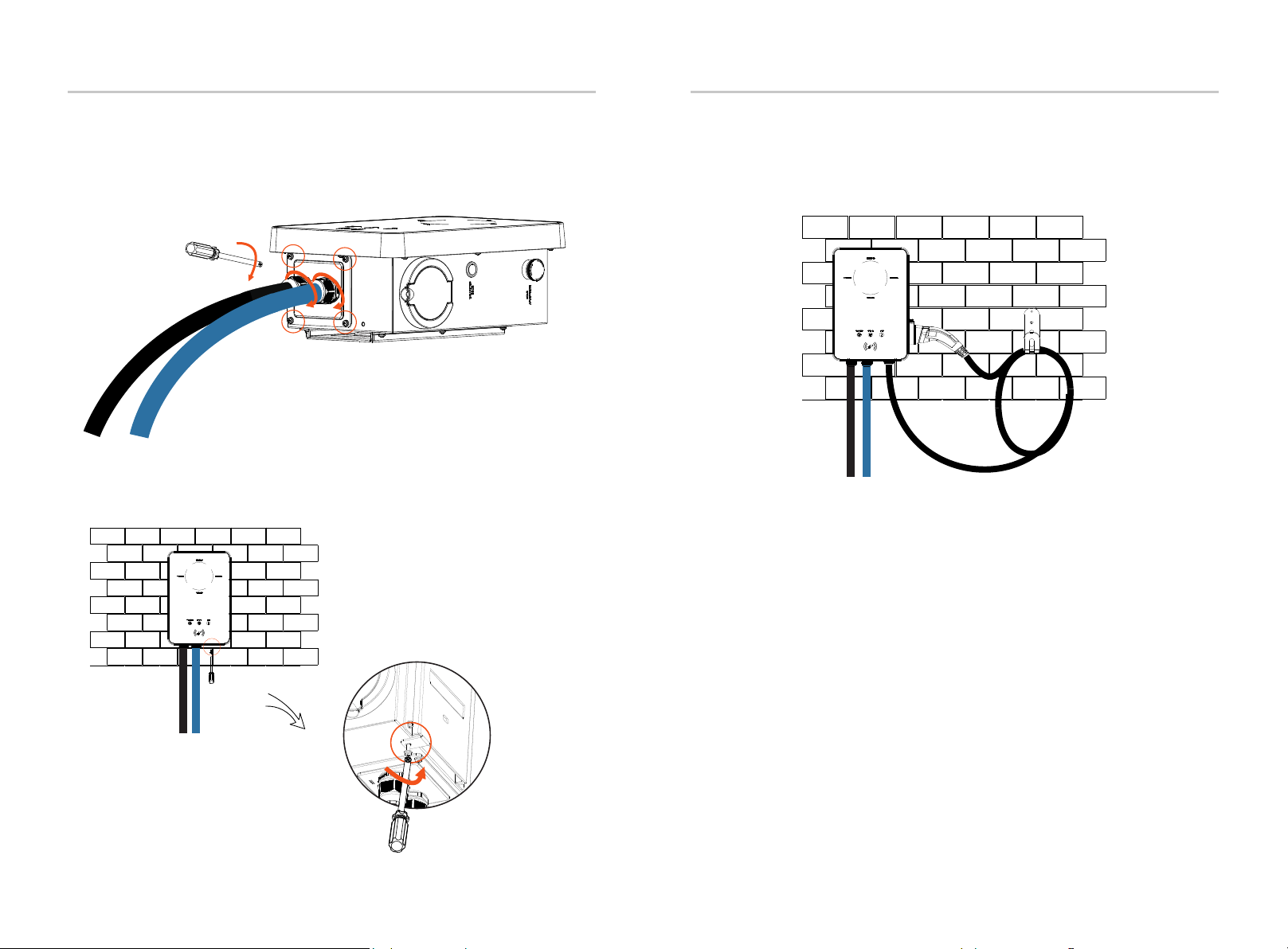

STEP 11: Push the rear cover to appropriate position of the cables and screw the self
tapping screws with the cross screwdriver. Then tighten the waterproof fastening
heads.
STEP 12: Hang the EV-Charger up carefully and steady the EV-Charger with the self
tapping screw and the cross screwdriver.
(torque: 2~2.5 N·m)
(torque: 2~2.5 N·m)
For Plug Type, connect the charging connector with the EV-Charger and hang the
connecting cable on the hook.
2322

2524
Operation Method Installation
5.5 Run the EV-Charger
a) Check that the device is fixed well on the wall.
b) AC cable is connected to grid correctly.
Power on the EV-Charger after checking all below steps:
Power on the EV-Charger
Check the status of LED indicators: When the device is powered on, all the LED
indicators will be on and the system will start self-checking automatically. After the
checking process, the AVAILABLE light will be on when the connector is not
plugged and the PREPARING light will be on when plugged.
If the Fault light is on, please check if it is correctly installed and connected to the
grid.
Ø
Ø
WARNING!
Power to the unit must be turned on only after installation work has
been completed. All electrical connections must be carried out by
qualified personnel in accordance with legislation in force in the
country concerned.
Equipment only to be used for the purpose outlined by us.
NOTE!
6.1 States
The states of the series EV-Charger (commercial edition) are described
as below:
Indicator Light & Description
States
Idle
Charge
Complete
The AVAILABLE light is on. The connector is not inserted.
The CHARGING light is on. The EV-Charger is charging.
The FINISH light is on.The EV-Charger has completed charging.
Fault
Unavailable
The Fault light is on. The EV-Charger is in fault state.
The Unavailable light is on. The EV-Charger cannot charge even if
the connector is plugged in.
Connected The PREPARING light is on. The EV-Charger is connected with EV
but not charging.
The start-up pattern for the series EV-Charger (commercial edition) is card-
swiping pattern.
For Socket Type, the electronic lock will be locked when the EV-Charger starts
charging after swiping the card, and unlocked after swiping the card when the
charging stops.
For Plug Type, there is no electronic lock.
Note:
The charging process can be stopped by the vehicle or by APP setting or
swiping card). The electronic lock will not unlock automatically when the
charging stops, and users need to swipe the card again to unlock it.
6 Operation Method
6.2 Start-up Pattern
Online The Network light is on. The EV-Charger has been connected to the
OCPP server.
In emergency cases, please stop the EV-Charger by pressing
the EMERGENCY STOP button.
NOTE!

2726
* Card Activation
In the “Private Charger” scenarios, the RFID cards need to be activated at the
EV-Charger. Please follow the instructions below:

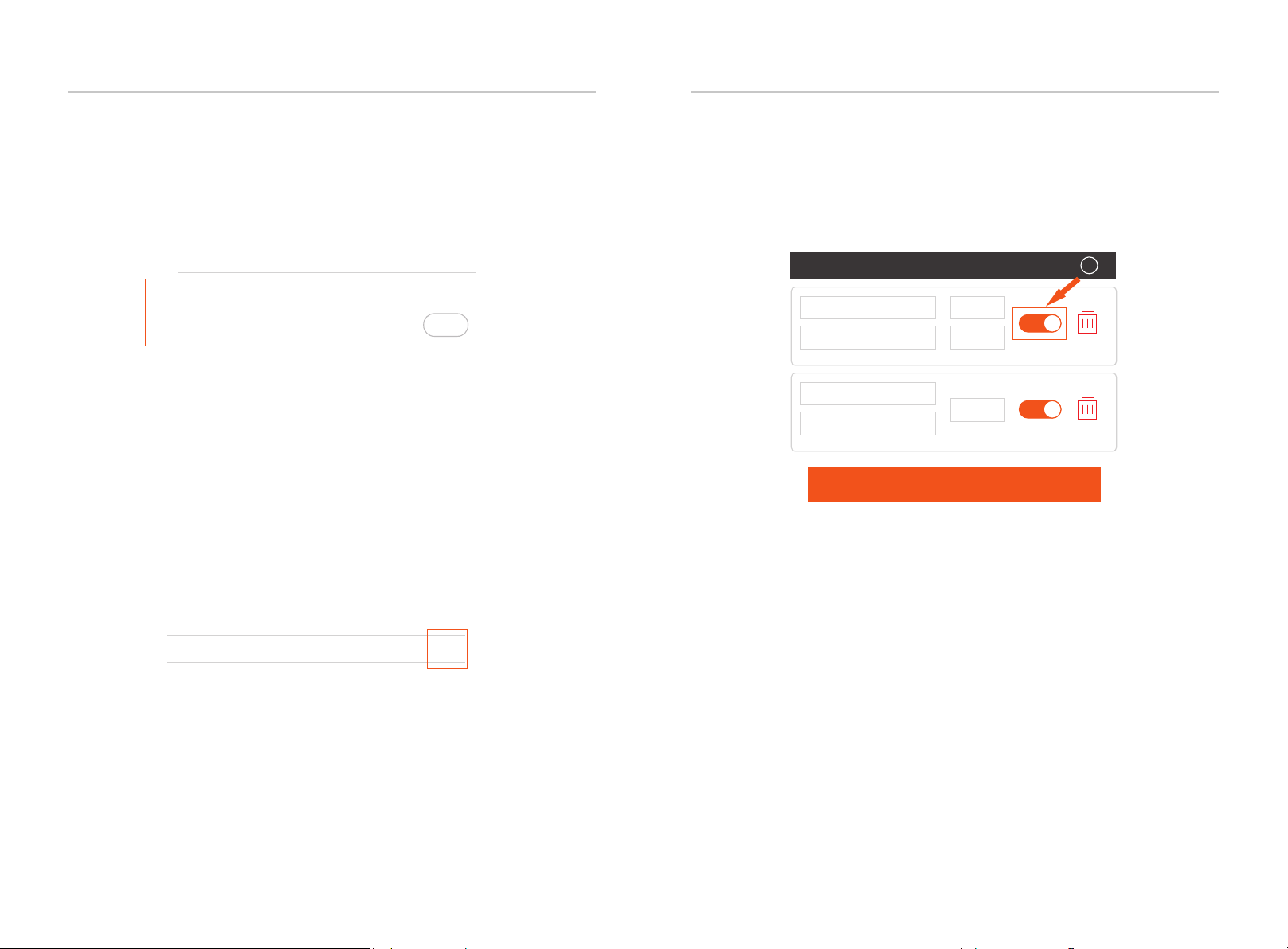

1. Enable the “Card Activation Mode” of “Advanced Settings” in the APP. Once
enabled, the four operating LED indicator lights on the EV-Charger will light up
in sequence and cycle.
Operation Method Operation Method
2. Swipe the RFID card at the EV-Charger.
3. If successfully activated, the EV-Charger will beep.
4. Disable the “Card Activation Mode” in the APP or wait for 1 minute after
activation, the EV-Charger will turn to standby state.
5. The card is successfully activated.
The default RFID PIN is 111111, the user can modify the RFID
PIN before activation, and the password of the RFID card will be
updated to the RFID PIN after activation. The password of the
RFID card must be consistent with the one set in the APP. The
RFID PIN is 6 digits.
NOTE!

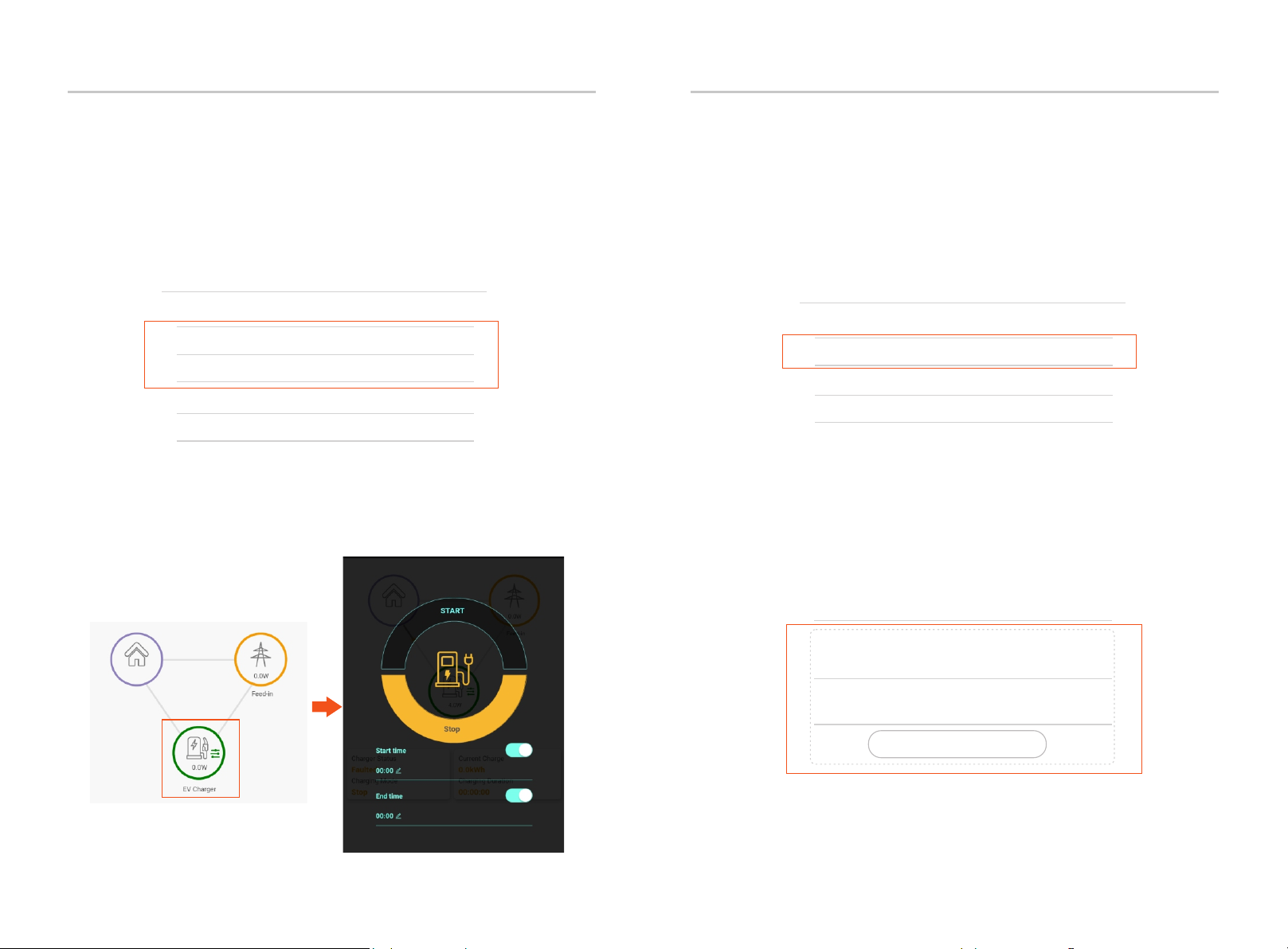

The series EV-Charger (commercial edition) has two application scenarios, i.e.
the “Private Charger” and the “Commercial Charger(OCPP)”.
For the “Private Charger” scenarios, users can start or stop the EV-Charger by
swiping card or APP setting, and charge the vehicle at preset time period.
For the “Commercial Charger(OCPP)” scenarios, users can connect their EV-
Charger with the OCPP server.
Before choosing this scenario, please ensure that the EV-Charger has met the
following prerequisites:
1) The EV-Charger has joined the network that can access the Internet through
Wi-Fi connection.
2) A valid “URL” address has been obtained from the OCPP server.
A valid “URL” address usually starts with “ws://” or “wss://”. For example,
ws://xxxxxx.com:8080/ChargeCentralSystem/CPXXXXXXX or
wss://xxxxxx.com/ChargeCentralSystem/CPXXXXXX.
For more details, please consult with the seller or the OCPP server.
3) A valid charger ID has been obtained from the OCPP server.
4) The network is normal and the OCPP server can be connected. When the EV-
Charger has been connected to the OCPP server successfully, the Network light will
be on.
6.3 Application Scenarios
For the detailed settings, please refer to section 7 “APP Setting”.
Only with a valid address and a valid charger ID obtained from
the OCPP server, can the EV-Charger be connected to the server
through the Internet and access the various functions provided
by the server.
NOTE!
Overvoltage Limit (V)
265
Undervoltage Limit (V)
160 Save
Save
RFID Function
Card Activation Mode Enable
RFID PIN
111111
Save

2928
Nominal AC output power 7200 W
615.00527.00
Nominal AC input/output current 32 A a.c.
X1-EVC-7.2K(SXC)
Model:
SN:
50 Hz/60 Hz
Frequency
Nominal AC input/output voltage
Degree of protection IP65
Protection class
Ope rating temperature ra ng e
Class Ⅰ
230 V a.c.
-30℃~ +50℃
Connect io n type Socket
Registration
No. :
SMART EV CHARGER
SolaX Po we r Ne tw ork Tec hn ol ogy (Zhej ia ng ) Co., Ltd.
www.solaxp ow er. com
L+N+PE
App Setting
Monitoring Cloud Registration
Step 1: Use your smart phone to scan below QR code or search for the
keyword “SolaXCloud” in browser to download the Monitoring App.
IOS Google
Step 2: Touch the Setting button at upper left corner of the Monitoring App
to choose language.
Step 3: Touch “Create a new account” at the bottom of Monitoring App.
Step 4: Type in or scan the Registration No. and type in other information to
complete the registration.
If you don't have the app or monitoring cloud’s account yet, you can
operate as below:
●
7 App Setting
ØAPP account login
The screen shots here are for reference only and the actual interfaces may
differ. Users can update their APP as needed.
<Registration No.
Please enter or scan the Registration No.
Next
If you already have the account, you can operate as below:
●
Step 3: Type in or scan the Registration No. of the EV-Charger. Then touch
Next and agree to join the network of the EV-Charger.
Wi-Fi Connection
Step 1: Login your account and turn to Account page in the app.
Step 2: Click “Wi-Fi Connection”.
XXX
Version:Vxxxx.xx.xx
Password*
Next
App Setting
(Example for Registration No.)

3130
Step 4: Type in or choose your home Wi-Fi SSID and password, then touch
“Next”.
*5GHz Wi-Fi is unavailable for now.
Step 5: Follow the instructions to complete Wi-Fi setting, there will be a note
when the setting successes.
*Check more Wi-Fi setting information on www.solaxcloud.com/wifiSetting/
App Setting App Setting
Local Mode
Use your smart phone to connect the SolaX Wi-Fi signal (Wifi_SCxxxxxxxx).
Then touch Local and type in password (initially same as the Registration
No.) to access the Local Mode in the Monitoring App.
*Visit the local password setting instruction on
www.solaxcloud.com/wifiSetting/
Password*
Local
<
?
Login
Password*
Next
WIFI Network*
Back

3332
ØSettings for the EV-Charger
1. Select “Overview” at the bottom and then touch the setting icon as shown in
the picture.
App Setting App Setting
2. After entering the setting page, select “Advanced Settings” and a drop-down
list will appear.
Version
Date Time
Advanced Settings
1.04
2022-05-01 00:00
˅
Setting
<
3. Select “Application Scenarios” and touch “OK” to confirm.
Cancel OK
Commercial Charger(OCPP)
Private Charger
Advanced Settings ˄
Application Scenarios Private Charger
Start time
End time
00:00
00:00
Charging Delay Disable
Charging Restrict
˄

3534
App SettingApp Setting
4. Complete the corresponding settings for deferent scenarios according to
the following instructions.
• Private Charger
1) Set the “Start time” and “End time” if you want to charge your vehicle at a
certain time period.
Advanced Settings ˄
Application Scenarios Private Charger
Start time
End time
00:00
00:00
Charging Delay Disable
Charging Restrict
˄
2) In this scenario, you can touch the “EV Charger” icon on the “Overview” page
and start or stop charging by touching corresponding image on the new pop-
up page. Also, you can set the “Start time” and “End time” on this new page.
• Commercial Charger(OCPP)
1) Confirm the “Timezone” according to the application location. After logging
in to the APP through LOCAL mode, the Timezone will be automatically
located. If it is not correct, please adjust it to the correct one.
Advanced Settings ˄
Application Scenarios
Timezone 0
Charging Delay Disable
Charging Restrict
˄
Commercial Charger(OCPP)
2) Type in the address and charger ID obtained from the OCPP server and touch
“Save”. A “Setting success” notice will appear when saved successfully.
Charging Restrict
˄
OCPP server
Charger ID
Save

3736
App SettingApp Setting
6. Settings for “Charging Restrict”.
You can set at most six time periods here, and for each period you can set
repeat times. At these preset time periods, the EV-Charger will charge at a
restricted power limit or will not be available for charging.
1) Select “Charging Restrict” and touch the extended icon.
5. You can delay the start charging time for the vehicle by enabling the
“Charging Delay”. Once enabled, you can input the “Charging Delay Time(S)”
within a range of 600 s ~ 1800 s. If not needed, you can disable it.
Charging Delay Enable
Charging Restrict
˄
Charging Delay Time(S)
600 Save
Charging Delay Disable
Charging Restrict
˄
2) After entering the “Charging Restrict”, the existed list will appear.
You can choose certain time period(s) and turn on or off the switch as shown,
and then touch “Save” to confirm the settings.
Charging Restrict
<+
17:30-17:31 limit
ban
18:30-18:31
6000W
Monday, Tuesday
Saturday
Save
