SolaX Power X1 Series User manual

614.00753.01
Solax Power Network Technology(Zhejiang) Co., Ltd.
X1 Series User Manual
3.0kW - 6.0kW
Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhejiang) Co,. Ltd.
Any corporation or individual should not plagiarize, partitially or fully copy (including
software,etc.), and no reproduction or distribution of it in any form or by any means. All rights
reserved. SolaX Power Network Technology (Zhejiang) Co., Ltd. reserves the right of nal
interpretation.

Contents
1 Note on this Manual
1.1 Scope of Validity
1.2 Target Group
1.3 Symbols Used
2 Safety
2.1 Appropriate Usage
2.2 Important Safety Instructions
2.3 Explanation of Symbols
2.4 EC Directives
3 Introduction
3.1 Basic Features
3.2 Terminals of the Inverter
3.3 Dimension
4 Technical Data
4.1 DC Input
4.2 AC Output
4.3 Efficiency, Safety and Protection
4.4 General Data
5 Installation
5.1 Check for Transport Damage
5.2 Packing Lists
5.3 Installation Precaution
5.4 Installation Steps
5.5 Connections of the Inverter
5.6 Run the Inverter
6 Operation Method
6.1 Control Panel
6.2 LCD Structure
6.3 LCD Operation
Contents
01
03
03
03
03
04
04
06
09
10
10
10
11
12
13
13
13
14
14
15
15
15
16
17
17
30
31
31
32
33

1.1 Scope of Validity
This manual is an integral part of X1 Series, It describes the assembly,
installation, commissioning, maintenance and failure of the product. Please read
it carefully before operating.
Note: “3.0” means 3.0 kW. ”T” means “double” MPPT strings.
“D” means with “DC Switch”, ”N” means without “DC Switch”.
“L” means with “LCD display”, ”X1” :Single Phase, ”K” :kW
Keep this manual at where is accessible all the time.
1.2 Target Group
This manual is for qualied electricians. The tasks described in this manual only
can be performed by qualied electricians.
1.3 Symbols Used
The following types of safety instructions and general information appear in this
document as described below:
1 Notes on this Manual
7 Troubleshooting
7.1 Troubleshooting
7.2 Routine Maintenance
8 Decommissioning
8.1 Dismantling the Inverter
8.2 Packaging
8.3 Storage and Transportation
8.4 Disposing of the X1-Boost
Notes on this ManualContents
03
02
38
38
41
42
42
42
42
42
X1-3.0-T-D(L) X1-3.3-T-D(L) X1-4.2-T-D(L)X1-3.6-T-D(L)
X1-3.0-T-N(L) X1-3.3-T-N(L) X1.3.6-T-N(L) X1-4.2-T-N(L)
X1-4.6-T-D(L) X1-5.0-T-D(L) X1-6K-T-D(L) X1-5.5K-T-D(L)
X1-4.6-T-N(L) X1-5.0-T-N(L) X1-5.5K-T-N(L) X1-6K-T-N(L)
DANGER！
“Danger” indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING!
“Warning” indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION!
“Caution” indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTE!
“Note” provides tips that are valuable for the optimal
operation of your product.
* Warranty registration form
9 Disclaimer 43

2 Safety
2.1 Appropriate Usage
The X1 Series are PV inverters which can convert the DC current of the PV generator
into AC current and feed it into the public grid.
* Surge protection devices (SPDs) for PV installation
Over-voltage protection with surge arresters should be provided
when the PV power system is installed.
The grid connected inverter is tted with SPDs in MAINS side.
WARNING !
Induced surges are the most likely cause of lightning damage in majority or
installations, especially in rural areas where electricity is usually provided by long
overhead lines. Surge may be included on both the PV array conduction and the
AC cables leading to the building.
Specialists in lightning protection should be consulted during the end use
application. Using appropriate external lightning protection, the effect of a direct
lightning strike into a building can be mitigated in a controlled way, and the
lightning current can be discharged into the ground.
Installation of SPDs to protect the inverter against mechanical damage and
excessive stress include a surge arrester in case of a building with external
lightning protection system (LPS) when separation distance is kept.
To protect the DC system, surge suppression device (SPD type2) should be tted
at the inverter end of the DC cabling and at the array located between the
inverter and the PV generator, if the voltage protection level (VP) of the surge
arresters is greater than 1100V, an additional SPD type 3 required for surge
protection for electrical devices.
To protect the AC system, surge suppression devices (SPD type2) should be
tted at the main incoming point of AC supply (at the consumer’s cutout),
located between the inverter and the meter/ distribution system; SPD (test
impulse D1) for signal line according to EN 61632-1.
All DC cables should be installed to provide as short a run as possible, and
positive and negative cables of the string or main DC supply should be bundled
together. Avoid creating loops in the system. This requirement forshort runs
and bundling includes any associated earth bundling conductors.
Spark gap devices are not suitable to be used in DC circuits once conducting,
they won’t stop conducting until the voltage passes through their terminals
typically less than 30 volts.
Lightning will cause a damage either from a direct strike or from surges due to a
nearby strike.
05
04
SafetySafety
Anti-Islanding Effect
►
Islanding effect is a special phenomenon that grid-connected PV system
still supply power to the nearby grid when electrical grid power is no
longer present. It is dangerous for maintenance personnel and the public.
X1 series provide Active Frequency Drift(AFD) to prevent islanding effect.
DC distribution box AC distribution box
Electrical
grid
Electric meter,
bidirectional
SolaX Single Phase Meter Load
PV array
Surge arrestor
Fuse
DC breaker
Surge arrestor
Fuse
AC breaker

2.2 Important Safety Instructions
CAUTION!
Danger of burn injuries due to hot enclosure parts!
During operation, the upper lid of the enclosure and the
enclosure body may become hot.
Only touch the lower enclosure lid during operation.
CAUTION!
Possible damage to health as a result of the effects of radiation!
Do not stay closer than 20 cm to inverter for any length of time.
NOTE!
Grounding the PV generator.
Comply with the local requirements for grounding the PV
modules and the PV generator. SolaX recommends connecting
the generator frame and other electrically conductive surfaces
in a manner which ensures continuous conduction and ground
these in order to have optimal protection of system and persons.
WARNING!
Ensure input DC voltage ≤Max. DC voltage. Over voltage may
cause permanent damage to inverter or other losses, which will
not be included in warranty!
Prior to the application, please read this section carefully to ensure correct and
safe application. Please keep the user manual properly.
Use only attachments recommended or sold by SolaX. Otherwise may result in
a risk of re, electric shock, or injury to person.
Make sure that existing wiring is in good condition and that wire is not
undersized.
Do not disassemble any parts of inverter which are not mentioned in
installation guide. It contains no user-serviceable parts. See Warranty for
instructions on obtaining service. Attempting to service the X1 Series inverter
yourself may result in a risk of electric shock or fire and will void your warranty.
Keep away from flammable, explosive materials to avoid fire disaster.
The installation place should be away from humid or corrosive substance.
Authorized service personnel must use insulated tools when installing or
working with this equipment.
PV modules shall have an IEC 61730 class A rating.
Never touch either the positive or negative pole of PV connecting device. Strictly
prohibit touching both of them at the same time.
The unit contains capacitors that remain charged to a potentially lethal voltage
after the MAINS and PV supply has been disconnected.
Safety Safety
0706
Do not operate the inverter when the device is running.
WARNING!
Risk of electric shock!
WARNING!
DANGER!
Danger to life due to high voltages in the inverter!
All work must be carried out by qualied electrician.
The appliance is not to be used by children or persons with
reduced physical sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
Children should be supervised to ensure that they do not play
with the appliance.
WARNING!
Authorized service personnel must disconnect both AC and DC
power from X1 series before attempting any maintenance or
cleaning or working on any circuits connected to the X1 series.
Hazardous voltage will present for up to 5 minutes after
disconnection from power supply.
WARNING!
CAUTION-RISK of electric shock from energy stored in capacitor. Never operate on
the solar inverter couplers, The MAINS cables, PV cables or the PV generator when
power is applied. After switching off the PV and Mains, always wait for 5minutes to
let the intermediate circuit capacitors discharge before you unplug DC and MAINS
couplers.
When accessing the internal circuit of solar inverter, it is very important to wait 5
minutes before operating the power circuit or demounting the electrolyte
capacitors inside the device. Do not open the device beforehand since the
capacitors require time to suffciently discharge!
Measure the voltage between terminals UDC+ and UDC- with a multi-meter
(impedance at least 1Mohm) to ensure that the device has totally discharged.

PE Connection and Leakage Current
• The inverter incorporates a certied internal Residual Current Device (RCD)
in order to protect against possible electrocution and re hazard in case of a
malfunction in the cables or the inverter. There are two trip thresholds for the RCD
as required for certication (IEC 62109-2: 2011). The default value for eletrocution
protection is 30 mA, and for slow rising current is 300 mA.
• If an external RCD is required by local regulations, check which type of RCD
is required for relevant eletric code. It recommends using a type-A RCD. The
recommended RCD values is 100mA or 300mA unless a lower value is required
by the specic local electric codes. When required by local regulations, the use of
an RCD type B is permitted.
The device is intended to connect to a PV generator with a capacitance limit of
approx 700nf.
High leakage current!
Earth connection essential before connecting supply.
WARNING !
• Incorrect grounding can cause physical injury, death or equipment malfunction
and increase electromagnetic.
• Make sure that grounding conductor is adequately sized as required by safety
regulations.
• Do not connect the ground terminals of the unit in series in case of a multiple
installation. This product can cause current with a d.c component, Where a residual
current operated protective (RCM) or monitoring (RCD
) device is used for protection
in case of direct or indirect contact, only one or of type B is allowedRCD RCM
on the supply side of this product.
For United Kingdom
• The installation that connects the equipment to the supply terminals shall
comply with the requirements of BS 7671.
• Electrical installation of PV system shall comply with requirements of BS 7671
and IEC 60364-7-712.
• No protection settings can be altered.
• Installer shall ensure that equipment is so installed and operated to maintain
at all times compliance with the requirements of ESQCR22(1)(a).
For Australia and New Zealand
• Electrical installation and maintenance shall be conducted by licensed
electrician and shall comply with Australia National Wiring Rules.
0908
2.3 Explanation of Symbols
This section gives an explanation of all the symbols shown on the inverter and
on the type label.
Symbols on the Inverter
Symbol Explanation
The inverter is working normally, when the blue light is on.
An error has occurred, when the red light is on.
Symbols on the Type Label
Symbol Explanation
Safety Safety
•
•
CE mark.
The inverter complies with the requirements of the applicable
CE guidelines.
RCM remark.
Beware of hot surface.
The inverter can become hot during operation. Avoid contact
during operation.
Danger of high voltages.
Danger to life due to high voltages in the inverter!
Danger.
Risk of electric shock!
Observe enclosed documentation.
The inverter can not be disposed together with the household waste.
Disposal information can be found in the enclosed documentation.
Do not operate this inverter until it is isolated from mains
and on-site PV generation suppliers.
Danger to life due to high voltage.
There is residual voltage in the inverter which needs 5 min to
discharge.
• Wait 5 min before you open the upper lid or the DC lid.
TUV certication.
Compliant with UKCA standards.
Compliant with UKNI standards.

Object
A DC Switch (optional)
Waterproof Lock Valve
DC Connector
Pocket Wi-Fi, Pocket LAN/ GPRS (optional)
B
C
D
E
F
G
Description
RS485/ Meter/ CT/ DRM(optional)
AC Connector
Ground screw
2.4 CE Directives
This chapter follows the requirements of the European low voltage directives,
which contains the safety instructions and conditions of acceptability for the
endues system, which you must follow when installing, operating and servicing
the unit. If ignored, physical injury or death may follow, or damage may occur to
the unit. Read this instructions before you work on the unit. If you are unable to
understand the dangers, warnings, cautions or instructions, please contact an
authorized service dealer before installing, operating and servicing the unit.
The Grid connected inverter meets the requirement stipulated in Low Voltage
Directive (LVD) 2014/ 35/ EU and Electromagnetic Compatibility (EMC) Directive
2014/ 30/ EU. The unit is based on:
EN 62109-1:2010 ; EN 62109-2:2011 ; IEC 62109-1(ed.1) ; IEC62109-2(ed.1)
EN 61000-6-3:2007+A: 2011 ; EN 61000-6-1: 2007 ; EN 61000-6-2: 2005
In case of installation in PV system, startup of the unit (i.e. start of designated
operation) is prohibited until it is determined that the full system meets the
requirements stipulated in EC Directive (2014/ 35/ EU, 2014/ 30/ EU, etc.)
The grid connected inverter leave the factory completely connecting device and
ready for connection to the mains and PV supply, the unit shall be installed in
accordance with national wiring regulations. Compliance with safety regulations
depends upon installing and conguring system correctly, including using the
specied wires. The system must be installed only by professional assemblers
who are familiar with requirements for safety and EMC. The assembler is
responsible for ensuring that the end system complies with all the relevant laws
in the country where it is to be used.
The individual subassembly of the system shall be interconnected by means of
the wiring methods outlined in national/ international such as the national
electric code (NFPA) No.70 or VDE regulation 0107.
3. Introduction
3.1 Basic Features
Safety &Reliability: transformerless design with software and hardware
protection.
Power factor regulation.
Friendly HMI.
- LED status indications.
- LCD display technical data, Human-machine interaction through press
key.
- Dry contact communication interface.
- PC remote control.
- Remote upgrade and upgrade through USB interface.
- Pocket Wi-Fi.
- Pocket LAN/ GPRS monitoring/ Pocket Wi-Fi Plus/ Pocket GPRS(optional).
10 11
Safety Introduction
Thanks for your purchasing with SolaX X1 Series inverter. The X1 Series
inverter is one of the nest inverters on the market today, incorporating state-
of-the-art technology, high reliability, and convenient control features.
Advanced DSP control technology.
Utilize the latest high-efficiency power component.
Optimal MPPT technology.
- Two independent MPP Tracking.
- Wide MPPT input range.
Advanced anti-islanding solutions.
IP66 protection level.
Max. efficiency up to 98%.EU efficiency up to 97%.
THD<2%.
3.2 Terminals of the Inverter
WARNING!
Only authorized personnel is allowed to set the connection.
Note: Pocket Wi-Fi/ LAN/ GPRS share one port E; RS485/ Meter/ DRM share
one port G
E
FG
A B C GD
- Energy conservation.

3.3 Dimension
Ø
Dimension
341.5mm
430mm
143mm
4. Technical Data
4.1 DC Input
Max. recommended PV array power [W]
Max. DC voltage[V]
MPPT voltage range [V]
MPPT voltage range@full load [V]
Max. input current [A]
Max. short circuit current [A]
Start output voltage [V]
No. of MPP trackers
Strings per MPP tracker
4500
600
70-580
115-550
14/14
16/16
100
2
1
X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N
4950
600
70-580
120-550
14/14
16/16
100
2
1
5400
600
70-580
138-550
14/14
16/16
100
2
1
6300
600
70-580
177-550
14/14
16/16
100
2
1
6900
600
70-580
220-550
14/14
16/16
100
2
1
4.2 AC Output
Rated grid voltage and range [V]
Rated AC frequency and range [Hz]
AC norminal current [A]
Max. output current [A]
(3680 for TOR)
220/230/240 (180-280)
50(45-55)/60(55-65)
12 13
Introduction Technical Data
X1-3.0-T-D X1-3.3-T-D X1-3.6-T-D X1-4.2-T-D X1-4.6-T-D
Model
33
92
<2%
0.8 leading-0.8lagging
ingle-phaseS
(electric supply side), ( side)III II PV
Max. output overcurrent protection(A)
Max. inverter backfeed current to
the array(mA)
X1-5.0-T-N
7500
600
70-580
192-550
14/14
16/16
100
2
1
X1-5.0-T-D
0
Model
(16AforG98)
Rated output power [W] 3000 3300 3680 4200 4600
5500
Inrush current(A)
Total harmonic distortion(THDi)
Displacement power factor
Feed in phase
Over voltage category
Optional
DC disconnection switch
4048
16
X1-5.5K-T-N
X1-5.5K-T-D
X1-6K-T-N
X1-6K-T-D
9000
600
70-580
230-550
14/14
16/16
100
2
1
8250
600
70-580
208-550
14/14
16/16
100
2
1
X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N
X1-3.0-T-D X1-3.3-T-D X1-3.6-T-D X1-4.2-T-D X1-4.6-T-D
X1-5.0-T-N
X1-5.0-T-D
X1-5.5K-T-N
X1-5.5K-T-D
X1-6K-T-N
X1-6K-T-D
3300
13
14.3
3630
14.3
15.8 17.6
26.1
28.7
6000
6600
Max.apparentACpower[VA] 4620
18.3
20.1
5060
20
22
5500
6050
23.9
26.3
5000
21.7
23.9
1
2
3
21.7A for AS4777/20A for VDE4105
4999W for AS4777/4600W for VDE4105
1
24999VA for AS4777/4600VA for VDE4105
3
1 1
2 22
(4600 for
VDE4105)
3 3
3 3
3
3

4.3 Efficiency, Safety and Protection
MPPT efficiency
Euro efficiency
Max. efficiency
Safety & Protection
Over/under voltage protection
DC isolation protection
Monitoring ground fault protection
Grid protection
DC injection monitoring
Back feed current monitoring
Residual current detection
Anti-islanding protection
Over load protection
Over heat protection
Inverter+BMU
99.90%
97.00%
97.80%
4.4 General Data
Dimension [W/H/D](mm)
Dimension of packing [W/H/D](mm)
Net weight [kg]
Gross weight [kg]
Installation
Operating temperature range[℃]
Storage temperature [℃]
Storage/Operation relative humidity
Altitude [m]
Ingress Protection
Isolation type
Protective Class
Night-time consumption
Over Voltage Category
Pollution Degree
Cooling
Noise level
Inverter Topology
Communication interface
Standard warranty [year]
99.90%
97.00%
97.80%
99.90%
97.00%
97.80%
99.90%
97.00%
97.80%
99.90%
97.00%
97.80%
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
430*341.5*143
514*439*233
Wall-mounted
-25~+60 (derating at 45)
-30~+70
0%~100%, condensation
≤3000
IP66
Non-isolated
Ⅰ
<2W
Ⅲ(MAINS),Ⅱ(PV)
Ⅱ
Natural Cooling
30dB
Transformerless
Pocket Wi-Fi, Pocket LAN/GPRS(optional)/4G/Meter/CT/RS485/ DRM/ USB
5years (10 optional)
5. Installation
5.1 Check for Transport Damage
5.2 Packing Lists
Make sure the inverter is intact during transportation. If there are some visible
damages, such as cracks, please contact your dealer immediately.
Open the package and fetch out the product, check the accessories at rst.
The packing list shows as below.
14 15
Technical Data Installation
13.5 13.5 15.0 15.0
16.0 16.0 17.0 17.0
99.90%
97.00%
97.80%
15.0
17.0
13.5
16.0
99.90%
97.00%
97.80%
15.0
17.0
Model
Model
X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N
X1-3.0-T-D X1-3.3-T-D X1-3.6-T-D
X1-4.2-T-D
X1-4.6-T-D
X1-5.0-T-N
X1-5.0-T-D
X1-5.5K-T-N
X1-5.5K-T-D
X1-6K-T-N
X1-6K-T-D
99.90%
97.00%
97.80%
X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N
X1-3.0-T-D X1-3.3-T-D X1-3.6-T-D X1-4.2-T-D X1-4.6-T-D
X1-5.0-T-N
X1-5.0-T-D
X1-5.5K-T-N
X1-5.5K-T-D
X1-6K-T-N
X1-6K-T-D
15.0
17.0
BCD
X1 Series 3.0KW-6.0KW
G
HI
A
F
E
Object
X1 series inverter (with bracket)
1
A
B
C
D
E
F
G
H
I
4
1
3
1
4
1
Female DC connector * 2, Male DC connector * 2
AC connector
Earth terminal
User manual
Quick installation guide
Quantity Description
Pocket Wi-Fi, Pocket LAN/GPRS(optional)
1
DC pin contact(2* positive, 2* negative)
1
(Expansion bolt, Flat gasket,Self-tapping screw)*3
X1 Series User Manual
3.0kW - 6.0kW
Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
Any corporation or individual should not plagiarize, partitially or fully copy (including
software,etc.), and no reproduction or distribution of it in any form or by any means. All rights
reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd. reserves the right of nal
interpretation.

5.3 Installation Precaution
Please avoide direct sunlight, rain exposure, snow laying up during installing and
operating.
Available Space Size
X1 Series inverter is designed for outdoor installation (IP 66).
Make sure the installation site meets the following conditions:
Position Min.size
Left 300 mm
300 mm
300 mm
300 mm
300 mm
Right
Top
Bottom
Front
Table Available Space Size
5.4 Installation Steps
Preparation
Step 2: Screw the wall bracket on the wall
Step 3: Match the inverter with wall bracket
Ø
Ø
Ø
Below tools are needed before installation.
Installation tools : crimping pliers for binding post, screwdriver, manual
wrench and Φ10 driller.
b) Use the wall bracket as a template to mark the position of the 3 holes
on the wall.
c) Drill holes with driller, make sure the holes are deep enough (at least
60mm) for installation.
d) Install the expansion tubes in the holes, use φ10 hexagon socket wrench
to tighten self-tapping screws. Then install the wall bracket by using the
e) Hang the inverter over the bracket, move the inverter close to it, slightly lay
down the inverter, and make sure the 2 mounting bars on the back are xed
well with the 2 grooves on the bracket.
Note: Please refer to the details from the Quick Installation Guide.
16
Installation Installation
1) Solid brick/concrete, or strength equivalent mounting surface;
2) Inverter must be supported or strengthened if the wall’s strength isn’t enough
(Such as wooden wall, the wall covered by thick layer of decoration)
Not be exposed to glare.
Not in areas where highly ammable materials are stored.
Not in potential explosive areas.
Not in the cool air directly.
Not near the television antenna or antenna cable.
Not higher than altitude of about 3000 m above sea level.
Not in environment of precipitation or humidity(100%) .
Be sure the ventilation is good enough.
The ambient temperature in the range of -25℃ to +60℃.
The slope of the wall should be within ±5°.
The wall hanging the inverter should meet conditions below:
17
300 mm 300 mm
300 mm
300 mm
Step 1: Unscrew the bracket from the back of the inverter.
Ø
a) The wall bracket is xed on the inverter, and the user should remove it
rstly. (Phillips screwdriver, Φ10 driller. torque: 0.8±0.1N·m)
5.5 Connections of the Inverter
5.5.1 The Main Steps to Connect to the Inverter
PV String Connection
Ø
The inverter has a couple of PV connectors which can be connected in series into
2-strings PV modules. Please select PV modules with excellent function and
reliable quality. Open circuit voltage of module array connected should be <
Max.DC (table as follow) input voltage, and operating voltage should be within
the MPPT voltage range.
expansion screws.

Table 3 Max. DC Voltage Limitation
Max.DC Voltage 600V
WARNING!
PV module voltage is very high which belongs to dangerous voltage
range, please comply with the electric safety rules when connecting.
WARNING!
Please do not make PV positive or negative ground!
NOTE!
Please follow the requirements of PV modules as below:
Same type; Same quantity; Identical alignment; Identical tilt.
In order to save cable and reduce the DC loss, we suggest installing
the inverter near PV modules.
Inverter+BMU
Connection Steps
18 19
Installation Installation
Model
NOTE!
Please choose a suitable external DC switch if the model (X1-3.0-T-
N, X1-3.3-T-N,X1-3.6-T-N,X1-4.2-T-N,X1-4.6-T-N,X1-5.0-T-N,X1-
5.5K-T-N, X1-6K-T-N) is purchased.
X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N
X1-3.0-T-D
X1-3.3-T-D
X1-3.6-T-D
X1-4.2-T-D X1-4.6-T-D
X1-5.0-T-N
X1-5.0-T-D
DANGER!
Danger to life due to high voltages on DC conductors.
When exposed to sunlight,the PV array generates dangerous DC
voltage which is present in the DC conductors.Touching the DC
conductors can lead to lethal electric shocks.
Cover the PV modules.
Do not touch the DC conductors.
Below tools are needed before connection.
Stripping pliers Wire crimper
Wire crimper recommended model :
H4TC0001
manufacturer: Amphenol
7.0 mm
strip length
d) Crimp pin contact by using the wire crimper.
c) Insert striped wire into pin contact and ensure all conductor strand are
captured in the pin contact.
f) Insert the wire into plug forcibly, when a "click” is heard or felt the pin contact
assembly is seated correctly. Then tighten the cable nut.
pin contact
Crimp these parts
e) Separate the DC connector as two parts: the plug and the cable nut.
Then insert the wire with pin contact through the cable nut.
Wire crimper
plug
a) Turn off the DC switch, then Choose 4mm² wire to connect the PV module.
b) Strip 7mm of insulation from the wire end by using the stripping pliers.
( recommended model: H4TC0001, manufacturer: Amphenol)
cable nut
g) Use a multimeter to measure whether the positive and negative
polarities are correct, and check whether this PV module is normal.
h) Remove the blue protective cover of the PV +&- interface at the
bottom of the inverter, and insert the completed PV terminals
according to the positive and negative correspondence.
I) Cover the remaining unused PV terminals with the original blue
cover
j) Keep the DC switch of the inverter off(if there is a DC switch)
X1-5.5K-T-N
X1-5.5K-T-D
X1-6K-T-N
X1-6K-T-D

Connection Steps
Grid Connection
Ø
X1 series inverter are designed for single phase grid. Nominal grid voltage is 220/ 230/ 240 V,
frequency is 50/ 60 Hz. Other technical requests should comply with the requirement
of the local public grid.
Micro-breaker should be installed between inverter and grid, any loads should
not be connected with inverter directly.
a) Check the grid voltage and compare with the permissive voltage range (refer to
technical data).
b) Disconnect the circuit-breaker from all the phases and secure against re-
connection.
c) Strip the wires:
- Strip all the wires to 52.5mm and the PE wire to 55mm.
- Use the crimping pliers to trip 6mm of insulation from all wire ends as below.
Table 4 Cable and Micro-breaker recommended
Incorrect Connection between Load and Inverter
L,N Cable 4-6 mm²Inverter+BMU
PE Cable
4-6 mm²4-6 mm²5-6 mm²5-6 mm²
d) Separate the AC plug into three parts as below.
- Hold the middle part of the female insert, rotate the back shell to
loose it, and datach it from female inset.
- Remove the cable nut (with rubber insert) from the back shell.
e) Slide the cable nut and then back shell onto the cable.
f) Insert the stripped end of each three wires into the appropriate hole in the
female insert, and then tight each screw (to tight each wire in place). (PH1
cross screwdriver. Torque: 0.5±0.1N·m)
g) Screw down the threaded sleeve the pressure screw.
h) Screw down the pressure screw. (torque: 3±0.3N·m)
I) Connect the AC plug to the inverter.
20
Installation Installation
5-6 mm²
*The parameters have some differences because of different environment and material.
Please according to the local conditions to choose appropriate cable and micro-breaker.
5-6 mm²
6mm
Model X1-3.0-T-N(L)X1-3.3-T-N(L)X1-3.6-T-N(L)X1-4.2-T-N(L)X1-4.6-T-N(L)
X1-3.0-T-D(L)X1-3.3-T-D(L) X1-3.6-T-D(L) X1-4.2-T-D(L) X1-4.6-T-D(L)
X1-5.0-T-N(L)
X1-5.0-T-D(L)
21
Micro-breaker 20 A 20 A 20 A 25 A 25 A 32 A32 A
2.5-6 mm²2.5-6 mm²2.5-6 mm²2.5-6 mm²2.5-6 mm²2.5-6 mm²2.5-6 mm²
X1-5.5K-T-N(L)
X1-5.5K-T-D(L)
5-6 mm²
32 A
2.5-6 mm²
X1-6K-T-N(L)
X1-6K-T-D(L)
NOTE!
Inverters should not be used in multiple phase combinations.

Main cable( line cable)shall be short circuit protected and thermal overload AC
protected.
Always t the input cable with fuse. Normal gGs (US: CC or T ) fuses will protect the input
Dimension the fuses according to local safety regulations, appropriate input voltage
and the related current of the solar inverter.
AC output protected by external fuse(gG rated current 25 A/ 250 VAC for 3.0 KW/ 3.3 KW;
32 A/ 250 VAC for 3.6 KW/ 4.2 KW/ 4.6 KW/ 5.0 KW/ 5.5 KW/ 6.0 KW) provides in all live
connections to the AC supply.
The rated short circuit breaking capacity of the above protective device shall be at
least equal to the prospective fault current at the point of installation. See section
technical data of this manual details.
AC ; L, N,PE: 3*4.0 mm KW/ 3.3 KW/ 3.6 KW and 3*5 mm for output cable: Cu for 3.0
4.2 KW/ 4.6 KW/ 5.0 KW/ 5.5 KW/ 6.0 KW @40℃ ambient temperature with a max length
of 5 m, with operating time of the fuses is less than 5 seconds, installation method B2
according to 60204-1:2006, annex D: cable in conduit cable trunking system, EN
number of loaded circuit only one. Use H07 (cord designation 60245 66) for an RNF IEC
ambient temperature of 40 or less and use 90 wire for ambient temperature ℃ ℃
between 40 and 60 .℃ ℃
Note 2: Fuses must be approved by Notied Body.
Inverter is not provided galvanic isolation from the mains to the array, feedback PV
current to the array is 25A/ 250 VAC for 3.0 KW and 3.3 KW; 32 A/ 250 VAC for 3.6 KW,
4.2 KW, 4.6 KW, 5.0 KW, 5.5 KW and 6.0 KW based on the fuse provided in the mains. Also
in the worst case the reverse current comprises the sum of the short-circuit currents of
all intact lines.
Therefore the current-carrying capacity of the components and sub-assemblies
provided in the end-use system(connectors, cables, junction box, switch ger, etc. ) and
the reverse current modules shall be considered based on the feedback current PV
and reverse current. The direct current( ) circuit breaker or fuse between each solar DC
generator and inverter shall be provided based on solar inverter input ratings.
Select cables based in the above inverter back-feed current and rating and DC ISCPV
Vmax ratings.
Selection of Fuses and Cables connection NOTE!
Earth Connection
Ø
Screw the ground screw with allen wrench shown as follow. (φ4 hexagon
wrench.torque: 1.5±0.2N·m)
22
Installation Installation
23
Ø
WARNING!
Be sure the ground wire must be connected!
5.5.2 Communication interface
This product has a series of communication interfaces: such as
Wi-Fi, RS485/ Meter/ DRM are used for communication and USB is used for
Firmware updating. Operating information like output voltage, current,
frequency, faulty information, etc., can be delivered to PC or other
monitoring equipment via these interfaces.
Wi-Fi
This inverter provides a Wi-Fi port which can collect information from inverter
including status, performance and updating information to monitoring website
via connecting Pocket Wi-Fi(purchase the product from supplier if needed)
Connection steps:

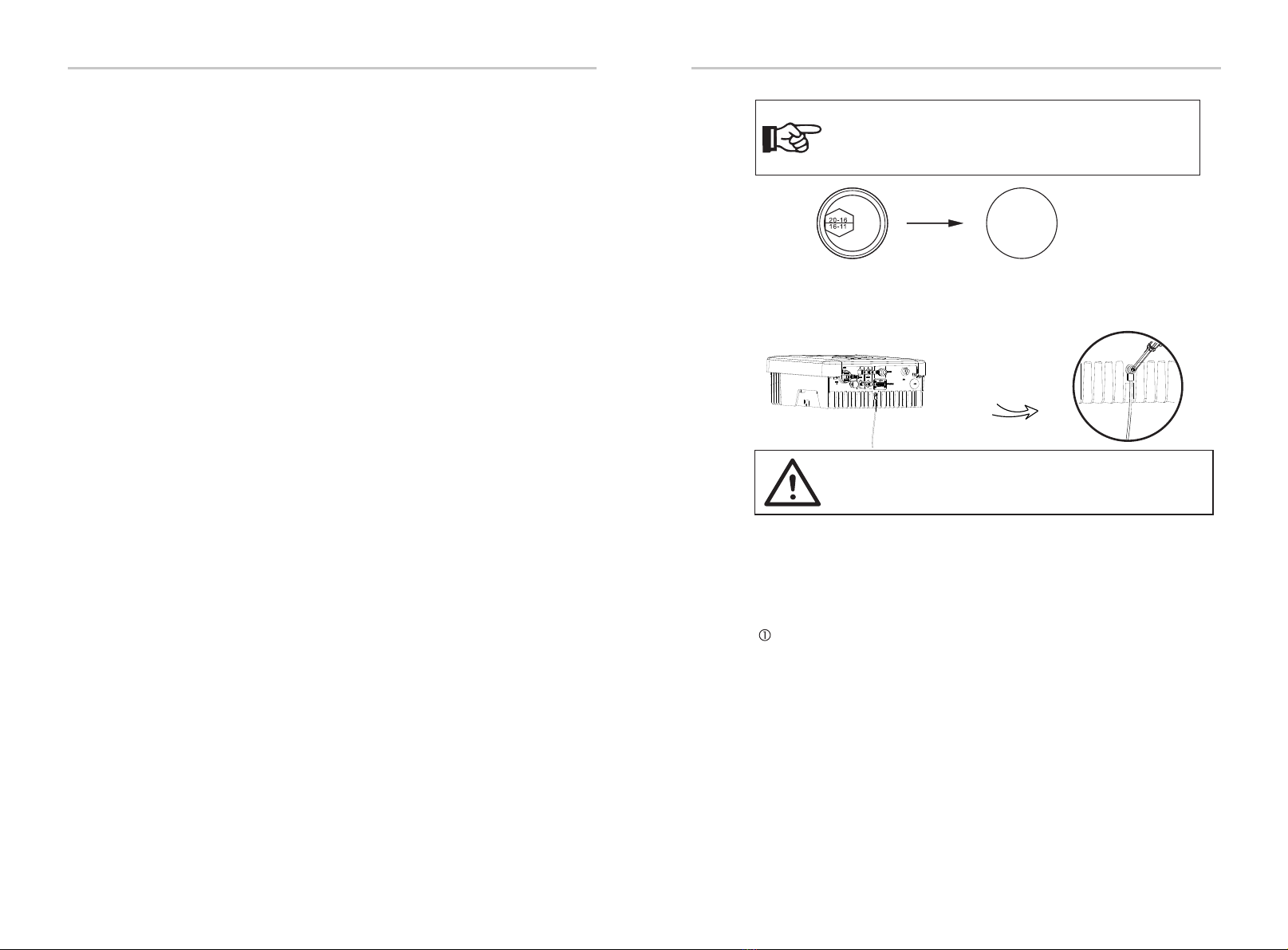

If the AC cable you choose is 16mm² or larger, you need to
break the connection between the two rubber rings which
make up the rubber insert as below.
cable in short circuit situation. They will also prevent damage to adjoining equipment.
Note 1: For conditions differing from those mentioned above, dimension the
cables according to local safety regulations,appropriate input voltage and
theload and the load current of the unit.(You can choose a thicker cable but the
fuses must rated according to the rating of the cable.)
1). Insert the Pocket Wi-Fi into "DONGLE" port at the bottom of inverter.
2). Connect Pocket Wi-Fi with the router (see Wi-Fi Setup Guide for details).
3). Set power station information on Solax website.

CT Connection:
Ø
CT connection diagram
Electrical
grid
Home Electric meter
Load
L
N
L line
CT
Public Grid
RS485 port on the
bottom of inverter
The current sensor measures the current on the phase wire that runs between
the inverter and the grid.
Important: The arrows direction on the CT
must point to the public grid side.
CT
When connectingthe RJ45 connector with the wire of the CT, please follow the
below sequence :
CT PIN Denition
1
8
RS485 is one standard communication interface which can transmit the realtime data
from inverter to PC or other monitoring equipments.
a. RS485
RS485/Meter/CT/DRM
b. Meter/CT(optional)
The PIN denitions of RS485/Meter interface are as below.
1
8
With this single phase meter working together with the X1 series, you can:
(1) Monitor the energy to grid and from grid through the whole day.
(2) Achieve the export control function with a higher accuracy.
PIN
Denition
1
X
4
Meter_A/
7
E_Stop
5
Meter_B/
8
RefGen
2
Com/DRM0
3
GND_COM
6
X
485_A 485_B
Electrical
grid
Electric meter
bidirectional
Load
X1 series inverter
Single phase meter
Note！
Installation Installation
24 25
PIN
Denition
1
CT+
4
X
7
X
5
X
8
CT-
2
X
3
X
6
X
It is recommended to connect a SolaX Smart meter to inverter. If
there is no smart meter installed, please disable the "Export
Control" function in the inverter setting otherwise the inverter will
stop and report a "Meter fault" alert.
The smart meter must be purchased from and authorized by SolaX,
any third party or non-authorized meter may not match with the
inverter. Solax will not take the responsibility if the meter is
unavailable or incompatible in this case.

RS485 Connection Steps:
1) Firstly unscrew all screws from the RS485 port. (PH1 cross screwdriver .
torque:1.0±0.1N·m)
2) Prepare a communication cable and trip the insulation from it.
3) Let the communication cable pass though the waterproof connector, then
insert it into the connector following the PIN denition rule.
4) Crimp the connector with the crimping plier.
5) Insert the cable into the RS485 port of the inverter, and tighten the
waterproof connector.
DRM function (for AS4777) is provided to support several demand response
modes by giving control signals as below. The user should short circuit between
1 and 2 and cooperate with external equipment when using it.
1
8
DRM
Installation
DRM shares the terminal block with RS485/ Meter communications.
The connection steps of the DRM, user can refer to the above (b) RS485
connections.
Note: Only DRM0 is available now, and other functions are being developed.
PIN
Denition
1
X
4
X
7
RefGen
5
X
8
X
2
Com/DRM0
3
GND_COM
6
X
Ø
27
Hand tighten.torque:1.2±0.1N·m
CT Connection Steps:
• Do not place the CT on the N Wire or the earth wire.
• Do not place the CT on the N and L wire simultaneously.
• Do not place the CT with the arrow pointing to the inverter side.
• Do not place the CT on the non-insulated wires.
• Do not use the wire over 25m.
NOTE!
1. Insert the RJ45 connector of CT into the RS485 port on the inverter, and screw
down the screw cap tightly.
3. Make sure the current sensor is installed in the right direction: The arrow
on the current sensor must point to the public grid.
2. Clip the CT clamp on L line from the home main meter box side.
CT clamp
L line from the home main meter box side.
arrow point to the public grid
public grid side inverter side
Step 2/3
Installation
26
RJ45 connector
Screw cap
CT clamp
CT structural decomposition
communication line
RJ45 connector
Screw cap RS485 port on the inverter
Step 1

Upgrade
User can update the inverter system through the U-disk.
2) Please insert the U-disk into the "DONGLE" port.
1) Please contact SolaX service to get the latest rmware. Then add a new
folder named "Update" in the root directory on your U-disk, and two more
sub-folders named "ARM" and "DSP" under "Update". Please copy the
rmware les into ARM and DSP respectively. It will be like:
“Update\ARM\618.00207.00_X1_BOOST3.0_MINI2.0_AIR2.0_ARM_V1.21_20200826.usb'';
“Update\DSP\618.00381.00_X1_BOOST3.0_MINI2.0_AIR2.0_DSP_V2.02_20200928.usb’’.
Upgrade Steps:
ARM
DSP
3) Then insert U-disk into the DONGLE port on the bottom of the inverter. Then
turn on DC switch or connect the PV connector, the LCD will show the main
pictures as below.
28
Installation Installation
5) When the upgrade is completed, please remember to turn off the DC
switch and AC switch, then pull off the U-disk.
4) Press up and down to select the one that you want to update and long
press down to conrm.
Ø
Update(ARM)
Updating----25%
WARNING!
Make sure the directory is in accordance with above form strictly!
Do not modify the program file name! Or it may cause the inverter
does not work anymore!
WARNING!
4
During updating, please don’t turn off the DC switch or
disconnect the PV connector. If failed, please repeat the above
operation again.
WARNING!
29
•
•
Cancel
OK
Isolation Fault Alarm
5
Make sure the input voltage is more than 100V( in good
illumination condition), or it may result in failing during
updating.
The inverter has the isolation fault alarm function as required by AS 4777.2
and AS/NZS 5033. It will give an visual alarm,you will see that the red light
is ickering and the Isolation Fault will show on the LCD of inverter once
the Insulation impedance of the PV arrays is less than 100 KΩ .

Installation Operation Method
30
5.6 Run the Inverter
a) Check that device is fixed well on the wall.
b) Make sure all the DC breakers and AC breakers are disconnected.
c) AC cable is connected to grid correctly.
d) All PV panels are connected to inverter correctly, DC connectors which are
not used should be sealed by cover.
e) Turn on the external AC and DC connectors.
f) Turn on the DC switch to the “ON” position.
Start inverter after checking all below steps:
Start the inverter
Inverter will start automatically when PV panels generate enough energy.
Check the status of LED indicators and LCD screen, the LED indicators should be
blue and the LCD screen should display the main interface.
If the LED indication is not blue, please check the below:
- All the connections are right.
- All the external disconnect switches are closed.
- The DC switch of the inverter is in the “ON” position.
Below is the three status when operating, which means inverter starting
up successfully.
Waiting: Inverter is waiting to checking when DC input voltage from panels is
greater than 80 V (lowest start-up voltage) but less than 100 V (lowest operating
voltage).
Checking: Inverter will check DC input environment automatically when DC
input voltage from the PV panels exceeds 100 V and PV panels have enough
energy to start inverter.
Normal: Inverter begins to operate normally with blue light on. Meanwhile
feedback energy to grid, LCD displays present output power.
Enter the setting interface to follow the instructions when it is rst time o start
up.
Ø
Ø
Ø
31
WARNING!
Power to the unit must be turned on only after installation work
has been completed. All electrical connections must be carried
out by qualied personnel in a cordance with legislation in
force in the country concerned.
NOTE!
Please set the inverter if it is the rst time to start up.
Above steps are for the regular start of the inverter. If it is the rst
time to start up the inverter, you need to setup the inverter.
ENERGY CONTROL
Equipment only to be used for the purpose outlined by SolaX.
6. Operation Method
6.1 Control panel
B
C
D
Object Name Description
E
Indicator
LED
Function
Button
Light in blue: The inverter is in normal status.
Flash in blue: The inverter is in waiting status.
Up/ESC button:
Light in red: The inverter is in fault status.
Down/Enter button:
A
LCD Screen Display the information of the inverter.
A
C
B D
E
Move cursor to upside or increase value.
Return from current interface or function
Move cursor to downside or decrease value.
Confrm and change the parameters.
LCD
Note: The inverter is in “Waiting” and “Checking” status, the blue light “B” is
ickering; when in “Normal” status, the blue light “B” is always on.

6.2 LCD Structure 6.3 LCD Operation
32
Operation MethodOperation Method
Note:
Enter/Down
Long Press
Back/Up
Go to the next menu or conrm to change parameters
Look at the next parameter or increase the value
Return the previous menu or conrm the parameters
Look at the previous parameter or decrease the value
Key
Operation
Description
˄
˅
Short Press
Long Press
Short Press
Please refer to the inverter for the most updated structure **Previous page
33
>Safety
Grid
>Grid
>Power Factor
>P(U) Function
>Power Limit
>DRM Function
>Reset Errorlog
Country
>AS4777<
Mode Select
>Enable<
>Vac Upper
0.0
↓
> 220.0 <
>Mode Select
Enable
↓
0 0 0 0
Enter
Enter
Enter
Enter
Enter
Enter
Mode Select
>Pf(P)<
>Upper Limit
0.0 ↓
>1.0 <
Enter
Enter
Back
Back
Back
Back
Back
Back
Back
Back
Back
>New Password
>Reset
No
Enter
1.00
**
Enter
Back
Enter
Back
Up Down
Up Down
Up Down
Up Down
Up Down
Up Down
Up Down
> Proportion
>Reset Energy >Reset
No
Enter
Back
Up Down
↓
> 0.80 <
Back
Enter
>Mode Select
Disable
Enter
Back
Up Down
Mode Select
>Enable<
Reset
>No<
Reset
>No<
Enter
Back
Enter
Back
Enter
Back
Back
>Earth Detect
>Mode Select
Disable
Enter
Mode Select
>Disable<
Enter
Up Down
>Line Impedance
Up Down
Back Back
>Mode Select
Disable
Enter
Mode Select
>Disable<
Enter
>Self Test♦
Up Down
Back
>All Test
Enter
Test Report ♦Only for Italy
Power 0W
Normal
Today 0.0KWh
Normal
>Status Ugrid 0.0V
F 0.00Hz
>Language
>Setting
>Error Logs
>About
>Machine Type:
xx-S
>Master:
xxx
>Manager:
xxx
>English
German
↓
0 0 0 0
1:xxYxxxDxxH
Error1
>Safety
Grid
Enter
Total 0.0KWh
Normal
Back
>Product SN:
X1xxx
Up Down
Back
**Go to next page
**
Igrid 0.0A
Pout 0W
Down
Up
*
*User can also see the U,I & P
of the PV. (Usolar,Isolar,Psolar)
Back
Back
Up Down
Up Down
Up Down
Up Down
Up Down
Up Down
Down
Enter
Enter
Enter
Enter
Back
Enter
Back
Enter
Back
Up Down
Up Down
Enter
Back
***Only six latest errors were kept
1 level 2 level 3 level
***
>Meter Energy
>Today:
00.0KWh
Up Down
Enter
Back
Back
>Reset Meter
Up Down
>Reset
No
Enter
Back
Reset
>No<
Enter
Back
>Internal Code:
xxx
Back
Up Down
Pgrid 0W
Normal
Up Down
Enter
>Export Control

34
Operation MethodOperation Method
•1 level
a) The rst line displays the parameters(Power, Today and Total) and the values.
b) The second line shows the running status.
•2 level
Long press any rst-level parameter can enter the second-level “Status” parameter
interface.
The user can also see other parameters, such as the Language( without password ),
Setting ( need password ), Meter energy, Error Logs of the inverter, and About ( the
user can watch the information of the inverter).
•3 level
Long press the second-level parameter can enter the corresponding third-level
parameter interface.
a) Status: The user can see the U/I/P parameters of the grid and the PV, such as the
Ugrid, Igrid, PF value of the grid, and the Usolar, Isolar and Psolar of the PV.
b) Language: This inverter provides several languages for customer to choose.
c) Setting: Entering the installer password, the information of the LCD interface is
as the previous page shown.
(1) Safety: The user can set the right safety standard here.
(2) Grid: Usually end user does not need to set the grid parameters. All default
value have been set before leaving factory according to safety rules.
If need to reset, any changes should refer to the requirement of local grid.
LCD Display
Ø
Parameter Comment
Normally
Vac upper Voltage high protect
Vac lower Voltage low protect
Vac upper slow Voltage high slow protect
Vac lower slow Voltage low slow protect
Fac upper Frequency high protect
Fac lower Frequency low protect
Fac upper slow Frequency high slow protect
Fac lower slow Frequency low slow protect
Vac 10m avg 10 min voltage high protect
Apply to EN50549_NL.
FreqSetPoint
FreqDropRate
Frequency set point
Frequency droop rate
35
Mode Comment
Off
Under-Excited PF value
Over-Excited PF value
PF(p)
Upper limit
Lower limit
Power Upper
Power Lower
Q( u )
QuVupRate
QuVlowRate
-
( EN50549_NL )
( EN50549_NL )
Fixed Q Power Q Power( for some local grids )
QUrangeV1 ( AS4777.2 )
QUrangeV4 ( AS4777.2 )
(3) Power Factor: ( For specic country if required by the local grid supplier.)
There are 6 modes for selecting: Off , Under-Excited, Over-Excited, PF(p), Q( u ).
All parameters are shown below.
0.9
0.9
Upper limit
capactive inductive
f (P)
Lower limit
Power Lower
Power Upper
curve B
0.3
0.7
0.2
0.8
0.9/0.95*
0.9/0.95*
leading
p/p
lagging
curve A
0.5 1.0
over-excited
under-excited
0.2
1
Emax
cos φ
Parameter Comment
Apply to EN50549_PL.
Vac upper Voltage high protect
T-Start 60s
H/LVRT Function Disable
FreqSetPoint
FreqDropRate
Frequency set point
Frequency droop rate
For VDE ARN 4105,curve cosφ=f(P) should refer to curve A.Default
values of setting are as shown in curve A.
For E 8001,curve cosφ=f(P) should refer to curve B.Default values of
setting are as shown in curve B.
The information of the interface is as below. “Power” means the timely
output power; “Pgrid” means the power exported to or imported from the grid.
“Today” means the energy generated within the day. “Normal” shows the
status of the inverter.(Positive value means the energy fed into the grid,
negative value means the energy used from the grid).

36 37
Operation MethodOperation Method
↓
> 0.80 <
1.00
> Proportion →
→The way to set value :
a) Long press the key (V) to enter the interface, and long press again to modify .
b) Short Press (Λ) or (V) to increase or decrease the value you needed.
c) After setting, long press the (V) key to conrm the parameters or you can long press the (Λ) to
conrm and return the previous directly.
→The way to operate the value :
a) Just watch the parameter of the mode by short pressing (Λ) and (V) .
b) If you change other mode by short pressing (Λ) and (V) , you need return the Power Factor
interface by long pressing the (V). Then short press (V) to conrm and enter the Upper Limit. This
time you can modify the value by long pressing (Λ) ; If you only change the parameter of the
mode(default), you just long press the (Λ) to modify the value.
c) After setting, long press the (V) key to conrm and return the previous directly.
>Power Factor Mode Select
>PF(p)<
>Upper Limit
0.0
↓
> 1.0 <
→ → →
Enter Enter Enter
>User Value
4000W
CT
>Mode select →
Reactive power control, Reactive standard curve Q= f(V)
Q
V
Qmax
-Qmax
V2sV1s
V1iV2i
V2i=0.90Vn
V2s=1.10Vn
V1s=1.08Vn=QuVlowRate
V2i=0.92Vn=QuVlowRate
(4) P(u) Function: The device is suitable for Australia if the “Enable” is chosen.
(5) Power limits: User can set the power limit value of the inverter, and the default is
1. If you want to change, please refer to the method bellow. (the same operation to
other setting value)
(6) Export Control: With this function the inverter can control energy exported to the
grid. Whether having this function is based on user’s wishes.
The system is disabled by default.The user can choose meter or CT in Mode Select,When
choosing meter or CT, means user must install a meter or a CT to monitor energy
exported to the grid. There are user value and factory value. The factory value is default
which can not be charged by user. The user value setting by installer must be less than
the factory value and within the range of 0KW to 6KW.
→The way to set password:
a) Long press the key (V) to enter the interface, and long press again to modify .
b) Short Press (Λ) or (V) to increase or decrease the value you need.
c) After setting, long press the (V) key to conrm the parameters.
d) Long press (Λ) to enter next level.
Choose”Disable” means the function will be shut off.
(7) Earth Detect: The default is “Disabled”. If turned on, the inverter will occur an
error.
(8) Function: User can choose whether using the DRM function or not. DRM
(9) New Password: Installer can set the new password here.
(10) Reset Errorlog: The user can clear the errorlogs by this function.
(11) Reset Energy: The user can clear the power energy by this function.
(12) Reset Meter : The user can clear the Meter energy by this function.
(13) Line Impedance: User can choose whether using the Line Impedance
function or not. It can reduce the protection of the false voltage caused by the
high impedance.
(14) Self Test(only for CEI 0-21): User can test operating staus of inverter by
choosing ”All Test”. When testing OK, the inverter will restart again and user can
see the result from the “Test Report”.
(1 ) About: This interface shows information of the inverter, including product 5
serial number, machine type, master, slave, manager and internal code.
