SolaX Power X1 Series User manual

I
II
Quick Installation Guide
X1 Series 6.0kW-8.0kW
Packing List
Inverter Installation
X1 Series X 1 Bracket X 1
Screw package:
Expansion tube X 4
Expansion screw X 4
Male DC connector X 3
Female DC connector X 3
Note:
Please refer to the appropriate instruction manual for the usage of optional accessories.
User manual X 1
AC connector X 1
Earth terminal X 1 Quick installation guide X1
X1 Series 6.0KW-8.0KW
Pocket WiFi X 1(Optional)
Meter(Optional)
- Mark the position of four holes - Drill holes with φ10 drill.
- Depth: at least 50mm.
- Tighten the expansion tubes.
- Screw the expansion screws. - Match the inverter with the bracket.
- Screw the cross recessed screw on the right side.
Warranty card X 1
Positive DC pin contact X 3
Negative DC pin contact X 3
torque:1.5±0.2Nm
III PV Connection
7.0mm
Strpping pliers Wire crimper
Wire crimper recommended model :
H4TC0001
manufacturer:Amphenol
Tools:
Rj45 Plug
V
IV
Earth Connection and Overview
Basic Parameters Setting
AC Connection
1.Slide the cable nut and
back shell onto the cable.
2.Insert the tripped end of each three
wires into holes in the female insert,
then tighten each screw.
Cable size: 8 AWG
trip length
45mm
9mm
47mm
outer jacket
5.Connect the AC plug to the inverter.
4.Screw down the pressure screw.
3.Screw down the threaded sleeve with pressure screw.
- Screw the ground screw with 4 hexagon wrench shown as follow.
- Overview for connection.
- After checking all connection are correct, turn on the external
DC /AC breakers.
- Inverter will start automatically when PV panels generate
enough energy. The LED will be green and the LCD screen
will display the main interface.
- Turn on the DC switch to the “ON” position.
Country
AS4777
Safety
NewPassword
Name
ESC
Up
Down
Ok
Description
Leave from current interface or function.
Move cursor to upside or increase value.
Move cursor to downside or decrease value.
Conrm the selection.
Symbol
Control Panel
Date time
>2018< -07-07
00:00
Start Guide
- Set the New Password
you want.
- Set date time based on the
local time.
- The user can set the safety standard here
according to different countries and grid
standards.
614.00380.01
1 2 3
4Power Factor
Mode Select
>PF(p)<
- With this function the inverter can control energy exported to the
grid. Whether having this function is based on user’s wishes.
- Set this parameter based on local grid policy.(For specific country
if required by local grid.)
- The function can be shut off by choosing “disable” mode.
Firmware Upgrading
5 mm
Straight screwdriver Waterproof lid
1) Make sure the DC switch is off
and the AC is disconnected with
grid. Unscrew the waterproof lid
of Upgrade port by straight
screwdriver as the picture shows.
Update
ARM
DSP
2) Insert U-disk with upgrade
package* into the USB port on
the bottom of the inverter. Then
turn on DC switch or connect the
PV connector, the LCD will show
picture as below.
U-disk
3) Press “OK” to confirm to update. After the upgrade is complete, please remember to turn off the DC
switch or disconnect the PV connector, then pull off the U-disk, screw the waterproof lid.
* Please contact our service support to get the update package,and extract it into your U-
disk.Do not modify the program file name ! Or it may cause the inverter not work anymore !
torque:3.0±0.3Nm
hexagon wrench.torque:0.8±0.1Nm
torque:1.5±0.2Nm
torque:1.5±0.2Nm
0 1 2 3

Other manuals for X1 Series

15

This manual suits for next models

2

Other SolaX Power Inverter manuals

SolaX Power X3 Hybrid Series User manual

SolaX Power

SolaX Power X3 Hybrid Series User manual

SolaX Power X1-Hybrid G4 Series User manual

SolaX Power

SolaX Power X1-Hybrid G4 Series User manual

SolaX Power X1-BOOST-G4 Series User manual

SolaX Power

SolaX Power X1-BOOST-G4 Series User manual

SolaX Power X1 Series User manual

SolaX Power

SolaX Power X1 Series User manual

SolaX Power X1-3.0-T-DL User manual

SolaX Power

SolaX Power X1-3.0-T-DL User manual

SolaX Power X3-FORTH Series User manual

SolaX Power

SolaX Power X3-FORTH Series User manual

SolaX Power DataHub1000 User manual

SolaX Power

SolaX Power DataHub1000 User manual

SolaX Power X1 Series User manual

SolaX Power

SolaX Power X1 Series User manual

SolaX Power X3-ULTRA User manual

SolaX Power

SolaX Power X3-ULTRA User manual

SolaX Power X3-MGA-20K-G2-LV User manual

SolaX Power

SolaX Power X3-MGA-20K-G2-LV User manual

SolaX Power X1-Fit-3.7E User manual

SolaX Power

SolaX Power X1-Fit-3.7E User manual

SolaX Power X3-PRO G2 Series User manual

SolaX Power

SolaX Power X3-PRO G2 Series User manual

SolaX Power X1-Matebox User manual

SolaX Power

SolaX Power X1-Matebox User manual

SolaX Power Solax Box 3.0 User manual

SolaX Power

SolaX Power Solax Box 3.0 User manual

SolaX Power X1-MINI-G4 Series User manual

SolaX Power

SolaX Power X1-MINI-G4 Series User manual

SolaX Power X3-Fit-8.0-E User manual

SolaX Power

SolaX Power X3-Fit-8.0-E User manual

SolaX Power X3-Retro Fit Series User manual

SolaX Power

SolaX Power X3-Retro Fit Series User manual

SolaX Power X3-MIC-G2 User manual

SolaX Power

SolaX Power X3-MIC-G2 User manual

SolaX Power X1-Fit-3.7C User manual

SolaX Power

SolaX Power X1-Fit-3.7C User manual

SolaX Power X3-Retro Fit Series User manual

SolaX Power

SolaX Power X3-Retro Fit Series User manual

SolaX Power X1-EVC Series User manual

SolaX Power

SolaX Power X1-EVC Series User manual

SolaX Power X1 Series User manual

SolaX Power

SolaX Power X1 Series User manual

SolaX Power A1-Hybrid Series User manual

SolaX Power

SolaX Power A1-Hybrid Series User manual

SolaX Power X3-Fit-G4 User manual

SolaX Power

SolaX Power X3-Fit-G4 User manual

Popular Inverter manuals by other brands

TECO-Westinghouse E510-2P5-H-U instruction manual

TECO-Westinghouse

TECO-Westinghouse E510-2P5-H-U instruction manual

Votronic MobilPOWER  SMI 600 Sinus Installation and operating manual

Votronic

Votronic MobilPOWER SMI 600 Sinus Installation and operating manual

Ethicon Generator G11 Service manual

Ethicon

Ethicon Generator G11 Service manual

Growatt 8000TL3-S Installation & operation manual

Growatt

Growatt 8000TL3-S Installation & operation manual

Klavis Flexshaper user manual

Klavis

Klavis Flexshaper user manual

Simmonsigns Solar LUA installation guide

Simmonsigns

Simmonsigns Solar LUA installation guide

Riello HELIOTERM Design Inverter 11B Instructions for the installer and the technical service centre

Riello

Riello HELIOTERM Design Inverter 11B Instructions for the installer and the technical service centre

ring PowerSourcePro REINVMA10 instructions

ring

ring PowerSourcePro REINVMA10 instructions

KW-Generator EFU 1000 manual

KW-Generator

KW-Generator EFU 1000 manual

Belkin AC Anywhere F5C400u140W user manual

Belkin

Belkin AC Anywhere F5C400u140W user manual

Wagan Elite 5000W user manual

Wagan

Wagan Elite 5000W user manual

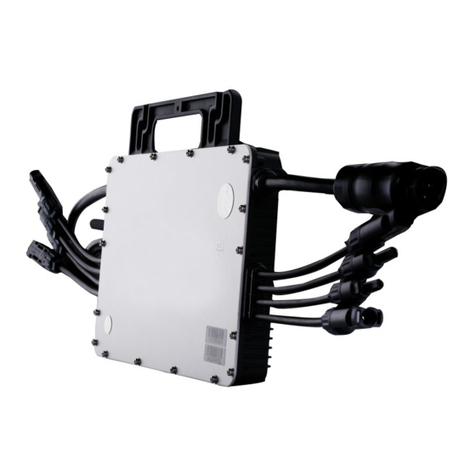

Hoymiles HM-1000N user manual
