Soleus Air KY-32E User manual

12,000 BTU
Evaporative Portable
Air Conditioner
Owner’s Manual
Model # KY-32E
Please read owner’s manual carefully before operating the unit.

2
TABLE OF CONTENTS
PAGE
Table of Contents …………….………………………………………………………………………2
Introduction ……………………………………….………………………………………….............3
Important Safeguards ……………………………………………………………………………….. 4
LCDI Power Cord and Plug…………………………………………………………………………. 5
Package Contents …………………………………………………………………………………….6
Parts Diagram ………………………………………………………………………………………...6
Assembly Requirements ……………………….……………………………………………………..8
Control Panel and LCD Screen……………………………………………………………………… 9
Operation Using the Control Panel………………………………………………………………........11
Operation Using the Remote Controller………………………………………………………….…...12

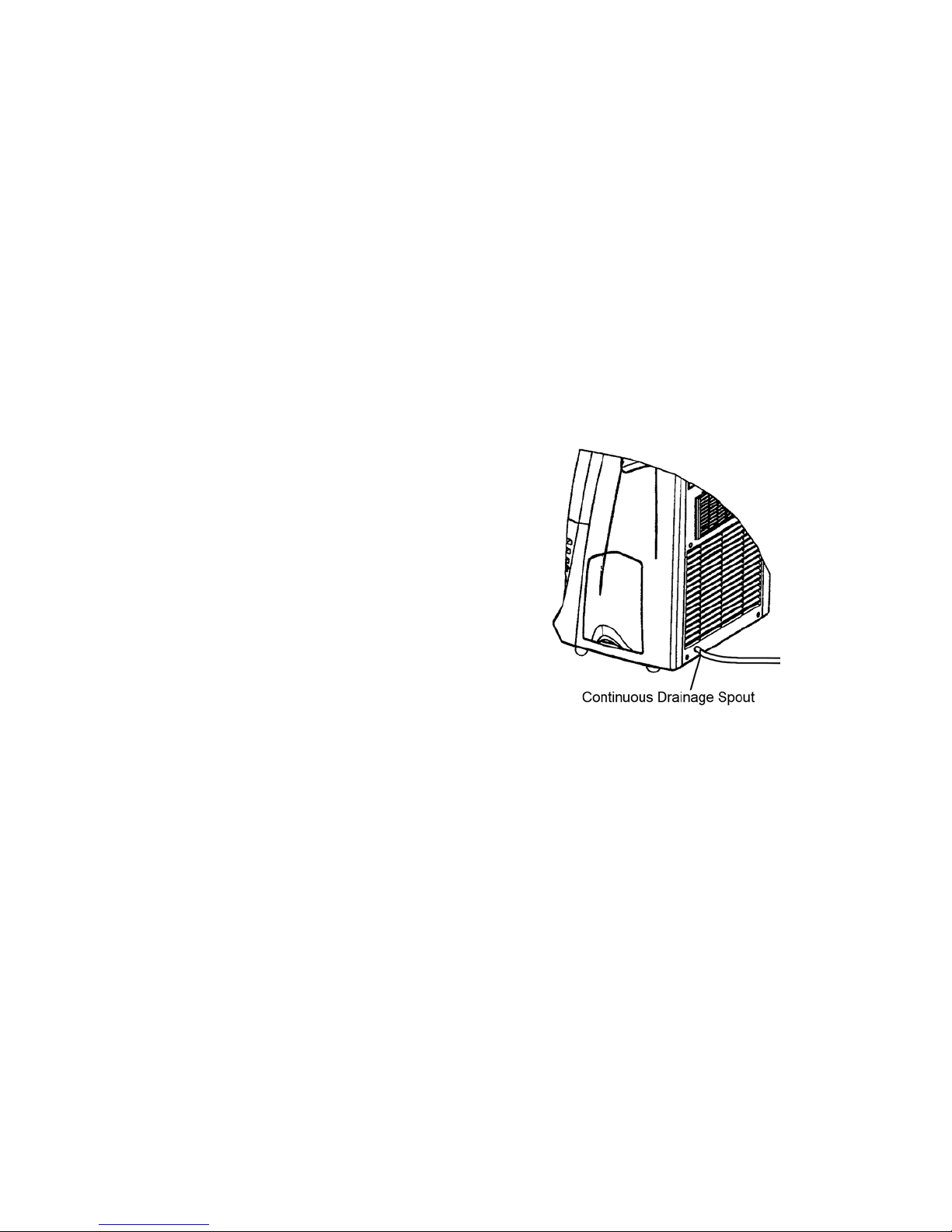

Optional Water Drainage ……………………………………………………………………………..14
Proper Care and Maintenance…………………………………………………………………………15
Troubleshooting ……………………..…………………………………………………......................16
Technical Specifications ……………………..…………………………………………………... ….17
Contact Information ……………………………….………………………………………………. 17
Warranty ………………………………………………..…………………………………………….18

INTRODUCTION
Thank you for purchasing the Soleus Air KY-32E 12000 BTU Portable Evaporative Air Conditioner. This unit is
designed to improve living and working comfort by providing cooling, dehumidifying and fan functions with
minimal installation.
This multi-functional portable air conditioner operates as an air conditioner, dehumidifier, and fan. Unlike
traditional portable air conditioners, there is no bucket to empty. The condensate water is evaporated and removed
through the exhaust duct along with warm exhaust air. At 12000 BTUs the KY-32E is one of the most powerful
portable air conditioners on the market. In addition, the high speed motor allows for operation in high temperatures
Soleus Air “Smart Chip” technology and precise control of the unit
When operating as an air conditioner, this unit is designed for spot cooling or cooling a room no larger than 450
square feet with a standard eight foot ceiling height. Please read these instructions carefully before operating this
appliance. When using this air conditioner, always exercise basic safety precautions.
This easy-to-use manual will guide you in obtaining the best use of your Portable Air Conditioner.
Please complete the following information for future reference. You will need it to obtain warranty service.
Model Number: KY-32E
Serial Number *: ___________________________________________________________________
Date of Purchase: ___________________________________________________________________
Place of Purchase: ___________________________________________________________________
*The Serial number is located on the back of the unit. Retain this Owner’s Manual with your sales receipt as a
permanent record of your purchase.
Customer Service:
1-888-876-5387
9451 Telstar Avenue
El Monte, California 91731
www.soleusair.com
3

IMPORTANT SAFEGUARDS
Before installing and using the portable air conditioner, please read this Owner’s manual carefully.
1. Never use or store gasoline or other flammable vapor or liquid near this unit.

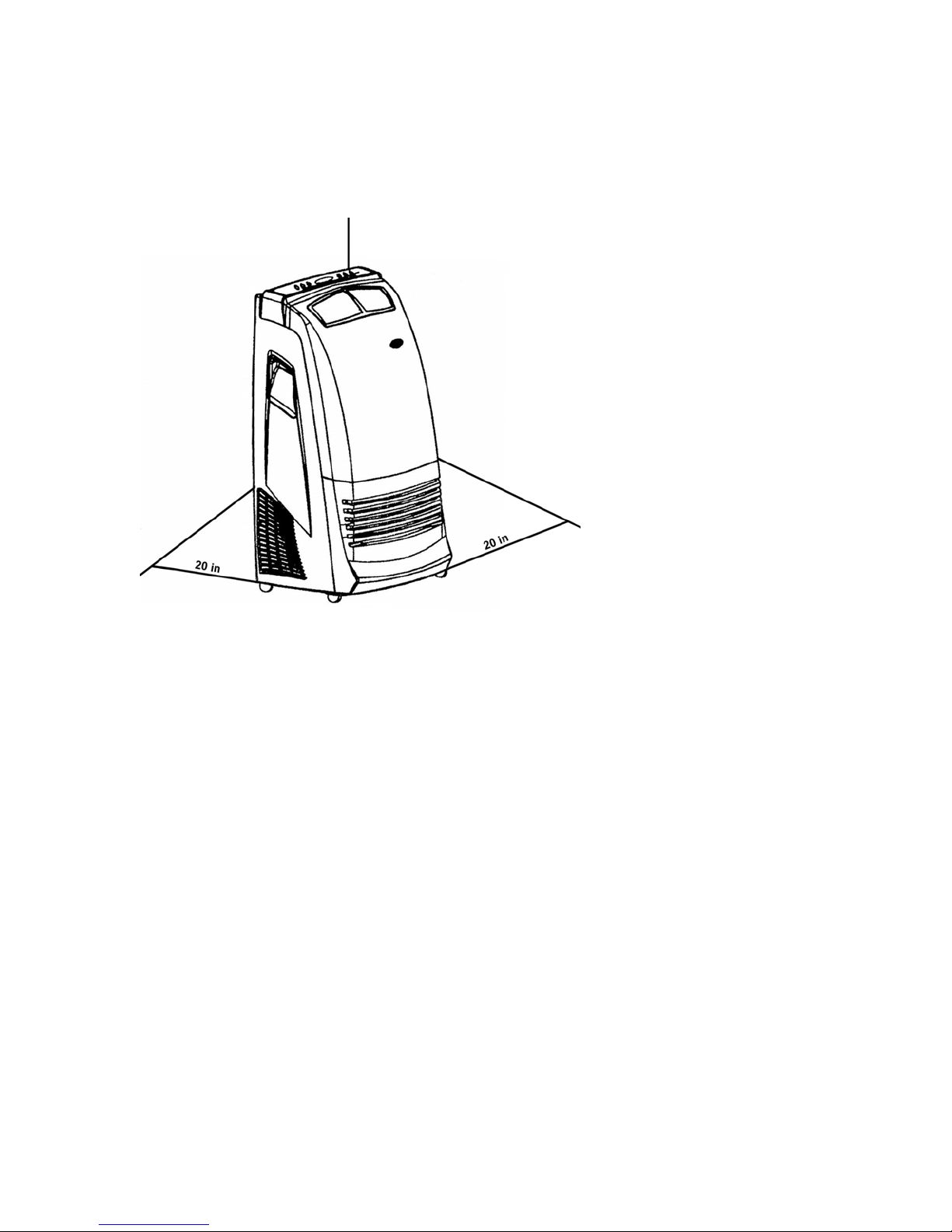

2. Maintain at least 20” (50cm) clearance space around all side of the unit. Do not obstruct air inlet or outlet
grilles.
3. All in-home wiring must comply with local and national codes and be installed by a qualified technician.
All wiring problems should be resolved by a qualified technician BEFORE installation and use of this air
conditioner.
4. The power supply must be properly grounded.
5. For your safety, this unit is grounded through the power cord plug when connected to a matching wall
outlet. Do not use an adapter plug or extension cord.
6. When removing the power cord from the wall outlet, always grasp the plug firmly and pull straight from
the outlet. Never unplug the air conditioner by pulling on the cord itself.
7. Always inspect the power cord and plug for signs of damage before use.
8. Repair or replace immediately, all power cords that have become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length, the plug or the connector end.
9. Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool. Never immerse
the unit in water or any other liquid.
10. Keep out of reach of children.
11. Use product only as directed in this manual; unintended use may void the warranty.
NOTE: If for any reason this product requires service, we strongly recommend that a certified
technician perform the service.
4

LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as
required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no
termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal
current leakage between the cord shield and either load conductor exceeds a predetermined value. The cord will
remain de-energized until the devise has been manually reset. This is intended to reduce the risk of a fire in the
power cord or combustible materials nearby. The cord shields are not grounded and they must be considered a shock
hazards if exposed. The cord shield must not be connected to ground or to any exposed metal.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:
1. Plug power cord into wall outlet
2. Press TEST Button, circuit should trip, cutting power to the air conditioner
3. Press RESET button for use
If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting
recommendations.
WARNING:
1. DO NOT press TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for indoor use only.
5

PACKAGE CONTENTS
1. Portable Air Conditioner
2. Air Exhaust Duct
3. Exhaust Duct Window Kit Adapter
4. Remote Control
5. AAA Batteries (2)
6. Window Kit - 3 Sliding Panels
7. Window Kit Fastener Screws (4)
8. Continuous Drainage Tube
9. Exhaust Outlet Wall Cover
10. User’s Manual
PARTS DIAGRAM
FRONT VIEW
6

REAR VIEW
WINDOW KIT
EXHAUST DUCT
7

ASSEMBLY REQUIREMENTS
EXHAUST DUCT
When you use the unit as an air conditioner, the hot exhaust air and evaporated condensate water must be vented out
of the room. The exhaust duct and venting kit serves this purpose.
NOTE: The exhaust duct and venting kit should not be used while the unit is operated in dehumidification,
or fan mode. DO NOT INSTALL EXHAUST DUCT WHILE UNIT IS IN OPERATION.
a) Slide “Unit Terminal End” of the exhaust
connector completely over the “Hot Air
Outlet Grill” on the rear of the unit.
Plastic grooves are located on the hot air
outlet help to guide the exhaust connector
into place.
i. Window Kit Mounting: The exhaust
hose easily connects to the window kit
by snapping the hose adapter directly
onto the kit. See page 7 for
window/sliding door kit installation.
ii. Wall Mounting: Mount the external
end of the exhaust duct to a 5¼” hole
within the wall. Creating a hole into a
wall is a separate procedure that may
require professional installation.
NOTE: Correct Mounting is shown to the
right, The center height of the hole should
between 16”-50”
8

NOTE: In order to achieve maximum room cooling efficiency, the exhaust duct should remain as short and straight
as possible. To further shorten the exhaust hose, first unthread either exhaust duct adapter clockwise to remove it.
Then cut the hose to desired length. It is not recommended to increase the manufacturer’s length of the exhaust
hose. This may reduce the cooling efficiency or damage the unit

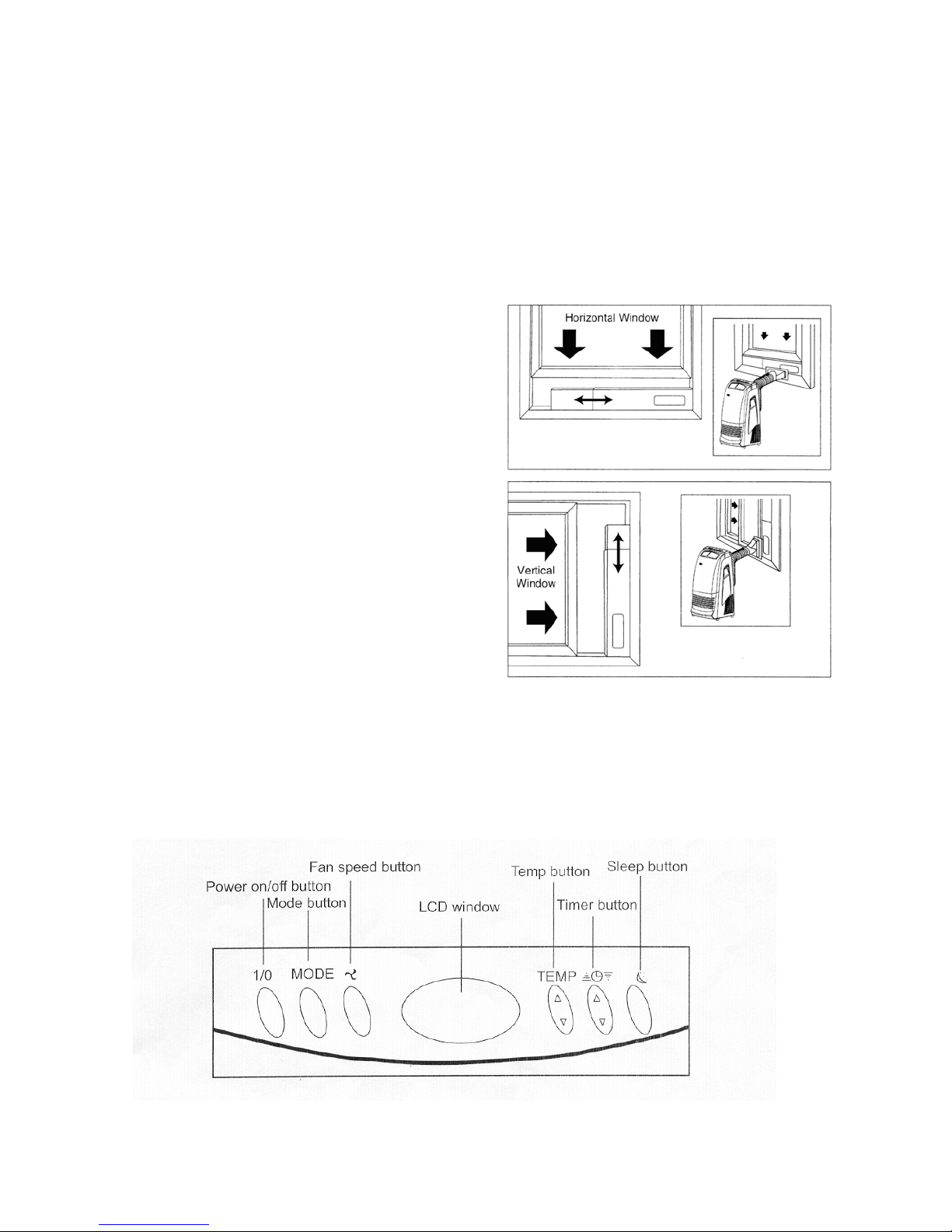

WINDOW KIT INSTALLATION
a) Open window or sliding door approximately 5
inches (13 cm). Adjust the length of the window
kit to the same length of the window or sliding
door. Use two or three panels if necessary and
secure panels into place by fastening the ¾”
Phillips head screws into the pre-drilled panel
holes.
b) Alternatively you may need to mark a single
panel and cut it down to properly fit the window
opening. The window kit (three panels) has a
maximum length 81 inches.
c) Place the window kit between the window and the
window frame as shown in the picture to the
right. Close the window onto the window kit to
form a tight seal.
d) Attach the exhaust duct window kit adapter to the
window kit. Tabs located on the adapter will lock
into place securing the adapter to the window kit.
NOTE: Using the window kit will cause the window not to be properly closed and locked. Consider taking
additional security measurements.
CONTROL PANEL AND LCD SCREEN
9

CONTROL PANEL FUNCTIONS
1. Power On/Off Control
Starts or stops the unit.
2. Temperature Setting Control
Select the desired temperature setting by pressing either the▲▼ buttons. It is recommended to set the
temperature before selecting the Mode Control.
3. Mode Control
Select the functions of the unit for:
Air Conditioning Mode
Dehumidifying Mode
Fan Mode
Auto Mode
4. Fan Speed Control
Select the fan speed for:
Low
Medium
High
5. Timer Function
Set timer to start or stop the unit.
When the unit is On, press “Timer” Button repeatedly until the desired number of hours is
displayed in the lower right corner of the display window. The unit will automatically power Off
once the selected number of hours has elapsed.
When the unit is Off, press “Timer” Button repeatedly until the desired number of hours is
displayed in the lower right corner of the display window. The unit will automatically power On
once the selected number of hours has elapsed.
NOTE: The timer function must be manually reset before each automatic start or stop.
6. Sleep Function
The sleep function is designed to automatically adjust the temperature upwards according to the amount
of time elapsed (adjustable from 0.5 to 7.0 hours). This saves power while still keeping the room
temperature at a comfortable level.
10

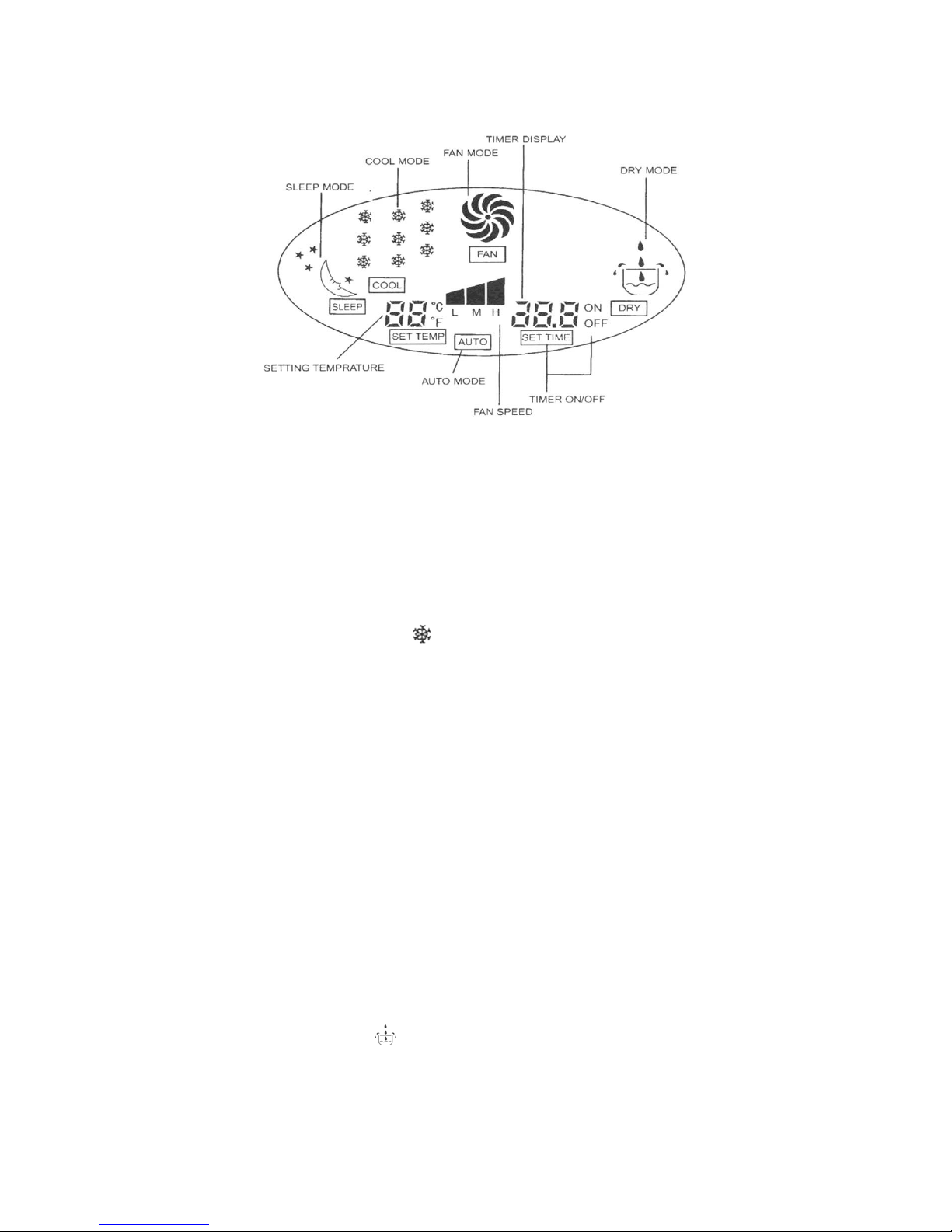

LCD DISPLAY
OPERATION USING THE CONTROL PANEL
COOLING OPERATION
1. Ensure the exhaust duct properly installed. Refer to page 8 for exhaust duct installation.
2. Plug the Power Cord to the power outlet.
3. Turn on the unit by pressing the Power Button on the control panel.
Manual Mode:
Press the Mode Button repeatedly until appears on the LCD display.
Press the Temperature Buttons up or down until the desired room temperature appears on the LCD. The
temperature ranges from 61-86 o F (16 o-30oC).
Press the Fan Button to select low, medium or high speed.
Auto Mode:
Press the Mode Button repeatedly until the word “Auto” appears on the LCD display. In the Auto Mode,
the “Smart Chip” microprocessor controls the temperature and fan speed for optimal comfort.
NOTE: The fan speed cannot be adjusted in dehumidifying mode.
NOTE: During hot days, the unit will cool off the room most efficiently by setting the temperature to the
lowest setting and the fan speed to the highest setting. Reducing the length of the exhaust duct, insulating
the exhaust duct and keeping direct sunlight to a minimum will also improve the cooling efficiency.
DEHUMIDIFIER OPERATION
1. If exhaust duct is attached, remove it from the rear of the air conditioner.
2. Plug the Power Cord to the power outlet.
3. Turn on the unit by pressing the Power Button on the control panel.
4. Press the Mode Button repeatedly until appears on the LCD display.
NOTE: The fan speed cannot be adjusted in dehumidifying mode.
11

NOTE: Do not use the exhaust duct when the unit is running at dehumidifying mode. You must remove
the exhaust duct from the unit. When the unit is running at dehumidifying mode, the fan speed cannot be
adjusted. Keep the windows and the doors closed to aid the efficiency of the unit in removing the moisture
from the room.
FAN OPERATION
1. Plug the Power Cord to the power outlet.
2. Turn on the unit by pressing the Power Button on the control panel.
3. Press the Mode Button until appears on the LCD display.
4. Press the Fan Button to select Low, Medium or, High speed.
OPERATION USING REMOTE CONTROLLER
The remote control provided with the unit operates this portable air conditioner. The remote control uses (2) AAA
batteries (provided). Install the batteries before using the remote controller.
NOTE: The information displayed on the LCD of the remote controller will only be transmitted to the air
conditioner when the 1/0, Send, or Sleep buttons (transmitting buttons) are pressed. Any changes made to
the LCD display will be reversed to the previous setting if none of the transmitting buttons are pressed
within 15 seconds after the changes are made.
NOTE: When the remote controller is off, the LCD only displays the current time.
REMOTE CONTROLLER
12

13
SETTING THE CLOCK
1. Press 1/0 button to turn on the remote control.
2. Press the Hr and Min buttons until the LCD displays the correct time.
3. Press the Send button to set time.
COOLING OPERATION
1. Press the 1/0 button to turn on the remote control.
2. Press the Mode button until the LCD displays the cooling symbol.
3. Press either +°F or -°F button until the LCD displays the desired temperature. Each press will increase or decrease
the set temperature by 1°F.
4. Press the Fan button until the LCD displays the desired fan speed.
5. Press the Send button.
DEHUMIDIFYING OPERATION
1. Press the 1/0 button to turn on the remote controller.
2. Press the Dry button. The dehumidifying symbol will appear on the LCD display.
3. Press either +°F or -°F button until the LCD displays the desired temperature.
4. Press the Fan button until the LCD displays the desired fan speed.
5. Press the Send button.
FAN OPERATION
1. Press the 1/0 button to turn on the remote controller.
2. Press the Mode button until the LCD displays the fan symbol.
3. Press the Fan button until the LCD displays the desired fan speed.
4. Press the Send button.
AUTO MODE
1. Press the 1/0 button to turn on the remote controller.
2. Press the Mode button until the LCD displays the auto symbol.
3. Press the Send button.
TIMER
1. Press the 1/0 button to turn on the remote control.
2. Press the Timer button. “TIMER” will appear on the LCD display.
3. Press the Hr button until the LCD displays the desired number of hours for the operation. When the set time has
elapsed (from 0.5 to 24 hrs), the unit will automatically shut off.
4. Press the Send button.
NOTE: The unit can also be programmed to automatically start after a set period of time in Sleep Mode.
SLEEP MODE
1. Press the 1/0 button to turn on the remote control.
2. Press the Mode key to select the desired operation.
3. Press the +°F or -°F button until the LCD displays the desired temperature.
4. Press the Fan button until the LCD displays the desired fan speed.
5. Press the Send button.
6. Press the Sleep button. “Sleep” will appear on the LCD display.
7. To set the auto start time, press the Hr button until the desired number of hours until auto start is displayed.
8. Press the Send button. The unit will automatically start after the set number of hours (from 1 to 7 hrs).

OPTIONAL WATER DRAINAGE
When operating the air conditioner in cooling or dehumidifying mode under normal conditions, the condensation
water is automatically evaporated from an internal drip pan out through the exhaust duct. Under extremely high
humidity conditions, the water in the drip pan may reach a level that triggers a shut-off mechanism. The compressor
and fan will turn off and the water must be drained via one of the following two methods.
CONTINUOUS DRAINAGE
When the unit is operating on continuous drainage mode, excess condensation in the drip pan is discharged by
gravity through the drainage tube to either an external tank (not provided) or to a condensation water pump device
(Optional Item). When the unit is operating on continuous drainage mode, it can operate continuously regardless of
humidity level.
Installation Steps:
a. Remove the plug from the drainage spout.
b. Connect the drainage tubing to the drainage spout.
c. Place the other end of the drainage tube into either an
external water tank or the inlet side of a condensation
water pump.
NOTE:
Do not use lengthy drainage tubing without a condensation water pump
14

MANUAL DRAINAGE
When the unit is operating in manual drainage mode, excess condensation in the drip pan will rise until it reaches a
predetermined level, at which time the air conditioner will signal a warning (E4 on LCD) and shut off. To drain the
excess condensation, turn off the air conditioner, remove the drain plug and allow water to drip into an external pan
or drainage tubing.
WARNING: Do not operate the air conditioner without the drain plug unless the drainage tube is directed
to an external drain or bucket. Dripping water may damage wood floors and carpet and may also cause
injury if not properly contained.
PROPER CARE AND MAINTENANCE
Note: To avoid electrical shock, always turn off and unplug your air conditioner before cleaning or performing
maintenance activities. Ignoring this warning may result in injury.
CLEAN OR REPLACE FILTER
1. Push down the two tabs on the filter
cover and pull outwards to remove the
entire filter and cover.
2. Unhook the air filter from the plastic
hooks Keep and set aside the clear
plastic tabs for reassembly
3. Wash the air filter by immersing it
gently into warm (about 104 F) water.
Use a mild cleanser and dry it
thoroughly if necessary.
4. Attach the filter to the filter cover with
the attachment hooks on the inside
surface of the cover.
5. Place the bottom of the filter cover into
the holes in the unit case. Push the cover
back into the original position.
6. If the filter is torn or unusable, order a
new filter by calling the customer service
telephone number listed in the contact
section of this manual.
15

16
CASE
1. Avoid direct exposure to sunlight as case color may fade.
2. Clean surface area with a damp cloth. Dry with a soft towel.
3. Vacuum grill inlets with a soft brush attachment.
NOTE: Do not use abrasive cleaning products on the case.
STORING THE UNIT FOR AN EXTENDED PERIOD OF TIME OR TRANSPORTING
1. Unplug the unit from the power outlet.
2. Ensure that the water bucket is empty.
3. If using continuous drainage, disconnect any external drain hose and cap the end of the internal drain tube.
4. Store and transport unit in an upright position in a cool dry place.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REMEDY
Unit is unplugged Securely plug receptacle into the
power outlet
Air exhaust is clogged Remove obstruction from exhaust
hose
Unit does not operate
Timer is on Cancel the timer
There is a heating source in the
room
Turn other heating source off or
down
Temperature setting is too high Decrease temperature setting
Air filter is dirty Clean or replace the air filter
Air exhaust is not installed
correctly
Check the exhaust duct to make
sure that the hot exhaust air is
being vented out of the room
Room is too big or too much
ambient sunlight is reaching in
This unit provides spot cooling or
cooling for a room no larger than
450 square feet with standard
ceiling height
Unit does not cool room
There is frost on the evaporator
The unit will defrost
automatically and return to
operation afterwards
In dehumidifying mode, no cool
air coming out
There is frost on the evaporator
The unit will defrost
automatically and will return to
operation afterwards
Noise or vibration Surface is not level Place unit on a level surface and
away from obstructions
Water is leaking from unit Surface is not level Place unit on a level surface

TECHNICAL SPECIFICATIONS
MODEL KY-32E
COOLING CAPACITY 12,000 BTU/HR
DEHUMIDIFYING CAPACITY 95 PINTS/DAY
POWER COOLING 1300 W
AIR FLOW VOLUME 170 CFM
POWER SOURCE 115 V / 60 HZ
12 AMP COOLING
SOUND PRESSURE LEVEL <56 db(A)
OPERATING TEMP 61 F -95 F
NET WEIGHT 99 lbs
PACKAGE 21 x 19 x 45 ½ In (WxDxH)DIMENSIONS
ASSEMBLED 17 ¼ x 14 ¼ x 34 In (WxDxH)
REFRIGERANT R22
HIGH SIDE PRESSURE 358 PSI
LOW SIDE PRESSURE 180 PSI
CONTACT INFORMATION
Contact Customer Service For: Replacement Parts
Technical Support
WarrantyClaims
Customer Service
Soleus International Inc.
9451 Telstar Ave.
El Monte, CA 91731
USA
[phone]
www.soleusair.com
[email protected]
17

WARRANTY ONE YEAR LIMITED WARRANTY
Soleus Air International Inc. warrants the accompanying Soleus Air KY-32E Soleus Air Portable
Air Conditioner to be free of defects in material and workmanship for the applications specified
in its operation instruction for a period of ONE (1) year from the date of original retail purchase
in the United States or Canada.
If the air conditioner exhibits a defect in normal use, Soleus Air International Inc. will, at its
option, either repair or replace it, free of charge within a reasonable time after the air conditioner
is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty
Certificate along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
1) Damage, accidental or other wise, to the air conditioner while in the possession of a
consumer not caused by a defect in material or workmanship.
2) Damage caused by consumer misuse, tampering, or failure to follow the care and special
handling provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear.
4) Filter.
5) Damage caused by repairs or alterations of the air conditioner by anyone other than
authorized by Soleus Air International Inc.
6) Freight and Insurance cost for the warranty service.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY ARE LIMITED
TO ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS AIR INTERNATIONAL
INC. DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO
EVENT SHALL SOLEUS AIR INTERNATIONAL INC.’S LIABILITY EXCEED THE RETAIL VALUE OF
THE AIR CONDITIONER FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT
TO THIS AIR CONDITIONER
Serial No
18
