Soleus Air PA1-12R-32 User manual

© 2008 Soleus Air International
Portable Air Conditioner, Heat Pump Heater,
Dehumidifier, Fan, & HEPA Air Purifier
PA1-12R-32 / PA1-14R-32
Operating Instructions
Model No. PA1-12R-32 / PA1-14R-32
3046364

2
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you
with valuable information necessary for the proper care and maintenance of your new product. Please
take a few moments to thoroughly read the instructions and familiarize yourself with all the
operational aspects of your new Soleus Air Portable Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this
manual.
3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or
outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this
manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced
by the manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.

3
SPECIFICATIONS
• The cooling capacity is measured at an ambient temperature of DB 86 °F, WB 78 °F.
• Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
• If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature,
the air conditioner may not work properly.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT
TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
PACKAGE CONTENTS
Portable Air Conditioner
Exhaust Hoses (1)
Hose Adapters (1)
Window Kit Adapter (1)
HEPA Filter (1)
Remote Control
AAA Batteries (2)
Window Kit - 3 Sliding Panels (1 single hose panel, 2 extension panels)
Owner’s Manual
MODEL PA1-12R-32
Cooling Capacity 12,000 BTU/Hr
Heating Capacity 12,500 BTU/Hr
Dehumidifying Capacity 63 pts/day
Air Purifier Capacity Removes 99.97% Microns
Power Consumption
Cooling 1387 Watts
Heating 1180 Watts
Air Flow Volume 265 CFM
Power Source 115 V / 60 HZ
Rated Current Cooling 12.7 A
Heating 10.8 A
Sound Pressure Level <50db(A)
Weight 86.9 lbs
Dimensions (WxDxH) 17.87”x14.3”x32.1”
Refrigerant R22
PA1-14R-32
14,000 BTU/Hr
14,500 BTU/Hr
63 pts/day
Removes 99.97% Microns
1485 watts
1200 Watts
265 CFM
115 V / 60 HZ
13.6 A
11 A
<50db(A)
86.9 lbs
17.87”x14.3”x32.1”
R22

4

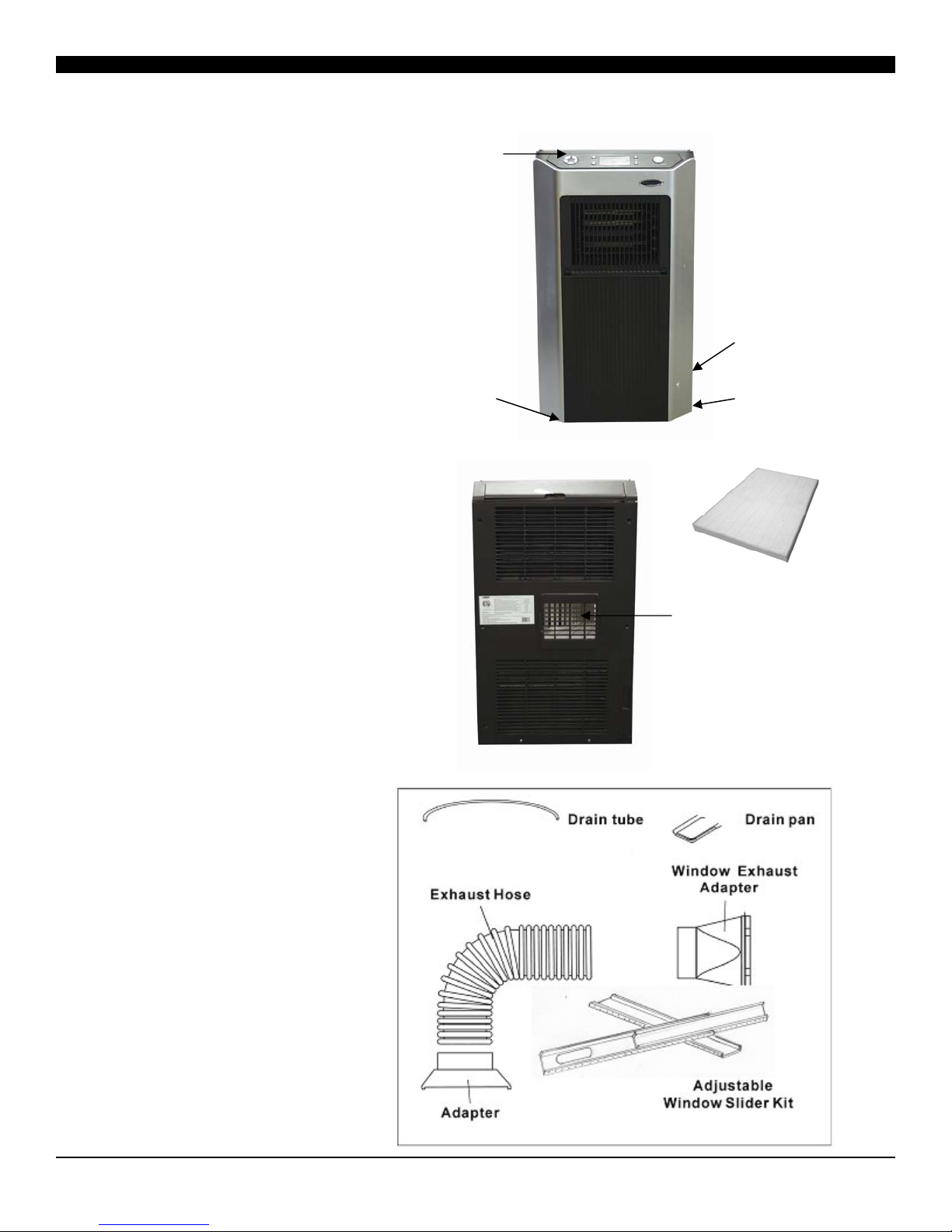

PRODUCT DIAGRAM (Actual product design may differ slightly from images below)
FRONT
A. Control panel
B. Air outlet
C. Casters
D. Power Cord & Plug
E. Drain Plug
F. HEPA Air Purifier Storage
BACK
A. Hot air outlet grill
B. Lower air inlet grill
C. HEPA Air Purifier Holder
D. HEPA Air Purifier
ACCESSORIES
Flexible exhaust hose with 2 adapters
• 3-piece set
• stretches from 14 1/4” to 60 5/8”
(36cm to 150cm)
Adjustable window slider kit
• 3-piece set
• adjusts 33 1/2” to 81”
Drain tube
Drain pan
A
B
C E
F
D
A
B
C
D

5
INSTALLATION
SELECTING THE LOCATION
Place the unit in a flat location where the air out-
lets are not obstructed. Place the unit at least
20” (50cm) away from a wall or other obstacle.
MOUNTING THE EXHAUST HOSE
Slide the square end of the exhaust duct over the
hot air outlet on the back of the unit.
The exhaust hose should be kept as short and
straight as possible. Prevent any sharp bends in
the exhaust hose, as this will trap hot exhaust air.
The hot exhaust air can be vented through the
wall or out a window. If mounting in the wall, the
height of the hole should be 16 to 50 inches
(40cm to 130cm).
Soleus Air does not provide a venting kit for
through the wall ventilation. Venting through the
wall requires a custom installation.
NOTE:The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images
show general directions for all Soleus Air single hose portable air conditioners.

6
LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and
plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord
with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the devise has been manually reset. This is intended to reduce the risk
of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they must
be considered a shock hazards if exposed. The cord shield must not be connected to ground or to any exposed
metal.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:
1. Plug power cord into wall outlet
2. Press TEST Button, circuit should trip, cutting power to the air conditioner
3. Press RESET button for use
If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting
recommendations.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for indoor use only.
RESET
TEST

7

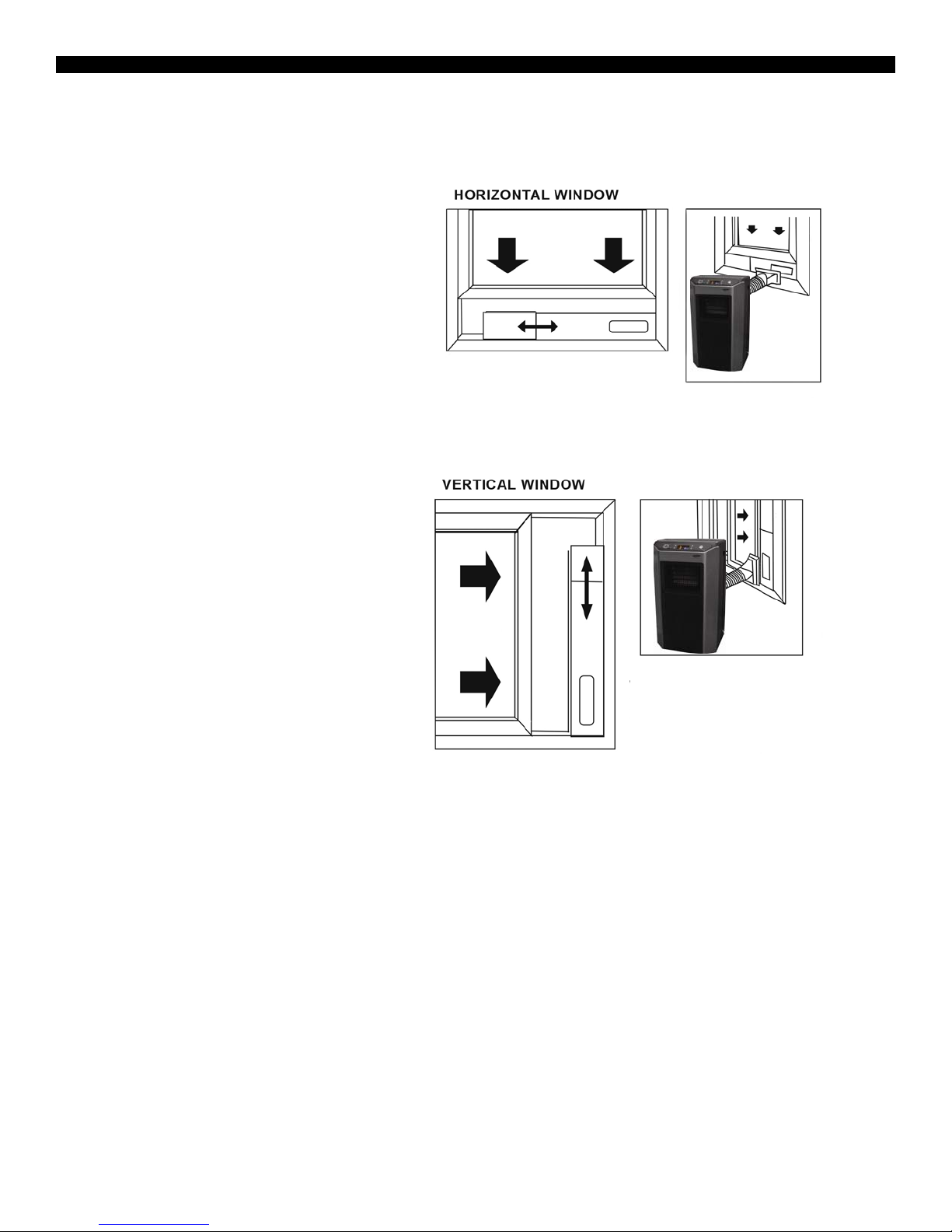

WINDOW KIT INSTALLATION
The window kit is designed to fit into most standard
vertical and horizontal windows, as well as some
sliding glass doors. However, it may be necessary to
modify some aspects of the installation process for
certain window types.
Open the window or sliding door and adjust the
length of the window kit to fit the opening. If
the window kit is not long enough, connect the
extra window kit panel to fit the opening. Mark
and cut down a single panel of the window kit
if necessary.
Place the window kit between the window and the
window frame as shown in the images to the
right. Close the window onto the window kit to
form a tight seal.
Attach the exhaust duct adapter to the window kit.
Tabs located on the adapter will lock into
place securing the adapter to the window kit.
WINDOW KIT INSTALLATION
Window Slider Kit
Minimum: 33 1/2”
Maximum: 81”
Window Slider Kit
Minimum: 33 1/2”
Maximum: 81”

8

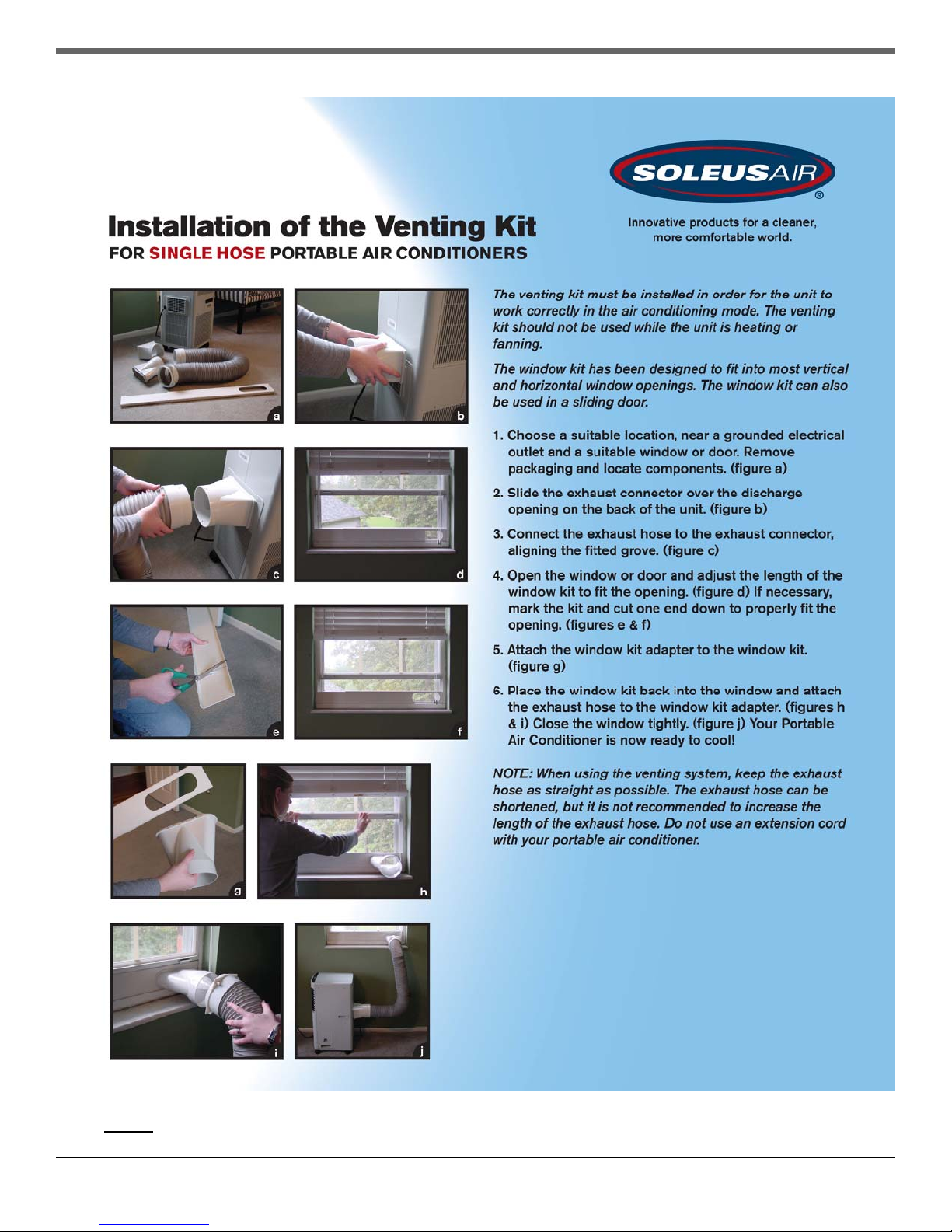

WINDOW KIT INSTALLATION (cont’d)
NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images
show general directions for all Soleus Air single hose portable air conditioners.

9

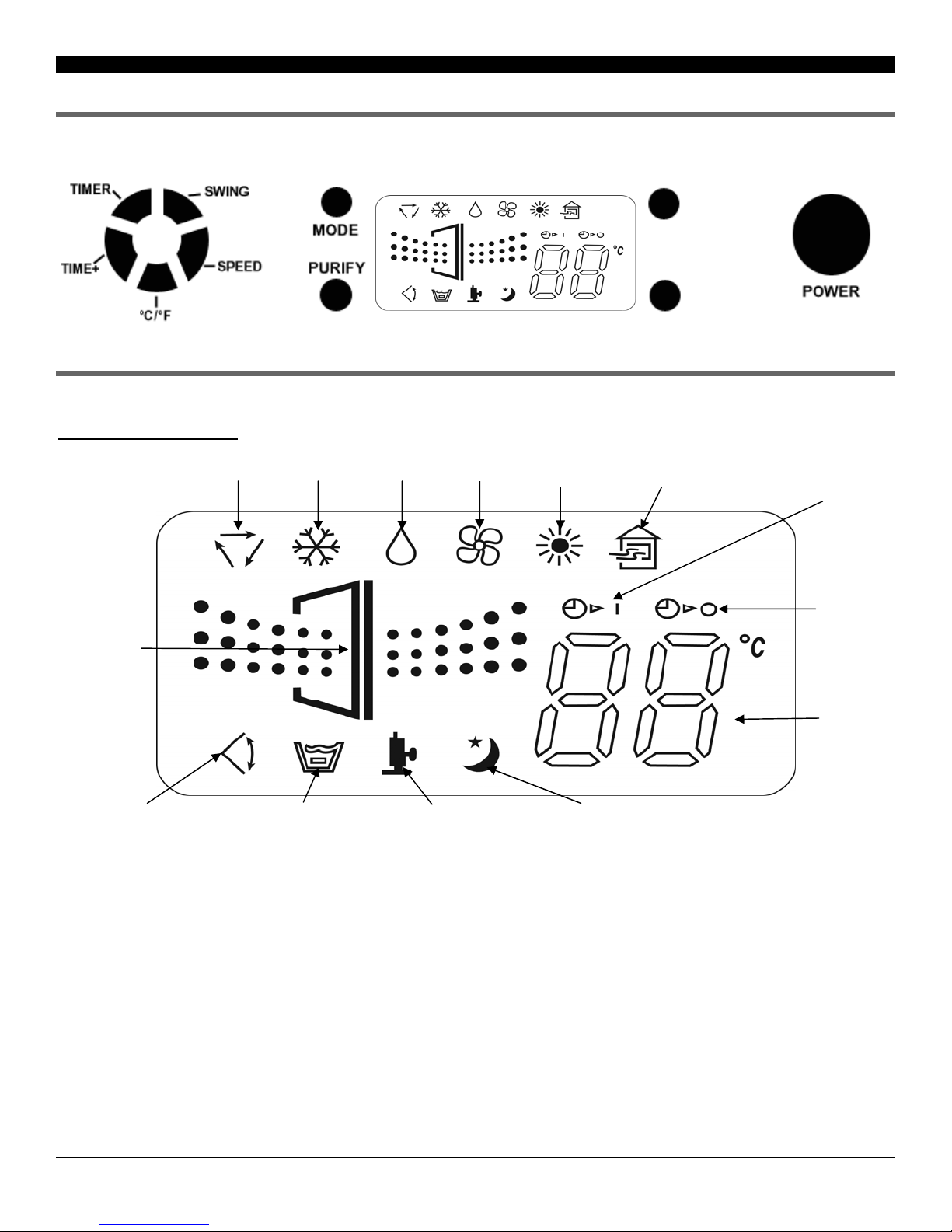

CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS
CONTROL PANEL & MULTI-COLOR DISPLAY
TEMP AND
TIMER
INDICATOR
OSCILLATION ON/ BUCKET FULL SLEEP MODE ONCOMPRESSOR ON
TIMER OFF
MULTI-COLOR DISPLAY
AUTO A/C DEHUM. TIMER ON
HEATER
FAN AIR PURIFIER
FAN SPEED
▲
▼

10
OPERATING INSTRUCTIONS
CONTROL PANEL BUTTONS (Refer to the images on page 9)
1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER
button once more to turn the unit off.
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto mode,
Air Conditioner, Dehumidifier, Fan only, and Heater mode. Air Purifier Mode is a separate function, see
page 13 for Air Purifier Operation.
3) Fan Speed Control - Press the SPEED Button to cycle through the different fan speeds: High, Me-
dium, and low. The fan speed can be visually distinguished by the speed of the fan icon on the front panel.
There is an additional auto speed setting that is enabled in only heating and cooling modes. This speed is
next setting after low when pressing the speed control button. The speeds will cycle through in this order:
Low, Medium, High, Auto. Each change in speed will be associated with a “beep” sound from the unit.
4) Temperature - Select the desired temperature by pressing either ▼or ▲ key when using the unit in
cooling or heating mode. The temperature indicator flashes to display the desired temperature setting. After
the temperature is set, the unit will display this temperature setting until it is changed by the user. The
Multi-color display shows temperature in Celsius or Fahrenheit. Pressing the °C/°F button will change the
temperature select between °C and °F.
5) Timer & Time+- To program the auto off timer, press the TIMER button until the display shows a flash-
ing when the unit is on. Press the ▲or ▼buttons to change the clock to the desired time for the
unit to automatically turn off. To program the auto on timer, press the TIMER button when the unit is off.
Press the ▲or ▼buttons to change the clock to the desired time for the unit to automatically turn on. You
can also press the TIME+ to increase the operating time. The timer can be programmed while the unit is on
or off. Once the timer is programmed the timer icon will stop flashing and remain lit. It is suggested to use
the remote control for a more full featured clock timer function (1-12 AM/PM) .
NOTE: The timer will also remember your settings when it is set. If you set the timer while in Air Condition-
ing mode, the timer will automatically turn the unit on and off in air conditioning mode according to the de-
sired programmed times. The timer will also remember the temperature settings, fan speed, and oscillation set-
ting. The timer works when the unit is in Air Conditioner mode, Heating mode, Dehumidifier mode, Fan
mode, Auto mode, and Air Purifier Mode (see page 13 for Air Purifier Mode).
OPERATING THE UNIT USING THE CONTROL PANEL
Air Conditioner Mode
1) Install the exhaust hoses and window kit properly (see pages 5, 7 & 8).
2) Plug the Power Cord into an electrical outlet.
3) Turn on the unit by pressing the POWER button on the control panel.
4) Press the Mode button until the “ ” icon appears on the Multi-color display
5) Press the ▲or ▼buttons until the desired room temperature appears on the control panel
display. The temperature ranges from 61°F - 88 °F (16 °C - 31 °C).
