Soleus Air WS1-06E-02 User manual

V200116
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
Model
WS1-06E-02 6,200 BTU
WS1-08E-02 8,000 BTU
WS1-10E-02 10,200 BTU
WS1-12E2-02 12,000 BTU
Electronic Window Air Conditioner
Operating Instructions
AIR CONDITIONER
2MF3
File No. SA 44822

Thank you for choosing a Soleus Air Window Air Conditioner. This Owner’s Manual will provide
you with valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all the
operational aspects of your new Soleus Air Window Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the
store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: _____________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
PURCHASE INFORMATION
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this manual in a
safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to
all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic
precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove the ground prong.
• Do not use a plug adapter.
• Do not use an extension cord.
• Unplug the air conditioner before servicing.
• Use two or more people to move and install the air
conditioner.
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause death.
All safety messages will directly follow the safety alert symbol and/or the words “DANGER”
or “WARNING.”
All Safety messages alert you of potential hazards, how to reduce the chance of injury, and what
can happen if instructions are not followed correctly.
Failure to immediately follow these in-
structions may cause serious injury or
even death.

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord
and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi-
ble cord with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the device has been manually reset. This is intended to reduce the
risk of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they
must be considered a shock hazard if exposed. The cord shield must not be connected to ground or to any
exposed metal.

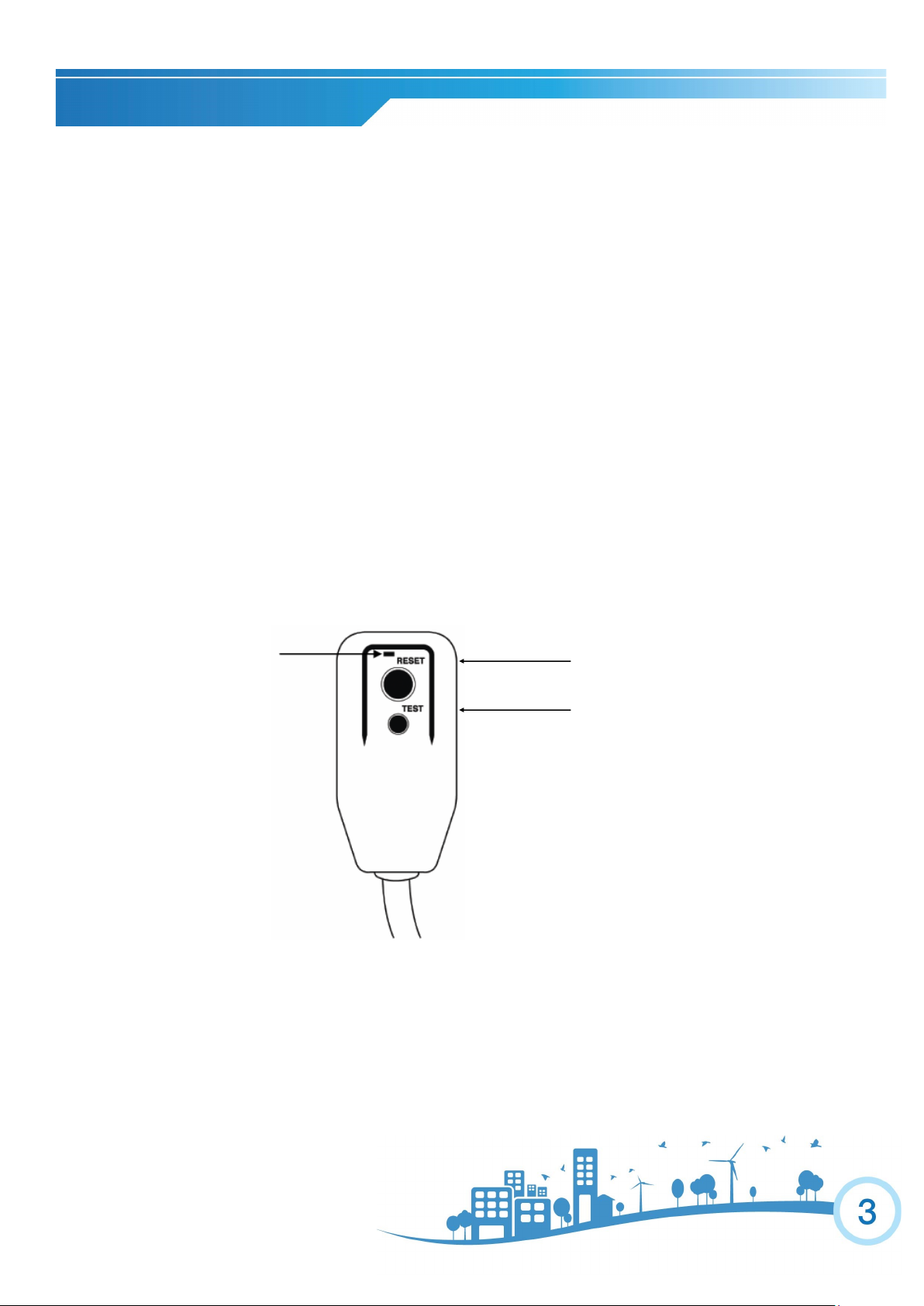

The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly.
To test:
1. Plug power cord into wall outlet, the LED light will turn on.
2. Press TEST Button, circuit should trip, cutting power to the air conditioner. When this occurs, the LED
light will turn off.
3. Press RESET button to restore power to the unit. Once power is restored, the LED light will turn on
again.
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Customer Service for troubleshooting recommenda-
tions.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for
indoor use only.
POWER CORD AND PLUG
RESET
TEST
LED LIGHT
Note: Your unit’s power cord may
differ from the one shown.

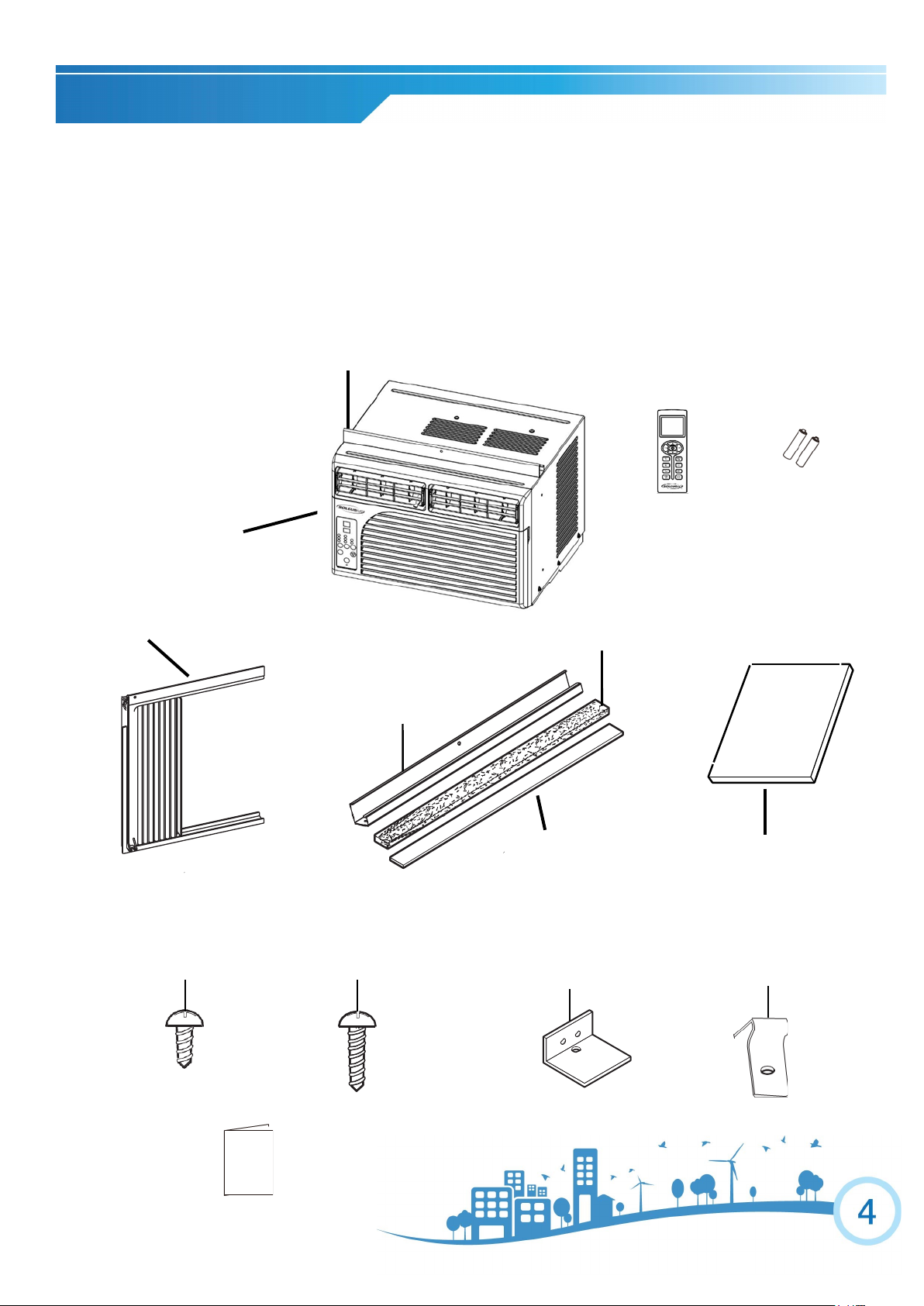

PACKAGE CONTENTS
Top Mounting Rail
Air Conditioner
Side Curtain
Top Mounting Rail
Foam Seal
Insert Strip
Short Screw Long Screw Sash Lock Curtain Lock
• Window Air Conditioner (1)
• Remote Control (1)
• AAA Battery (2)
• Top Mounting Rail (1)
• Insert Strip (1)
• Short Screw (8)
• Side Curtain (2)
• Sash Lock (2)
• Foam Seal (1)
• Long Screw for Window Locking Bracket & Cur-
tains (12)
• Curtain Lock (2)
• Owner’s Manual (1)
• Weather Insulation Board (2)
Remote
Control
2 AAA
Batteries
Owner’s
Manual
Weather Insulation Board

SPECIFICATIONS
• Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
Model WS1-06E-02 WS1-08E-02
Power Supply (Ph/V/Hz) 1/115/60 1/115/60
Rated Cooling Capacity (BTU/h) 6,200 8,000
Cooling Power Input (Watts) 495 667
Rated Current Cooling (Amperage) 4.3 6.5
CEER 12.1 12
Noise Level dB(A) (L/H) 55/58 58/61
Airflow (H/L) CFM 194/158 264/223
Dehumidifying Capacity 30.48 Pints per day 34.8 Pints per day
Product Dimensions (W” x H” x D”) 18.625” x 12.625” x 15.5” 19” x 14.375” x 19.5”
Package Dimensions (W” x H” x D”) 23” x 15” x 18.625” 22.5” x 17” x 21.5”
Net/Gross Weight (Lbs) 46.3/55.1 57.3/63.9
Refrigerant Type R-410A R-410A
Plug Type NEMA 5-15P NEMA 5-15P
Model WS1-10E-02 WS1-12E2-02
Power Supply (Ph/V/Hz) 1/115/60 1/115/60
Rated Cooling Capacity (BTU/h) 10,200 12,000
Cooling Power Input (Watts) 850 1,000
Rated Current Cooling (Amperage) 7.5 8.7
CEER 12 12
Noise Level dB(A) (L/H) 55/59 55/59
Airflow (H/L) CFM 264/223 264/155
Dehumidifying Capacity 43.4 Pints per day 52.3 Pints per day
Product Dimensions (W” x H” x D”) 19” x 14.375” x 21.5” 19” x 14.375” x 21.5”
Package Dimensions (W” x H” x D”) 21.3” x 17.1” x 22.7” 21.3” x 17.1” x 22.7”
Net/Gross Weight (Lbs) 66/72 72.7/77.2
Refrigerant Type R-410A R-410A
Plug Type NEMA 5-15P NEMA 5-15P

ELECTRICAL SAFETY
WARNING:
grounding prong!!
Power supply cord with 3-prong grounding
plug and current detection device
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENATION OF THE MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED AN INDEPENDENT TEST TO
VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN.

INSTALLATION
Window Preparation
Please read all instructions prior to installing your air conditioner. Two people are recommended to install this product. If a new
electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit
inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the provided screws. If
not, make repairs prior to installing the unit.
Storm Window Requirements
A storm window frame will not allow the air conditioner to tilt properly which will keep it from draining properly. To
adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”.
Make sure the board or piece of wood is approximately 1/2” higher than the storm window frame. This will allow the air
conditioner to tilt enough for proper drainage (See FIG. 2).
Prior to Installing the Air Conditioner
1. Check for anything that could block airflow. Check the area outside of the window for things such as shrubs, trees,
or awnings. Check the inside area to make sure curtains, drapes, or blinds will not prevent proper airflow.
2. Check the available electrical outlet. The power supply must be the same as shown on the unit serial nameplate
(located on the left side of the unit, near the front faceplate). Be sure the outlet is close enough for the power cord to
reach.
3. Carefully unpack the air conditioner. Remove all packing material and make sure the floor is protected when remov-
ing. Due to the large size of this air conditioner, two people should move the unit together.
When handling the unit, be careful to avoid cuts from the
sharp metal edges and aluminum fins on the front and rear
coils.
Model WS1-06E-02 WS1-08E-02/WS1-10E-02/WS1-12E2-02
Unit Height 12 5/8” 14 3/8"
Unit Width 18 5/8” 19"
Min.Window Opening(See FIG 1) 13 1/4” 14 3/4"
Min. Window Width 22 1/4" 22 1/2"
Max Window Width 38” 36 7/8"
13 1/4",14 3/4" MIN
FIG .2
FIG. 1
13 1/4",14 3/4" MIN

.

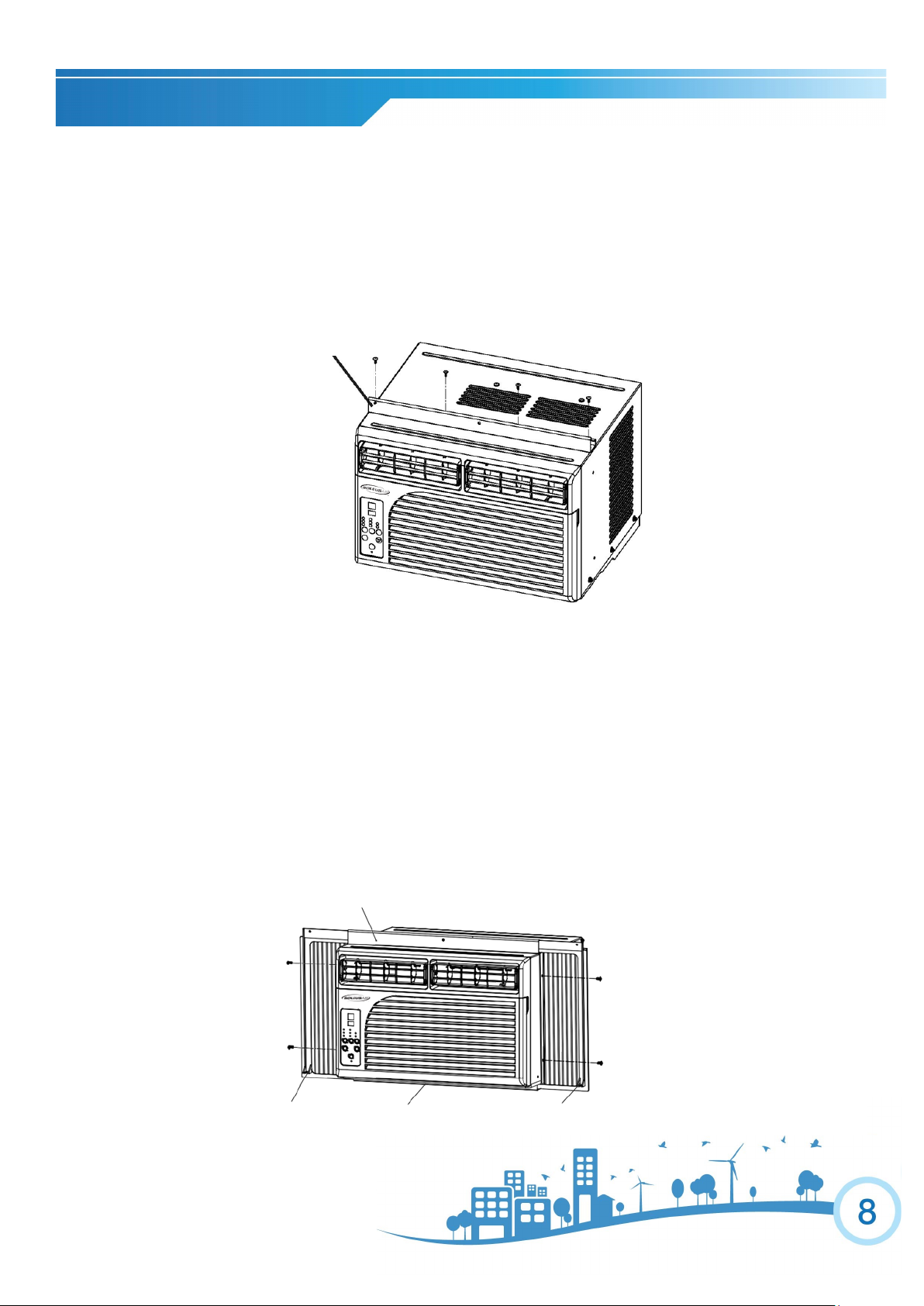

Top Rail Installation
NOTE: Top Rail and the Side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for
proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained.
1. Attach the top rail onto the top of the outer case using four short screws.
Curtain Installation
1. Insert the side curtains into the upper and lower rails of the air conditioner. Fasten the curtains to the unit with short screws
as shown below.
2. Slide the free end of the curtain into the side panel of the air conditioner. Do this for each side. The flange for securing the
curtain into the window sill will be facing the room side when installed.
3. Once properly sized, remove the backing to expose the adhesive tape.
INSTALLATION
Top mounting rail
Top Mounting Rail
Flange Bottom Rail Flange

INSTALLATION
Placing the Unit Inside a Normal Window
3. Once the air conditioner is placed, extend the left and
right curtains to the width of the window.
4. Place the curtain lock between the curtain extensions and
the window sill, drive long screws through the lock and into
the sill as shown below:
5. Secure the left and right flanges with long screws on the
bottom sides of the curtain.
6. Drive long screws through upper frame holes into win-
dow sash.
7. Attach the sash lock to the place between the upper and
lower sashes and secure it with long screws. Each side uses
2 long screws.
8. Cut the foam seal to the window width and insert the sash
seal between the glass and the window to prevent air and
insects from getting into the room.
9. For added insulation, the insert strip can be installed
between the air conditioner and window sill. This is option-
al.
Foam Seal
Window Sill
Sash Lock
Curtain Locks Flange
Curtain
Remove the Air Conditioner from the Window
(End of Season)
1. Turn the air conditioner off, and disconnect the
power cord.
2. Remove the sash seal from between windows,
and unscrew sash lock.
3. Remove the screws installed through the frame
and frame lock.
4. Close (slide) the side panels into frame.
5. Keeping a firm grip on air conditioner, raise the sash
and carefully “rock” air conditioner backward to
drain any condensation water in base of unit. Be
careful not to spill any remaining water while lifting
unit from window.
6. Store parts with the air conditioner in the box.
Weather Insulation Board Installation
NOTE: The Weather Insulation Board adds an extra layer of
insulation to keep air from passing through the sides of the
window air conditioner.
1. Using a sharp blade or scissors, slowly cut the Weather
Insulation Board to a size that will fit the inside curtain
rails and completely cover the curtain.
2. Once properly sized, remove the backing to expose the
adhesive tape.
3. Place the Weather Insulation Board over the left and right
curtain and firmly press and hold for 5 seconds.

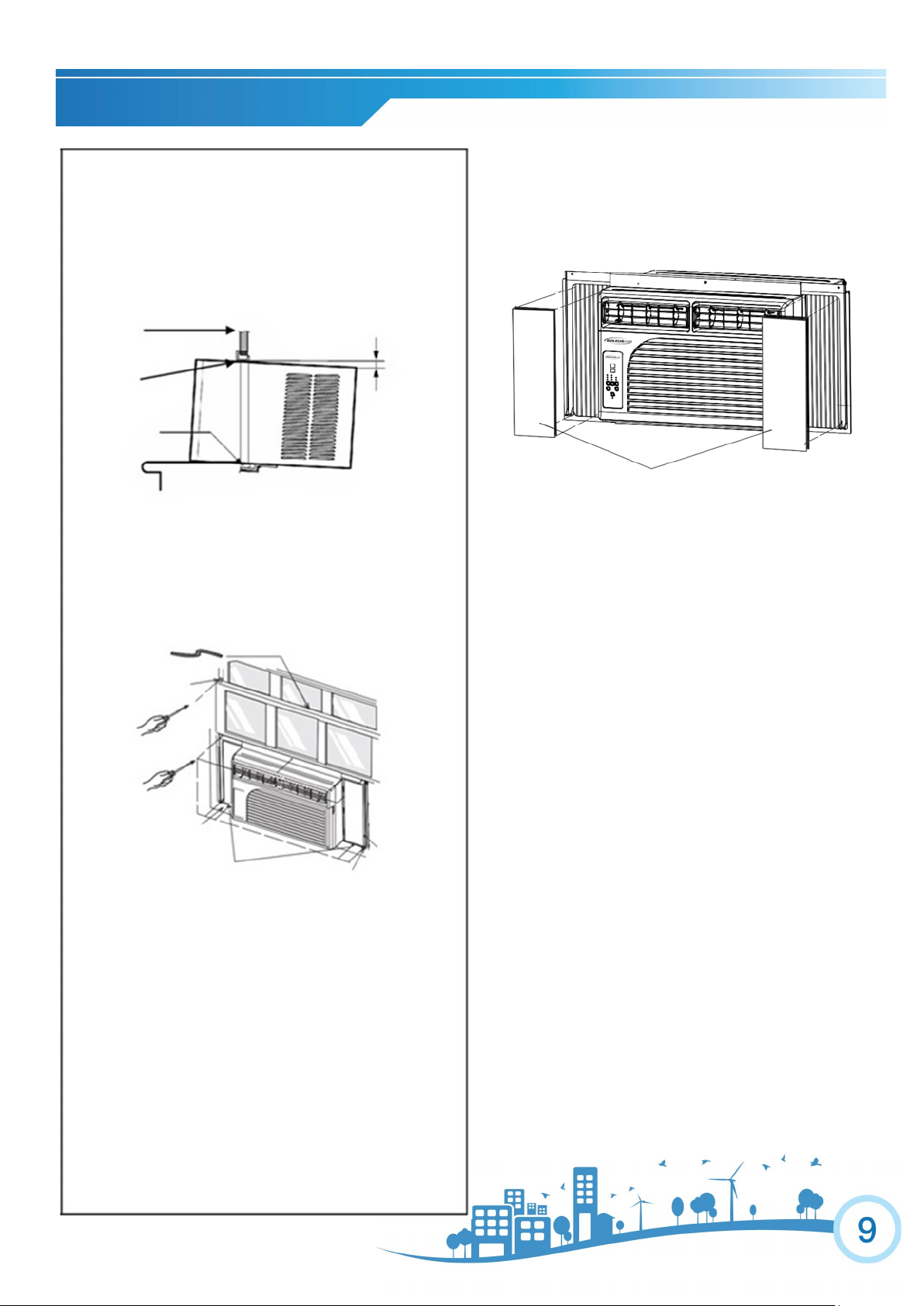

1. Set the unit in the window so that is centered. Place the
unit so that front edge of the bottom rail is against the back
edge of the sill.
2. Bring the window down so that the front edge of the top
rail is in front of the window. Be sure the unit is tilting
slightly to the outside.
Window
Frame
Top Rail
Bottom Rail
1/4”

.

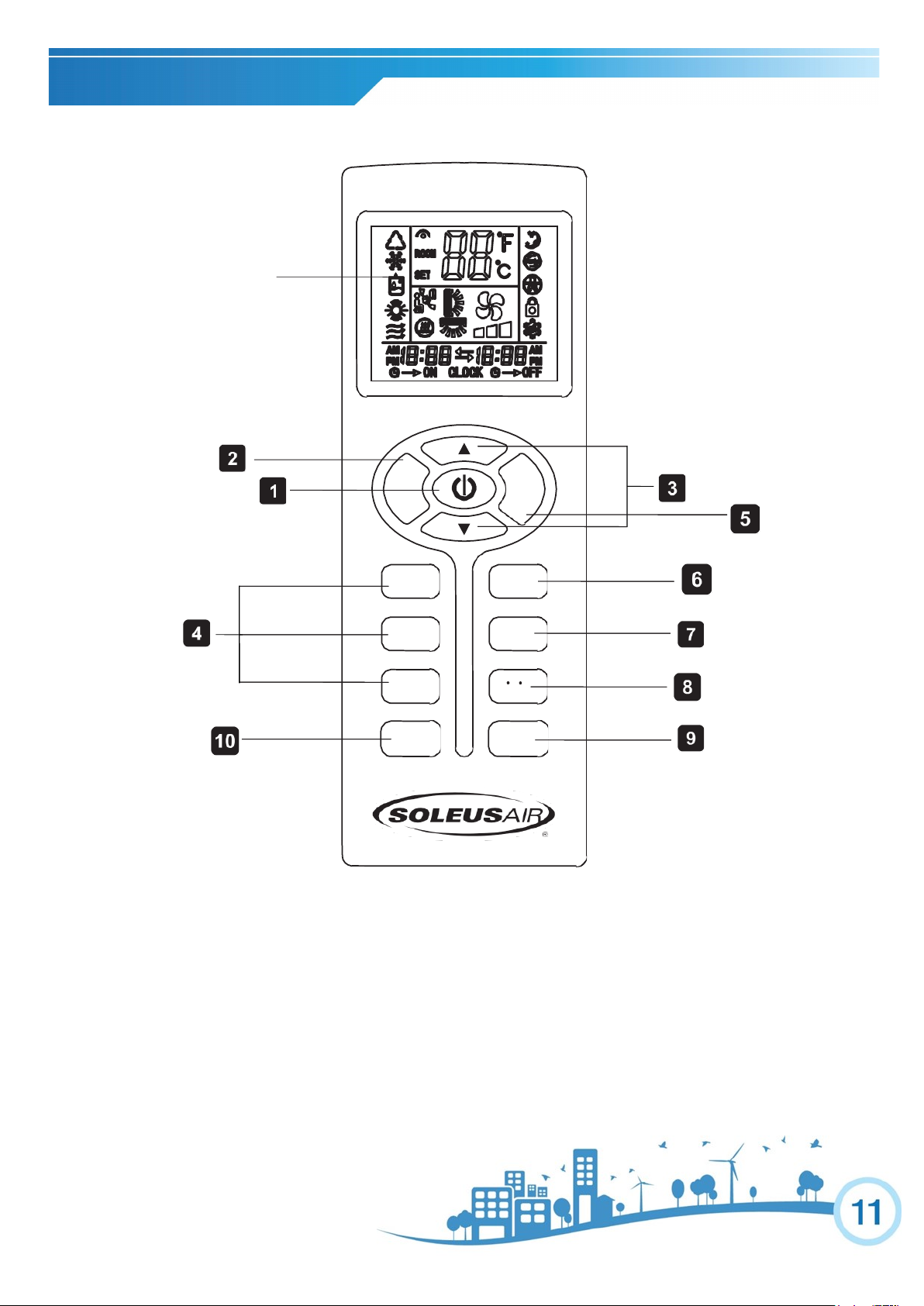

CONTROL PANEL
Electronic Control Panel & Remote Control
Note: This control panel display always shows the
room temperature in Fan Mode except when setting
the temperature and timer.

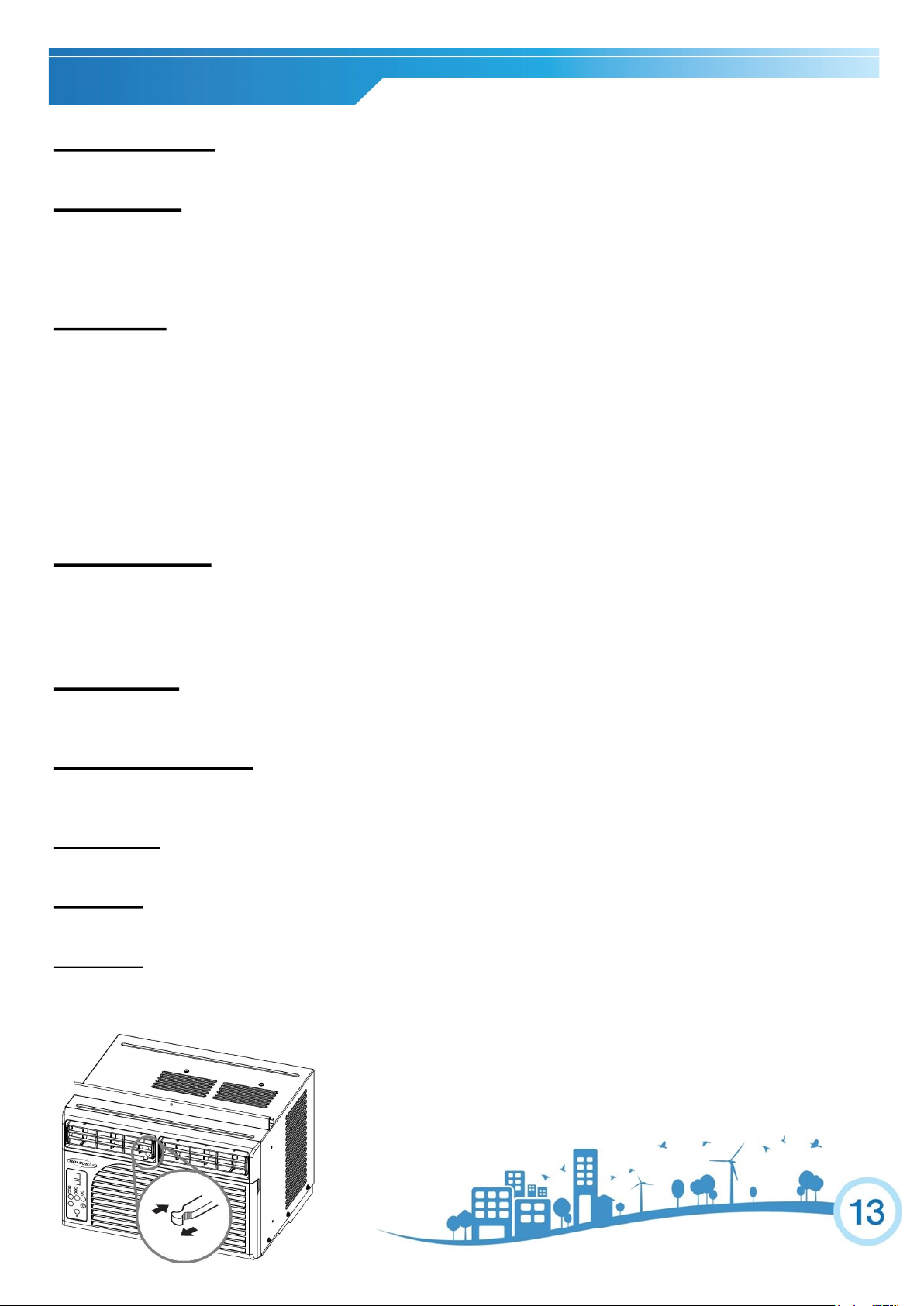

Normal Operating Sounds
• You may hear a pinging noise caused by water
hitting the condenser on rainy days, or when the
humidity is high. This design feature helps re-
move moisture and improve efficiency.
• You may hear the thermostat click when the
compressor cycles on and off.
• Water will collect in the base pan during rain
or days of high humidity. The water may over-
flow and drip from the outside part of the unit.
• The fan may run even when the compressor is
not on.

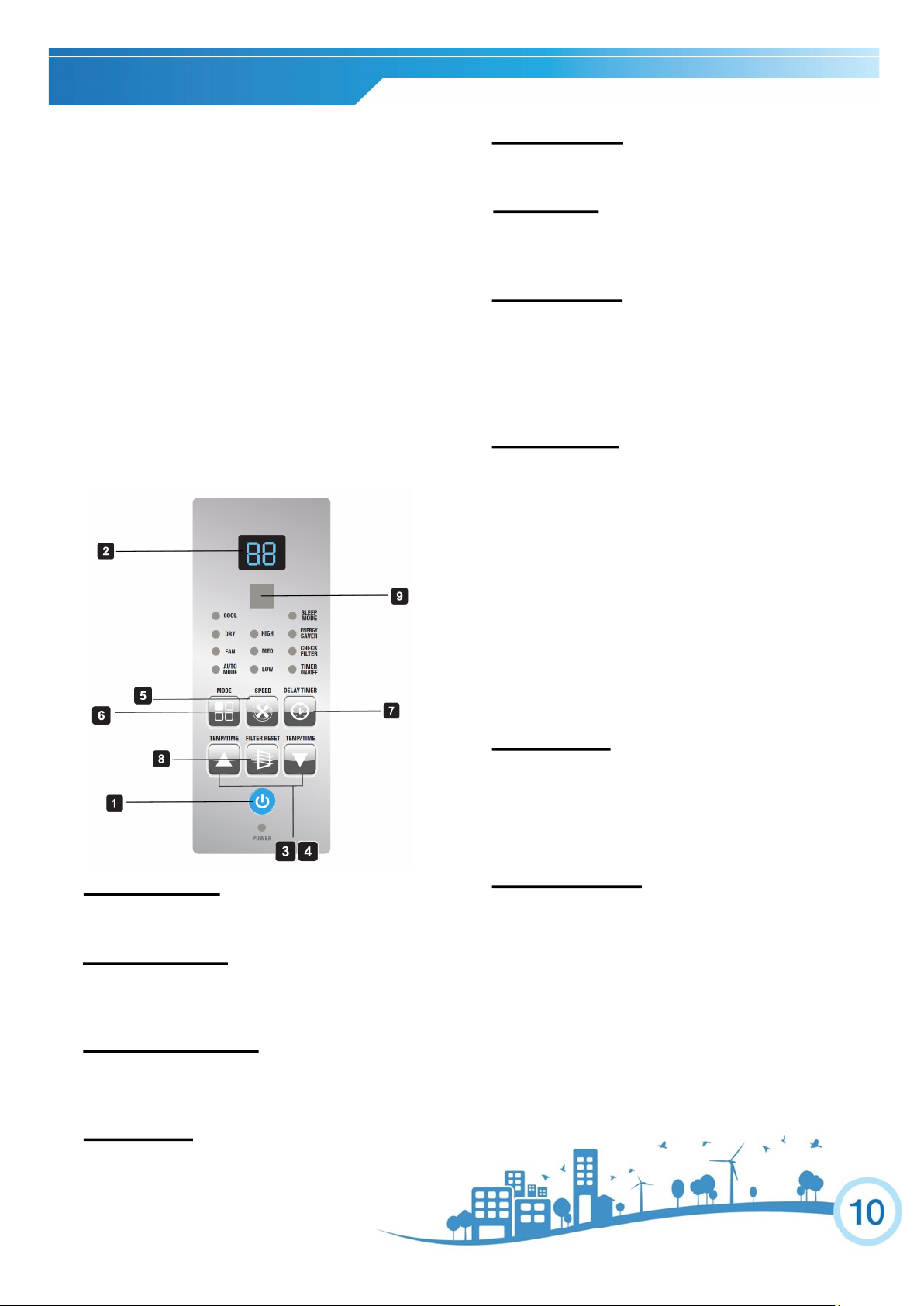

Power Button (1): Turn the air conditioner on
and off.
Digital Display (2): Will display set temperature
when the unit is in Cool, Dry, Auto, Sleep, Energy
Saver mode, and display current room temperature
when in Fan mode.
Temperature Set (3/4): Use these buttons on the
control panel or remote to increase or decrease the
Set Temperature.
Fan Speed (5): Use the fan speed but-
ton to change the fan speed. Choose
between high, medium, and low.
Mode Button (6): Press the MODE button to
cycle through the various modes: Cool, Dry, Fan,
Auto, Sleep, Energy Saver
Timer Set (7): Use these buttons on the control
panel and remote control to set the timer. Each
press of the ▲or▼ button will increase or de-
crease the timer.
Auto-On Timer: When the air conditioner is off,
it can be set to automatically turn on in 1-24
hours at the previous set mode and fan settings.
To set the Auto-on Timer, press the DELAY
TIMER button on the unit or remote control.
Timer can be set in 1 hour increment.
Auto-off Timer: When the air conditioner is on, it
can be set to automatically turn off in 1-24 hours.
To set the Auto-off Timer, press the DELAY
TIMER button on the unit or remote control. Timer
can be set in 1 hour increment.
Once timer is set, TIMER ON/OFF indicator on con-
trol panel will light up, the set temperature will also,
shown on digital display. To see the remaining time,
press DELAY TIMER button. To change the timer
settings, use the ▲or▼ on control panel or remote
control.
During preview of timer setting, press DELAY
TIMER button once to display set time, press the
button one more time to cancel the settings.
Filter Reset (8): After the fan rotates for 250 total
hours, the filter check light will turn on to remind
the user to clean the filter. Press the FILTER RE-
SET button to reset the reminder once the filter is
cleaned.
Signal Receiver (9): Point the remote control to
the air conditioner when sending instruction to the
unit.
