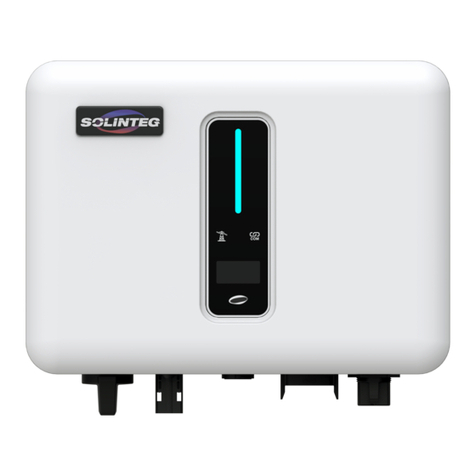

SOLINTEG Integ M Operating manual

Quick Use Guide

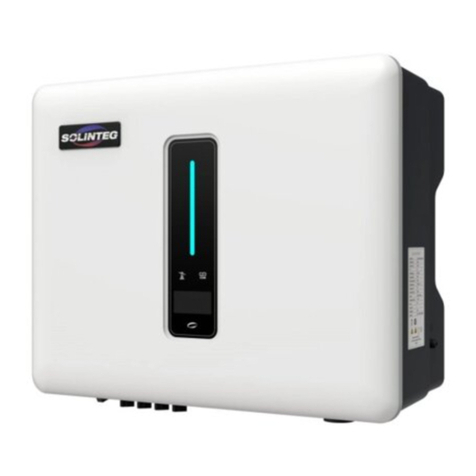

IntegMH y brid Inverter
ENGLISH VERSION

1 Commissioning
1.1 App Preparation
①Install the Setup App and Monitoring App with latest version. Please refer to the product nameplate
on side of enclosure to get the application.
②Register an account on Monitoring APP. If you have got the account and password from the distribu-
tor/installer or Solinteg, skip this step.
1.2 Inspection Before Commissioning
Check the following items before staing the inveer:
①All equipment has been reliably installed.
②DC switch(es) and AC circuit breaker are in the "OFF" position.
③The ground cable is properly and reliably connected.
④ The AC cable is properly and reliably connected.
⑤ The DC cable is properly and reliably connected.
⑥The communication cable is properly and reliably connected.
⑦The vacant terminals are sealed.
⑧No foreign items, such as tools, are left on the top of the machine or in the junction box (if there is).
⑨The AC circuit breaker is selected in accordance with the requirements of this manual and local
standards.
⑩All warning signs & labels are intact and legible.
1.3 Commissioning Procedure
If all of the items mentioned above meet the requirements, proceed as follows to sta up the inveer for
the rst time.
① Turn on the AC breaker.
② Turn on the lithium batte breaker. Power on the batte pack manually if a batte is equipped.
③ Turn the DC switch, the DC switch may be integrated in the inveer or installed by the customer.
④ If the irradiation and grid conditions meet requirements, the inveer will normally operate. The
connection time for inveer to gird may take few minutes or even to more according to dierent count
code chosen in the initial settings and the real site grid condition.
⑤ Obsee the LED indicator to ensure that the inveer operates normally.

2 WiFi Module Conguration Guide
1
Prepare a laptop or
Smaphone and turn
on the WLAN
connection.
2
Searching for the
corresponding WLAN
in the WLAN connec-
tion list
“WIFI-AP********”
(*represents the last 8
numbers of the
inveer SN), and tap
connect.
3
Open the browser and
enter 10.10.100.254.
4
Tap“Scan”，A list of
WiFi network names
pop up.
5
Click and select the
corresponding router
network you want to
congure.
6
Input the password of
wireless network，
(note the case
dierence)，Tap“Con-
nect”

3 LAN Module Conguration Guide
If DHCP is enabled on the router, the LAN module does not need to be congured. Otherwise, the LAN
module will need to be congured on inveer screen.
① Find the “General Settings” by sho pressing the button on the inveer screen.
② Enter the “General Settings” by long pressing the button on the inveer screen.
③ Find “DHCP set” by sho pressing the button, then turn o DHCP function by sho pressing and long
pressing the button on the inveer screen.
④ Then set the “IP Address”, “Gateway Address”, “Subnet Mask” and “DNS Address”. Sho press to
change the number, long press to conrm the number and jump to the next number.
7
If connected
successfully “Connec-
tion succeeded” will
displayed. After
successful congure,
the indicator status of
WIFI module will be
steady on.
System Info
Fault Info
RSSI
90%
<General>
Modbus Addr
247
1s
1s
3s
Not LAN
1s
1s
General
Settings
LAN
<General>
DHCP Set
ON
<General>
DHCP Set
OFF
3s
<General>
IP Addr
192.168.0.10
<General>
IP Addr
192.168.0.10
3s
<General>
Gateway Addr
192.168.0.1
<General>
Subnet Mask
255.255.0.0
<General>
DNS Addr
192.168.0.1
1s
1s
1s
<General>
Gateway Addr
192.168.0.1
3s
<General>
Subnet Mask
255.255.0.0
<General>
DNS Addr
192.168.0.1
3s
3s
1s
1s

4 Local conguration App
Local conguration App is designed for quick conguration of hybrid inveers, oering features such
as safety code, batte brand and type, work modes, and o-grid application settings through WiFi
direct connection, etc.
There are two connection modes, WiFi direct connection and router connection.
Smaphone connects WIFI monitoring device
directly.
Smaphone and the monitoring device are
connected to the router together.
Connection steps:
①-a. Refer to “WiFi module conguration
guide step1~2” to connect the smaphone
to the WiFi module. If it is connected, skip
this step.
①-b. Refer to “WiFi module conguration
guide” or “LAN module conguration guide”
to connect the WiFi/LAN module to the
router. Then connect smaphone to the
same router. If it is connected, skip this step.
② Open “Setup APP”，Tap“Scan”，A list of inveer WiFi-AP names pop up.
③ Click and select the inveer WiFi-AP which you want to connect.
④ Select the login role.
⑤ Input the password(123456)，Tap“Login In”.
⑥ If connected and logined, the Setup APP main inteace will be displayed.
Sma
phone
Router
LAN
Sma
phone

5 Indicator
5.1 Inveer
Power and
Alarm Indicator
Grid Indicator
Communication
Indicator
Indicator Status Description
No power.
Inveer entered self-test status.
Inveer entered waiting status.
Inveer works normal.
An alarm or fault is detected, view the fault info on the display.
Grid lost.
Inveer detected grid but not running in on-grid mode.
Inveer works in on-grid mode.
The inveer communication is running normally.
The inveer isn’t communicating with the BMS.
Low batte warning, the batte power is about to reach the
SOC protection value.
The inveer communicates with EMS or Master inveer
through RS485 or CAN.
The inveer isn’t communicating with Solinteg sma meter.
O
Quick ashing
Slow ashing
Breathe ashing
Orange Breathe ashing
Red Always on
O
Slow ashing
Always on
Green Always on
Green Flashing
Orange Always on
Red Always on
Blue

5.2 Monitoring Device
Indicator Status Description
Connection abnormal
Communicate with the seer normally
The monitoring device is connected to the router or connected to the base station but
not connected to the seer.
O
Always On
Quick ashing
Button Description
The monitoring device is not connected to the router or is not connected to the base
station.
Slow ashing
Reset device, the indicator goes o for 2 seconds, then ashes normally.Press 1 second
Restore facto default settings, the indicator goes o for 2 seconds, then ashes once
eve 2 seconds, until the facto restore is completed.
Press 5 second

www.solinteg.com
