Soltech SATELIS User manual

01
SATELIS
50W 75W
Installation Manual
SOLTECH Designs and Manufactures
Advanced, Solar-Powered
LED Technology.

02
SATELIS 50W
SATELIS 75W

03
01 Check List
02 Introduction
03 Battery Notes
04 Installation and Wiring Compliance
05 Mounting Accessories
06 Installation—50W
07 Installation—75W
08 Panel Angle

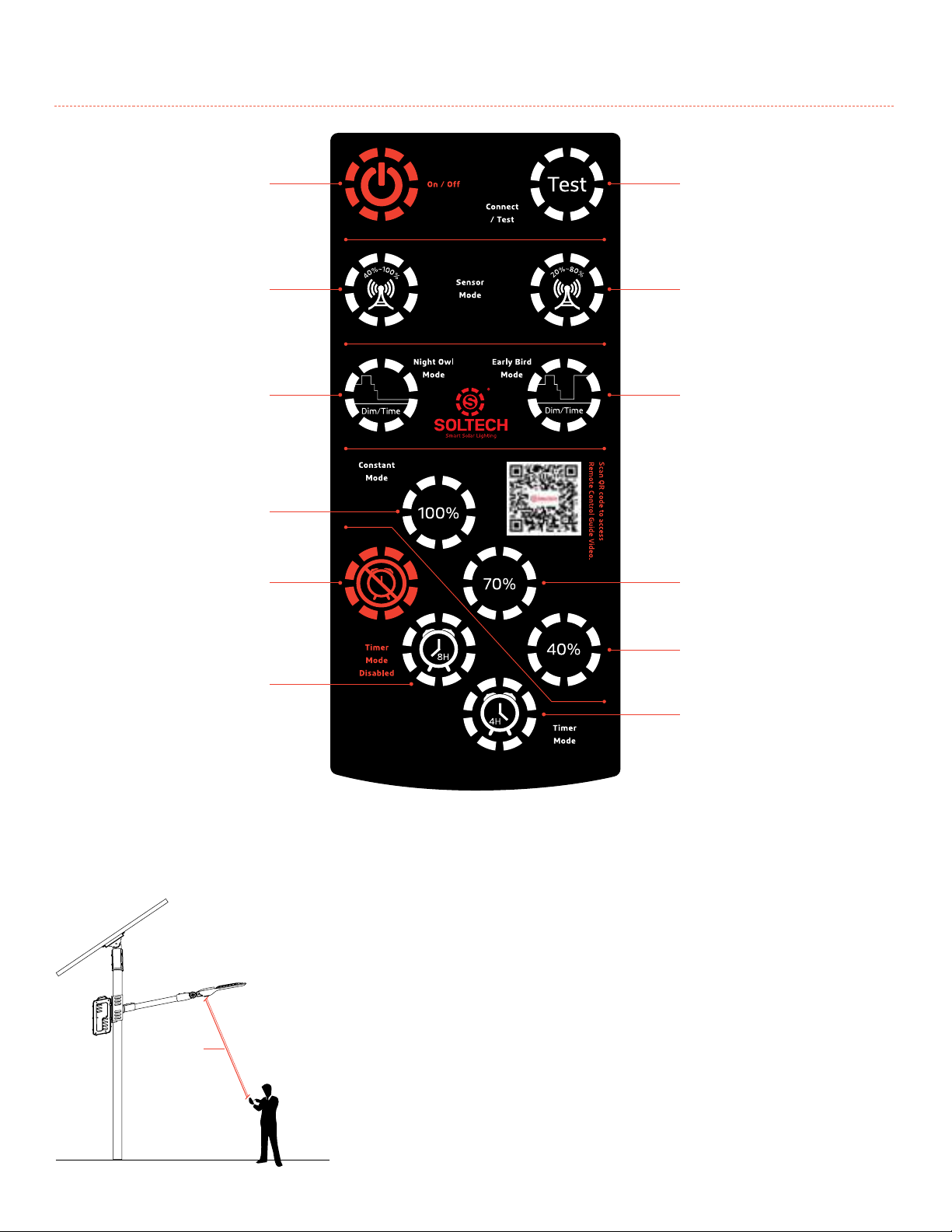

09 Remote Control Guide
Contents
05
06
08
010
011
012
014
016
018

04
01 Check List
SATELIS 50W
Solar Panel
Component Kit A
Component Kit D Component Kit E Component F Component G Component H
Component I Component J Component K Wire M
Component Kit B Component Kit C
Luminaire Battery Pack

05
SATELIS 75W
Solar Panel
Component Kit A
Component Kit D Component Kit E Component F Component G Component H
Component I Component J Component L Wire N
Component Kit B Component Kit C
Luminaire Battery Pack

06
02 Introduction
Thank you for purchasing SATELIS Urban Lighting Products.
Introduction
The high-performance SATELIS Series is a municipal-grade solar outdoor
lighting system that provides bright off-grid light. This heavy-duty com-
mercial dedicated series is ideal for highways, city streets, large parking
lots, and area lighting. It comes in a wide choice of configurations, lighting
outputs, and recommended pole heights. The Satelis series is optimized
to provide years of bright, reliable light. Industry-leading efficiency, dense
batteries, and advanced controls to guarantee the highest possible off-
grid autonomy.
Important
In order to avoid deep discharge of the battery during storage, please
fully recharge your battery every 4 months. Please make sure that the
light is installed in an area with sufficient sunlight irradiance. A strict
minimum of 3.5 hours/day of sunshine on average is recommended. Se-
lect the right operating mode according to the local legislation needs and
the local sunshine conditions. Keep it away from shadows. Self-cleaning
available when the light fixture have minimum angle of 15 degrees.
Please save these instructions. Read all of the instructions carefully
before attempting to carry out any installation or wiring. Do not open or
attempt to repair the product on your own, as it many cause serious
damage and would void the product warranty. Contact your local
distributor for any questions concerning the installation.
Range of the light module on the lighting fixture is 20–26 feet
(6–8 meters). The ideal installation spacing is >16 feet(5 meters). When
installing two or more lighting fixtures on one pole, select desired
operating mode before installation. Interference can cause delay or
malfunction when using the remote control to change operating modes
after installation.
Precautions when working with solar panels
When the solar panel is exposed to sunlight, a voltage appears at the
output terminals of the solar panel turning it into a source of electricity.
To avoid a shock hazard, make sure the solar panel is covered with an
opaque (dark) later such as paper or cloth during the installation. Do not
make contact with the terminals when the panel is exposed to sunlight or
any other light source.

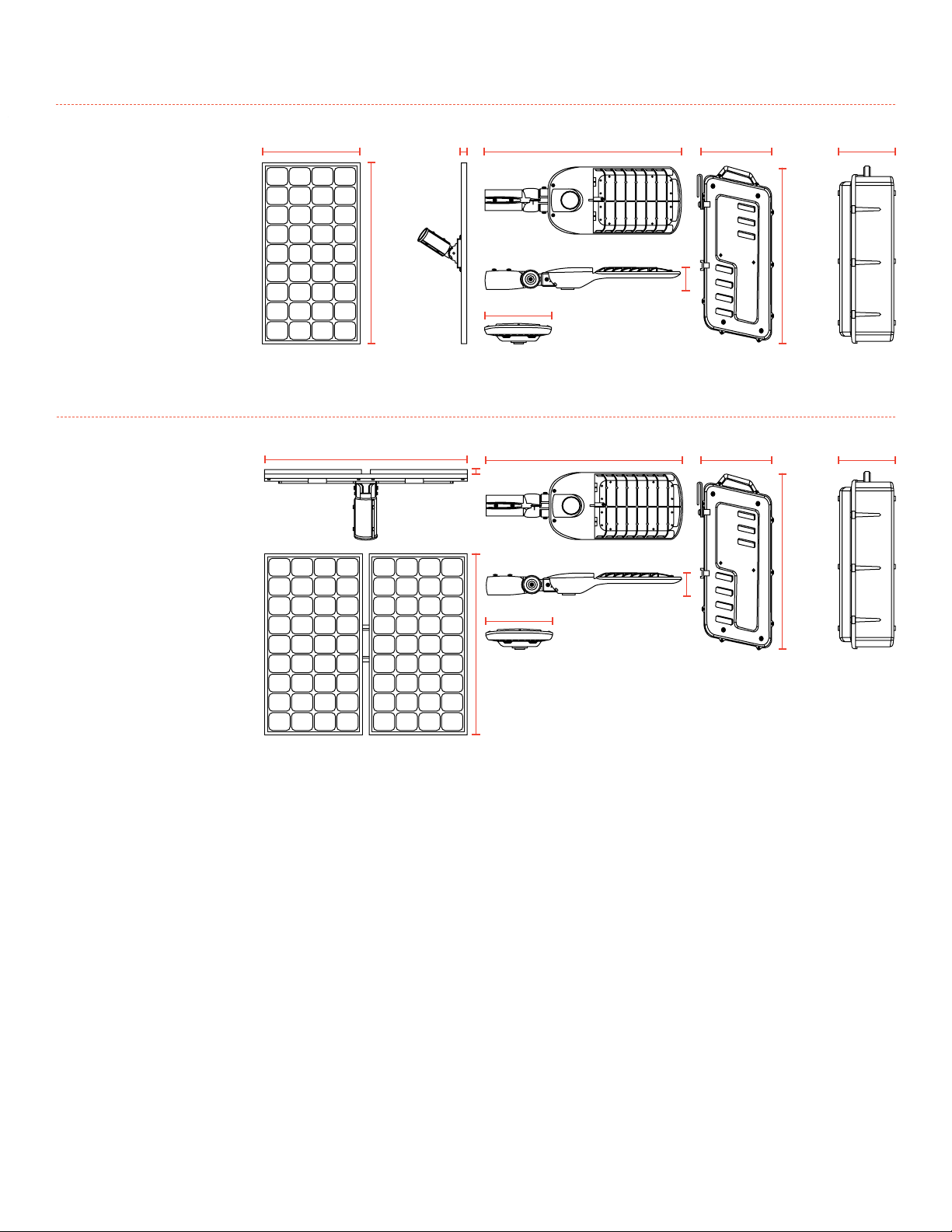

07
SATELIS 50W
SATELIS 75W
26.5 inches
25V 30AH
SOLAR PANEL: 21.1 Lbs
SOLAR LAMP: 13.5 Lbs
BATTERY ASSEMBLY: 35.2 Lbs
MOUNTING FASTNER: 22 Lbs
25V 60AH
SOLAR PANEL: 21.1 Lbs
SOLAR LAMP: 13.5 Lbs
BATTERY ASSEMBLY: 51 Lbs
MOUNTING FASTNER: 22 Lbs
25V 60AH
SOLAR PANEL: 42.2 Lbs
SOLAR LAMP: 13.8 Lbs
BATTERY ASSEMBLY: 51 Lbs
MOUNTING FASTNER: 28.6 Lbs
25V 90AH
SOLAR PANEL: 42.2 Lbs
SOLAR LAMP: 13.8 Lbs
BATTERY ASSEMBLY: 66 Lbs
MOUNTING FASTNER: 28.6 Lbs
1.3 inches
3.5 inches
11.0 inches
32.0 inches
55.0 inches
1.3 inches
9.5 inches 6.3 inches
49.0 inches
49.0 inches
21.5 inches
3.5 inches
11.0 inches
32.0 inches 9.5 inches 6.3 inches
21.5 inches

08
1. The LiFePO4-battery-powered SATELIS lights are visibly brighter
than other outdoor solar lights, and their performance overall is
more reliable.
2. To charge the battery fully may take up 6 to 12 hours.
3. Output will be reduced to 40% when the battery is below 40% of
its capacity.
4. Battery will stop charging when the ambient temperature is below
32°F or above 149°F.
Battery Status is indicated by the red/green indicator on the lighting
fixture as follows:
- Red indicator (Charging)
> Slow red light flashing = Charging
> Red light continuously on = fully charged
> Quick red flashing = charge fault
- Green indicator (not charging)
> Green light continuously on = more than 40% of the battery
capacity remaining
> Slow green light flashing = battery capacity below 10%
> Quick green light flashing = battery below 0% mode—Protect
battery does not over discharging
Storage
To avoid over discharge of the battery during storage, please recharge
the lighting fixture every 3 months. Use the dedicated charger to charge,
reset the switch when done.
03 Battery Notes

09

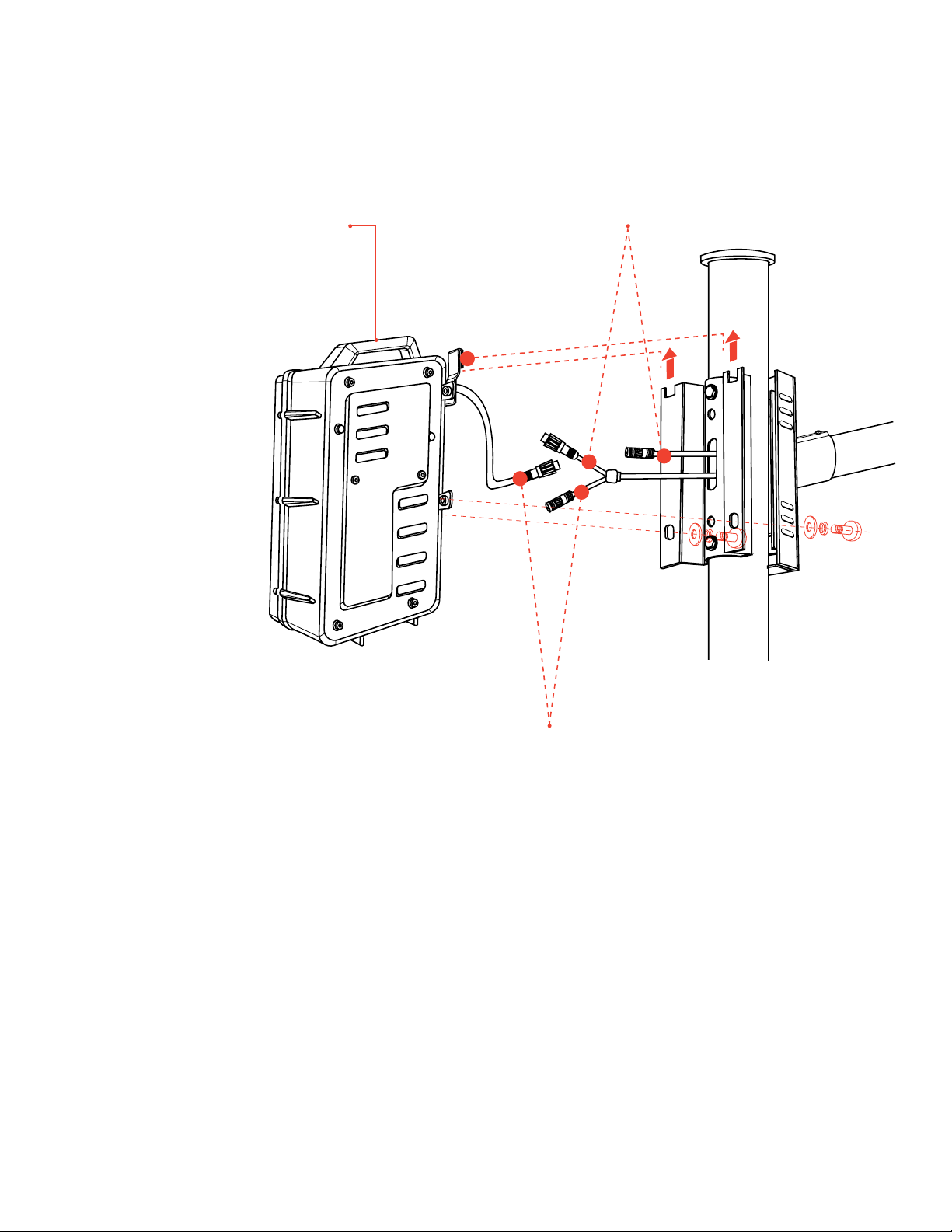

Battery pack Disconnect wires
Disconnect wires
Battery Replacement
1. Loosen the screws of the
battery pack.
2. Disconnect the wire
connectors.
3. Take out the battery pack.
4. Replace with a new one,
connect the wire connectors.
5. Tighten the screws.
(IAP) Intelligent Adaptive Program Battery
Control Technology
In order to extend the off-grid autonomy
of the SATELIS under shady trees, heavy
rain, and thick clouds, our controllers now
integrate an adaptive smart control feature
to actively track battery capacity and adjust
light output accordingly. Before integrating
this feature, selecting a light output percent-
age on the remote would yield an accurate
percentage of max LED brightness. Now with
(IAP), the controller actively monitors the
battery and regulates the electrical current
to the LEDs. The controller makes light output
of the selected percentage on the remote
relative to battery capacity rather than max
LED output. This smart-control feature can
increase our off-grid performance by up
to 40%. 0102
03

010
04 Installation and Wiring Compliance
1. Installation and wiring must comply with the State and National
Electrical Codes.
2. The SATELIS 50W and 75W models are intended for outdoor use
only and should not be installed in an unventilated area, and shall be
installed in an environment within the operational temperatures
defined for the product.
3. The average sunshine in the installation area should be above
3.5 hours/day in order to ensure full function of the lighting fixture.
Avoid areas with shades.
4. Before installation, if applicable, please ensure the light pole and its
foundation are solid enough to withstand the lighting fixture(s).
5. Before installation, please ensure that the battery is fully charged. Install
during sunny days if possible.
6. Before installation, please press the ON/OFF key in the remote
control and check whether it shows a red light on the indicator.
Please cover the panel and check if the light module turns on normally
within 1 minute.
After Installation
The lighting fixture will automatically turn on at night and turn off
during daylight.
Important
Always orient the solar panel facing the equator (e.g. facing south if in
northern hemisphere).
Always have a tilt angle of at least 15° to avoid dust accumulation
(0°=horizontal plane).

011
Max 29.5 inches

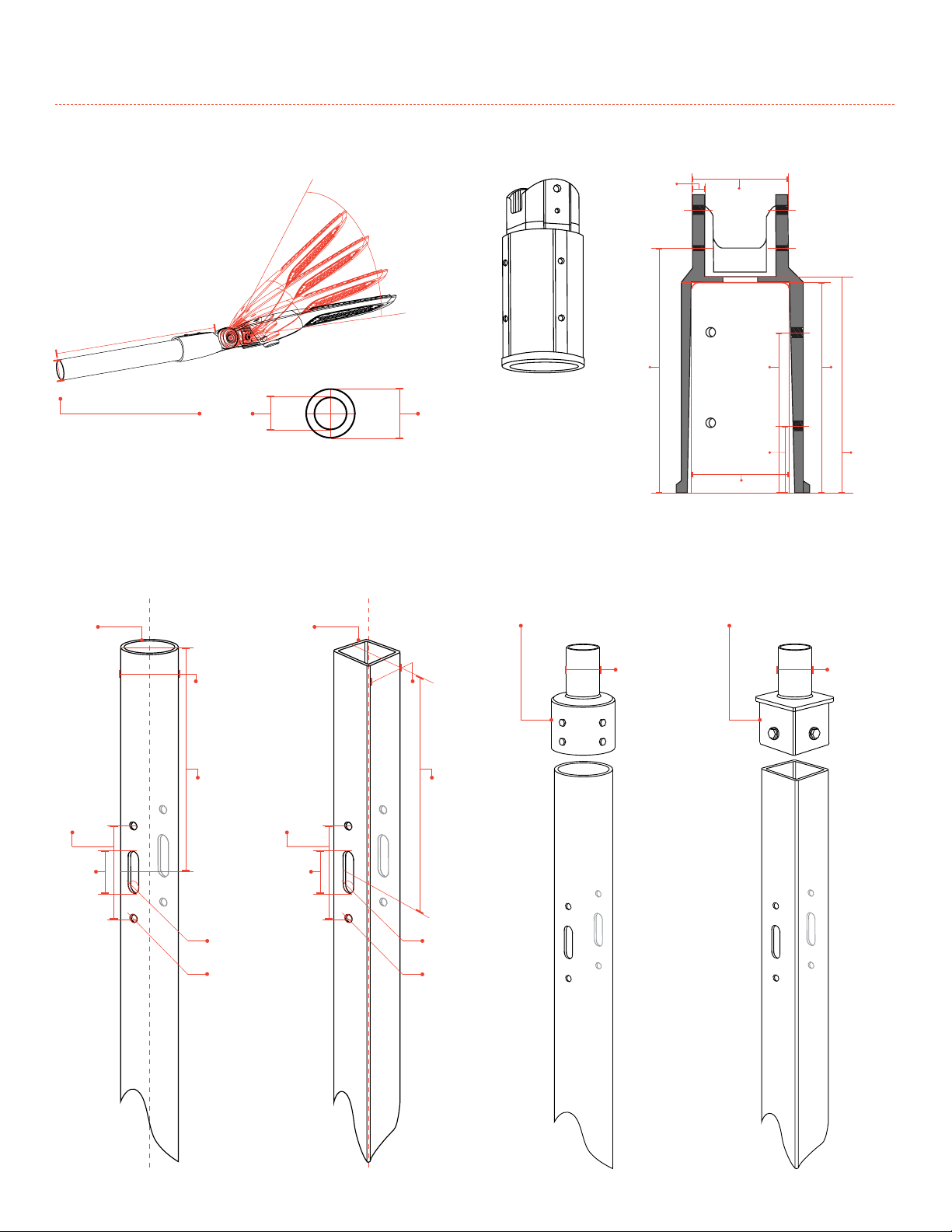

05 Mounting Accessories
Create 2 holes (diameter 0.5 inch) in the middle of pole, create 1 hole
(diameter 1.5 inch, 2.6 inch long) between the 2 holes.
If your round pole size is over 3.1 inches, or you need a square pole, please
contact the pole manufacturer for the tenon adapter.
SLIP FITTER
POLE ASSEMBLY TENON ADAPTER
SOLAR PANEL SUPPORT BASE—CUTAWAY
Pole Size For Slip Fitter
1.8 inches
31.0 inches
Ø3.0 inches–Ø5.5 inches
Ø3.1 inches Ø3.1 inches
2.5 inches–5.0 inches
Ø1.5 inches Ø1.5 inches
Ø0.5 inch Ø0.5 inch
Max 29.5 inches
2.4 inches
Top of Pole—
Round
Top of Pole—
Square
Tenon Adapter—Round Tenon Adapter—Square
7.2 inches
Pole
3.1 inches
0.4 inch
8.2 inches 5.3 inches 7.1 inches
2.2 inches
3.1 inches
9.5 inches 9.5 inches
2.6 inches 2.6 inches

012
06 Installation—50W
SATELIS 50W
01 02
03 04
Solar Panel
Component K
Component Kit A
Component Kit B
Component Kit D
Component F
Component Kit C Wire M
Connect
Wire M comes
inside the pole
and comes out
from the hole.
The luminare wire comes inside the
component J.
Component G
Component H
Component I
Luminaire
Component J
If your round pole size is over 3.1
inches, or you need a square pole,
please contact the pole manufacturer
for the tenon adapter to connect
the componet F.
Tenon Adapter

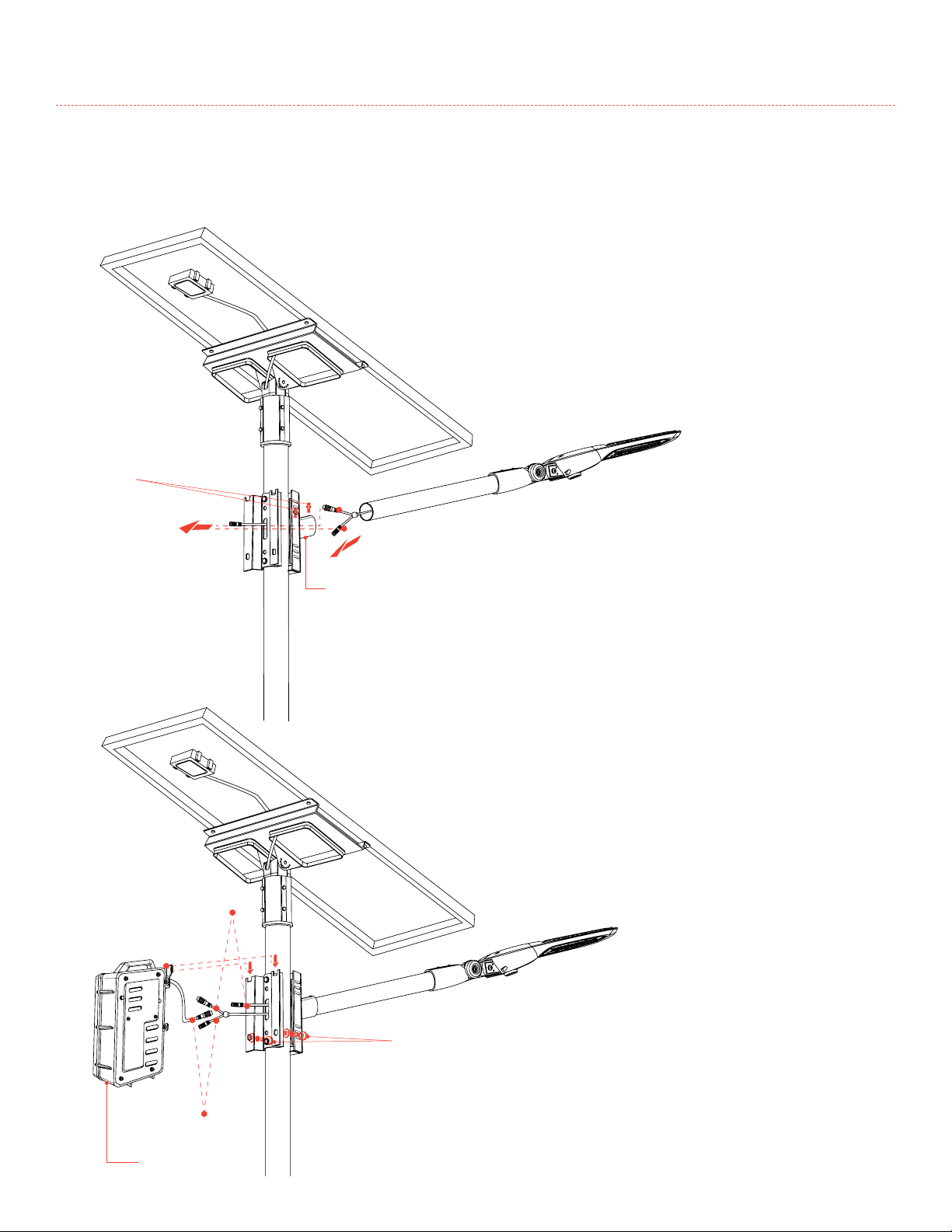

013
05
06
Component Kit E
Connect
Connect
The luminare wire comes inside
the component H and comes out from
the hole.
Battery Pack
Component E
Component H

014
07 Installation—75W
SATELIS 75W
01 02
03 04
Solar Panel
Component L
Component Kit A
Component Kit B
Connect
Connect
Wire N
Component H
Component I
Component Kit C
Component G
Wire N comes
inside the pole
and comes out
from the hole.
Luminaire
Component J The luminare wire comes inside the
component J.
Component Kit D
Component F
If your round pole size is over 3.1
inches, or you need a square pole,
please contact the pole manufacturer
for the tenon adapter to connect
the componet F.
Tenon Adapter

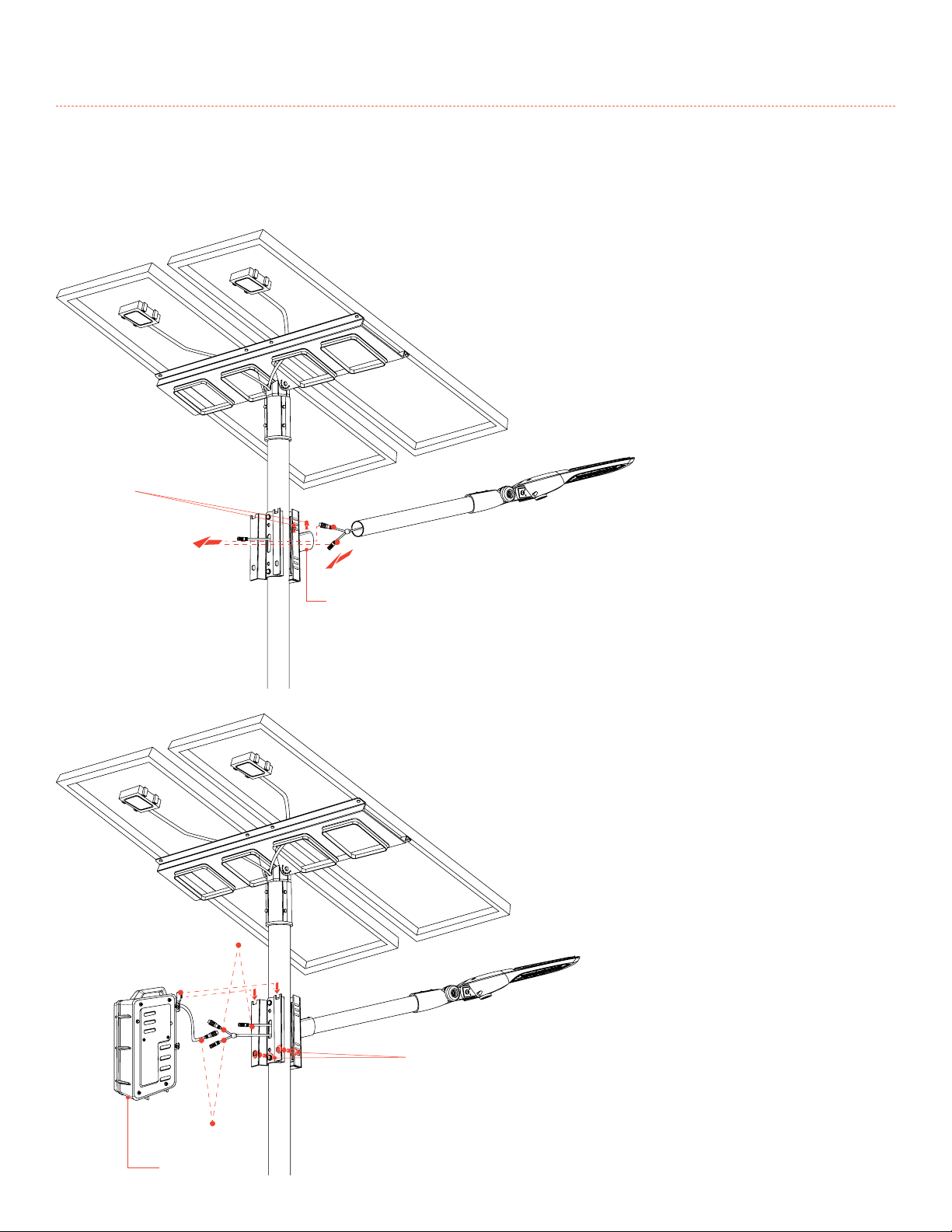

015
05
06
Component Kit E
The luminare wire comes inside
the component H and comes out from
the hole. Component H
Component E
Connect
Connect
Battery Pack

016

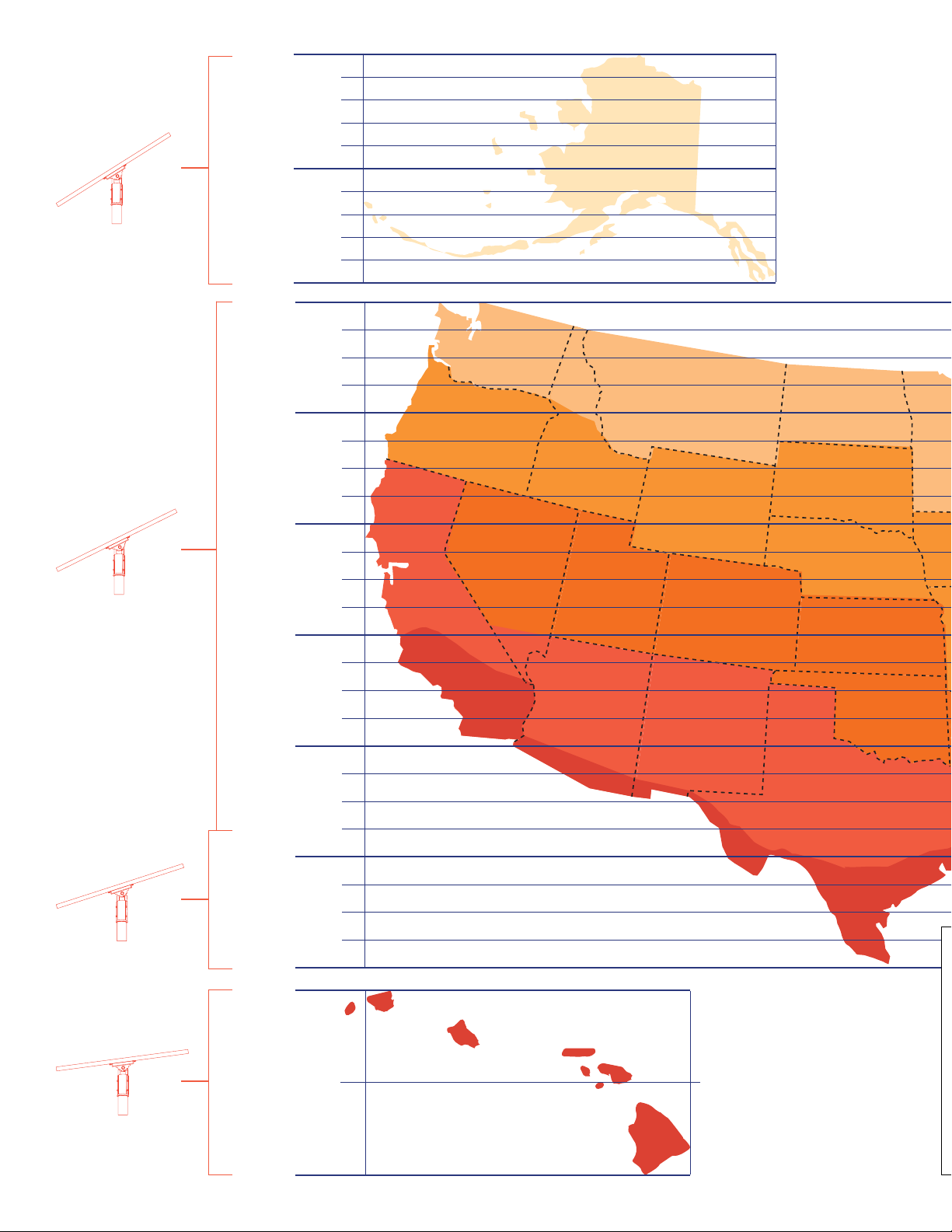

Alaska
25° N
15°
30°
45°
60°
19° N
21° N
26° N
20° N
27° N
28° N
29° N
30° N
31° N
32° N
33° N
34° N
35° N
36° N
37° N
38° N
39° N
40° N
41° N
42° N
43° N
44° N
45° N
46° N
47° N
48° N
60° N
49° N
Washington
Oregon
California
Nevada
Arizona
Utah
New Mexico
Kansas
Colorado
Oklahoma
Texas
North Dakota
South Dakota
Nebraska
Idaho
Montana
Wyoming
61° N
62° N
63° N
64° N
65° N
70° N
66° N
67° N
68° N
69° N
Hawaii
Minnesota
I

017
The solar charge in a battery pack won’t last forever. The off–grid
system relies on stored solar energy for autonomy. Angling your solar
panels properly can boost the power intake of your solar lighting
system. You want to angle your solar panels at a tilt based on the
area’s latitude.
Tip
You can increase the tilt 15° in the winter or decrease 15° in the summer.
In this way you can get the maximum sunlight to recharge the battrey.
Strong sunlight Nromal sunlight Less sunlight
Key
The area will dictate the installation of the fixtures and will sometimes
prevent the lights from facing south. But that’s okay! Panels facing West
& East won’t get as much light as Southern facing panels, but will still
collect a good amount of sunlight. A North facing panel also works, but
it will take longer to charge than any other direction. This would mean
that the solar charge will be less optimal if installations are facing North.
0°
15°
15°
45°
60°
45°
Arkansas
Louisiana
Mississippi
Alabama Georgia
South
Carolina
North
Carolina
Virginia
West
Virginia
Kentucky
Illinois
Wisconsin
Minnesota
Iowa
Missouri
Michigan
Indiana
Ohio
Pennsylvania
New York Massachusetts
Rhode Island
Connecticut
New Jersey
Delaware
Maryland
Tennessee
Florida
World Wide Panel Angles
Best Facing Direction of Solar Panel
Best
Worst
OKOK
New Hampshire
Vermont Maine
30°
30°
08 Panel Angle

018
09 Remote Control Guide
1. On/Off
When off is selected, the light will stop working. The solar panel will not
charge the battery and the battery will not supply electricity to the light.
2. Connect/Test
Remote control device can be connected with any lighting fixture, one
at a time. To connect, press the button once. It also functions as a test
button. To test, press the “Test” button once, the red light will indicate
the fixture is charging, green light indicates that the fixture is operating.
Testing lasts for 10 seconds, and then it goes back to the mode previously
in use.
The range of the remote control to the
indicator is 16ft (Day time) to 33ft (Night
time). Because the sunlight will impact
the signal of the remote control, we suggest
our users to setup the mode before they
install the light.
16ft–33ft
1. On/Off 2. Connect/Test
4. 20%~80% Motion
Sensor Mode (Default)
6. Early Bird Mode
8. 70% Constant Mode
10. Timer Mode Disabled
12. Time Mode 8 Hours
3. 40%~100% Motion
Sensor Mode
5. Night Owl Mode
7. 100% Constant Mode
9. 40% Constant Mode
11. Timer Mode 4 Hours

019
3. 40%~100% Motion Sensor Mode
Constant 40% brightness (turns on at dusk, turns off at dawn);
100% brightness turns on for 2 minutes when motion is detected.
4. 20%~80% Motion Sensor Mode (Default)
Constant 20% brightness (turn on at dusk, turn off at dawn);
80% brightness turns on for 2 minutes when motion detected.
5. Night Owl Mode
Changes as natural light decreases/increases (turns on at dusk); 70%
brightness for 0.5 hour, 100% brightness for 3.5 hours, 70% bright-
ness for 1 hour, 50% brightness for 1 hour, 20% brightness for 5
hours (turns off at Dawn).
6. Early Bird Mode
Changes as natural light decreases/increases with increased brightness
near dawn for early risers (turns on at dusk); 70% brightness for 0.5
hour, 100% brightness for 3.5 hours, 70% brightness for 1 hour, 50%
brightness for 1 hour, 20% brightness for 4 hours, 100% brightness for 1
hour (turns off at Dawn).
Important
Dusk and dawn time can vary for different locations and seasons.
The sensors in our products will monitor the light levels where it is
installed. The time period shown in the chart above is just an example
to help you understand the different lighting modes.
(IAP) Intelligent Adaptive Program Battery Control Technology
In order to extend the off-grid autonomy of the SATELIS under shady
trees, heavy rain, and thick clouds, our controllers now integrate an
adaptive smart control feature to actively track battery capacity and
adjust light output accordingly. Before integrating this feature, select-
ing a light output percentage on the remote would yield an accurate
percentage of max LED brightness. Now with (IAP), the controller
actively monitors the battery and regulates the electrical current to
the LEDs. The controller makes light output of the selected percentage
on the remote relative to battery capacity rather than max LED output.
This smart-control feature can increase our off-grid performance by
up to 40%.

020
09 Remote Control Guide

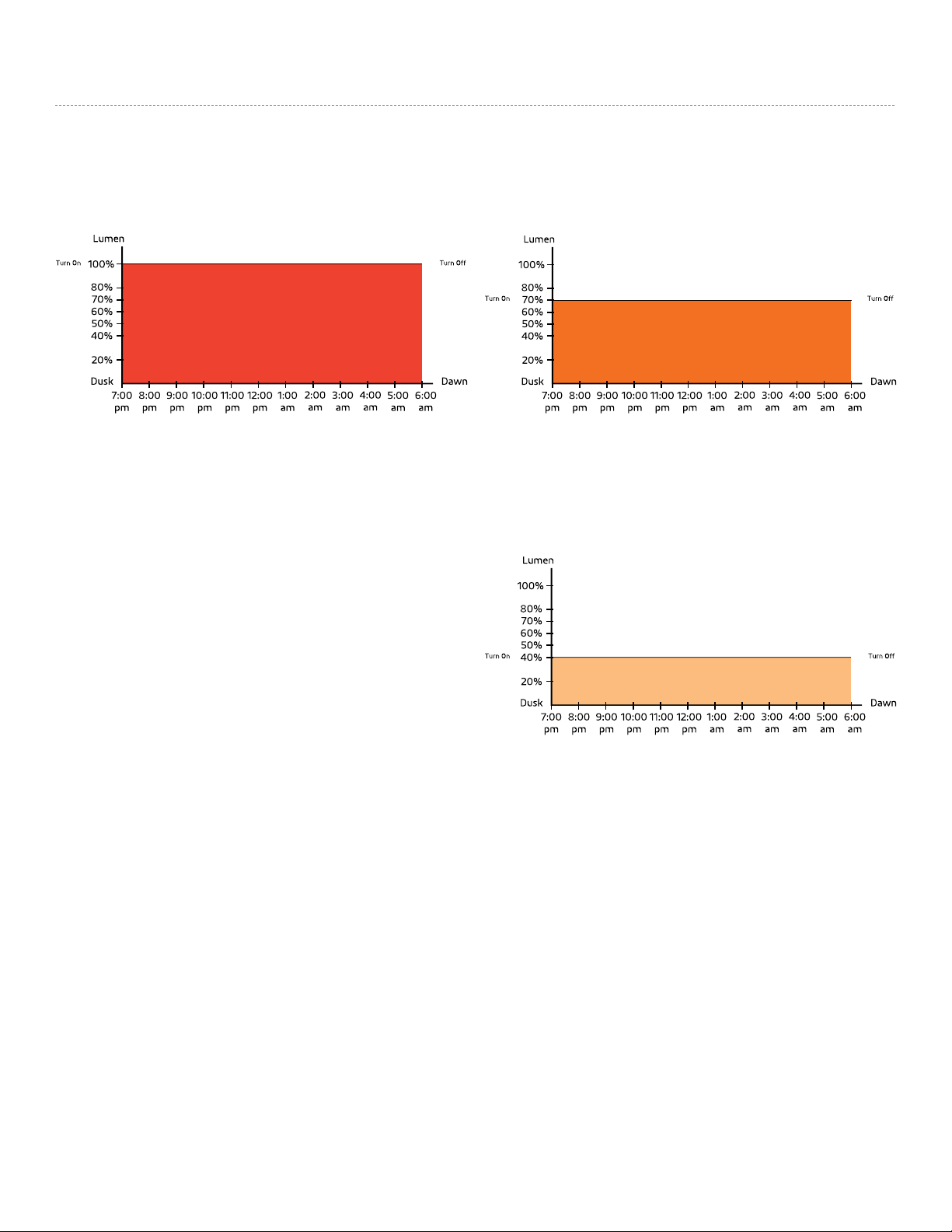

8. 70% Constant Mode
70% brightness from dusk to dawn.
9. 40% Constant Mode
40% brightness from dusk to dawn.
10. Timer Mode Disabled
Press this button to turn off Timer Mode; settings revert back to before
Timer Mode was last activated.
7. 100% Constant Mode
100% brightness from dusk to dawn.
