Soltech SOLPORT User manual

SPECIFICATIONS
0215W / 1,500LM
5.4Ah / 7.4V
SMD 2835 X 88PCS
7.3 Wp, Mono-crystalline Silicon
3 Different Modes
120° / 16.4–26.2ft
80*100°
IP65
3 YEARS
35,000 hrs
9.8–16.4 ft
Solar Light X 1, Screw Bag X 1,
User Manual X 1
POWER / LUMEN
LED
LI-ION BATTERY
SOLAR PANEL
WORKING MODE
DETECTION ANGLE / AREA
BEAM ANGLE
IP DEGREE
WARRANTY
LIFESPAN
INSTALLATION HEIGHT
PACKING
Copyright©2021–2022 SOLTECH LLC, All Rights Reserved.
SOLTECH LLC reserves the right to update all product data sheets at any time. Consult
SOLTECH marketing specialists for publication updates at www.soltechlighting.com
SOLTECH offers
advanced LED
technology that
is eco-friendly
and utilizes
clean energy.
SOLPORT
1460 Park Avenue.
Emeryville CA 94608 USA
www.soltechlighting.com
Please read and follow all instructions to operate. Save this
manual for future reference.
SOLAR LED
WALL LIGHT
15W 1,500LM 4,000K
011
INTRODUCTION
1. This is a solar powered lamp, please install it in a
location where it can get enough sunshine.
2. Please note the duration of the light depends on sun
intake & weather.
3. The lamp will automatically turn on at dusk.
4. Built-in IC with over-charge, over-discharge, and
over-voltage protection.
Warning
1. The lamp is equipped with internal batteries. Non-professionals
please do not disassemble the lamp.
2. Please do not dispose the battery in household garbage to
avoid explosion.
WATERPROOF SUPER
BRIGHT
CORDLESS DUSK TO
DOWN SENSOR
MOTION
SENSOR
LOW
COST
INSTALLATION
03
04
1. Remove the mounting plate from the lamp
• Remove the screws on the side of the
mounting plate.
• Slide the mounting plate down to remove
from lamp.
2. Fix the mounting plate on the wall
• Put the mounting plate on the wall and
mark 5 hole positions.
• Drill 5 holes of 8mm with depth 60–65mm
on the wall.
• Fix expansion plugs into the holes.
• Fix the mounting plate to the wall with screws
using a screwdriver.
3. Fix lamp onto the mounting plate
• Position the lamp on the mounting plate then
slide down to fasten.
• Tighten the screws on the side of the
mounting plate to secure.
4.Adjust solar panel angle and program
operating mode
• Loosen the screws on both sides of the lamp
• Adjust the solar panel to the appropriate
angle then tighten the screws on both sides
of the lamp
• Press the Power Button to activate the lamp
& the remote control.
Expansion
Plug X 5
Mounting
Plate X 1
Screws X 5 Side
Screw X 1
8mm
When you switch to a different operating mode,
the lamp will flash one time to indicate that the
operating mode has been changed successfully
ON/OFF button with memory of the operating
mode before it was turned off.
OPERATING
MODES
MODE A
Automatically turns on at dusk and remains
at a constant 50% brightness (motion sensor
disabled). After 5 hours or when battery capacity
is below 30%, it will turn to Mode C.
MODE B
Main light automatically turns on to full brightness
(1,500LM) when motion is detected in the range
of 26.2 ft (bottom wall washing light is off).
After 20 seconds of no motion, main light turns
off and the bottom wall washing light automati-
cally turns on.
MODE C
Main light automatically turns on to full brightness
(1,500LM) when motion is detected in the range
of 26.2 ft (bottom wall washing light is off). After
20 seconds of no motion, the whole light turns off.
0°PANEL ANGLE 15° 30° 45° 75°
Power Button
Please press the power button on the lamp to
activate the lamp and remote control.
IR Remote Control
Control
Distance:≤ 39.4ft
120° 120°
120° 120°

Other manuals for SOLPORT

3

Other Soltech Lighting Equipment manuals

Soltech SUNLIKE PRO 30W User manual

Soltech

Soltech SUNLIKE PRO 30W User manual

Soltech PORTA SUNLIKE 8W User manual

Soltech

Soltech PORTA SUNLIKE 8W User manual

Soltech SUNDIAL 3W 13" User manual

Soltech

Soltech SUNDIAL 3W 13" User manual

Soltech SOLPAD User manual

Soltech

Soltech SOLPAD User manual

Soltech SOLTAB User manual

Soltech

Soltech SOLTAB User manual

Soltech SOLPORT 7W User manual

Soltech

Soltech SOLPORT 7W User manual

Soltech SOLPORT User manual

Soltech

Soltech SOLPORT User manual

Soltech Broadway 60 User manual

Soltech

Soltech Broadway 60 User manual

Soltech Cosmo 20W User manual

Soltech

Soltech Cosmo 20W User manual

Soltech SOLPORT User manual

Soltech

Soltech SOLPORT User manual

Soltech FOCUS 10W User manual

Soltech

Soltech FOCUS 10W User manual

Soltech CEGONIA PRO User manual

Soltech

Soltech CEGONIA PRO User manual

Soltech BROADWAY PLUS User manual

Soltech

Soltech BROADWAY PLUS User manual

Soltech SATELIS User manual

Soltech

Soltech SATELIS User manual

Soltech BEACON User manual

Soltech

Soltech BEACON User manual

Soltech NUVO User manual

Soltech

Soltech NUVO User manual

Soltech BEACON User manual

Soltech

Soltech BEACON User manual

Soltech TEMPO User manual

Soltech

Soltech TEMPO User manual

Popular Lighting Equipment manuals by other brands

Lightolier FP02 specification

Lightolier

Lightolier FP02 specification

Cameo CL 200 RB user manual

Cameo

Cameo CL 200 RB user manual

Lip D-LETTA quick start guide

Lip

Lip D-LETTA quick start guide

MJ LED LIGHTNING MJ-3234 user manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3234 user manual

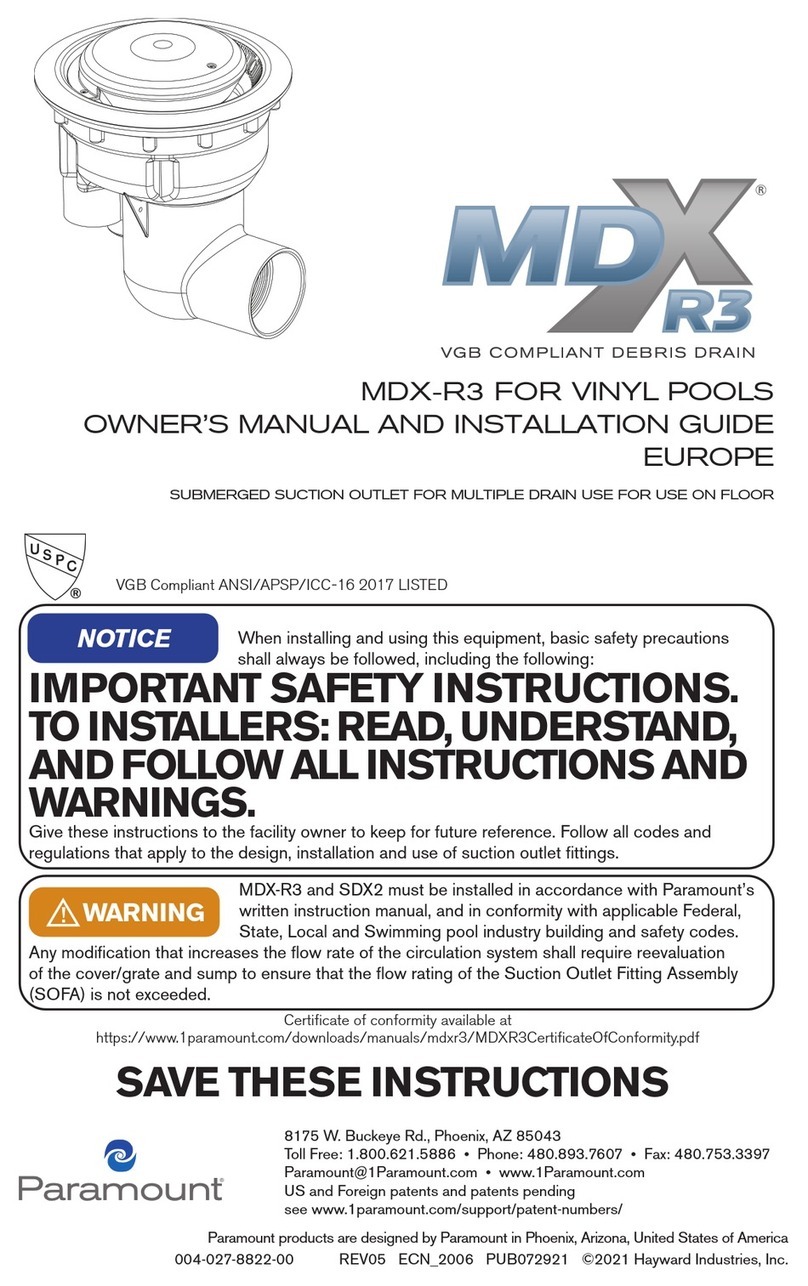

Hayward Paramount MDX-R3 Owner's manual and installation guide

Hayward

Hayward Paramount MDX-R3 Owner's manual and installation guide

EuroLite LED IP PAR 12x12W HCL user manual

EuroLite

EuroLite LED IP PAR 12x12W HCL user manual

MELINERA 304177 Operation and safety notes

MELINERA

MELINERA 304177 Operation and safety notes

EuroLite LED PAR-64 Spot user manual

EuroLite

EuroLite LED PAR-64 Spot user manual

Lightolier Lighting Systems EC2-4 Specification sheet

Lightolier

Lightolier Lighting Systems EC2-4 Specification sheet

CSL Eco-Downlight EDL-NC quick start guide

CSL

CSL Eco-Downlight EDL-NC quick start guide

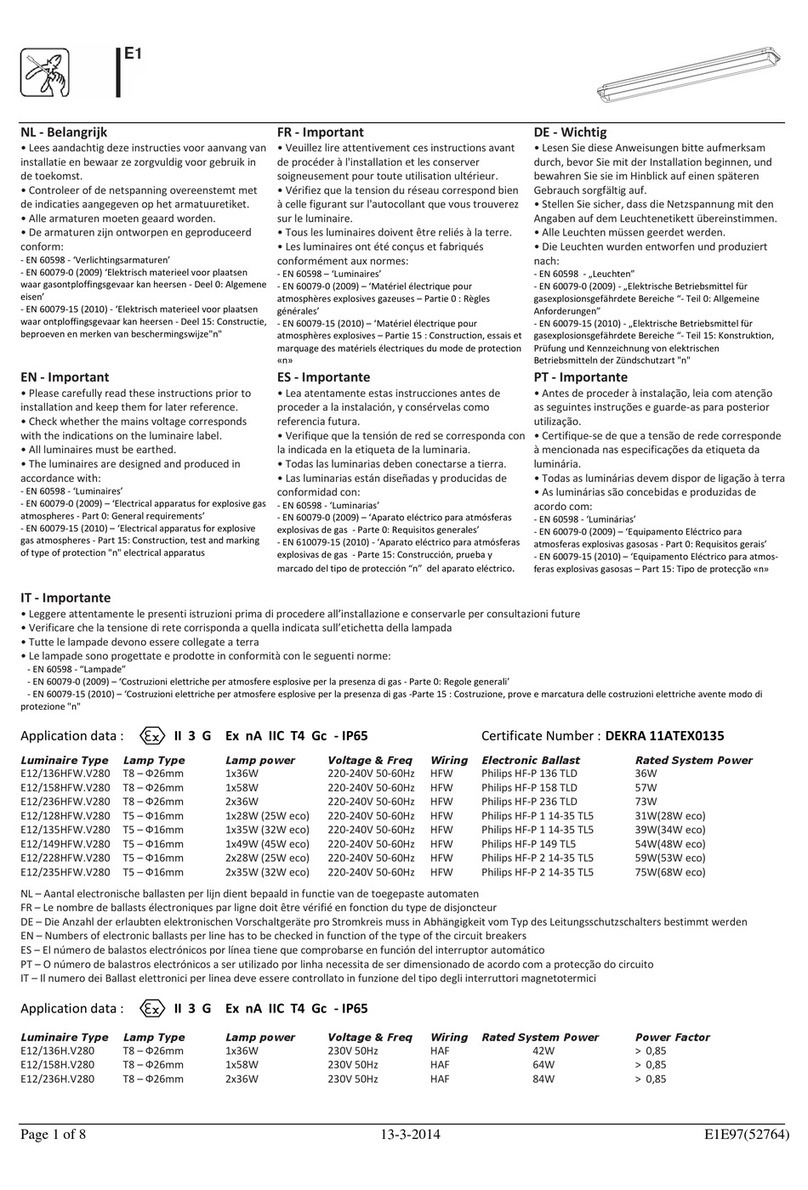

ETAP  Lighting E1 manual
