SOMFY 9021217 User manual

To avoid errors and save valuable time, please read these instructions before installing your external rechargeable battery pack.
www.somfysystems.com P-0060CBG Copyright © Somfy SAS 8/2020
Thank you for purchasing an External Rechargeable Li-ion Battery Pack. All of the required installation components are enclosed in your package along
with these instructions. Please thoroughly review these instruction before beginning the installation.
• Be certain you have the correct Somfy plug-in charger for your battery pack (see Ref/g below #9025166)
• Battery should be charged completely prior to installation.
• Ensure you comply with the recharging instructions.
• The optimum recharging temperature is between 32°F and 113°F.
• Do not disassemble or alter the battery.
• Must only be used with Somfy External Battery WireFree motors (refer to the motor instructions for programing).
• Do not use or install this product outdoors.
• Product must never be dropped, immersed in water or exposed to ammable materials.
• Battery pack should always be replaced with Somfy certied replacement.
A) With a wall/ceiling bracket.
B) With a headrail mounting bracket.
Somfy®External Li-ion Rechargeable Battery Pack
Accessories:
1 Battery (1 Pair) of Wall/Ceiling Mount Brackets
(1 Pair) of Headrail Mount Brackets
(1 Pair) of screws and mounting anchors
Charger with 6ft Cable
#9025166
8” Charger External Cable
#9021131
(Wood & Fauxwood Blinds Only)
94.5” Charger Extension Cable
#9021016
Motor Extension Cable
10” - #9018623
48” - #9016736
96” - #9018624
External Li-ion Rechargeable Battery Pack #9021217 items include:
QUICK GUIDE
GETTING STARTED
Mounting Methods

Note: When using tubular motors with LED indicator on the motorhead LED
will slowly blink (red) when battery requires charging.
SAFETY LABELS
In compliance with WCMA/ANSI safety standards the warning labels on the bottom rail are designed to be permanent. DO NOT remove the permanent
warning label on the bottom rail. This assures that future owners of this product will be aware of potential dangers associated with this shade.
Young children can STRANGLE in cord loops and in the loop above the cord stop. They can also wrap cords around their necks and STRANGLE.
■Always keep cords out of children’s reach.
■Move cribs, playpens and other furniture away from cords.
Children can climb furniture to get to cords.
■Do not tie cords together.
■Make sure cords do not twist together and create a loop.
1020968 Rev. 10/05/20

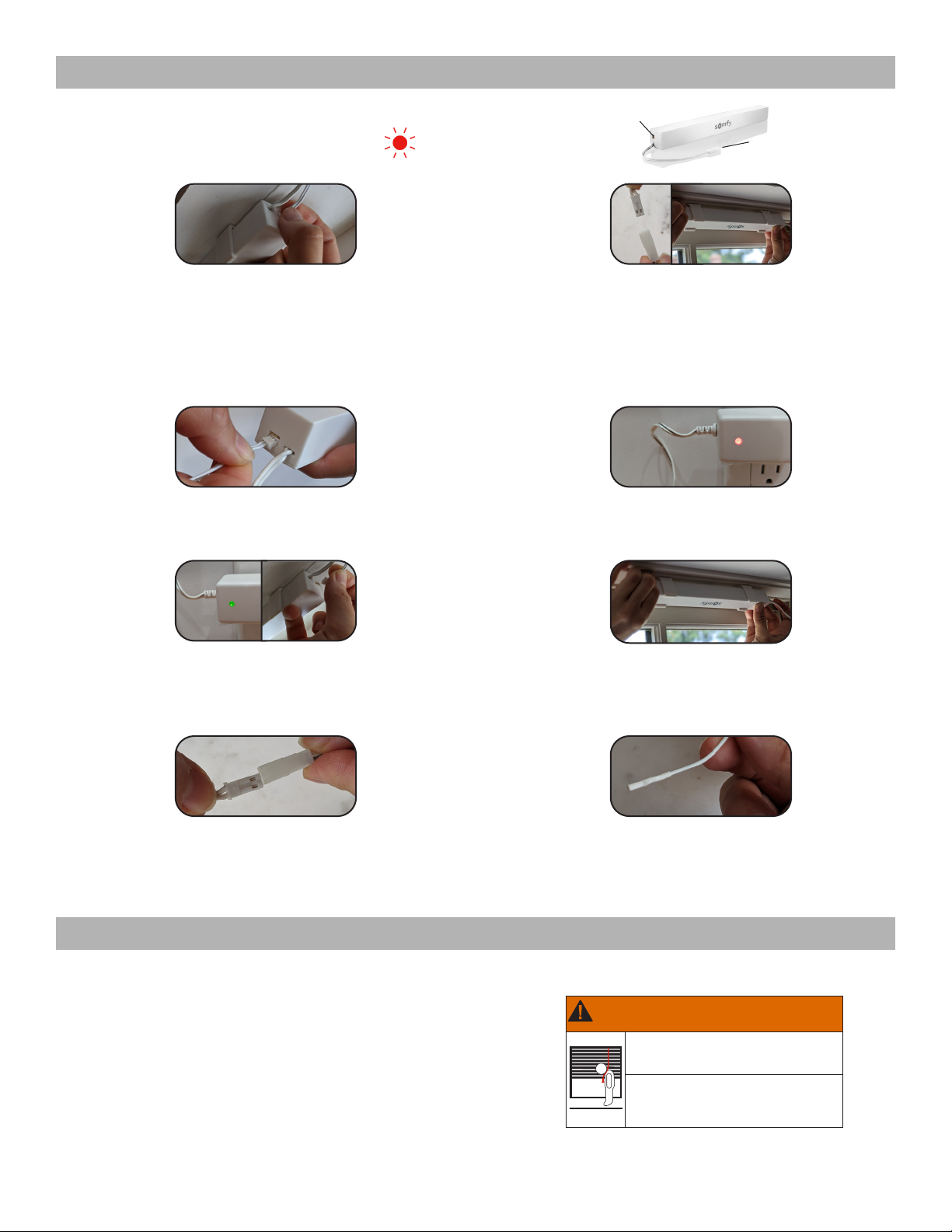

STEP 1
If battery pack charging port is accessible simply plug charger into
battery pack charging port and skip to STEP 4. If battery charging port
is not accessible, follow STEP 2.
NOTE: Using battery charging accessory (Ref. 9021131 or 9021016)
illustrated above can facilitate access to the battery pack charging port.
STEP 3
Attach small connector from wall charger to charging port of battery pack.
STEP 2
Disconnect battery pack cable connector from motor cable connector,
then simply remove battery pack from brackets to charge.
STEP 4
Plug Wall charger into a nearby electrical outlet. The LED indicator
will illuminate RED while battery is charging.
STEP 5
Once LED illuminates GREEN, battery is fully charged.
Disconnect wall charger connector from battery charging port,
then remove wall charger from electrical outlet.
STEP 6
If battery was removed from brackets for charging, simply reinstall
battery pack into mounting brackets.
STEP 7
Reconnect battery pack cable connector to motor cable connector.
STEP 8
Manage the placement of all cords making certain they do not
interfere with movement of window covering. Be certain motor
antenna is exposed for optimal radio performance.
Window Blind Cord Can STRANGLE
Your Child.
To prevent strangulation, purchase cordless
products or products with inaccessible cords.
5.1.3
La cuerda de la persiana puede ESTRANGULAR a su
niño. Para evitar el estrangulamiento, compre
alternativas cuerda o productos con cuerdas
inaccesibles.
Rev. 5/18 Print 5/18
WARNING/ADVERTENCIA
Charging Port
Connection to Motor
Charging Li-ion Battery Pack
CHILD SAFETY
