Sonance VP42 User manual

VISUAL PERFORMANCE
RETROFIT ENCLOSURE
INSTRUCTION MANUAL

INTRODUCTION
Sonance Retrofit Speaker Enclosures reduce sound
transmission into rooms that are adjacent to speakers
mounted in walls or in ceilings. For the enclosures to be
the following directions to ensure a tight seal with
the speaker.
FOR STANDARD SPEAKER MODELS
Select one set of “+” and “-” terminals on the Retrofit
Enclosure and connect the wires to either set of “+” and
“-” terminals on the speakers. Make sure to connect the
red wire to the speaker’s “+” terminal and the black wire
to the speaker’s “-” terminal. Mark the set of terminals
selected on the outside of the enclosure. Use the
provided screws to attach the enclosure to the speaker,
fitting the groove on the edge of the enclosure onto the
rim of the speaker.
NOTE: Make sure that the rubber gasket remains inside
of the groove on the enclosure.
To ensure that the gasket sits properly, tighten the
screws in a crisscross and diagonal pattern. See diagram
of large rectangle below. Apply an equal amount of
torque to each screw.
IMPORTANT: Always use low-torque setttings.
Never over tighten.
Connect the speaker wires from the amplifier to the
set of terminals on the enclosure that were previously
marked.
1
FOR BI-WIRED AND SINGLE STEREO
SPEAKERS
Remove the jumpers that connect the two sets of
terminals on the speaker for bi-wired models. Connect
one set of terminal wires from the Retrofit Enclosure
to one set of the “+” and “-” terminals on the speaker.
Connect the other set of terminal wires from the
enclosure to the remaining set of “+” and “-” terminals
on the speaker. Attach the enclosure to the speaker with
provided screws, fitting the groove on the edge of the
enclosure onto the rim of the speaker.
NOTE: make sure that the rubber gasket remains inside
of the groove on the enclosure.
To ensure that the gasket sits properly, tighten the
screws in a crisscross and diagonal pattern. Apply an
equal amount of torque to each screw.
IMPORTANT: Always use low-torque setttings.
Never over tighten.
Connect both sets of speaker wires to the two sets
of terminals on the enclosure. Make sure to check for
proper polarity.
ARCHITECTURALSERIES BRACKETS
The installation is very similar except that the enclosure
will attach to the Architectural Series bracket instead of
the Architectural Series speaker.
NOTE: This must be accomplished prior to installing
the Architectural Series bracket in the wall or ceiling.

Refer to the table below to determine total speaker
depth when a retrofit enclosure is used.
MODEL DEPTH WITH ENCLOSURE
VP42
VP46 98mm Art. 92442
VP48
VP42R
VP46R
VP46R SST
VP48R
VP62
VP66
VP68
VP66 SST
VPXT6
VP62LCR
VP66LCR
VP62R
VP64R
VP66R
VP68R
VP62R SST
VP66R SST
VPXT6R
VPXT6R SST
VP82
VP86
VP88
VP82R
VP86R
VP86R SST
VP88R
VPXT8R
2
150mm Art. 92443
100mm Art. 92342
102mm Art. 92836
150mm Art. 92343
128mm Art. 92343
100mm Art. 92242
185mm Art. 92243
VP60R 115mm Art. 92343

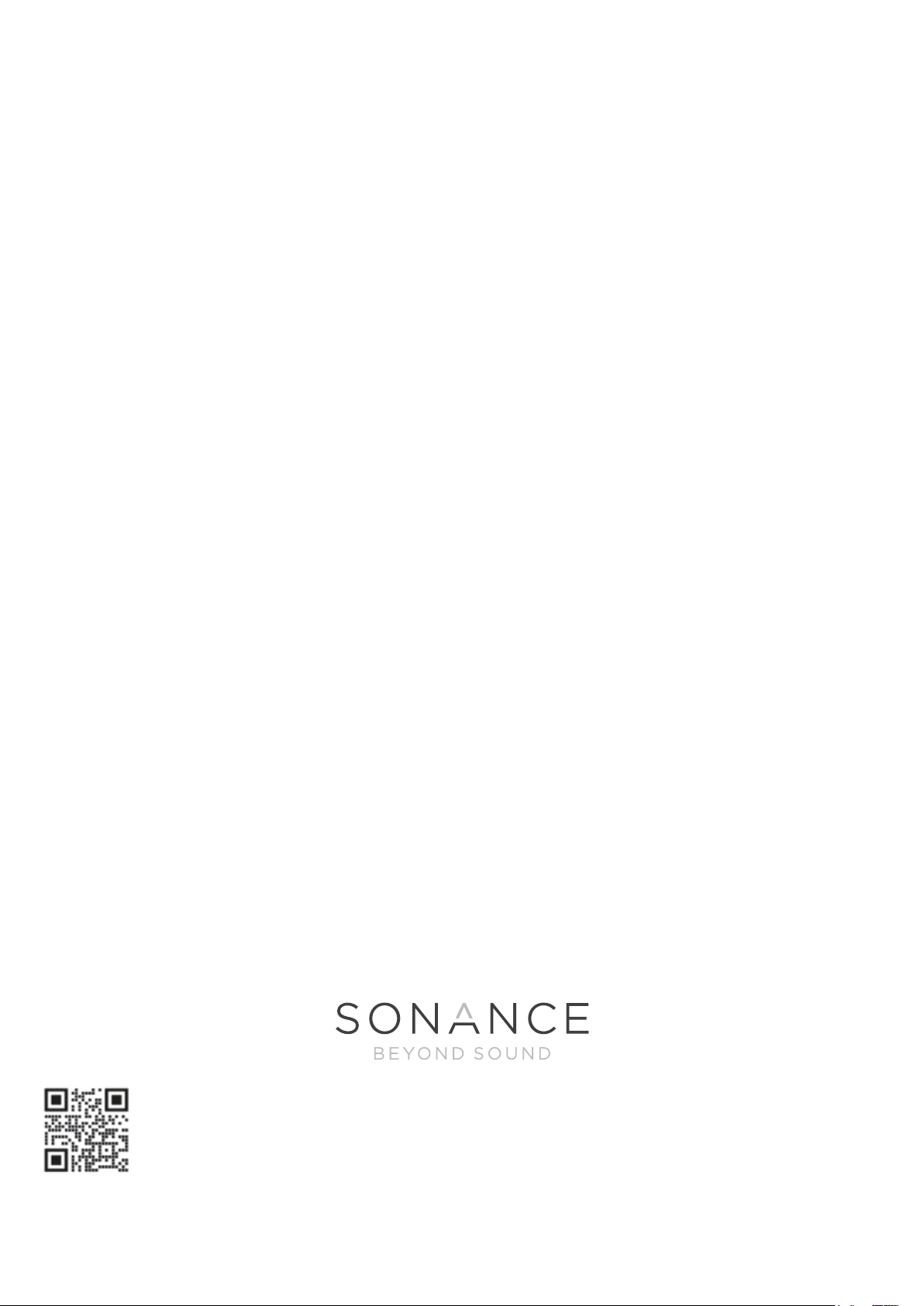

For additional
information please
scan the code.
©2019 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations. Due to continuous product
improvement, all features and specifications are subject to change without notice. For the latest Sonance product
specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA
PHONE: [phone] • FAX: [phone] • Technical Support: [phone] • www.sonance.com
12.18.2019
