SonicWALL PRO 2040 User manual

COMPREHENSIVE INTERNET SECURITY™
SSSSSSSSSSbSonicWALL Security Appliances
SonicWALL PRO 2040
Getting Started Guide

SonicWALL PRO 2040 Getting Started Guide Page 1
SonicWALL PRO 2040 Security Appliance
Getting Started Guide
The SonicWALL PRO 2040 is a total security platform for complex networks, utilizing a
deep packet inspection engine and six* fully configurable Ethernet interfaces to provide
cost-effective, enterprise-class firewall throughput and VPN concentration. As a
comprehensive network security, mobility and productivity solution targeting networks
comprising 200 or fewer nodes or 50 or fewer network locations, the SonicWALL PRO
2040 offers the configuration flexibility and redundancy features typically associated with
more expensive appliances.
* Six interfaces are available by upgrading from the SonicOS Standard version of
software to SonicOS Enhanced. Also note that ICSA certification for the SonicWALL
PRO 2040 only applies when running the SonicOS Enhanced version of software on the
device. See both the SonicOS Enhanced Release Notes and the standalone
documentation for details on upgrading from SonicOS Standard to SonicOS Enhanced.
This Getting Started Guide provides instructions for basic installation and configuration of
the SonicWALL PRO 2040 running SonicOS Standard. After you complete this guide,
computers on your Local Area Network (LAN) will have secure Internet access.
Note: For complete documentation, refer to the SonicOS Standard Administrator’s Guide on the
SonicWALL Resource CD or at:
http://www.sonicwall.com/support/documentation.html.
Before You Begin
Check Package Contents
• One SonicWALL PRO 2040
security appliance
• One SonicWALL PRO 2040
Getting Started Guide
• One SonicOS Standard
Release Notes
• One straight-through Ethernet cable
• One crossover ethernet cable (red)
• One DB-9 (RS-232) CLI cable (requires a DB-9 serial port). This is a DB-9 Female-
to-DB-9 Female Null Modem Cable.
• One rack-mount kit
• One power cord*
• One SonicWALL PRO 2040 Resource CD, which contains:
• SonicWALL PRO 2040 Product Documentation
• Software Utilities
*A power cord is included only with units shipped to North America.
Any Items Missing?
If any items are missing from your package,
contact:
SonicWALL Support
Web: <http://www.sonicwall.com/support/>
E-mail: [email protected]

Page 2
What You Need to Begin
• A computer to use as a management station for initial configuration of the
SonicWALL PRO 2040
• A Web browser supporting Java and HTTP uploads. Internet Explorer 5.0 or higher,
Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher, or Firefox are recommended
• An Internet connection
SonicWALL PRO 2040 Configuration Steps
“Collecting Required Information” on page 2
“Applying Power to the SonicWALL PRO 2040” on page 3
“Connecting the SonicWALL PRO 2040” on page 4
“Accessing the Management Interface” on page 5
“Using the SonicWALL Setup Wizard” on page 6
“Testing Your Connection” on page 12
“Registering Your SonicWALL PRO 2040” on page 15
Collecting Required Information
Internet Service Provider (ISP) Information
Collect the following information about your Internet service:
1
2
3
4
5
6
7
1
If you connect
via
You probably
use Please record
Cable modem,
DSL with a router
DHCP You do not need to provide any Internet connection
information.
Home DSL PPPoE User Name:
Password:
Note: Your ISP may require your user name in the
format: [e-mail]
T1,
Static broadband
Static IP IP Address:
Subnet Mask:
Default Gateway:
Primary DNS:
Secondary DNS (optional):

SonicWALL PRO 2040 Getting Started Guide Page 3
Note: If you are not using one of the network configurations above, refer to the
SonicOS Standard Administrator’s Guide.
Other Information
SonicWALL Management Interface
To access the SonicWALL PRO 2040 Web-based management interface. These are
the default settings, which you can change:
User Name: admin
Password: (default: password)
Applying Power to the SonicWALL PRO 2040
1. Plug the power cord into the SonicWALL PRO 2040 and into an appropriate power
outlet.
2. Turn on the power switch on the rear of the appliance next to the power cord.
The Power LED on the front panel lights up green when you plug in the
SonicWALL PRO 2040. The Test and Alarm LEDs light up and may blink
while the appliance performs a series of diagnostic tests. When the Test light is no
longer lit, the SonicWALL PRO 2040 is ready for configuration.
If the Test or Alarm LEDs remain lit after the SonicWALL PRO 2040 has booted,
restart the SonicWALL PRO 2040.
For more troubleshooting information, refer to the SonicOS Standard Administrator’s
Guide.
Dial in to a server PPTP Server Address:
User Name:
Password:
If you connect
via
You probably
use Please record
2

Page 4
Connecting the SonicWALL PRO 2040
1. Connect one end of an Ethernet cable to your Internet connection such as a DSL
modem or a router.
2. Connect the other end of the cable to the WAN port on the front of your
SonicWALL PRO 2040.
The WAN Activity LED to the above left of the port lights up in green indicating an
active connection.
3. Connect one end of an Ethernet cable to the computer you are using to manage the
SonicWALL PRO 2040.
4. Connect the other end of the cable to the LAN port on the front of your
SonicWALL PRO 2040.
The LED for the LAN port you used lights up indicating an active connection. This
may take several seconds.
When you connect the LAN, the SonicWALL PRO 2040 automatically checks for a
DHCP server on the LAN. If it does not find one, it automatically enables its own
DHCP server.
3
LAN (X0) WAN(X1)
HUB/SWITCH
LOCAL CLIENTS
COMMAND-LINE
INTERFACE
CONSOLE
REMOTE CLIENTS
ROUTER/MODEM
USER DEFINED
PORTS (X2-X3)

SonicWALL PRO 2040 Getting Started Guide Page 5
Accessing the Management Interface
The computer you use to manage the SonicWALL PRO 2040 must be set up to accept a
dynamic IP address, or have an unused IP address in the 192.168.168.x/24 subnet, such
as 192.168.168.20. For instructions on configuring your IP address, see “Configuring
Computers for Your LAN” on page 20.
To access the Web-based management interface of the SonicWALL PRO 2040:
1. On the computer you just connected, start your Web browser.
SAlert: Your Web browser must support Java and HTTP uploads. Internet Explorer 5.0
or higher or Netscape Navigator 4.7 or higher are recommended.
2. Enter 192.168.168.168 (the default LAN management IP address) in the Location or
Address field.
3. The SonicWALL Setup Wizard launches and guides you through the configuration
and setup of your SonicWALL PRO 2040.
If the SonicWALL Setup Wizard Does Not Appear
If you cannot connect to the SonicWALL PRO 2040 or the Setup Wizard does not
display, verify the following configurations:
• Did you correctly enter the SonicWALL PRO 2040 management IP address in
your Web browser?
• Are the Local Area Connection settings on your computer set to obtain an IP
address dynamically (DHCP) or set to a static IP address of 192.168.168.20?
See “Configuring Computers for Your LAN” on page 20 for instructions on
changing your Local Area Connection settings.
4
192
.
168
.
168
.
168
in the Location or
Address field

Page 6
• Do you have the Ethernet cable connected to your computer and to the LAN port
on your SonicWALL PRO 2040?
• Some browsers may not launch the Setup Wizard automatically. In this case,
log into SonicWALL PRO 2040 using “admin” as the user name and
“password” as the password. After you log in, click the Wizards button on the
System > Status page. Select Setup to begin configuring your
SonicWALL PRO 2040.
• Some popup blockers may prevent the launch of the setup wizard. You can
temporarily disable your popup blocker, or add the management IP address of
your SonicWALL (for example, 192.168.168.168) to your popup blocker’s allow
list.
Using the SonicWALL Setup Wizard
The SonicWALL Setup Wizard provides user-guided instructions for configuring your
SonicWALL PRO 2040.
Note: Use the ISP information you collected in Step 1, “Collecting Required
Information” on page 2 to complete the steps in the Setup Wizard.
9Tip: If you do not know what type of Internet connection you have, contact your ISP. In
addition, the SonicWALL Setup Wizard will attempt to detect your connection settings.
You will see what is automatically selected in Step 3, WAN Network Mode
Configuring the SonicWALL PRO 2040
The SonicWALL configuration wizard displays. The first screen is Welcome. Click Next
to begin the wizard configuration.
1. Change Password - Change the administrative password. This is the password for
the admin account.
Note: Keep your new password in a safe place. If you lose your password, you will
have to reset the SonicWALL PRO 2040 to factory settings, losing your configuration.
For instructions on resetting your SonicWALL PRO 2040, See the SonicOS Standard
Administrator’s Guide available on the SonicWALL Resource CD and on the Web at:
http://www.sonicwall.com/support/documentation.html
Click Next.
5
Old Password Should be populated with the default password, password.
New Password Enter your new password.
Confirm Re-enter your new password.

SonicWALL PRO 2040 Getting Started Guide Page 7
2. Change Time Zone - Change the Time Zone setting to your local time zone.
Click Next.
Note: It is important that you set the time zone correctly before you register your
SonicWALL PRO 2040.
3. WAN Network Mode - The Setup Wizard automatically detects most networking
modes. If it does not detect the networking mode, you may have a Static IP Address.
See Step 1, “Collecting Required Information” on page 2.
Confirm the selection or select the correct type of network connection for your
network.
Click on the yellow link for a networking type to see a definition.
Click Next.
4. WAN Network Mode - The second WAN network mode page configures your WAN
settings for the selection you made in the previous page.
Statis IP
The Setup Wizard screen should display:
WAN Network Mode: NAT Enabled (Static IP)
Time Zone Select the time zone for your location from the list.
Automatically
adjust clock for
daylight saving time
Check this setting if you live in an area that observes Daylight
Savings Time.
Static IP Select Static IP if you want to manually assign the
SonicWALL PRO 2040 a specific, unchanging IP address.
DHCP Select DHCP if your ISP automatically assigns your computer
a dynamic IP Address. DHCP is commonly used with cable
modems.
PPPoE Select PPPoE if your ISP requires a username and password
to establish a connection and assign a dynamic address.
PPPoE is commonly used with DSL modems.
PPTP Select PPTP if you dial into a specific server and log into a
VPN to establish a connection. With PPTP, you can have
either a static or dynamic IP Address.
SonicWALL WAN
IP Address
Enter a single, static IP address. This must be in the correct
address range for your ISP.
WAN Subnet Mask Enter the subnet mask for your network, for example,
255.255.255.0.

Page 8
Click Next.
Gateway (Router) Address Enter the IP address of your internet gateway provided by
your ISP.
DNS Server Address Enter the IP address of the DNS server for your network.
DNS Server Address #2
(optional)
You can enter a secondary, back-up DNS server to use if the
first one fails.

SonicWALL PRO 2040 Getting Started Guide Page 9
DHCP
The Setup Wizard page should display:
WAN Network Mode: NAT with DHCP Client
You do not need to enter any WAN networking settings. The network settings are
provisioned automatically from a DHCP server.
Click Next.
PPPoE
The Setup Wizard page should display:
WAN Network Mode - NAT with PPPoE Client
Click Next.
PPTP
The Setup Wizard screen should display:
WAN Network Mode: NAT with PPTP Client
Obtain an IP Address
Automatically
Select this if your ISP assigns you a dynamic IP address.
Use the following IP
Address
Select this if your ISP has assigned you a static IP address,
and enter the address.
PPPoE User Name Enter the user name for your Internet account. Your ISP may
require you to enter your user name in email address format,
including “@” and the domain name, for example,
[e-mail].
PPPoE Password Enter the password for your internet account.
Inactivity Disconnect (min-
utes)
Check this box if you want the SonicWALL PRO 2040 to dis-
connect from the Internet if there is no traffic for the number of
minutes you enter.
PPTP Server IP Address Enter the address of the PPTP server you are connecting to.
PPTP User Name Enter your network user name.
PPTP Password Enter your network password.
Obtain an IP Address
Automatically
Select this if the server assigns you a dynamic IP address.
Use the following IP
Address
Check this if you have been given a static IP address, and fill in
the following three fields.
SonicWALL WAN IP
Address
Enter the static IP address for your connection.

Page 10
Click Next.
5. LAN Settings - The LAN Settings page configures your LAN interface.
By default, your SonicWALL PRO 2040 is configured with a LAN network IP
address, 192.168.168.168, and subnet mask, 255.255.255.0, that will work well for
most installations. In most cases, leave the default LAN IP address and subnet mask
unchanged.
Note: The LAN IP address is the address you will use to access the
SonicWALL PRO 2040 management interface.
Click Next.
6. LAN DHCP Settings - The LAN DHCP Settings page allows you to select whether
or not to use the DHCP Server in the SonicWALL PRO 2040 to automatically
distribute IP addressing information to computers and other network devices on your
LAN.
Click Next.
WAN Subnet Mask Enter the subnet mask for your connection.
Gateway (Router)
Address
Enter the address of your Internet Gateway.
SonicWALL LAN IP
Address
Accept the default IP address or enter a new IP address of the
LAN interface. Record the address: ____________
LAN Subnet Mask Accept the default, or enter a subnet mask for your LAN.
Enable Windows Net-
working Support
Leave this option checked if you plan to have more than one Win-
dows computer on your network. Windows networking allows
them to communicate with each other. Windows networking has
no effect on computers with other operating systems.
Enable DHCP Server on
LAN
Leave checkbox checked to use the DHCP server in the
SonicWALL PRO 2040 security appliance.
Do not select this option if you already have a DHCP server on
your network, or if you want to require your network clients to
have static IP addresses.
LAN Address Range If you enabled the DHCP Server, enter a range of IP addresses
in the same subnet as the LAN IP address. Leave the default
range unchanged if you accepted the default LAN IP address
and subnet mask settings in the previous page. The default
DHCP range works for most installations.

SonicWALL PRO 2040 Getting Started Guide Page 11

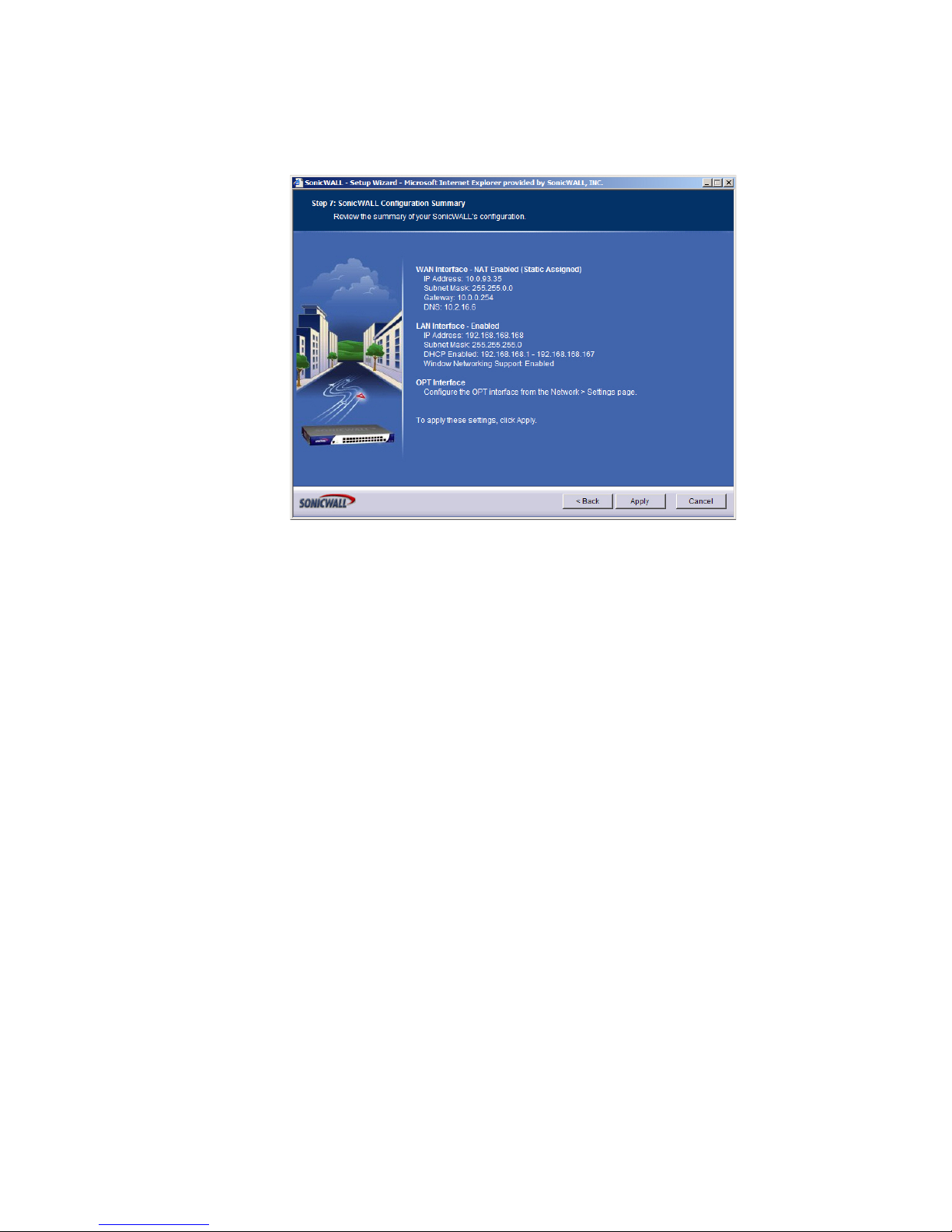

7. SonicWALL Configuration Summary - Displays your network configuration
information.
The above figure displays a sample Configuration Summary page using NAT
Enabled with a Static IP address. This page is divided up into three sections that
display settings for each interface on the device. Confirm that the settings displayed
match the information you created in the section Step 1: “Collecting Required
Information” on page 2.
If you need to make changes, click the Back button. If the configuration settings are
correct, click Apply to apply your settings to the SonicWALL security appliance. If
you click Cancel, no settings will be applied to the SonicWALL security appliance.
The Storing SonicWALL Configuration page with a yellow status indicator displays,
showing that the SonicWALL PRO 2040 is storing the new configuration. When it is
finished the SetupWizardCompletepage displays.
8. Setup Wizard Complete - Your SonicWALL PRO 2040 is now successfully
configured for LAN and Internet access. Click Restart to reboot your
SonicWALL PRO 2040 and complete the configuration process.

Page 12
Testing Your Connection
Test your connection: After the SonicWALL PRO 2040 reboots, open another Web
browser, and go to http://www.sonicwall.com.
If you can view the SonicWALL home page, you have configured everything
correctly.
If you cannot view the SonicWALL home page, restart your computer to make sure it
synchronizes with the new network settings of th SonicWALL PRO 2040.
If you still cannot connect, use the Setup Wizard to configure the
SonicWALL PRO 2040 again: Return to step 4, “Accessing the Management
Interface” on page 5, log in as “admin” with your administrative password, and click
on the Wizards button in the top right corner of the management interface to restart
the wizard.
For more troubleshooting information, refer to the SonicOS Standard Administrator’s
Guide.
Restart your Management Station
Your management station may need to restart to accept new network settings
from the DHCP server in the SonicWALL security appliance.
Restart your DSL Modem
Your DSL Modem may need to restart to communicate with the DHCP Client in
the SonicWALL security appliance.
Enter a Host Name in your WAN DHCP Settings
If you selected DHCP for your WAN settings, you may need to specify a host
name for your connection:
a. Check with your ISP to see if a host name is required.
b. Go to Procedure 4, “Accessing the Management Interface” on page 5, and
use the LAN IP address you set in Procedure 5, Step 6: “LAN Settings” on
page 9.
c. Log in as “admin” with your administrative password.
d. In the menu on the left, click .
e. In the Interfaces table, click the configure icon in the WAN line.
f. In the WAN Properties window, enter the host name and click OK.
Run the Setup Wizard
Use the Setup Wizard again to reconfigure your network settings:
a. Go to Procedure 4, “Accessing the Management Interface” on page 5, and
use the LAN IP address you set in Procedure 5, Step 6: “LAN Settings” on
page 9.
b. Log in as “admin” with your administrative password.
6

SonicWALL PRO 2040 Getting Started Guide Page 13
c. Click the Wizards button in the top-right corner of the management interface
to restart the wizard.
d. Select Setup and click Next to start the Setup Wizard.
Registering Your SonicWALL PRO 2040
Once you’ve established your Internet connection, it is recommended you register your
SonicWALL security appliance at mySonicWALL.com. Registering your SonicWALL
security appliance provides the following benefits:
• Try a FREE 30-day trial of SonicWALL Gateway Anti-Virus, Anti-Spyware and
Intrusion Prevention Service. Plus trials of SonicWALL Content Filtering Service and
Network Anti-Virus.
• Activate SonicWALL security services
• Access SonicOS firmware updates
• Get SonicWALL technical support
Before You Register
Make sure the DNS and Time settings on your SonicWALL PRO 2040 are correct when
you register the device. Configure Time settings in the System > Time page. Configure
DNS settings in the Edit Interface window from the Network > Interfaces page.
You need a mySonicWALL.com account to register the SonicWALL PRO 2040. You can
create a new mySonicWALL.com account directly from the SonicWALL management
interface.
If you already have a mysonicWALL.com account, go to “Registering Your
SonicWALL PRO 2040” on page 15 to register your appliance.
Note: mySonicWALL.com registration information is not sold or shared with any other
company.
Creating a mySonicWALL.com Account
Creating a mySonicWALL.com account is fast, simple, and FREE. Simply complete an
online registration form in the SonicWALL PRO 2040 management interface.
1. If you are not logged into the SonicWALL PRO 2040 management interface log in
with the username admin and the administrative password you set in the Setup
Wizard.
2. If the System > Status page is not displaying in the management interface, click
System in the left-navigation menu, and then click Status.

Page 14
3. On the System > Status page, in the Security Services section, click the Register
link in Your SonicWALL is not registered. Click here to Register your
SonicWALL.
Note: If you have already registered your SonicWALL security appliance, the Register
your SonicWALL button does not display in the Security Services section of the
System > Status page.
4. In the mySonicWALL.com Login page, click the here link in “If you do not have a
mySonicWALL account, please click here to create one.” The
mySonicWALL.com account form is displayed.
5. In the MySonicWall Account page, enter in your information in the Account
Information, Personal Information and Preferences fields. All fields marked with
an asterisk (*) are required fields. You have access to the following two services:
Note: Remember your username and password to access your mySonicWALL.com
account.
6. Click Submit after completing the MySonicWALL Account form.
7. When the mySonicWALL.com server has finished processing your account, you will
see a page saying that your account has been created. Click Continue.
Congratulations. Your mySonicWALL.com account is activated.
Now you need to log into mySonicWALL.com to register your SonicWALL PRO 2040.

SonicWALL PRO 2040 Getting Started Guide Page 15
Registering Your SonicWALL PRO 2040
1. If you are not logged into the SonicWALL PRO 2040 management interface, log in
with the username admin and the administrative password you set in the Setup
Wizard.
2. If the System > Status page is not displaying in the management interface, click
System in the left-navigation menu, and then click Status.
3. On the System > Status page, in the Security Services section, click the Register
link. The mySonicWALL.com Login page is displayed.
4. Enter your mySonicWALL.com account username and password in the User Name
and Password fields, then click Submit.
5. The next several pages inform you about the free trials available to you for
SonicWALL’s Security Services:
•Gateway Anti-Virus - protects all hosts behind your SonicWALL from viruses
using deep packet inspection to detect and prevent viruses before they can
reach hosts on your network.
•Anti-Spyware - prevents malicious spyware from infecting networks and
disrupts background communications from existing spyware programs
•Intrusion Prevention Service - protects your network with signatures for more
than 1800 Trojan, worm and application layer attacks
•Network Anti-Virus - protects hosts on your network from viruses by enforcing
the use of client-based Anti-Virus software.
•Premium Content Filtering Service - protects your network and enhances
productivity by limiting access to offensive web sites
Click Continue on each page.
6. At the top of the Product Survey page, Enter a “friendly name” for your SonicWALL
content security appliance in the Friendly Name field. The friendly name allows you
to easily identify your SonicWALL content security appliance in your
mySonicWALL.com account.
7. Please complete the Product Survey. SonicWALL uses this information to further
tailor services to fit your needs.
6

Page 16
8. Click Submit.
9. When the mySonicWALL.com server has finished processing your registration, you
will see a page informing you that your SonicWALL PRO 2040 appliance is
registered. Click Continue, and the System > Licenses page is displayed showing
you all your activated services.
Congratulations
Your SonicWALL PRO 2040 is now fully operational.
You can continue with this Getting Started Guide to:
• Activate free trials of SonicWALL Security Services
• Set up computers on your network
• Mount your SonicWALL PRO 2040 on a wall or to any vertical surface
Activate Your Free Trials of the SonicWALL Security Services
When you register your SonicWALL PRO 2040, you are eligible for a Free Trial of the
SonicWALL Security Services:
•Gateway Anti-Virus, Anti-Spyware and Intrusion Prevention Service - Delivers
real-time protection against viruses, worms, trojans, spyware, and application-layer
attacks for your entire network
•Network Anti-Virus - Delivers desktop and server anti-virus protection
•Premium Content Filtering Service - Enhances productivity by limiting access to
objectionable Web content
At the end of your free trial period, the services will automatically expire unless you
purchase a subscription from your reseller or at <https://www.mySonicWALL.com>.
Activate your Free Trials
If your SonicWALL management interface is displaying the Manage Services Online
table on the System > Licenses page, skip to Step 5.
1. Log in to your SonicWALL management interface.
2. In the left-navigation menu, click System and then Licenses.
3. Near the bottom of the System > Licenses page, under Manage Security Services
Online, click the link: For Free Trials, Click Here.
4. Log in with your mySonicWALL.com account name and password, if prompted.
5. In the Manage Services Online table, click Try in the Free Trial column for
Gateway Anti-Virus.
6. In the SonicWALL Gateway Anti-Virus page, click Continue. Your
Gateway Anti-Virus/Intrusion Prevention Service free trial is now activated.
7. Repeat steps 5-6 for Anti-Spyware, Intrusion Prevention Services, Network
Anti-Virus and CFS Premium.

SonicWALL PRO 2040 Getting Started Guide Page 17
Your SonicWALL Security Service free trials are now activated. You must now enable
each service on your SonicWALL security appliance. Use the following instructions to
configure each service with its default values. For complete configuration instructions,
see the administrative guides available on your SonicWALL resource CD and on the Web
at: http://www.sonicwall.com/support/documentation.html.
Enabling Premium Content Filtering Service
1. Select the Security Services > Content Filter page in the SonicWALL
management interface.
2. Select the LAN checkbox to apply the filter to all computers on your LAN interface.
3. Click Configure, choose the categories to block in the URL List tab, and click OK.
4. Click in the top, right corner of the page.
Enabling Network Anti-Virus Service
1. Select the Security Services > Network Anti-Virus page in the SonicWALL
management interface.
2. Select the Enable Anti-Virus checkbox.
3. Click in the top, right corner of the page.
Users on your network will be prompted to download the SonicWALL Anti-Virus client.
Enabling Intrusion Prevention Service
1. Select the Security Services > Intrusion Prevention page in the SonicWALL
management interface.
2. In the IPS Global Settings section, click the Enable IPS on Interface checkbox,
and check the WAN and LAN interface check boxes.
3. In the Signature Groups table, select Prevent All for High Priority attacks.
4. Click in the top, right corner of the page.

Page 18
Enabling Gateway Anti-Virus Service
1. Select the Security Services > Gateway Anti-Virus page in the SonicWALL
management interface.
2. In the Gateway Anti-Virus Global Settings section, click the Enable Gateway
Anti-Virus on Interface checkbox, and check the WAN and LAN interface boxes.
3. Click in the top, right corner of the page.
Enabling Anti-Spyware Service
1. Select the Security Services > Anti-Spyware page in the SonicWALL management
interface.
2. In the Gateway Anti-Spyware Global Settings section, click the Enable Anti-
Spyware checkbox.
3. Select which interfaces you want to apply Anti-Spyware service on, WAN, LAN, and
OPT.
4. Select the Prevent All checkbox for High, Medium, and Low danger levels. This
will block all spyware that can be detected.
5. Click in the top, right corner of the page.

SonicWALL PRO 2040 Getting Started Guide Page 19
Connecting Computers to Your SonicWALL PRO 2040
You can attach an unlimited number of computers to your SonicWALL PRO 2040.
Connect a computer, hub or switch in your LAN to the LAN / X0 port.
If you are using a DHCP server on your LAN, you need to configure the computers to
accept dynamic network settings.
If you are not using DHCP on your LAN, you need to configure the computers with a
static IP address in the same subnet as the LAN IP address on your
SonicWALL PRO 2040.
For instructions on configuring the network settings for most Windows computers, see
“Configuring Computers for Your LAN” on page 20
You can set up your X2 port to create another subnet or a transparent gateway to the
Internet for network hosts such as Mail and Web servers. For instructions on configuring
the X2 port, refer to the SonicOS Standard Administrator’s Guide available on the
SonicWALL Resource CD and on the SonicWALL’s Documentation Web Site at:
http://www.sonicwall.com/support/documentation.html.
Internet
Hub / Switch
