Sony Ericsson Walkman W200a User manual

1
Draft for Sony Ericsson Internal Use Only
Contents
Getting to know your phone . . . . . . . . . . . . . . . . . . 3
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Important information . . . . . . . . . . . . . . . . . . . . . . 66
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

2Draft for Sony Ericsson Internal Use Only
Melinda

2Draft for Sony Ericsson Internal Use Only
Sony Ericsson
GSM 900/1800/1900
This User guide is published by Sony Ericsson Mobile
Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide
necessitated by typographical errors, inaccuracies of current
information, or improvements to programs and/or equipment, may
be made by Sony Ericsson Mobile Communications AB or its local
affiliated company at any time and without notice. Such changes will,
however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2006
Publication number: EN/LZT 108 9094 P1A
Please note: Some of the services in this User guide are not
supported by all networks. This also applies to the GSM International
Emergency Number 112.
Please contact your network operator or service provider if you are in
doubt whether you can use a particular service or not.
Please read the Guidelines for safe and efficient use and the Limited
warranty chapters before you use your mobile phone.
All illustrations are for illustration only and may not accurately depict
the actual phone.
You can find support, information and content downloads at
www.sonyericsson.com/support.

3
Draft for Sony Ericsson Internal Use Only
Getting to know your phone
Selection
key
Back key
Memory
Stick Micro
™ (M2™)
Microphone
Volume key
Navigation key
Selection key
C key
Stereo headset and
charger connector
Infrared port
Ear speaker On/off key
WALKMAN
key

4Draft for Sony Ericsson Internal Use Only
Menu overview
PlayNow™* Internet
services*
Entertainment
Online services*
Games
PhotoDJ™
MusicDJ™
Record sound
Camera Messaging
Write new
Inbox
My friends*
Email
Call voicemail
Drafts
Outbox
Sent messages
Saved messages
Templates
Settings
WALKMAN

5
Draft for Sony Ericsson Internal Use Only
* Some menus are operator-, network- and subscription-dependent.
** The menu depends on which contacts are selected as default.
File manager Contacts**
Options
Speed dial
My business card
Groups**
SIM contacts**
Special numbers
Advanced
Radio
Alarms
Alarm
Recurrent alarm
Alarm signal
Organizer
File manager
Calendar
Tasks
Notes
Calculator
Synchronization
Timer
Stopwatch
Applications
Code memo
Settings
General
Sounds & alerts
Display
Calls
Connectivity

6Draft for Sony Ericsson Internal Use Only
Status bar icons
Icon Description
Tells you the strength of the GSM network signal.
GPRS is within range and can be used.
Tells you the status of the battery.
Tells you the status of the battery charging.
You have missed an incoming call.
Call and messaging function alerts are off, alarm is
still on.
You have received a text message.
You have received an email message.
You have received a picture message.
You have received a voice message.
You have an ongoing call.
You have an appointment reminder.
You have a task reminder.
The infrared port is turned on.

7
Draft for Sony Ericsson Internal Use Only
User guide symbols
The following instruction symbols appear in this User
guide:
Assembling your phone
Insert the SIM card and attach the battery to use your
phone.
SIM card
When you register as a subscriber with a network operator,
you get a SIM (Subscriber Identity Module) card. The SIM
card contains a computer chip that keeps track of your
phone number, the services included in your subscription,
and your contacts information, among other things.
% See also page ...
} Use the navigation key to scroll and select %
12 Navigating the menus.
Note
This symbol indicates that a service or
function is network- or subscription-
dependent. Because of this, all menus may
not be available in your phone. Consult your
network operator for more information.
Save contacts on your SIM card before you remove
it from another phone. Contacts may have been
saved in the phone memory %19 Contacts.

8Draft for Sony Ericsson Internal Use Only
To insert the SIM card and charge the battery
1Slide the cover open and lift it off.
2Insert the SIM card. Make sure the SIM card is placed
under the silvery holders.
3Place the battery in the phone with the label side up and
the connectors facing each other.

9
Draft for Sony Ericsson Internal Use Only
4Place the cover on the phone and slide it into place.

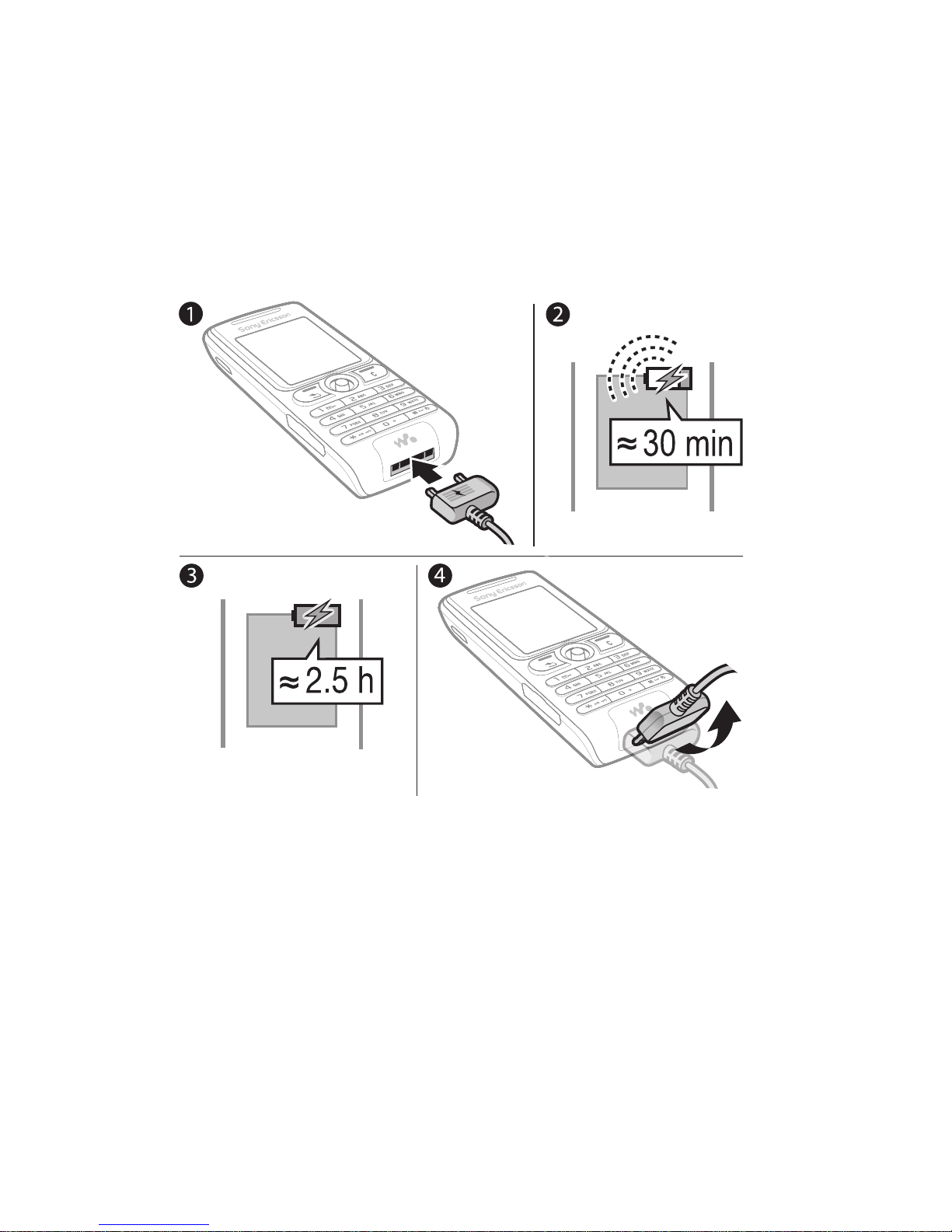

5Connect the charger to the phone. The symbol on the
charger plug must face upwards.
6It may take 30 minutes for the battery icon to appear.
7Wait approximately 2.5 hours or until the battery icon
indicates that the battery is fully charged. For an
indication of charging, press to activate the screen.
8Remove the charger by tilting the plug upwards.
Memory Stick Micro™ (M2™)
Your phone supports Memory Stick Micro (M2). A Memory
Stick adds more storage space to your phone to store, for
example, music, ringtones, video clips and pictures.
With your Memory Stick you can share your saved
information by moving or copying it to other Memory Stick
compatible devices.
You can also use it as a portable memory for office
documents, and move documents between the phone and
a computer.
Some functions use more battery power than others
and may cause a need for more frequent re-charg-
ing. However talk-time or standby time may become
noticeably shorter due to wear and you may have to
replace your battery. Only use approved batteries
from Sony Ericsson %71 Battery.

10 Draft for Sony Ericsson Internal Use Only
To insert and remove a Memory Stick Micro™ (M2™)
PIN
You may need a PIN (Personal Identification Number) from
your network operator to activate the services in your
phone. Each PIN digit appears as *, unless it starts with
emergency number digits, for example, 112 or 911. This is
so that you can see and call an emergency number without
entering a PIN %18 Emergency calls. Press to correct
mistakes.
If you enter the wrong PIN three times in a row, the
SIM card is blocked %59 SIM card lock.

11
Draft for Sony Ericsson Internal Use Only

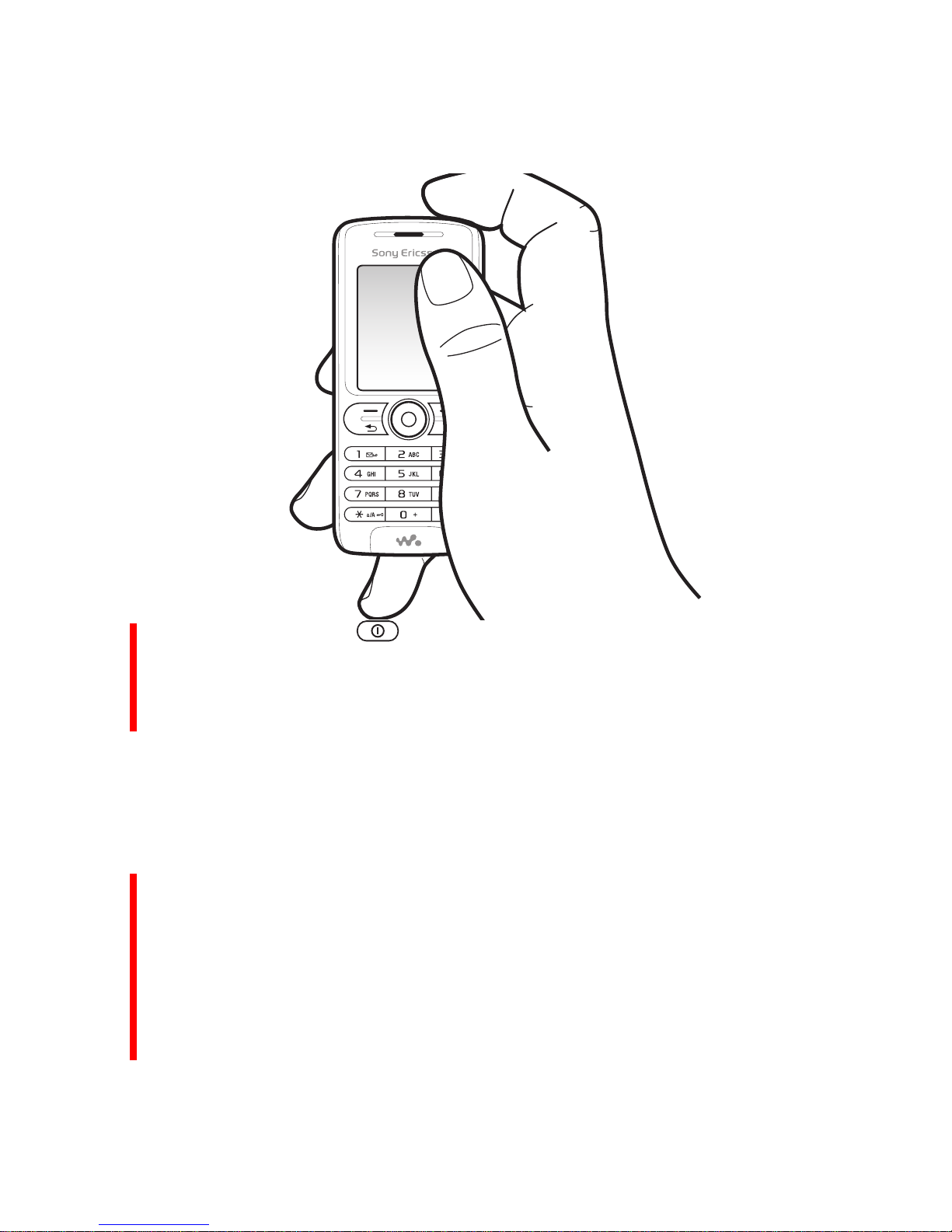

To turn the phone on and off
1Press and hold to turn on or off.
2Select whether you want to use the phone with all
functionality or the Walkman® player only %11 Start up
menu
3Enter your SIM card PIN, if you have one.
4At first start-up, select the language for phone menus.
5Select Yes if you want the setup wizard to help you with
instructions and tips or select No. The setup wizard is
also available in the menu system }Settings }General
}Setup wizard.
Start up menu
When the start-up menu is activated, each time you turn on
the phone, you can select to listen to music only, instead of
using the phone with full functionality. This means all
transmitters of the phone are turned off, preventing

12 Draft for Sony Ericsson Internal Use Only
disturbance of sensitive equipment, for example, in an
airplane or in a hospital. You cannot make calls, receive
calls, or send messages, etc. You can only use the
Walkman® player. If you have selected Music only, you
can still receive calendar and task reminders, and the alarm
can still signal.
To deactivate the start-up menu
1}Settings }the General tab }Start-up menu.
2Select Don´t show.
To make and receive calls
Enter an area code and phone number }Call to make the
call. }End call to end the call. When the phone rings }
Answer to answer the call.
Navigating the menus
The main menus are shown as icons. Some submenus
include tabs that appear on the screen.
•Press (navigation key) to go to the main menu or to
select items.
•Press , , or to move through menus and
tabs.
•Press to go back one level in the menus or to end a
function or application.
Always follow regulations and any flight crew instruc-
tions with respect to onboard use of electronic
devices.

13
Draft for Sony Ericsson Internal Use Only
•Press and hold to return to standby.
•Press to select the options shown immediately
above these keys on the screen.
•Press to delete items.
•}More to enter a list of options.
•}Info to get help on selected features.
Shortcuts
From standby, you can use , , , to go directly to
a function.
To create a standby shortcut
1If, for example, has no predefined shortcut }Yes.
2Scroll to a function to create a shortcut to }Shortcut.
To edit a standby shortcut
1}Settings }General }Shortcuts and select an existing
shortcut you want to edit }Edit.
2Scroll to and select a function }Shortcut.
Shut down menu
Shut down the phone, lock keys, turn on silent mode or
activate a profile. For more information about profiles %55
Profiles.
To open and close the shut down menu
Press and select an option from the list.
File manager
Files such as pictures, videos, sounds, themes, games and
applications are saved in folders in the phone memory.
To manage files and folders
1}File manager and select a folder.

14 Draft for Sony Ericsson Internal Use Only
2Scroll to a file }More }Manage files and choose an
option.
3Select a folder or }New folder and name the folder }
OK.
To select several files
1}File manager and select a file }More }Mark, select
Mark several or Mark all.
2Scroll and select more files by pressing Mark or
Unmark.
To check memory status
}File manager }More }Memory status.
File information
View file information by highlighting a file }More }
Information. Copyright-protected files cannot be copied or
sent.
Synchronizing items
For more information %49 Synchronizing.
Languages
Select the language for menus and when writing text.
To change the phone language
•}Settings }General }Language }Phone language,
select a language.
•From standby, press:
0000 for English or
8888 for Automatic language (SIM-dependant).
To select writing languages
1}Settings }General }Language }Writing language.

15
Draft for Sony Ericsson Internal Use Only
2Scroll and select languages by pressing Mark or
Unmark. }Save to exit the menu.
Entering letters and characters
Enter letters in one of the following ways (text input
methods), for example, when writing messages.
}Messaging }Write new }Text message.
To enter letters using multitap text input
•Press – until the desired character appears.
•To shift between capitals and lower-case letters, press
.
•To enter numbers, press and hold – .
•To add a space, press .
•For the most common punctuation marks, press .
•To enter the + sign, press .
•To change input method, press and hold .
T9™ Text Input
The T9™ Text Input method uses a built-in dictionary to
recognize the most commonly used word for each
sequence of key presses. This way, you press each key
only once, even if the letter you want is not the first letter on
the key.
To enter letters using T9™ Text Input
1For example, if you want to write the word “Jane”, press
, , , .
2If the word shown is the one you want, press to
accept and add a space. To accept a word without
adding a space, press . If the word shown is not the
one you want, press or repeatedly to view
alternative words. Accept a word and add a space by
pressing .

16 Draft for Sony Ericsson Internal Use Only
3Continue writing your message. To enter a full stop or
other punctuation marks, press and then or
repeatedly. Accept and add a space by pressing .
To add words to the T9™ Text Input dictionary
1While entering letters }More }Spell word.
2Edit the word by using multitap input. Press and
to navigate between letters. To delete a character, press
. To delete an entire word, press and hold .
3When you have edited the word }Insert. The word is
added to the T9™ Text Input dictionary. Next time you
enter this word using T9™ Text Input, it will appear as
one of the alternative words.
Options when entering letters
}More to view options when entering letters.

17
Draft for Sony Ericsson Internal Use Only
Calling
Making and receiving calls
Turn on the phone and make sure that you are within range
of a network to make and receive calls %11 To turn the
phone on and off. If your subscription includes the Calling
Line Identification service and the caller’s number is
identified, the number is displayed. If the number is saved
in Contacts, the name, number, and picture (if defined) are
displayed. If the number is a restricted number, Withheld is
displayed.
To make a call
Enter a phone number (with international country code and
area code, if applicable) }Call to make the call. }End call
to end the call.
To redial a number
If the connection failed, Retry? is displayed }Yes.
To answer or reject a call
}Answer to answer a call. }Busy to reject a call.
To change the ear speaker volume
During a call, press the volume key to increase or decrease
the volume.
To select more options during a call
Press and select an option.
To turn off the microphone
Press and hold . To resume, press and hold again.
Do not hold the phone to your ear while waiting.
When a call connects, the phone gives a loud signal.
