Sony TA-A790N User manual

SERVICE
MANUAL
conser weneure comessia sores LBT-AZ95
This set is the Power Amplifier
section in LBT-A790/A795.
SPECIFICATIONS
Peak music power output (6 ohms, 4 speakers driven)
900W (MX)
1,200W (EF, EA, SP, MY, JE, AUS)
Continuous RMS power output
FRONT (AEP, IT, G, CIS) 100 W + 100 W (6 ohms, DIN, 1 kHz)
120 W +120 W
(6 ohms, at 1 kHz, 5% THD)
FRONT (E, EA, SP, 125W +125W
MY, MX, JE, AUS) (6 ohms, at 1kHz, 5% THD)
REAR 20 W + 20 W (4 ohms, DIN, 1 kHz)
25W +25W
(4 ohms, at 1 kHz, 5% THD)
Music power output (AEP, IT, G, CIS)
FRONT 180 W + 180 W
(6 ohms, at 1 kHz, 10% THD)
REAR 33 W +33 W
(4 ohms, at 1 kHz, 10% THD)
Frequency response
0
FRONT 15 Hz to 50 kHz -3 dB
REAR 15 Hz to 50 kHz “3 dB
Power requirements 220—230V AC, 50/60Hz
(AEP, IT, CIS, G)
240V AC, 50/60Hz (AUS)
120V/220V /230—240V AC, 50/60Hz
(EA, E, JE, MY, SP)
120V AC, 60Hz (MX)
Power consumption 240W (AEP, IT, CIS, G)
285W (AUS, EA, E, JE, MY, SP)
270W (MX)
Mass
TA-ATSON
AEP Model
E Model
Australian Model
Tourist Model
Approx. 7.5 kg (16 lbs 8 oz)
(AEP, IT, G, CIS, MX)
Approx. 7.6 kg (16 lbs 12 oz)
(E, EA, SP, MY, AUS, JE)
Dimensions Approx. 355 x 135 x 325 mm
(14x 55/,,.x 12 3/,, inches)
(w/h/d, including projections)
Design and specifications are subject to change without notice.
e Abbreviations
IT
G
AUS:
EA
JE
MY
SP
MX
: Italian model
: German model
Australian model
: Saudi Arabia model
: Tourist model
: Malaysia model
: Singapore model
: Mexican model
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN
THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
STEREO
POWER
AMPLIFIER
SONY.

MODEL IDENTIFICATION
—Specification Label—
TABLE OF CONTENTS
Section Title Page
SONY MOovELNo. TA-A790N
STEREO POWER AMPLIFIER 1. GENERAL
Tel. Parts ldentitie ation iso isncecd wie Pa0 vee od eos 2
2. SERVICE NOTE
SERIAL NO. 21. ReEMOV al Of JOINE siren MAR eres PAIR 3
MADE IN JAPAN
3. DIAGRAMS
AEP, IT, CIS model | AC: 220V—-230V~50/60H2 240W 3-1. eikeule Boards Location: aciicveiisutiaaia suet Yeon 3
G model . - SYSTEM LBT-A790 3-2. Semiconductor Lead Layouts ..................000- 4
AC: 220V—230V~50/60Hz 240W Bo (BiOek Diasraiiiernd witiy epee oe geet oa this Rees 5
AUS model : AC: 240V~50/60Hz 285W 3-4. Printed Wiring Boards .............0cecceee en eenee 8
EA,
E,
JE,
MY,
SP
model:
AC:
120V/220V/230V—240V~50/60Hz
285W
io
Di
13
MX model - AC: 120V~60H2 270W 3-5, Schematic Didgeram ..04s}iaeeS seor'a gaan klgairsen
© Abbreviations 4. EXPLODED VIEWS
IT:
Italian
model
Act,
.
(FrOnt
Panel
Section:
driv
kecienk
Vas
oaa
evened
17
G : German model 2 ;
AUS: Australian model AD. ‘Chassis SeGtion: oiieidiias Sabu dio ose ea ath 18
EA : Saudi Arabia model
JE: Tourist model 5. ELECTRICAL PARTS LIST ...................... 19
MY : Malaysia model
SP _ : Singapore model
MX : Mexican model
NOTE FOR SERVICE
To input from the pin jack by using SEN/LBT service jig,
connect the SYSTEM CONTROL 3 (white) of TA-A790N and
the SYSTEM CONTROL 1 (blue) of the service jig with a
10pin or llpin system cord. This allows pin input.
SECTION 1
GENERAL
1-1,
PARTS IDENTIFICATION
This section is extracted from
instruction manual.
POWER switch (20)
OPERATION indicators (20)
[3] SPEAKERS switch (22)
[4] RANGE switch (22)
[5] Peak level meters (22)
[6] HEADPHONES jack (22)

SECTION 2
SERVICE NOTE
Note: Follow the disassembly procedure in the numerical order given.
2-1. REMOVAL OF JOINT
@ Press the joint for front panel and
remove it from POWER switch.
Ey Remove the joint in
the direction of arrow.
POWER switch
> Push the button (POWER and
POWER switch to turn ON.)
SECTION 3
DIAGRAMS
3-1. CIRCUIT BOARDS LOCATION
VOLTAGE SELECTION board
(E, EA, MY, SP, JE)
RELAY board
POWER SW board
TRANSFORMER SECONDARY board
SYSTEM CONNECTOR board
HP board
SENSOR board
PANEL board
MAIN board

3-2. SEMICONDUCTOR LEAD LAYOUTS
IR2E31A
1
123456788
1-2 34
(TOP VIEW)
$118752N
uPC1237HA
12345678
DTA124ES HZS30-2L
28C3623A-LK cathode
letter side
|
i anode
c-5 UZP-6.8BC
E
DTC124ES cathode
DTC144ES
2SC2603-EF
anode
1N4148M
E “ 181585
B 10E2N
2SB733-34 CATHODE
ee 8 ANODE
SEL3210S-CD
2SB1094-LK SEL4227C-D-TP1
Sy
LY
‘ long short
CE
my
{\
anode cathode
2SC1841-PAFAEA SEL3410E-TH12
Eces
D4SB60L
|
\
RBV-602-01
CATHODE
ANODE
8

3-3. BLOCK DIAGRAM
+12V
LEVEL METER! LEVEL METER
L-cH | R-CH
J
J
J
Fi 0505
' re.
1901-910 1 0951-960
An
ps04 €? D503 € 7 0505
(OPERATION) (PROTECT)
506
LED DRIVER | LED DRIVER POWER
L-CH R-CH SWITCH +12V ,
1€901,902 1 10951,952 Q903 .
CN704
SYSTEM CONTROL 3 FRONT POWER AMP A294
$901
- =i [RANGE]
BRONTE my => X1-— X1/10 —» OFF
=
FRONT R IN Be ee ee eed
“BALANCE
FOR FAN
+12V
OVER LOAD
DETECTOR ALL
101,102,301 ‘
FRONT O
CONTROL
4
a102,304 OFF | :
= -2 al
REAR S902. FRONT
PROTECT ee
CONT
CONTROL
Q303
RELAY
CONT
1c201
i]
REAR L IN “ -1 =
Le !
t
J
REAR R IN ip fe ea =N
2
REAR R AMP
1C251 p302
THERMAL
FAN
M901
DETECTOR (2) CONTROL DRIVE FAN
10602 1C601 a6o1 =" MOTOR
CN703
SYSTEM CONTROL 2 nN
POWER
TRANSFORMER
VF
VF
AC (3)
1c801
AUB
AUB
AUB
DETECT
VG
04
12V REG
RY301
J901
HEADPHONES
Vy
y
TM101(FRONT/REAR 8P)
(AEP,G,1T,C1S MODEL)
TM103(FRONT 4P)
(AEP,G,1T,C1S MODEL)
— ee
| | I ! u
ae ae ee ee ee eo re are ees em al
an a a ee a aI
E,EA,MY,SP,JE MODEL
CENTER REAR
’
‘
y
co
SSS
T4102
ome
CNJ1
AC IN
Note:
e Signal path.
=> : PHONO
> : SURROUND
w> : CENTER
(EXCEPT AEP.G.IT,CIS MODEL)

TA-A790N
e IC Block Diagrams
1¢301 ~PC1237HA
AUTORESET
AC OFF
DET
4)
IC901, 902, 951,952 IR2E31A
| CONSTANT CURRENT =| CURRENT

TA-A790N
e Semiconductor Location
[RefNo | Location Ret. Wo
Note :
O— _: parts extracted from the component side.
Abbreviations
IT _: Italian model
Gs: German model
AUS: Australian model
EA : Saudi Arabia model
JE : Tourist model
MY : Malaysta model
SP: Singapore model
MX : Mexican model
1-5
: Pattern on the side which.is seen.
3-4. PRINTED WIRING BOARDS e Refer to page 4 for Semiconductor Lead Layouts.
ct
1 | 2
3.
4 |
pe
[ SYsteM CONNECTOR
| BOARD
[PANEL BOARD)
a
CN704
SYSTEM ints
L
FRONT
sno] IN
ELAY CONT.
ROTECT CONT
co
HEADPHONES
J901
CHASSIS)
re
Ra eee,
CN703
1-652-033-
[HP BOARD]
1-652-035-
SYSTEM SONTAG
(CHASSIS)
G,IT MODEL
1-652-037 ~
a a ee Be. ae av eOes ese Oe eS hs ee
G, IT MODEL
13
ES
TC
Oe
a
ms
am
rama
oe
ad
ae
ey
gy
eee
Bai
pat
oh
at
he
et
Se
So
eee
a
hn
a
whe
Serta
ee
a
fs
a
AEP,
G,IT,
AUS,
=]
[
a
a
fe
eal
ale
See
Fs
ha
|
MC iopeL
(POWER
SW
BOARD]
{POWER
SW
BOARD]
E,EA,MY,SP
JE
MODEL
por--re- rrr
14 16 17 18 [19 20 [24 23 24 26 27 28 30 | 3h) 82ST 88
| |
| -_
| Y
| | |
1 | |
| ! |
| -
| |
| ;
| | |
AEP,
G,1T,CIS
MODEL
|
|
\icuassisi | :
|
|
1-652-033-
J
[11]
|
|
1-652
-033-
CNJi
| [AC ouTLeT | | ty ane eee Ee ee
| UNSWITCHED
| i00W_MAX | | jEA,MY, SP MODEL |
itt |
| SS a ee | | j CN |
Pi on ee, Sn ten ne pee ol AC OUTLET
| of | ! crn !
|
me
!
eC
eee
ee
eee
eee
=
|
|
|
AC
OUTLET
|
!
:
See
Se
:
'
||
[Chsw
see)
|
ae
ee
ee
z
[VOLTAGE
SELECTION
BOARD]
“ate
| E,JE MODEL |
ee
ee
el
ees
pee
a
|
|
|
eee
ga
SA
a
|
MX MODEL | | IAeoutcer TINNY SO ye ee
| | | | UNSWITCHED |
| | | | ( lOOW MAX ) |
|
| | ae GuTLET | | L ee eyo ees eee EL EEN |
|
leeseeae?
4
|
rf . allt L |
es ee et Bre ied Rep Oa eMC ANE ER eee _]
i | |-652-036- :
:
|
|
EXCEPT AEP,G,IT,CIS MODEL [RELAY BOARD] L___——-~—~~————-_ ~~ ~~~ re me ee ge 4
TRANSFORMER
SECONDARY
CENTER SPEAKER BOARD
(ie ae)
DAB!
1-652-034-
M901
FAN MOTOR
(CHASSIS)
| = 652-030-
—10— —11— —12—

TA-A790N
3-5. SCHEMATIC DIAGRAM e Refer to page 7 for IC Block Diagrams.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
oe PANEL BOARD
e All capacitors are in ~F unless otherwise noted. pF: wuF S50WV rE an [ ]
or less are not indicated except for electrolytics and tantalums. 1c902 : Cay oy
© All resistors are in Q and 1/4 W or less unless otherwise Bi eae ret ae ae oe
‘tied Liew IRIESIA IRZESIA J nite
Speci lOes (sree | LEO ORIVE LED DRIVE ROST 15k
R908 3.9K r-------= i §
st Oo i O
:
se
.
11.420
R907
15k
Note: The components identified by mark A or dotted line his ae eae
:
ie
28C3400\
Lael”
\0-
1
on
with mark A are critical for safety. Bonin tts) ‘ee
Replace only with part number specified. I Rea
=e oe
a=
e fw : nonflammable resistor. ea mae
e
fw:
fusible
resistor.
ght
3a2
@505,
506
‘ : oe LEG. SWITCH ppp LE® ARIVE
°
Bite
od
Te
|
® Voltage is dc with respect to ground under no-signal conditions. .
@
no
mark:
POWER
ON
a
i
a
a
a
eee
i
an
ca
g
| 0951-83960 Ss ‘ae,
e
Voltages
are
taken
with
a
VOM
(Input
Impedance
10MQ).
{MA
IN
BOARD]
SEL4227C-8
ASe8!,
135982,
=
Voltage
variations
may
be
noted
due
to
normal
production
I
reyee.)
LEB
BRIVE
LEB
ORIVE
s
aan
'
tolerances.
i
ee,
ee
ees
e Signal path.
=> : PHONO | Cece! [HP BOARD]
pats a ne a =
=> : SURROUND
e Abbreviations iS A iis eke, =e 901
- IT: Italian model ca x pod GND ?
Gs:
German
model
S
AUS:
Australian
model
|
Ss
jaan
caste
he
te
a
hs
Ate
ag
ti
age
ee
A
net
ome
at
ee
OP
ee
Ate
ae
eee
EE
a
NE
psi
et
bn
A802
_
EA : Saudi Arabia model Rene
JE : Tourist model Be oe A ee ae te he hen at ee eee ah ee ee mn cae ge ete cue, hn a ope ih 2e@é
no ~ CN ET | EEN EO OC A ST ee IONE O O I Cl A vi ONMEORENRRNEN SS em OE A TS SNS on
Aig
Malovsin
ede
EL
gai
f
2.2
qa
CNSO}
getS
FAN
MOTOR
SP: Singapore model S1K4231Mkil ae me © C)
é POWER AMP rel AG IN
MX : Mexican model | me hie Coe
:
2g
¢
;
nope
R304,
wa
KO
a fi, Rit oo Ut Z CAEP, G, 17. MX C1S MODEL) @ 2
ig ‘k = (EXCEPT AEP, G17, MX, CIS MODEL) ee
2
S| Be iad
==> val 5S S35
rr
i Be Ue see Mlheted 20 eee eee ee |
lo et ee
+
1¢301 I
SYSTEM
CONNECTOR
wef
Sarun
BOARD PROTECT
|
st = Be ow GER. G. 17.4% CIS MoD
N704 CN705 4 1.8K 2W (EXCEPT AEP, GIT, MX. GIT MODEL
TIP EH8P ae d
REAR LIN aS el se I
GNA
ee
peas
ol
my
a
:
He
ES
EXCEPT
AEP
G
IT
HX
C18
MODEL)
rea
w
|
Of
T=
eet:
a
Sule
|
_
mx ae ee EXCEPT AEP, G
seem) fut tw | of] eee ee 0 at BELT HT. £19 MODEL
ela
ate
ee
lf
)—@)
oe
2] rsa nw | ofp _ | aa Reet
EE ol (AMPEBANCE )| |
a rao eee ees
Hee eag Fd a See cee eee SPEAKER] ito. _| ee ee
PROTECT CONT. R311 IMPEDANCE USE\|[ SPEAKER |!
ff ed ik ( FRONT 6-162 ) (|MPEBANCE )
REAR 4-160 6-160
(AEB GIT.) (EXCEPT AEP. G.) ,
ReRe I CIS MODEL 17, CIS MODEL
7 |
406, 407
RELAY ORIVE
10201 2802603
IE
a
;
i CENTER SPEAKER
( JNPEBANCE
USE 4-169
I
cN703 I Se ae eS Se SS
¥SP
tt ot
7
si
;
Pola
Agge
=
cocewnmeniesbnas:
‘has
ce
me
—e et
ae
SCN707
‘e
AUB | TRANSFORMER “e L ach702 al - .
oe I O
‘e nee mt | Sey ss SECONDARY BOARD Se ee
is som i |g 1
cae
nm
:
:
|
Smear
|
ee
4
ee
a
eee
2 ol 2 Se era [B=] ol Il. ON Fk i oo cate |
AUB Feeney | Seen 8 foo "tk - a | ere NE een een eaeees was OM
GNA
eset
ea
i
aed
|S
nee
2
Cee
eee
eee
ee
ae
ot
—foJ
i: >| Saleen ® LINE AMP a
ACG O INE AM G. 1T MODEL — —— ERNE Ae See ct cen cei
MX MODEL
‘ > aes) 3B Ses pe ee eee A ee
t
COMPARATOR TRANSEORMER Avenat
= si | SEES SEN Ka aE Soe eam Der IN ete RoR ee pee ie is ot oe MOSES
? UNSWITCHED)| |
SCN709
|
3
|
Aw
54
(Notw
wax)
% | AC OUTLET ;
jf 1 | (UNSWITCHED) '
a iT 3 | 100W MAX
MSF7812L 611! i
| ||! AC
| iN !
oO a
#
|
é
:
83
g
3
1
ok
IN
a ‘ 1
2
S
|
po
AS
SLT
Be
8
Be
ee
ee
WO
RL
BRRERP
EE
TESS
IR
PRS
ee
ckes
ae
ete
se
espe
cacte
antes
Spee
canenrteran
etree
nsaare
sees
anne
a a 1 - a | a a AEP, G 17, AUS, CIS MODEL
[SENSOR BOARD] 5 ve [POWER SW BOARD) (5 prrrprrrrrrrrrrrrerrererrerenetnictnntions A 1
a CNJt |
SY TEED ascot SHEP 44 | VOLTAGE AC OUTLET ||
‘ . 2 t 1
2 Pate Site Ell SELECTION BOARD Grall
i 16602 &) REN HII! ied '
LNS58Z - R21 TAC] o> 941! Aa
©)
100
po
io
Si!
VOLTAGE
baal 1) Si !
1 C602 BI! 120V
a) ttt
THERMAL Mie be
04
Les
0)
SO,
Joo
Sil
24ov
I
_— i= :
1 S|! 220V |
> : 3 H
' a
5
| I
I
I 1
1
I I 1 i I I | I
© ©
H
' ' t 7 7 s t 1
—
' t t t ' t t U 1
|
J 1
1 ¥ 1 1
' (3 ' ' t 7 5 + + 1 ‘ ' t t t t ' s + : 1 4 1
'
4
t ' 1
4 1 1 1 H 7 1
' iy t t ' t ' t t t ' ’ s 1
*% NOT REPLACEABLE: BUILT IN TRANSFORMER
—13— —14— —15— —16—

SECTION 4
EXPLODED VIEWS
NOTE:
@ The mechanical parts with no reference _
number in the exploded views are not
supplied.
@ Items marked ”*” are not stocked since
they are seldom required for routine service
Some delay should be anticipated
when ordering these items.
@ -XX and -X mean standardized parts, so
they may have some difference from the
original one.
4-1.
FRONT PANEL SECTION
At,
ob
SE5
Ref. No. Part No. Description Remark
1 4-949-912-91 CASE
2 3-363-099-01 SCREW (CASE 3 TP2)
3 X-4944-737-1 PANEL ASSY, FRONT (AEP, E3, G, IT, EA, MY,
SP, CIS, JE)
3 X-4944-738-1 PANEL ASSY, FRONT (E2, AUS, MX, /2:E3)
4 X-4945-052-1 KNOB ASSY
* 5 1-652-035-11 HP BOARD
®@ Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE)... (RED)
The components identified by
mark A\ or dotted line with mark.
t AY are critical for safety.
Parts Color Cabinet's Color Replace only with part number
specified.
Ref. No.
@ Hardware (# mark) list and accessories
and packing materials are given in the
last of this parts list.
@ Abbreviations
G : German model
IT : Italian model
FA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
JE : Tourist model
AUS : Australian model
MX : Mexican model
Part No. Remark
Description
m= oOo fo ~I @D fons)
11
A-4369-753-A PANEL BOARD, COMPLETE
1-590-239-31 WIRE, FLAT TYPE (7 CORE)
4-951-620-01 SCREW (2. 6X8), +BVTP
4-964-965-01 BUTTON (POWER)
4-866-342-00 JOINT (B), KNOB
4-965-291-01 HOLDER, LED

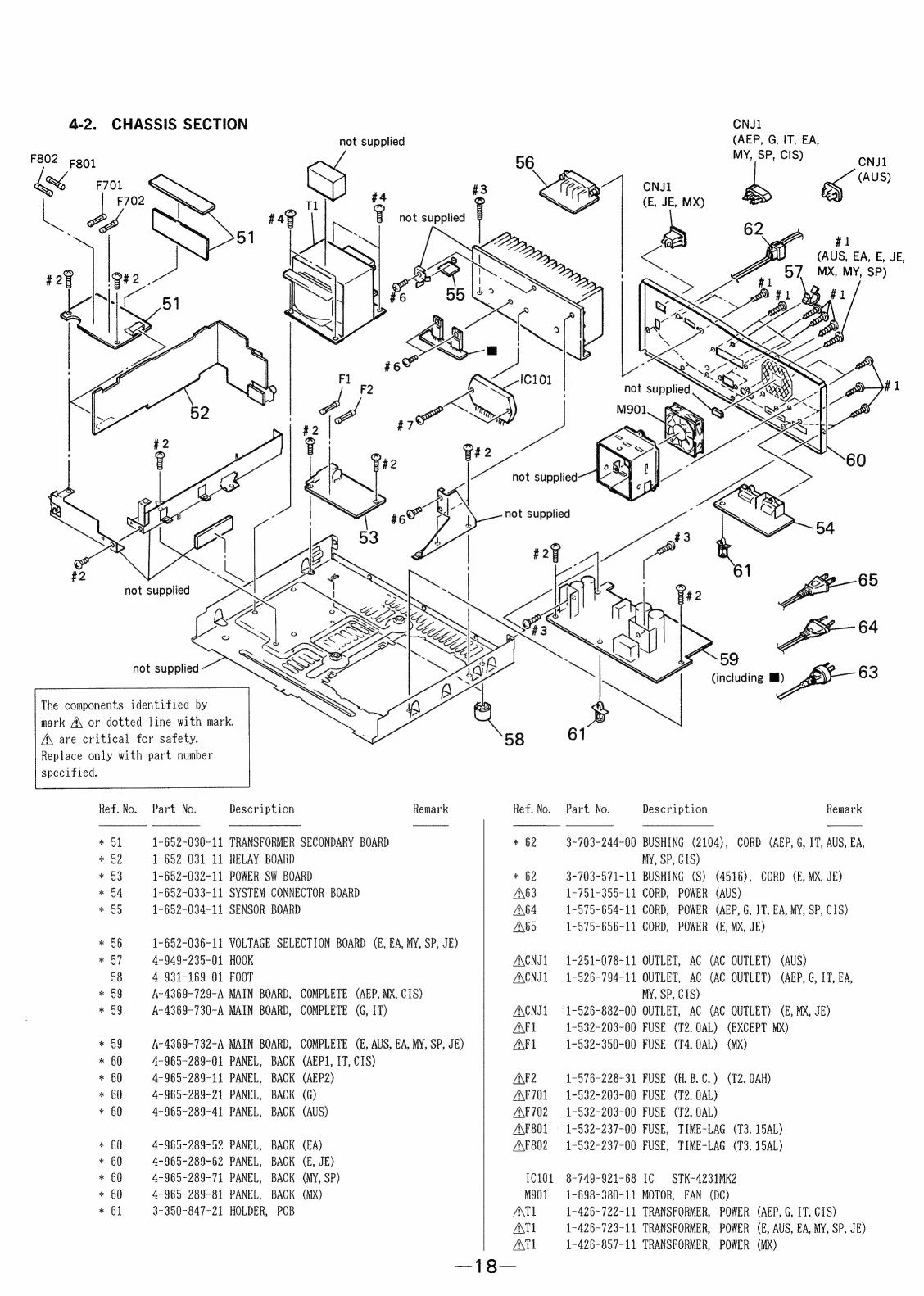

4-2. CHASSIS SECTION CNJ1
not supplied (AEP, G, IT, EA,
MY, SP, CIS
Fe02.-cani
56
)
CNJ1
cK A
eC F701 iS CNJ1 pa eS ae
9 B: F702 ) TA (E, JE, MX)
4
o3
62
#1
(AUS, EA, E, JE,
57 MX, MY, SP)
(including » J 63
The components identified by
mark A\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 1-652-030-11 TRANSFORMER SECONDARY BOARD * §2 3-703-244-00 BUSHING (2104), CORD (AEP, G, IT, AUS, EA,
* 92 1-652-031-11 RELAY BOARD MY, SP, CIS)
* 53 1-652-032-11 POWER SW BOARD * §2 3-703-571-11 BUSHING (S) (4516), CORD (E, MX, JE)
* 54 1-652-033-11 SYSTEM CONNECTOR BOARD A\63 1-751-355-11 CORD, POWER (AUS)
* 55 1-652-034-11 SENSOR BOARD A\G4 1-575-654-11 CORD, POWER (AEP, G, IT, EA, MY, SP, CIS)
ANG 1-575-656-11 CORD, POWER (E, MX, JE)
* 96 1-652-036-11 VOLTAGE SELECTION BOARD (E, EA, MY, SP, JE)
* 97 4-949-235-01 HOOK A\CNJ1 = 1-251-078-11 OUTLET, AC (AC OUTLET) (AUS)
38 4-$31-169-01 FOOT A\CNJ1 = 1-526-794-11 OUTLET, AC (AC OUTLET) (AEP, G, IT, EA
* 59 A-4369-729-A MAIN BOARD, COMPLETE (AEP, MX, CIS) MY, SP, CIS)
+ 59 A-4369-730-A MAIN BOARD, COMPLETE (G, IT) A\CNJ1 = 1-526-882-00 OUTLET, AC (AC OUTLET) (E, MX, JE)
AFI 1-532-203-00 FUSE (T2.0AL) (EXCEPT MX)
* 59 A-4369-732-A MAIN BOARD, COMPLETE (E, AUS, EA, MY, SP, JE) AFI 1-532-350-00 FUSE (T4. 0AL) (MX)
* 60 4-965-289-01 PANEL, BACK (AEP1, IT, CIS)
* 60 4-965-289-11 PANEL, BACK (AEP2) AF2 1-576-228-31 FUSE (H.B.C.) (12. OAH)
* 60 4-965-289-21 PANEL, BACK (G) A\F701 — 1-532-203-00 FUSE (T2. OAL)
* 60 4-965-289-41 PANEL, BACK (AUS) AMF702 — 1-532-203-00 FUSE (T2. OAL)
AMF801 = 1-532-237-00 FUSE, TIME-LAG (T3. 15AL)
* 60 4-965-289-52 PANEL, BACK (EA) ANF802 — 1-532-237-00 FUSE, TIME-LAG (T3. 15AL)
* 60 4-965-289-62 PANEL, BACK (E, JE)
* 60 4-965-289-71 PANEL, BACK (MY, SP) 1C101 8-749-921-68 IC STK-4231MK2
* 60 4-965-289-81 PANEL, BACK (MX) M901 1-698-380-11 MOTOR, FAN (DC)
* 61 3-350-847-21 HOLDER, PCB ANTI 1-426-722-11 TRANSFORMER, POWER (AEP, G, IT, CIS)
fNT1 1-426-723-11 TRANSFORMER, POWER (E, AUS, EA, MY, SP, JE)
ATI 1-426-857-11 TRANSFORMER, POWER (MX)

SECTION 5
ELECTRICAL PARTS LIST
NOTE:
@ Due to standardization, replacements in @ Items marked ”*” are not stocked since The components identified by
the parts list may be different from the they are seldom required for routine service. mark A\ or dotted line with mark
parts specified in the diagrams or the Some delay should be anticipated A\ are critical for safety
components used on the set. when ordering these items. Replace only with part number
@ -XX and -X mean standardized parts, so @ SEMICONDUCTORS specified.
they may have some difference from the In each case, u:sz, for example:
original one. uA..: WA. uPA: 4ePA. ® Abbreviations
@ RESISTORS uPB..: uPB.. uPC..: uPC.. uPD..: PD... MX : Mexican model
All resistors are in ohms. @ CAPACITORS G : German model
METAL :Metal-film resistor. uF: uF When indicating parts by IT : Italian model
METAL OXIDE: Metal oxide-film resistor. @ COILS reference number, please AUS : Australian model
F :nonf lammable uH: 2H include the board. EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
JE : Tourist model

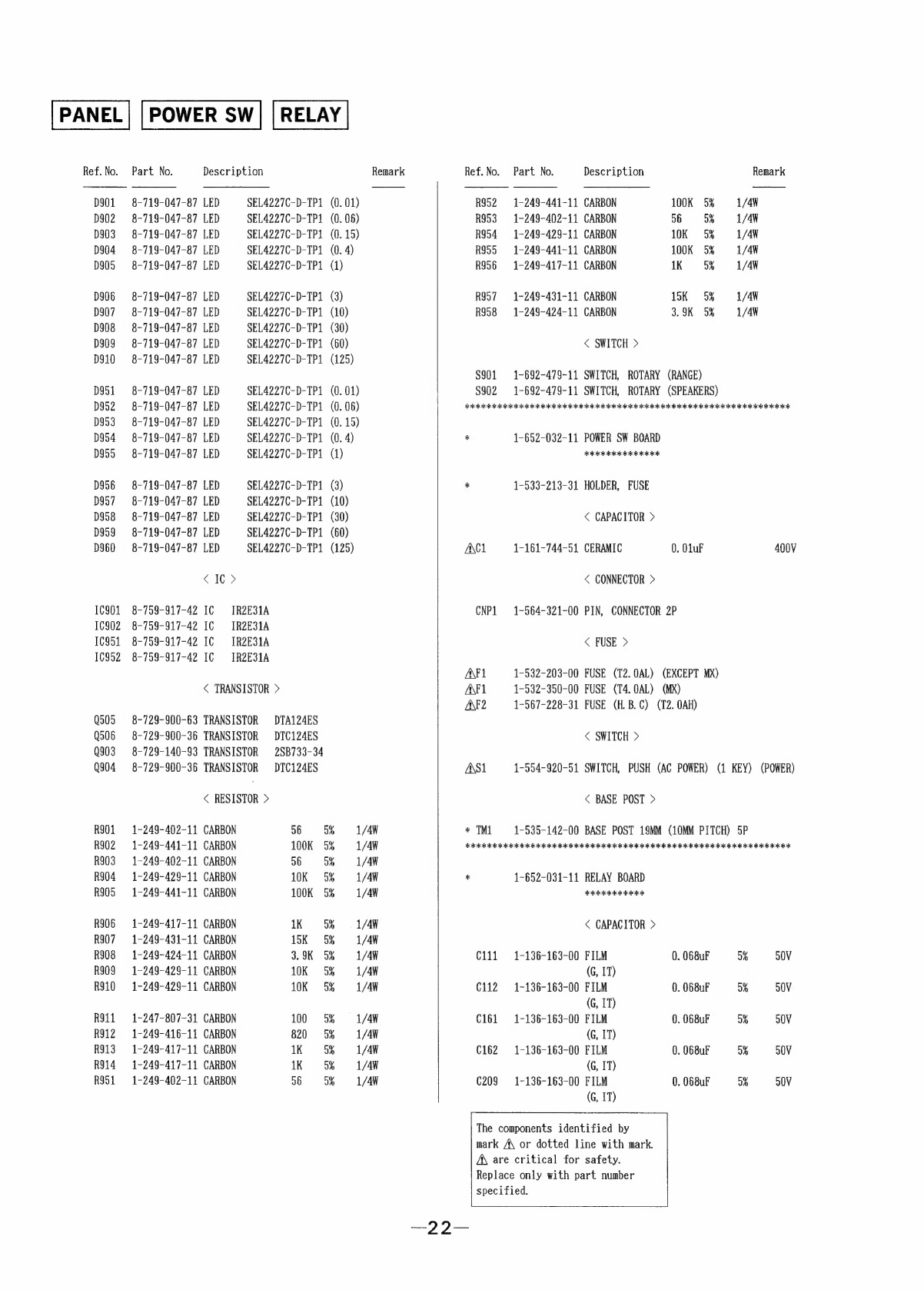

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 1-652-035-11 HP BOARD C171 =1-162-290-31 CERAMIC AT0PF 10% 50V
fedobok kok tok (G, IT)
C172) = 1-162-294-31 CERAMIC 0. OO1uF 10% 50V
< JACK > (G, IT)
C173 1-162-282-31 CERAMIC 1O0PF 10%, 50V
J901 1-507-796-71 JACK (HEADPHONES) (G, IT)
FSI OO or aici iii i i igi i io tO OO OO GR IR I ik i kk 0174 1-161-377-00 CERAMIC 0. 0047uF 20% 16V
(G, IT)
A-4369-729-A MAIN BOARD, COMPLETE (AEP, MX, CIS) 0175 = 1-161-377-00 CERAMIC 0. 0047uF 20% 16V
XK A-4369-730-A MAIN BOARD, COMPLETE (G, IT) (G, IT)
* A-4369-732-A MAIN BOARD, COMPELTE (E, AUS, EA, MY, SP, JE)
Feioioidedolofetololoiototoaddedaiok C201 1-126-059-11 ELECT 10uF 20% 50V
C202 1-162-282-31 CERAMIC 100PF 10% 50V
# 4-880-403-1411 HEAT SINK C203 1-162-282-31 CERAMIC 100PF 10% 50V
X 4-942-204-01 PLATE, GROUND (204 1-126-049-11 ELECT 22uF 20% 25V
7-682-548-04 SCREW +BVIT 3X8 (S) C205 1-136-165-00 FILM 0. luF om 30V
< CAPACITOR > C206 1-136-165-00 FILM 0. luF os 50V
C207 =1-136-163-00 FILM 0. O68uF om 50V
C101 1-162-290-31 CERAMIC 470PF 10% 50V C208 1-136-163-00 FILM 0. O68uF 5% 50V
C102 1-126-059-11 ELECT 10uF 20% 50V C212) =. 1-162-294-31 CERAMIC 0. O01uF 10% 50V
C103 1-124-994-11 ELECT 100uF 20% 10V (G, IT)
C104 = 1-124-572-11 ELECT 100uF 20% 63V C213) 1-164-159-11 CERAMIC 0. luF 50V
€105 1-124-910-11 ELECT 47uF 20% 50V (G, IT)
C106 = 1-126-059-11 ELECT 10uF 20% §3V C214 1-162-290-31 CERAMIC 470PF 10% 50V
C107 = 1-136-163-00 FILM 0. O68uF om 50V (G, IT)
C108 = 1-136-163-00 FILM 0. O68uF OM 50V C215 = 1-106-367-00 MYLAR 0. OluF om 200V
C109 = 1-137-399-11 FILM Q. luF on 100V C251 = 1-126-059-11 ELECT 10uF 20% 50V
C110 =©1-124-791-11 ELECT luH 20% 100V C252 = =©1-162-282-31 CERAMIC 100PF 10% 50V
€253 = 1-162-282-31 CERAMIC 100PF 10% 50V
C121 = 1-126-867-11 ELECT 33uF 20% 50V
C123 = 1-162-282-31 CERAMIC 100PF 10% 50V C254 = =1-126-049-11 ELECT 22uF 20% 25V
(G, IT) C255 = =1-136-165-00 FILM Q. luF on 50V
C151 = 1-162-290-31 CERAMIC 470PF 10% 30V C256 = 1-136-165-00 FILM Q. luF ow a0V
(152 1-126-059-11 ELECT 10uF 20% 50V C257) = 1-136-163-00 FILM 0. O68uF om 50V
C153 1-124-994-11 ELECT 100uF 20% 10V C258 =1-136-163-00 FILM 0. 068uF yA 50V
C154 1-124-572-1411 ELECT 100uF 20% 53V C261 1-106-367-00 MYLAR 0. O1uF yf 200V
C155 1-124-910-11. ELECT 47uF 20% 50V C301 1-126-101-11 ELECT 100uF 20% 16V
C157 = 1-136-163-00 FILM 0. 068uF Hy A 50V C302 1-126-101-11 ELECT 100uF 20% 16V
C158 1-136-163-00 FILM 0. O68uF om 50V C303 1-124-994-11 ELECT 100uF 20% 10V
C160 1-124-791-11 ELECT 1. OuF 20% 100V C601 1-126-059-11 ELECT 10uF 20% 50V
—1 o9-—

Ref. No.
x
6602
C603
C604
C605
C606
C703
¢704
6705
C803
C804
C805
61210
CN101
CN103
CN105
CN107
CN6O1
* CNSOL
D101
D102
D301
D302
D303
D304
D403
D405
D601
D701
D702
D703
1¢101
1¢201
10251
1C301
1¢601
1¢801
L201
L251
Part No. Descr
1-164-159-11 CERAM
1-164-159-11 CERAM
1-136-169-00 FILM
1-136-169-00 FILM
1-126-059-11 ELECT
1-107-497-51 ELECT
1-107-497-51 ELECT
1-126-161-11 ELECT
1-126-860-11 ELECT
1-126-860-11 ELECT
1-124-122-11 ELECT
1-126-867-11 ELECT
< CON
1-564-508-11 PLUG
1-564-507-11 PLUG
1-564-337-61 PIN
1-564-515-11 PLUG,
1-564-337-00 PIN,
1-568-826-11 SOCKE
< DIO
8-719-815-85 DIODE
8-719-815-85 DIODE
8-719-815-85 DIODE
8-719-987-63 DIODE
8-719-815-85 DIODE
8-719-987-63 DIODE
8-719-815-85 DIODE
8-719-815-85 DIODE
8-719-987-63 DIODE
8-719-987-63 DIODE
8-719-987-63 DIODE
8-719-302-38 DIODE
< IC
8-749-921-68 IC
8-759-502-32 IC
8-799-502-32 IC
8-759-111-68 IC
8-759-729-03 IC
8-759-231-58 IC
< C01
1-420-872-00 COIL
1-420-872-00 COIL,
iption
Ic Q. 1uF
Ic 0. 1uF
0. 22uF
Q. 22uF
10uF
4700uF
4700uF
2. 2uF
3300uF
3300uF
100uF
33uF
NECTOR >
CONNECTOR SP
CONNECTOR 4P
CONNECTOR 3P
CONNECTOR 12P
CONNECTOR 3P
T, CONNECTOR 7P
DE >
181585
1§1585
181585
1N4148M
181585
1N4148M
181585
181585
1N4148M
1N4148M
1N4148M
RBY-602-01
>
STK-4231MK2
$118752N
S118752N
uPC1237HA
NJMZ903D
TA7812S
L >
AIR CORE
AIR CORE
3%
o%
20%
20%
20%
20%
20%
20%
Remark
30V
30V
30V
30V
30V
63V
63V
50V
35V
35V
30V
o0V
—20—
Ref. No.
Q101
Q102
Q120
Q121
Q301
Q302
Q303
Q304
0406
Q407
Q601
R101
R102
R103
R104
R105
R106
A\R107
R108
R109
R110
R111
ANR112
R113
R114
R116
R117
R118
R119
R120
R121
R122
R123
R124
R125
AR129
R151
R152
R153
R194
R155
R156
A\R157
A\R159
R160
Part No. Description
8-729-140-84 TRANSISTOR
8-729-140-84 TRANSISTOR
8-729-900-36 TRANSISTOR
8-729-620-05 TRANSISTOR
8-729-900-63 TRANSISTOR
8-729-141-30 TRANSISTOR
8-729-900-89 TRANSISTOR
8-729-900-36 TRANSISTOR
8~729-141-30 TRANSISTOR
8-729-620-05 TRANSISTOR
8-729-140-93 TRANSISTOR
< RESISTOR >
1-249-417-11
1-249-438-11
1-249-414-11
1-249-438-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
1-249-429-11
1-212-881-11
1-249-421-11
1-249-421-11
1-249-417-11
CARBON
FUSIBLE
CARBON
CARBON
CARBON
1-249-431-11 CARBON
1-217-156-00 METAL
1-249-441-11 CARBON
1-249-397-11 CARBON
1-249-438-11 CARBON
PLATE
1-249-429-11
1-247-881-00
1-249-437-11
1-249-439-11
1-249-411-11
CARBON
CARBON
CARBON
CARBON
CARBON
1-249-441-11
1-249-426-11
1-249-433-11
1-249-418-11
1-249-389-11
CARBON
CARBON
CARBON
CARBON
CARBON
1-249-417-11
1-249-438-11
1-249-414-11
1-249-438-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
1-249-429-11
1-212-881-41
1-249-389-11
1-249-417-11
CARBON
FUSIBLE
CARBON
CARBON
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.
< TRANSISTOR >
2501841~PAFAEA
2S01841-PAFAEA
DTC124ES
2802603-EF
DTAL24ES
2803623A-LK
DTC144ES
DIC124ES
2803623A-LK
2862603-EF
28B733-34
1K
36K o%
960 = 5%
o6K O%
10K 5%
o%
10K 5%
100 5%
2.2K 5%
2.2K 9%
1K 5%
15K
0. 22
100K
22
36K
o%
o%
o%
o%
10K
120K
47K
68K
330
om
3%
3%
o%
oO”
100K 5%
9.6K 3%
22K OM
1.2K 5%
4.7 O%
1K
36K
960
36K
10K 5%
3%
10K
100. 5%
4.7
1K 5%
Remark
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W F
1/4W
1/4W
1/4W
1/4W
oWSOSF
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W F
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W F
1/AW F
1/4W

Ref. No.
Part No. Description
R161
ANR162
R163
Ri64
R166
R175
R201
R202
R203
R204
R205
R206
R207
R251
R252
R253
R254
R255
R256
R257
R301
R302
R303
AR304
A\R304
R305
R306
R308
R309
R310
R311
A\R406
A\R406
R407
R408
A\R409
ANR409
R410
R411
R504
R601
R602
R603
R604
1-249-431-11 CARBON
1-217-156-00 METAL PLATE
1-249-441-11 CARBON
1-249-397-11 CARBON
1-249-437-11 CARBON
1-249-418-11 CARBON
1-249-417-11 CARBON
1-249-437-11 CARBON
1-249-417-11 CARBON
1-249-437-11 CARBON
1-249-393-11 CARBON
1-249-438-11 CARBON
1-249-393-11 CARBON
1-249-417-11 CARBON
1-249-437-11 CARBO
1-249-417-11 CARBON
1-249-437-11 CARBO
1-249-393-11 CARBON
1-249-437-11 CARBON
1-249-393-11 CARBON
1-249-429-11 CARBON
1-249-441-11 CARBON
1-247-872-11 CARBON
1-216-457-00 METAL OXIDE
15K
0. 22
100K
22
47K
1. 2K
1K
47K
1K
47K
10
36K
10
1K
47K
1K
47K
10
47K
10
10K
100K
o1K
122K
(AEP, G, IT, MX, CIS)
1-216-458-11 METAL OXIDE
1. 8K
om
o%
a”
o%
o%
3%
3%
3%
o%
o%
o%
om
o%
o%
o%
o%
om
o%
om
om
o%
o%
o%
o%
(EXCEPT AEP, G, IT MX, CIS)
1-249-437-11 CARBON
1-249-437-11 CARBON
1-249-430-11 CARBON
1-249-411-11 CARBON
1-249-441-11 CARBON
1-249-417-11 CARBON
1-216-457-00 METAL OXIDE
47K
47K
12K
330
100K
1K
1. 2K
(AEP, G, IT, MX, CIS)
1-216-458-11 METAL OXIDE
1. 8K
o%
oO”
3%
o%
o%
o”
OM
o%
(EXCEPT AEP, G, IT, MX, CIS)
1-249-437-11 CARBON
1-249-437-11 CARBON
1-216-457-00 METAL OXIDE
47K
47K
1. 2K
(AEP, G, IT, MX, CIS)
1-216-458-11 METAL OXIDE
1. 8K
o%
o%
om
o%
(EXCEPT AEP, G, IT, MX, CIS)
1-249-429-11 CARBON
1-249-441-11 CARBON
1-249-417-11 CARBON
1~247-807-31 CARBON
1-249-441-11 CARBON
1-249-439-11 CARBON
1-249-417-11 CARBON
10K
100K
1K
100
100K
68K
1K
3%
o%
a
o%
OM
om
o%
Remark
1/4W
OW
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
2W
2W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
2W
2W
1/4W
1/4W
2W
2W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
o%
o%
o%
3%
o%
o%
o%
o%
o%
a%
Oo”
OM
o%
o%
om
om
o%
o%
o%
o%
Remark
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
oW
aW
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
1/4W
20%
20%
20%
20%
20%
20%
20%
20%
a0V
30V
30V
30V
30V
a0V
o0V
30V
Ref. No. Part No. Description
R605 1-249-423-11 CARBON 3. 3K
R606 = 1-249-417-11 CARBON 1K
R607 =1-249-417-11 CARBON 1K
R608 1-249-418-11 CARBON 1. 2K
R609 1-249-415-11 CARBON 680
R611 1-249-389-11 CARBON 4.7
R701 1-249-431-11 CARBON 15K
R702 1-249-431-11 CARBON 15K
A\R810 1-216-470-00 METAL OXIDE 18
A\R811 =: 1-216-470-00 METAL OXIDE 18
R1050 1-249-429-11 CARBON 10K
R1060 1-249-429-11 CARBON 10K
R1080 1-249-421-11 CARBON 2. 2K
R1090 1-249-421-11 CARBON 2. 2K
R1140 1-249-397-11 CARBON 22
Ri250 1-249-418-11 CARBON 1. 2K
R1550 1-249-429-11 CARBON 10K
R1560 1-249-429-11 CARBON 10K
R1640 1-249-397-11 CARBON 22
R1750 1-249-418-11 CARBON 1. 2K
< RELAY >
RY301 1-515-765-11 RELAY
RY401 1-515-920-11 RELAY (24V)
RY402 1-515-360-21 RELAY
ASSOC rok kK ok kkk kok kk kok kkk kok doko kok ok ak of ok ie fk ok 2 os ok
A-4369-753-A PANEL BOARD, COMPLETE
Ok Ok bok kok kok kok kok dak ook
4-965-291-01 HOLDER, LED
< CAPACITOR >
C901 1-126-059-11 ELECT 10uF
C902 1-126-161-11 ELECT 2. 2uF
C903 = 1-126-059-11 ELECT 10uF
C904 1-126-163-11 ELECT 4. TuF
C909 = 1-126-059-11 ELECT 10uF
C951 =1-126-059-11 ELECT 10uF
C952 1-126-161-11 ELECT 2. 2uF
C953 = 1-126-059-11 ELECT 10uF
C954 =1-126-163-11 ELECT 4, 7uF
< CONNECTOR >
*
CNS02
< DIODE >
D503 8-719-987-63 DIODE
D504 = 8-719-313-66 LED
D505 «= 8-719-313-69 LED
1N4148M
The components identified by
mark A\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified
1-568-850-11 SOCKET, CONNECTOR 7P
20%
SEL3410E-TH12 (OPERATION)
SEL3210S-CD (PROTECT)
50V

Ref. No.
D901
D902
D903
D904
D905
D906
D907
D908
D909
D910
D951
D952
D953
D954
D955
D956
D957
D958
D959
D960
1901
1¢902
I¢951
16952
Q505
Q506
Q903
Q904
R901
R902
R903
R904
R905
R906
R907
R908
R909
R910
R911
R912
R913
R914
R351
Part No.
Description
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
8-719-047-87 LED
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227¢-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL42270-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
SEL4227C-D-TP1
< IC >
8-759-917-42 IC
8-759-917-42 IC
8-759-917-42 IC
8-759-917-42 IC
IR2E31A
IR2E31A
IR2E31A
IR2E31A
< TRANSISTOR >
8-729-900-63 TRANSISTOR DTA124ES
8-729-900-36 TRANSISTOR DTC124ES
8-729-140-93 TRANSISTOR 2SB733-34
8-729-900-36 TRANSISTOR DTC124ES
< RESISTOR >
1-249-402-11 CARBON 6
1-249-441-11 CARBON 100K
1-249-402-11 CARBON 36
1-249-429-11 CARBON 10K
1-249-441-11 CARBON 100K
1-249-417-11 CARBON 1K
1-249-431-11 CARBON 15K
1-249-424-11 CARBON 3. 9K
1-249-429-11 CARBON 10K
1-249-429-11 CARBON 10K
1-247-807-31 CARBON 100
1-249-416-11 CARBON 820
1-249-417-11 CARBON 1K
1-249-417-11 CARBON 1K
1-249-402-11 CARBON 36
Remark
(0. 01)
(0. 06)
(0. 15)
(0. 4)
(1)
(3)
(10)
(30)
(60)
(125)
(0. 01)
(0. 06)
(0. 15)
(0. 4)
(1)
(3)
(10)
(30)
(60)
(125)
om © «1/4W
om = «1 /4W
om © «1 /4W
o% = «1 /4W
om © «1/4W
o% = «1/4W
0% = «1/4W
o% © «1 /4W
o% = «1 /4W
o% = «1/4W
o% = «1/4W
o% «1 /4W
o% © «1 /4W
o% = «1 /4W
om = -1/4W
Ref. No. Part No. Description Remark
R952 1-249-441-11 CARBON 100K 5% 1/4W
R953: 1-249-402-11 CARBON 56 5% 1/44
R954 1-249-429-11 CARBON 10K 5% 1/4W
R955 1-249-441-11 CARBON 100K 5% 1/4W
R956 1-249-417-11 CARBON ik 5% 1/4W
R957 + 1-249-431-11 CARBON 15K 5% 1/4W
R958 1-249-424-11 CARBON 3.9K 5% 1/44
< SWITCH >
§901 1-692-479-11 SWITCH, ROTARY (RANGE)
§902 1-692-479-11 SWITCH, ROTARY (SPEAKERS)
2A 2 2 fe ae oh of of 2 2 fe ok of a 2 9 ok 2 2 of ok oo oe oo 2k ok og 2 oi og ok ok oko ok ok og a ok ok ok ook oi ok ok ook OK of ok 2 2k oo
* 1-652-032-11 POWER SW BOARD
sR OR oR oR oR oR
* 1-533-213-31 HOLDER, FUSE
< CAPACITOR >
ACL 1-161-744-51 CERAMIC 0. O1uF 400V
< CONNECTOR >
CNP1 1-564-321-00 PIN, CONNECTOR 2P
< FUSE >
AF 1 1-532-203-00 FUSE (T2.0AL) (EXCEPT MX)
AFI 1-532-350-00 FUSE (T4.0AL) (MX)
AF2 1-567-228-31 FUSE (H.B.C) (12. OAH)
< SWITCH >
ASi 1-554-920-51 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
< BASE POST >
*« TM 1-535-142-00 BASE POST 19MM (10MM PITCH) 5P
SO OR RoR Oo I OR OOO RIGOR OR kok kok ok ok ok ak ak kok ok kok ak kook ok ok
* 1-652-031-11 RELAY BOARD
oR Rb OK ok ek
< CAPACITOR >
C111. = 1-136-163-00 FILM 0. O68uF 5% 50V
(G, IT)
C112 ~=1-136-163-00 FILM 0. O68uF AYA 50V
(G, IT)
C161 1-136-163-00 FILM 0. O68uF ay 50V
(G, IT)
C162 # 1-136-163-00 FILM 0. O68uF 5B 50V
(G, IT)
C209 = 1-136-163-00 FILM 0. 068uF 5% 50V
(G, IT)
The components identified by
mark A\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.

RELAY SYSTEM CONNECTOR | | TRANSFORMER SECONDARY
Ref. No. Part No.
*
¢210
C259
6260
6304
C305
CN108
ON111
CN702
J902
L101
L102
R115
R126
R165
R176
R208
R258
R307
R1150
R1650
TM101
TM102
TM103
1-136-163-00
1-136-163-00
1-136~-163-00
1-136-163-00
1-136-163-00
1-564-515-11
1-564-517-11
1-569-493-11
1-766-332-11
1-420-872-00
1-420-872-00
1-249-397-11
1-247-727-11
1-249-397-11
1-247-727-11
1-249-393-11
1-249-393-11
1-249-393-11
1-249-397-11
1-249-397-11
1-$37-552-11
1-937-551-11
1-537-743-11
Description Remark
FILM 0. 068uF Oh 50V
(G, IT)
FILM 0. O68uF on 30V
(G, IT)
FILM 0. O68uF o% 50V
(G, IT)
FILM 0. O68uF aM 30V
(G, IT)
FILM 0. 068uF AYA 30V
(G, IT)
< CONNECTOR >
PLUG, CONNECTOR 12P
PLUG, CONNECTOR 2P
SOCKET, CONNECTOR 7P
< JACK >
JACK, PIN 2P (REAR)
(EXCEPT AEP, G, IT, CIS)
< COIL >
COIL, AIR CORE
COIL, AIR CORE
< RESISTOR >
1/4W
CARBON 22 Oh
CARBON 10 5% 1/2W
(G, IT)
CARBON 22. 5% ~~ 1 /4W
CARBON 10 5% = 1/2W
(G, IT)
CARBON 10 5% 1/4W (G, IT)
CARBON 10 5% 1/4W (G, IT)
CARBON 10 5% 1/4W (G, IT)
CARBON 22 «9% =~ 1/4W
CARBON 22 «0% 1 /4W
< TERMINAL >
TERMINAL, PUSH (8P) (SPEAKER)
(AEP, G, IT, CIS)
TERMINAL, PUSH (2P) (CENTER SPEAKER)
TERMINAL BOARD (4P) (SPEAKER)
(EXCEPT AEP, G, IT, CIS)
Fo Rc ook ooo oo ad ook tokio kk
C607
1-652-034-11
1-164-159-11
SENSOR BOARD
Fo RR ROR
< CAPACITOR >
CERAMIC 0. 1uF o0V
Ref. No. Part No. Description Remark
< IC >
1C602 8-759-947-34 IC LM35DZ
< RESISTOR >
R612 ~=1-247-807-31 CARBON 100 5% = 1/4W
2 Oko oi oo ob ok oo obo took oii oi diok i doiotkkk
* 1-652-033-11 SYSTEM CONNECTOR BOARD
OO ok ob RRR k
< CONNECTOR >
* (N703 1-566-859-11 SOCKET, CONNECTOR 15P (SYSTEM CONTROL 2)
* (N704 1-566-858-31 SOCKET, CONNECTOR 11P (SYSTEM CONTROL 3)
CN705 1-564-511-11 PLUG, CONNECTOR 8P
< RESISTOR >
R706 = 1-249-393-11 CARBON 10 5% ~=61/4W
ARO oR oo i GG ko tok kg doko kak ok
* 1-652-030-11 TRANSFORMER SECONDARY BOARD
FOG EGO GOK
* 1-533-213-31 HOLDER, FUSE
< CAPACITOR >
C701 1-136-177-00 FILM luF o% 0V
C702 = =1-136-177-00 FILM luF o% o0V
C706 =©1-124-920-11 ELECT 330uF 20% 63V
C707 = 1-126-233-11 ELECT 22uF 20% SOV
C708 = 1-124-122-11 ELECT 100uF 20% S0V
C709 = 1-124-994-11 ELECT 100uF 20% = 10V
C712 ~=1-136-161-00 FILM 0. 047uF om o0V
C713 -1-136-161-00 FILM 0. 047uF o% o0V
C714 = 1-162-306-11 CERAMIC 0. OluF 20% 16V
(G, IT)
C717: 1-161-494-00 CERAMIC 0. 022uF 25V
(G, IT)
C718 = =1-136-177-00 FILM uF ay o0V
C719 = 1-136-177-00 FILM luF o% o0V
C801 =1-136-175-00 FILM 0. 68uF 3% 30V
C802 = 1-136-175-00 FILM 0. 68uF 3% 0V
< CONNECTOR >
* (N701 1-569-502-11 PIN, CONNECTOR 7P
< DIODE >
D704. = 8-719-200-77 DIODE 10E2N
D705 =8-719-934-22 DIODE HZS30-2L
D706 ©8-719-014-88 DIODE UZP-6. 8BC
—23—-

TA-A790N
TRANSFORMER SECONDARY | | VOLTAGE SELECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D801 8-719-510-53 DIODE D4SB60L MISCELLANEOUS
Food zobok dak tok
< FUSE >
7 1-590-239-31 WIRE, FLAT TYPE (7 CORE)
AVF701 — 1-532-203-00 FUSE (T2. OAL) A\63 1-751-355-11 CORD, POWER (AUS)
ANF702 —1-532-203-00 FUSE (T2. OAL) A\64 1-575-654-11 CORD, POWER (AEP, G, IT, EA, MY, SP, CIS)
ANF801 = 1-532-237-00 FUSE, TIME-LAG (T3. 15AL) AN65 1-575-656-11 CORD, POWER (E, MX, JE)
A\F802 —1-532-203-00 FUSE, TIME-LAG (T3. 15AL) ANCNJ1 = 1-251-078-11 OUTLET, AC (AC OUTLET) (AUS)
< TRANSISTOR > ANCNJ1 =: 1-526-794-11 OUTLET, AC (AC OUTLET) (AEP, G, IT, EA
MY, SP, CIS)
Q701 8-729-141-83 TRANSISTOR 2SB1094-LK A\CNJ1 — 1-526-882-00 OUTLET, AC (AC OUTLET) (E, MX, JE)
< RESISTOR > AF 1 1-532-203-00 FUSE (12. 0AL) (EXCEPT MX)
AFA 1-532-350-00 FUSE (T4. OAL) (MX)
A\R703 =: 1-212-934-00 FUSIBLE 1 om 1/2W F AMF2 1-576-228-31 FUSE (H.B.C.) (12. QAH)
R704 =1-249-425-11 CARBON 4.7K 5% 1/4W
R705 1-247-761-11 CARBON 3.6K 5% 1/2W A\F701 — 1-532-203-00 FUSE (12. OAL)
SOO Og SO oi iooioioioiokotoioi i doo ioioioioioigiok doko ok iokoiiotokotok dot dookak A\F702 1-532-203-00 FUSE (T2. OAL)
A\F801 — 1-532-237-00 FUSE, TIME-LAG (T3. 15AL)
* 1-652-036-11 VOLTAGE SELECTION BOARD (E, EA, MY, SP, JE) ANF802 = 1-532-237-00 FUSE, TIME-LAG (T3. 15AL)
PTET i CeeCLCeeeee rere 223 M9014 1-698-380-11 MOTOR, FAN (DC)
< CONNECTOR > ANTI 1-426-722-11 TRANSFORMER, POWER (AEP, G, IT, CIS)
ANT1 1-426-723-11 TRANSFORMER, POWER (E, AUS, EA, MY, SP, JE)
* ON2 1-573-565-11 PIN, CONNECTOR 5P (E, EA, MY, SP, JE) ANTI 1-426-857-11 TRANSFORMER, POWER (MX)
< SWITCH > FESO CSIC COO IO CIO GSO OGIO OG O oqo I I aIOK
AS2 1-572-009-11 SELECTOR, VOLTAGE (VOLTAGE SELECTOR) eiololoioieiioioiooioioio yooioiok dog iaiogok
(E, EA, MY, SP, JE)
ARR IOO RO O AA O I OR I OI Rp pok kok
HARDWARE LIST
Co kiko tok
#1 7-621-849-00 SCREW (BV/RING)
#2 7-682-547-09 SCREW +BVTT 3X6 (S)
#3 7-682-548-04 SCREW +BVIT 3X8 (S)
#4 7-682-560-04 SCREW +BVTT 4X6 (S)
#5 7-685-646-79 SCREW +BVIP 3X8 TYPE2 N-S
#6 7-685-646-81 SCREW +BVTP 3X8 TYPE2
#7 7-685-650-79 SCREW +BVIP 3X16 TYPE2
FROG OR CIO OR CR OR OI IR OR rk a FOR II OR RR GK RK Fok
ACCESSORIES & PACKING MATERIALS
FO oo kok iol tok tok etek tok
* 4-965-421-02 CUSHION
The components identified by
mark A\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.
. English
Sony Corporation _ 94D0470-1
Consumer A & V Products Company Ba nae
Home A &V Products Div.
5A =~
9-959-442-11
Published by Home A & V Products Div.
Quality Engineering Dept.
