Sony TA-FA30ES User manual

MICROFILM
SERVICE MANUAL
INTEGRATED STEREO AMPLIFIER
AEP Model
UK Model
E Model
Australian Model
Chinese Model
SPECIFICATIONS
TA-FA30ES
Photo: GOLD model
System
Power Amplifier: Pure-complementary SEPP MOS FET power
amplifier with all stages directly coupled
Preamplifier: Low-noise, high-gain equalizer amplifier
Power section: Large-capacity power supply advanced STD
Rated output
4 ohms, 120 W + 120 W (DIN 0.7%, 1 kHz)
8 ohms, 80 W + 80 W (DIN 0.7%, 1 kHz)
Speaker Impedance
4 to 16 ohms
Output bandwidth (8 ohms)
10 Hz to 100 kHz (at 40 W output, and high-frequency distortion
rate of 0.08%)
Total harmonic distortion
0.008% (at 8 ohms, 10 W output)
Damping factor
100 (8 ohms, 1 kHz)
Intermodulation (1M) distortion (60 Hz : 7 kHz = 4 : 1)
0.008% (8 ohms)
Throughrate
125 V/µ sec, 250 V/µ sec (Inside)
Residual noise
Less than 100 µV (network A)
Equalizer deviation
PHONO MM: 20 Hz to 20 kHz, ± 5 dB
Frequency response
TUNER, CD, AUX, TAPE1/DAT, TAPE2/MD: 7 Hz to
100 kHz dB
S/N
PHONO MC: 78 dB (network A, 0.5 mV)
MM: 95 dB (network A, 5 mV)
TUNER, CD, AUX, TAPE1/DAT, TAPE2/MD: 105 dB
Inputs
Input sensitivity and impedance
PHONO MC: 0.17 mV, 100 ohms
MM: 2.5 mV, 50 kilohms
TUNER, CD, AUX, TAPE1/DAT, TAPE2/MD: 150 mV,
20 kilohms
Maximum input capability (1 kHz)
PHONO MC: 9 mV
MM: 150 mV
Outputs
Output level/impedance
REC OUT 1, 2: 150 mV, 1 kilohm
PHONES: 10 mW (at 8 ohms)
Tone controls
BASS (100 Hz): ± 7 dB
TREBLE (10 kHz): ± 7 dB
General
Power requirements
230 V AC, 50/60 Hz
Power consumption
220 W
Dimensions (approx) (w/h/d)
430 ×150 ×415 mm incl. projecting parts and controls
Mass (approx)
11.0 kg
Supplied accessories
Remote commander (remote ) RM-S326 (1)
Sony batteries R6 (size-AA) (2)
Design and specifications are subject to change without notice.
+0
–3

– 2 –
TABLE OF CONTENTS
1. GENERAL
Location of Controls ....................................................... 3
2. DISASSEMBLY ......................................................... 4
3. ELECTRICAL ADJUSTMENTS......................... 6
4. DIAGRAMS
4-1. Notes for Printed Wiring Boards
and Schematic Diagrams ................................................ 8
4-2. Printed Wiring Boards – INPUT Section – ................... 9
4-3. Schematic Diagram – INPUT Section –......................... 11
4-4. Printed Wiring Boards – MAIN Section – .................... 13
4-5. Schematic Diagram – MAIN Section –.......................... 15
4-6. Printed Wiring Boards – PANEL Section – .................. 17
4-7. Schematic Diagram – PANEL Section –....................... 19
4-8. Printed Wiring Boards – POWER Section – ................. 21
4-9. Schematic Diagram – POWER Section – ..................... 23
4-10. IC Pin Function Description ........................................... 26

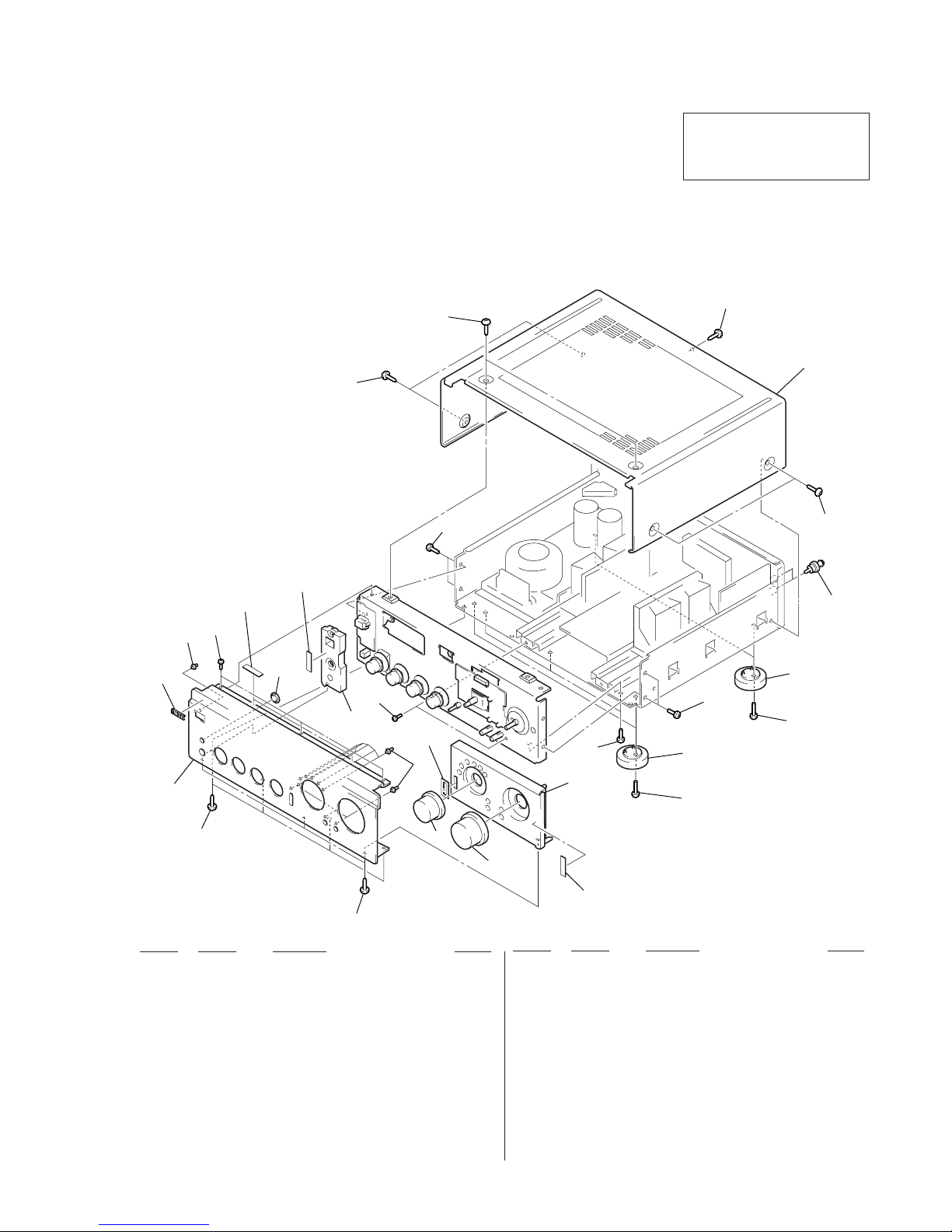

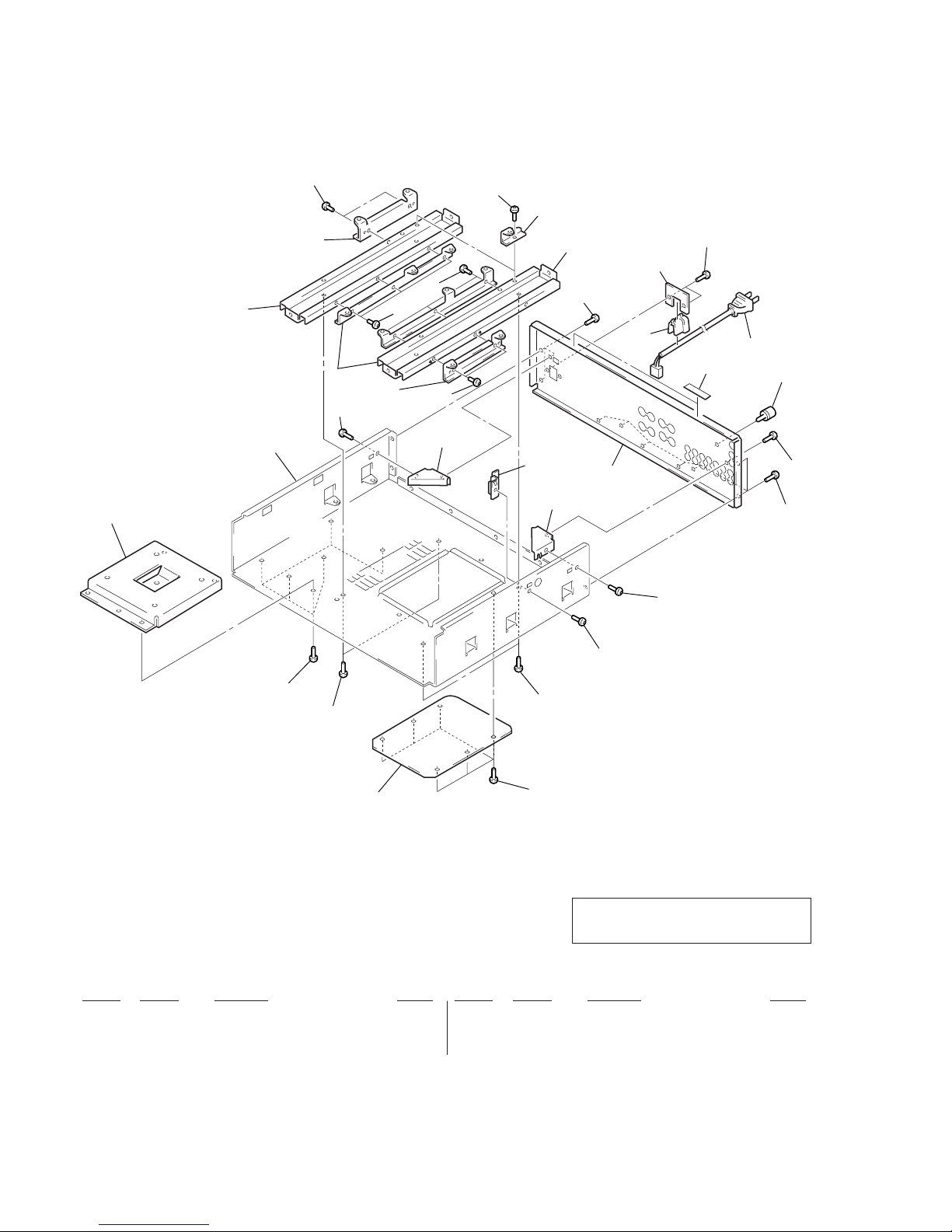

5. EXPLODED VIEWS................................................ 27
6. ELECTRICAL PARTS LIST ............................... 31
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED
LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

– 3 –
SECTION 1
GENERAL
LOCATION OF CONTROLS
Front Panel
Rear Panel
1U(Power) switch and indicator
2TAPE MONITOR switch and indicator
3INPUT SELECTOR switch and indicator
4ATTENUATOR control
5PHONES jack
6Remote control sensor
7SPEAKERS switch
8BASS control
9TREBLE control
!º BALANCE control
!¡ SOURCE DIRECT switch and indicator
!™ MUTING swith and indicator
1234
56 7 8 9 !º !¡ !™
1PHONO
2CARTRIDGE MM/MC
3SIGNAL GND y
4Mains lead
5SPEAKERS MAIN/BI-WIRE
6TAPE 1/DAT
7TAPE 2/MD
8AUX
9CD
!º TUNER

– 4 –
6 connector
(CN2)
4 connector
(CN700)
1 connecto
r
(CN103)
3 connector
(CN303)
2 connector
(
CN102
)
7 two screws
(3 × 8)
7 three screws
(3 × 8)
7 two screws
(3 × 8)
7 four screws
(3 × 8)
7 two screws
(3 × 8)
5 connector
(CN503)
8 sub panel section
CASE, FRONT PANEL
SUB PANEL SECTION

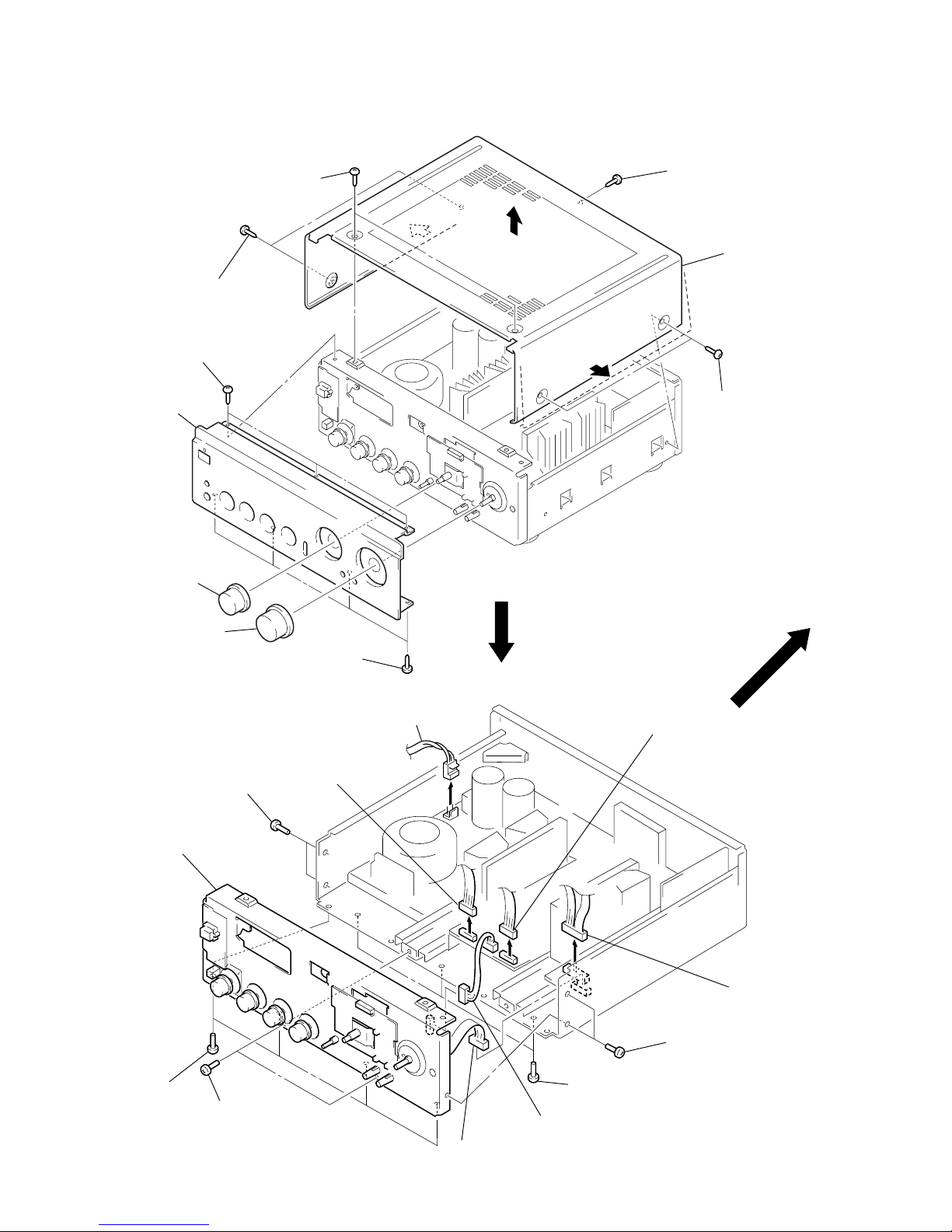

Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
1 two screws
(CASE 3 TP2)
1 screw
(CASE 3 TP2)
1 two screws
(CASE 3 TP2)
2 case
(413235)
1 two screws
(CASE 3 TP2)
5 three screws
(3
× 8)
5 four screws
(3
× 8)
6 front panel
3 knob (SEL)
4 knob (VOL)

– 5 –
MAIN BOARD
2 connector
(CN752)
3 connector
(CN104)
1 connector
(CN751)
4 three screw
s
(BV/RING)
5 four screws
(3 × 8)
7 main board
6 four screws
(3 × 8)
5 four screws
(3 × 8)
5 three screws
(3 × 8)

– 6 –
Bias Adjustment
1. Rotate fully the bias adjusting semi-fixed resistors (RV500,
RV600) to the MIN position (counterclockwise).
2. Connect a digital voltmeter to the CN500 and CN600.
3. Set the slidack to 0 V, and press the Ubutton (ON) on the
set.
4. Raise gradually the slidack voltage up to the rated voltage
(230 V).
5. At this time, confirm that the SP relay is turned on (it will
click), and at the same time, the LED on the Ubutton changes
from red to green.
6. Adjust the RV500 and RV600 so that a reading of digital volt-
meter is 10 mV ± 2 mV.
7. Return the slidack to 0 V, and press the Ubutton (OFF) on
the set.
Adjustment Location:
1 pin 3 pin
CN500 + –
CN600 – +
SECTION 3
ELECTRICAL ADJUSTMENTS
C720
C721
Q507 Q607
RV600
RV500
CN500 CN600
113
3
MAIN Board (Component Side)

– 7 – – 8 –
SECTION 4
DIAGRAMS

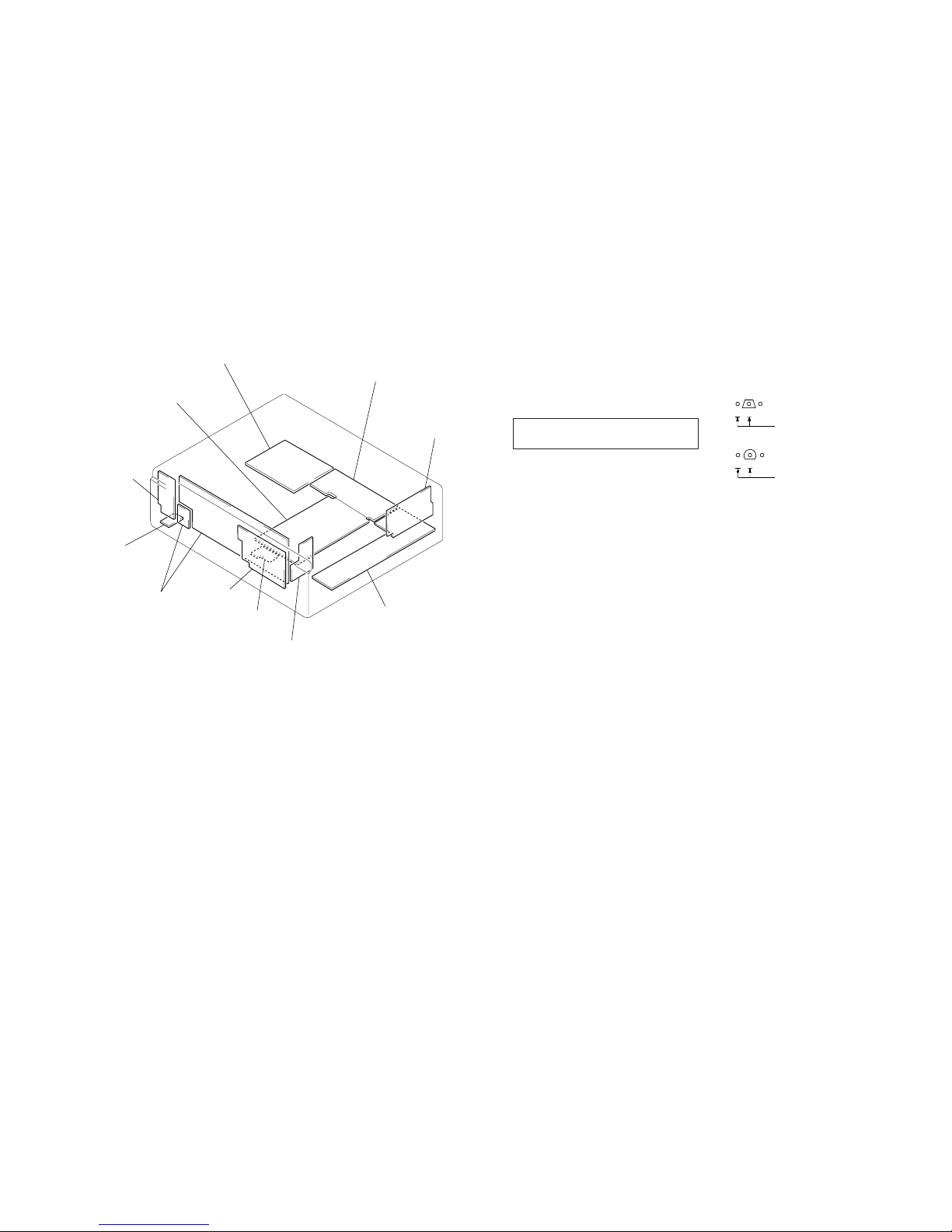

• Circuit Boards Location 4-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block.)
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•5: fusible resistor.
•C: panel designation.
Note on PrintedWiring Boards:
•X: parts extracted from the component side.
•b: Pattern from the side which enables seeing.
• Indication of transistor.
•U: B+ Line.
•V: B– Line.
•H: adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: POWER ON
• Voltagesare taken with aVOM(Inputimpedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
K:TUNER
NOTE:The components identified by mark !or dotted line
with mark !are critical for safety.
Replace only with part number specified.
B
These are omitted.
CE
Q
B
These are omitted.
CE
Q
SP TM board
PS board
MAIN board
PHONO board
INPUT board
VOL board
SW board
LED board
PANEL board
HP board
POWER LED board

4-2. PRINTED WIRING BOARDS – INPUT Section – • See page 7 for circuit Boards Location.
TA-FA30ES
– 9 – – 10 –
Ref. No. Location
Ref. No. Location
D101 C-6
D103 D-4
D104 D-3
D105 D-3
D106 C-3
D107 B-3
D108 A-3
D109 A-3
D110 D-4
D151 C-9
D251 C-9
• Semiconductor Location
Q100 C-5
Q101 C-5
Q102 C-5
Q103 C-6
Q104 C-6
Q105 C-6
Q152 C-9
Q252 C-9
(Page 14)
(Page 18)
(Page 17)

– 11 – – 12 –
TA-FA30ES

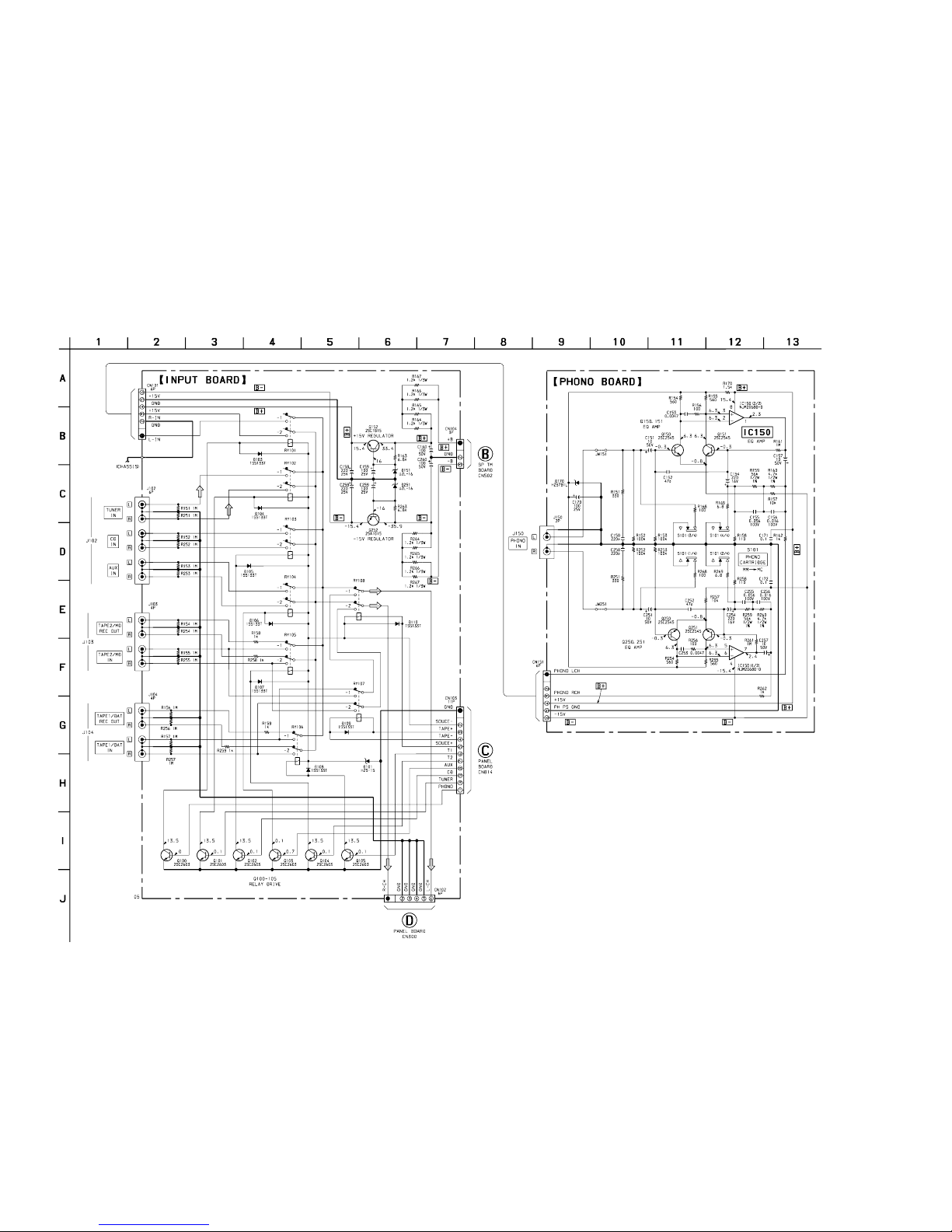

4-3. SCHEMATIC DIAGRAM – INPUT Section –
(Page 20)
(Page 19)
(Page 16)

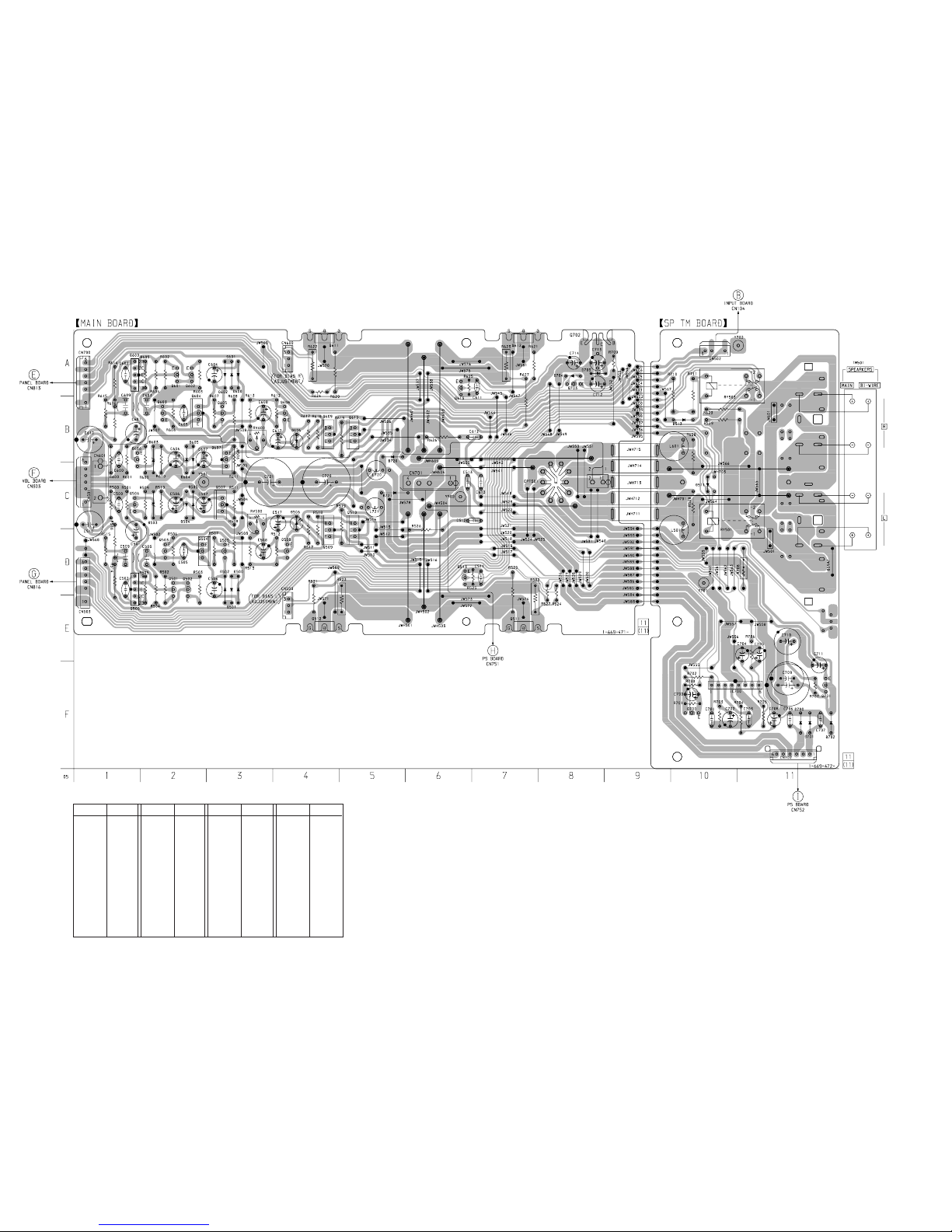

4-4. PRINTED WIRING BOARDS – MAIN Section – • See page 7 for Circuit Boards Location.
TA-FA30ES
– 13 – – 14 –
Ref. No. LocationRef. No. Location
D500 D-3
D501 D-3
D502 D-3
D503 C-2
D504 C-2
D505 C-2
D506 C-4
D511 C-10
D513 B-10
D600 A-3
D601 A-3
D602 A-3
D603 B-2
D604 B-2
D605 B-2
• Semiconductor Location
D606 B-4
D700 F-11
D701 F-11
D702 F-11
D703 A-8
D704 A-8
D720 B-5
D721 C-5
IC700 F-10
Q500 D-1
Q501 D-2
Q502 D-2
Q503 D-2
Q504 D-2
Q505 D-3
Q506 C-1
Q507 C-3
Q508 D-4
Q509 D-4
Q510 C-5
Q511 E-7
Q512 E-4
Q513 D-6
Q600 A-1
Q601 A-2
Q602 A-2
Q603 B-2
Q604 B-2
Ref. No. Location Ref. No. Location
Q605 B-3
Q606 B-1
Q607 B-3
Q608 B-4
Q609 B-4
Q610 B-5
Q611 A-4
Q612 A-7
Q613 A-6
Q700 F-10
Q701 F-11
Q702 A-8
Q703 A-8
(Page 18)
(Page 17)
(Page 18)
(Page 22)
(Page 22)
(Page 9)

– 15 – – 16 –
TA-FA30ES
4-5. SCHEMATIC DIAGRAM – MAIN Section – • See page 25 for IC Block Diagram.
The components identified by mark !or dotted
line with mark !are critical for safety.
Replaceonly with part numberspecified.
(Page 20)
(Page 24)
(Page 24)
(Page 11)
(Page 19)
(Page 19)

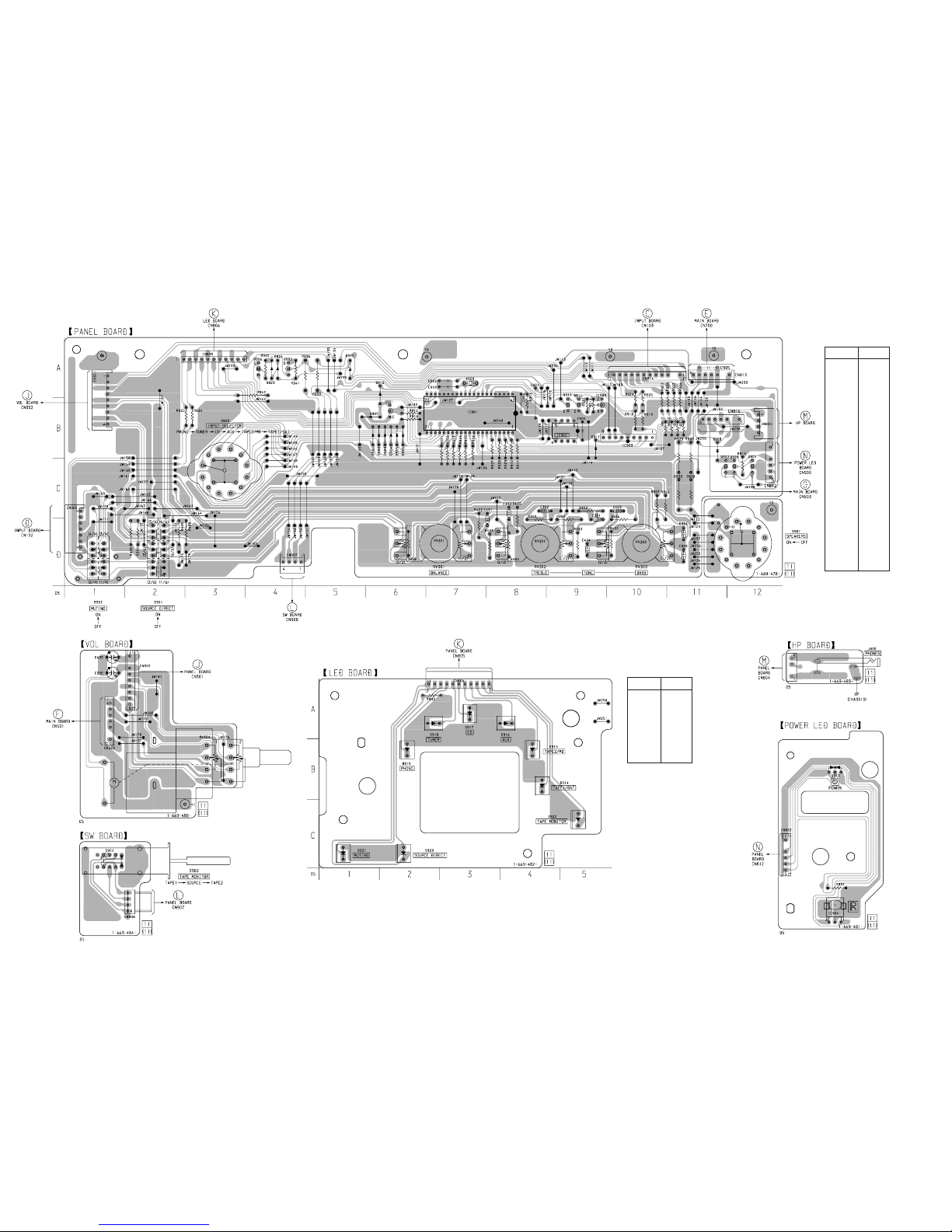

4-6. PRINTED WIRING BOARDS – PANEL Section – • See page 7 for Circuit Boards Location.
TA-FA30ES
– 17 – – 18 –
Ref. No. Location
D914 B-4
D915 B-4
D916 A-4
D917 A-3
D918 A-2
D919 B-2
D920 C-2
D921 C-1
D922 C-5
• Semiconductor Location
– LED Board –
Ref. No. Location
D901 B-6
D902 B-6
D903 B-6
D904 B-6
D905 B-6
D906 B-6
D907 B-6
D908 B-11
D910 A-5
D911 B-9
D912 A-6
D923 A-4
D924 A-4
IC901 B-7
IC902 B-9
IC903 B-10
IC905 B-9
Q901 B-6
Q902 C-12
Q903 C-12
Q904 C-12
Q905 A-4
Q906 A-4
Q911 B-9
Q912 B-9
• Semiconductor
Location
– PANEL Board –
(Page 13)
(Page 10)
(Page 10) (Page 13)
(Page 13)

– 19 – – 20 –

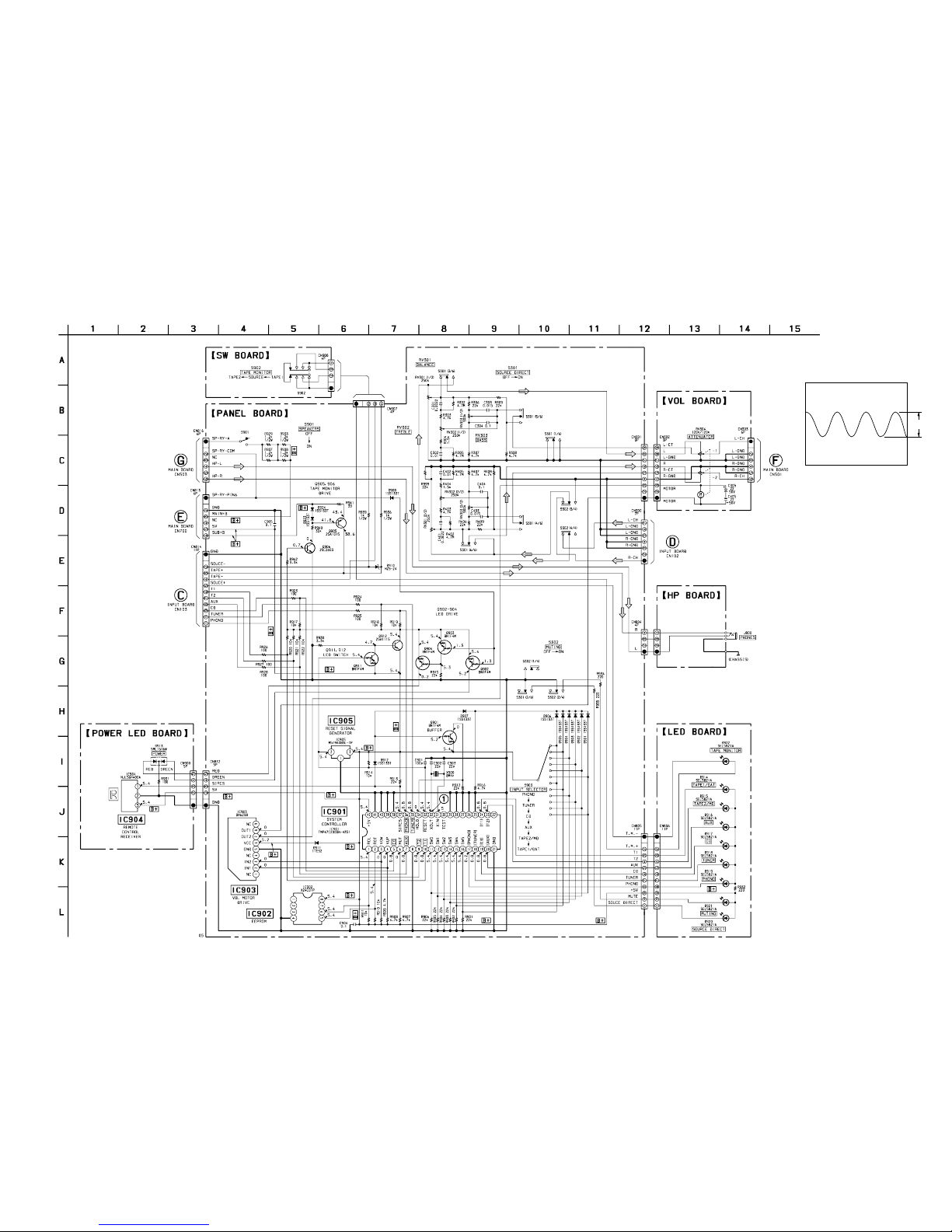

4-7. SCHEMATIC DIAGRAM – PANEL Section – • See page 25 for IC Block Diagram.
TA-FA30ES
• Waveform
1IC901 #™ (XOUT)
4.4 Vp-p
8 MHz
(Page 16)
(Page 16)
(Page 11)
(Page 11)
(Page 15)

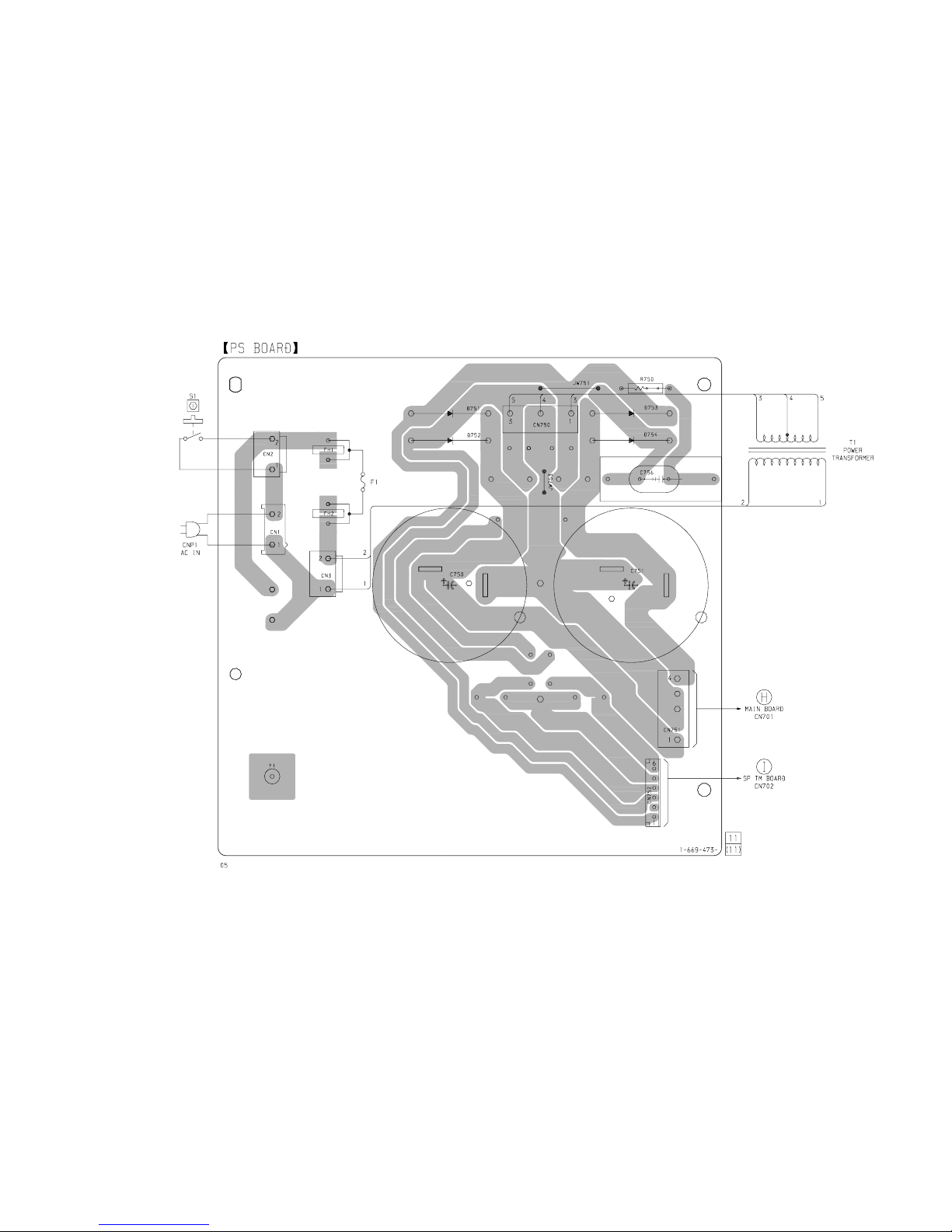

4-8. PRINTED WIRING BOARDS – POWER Section – • See page 7 for Circuit Boards Location.
TA-FA30ES
– 21 – – 22 –
(Page 14)
(Page 14)

– 23 – – 24 –
4-9. SCHEMATIC DIAGRAM – POWER Section –
TA-FA30ES
The components identified by mark !or dotted
line with mark !are critical for safety.
Replaceonly with part numberspecified.
(Page 16)
(Page 15)

– 25 – – 26 –
4-10. IC PIN FUNCTION DESCRIPTION
• IC Block Diagrams
IC700 µPC1237HA (SP TM BOARD)
IC903 BA6208 (PANEL BOARD)
1 2 3 4 5 6 7 8
OVER LOAD DET
F/F
OFFSET DET
LATCH/
AUTORESET
V
CC ON
MUTE
AC OFF
DET
V
CC
1 2 3 4 5 6 7 89
NC
OUTPUT 2
Vcc
GND
NC
INPUT 2
INPUT 1
NC
MOTOR
DRIVE
MOTOR
DRIVE
REG
SWITCH
SWITCH
OUTPUT1
•PANEL BOARD IC901 TMP47C200BN-H351 (SYSTEM CONTROLLER)
Pin No. Pin Name I/O Function
1 RCL O Serial clock signal output to the EEPROM (IC902)
2 RDT I/O Two-way data bus with the EEPROM (IC902)
3 VDW O Volume motor drive signal output to the BA6208 (IC903) (for volume down direction)
“H” active
4 VUP O Volume motor drive signal output to the BA6208 (IC903) (for volume up direction)
“H” active
5CDO
Function relay (for CD) drive signal output terminal “H”: relay on (CD on)
6 MUT O Muting control signal output terminal “H”: muting on Not used (pull up)
7 AUX O Function relay (for AUX) drive signal output terminal “H”: relay on (AUX on)
8——
Not used (fixed at “L”)
9T2O
Function relay (for TAPE2/MD) drive signal output terminal “H”: relay on (TAPE2/MD on)
10 T1 O Function relay (for TAPE1/DAT) drive signal output terminal “H”: relay on (TAPE1/DAT on)
11 SW0 I Input selector switch (S903) input terminal “H”: TAPE1/DAT, “L”: other function
12 SW1 I Input selector switch (S903) input terminal “H”: TAPE2/MD, “L”: other function
13 SW2 I Input selector switch (S903) input terminal “H”: AUX, “L”: other function
14 SW3 I Input selector switch (S903) input terminal “H”: CD, “L”: other function
15 SW4 I Input selector switch (S903) input terminal “H”: TUNER, “L”: other function
16 SW5 I Input selector switch (S903) input terminal “H”: PHONO, “L”: other function
17 PHONO O Function LED (PHONO) drive signal output terminal “L”: LED on
18 TUNER O Function LED (TUNER) drive signal output terminal “L”: LED on
19 CD O Function LED (CD) drive signal output terminal “L”: LED on
20 AUX O Function LED (AUX) drive signal output terminal “L”: LED on
21 GND — Ground terminal
22 — — Not used (open)
23 T2 O Function LED (TAPE2/MD) drive signal output terminal “L”: LED on
24 T1 O Function LED (TAPE1/DAT) drive signal output terminal “L”: LED on
25 to 29 — — Not used (fixed at “L”)
30 TEST — Not used (open)
31 XIN I System clock input terminal (8 MHz)
32 XOUT O System clock output terminal (8 MHz)
33 RESET I System reset signal input from the reset signal generator (IC905) “L”: reset
For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
34 HOLD I Cancellation of hold mode signal “H”: start
35 TUNER O Function relay (for TUNER) drive signal output terminal “H”: relay on (TUNER on)
36 PHONO O Function relay (for PHONO) drive signal output terminal “H”: relay on (PHONO on)
37 SIRCS I Remote control signal input from the remote control receiver (IC904)
38 to 41 — — Not used (fixed at “L”)
42 +5V — Power supply terminal (+5V)

– 27 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(1) CASE, FRONT PANEL SECTION-1
SECTION 5
EXPLODED VIEWS
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
1 4-967-961-01 SCREW (3X8)
2 4-999-428-01 PANEL, FRONT (BLACK)
2 4-999-428-11 PANEL, FRONT (GOLD)
3 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
3 4-942-568-51 EMBLEM (NO.5), SONY (GOLD)
*4 X-4950-462-1 LENS ASSY, LED
5 4-975-105-01 WINDOW, RAY CATCHER (BLACK)
5 4-975-105-31 WINDOW, RAY CATCHER (GOLD)
6 4-999-429-01 BASE (L), PANEL (BLACK)
6 4-999-429-11 BASE (L), PANEL (GOLD)
7 4-999-433-01 KNOB (SEL) (BLACK)
7 4-999-433-11 KNOB (SEL) (GOLD)
8 4-999-432-01 KNOB (VOL) (BLACK)
8 4-999-432-11 KNOB (VOL) (GOLD)
9 4-999-430-01 BASE (R), PANEL (BLACK)
9 4-999-430-11 BASE (R), PANEL (GOLD)
10 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
10 4-210-291-11 SCREW (CASE 3 TP2) (GOLD)
*11 4-999-439-01 CASE (413235) (BLACK)
*11 4-999-439-21 CASE (413235) (GOLD)
12 1-506-113-00 SHORT PLUG
13 X-4949-759-1 FOOT ASSY
14 7-685-885-09 SCREW +BVTT 4X16 (S)
10
10
1
10
11
10
12
13
14
1
13
14
1
1
2
3
41
5
6
4
not
supplied
9
8
7
1
not supplied
not supplied
1
not supplied

– 28 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(2) FRONT PANEL SECTION-2
51 4-967-961-01 SCREW (3X8)
*52 1-669-483-11 HP BOARD
53 3-024-055-01 BUTTON (POWER) (U) (BLACK)
53 3-024-055-11 BUTTON (POWER) (U) (GOLD)
*54 1-669-481-11 POWER LED BOARD
55 X-4949-758-1 KNOB (BAL) ASSY (BLACK)
55 X-4949-761-1 KNOB (BAL) ASSY (GOLD)
56 7-685-751-09 SCREW +PTT 3X6 (S)
*57 A-4407-634-A PANEL BOARD, COMPLETE
58 4-970-146-01 BUTTON (BLCAK)
58 4-970-146-21 BUTTON (GOLD)
*59 1-669-480-11 VOL BOARD
*60 1-669-484-11 SW BOARD
61 4-976-796-01 KNOB (A), LEVER
*62 1-669-482-11 LED BOARD
!S1 1-554-920-11 SWITCH, PUSH (AC POWER) (1KEY)
not
supplied not
supplied
not
supplied
supplied
with J800
supplied
with S903
supplied
with RV304
Supplied with
S901, RV303,
RV302, RV301
55
51
51
53
51
52 56
S1
57 51
58
59
60
56
62
56
61
54
not supplied
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.

– 29 –
(3) CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-967-960-01 SCREW (4X8)
*102 1-669-473-11 PS BOARD
103 4-967-961-01 SCREW (3X8)
104 4-211-985-01 SCREW (3X8), PC BOARD FITTING
*105 A-4407-669-A MAIN BOARD, COMPLETE
106 3-905-609-21 SCREW (TRANSISTOR)
*107 A-4407-670-A SP TM BOARD, COMPLETE
108 4-970-145-01 ESCUTCHEON (P)
109 4-970-146-01 BUTTON (BLCAK)
*110 A-4407-672-A PHONO BOARD, COMPLETE
111 3-704-515-41 SCREW (BV/RING)
*112 A-4407-635-A INPUT BOARD, COMPLETE
!T1 1-431-827-11 TRANSFORMER, POWER
112
103
111
111
110
109
108
103
103
103
103
107
105
106
103 106
103
103
103
103
104
102
101
101
T1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
104
not
supplie
d
not
supplied
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.

– 30 –
(4) CHASSIS SECTION-2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-967-961-01 SCREW (3X8)
*152 4-923-873-01 BRACKET, CORD STOPPER
*153 3-703-244-00 BUSHING (2104), CORD
154 4-947-010-01 SCREW, FEEDER FIXED
*155 4-999-426-01 PANEL, BACK
!CNP1 1-777-185-11 CORD, POWER
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied not
supplied
not supplied not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
CNP1
154
151
151
151
151
151
151
151
155
151
151
151151
151
151
151
152
151
153
151
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.
