Sony AN-820A User manual

SONY:
3-750-798-23 (1)

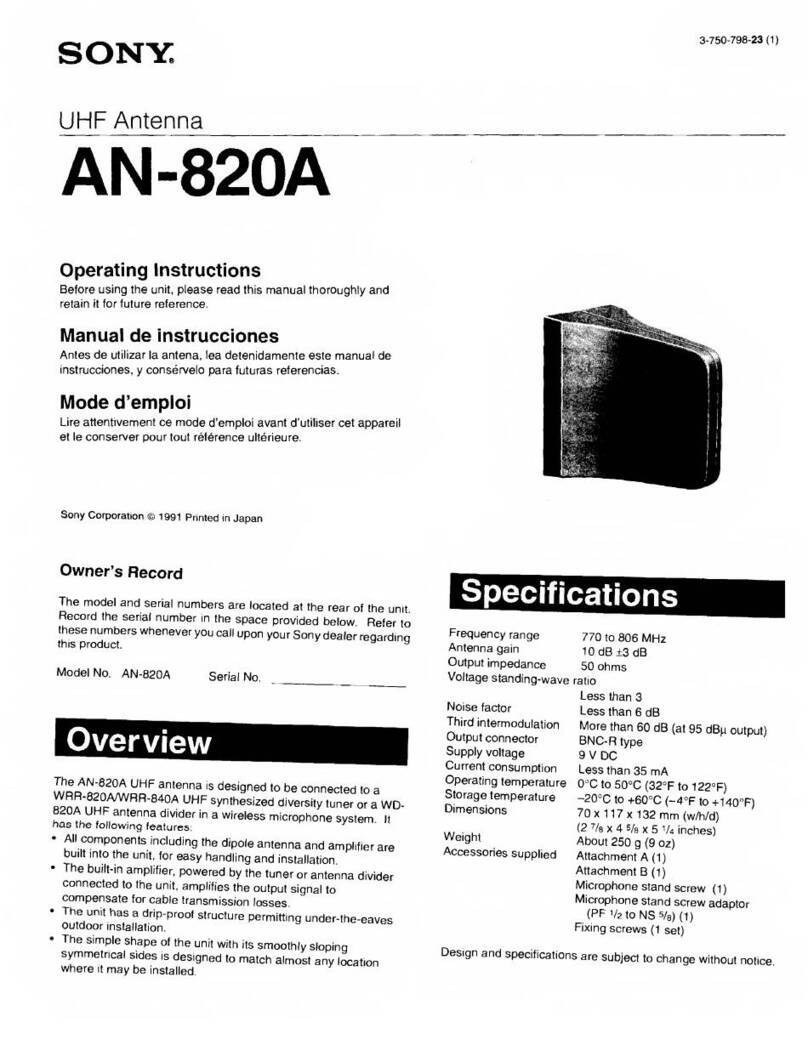

UHF Antenna _
AN- 8 20 A
Operating Instructions
Before using the unit, please read this manual thoroughly and
retain it for future reference.
Manual de instrucciones
Antes de utilizer la antena, lea detenidamente este manual de
instrucciones, y conservelo para futures referencias.
Mode d’emploi
Lire attentivement ce mode d’emploi avant d’utiliser cet appareil
et le conserver pour tout reference ulterieure.
Sony Corporation © 1991 Printed in Japan
Owner’s Record
The model and serial numbers are located at the rear of the unit.
Record the serial number in the space provided belovir Refer to
these numbers whenever you call upon your Sony dealer regarding
Model No. AN-820A Serial No.
Overview
antenna is designed to be connected to a
synthesized diversify tuner or a WD
820A UHF antenna divider in a wireless microphone system It
has the following features: ^
All components including the dipole antenna and amplifier are
built into the unit, for easy handling and installation
• The built-in amplifier, powered by the tuner or antenna divider
connected to the unit, amplifies the output signal to
compensate for cable transmission losses.
• The unit has a drip-proof structure permitting under-the-eaves
outdoor installation.
The simple shape of the unit with its smoothly sloping
symmetrical sides is designed to match almost any location
where it may be installed.
Specifications
Frequency range 770 to 806 MHz
Antenna gain 10dB±3dB
Output impedance 50 ohms
Voltage standing-wave ratio
Noise factor
Third intermodulation
Output connector
Supply voltage
Current consumption
Operating temperature
Storage temperature
Dimensions
Weight
Accessories supplied
Less than 3
Less than 6 dB
More than 60 dB (at 95 dBp output)
BNC-R type
9VDC
Less than 35 mA
0°C to 50°C (32°Fto 122“F)
-20°C to +60°C (-4°F to +140"F)
70 X 117 X 132 mm (w/h/d)
(2 Vb X 4 s/s X 5 V 4 inches)
About 250 g (9 oz)
Attachment A (1)
Attachment B (1)
Microphone stand screw ( 1 )
Microphone stand screw adaptor
(PF 1/2 to NS s/s) (1)
Fixing screws (1 set)
Design and specifications are subject to change without notice.

Installation
Wall installation using built-in outlet box
Plate covering
the outlet box
Hangers
N0.6-32UNC
scre\«s
(supplied)
Connect to the ANTENNA
A/B IN (DC9V OUT)
connector of the WRR-
820A/840A UHF
synthesized diversity tuner
or the WD-820A UHF
antenna divider.
Coaxial cable*
—Attachment A
(supplied)
-Antenna seat
-M3 screw (supplied)
M3 screw
N0.6-32UNC
screw
• Fit these slots over the
hangers of attachment A.
- BNC connector
- Place this groove over
the antenna seat of
attachment A.
Green LED (Lights when
DC power is supplied by
the tuner or antenna
divider.)
Wall Installation
Screw to
the wall.
Q M3 screws Hangers
^ (supplied)
Wood screws
(supplied)
Coaxial
cable*
Attachment B
(supplied)
Attachment B
screwed to the wall
Coaxial cable*
Attachment A (supplied)
Antenna seat
Connect to the ANTENNA A/B IN (DC9V OUT)
connector ot the WRR-820A/840A UHF
synthesized diversity tuner or the WD-820A
UHF antenna divider.
Installation on a microphone stand
Microphone stand screw
(supplied)
Microphone stand screw adaptor
(PF V 2 to NS 5/8 ((supplied)
-M3 screw (supplied)
%!
•'.Ts:
Microphone
stand
Coaxial
cable*
Connect to the ANTENNA A/B IN (DC9V OUT)
connector of the WRR-820/V'840A UHF
synthesized diversity tuner or the WD-820A UHF
antenna divider.
Use a 50 -ohm cable, WBC-10B-5P to WBC-30B-5P or equivalent (at least RG-212/U).
Block Diagram
Precautions
• Always use two or more AN-820A units in pairs, installing each
pair of units at least 1 m (3 feet) apart.
• Make sure the units installed are visible from where the
wireless microphone or transmitter is used.
• Avoid installing the units:
- near a window or metal paneling
- immediately adjacent to electrical equipment, which may
produce RF interference
- where they are vulnerable to physical damage.
