MICROFILM
SERVICE MANUAL
SOUND-SENSOR NURSERY MONITOR
US Model
E Model
SPECIFICATIONS
NTM-30
Receiver
Transmitter
Ver 1.0 1999. 03

– 2 –
TABLE OF CONTENTS
1. GENERAL ................................................................... 3
2. DISASSEMBLY ......................................................... 4
3. ELECTRICAL ADJUSTMENTS......................... 6
4. DIAGRAMS
4-1. Block Diagram ................................................................ 9
4-2. Schematic Diagram – TX/MIC Boards – ....................... 11

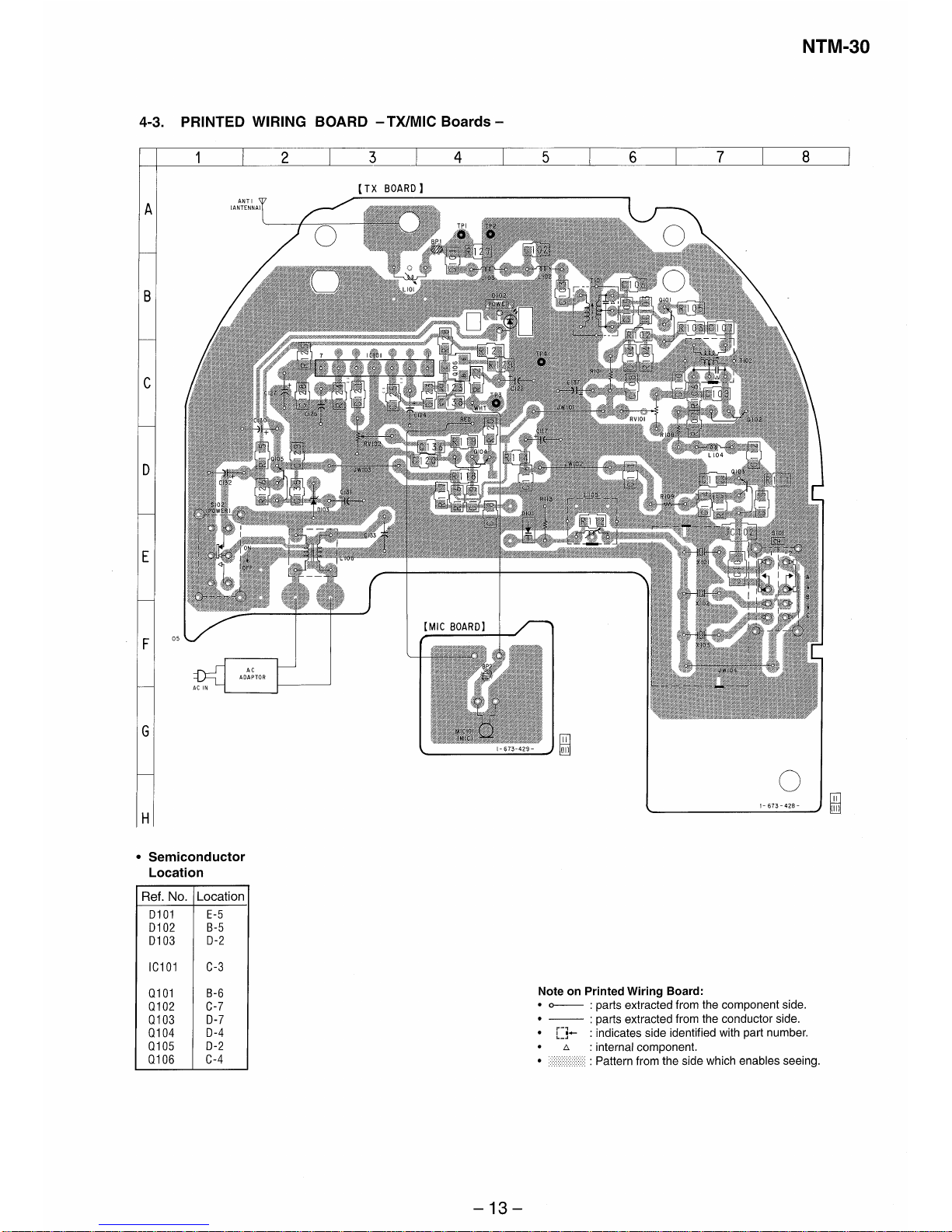

4-3. Printed Wiring Board – TX/MIC Boards – ................... 13
4-4. Printed Wiring Board – RX Board – ............................. 14
4-5. Schematic Diagram – RX Board – ................................ 15
5. EXPLODED VIEWS................................................ 17
6. ELECTRICAL PARTS LIST ............................... 19
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED
LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
TheAC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2VAC range are suit-
able. (See Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µ FAC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground

– 3 –
SECTION 1
GENERAL This section is extracted from
instruction manual.

– 4 –
• TRANSMITTER SECTION
REAR CABINET
AC ADAPTER CORD SETTING
Wind the AC adaptor cord to boss 2 time.
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
1 two screws
(P2.6
× 12)
1 two screws
(P2.6
× 12)
2 rear cabinet
AC adaptor cord
boss

– 5 –
• RECEIVER SECTION
LOWER CABINET
2 claw
2 claw
1 two screws
(P2.6 × 12)
1 two screws
(P2.6 × 12)
3 lower cabinet

– 6 –
SECTION 3
ELECTRICAL ADJUSTMENTS
TRANSMITTER SECTION
Transmitter Output Adjustment
Setting:
CH switch (S101): B
Procedure:
1. Take out solder for BP1 on the TX board, and take out solder
for BP2 on the MIC board.
2. Connect the frequency counter, RF-VTVM and modulation
meter with TP1 and TP2.
3. Adjust L105 for 49.860 MHz reading on the frequency counter.
4. Adjust T101andT102 for maximum reading on the RF-VTVM.
5. Adjust RV101 for 0.075 to 0.085 Vrms reading on the RF-
VTVM.
6. Connect theAF OSC with TP3 and TP4, and input the signal.
7. Adjust RV102 for 2.5 kHz deviation reading on the modula-
tion meter.
8. After adjustment take solder on BP1 and BP2
Transmitter Loading Coil Adjustment
Setting:
CH switch (S101): B
Procedure:
Adjust L101 for maximum waveform on the oscilloscope.
AF OSC
Signal level:
–57 dB/1kHz
+
–Set
(transmitter)
TX board
TP4
TX board
TP2
TX board
TP3 TX board TP1
50 Ω
frequency counte
r
–
+
RF-VTVM
–
+
modulation meter
–
+
Set
(transmitter) +
–
oscilloscop
e
10 µ H
about 300 mm
Adjustment Location:
RV102 L105
Transmitter Output Adjustment
– TX BOARD (Component Side) –
T101 RV101 T102
– TX BOARD (Conductor Side) –
L101
Transmitter Loading Coil
Adjustment
TP4
TP3
TP2
TP1BP1
– MIC BOARD –
(Conductor Side)
BP2

– 7 –
RECEIVER SECTION
Receiver Sensitivity Adjustment
Setting:
Power switch (S202) : ON
CH switch (S201) : B
VOLUME control (RV202): mechanical center
Procedure:
Adjust T201 and T202 for a minimum reading on the level meter.
Squelch Adjustment
Setting:
Power switch (S202) : VOICE ACT.
CH switch (S201) : B
VOLUME control (RV202): mechanical center
Procedure:
Adjust RV201 for the RANGEALM. indicator (D205) is just lights
up and the buzzer sounds point.
Monitor Level Adjustment
Setting:
Power switch (S202) : VOICE ACT.
CH switch (S201) : B
VOLUME control (RV202): mechanical center
Procedure:
1. Adjust RV203 for the MONITOR indicator (D204) is just lights
up point.
2. Set the frequency of the FM RF SSG to 49.830 MHz.
3. Set the CH switch (S201) to A, and verify that the signal can
be received.
4. Set the frequency of the FM RF SSG to 49.890 MHz.
5. Set the CH switch to A, and verify that the signal can be re-
ceived.
Set
(receiver)
FM RF SSG
Carrier frequency: 49.860 MHz
Output level:
0.5
µ V (–6 dB µ V)
at no modulation
level meter
8
Ω
+
–
RX board
TP2 speaker out –
RX board
TP1 speaker out +
Set
(receiver)
FM RF SSG
Carrier frequency: 49.860 MHz
Output level:
0.125
µ V (–18 dB µ V)
at no modulation RX board
TP2
RX board
TP1
Set
(receiver)
FM RF SSG
Carrier frequency: 49.860 MHz
Output level:
10
µ V (20 dB µ V)
at 1kHz deviation RX board
TP2
RX board
TP1
Receiver Loading Coil Adjustment
Setting:
Power switch (S202) : ON
CH switch (S201) : B
VOLUME control (RV202): mechanical center
Procedure:
Adjust L201 so that the sound from the speaker (SP201) becomes
best.
Adjustment Location:
Set
(receiver)
FM RF SSG
3.5 kHz frequency deviation
by 1000 Hz signal.
Carrier frequency: 49.860 MHz
Output level: as low as possible
about 400 mm
loop antenna
RV203
Monitor Level Adjustment
– RX BOARD (Component Side) –
Receiver Sensitivity
Adjustment
RV201
Squelch Adjustment
T201
T202
– RX BOARD (Conductor Side) –
L201
Receiver Loading Coil
Adjustment
Speaker out +
Speaker out –
TP2
TP1
BP3

NTM-30
– 9 – – 10 –
4-1. BLOCK DIAGRAM
05
•SIGNAL PATH
: RX
: TX
1
3
2
B+
B+ B+
B+
Q206
SWITCHING
D208 – 210
AC IN
L106
SP201
(SPEAKER)
IN2
VCC
+IN OUT
RF AMP
Q201 L.P.F.
COMPARATOR
IC204 (1/2)
BUFFER
IC203 (1/2),
Q205
AC
ADAPTOR
REGULATOR
Q207
REGULATOR
Q105
MIC AMP
Q106 BUFFER
Q104 OSCILLATOR
Q103 TX POWER AMP Q101 L.P.F.
BUFFER
Q102
MUTING
SWITCH
Q202
RV201
SQUELCH
RV203
MONITOR
LEVEL
D205
RANGE ALM.
D204
MONITOR
D207
POWER/BATT
RV102
DEVIATION
RV101
TRANSMITTER
OUTPUT
L105
FREQUENCY
T102
(RF)
TRANSMITTER
OUTPUT
T101
(RF)
TRANSMITTER
OUTPUT
T201
(RF)
RECEIVER
SENSITIVITY
T202
(RF)
RECEIVER
SENSITIVITY
L101
TRANSMITTER
LOADING COIL
L201
RECEIVER
LOADING
COIL
D102
POWER
S101
CH
ANT2
(ANTENNA)
ANT1
(ANTENNA)
QUAD
35
1
9
NF2
4
10
1 13
MIX, IF AMP, DET
IC201
POWER AMP
IC202
MIC AMP, ALC
IC101
TRANSMITTER SECTION
RECEIVER SECTION
MIX
IN
OSC IN N-DET
MIX
OUT IF
IN
MIXER
LOCAL
OSC
IF
AMP L.P.F. POWER
AMP
REGULATOR
MIC
AMP
DET
FILTER/
NOISE AMP
NOISE
DET
QUADRATURE
DET
16 3
AF
OUT 9
FIL IN 8
5
CF201
455kHz
CF202
455kHz
RV202
VOLUME
MIC101
(MIC)
7
6
5
B+
COMPARATOR
IC204 (2/2)
SCHMITT
TRIGER
Q203
SWITCHING
Q204
J201
DC IN 9V
–+
S102
(POWER)
OFF ON
A
B
C
BUFFER
IC203 (2/2)
B+
D203
RV203
D202
REG
VOL
OUT
B+
S101-1
S101-2
X101
16.610MHz
X103
16.630MHz
X102
16.620MHz
L105
(FREQUENCY)
D101
15
14
7
VOICE ACT.
ON
OFF
S202-2
(VOICE ACT. /ON/OFF)
VOICE ACT.
ON
OFF
S202-1
(VOICE ACT. /ON/OFF)
S201
CH
ABC
X201
49.375MHz X203
49.435MHz
X202
49.405MHz D212
DRY BATTERY
6F22
(IEC DESIGNATION 6F22)
1PC. 9V
SECTION 4
DIAGRAMS

– 11 – – 12 –
NTM-30
4-2. SCHEMATIC DIAGRAM – TX/MIC Boards –
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•C: panel designation.
Note: The components identified by mark !or dotted line
with mark !are critical for safety.
Replace only with part number specified.
•U: B+ Line.
•H: adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark :TX
• Voltages are takenwith aVOM (Inputimpedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
O: TX
• Waveforms
1Q103 (EMITTER) (CH A) (TX mode)
1 V/DIV, 20 nS/DIV 2Q103 (EMITTER) (CH C) (TX mode) 1 V/DIV, 20 nS/DIV 3Q103 (EMITTER) (CH C) (TX mode)
1 V/DIV, 20 nS/DIV
3.2 Vp-p
60.2 nS
3.1 Vp-p
60.17 nS
3.1 Vp-p
60.13 nS
• IC Block Diagram
IC101 TA2011S
DET
NC
–IN +IN
GND
OUT
DET
VCC
32 41 5 6 7
+
–
FREQUENCY (FREQUENCY) DEVITATION

NTM-30
– 15 – – 16 –
4-5. SCHEMATIC DIAGRAM – RX Board –
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•C: panel designation.
•U: B+ Line.
•H: adjustment for repair.
• Power voltage is dc 9 V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : RX
• Voltages are takenwithaVOM (Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
N: RX
• IC Block Diagrams
IC201 TA31136FN
LOCAL
OSCILLATION
RSSI
QUADRATURE
DETECTION
12 3 45 6 7 8
91016 15 14 13 12 11
NOISE
AMP
FILTER
AMP
IF AMP
BUFFER
MIXER
DETECTOR
NOISE
COMPARATOR
MIX IN GND N-REC N-DET RSSI IF OUT QUAD AF OUT
OSC IN
OSC OUT
MIX OUT
VCC
IF IN
DEC
FIL OUT
FIL IN
L.P.F
IC202 CXA1522M
PRE/POWER 2
PRE/POWER 1
VOLUME
REGULATOR
IN1 REG VOL NF1 GND1 P-GND1 OUT1 VCC
IN2
NC NC
NF2
GND2
P-GND2
OUT2
RIPPLE
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
• Waveforms
1IC201 2(OSC OUT) (CH A) (RX mode)
500 mV/DIV, 50 nS/DIV 2IC201 2(OSC OUT) (CH B) (RX mode)
500 mV/DIV, 50 nS/DIV 3IC201 2(OSC OUT) (CH C) (RX mode)
500 mV/DIV, 50 nS/DIV
640 mVp-p
60.76 nS
500 mVp-p
60.723 nS
500 mVp-p
60.686 nS

– 17 – – 18 –
(1) TRANSMITTER SECTION
SECTION 5
EXPLODED VIEWS
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
9 3-033-238-01 CABINET (REAR) (TX)
!10 1-473-646-31 ADAPTOR, AC
11 3-036-255-01 FOOT, RUBBER
12 3-033-242-01 HOLDER (A) (LED)
ANT1 3-033-244-01 ANTENNA (TX), COIL
D102 8-719-074-45 DIODE SLR-56MG3F (POWER)
4
5
6
A
A
ANT1
7
8
9
610
6
11
2
1
7
D102
12
not
supplied
1 3-033-237-01 CABINET (FRONT) (TX)
2 3-033-239-01 PANEL (TX)
4 3-033-240-01 COVER (ANTENNA) (TX)
5 3-033-243-01 COVER, ANTENNA
6 7-685-136-14 SCREW +P 2.6X12 TYPE2 NON-SLIT
7 3-033-241-01 KNOB (TX)
*8 A-3663-228-A TX BOARD, COMPLETE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(2) RECEIVER SECTION
*63 A-3663-231-A RX BOARD, COMPLETE
64 1-535-804-21 SNAP, BATTERY
65 3-033-250-01 KNOB (VOL)
66 3-318-203-71 SCREW (B1.7X5), TAPPING
*67 3-033-258-01 PLATE, CLICK
ANT2 X-3376-901-1 ANTENNA ASSY
D204 8-719-055-63 LED SLR-56VR3F (RED) (MONITOR)
D205 8-719-062-00 LED SLR-56DU3F (ORG) (RANGE ALM.)
D207 8-719-074-45 LED SLR-56MG3F (GRN) (POWER/BATT)
SP201 1-503-616-11 SPEAKER
53
54 55
51
67
66
65
56
57
57
59
58
64
63
62
61
60
not
supplied
not
supplied
not
supplied
not
supplied
ANT2
SP201
D204, 205, 207
51 3-033-245-01 CABINET (UPPER) (RX)
53 3-033-252-01 COVER (ANTENNA RX)
54 3-036-254-01 REINFORCEMENT (RX)
55 3-033-243-01 COVER, ANTENNA
56 3-033-251-01 HOLDER (B) (LED)
57 3-033-249-01 KNOB (RX)
*58 3-033-248-01 LID
59 3-036-257-01 CUSHION (BATTERY)
60 7-685-136-14 SCREW +P 2.6X12 TYPE2 NON-SLIT
61 3-033-246-01 CABINET (LOWER) (RX)
62 3-033-247-01 LID, BATTERY CASE

– 19 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MIC BOARD
**********
(Included in TX BOARD, COMPLETE)
< MICROPHONE >
MIC101 1-542-118-11 MICROPHONE, ELECTRET CONDENSER
************************************************************
*A-3663-231-A RX BOARD, COMPLETE
*******************
1-535-804-21 SNAP, BATTERY
3-033-251-01 HOLDER (B) (LED)
< CAPACITOR >
C201 1-163-241-11 CERAMIC CHIP 39PF 5% 50V
C202 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C203 1-163-085-00 CERAMIC CHIP 2PF 50V
C204 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C205 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C206 1-163-085-00 CERAMIC CHIP 2PF 50V
C207 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C208 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V
C209 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C210 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C211 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C212 1-126-964-11 ELECT 10uF 20% 50V
C213 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C214 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C215 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C216 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C217 1-163-113-00 CERAMIC CHIP 68PF 5% 50V
C218 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C219 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C220 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C221 1-126-964-11 ELECT 10uF 20% 50V
C222 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C223 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C226 1-126-960-11 ELECT 1uF 20% 50V
C227 1-164-346-11 CERAMIC CHIP 1uF 16V
C228 1-126-934-11 ELECT 220uF 20% 10V
C229 1-126-964-11 ELECT 10uF 20% 50V
C230 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C231 1-126-934-11 ELECT 220uF 20% 10V
C232 1-163-038-00 CERAMIC CHIP 0.1uF 25V
SECTION 6
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
MIC RX
C233 1-164-346-11 CERAMIC CHIP 1uF 16V
C234 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C235 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C236 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C237 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C238 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C240 1-126-960-11 ELECT 1uF 20% 50V
C241 1-126-960-11 ELECT 1uF 20% 50V
C242 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C243 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V
C244 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C245 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C246 1-128-551-11 ELECT 22uF 20% 25V
C246 1-126-964-11 ELECT 10uF 20% 50V
C247 1-126-934-11 ELECT 220uF 20% 10V
C248 1-126-934-11 ELECT 220uF 20% 10V
C250 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C251 1-126-964-11 ELECT 10uF 20% 50V
C252 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C253 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C254 1-164-346-11 CERAMIC CHIP 1uF 16V
C255 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C261 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C262 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C263 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C264 1-163-038-00 CERAMIC CHIP 0.1uF 25V
< CERAMIC FILTER >
CF201 1-781-428-11 FILTER, CERAMIC (455kHz)
CF202 1-767-848-11 FILTER, CERAMIC (DISCRIMINATOR) (455kHz)
< DIODE >
D202 8-719-820-61 DIODE 1SS294
D203 8-719-991-33 DIODE 1SS133T-77
D206 8-719-109-89 DIODE RD5.6ESB2
D208 8-719-052-88 DIODE 1N4002
D209 8-719-052-88 DIODE 1N4002
D210 8-719-052-88 DIODE 1N4002
D212 8-719-820-61 DIODE 1SS294
< IC >
IC201 8-759-249-18 IC TA31136FN

– 20 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
IC202 8-752-064-80 IC CXA1522M
IC203 8-759-909-71 IC BA4558F
IC204 8-759-510-73 IC BA10393F-E2
< JACK >
J201 1-778-380-11 JACK, DC (POLARITY UNIFIED TYPE)
(DC IN 9V)
< SHORT >
JC201 1-216-295-00 SHORT 0
JC202 1-216-295-00 SHORT 0
JC203 1-216-295-00 SHORT 0
JC204 1-216-295-00 SHORT 0
JC205 1-216-295-00 SHORT 0
JC206 1-216-296-00 SHORT 0
JC207 1-216-295-00 SHORT 0
JC208 1-216-295-00 SHORT 0
JC209 1-216-295-00 SHORT 0
JC210 1-216-296-00 SHORT 0
JC211 1-216-296-00 SHORT 0
JC213 1-216-295-00 SHORT 0
< COIL >
L201 1-419-103-11 COIL
L202 1-410-324-11 INDUCTOR 4.7uH
L203 1-410-324-11 INDUCTOR 4.7uH
L204 1-410-324-11 INDUCTOR 4.7uH
L205 1-414-146-31 INDUCTOR 2.2uH
< TRANSISTOR >
Q201 8-729-800-15 TRANSISTOR 2SC2839TP-D
Q202 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q203 8-729-402-13 TRANSISTOR XN1501
Q204 8-729-620-06 TRANSISTOR 2SC3052-EF
Q205 8-729-620-06 TRANSISTOR 2SC3052-EF
Q206 8-729-620-06 TRANSISTOR 2SC3052-EF
Q207 8-729-011-92 TRANSISTOR 2SC2001TP-K1K2
< RESISTOR >
R201 1-216-073-00 METAL CHIP 10K 5% 1/10W
R202 1-216-077-00 METAL CHIP 15K 5% 1/10W
R203 1-216-025-00 RES, CHIP 100 5% 1/10W
R204 1-216-095-00 METAL CHIP 82K 5% 1/10W
R205 1-216-101-00 METAL CHIP 150K 5% 1/10W
R206 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R207 1-216-109-00 METAL CHIP 330K 5% 1/10W
R208 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R209 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R210 1-216-073-00 METAL CHIP 10K 5% 1/10W
R212 1-216-017-00 RES, CHIP 47 5% 1/10W
R213 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R214 1-216-081-00 METAL CHIP 22K 5% 1/10W
R215 1-216-073-00 METAL CHIP 10K 5% 1/10W
R216 1-216-025-00 RES, CHIP 100 5% 1/10W
R217 1-216-077-00 METAL CHIP 15K 5% 1/10W
R218 1-216-099-00 METAL CHIP 120K 5% 1/10W
R219 1-216-097-00 RES, CHIP 100K 5% 1/10W
R220 1-216-093-00 RES, CHIP 68K 5% 1/10W
R221 1-216-107-00 METAL CHIP 270K 5% 1/10W
R222 1-216-097-00 RES, CHIP 100K 5% 1/10W
R223 1-216-097-00 RES, CHIP 100K 5% 1/10W
R224 1-216-073-00 METAL CHIP 10K 5% 1/10W
R225 1-216-109-00 METAL CHIP 330K 5% 1/10W
R226 1-216-097-00 RES, CHIP 100K 5% 1/10W
R227 1-216-073-00 METAL CHIP 10K 5% 1/10W
R228 1-216-097-00 RES, CHIP 100K 5% 1/10W
R229 1-216-025-00 RES, CHIP 100 5% 1/10W
R230 1-249-441-11 CARBON 100K 5% 1/4W
R231 1-216-101-00 METAL CHIP 150K 5% 1/10W
R232 1-216-097-00 RES, CHIP 100K 5% 1/10W
R233 1-216-093-00 RES, CHIP 68K 5% 1/10W
R234 1-216-045-00 METAL CHIP 680 5% 1/10W
R235 1-216-097-00 RES, CHIP 100K 5% 1/10W
R236 1-216-089-00 RES, CHIP 47K 5% 1/10W
R237 1-216-093-00 RES, CHIP 68K 5% 1/10W
R238 1-216-121-00 RES, CHIP 1M 5% 1/10W
R239 1-216-121-00 RES, CHIP 1M 5% 1/10W
R240 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R241 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R242 1-216-015-00 METAL CHIP 39 5% 1/10W
R243 1-216-025-00 RES, CHIP 100 5% 1/10W
R244 1-216-009-00 RES, CHIP 22 5% 1/10W
R245 1-216-073-00 METAL CHIP 10K 5% 1/10W
R246 1-216-109-00 METAL CHIP 330K 5% 1/10W
R251 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R252 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R253 1-216-073-00 METAL CHIP 10K 5% 1/10W
R254 1-247-895-00 CARBON 470K 5% 1/4W
R255 1-216-025-00 RES, CHIP 100 5% 1/10W
< VARIABLE RESISTOR >
RV201 1-228-995-00 RES, ADJ, METAL 22K
RV202 1-225-441-11 RES, VAR, CARBON 50K
RV203 1-228-996-00 RES, ADJ, METAL 47K
< SWITCH >
S201 1-762-368-11 SWITCH, SLIDE (CH)
S202 1-762-368-11 SWITCH, SLIDE (VOICE ACT. /ON/OFF)
< TRANSFORMER >
T201 1-411-807-11 COIL (WITH CORE) (RF)
T202 1-411-807-11 COIL (WITH CORE) (RF)
< VIBRATOR >
X201 1-767-041-11 VIBRATOR, CRYSTAL (49.375MHz)
X202 1-767-042-11 VIBRATOR, CRYSTAL (49.405MHz)
X203 1-767-043-11 VIBRATOR, CRYSTAL (49.435MHz)
************************************************************
*A-3663-228-A TX BOARD, COMPLETE
*******************(Including MIC BOARD)
3-033-242-01 HOLDER (A) (LED)
TXRX

– 21 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< CAPACITOR >
C101 1-163-229-11 CERAMIC CHIP 12PF 5% 50V
C102 1-163-113-00 CERAMIC CHIP 68PF 5% 50V
C103 1-163-229-11 CERAMIC CHIP 12PF 5% 50V
C104 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C105 1-163-085-00 CERAMIC CHIP 2PF 50V
C106 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C107 1-163-241-11 CERAMIC CHIP 39PF 5% 50V
C108 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C110 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C111 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C112 1-163-229-11 CERAMIC CHIP 12PF 5% 50V
C113 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C114 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C115 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C116 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C117 1-126-964-11 ELECT 10uF 20% 50V
C118 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V
C119 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C120 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C121 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C122 1-126-964-11 ELECT 10uF 20% 50V
C123 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V
C124 1-104-664-11 ELECT 47uF 20% 10V
C125 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C126 1-126-964-11 ELECT 10uF 20% 50V
C127 1-128-551-11 ELECT 22uF 20% 25V
C128 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C129 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C130 1-126-934-11 ELECT 220uF 20% 10V
C131 1-126-934-11 ELECT 220uF 20% 10V
C132 1-128-551-11 ELECT 22uF 20% 25V
C133 1-128-551-11 ELECT 22uF 20% 25V
C135 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C136 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C137 1-126-964-11 ELECT 10uF 20% 50V
C138 1-163-038-00 CERAMIC CHIP 0.1uF 25V
< DIODE >
D101 8-719-002-81 DIODE 1T363
D103 8-719-110-17 DIODE RD10ESB2
< IC >
IC101 8-759-246-69 IC TA2011S
< SHORT >
JC101 1-216-296-00 SHORT 0
JC102 1-216-296-00 SHORT 0
JC103 1-216-295-00 SHORT 0
< COIL >
L101 1-416-990-11 COIL
L102 1-414-141-11 INDUCTOR 0.82uH
L103 1-414-141-11 INDUCTOR 0.82uH
L104 1-414-141-11 INDUCTOR 0.82uH
L105 1-411-808-11 COIL (RF)
L106 1-419-113-11 COIL, CHOKE
< TRANSISTOR >
Q101 8-729-800-15 TRANSISTOR 2SC2839TP-D
Q102 8-729-800-15 TRANSISTOR 2SC2839TP-D
Q103 8-729-800-15 TRANSISTOR 2SC2839TP-D
Q104 8-729-119-78 TRANSISTOR 2SC403SP-51
Q105 8-729-011-92 TRANSISTOR 2SC2001TP-K1K2
Q106 8-729-620-06 TRANSISTOR 2SC3052-EF
< RESISTOR >
R101 1-249-421-11 CARBON 2.2K 5% 1/4W
R102 1-216-101-00 METAL CHIP 150K 5% 1/10W
R103 1-216-013-00 METAL CHIP 33 5% 1/10W
R104 1-216-073-00 METAL CHIP 10K 5% 1/10W
R105 1-216-041-00 METAL CHIP 470 5% 1/10W
R106 1-216-111-00 METAL CHIP 390K 5% 1/10W
R107 1-216-081-00 METAL CHIP 22K 5% 1/10W
R108 1-247-807-31 CARBON 100 5% 1/4W
R109 1-249-417-11 CARBON 1K 5% 1/4W
R110 1-216-097-00 RES, CHIP 100K 5% 1/10W
R111 1-216-049-11 RES, CHIP 1K 5% 1/10W
R112 1-216-085-00 METAL CHIP 33K 5% 1/10W
R113 1-249-429-11 CARBON 10K 5% 1/4W
R114 1-216-049-11 RES, CHIP 1K 5% 1/10W
R115 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R116 1-216-085-00 METAL CHIP 33K 5% 1/10W
R117 1-216-093-00 RES, CHIP 68K 5% 1/10W
R118 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R119 1-216-113-00 METAL CHIP 470K 5% 1/10W
R120 1-216-045-00 METAL CHIP 680 5% 1/10W
R121 1-216-081-00 METAL CHIP 22K 5% 1/10W
R122 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R123 1-216-113-00 METAL CHIP 470K 5% 1/10W
R124 1-216-121-00 RES, CHIP 1M 5% 1/10W
R125 1-216-041-00 METAL CHIP 470 5% 1/10W
R126 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R127 1-216-031-00 METAL CHIP 180 5% 1/10W
R128 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R129 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
< VARIABLE RESISTOR >
RV101 1-228-994-00 RES, ADJ, METAL 10K
RV102 1-228-994-00 RES, ADJ, METAL 10K
< SWITCH >
S101 1-762-368-11 SWITCH, SLIDE (CH)
S102 1-762-367-11 SWITCH, SLIDE (POWER)
< TRANSFORMER >
T101 1-459-897-11 COIL (WITH CORE)
T102 1-411-807-11 COIL (WITH CORE) (RF)
< VIBRATOR >
X101 1-767-044-11 VIBRATOR, CRYSTAL (16.610MHz)
X102 1-767-045-11 VIBRATOR, CRYSTAL (16.620MHz)
TX

– 22 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
X103 1-767-046-11 VIBRATOR, CRYSTAL (16.630MHz)
************************************************************
MISCELLANEOUS
**************
!10 1-473-646-31 ADAPTOR, AC
D102 8-719-074-45 LED SLR-56MG3F (POWER)
D204 8-719-055-63 LED SLR-56VR3F (RED) (MONITOR)
D205 8-719-062-00 LED SLR-56DU3F (ORG) (RANGE ALM.)
D207 8-719-074-45 LED SLR-56MG3F (GRN) (POWER/BATT)
SP201 1-503-616-11 SPEAKER
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
!1-473-646-11 ADAPTOR, AC (AC-902)
3-865-983-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
SPANISH) (E)
3-865-983-21 MANUAL, INSTRUCTION (ENGLISH) (US)
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.
TX
Sony Corporation
Personal A&V Products Company
9-926-974-11
99D057039-1
Printed in Singapore © 1999. 4
Published by Quality Engineering Dept.
(Shinagawa)
NTM-30
