S O NY. 3-758-385-22(1)
Stereo
Cassette Deck
Operating Instructions
TC-WR545/WR741
¢.
© 1994 by Sony Corporation

WARNING
Owner’s Record
The model and serial numbers are located on the rear of the
unit. Record the serial number in the space provided below.
Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No. Serial No.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
00 NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
OO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
— Reorient or relocate the receiving antenna.
~ Increase the separation between the equipment and
receiver.
— Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician —__
for help.
CAUTION
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
For the customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
This apparatus complies with the Class B limits for radio
noise emissions set out in Radio Interference Regulations.
NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM
A moulded plug complying with BS 1363 is fitted to this
equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, a
5 AMP fuse approved by ASTA or BSI to BS 1362, (i.e.
marked with © or Y mark) must be used.
If the plug supplied with this equipment has a detachable
fuse cover, be sure to attach the fuse cover after you
change the fuse. Never use the plug without the fuse
cover. If you should lose the fuse cover, please contact
your nearest Sony service station.
IMPORTANT
If the plug supplied is not suitable for the socket outlets in
your home, it should be cut off and an appropriate plug
fitted in accordance with the following instructions.
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured
black. The wire which is coloured brown must be
connected to the terminal which is marked with the letter
Lor coloured red. Do not connect either wire to the earth
terminal in the plug which is marked by the letter E or by
the safety earth symbol + or coloured green or green-and-
yellow.
WARNING
To prevent shock hazard, do not insert the plug cut off from
the mains lead into a socket outlet. This plug cannot be used
and should be destroyed.

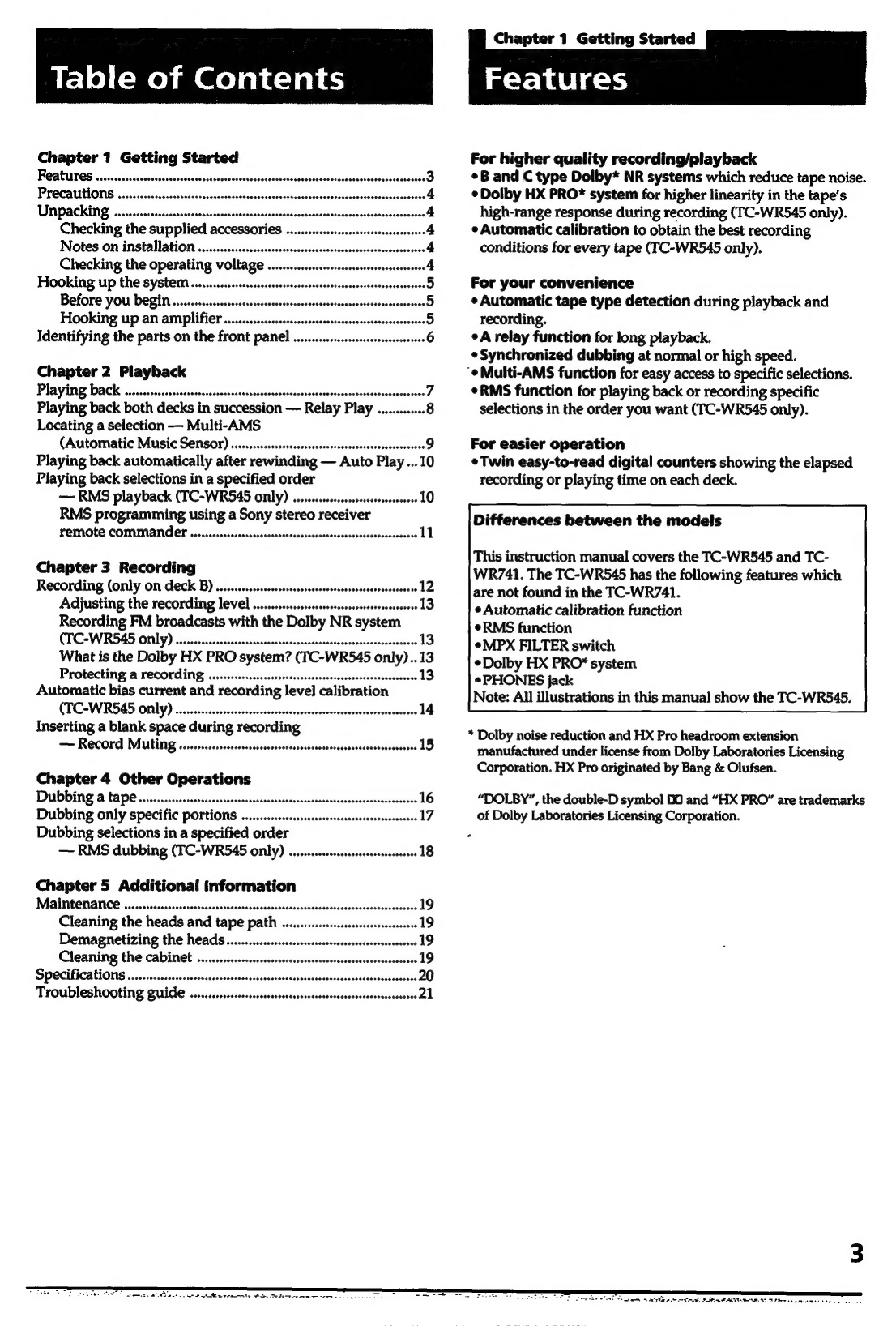

IFlel(=meyi Contents
Chapter 1 Getting Started
FO Atu resis ssicsacscustcssssoacosncocesideosessasucesedesessscsisouscesdedeiaselca teres cntsbasatee
Unpacking
Checking the supplied accessories ..........
Notes on installation .........sssssssssssssssssessecsssoses
Checking the operating voltage ...
Hooking up the system
Before you Degim..........sssssrsseeess
Hooking up an amplifier ............ssssssssssssssssees
Identifying the parts on the front panel
Chapter 2 Playback
Playing back .....s.ccsssesssseroscssssessessssesssrsceersenssssesasscsssssssssesesessnvesvees 7
Playing back both decks in succession — Relay Play ............. 8
Locating a selection — Multi-AMS
(Automatic Music Sensor) ........ssssssssssssseecssessesssesseceneecneesse 9
Playing back automatically after rewinding — Auto Play ...10
Playing back selections in a specified order
— RMS playback (TC-WR545 Only) ......sccssessesssesessesseeens 10
RMS programming using a Sony stereo receiver
FEMOL! COMMANET ..........ssssecesssrecsseessonvenssesssseeressecssosscenscees 11
Chapter 3 Recording
Recording (only on deck B) .......cssssessssesees Sksboedesovsossseseobsssaians 12
Adjusting the recording level........ sdesgenssancasscutsoncebnscusssnssto 13
Recording FM broadcasts with the Dolby NR system
CTC-WRSA4S Only) crssrecsosscccssosissasssoessoonssercessiaeossnsecnscasnepebatte 13
What is the Dolby HX PRO system? (TC-WR545 only).. =
Protecting a recording ...........cccsseseseerssssssseessreseescsesensesnesese
Automatic bias current and recording level calibration
(TC-WR545 only) ...esosecsoscsssscrssesssessseccssnscssersssssenosessvssnesessses 14
Inserting a blank space during recording
— Record Mutting .........ssecssscsesseeesescresssscsssssencenscesnseneesecesseees 15
Chapter 4 Other Operations
Dubbing a tape .........sssscsssssssserseerssesesvessnrsssssssesssesesensessessenssssoes 16
Dubbing only specific portions ............scssssssssssssssssssesecencennesse 17
Dubbing selections in a specified order
— RMS dubbing (TC-WR545 only) ........ssssessssssssesessseneseses 18
Chapter 5 Additional information
Maintenance ........ccecsserosserscsnecsessnessnecensesssssssesssssecssscsssssecenesenceees
Cleaning the heads and tape path ...
Demagnetizing the heads..........sssessssssssssesesvees
Cleaning the cabinet
Specifications .........cseccsservees
Troubleshooting guide ..........-sssssssrssrsssssssessesssssesssoesecsescessneees
ad
-_— =
Chapter 1 Getting Started
For higher quality recording/playback
¢B and C type Dolby* NR systems which reduce tape noise.
¢ Dolby HX PRO* system for higher linearity in the tape’s
high-range response during recording (TC-WR545 only).
¢ Automatic calibration to obtain the best recording
conditions for every tape (TC-WR545 only).
For your convenience
¢ Automatic tape type detection during playback and
recording.
A relay function for long playback.
¢ Synchronized dubbing at normal or high speed.
‘e Multi-AMS function for easy access to specific selections.
¢RMS function for playing back or recording specific
selections in the order you want (TC-WR545 only).
For easier operation
¢Twin easy-to-read digital counters showing the elapsed
recording or playing time on each deck.
Differences between the models
This instruction manual covers the TC-WR545 and TC-
WR741. The TC-WR545 has the following features which
are not found in the TC-WR741.
e Automatic calibration function
¢RMS function
¢MPX FILTER switch
¢Dolby HX PRO* system
e PHONES jack
Note: All illustrations in this manual show the TC-WR545.
* Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories Licensing
Corporation. HX Pro originated by Bang & Olufsen.
“DOLBY”, the double-D symbol 00 and “HX PRO” are trademarks
of Dolby Laboratories Licensing Corporation.
FR ee mem wae le eet, Sa AEROS TPB em ete ee ce

On safety
*Should any solid object or liquid fall into the cabinet,
unplug the unit and have it checked by qualified personnel
before operating it any further.
*Unplug the unit from the wall outlet if it will not be used
for a long time. To disconnect the cord, pull it out by
grasping the plug. Never pull the cord itself.
The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even if
the unit itself has been turned off.
On operation
¢ When the unit is not used, turn the power off to conserve
energy and to extend the useful life of your unit.
* Because of a safety mechanism, the function buttons will
not operate if the cassette holder is not completely closed, if
there is no cassette in the cassette holder, or if a cassette has
been incorrectly inserted into the cassette holder.
On head cleaning
The head and tape path should be cleaned after every ten
hours of operation. Dirty heads and a dirty tape path may
cause:
— loss of high-frequency response
— loss of sound volume
— sound drop-out
If you have any questions or problems concerning your unit,
please contact your nearest Sony dealer.
For the customers in the U. S. A.
For detailed safety precautions, see the leaflet “IMPORTANT
SAFEGUARDS”.
Unpacking
~
Checking the Supplied Accessories
Make sure that the following supplied accessories are
included with your unit.
* Audio connecting cords (2)
Koy Cormel aM laryeclitcvete) a)
Place the unit with the front panel facing you in a location
with adequate air circulation to prevent overheating of the
unit.
*Do not place the unit:
— near heat sources such as radiators or air ducts.
— in places subject to direct sunlight, excessive dust,
mechanical vibration or shock.
— in an inclined position.
— on a rug or other soft surfaces that would block the
ventilation holes on the bottom of the unit.
Do not throw away the carton and the packing material
They will come in handy when transporting the unit or
shipping it for servicing.
Checking the Operating Voltage
Operate the unit only on 120 V AC, 60 Hz (U.S.A. and
Canada model), 240 V AC, 50 Hz (U.K. model) or 240 V
AC, 50/60 Hz (Australia model).
*Before connecting the unit to an AC outlet, be sure that the
operating voltage of your unit is identical with that of your
local power supply.

Hooking Up the System
Before You Begin la fote) dlalomesom-lam-Vssleliia(cia
¢Turn off the power to all equipment to be connected before
making any connection.
¢Note that the red plug of the supplied connecting cord is
for right-channel (R) connection and the white plug for left-
channel (L) connection.
©The connecting cords should be fully inserted into the jacks.
A loose connection may cause hum pickup.
2 Signal flow
LINE
IN
SL
=
TC.WRS45/WR741
to an AC outlet
ST
iz
Amplifier
REC
OUT
TAPE
INPUT
to
a
wall
outlet

Identifying
the
Parts
on
the
Front
Panel
Remote control sensor*
For details, refer to the page number(s) indicated in
parentheses.
[7] POWER switch
[2] Deck A
[3] COUNTER RESET button (deck A)
[4] RMS** operation buttons (TC-WR545 only) (pages 10, 11
and 18)
RMS/START button
SET button
CHECK button
DISPLAY button
(5) Display panel
[6] AUTO CAL button (TC-WR545 only) (page 14)
COUNTER RESET button (deck B)
SYNCHRO DUBBING buttons (page 16)
HIGH button
NORMAL button
[9] REC (recording) LEVEL control (pages 12 and 13)
(10 Deck B
({] BALANCE control (page 12)
(13 & (eject) button (deck B)
Se ree eee
(The illustration shows the TC-WR545.)
Tape operation buttons
<< (leftward fast-winding)/AMS***/RMS*— button
PP (rightward fast-winding)/ AMS***/RMS**+ button
@ (stop)/(RMS**) CLEAR button
J (reverse play)/(RMS**) BACK button
[> (forward play)/(RMS**) FRONT button
8 PAUSE button (deck B only)
O REC MUTE (record muting) button (deck B only)
(page 15)
@ REC (recording) button (deck B only)
{14 MPX FILTER switch (TC-WR545 only) (pages 13)
DOLBY NR (Dolby noise reduction) switch (pages 7 and
12)
DIR (direction) MODE switch (pages 7, 8, 12 and 16)
{{7] PHONES jack (stereo phone jack) (TC-WR545 only)
& (eject) button (deck A)
* Remote control sensor ;
You can remotely control this cassette deck with:
— A remote commander that came with a Sony amplifier
or receiver if it has the & mark and cassette deck control
capability.
— Any optional Sony remote commander with the & mark
and cassette deck control capability.
** Random Music Sensor (TC-WR545 only)
*** Automatic Music Sensor

weewgsewes Ge TF ICY RICIGA
sare Walalem stele
Follow the procedure below to play back a cassette on deck A or B.
1 Turn on the amplifier and select the tape
function.
3 Set DOLBY NR to the same position that
was used when the cassette was
recorded.
DOLBY NR
4 Set DIR MODE.
To play back to the
end of one side only
To play back both
sides continuously*
* After playing back five times, the deck
automatically stops.
5 Press <] or > to start playback.
To play back from the front side, press [> .
To play back from the reverse side, press <<] .
The tape direction lights up to show the side you
are listening.
To stop playback, press the IB button.
To stop playback momentarily, press the 11 button
(only on deck B).
To restart play, press the 18 , <J or > button.
To fastwind a tape rightward, press the PP button in
stop mode.
To fastwind a tape leftward, press the 44 button in
stop mode.
Specifying the tape type is unnecessary
The deck has an automatic tape-type detection system.
To begin recording during playback
While holding down the <I or [= button, press the @
button.
The unit immediately begins recording without stopping the
tape. This function is useful when editing previously
recorded material.
When both decks A and B are in playback mode
Only playback from deck A will be audible.
What is the Dolby NR system?
The Dolby NR (noise reduction) system reduces tape hiss
noise in low-level, high-frequency signals by boosting the
signals during recording and lowering them during
playback.
Note
The Dolby HX PRO system works only during recording, not
during playback (TC-WR545 only).

— Relay Play
Playing Back Both Decks in Succession
The Relay Play function plays back cassettes in deck A and deck B continuously and
in consecutive order.
2 Set DIR MODE to RELAY.
DIR MODE
= co
3 Press <J or [> to start playback of the
cassette to be listened to first.
To play back from the front side, press [> .
To play back from the reverse side, press <J .
To stop Relay Play
Press the button of the deck playing.
Playback sequence of Relay Play
Relay Play always follows the sequence below regardless of
where playback starts.
After playing back five times, Relay Play automatically
stops.
Deck A > Deck A
(Reverse side)
Deck B - Deck B
(Front side)
Playing back more than two cassettes in succession
Replacing cassettes that have finished playing with new ones
allows you to play back two or more cassettes alternately on
each deck.

Locating a Selection — Multi-AMS (Automatic |
WU yremelabiele)
Through its ability to detect the blank space between selections, the Multi-AMS
function allows you to skip up to 30 selections while fast-forwarding or reversing to
the beginning of a specific selection.
During playback, press <4 or >> as many
times as the number of selections to be
skipped.
Playback To locate a
direction selection after
indicator
* Pressing << or PP once locates the beginning of
the current selection.
Tape direction indicator: >=
+ : Beginning of selection
<«[e] <«<[i) [i] >» [ec]
Previous Current Next
selection selection selection
Each time the unit detects a
blank space, the indicated ae aad
Multi-AMS number decreases
by one.
©The PLAY indicator flashes
during Multi-AMS operation.
When the beginning of the
specified selection is reached,
the counter indication appears
again and playback
automatically restarts.
Changing the indicated number of selections to be
skipped
Press the <4 or P> button at any time, even during Multi-
AMS operation.
The Multi-AMS number may change as you are
setting it
due to the detection of blank spaces as the unit begins to
fastwind.
The Multi-AMS may skip a selection in the
following cases:
elf you press the PP (or 44 ) button immediately before
the selection.
elf there is noise in the space before the selection.
elf the space before the selection is less than four seconds
long.
The Multi-AMS will treat the following as blanks:
A long pause in the music
A passage of low frequencies or very low volume
¢A gradual increase or decrease in volume
The Multi-AMS does not function on both decks
simultaneously
The Multi-AMS is disabled on one deck whenever the other
deck is in playback, recording or pause mode.
Note
Even if the DIR MODE switch is set to > , the Multi-AMS
function does not extend to the other side, but stops when
the first side comes to an end.

Playing Back Automatically
Playing Back Selections in a
Specified Order
— RMS Playback (TC-WR545 Only)
After Rewinding — Auto Play
The Auto Play function automatically starts playing back a
cassette after fastwinding it to the beginning.
While holding down [> or <1, press <<
or p>.
From the
beginning
of...
While
pressing...
10
The RMS (Random Music Sensor) function allows you to
determine the playback order of specific selections. You can
choose from selections 1 to 14 on each side of a tape in deck
A to create a program of up to 28 selections.
1 While the tape is stopped, press RMS/
START.
The RMS indicator and a flashing cursor
appear in the display window and the unit
enters RMS mode.
Program No.
Selection No.
wt 6,
samc
12 3 4 § 6 7 8 9M 1011 12 13 14
2 Press [> or <1 to select the front or back
side of the tape, and << or PP to specify
the selection.

3 Press SET to program a selection.
The program number increases by one and the
specified selection is programmed.
To program the same selection repeatedly, press
SET as many times as required. The same
selection is programmed for consecutive program
numbers.
Program No.
Selection No.
=
ie 123 45 6 7 8 9 10 11 12 13 14
4 Repeat steps 2 and 3 to program other
selections.
Accursor lights up to mark each programmed
selection.
5 After programming the last selection,
press RMS/START to start RMS playback.
The unit rewinds the tape to the beginning of the
first side, then goes to the first selection using the
Multi-AMS function. After RMS playback
finishes, deck A remains in RMS mode.
To stop RMS playback
Press the li button.
To cancel RMS mode
Press the i button repeatedly until the peak level meter
display reappears or eject the tape in deck A. When RMS
mode is cancelled, the RMS program is automatically erased.
To erase the program
While programming, press the ll button. The program
number returns to 0 and the cursor flashes above selection 1
in the display window.
To add selections to a program
Press the @ button on deck A during RMS playback, or wait
until RMS playback ends, then use the << or PP button to
add new selections to the existing program.
To check the contents of a program
Press the CHECK button anytime while RMS mode is active.
Pressing the button shows each programmed selection in the
order they were programmed, starting with the first.
Pressing the button after the last selection causes “End” to
appear momentarily in the display window.
To alternate between the RMS and peak level
meter displays
Press the DISPLAY button. The peak level meter display
does not change if there is no RMS program.
When “FULL” flashes in the display window
This means that you have programmed 28 selections.
Notes
¢ During RMS playback, the CHECK, DISPLAY, &@ buttons
on deck A, and the << , PB , H buttons on deck B are
operative.
¢The Multi-AMS function may skip a selection if:
— there is noise in the space before the selection.
— the space before the selection is less than four seconds
long.
elf there is a blank space of more than 13 seconds long, the
unit will fast-forward the tape until the end of the blank
space.
elf the unit encounters a program number that exceeds the
number of selections on the tape, the unit fast-forwards the
tape to the end, erases that and all excessive program
numbers from the program, then continues RMS playback
if program numbers for existing selections remain, or stops
RMS playback if no program numbers remain.
RMS Programming Using a Sony Stereo
Receiver Remote Commander
If you have a Sony stereo receiver with a remote commander
with RMS operation buttons, you can use the remote
commander to perform RMS programming.
1 Turn on the receiver and press TAPE.
2 Press RMS/START.
3 Press B> or ~@@ to select the front or back side of the tape,
and the numeric keys and the >10 key to specify the
selections.
4 Press RMS/START again to start RMS playback.
Note
For more information on the availability of Sony stereo
receivers with a remote commander with RMS capability,
contact your nearest Sony dealer.
11

unapter s xecoraing
s{raolaellalem (Olah aelam Ol-14 a3)
Follow this procedure to record a source on a cassette (deck B only).
insert a cassette into deck B.
Wind the tape to the recording starting
position if neccessary.
Perform automatic calibration, if desired
(see page 14) (TC-WRS545 only).
if not, go to step 3.
3 Set DOLBY NR.
DOLBY NR
12
To record on one side
DIR MODE
To record on both sides
= oS
=> <<
Note
Even at the > position, recording automatically
stops when the tape reaches the end of reverse
side.
5 Press @ to enter the recording pause
mode.
Note
The direction indicator for the side opposite the
specified one will flash for three seconds to
indicate that recording is possible on that side
also. If, however, the tab for that side has been
removed to prevent recording, the indicator will
not flash.
If the tab has been removed from either side A or
B, recording is impossible on the side(s).
To record on a tape that is protected, cover the
respective hole with tape. See "Protecting a
Recording" on page 13.
6 Play the program source to be recorded.
7 Turn REC LEVEL to adjust the recording
level.
See “Adjusting the Recording Level” on page 13.
8 Turn BALANCE to adjust the balance.
9 Restart the program source, if required.
1 0 Start recording.
To record on the front side of the cassette
Press E> once or It.
To record on the reverse side of the cassette
[When<Jison [Press <Jonce or IN.
Note
Pressing <J or [> twice will cause the unit first
to change tape direction and then start recording
in that direction.
To stop recording
Press the f@ button.

Adjusting the Recording Level
The proper recording level, which differs according to the
tape type, is indicated on the peak level meter for each tape
type.
Adjust the REC LEVEL control as high as possible without
exceeding the recommended range for the inserted tape.
Peak level meter readings by tape type
Recommended maximum peak level meter readings.
reget —30 -20 -10 -4 oo 0 +4 +8
R a ee ee ee ee ee ee ee
for TYPE | or TYPE li
tape
for TYPE IV tape
Tips on recording level adjustment
Setting the recording level too low will produce a hissing
sound, while setting it too high will produce distortion.
Generally, the proper recording level for high and low
frequencies is lower than that for middle frequencies. When
recording program sources with many high and low
frequencies, set the level to a relatively low position, then
make adjustments according to recording results.
Recording FM Broadcasts with the Dolby NR
System (TC-WR545 Only)
If your tuner does not have an MPX (multiplex) filter, or, if
equipped, the filter is not working effectively, set the MPX
FILTER switch to ON when recording FM broadcasts with
the Dolby NR system.
The multiplex filter eliminates remnants of the 19 kHz stereo
carrier and 38 kHz subcarrier signals which may impair the
operation of the Dolby NR system. Be sure to turn on the
MPX FILTER switch when using the Dolby NR system.
What Is the Dolby HX PRO System?
(TC-WR545 Only)
The Dolby HX PRO system provides precise bias control
during recording to reduce distortion and improve linearity
in the high-frequency range. The result is recorded sound
that is highly faithful to the original. Since the HX PRO
system operates only during recording, the same high-
quality sound is produced even during playback on other
tape decks, The HX PRO system is independent from the
Dolby NR system and is unaffected by the Dolby NR setting.
Protecting a Recording
To protect a recording on side A or B
Break out the respective tab.
Side A
Tab for
oO
b
side B Tab for
side A
To record on a cassette that is protected
Cover the respective hole with tape.
When using TYPE II or TYPE IV cassettes
automatic tape-type detection.
TYPE II cassette TYPE SV cassette
Detector
Ta 1 Tab Tab
Detector
slots
Tab
Be careful not to cover the detector slots which are necessary for
Cassette Care
¢ Avoid touching the tape surface of a cassette to prevent
contamination of the heads by dirt, dust, or oil on the skin.
Keep cassettes away from equipment with magnets, such
as speakers and amplifiers, as erasure or distortion of the
recorded tape could occur.
¢Do not expose cassettes to direct sunlight, extremely cold
temperatures, or moisture.
Note on cassettes longer than 90 minutes
We do not recommend the use of cassettes longer than 90
minutes except for long continuous playback.
13

Automatic
Bias
Current
and
Recording
Level
Calibration (TC-WR545 Only) ~
Though the Automatic Tape Selection (ATS) system in your unit automatically sets the
equalization characteristics, bias current and recording level to suit the magnetic properties of
each tape type, doing the automatic calibration procedure below for the bias current and
recording level may allow you to get even better recording results, especially in conjunction
with the Dolby NR system.
3 Press ll.
The unit fastwinds a short distance, the counter
begins counting down from 9 to 0 and the unit
performs recording, rewinding and playback as
part of the calibration process.
Ca] » ae
PAUSE
After automatic calibration is completed, the tape
rewinds to the original position, the counter
returns to normal and the unit stops.
1 Press AUTO CAL.
The CAL indicator on the display panel lights up,
CAL appears on the counter and the unit enters
recording pause mode.
4 Continue with step 3 on pages 12 to
record a source.
ad ’
CAL RECMN LL Ai L
To cancel the automatic calibration function
Press the Ml button.
Press [> or < to select the side to be
recorded. Notes on recalibration
As long as the unit stays on, all calibration data are saved
and applied by the system whenever you insert a cassette of
To select the front side, press > .
To select the reverse side, press <1] .
If there is no response when you press either
button, that side is record protected and cannot
be used for recording.
See "If the cassette is record protected” on next
page.
14
the same type (1, II or IV).
The CAL indicator lights up when existing calibration data
are applied. However, since cassettes of the same type also
vary in their characteristics, we recommend that you repeat
the automatic calibration procedure each time you insert a
new cassette.
To recalibrate:
1 Insert the cassette.
The CAL indicator lights up.
2 Press AUTO CAL.
The CAL indicator turns off and the unit recalls the
existing calibration data for that tape type.
3 Continue from step 1 of the automatic calibration
procedure.

Notes
Since the unit records a test tone on the tape during
automatic calibration, recorded material on the tape is
erased where the test tone is recorded.
¢We recommend the use of relatively new tape and clean
heads to obtain the best calibration results. Excessively
worn tape or dirty heads may result in incorrect calibration
values.
¢ All calibration data are erased when you turn off the unit.
¢The automatic calibration function works only when both
decks are stopped.
Playback on deck A is disabled during automatic
calibration on deck B.
elt is unnecessary to select the Dolby NR system when
performing automatic calibration since the Dolby NR
setting does not affect the calibration results.
lf the CAL indicator flashes continuously
The automatic calibration process has been interrupted by:
— The end of the tape. Reverse the tape direction or
fastwind to a new position that allows recording of the
test tone.
— Damaged tape or dirty heads, Change the cassette or
clean and demagnetize the heads.
If the cassette is record protected
¢If both record-protect tabs have been removed (see page
13), the CAL indicator flashes three times and automatic
calibration cannot be performed.
elf only the selected side is protected, the direction indicator
for the other side flashes and calibration is possible only in
that direction.
If you attempt to change from an unprotected toa
protected side in step 2, the unit will not respond and
automatic calibration is possible only in the selected
direction.
The Record Muting function allows you to insert a four-
second blank between selections to enable proper Multi-
AMS operation (see page 9), or replace unwanted recorded
material with a blank of any length.
1 While recording, press and release O.
The REC indicator starts to flash. During this
time, no incoming signals are recorded on the
tape.
After four seconds, the Hf indicator lights up and
the unit enters recording pause mode.
Lo} » Sigs
REC MUTE
2 Press II to resume recording.
Lu]
PAUSE
Note
Pressing the O button during normal-speed dubbing (see
page 16) does not affect playback on deck A.
To create a blank longer than four seconds
Press the O button for the specified length of time. After four
seconds, the REC indicator flashes at a faster rate. When you
release the O button, the Ill indicator lights up and the unit
enters recording pause mode.
Press the If button to resume recording.
15

Chapter 4 Other Operations
Use the dubbing function to copy a tape in deck A to a tape in deck B. High-speed dubbing is
convenient for dubbing entire tapes while normal-speed dubbing is handy for tape editing.
1 Insert cassettes into both tape decks.
Recorded tape Blank tape
into deck A into deck B
DIR MODE Dubbing of the
reverse side starts
==—LUtpaay independently of
= deck A.
Both sides
DIRMODE Dubbing of the
reverse side starts
= simultaneously
= => with deck A.
3 Press HIGH or NORMAL to select the
dubbing speed.
SYNCHRO DUBBING AB
~ ~~
ote NGL |
47 ys
16
4 Select the side on which to start dubbing.
To dub from the front side, press [> .
To dub from the reverse side, press <1.
5 Press Il on deck B to start dubbing.
To stop dubbing
During normal-speed dubbing, press the ll button on deck
B.
During high-speed dubbing, press the ll button on either
deck A or B.
During high-speed dubbing
Only the lf button is operative.
lf the NORM or HIGH speed indicator flashes three
times
Either one or both tabs of the cassette inserted into deck B
have been removed, making dubbing impossible for that
side. Cover the hole(s) with tape (see page 13).
Is it necessary to adjust the recording level and
select the Dolby NR system?
It is unnecessary since the tape in deck B is automatically
recorded with the same recording level and Dolby noise
reduction system as the original in deck A.
The Dolby system must, however, be set to match the tape in
deck A when the sound is monitored during normal-speed
dubbing.
Note on tape dubbing
If the sound is affected by the proximity of a television set
during high-speed dubbing, turn the television set off or
move it away from the deck.

Dubbing Only
Specific
Portions
_
Follow this procedure to dub only specific portions of
selections. Note that this is only possible in the normal-speed
dubbing mode.
1 During dubbing, press Mi on deck A at the
start of a selection to be skipped.
Deck A enters the stop mode and deck B enters
the recording pause mode.
2 Locate the starting position of the
portion to be dubbed on deck A.
=
eRe rear e a! Lo.
or
Vv
a
CLEAR
3 Press Il on deck B to resume dubbing.
17

Dubbing Selections in a Specified Order
— RMS Dubbing (TC-WR545 only) —
Follow this procedure to dub selections being played back from an RMS program. Noie that
RMS dubbing takes place only at normal playback speed.
8 Press RMS/START or Il on deck B to start
dubbing.
RMS/START
ed
Deck B enters recording pause mode while deck
A searches for the selection to be played. When
playback starts on deck A, dubbing automatically
starts on deck B. This is preceded by the
recording of a 10-second blank on the tape in
deck B if you begin dubbing right after:
*you insert the cassette into the deck.
*you fastwind the tape by pressing << (or >> )
allowing the deck to stop automatically when the
tape reaches the end.
1 Insert cassettes into both tape decks.
2 While the tape is stopped, press RMS/
START.
3 Press [> or <J to select the front or back
. . To stop RMS dubbing
side of the tape, and << or P> to specif
hae sel ice e sik Press the ll button on deck B. RMS dubbing stops and the
unit returns to RMS mode.
4 Press SET to program a selection. =
5 Repeat steps 3 and 4 to program other
selections.
6 Press NORMAL to change the unit to
dubbing standby mode.
7 Select the side of the tape in deck B to be
dubbed.
To dub on the front side, press [> .
To dub on the reverse side, press <I] .
You can press O to make a blank space of four
seconds or more on the tape in deck B before the
start of RMS dubbing. For details, see page 15.

Chapter 5 Additional ‘Information
WiFeViaias areata
Cleaning the Heads and Tape Path ol -Taarclotal-aaratale mdal-Ma(-rclets
Clean
all
surfaces
over
which
the
tape
travels
after
every
ten
After
20
to
30
hours
of
use,
or
when
you
notice
hiss
and/or
hours
of
operation
to
guard
against:
loss
of
high
frequencies,
the
residual
magnetism
built
up
on
—
low-quality
sound
the
heads
should
be
removed.
—
a
decrease
in
sound
level
—
excessive
wow,
flutter
or
drop-out
1
Turn off
the
power.
-—
incomplete
erasure
—
impairment
of
recording
function
2
Demagnetize
the
heads
with
any
commercially
available
demagnetizer.
To
obtain
high-quality
recorded
sound,
we
recommend
Refer
to
the
instruction
manual
of
the
cleaning before
every
recording.
demagnetizer
for
detailed
instructions.
1 Press S to open the cassette holder. Grasp the
front holder on both sides and gently lift to
remove
it.
fei
[=reTal
tale
dalzm
@t-]
oybal=s
|
2 With the unit turned off, wipe the heads, the Clean the cabinet, panel and controls with a soft cloth
pinch rollers and the capstans with a cotton slightly moistened with a mild detergent solution.
swab slightly moistened with alcohol or a Do not use any type of abrasive pad, scouring powder or
commercially available cleaning fluid for tape solvents such as alcohol or benzine.
decks.
3 Replace the cassette holder.
TC-WRS45
»)
ED ACh en
Recording/
Playback
Erasing head
head
Pinch
rollers
Do not insert a cassette until the cleaned areas are
completely dry.

Recording system 4-track 2-channel stereo General
Fast winding time Approx. 90 sec. (with Sony C-60 Power requirements | Model for U.S.A. and Canada:
cassette) 120 V AC, 60 Hz
Bias AC bias Model for the United Kingdom:
Signal-to-noise ratio (at peak level and weighted) 240 V AC, 50 Hz
Cassette
Type
IV
Type
II
Type
I
Model
for
Australia:
(Dolby
NR
240
V
AC,
50/60
Hz
OFF)
58
dB
57
dB
Power
consumption
25W
Dimensions TC-WR545 (for U.S.A. and Canada):
S/N ratio improved (approximate values) Approx. 430 x 123 x 290 mm
with Dolby B NR on: 5 dB at 1 kHz; 10 dB at 5 kHz (w/h/d)
with Dolby C NR on: 15 dB at 500 Hz; 20 dB at 1 kHz (17 x 47/s x 11 '/2 inches)
TC-WR545 (for the United
Harmonic distortion Kingdom and Australia):
0.4% (with Sony Type I, 160 nWb/m, Approx. 430 x 123 x 300 mm
315 Hz, 3rd H.D.) (w/h/d)
1.8% (with Sony Type IV, 250 nWb/m, (17 x 47/sx 11 7/s inches)
315 Hz, 3rd H.D.) TC-WR741:
Frequency response (Dolby NR OFF) Approx. 430 x 118 x 290 mm
(w/h/d)
Type
IV
Type
II
Type
I
(17
x
43/4X
11
'/2
inches)
cassette cassette cassette including projecting parts and
30 - 18,000 Hz |30- 17,000 Hz |30- 15,000 Hz
controls
(43 dB, IEC) |(43 dB, IEC) (43 dB, IEC) Mass Approx. 4.5 kg (9 Ibs 15 oz)
30 - 13,000 Hz
[+3 dB (-4 dB)
recording]
Supplied accessories
Audio connecting cords (2)
Optional accessories
Type IV: Sony Type IV (METAL) Wireless remote commander RM-J902
Type II: Sony Type II (HIGH)
Typel: Sony Type I (NORMAL) Design and specifications are subject to change without
notice.
bes
Wow
and
flutter
+0.14%
W.Peak
(IEC)
0.08%
W.RMS
(NAB)
+0.19%
W.Peak
(DIN)
Inputs
(phono jacks) Input impedance 47 k ohms
Outputs
Line outputs Rated output 0.5 V at a. load
(phono jacks) level impedance of
47 k ohms
Load impedance | Over 10 k ohms
Headphones Output level 1 mW ata load
(stereo phone jack) impedance of
(TC-WR545 only) 32 ohms
