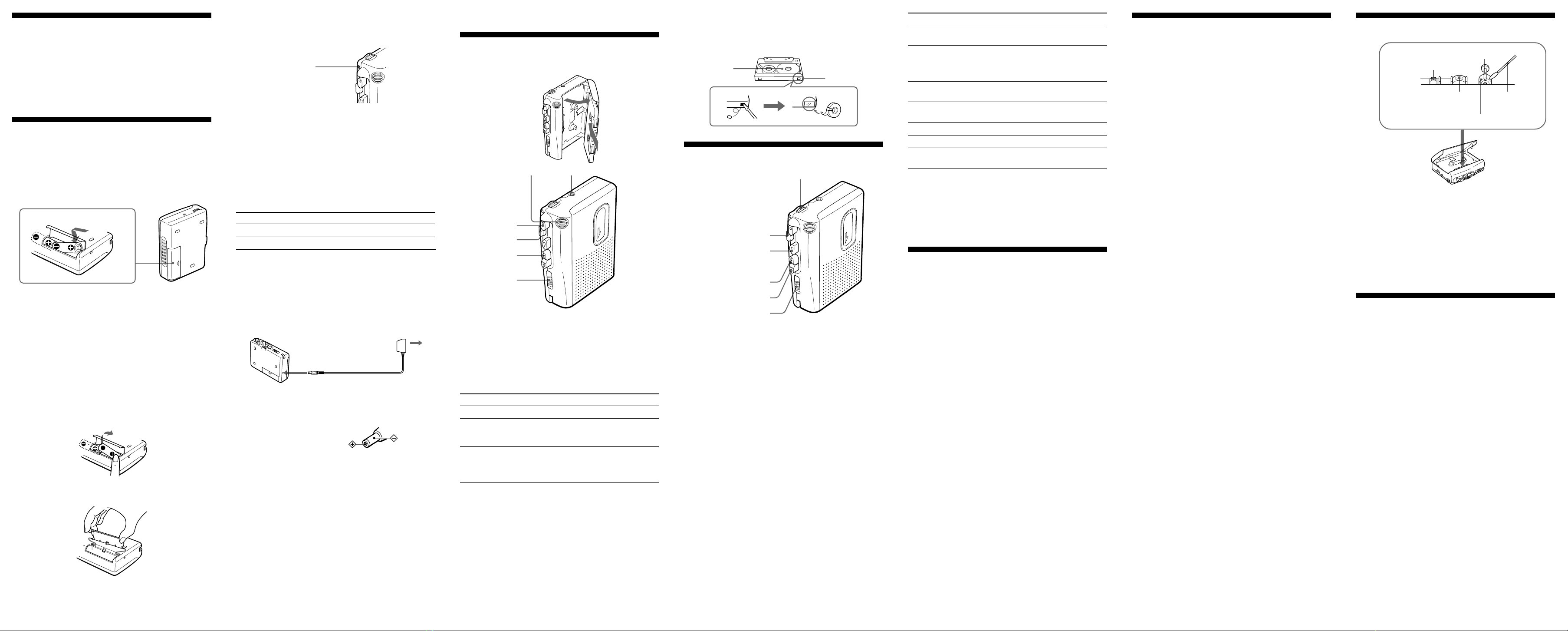

Cassette-Corder
Sony Corporation 1998 Printed in China
TCM-333/323

To prevent a tape from being accidentally
recorded over
Break out and remove the cassette tabs. To reuse the tape
for recording, cover the tab hole with adhesive tape.
A
Playing a Tape
1Insert a cassette with the side to start playing facing
the cassette holder.
2Press (PLAY then adjust the volume. There is a
raised dot to show the direction to turn down volume
beside VOL.
At the end of the tape, playback stops and the unit turns
off automatically.
If you plug in headphones (not supplied) to the EAR
jack, you will get monaural output from both left and
right channels.
About This Manual
The instructions in this manual are for TCM-333 and
TCM-323. Before you start reading, check your model
number. TCM-333 is the model used for illustration
purposes. Any differences in operation are clearly
indicated in the text, for example, “TCM-333 only”.
zGetting Started
Preparing a Power Source
Choose one of the following power sources.
Dry Batteries
Make sure that nothing is connected to the DC IN 3V jack
( TCM-333 only ).
1Open the battery compartment lid.
2Insert two size R6 (AA) batteries (not supplied) with
correct polarity and close the lid.
Notes
•Do not charge a dry battery.
•Do not use a new battery with an old one.
•Do not use different types of batteries.
•When you do not use the unit for a long time, remove the
batteries to avoid any damage caused by battery leakage and
subsequent corrosion.
•(TCM-333 only) Dry batteries will not be expended when
another power source is connected.
To take out the batteries
To attach the battery compartment lid if it is
accidentally detached
When to replace the batteries
Replace the batteries with new ones when the BATT
lamp dims.
Notes
•After the batteries have been used for a while, the BATT
lamp may flicker with the playback sound when you turn up
the volume; however, this does not mean that you need to
replace the batteries.
•The unit will play back normally for a while even after the
BATT lamp dims. However, replace the batteries as soon as
you can. If you do not, subsequent recording will not be done
correctly.
Battery life (Approximate hours) (EIAJ*)
Playback Recording
Sony alkaline LR6 (SG) 11 11
Sony R6P (SR) 3 3
* Measured value by the standard of EIAJ(Electronic Industries
Association of Japan). (Using a Sony HF series cassette tape)
Note
The battery life may shorten depending on the operation of the
unit.
House Current (TCM-333 only)
Connect the AC power adaptor to DC IN 3V and to the
wall outlet. Use the AC-E30HG AC power adaptor (not
supplied). Do not use any other AC power adaptor.
Note
Specifications for AC-E30HG varies for each area. Check your
local voltage and the shape of plug before purchasing.
To
Stop playback/stop fast
forward or rewind
Pause playback
Search forward during
playback (CUE)
Search backward during
playback (REVIEW)
Fast forward**
Rewind**
Start recording
during playback
* PAUSE cwill be also automatically released when pSTOP
is pressed (stop-pause-release function).
**If you leave the unit after the tape has been wound or
rewound, the batteries will be consumed rapidly. Be sure to
depress pSTOP.
zAdditional Information
Precautions
On power
•Operate the unit only on 3V DC.
For AC operation, use the AC power adaptor
recommended for the unit. Do not use any other type
(TCM-333 only).
For battery operation, use two size R6 (AA) batteries.
On the unit
•Do not leave the unit in a location near heat sources, or
in a place subject to direct sunlight, excessive dust or
mechanical shock.
•Should any solid object or liquid fall into the unit,
remove the batteries or disconnect the AC power
adaptor (TCM-333 only), and have the unit checked by
qualified personnel before operating it any further.
•Keep personal credit cards using magnetic coding or
spring-wound watches etc. away from the unit to
prevent possible damage from the magnet used for the
speaker.
•If the unit has not been used for a long time, set it in the
playback mode and warm it up for a few minutes
before inserting a tape.
On tapes longer than 90 minutes
We do not recommend the use of tapes longer than 90
minutes except for a long continuous recording or
playback. They are very thin and tend to be stretched
easily.
If you have any questions or problems concerning your
unit, please consult your nearest Sony dealer.
zOperating the Unit
Recording
You can record right away with the built-in microphone.
1Insert a normal (TYPE I) tape with the side to start
recording facing the cassette holder.
2Press rREC.
Recording starts.
At the end of the tape, recording stops and the unit turns
off automatically.
To Press or slide
Stop recording pSTOP
Pause recording PAUSE cin the direction of the arrow.
To release pause recording, release
PAUSE c*.
Review the portion Press and hold 0REW/REVIEW
just recorded during recording.
Release the button at the point to start
playback.
*PAUSE cwill be also automatically released when pSTOP
is pressed (stop-pause-release function).
To monitor the sound
Connect an earphone (not supplied) firmly to the EAR
jack.
Note
Do not use a CrO2(TYPE II) or metal (TYPE IV) tape, otherwise
the sound may be distorted when you play back the tape, or the
previous recording may not be erased completely.
BATT lamp
Polarity of the plug
EAR
rREC
pSTOP
0REW/
REVIEW
PAUSE c
Built-in
microphone
Troubleshooting
Should any problem persist after you have made these
checks, consult your nearest Sony dealer.
You cannot press rREC.
mThe tab on the tape has been removed.
You cannot press (PLAY.
mThe tape has reached the end. Rewind the tape.
The unit does not operate.
mThe batteries have been inserted with incorrect
polarity.
mThe batteries are weak.
mPAUSE cis slid in the direction of the arrow.
mThe AC power adaptor or car battery cord is not
firmly connected (TCM-333 only).
mThe batteries have been inserted, but
simultaneously the AC power adaptor is connected
and not to be done to the wall outlet (TCM-333
only).
No sound comes from the speaker.
mThe earphone is plugged in.
mThe volume is turned down completely.
The sound drops out or comes with excessive
noise.
mThe volume is turned down completely.
mThe batteries are weak.
mThe heads are contaminated. See “Maintenance.”
Recording cannot be made.
mConnection is made incorrectly.
mThe batteries are weak.
mThe record / playback head is contaminated.
Recording cannot be erased completely.
mThe erase head is contaminated.
mRecording or erasing is being made using recorded
CrO2(TYPE II) or metal (TYPE IV) tape.
VOL
pSTOP
(PLAY
0REW/REVIEW
)FF/CUE
PAUSE c
Tab for side A
Side A
Maintenance
To clean the tape heads and path
Wipe the heads, pinch rollers, and the capstans with a
cotton swab moistened with alcohol every 10 hours of
use.
To clean the exterior
Use a soft cloth slightly moistened in water. Do not use
alcohol, benzine or thinner.
Specifications
Recording system
2-track 1 channel monaural
Frequency range
250 - 6,300 Hz
Speaker
Approx. 3.6 cm (17⁄16 in.) dia.
Power output
130 mW (at 10 % harmonic distortion)
Output
Earphone jack (minijack) for 8 - 300 ohms earphone
Power requirements
•Two size R6 (AA) batteries (not supplied): 3V DC
•DC IN 3 V jack (TCM-333 only) accepts:
– AC-E30HG AC power adaptor (not supplied) suitable in
the country where the unit is to be used.
– Sony DCC-E230 car battery cord (not supplied) for use on
12 V car battery.
Dimensions (w/h/d) (incl. projecting parts and controls)
Approx. 112 ×91 ×36.5 mm (41⁄2×35⁄8×17⁄16 in.)
Mass (not incl. batteries)
Approx. 170g (6.0 oz)
Design and specifications are subject to change without notice.
DC IN 3V
AC power adaptor
Press or slide
pSTOP
PAUSE cin the direction of the
arrow.
To release pause playback, release
PAUSE c*.
Press and hold )FF/CUE and
release it at the point you want
Press and hold 0REW/REVIEW
and release it at the point you want
)FF/CUE during stop
0REW/REVIEW during stop
rREC
Erase head
Cotton swabRecord/playback head
Pinch-roller
Capstan
